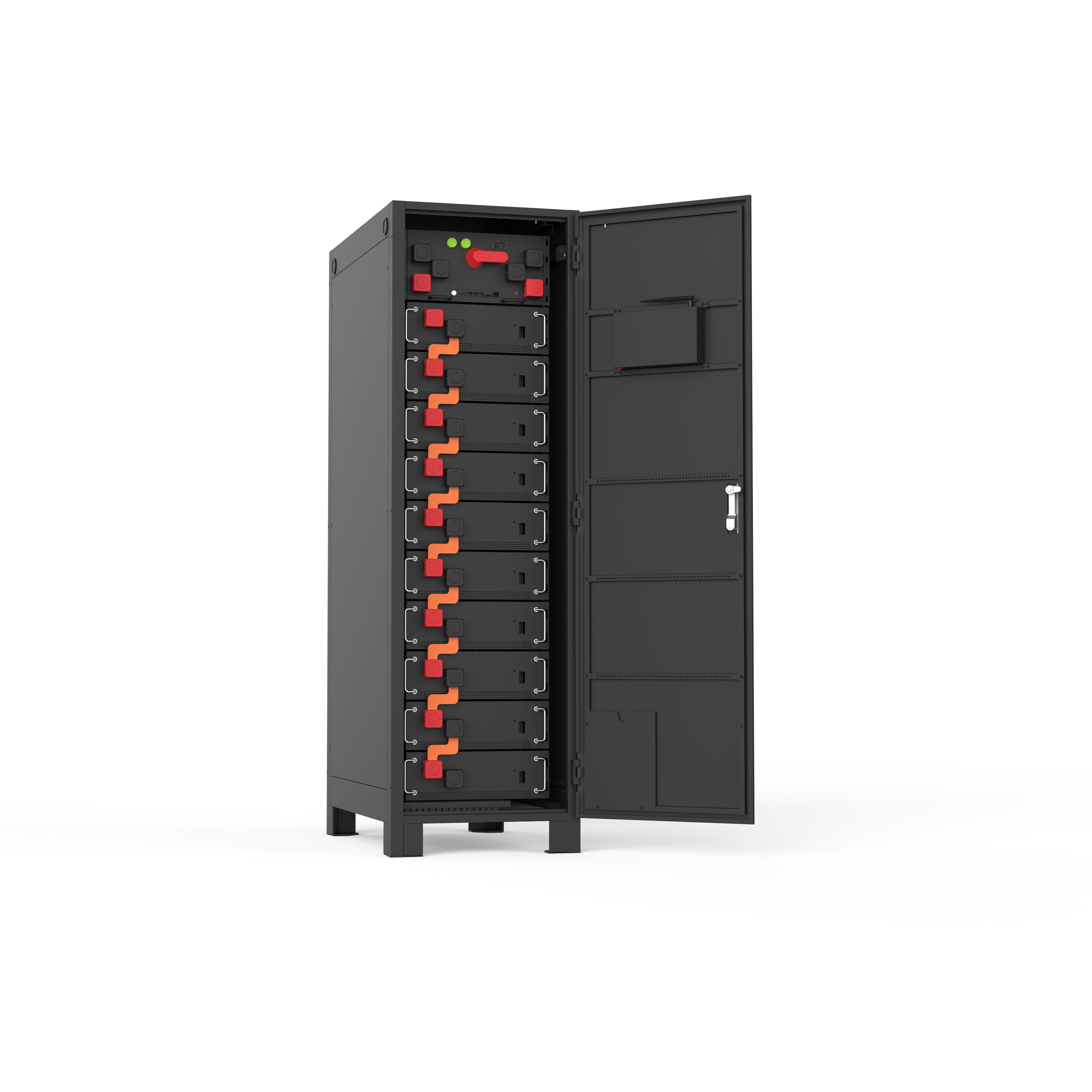

BU Long-time Backup Power Series

Product features

Main application areas

Safest and durable life

• Adopt high energy density and safetest lithium iron battery

3-level architecture for battery manangement

• Multiple classes battery management,reliable and high effificiency

Multiple output communication interfaces

• A variety of communication methods can be selected, and these communication protocols are in line with international standards.

Automatic circulating current control and parallel or offline control

• Easily realize the parallel operation by automatic circulating current control and parallel control


Leoch offers a safe LiFePO4 battery solution for UPS and energy storage systems with good compatibility and safe long cycle life. The battery system consists of a three-level architecture, with a module-level management system BMU integrated in the battery pack, which is responsible for collecting the information of single cell voltage, module temperature, battery equalization, and communication with upper management system. The adopted CBMS cabinet-level management system is responsible for battery current detection, data collection and analysis, alarm and protection control, and communication with the upper and lower levels. The general control GBMS is responsible for data analysis, lower level system communication, and UPS communication.

Specification
Model

Nominal Voltage(V)

Nominal capacity(Ah)

Rack size(mm)

Pack quantity

weight(kg)

Maximum discharge rate

Cell typeOperating voltage range(V)

Charging method

Charging voltage(V)Charging current range(A)Discharge current range(A)Backup characteristics
Max parallel quantityTemperature environmentHumidity environment
Thermal management mode

Communication mode

BU256V200
256V
200Ah600*1000*2000mm5
600kg1CLFP224V~276VCC/CV276V10~100A200A50.6kW-60Mins15
5%~95%Air coolingRS 485/LAN/CAN/Dry contact
BU307V200307V200Ah600*1000*2000mm6680kg
1CLFP268V~331V331V10~100A200A60kW-60Mins15
BU358V200
358V200Ah600*1000*2000mm7760kg1CLFP313V~386V386V
10~100A200A70kW-60Mins15
BU409V200409V200Ah600*1000*2000mm8840kg
1CLFP358V~441V
441V10~100A200A81kW-60Mins
15
BU460V200460V200Ah600*1000*2000mm9920kg1CLFP403V~496V496V10~100A200A91kW-60Mins
15
BU512V200512V200Ah600*1000*2000mm101000kg1CLFP448V~552V552V10~100A200A101.3kW-60Mins15
BU563V200563V200Ah600*1000*2300mm111100kg1CLFP492V~607V607V
10~100A200A111kW-60Mins15
BU614V200
614V
200Ah600*1000*2300mm121180kg1CLFP537V~662V662V10~100A200A121kW-60Mins15
BU665.6V200
665.6V200Ah1200*1000*2000mm131440kg
1CLFP492V~607V607V10~100A200A132.6kW-60Mins15
BU716V200
716.8V200Ah1200*1000*2000mm141520kg1CLFP537V~662V662V10~100A200A142.8kW-60Mins
15
