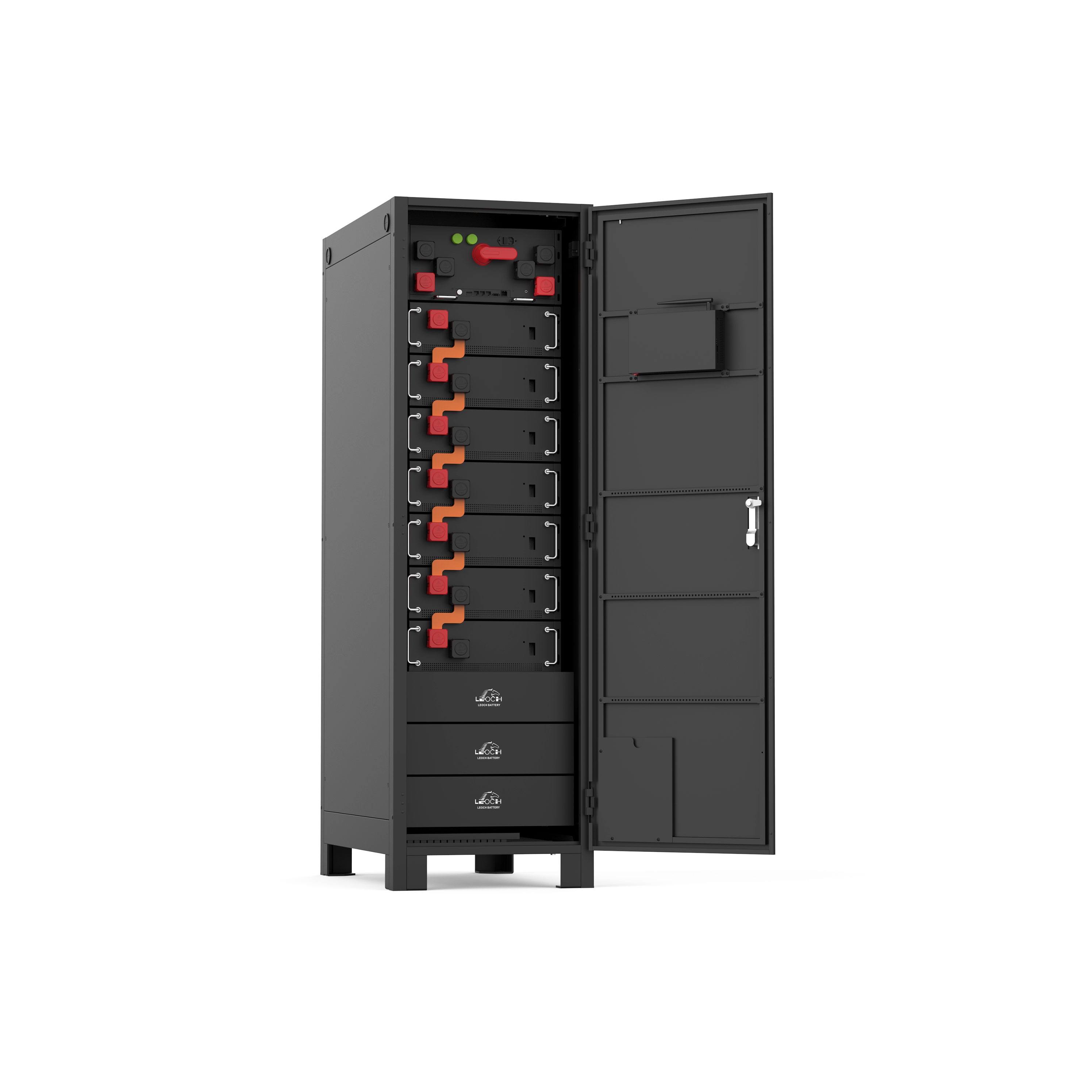

HDU HVDC Short-time Backup Power Series
Main application areas
Safest and durable life
• Adopt high energy density and safetest lithium iron battery
3-level architecture for battery manangement
• Multiple classes battery management,reliable and high effificiency
Multiple output communication interfaces
• A variety of communication methods can be selected, and these communication protocols are in line with international standards.
Automatic circulating current control and parallel or offline control
• Easily realize the parallel operation by automatic circulating current control and parallel control
Leoch offers a safe LiFePO4 battery solution for UPS and energy storage systems with good compatibility and safe long cycle life. The battery system consists of a three-level architecture, with a module-level management system BMU integrated in the battery pack, which is responsible for collecting the information of single cell voltage, module temperature, battery equalization, and communication with upper management system. The adopted CBMS cabinet-level management system is responsible for battery current detection, data collection and analysis, alarm and protection control, and communication with the upper and lower levels. The general control GBMS is responsible for data analysis, lower level system communication, and UPS communication.
Maximum discharge rate
|Cell type||Operating voltage range(V)|
|Charging voltage(V)||Charging current range(A)||Discharge current range(A)||Backup characteristics||Max parallel quantity||Temperature environment||Humidity environment||Thermal management mode|
|HDU240V50||256V||50Ah||600×1000×2000||5||350||4C||LFP||224V~276V||CC/CV||276V||10~25A||0~200A||47kW-15Mins||15||Charging: 0°C ~ 35°C Discharge: -20°C ~ +60°C Stash: 5°C ~ +45°C||5%~95%||Air cooling||RS 485/LAN/CAN/Dry contact|
