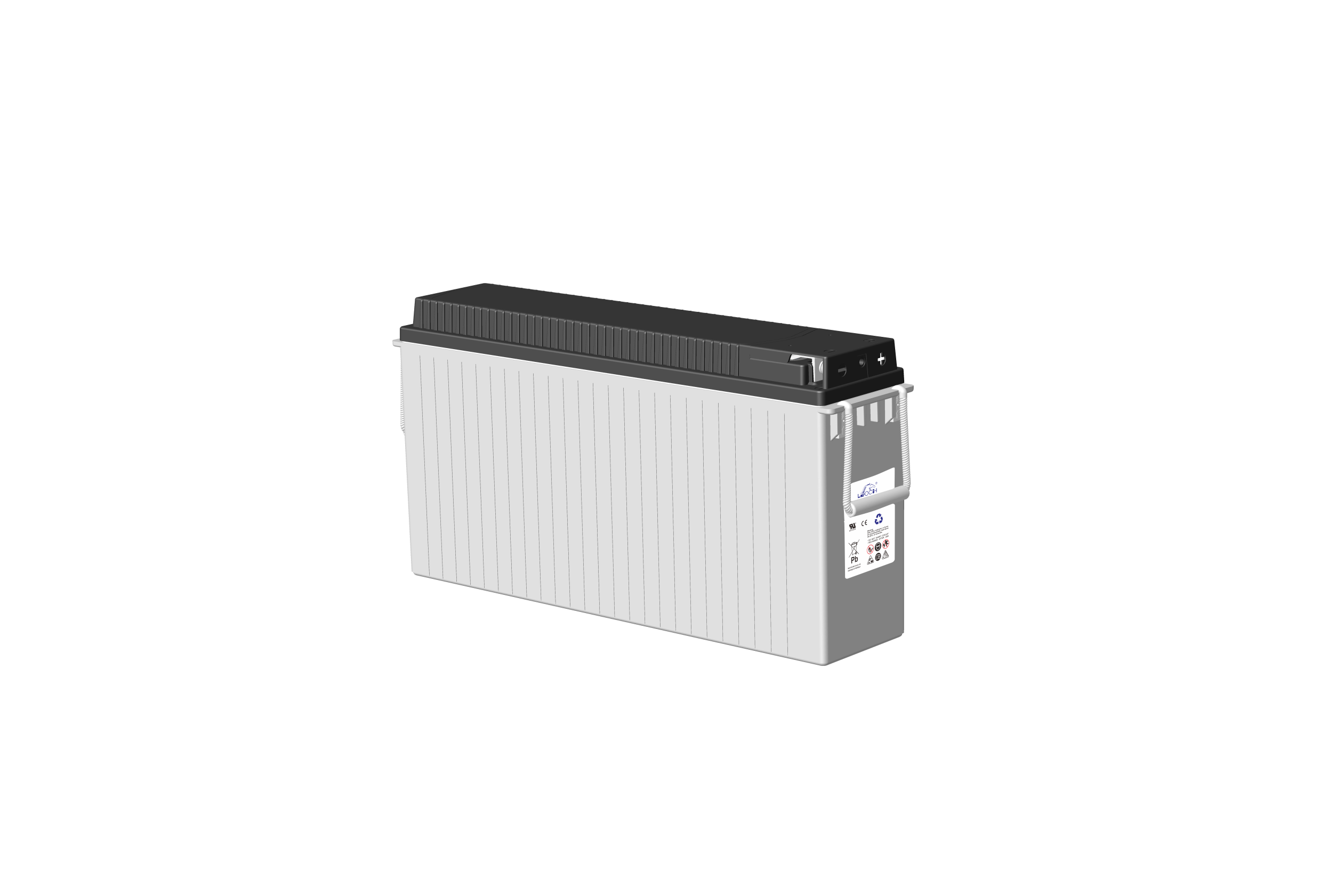

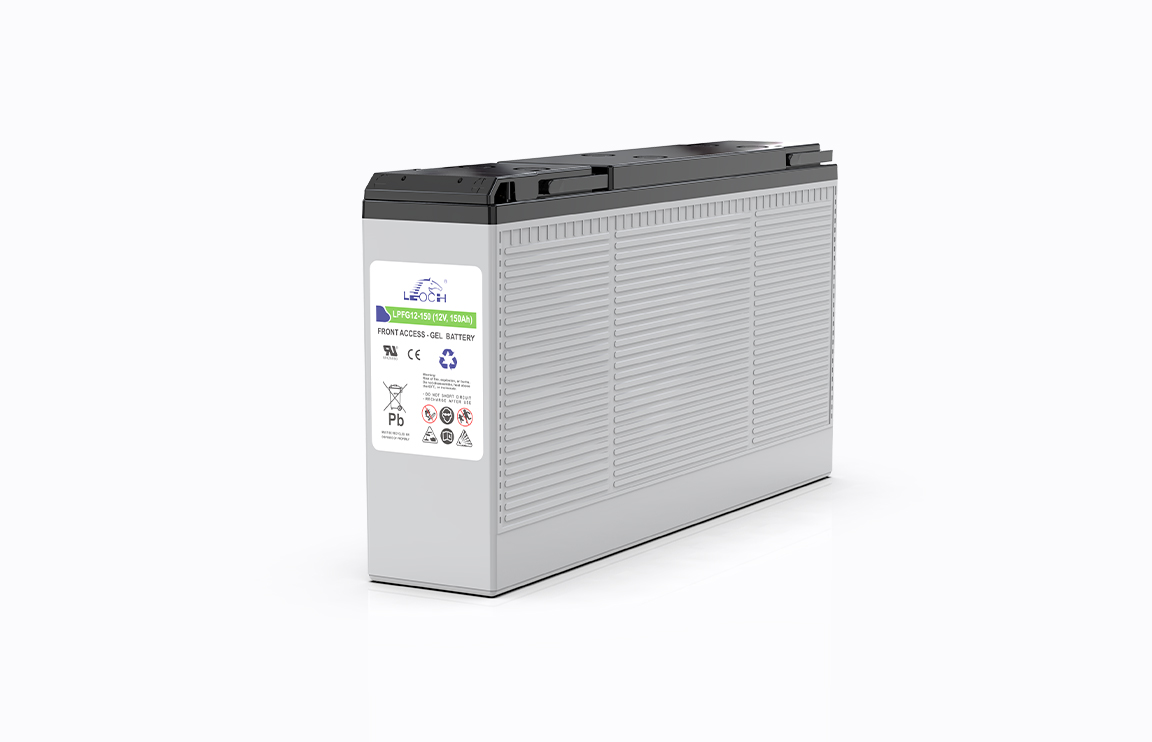

LPFG Series

LPFG Series

LPG battery contains gel electrolyte primarily produced by the homogeneous distributed SiO in a diluted sulfuric acid named gel 2SOL with thixotropic properties. The special designed vent valves are also used to control the gassing and water losing rate. Since no maintenance is required and valve regulated, they are classified as one type of VRLA batteries (The other type is VRLA-AGM batteries).

Contact US

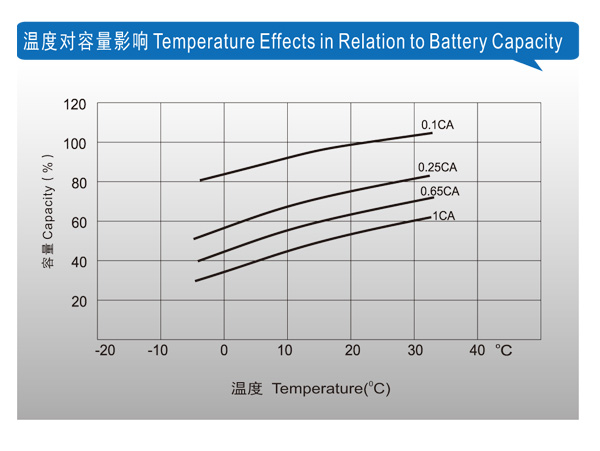

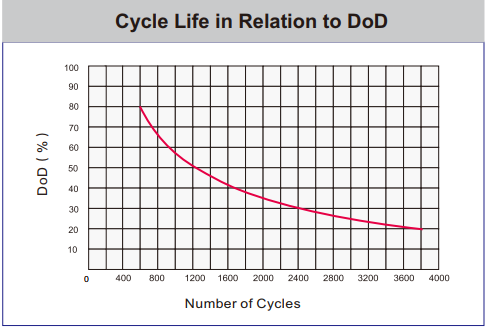

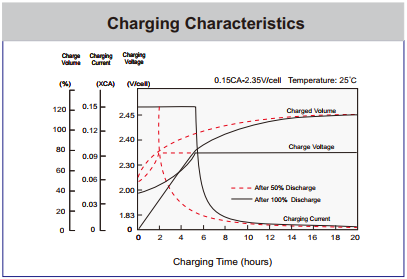

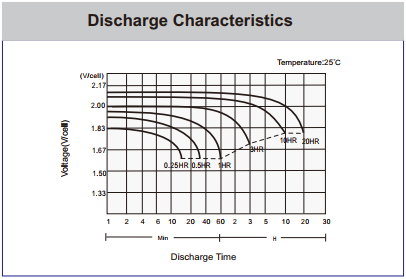

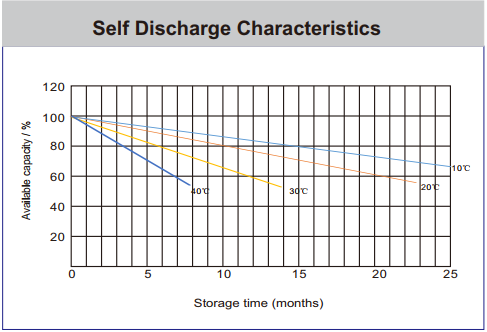

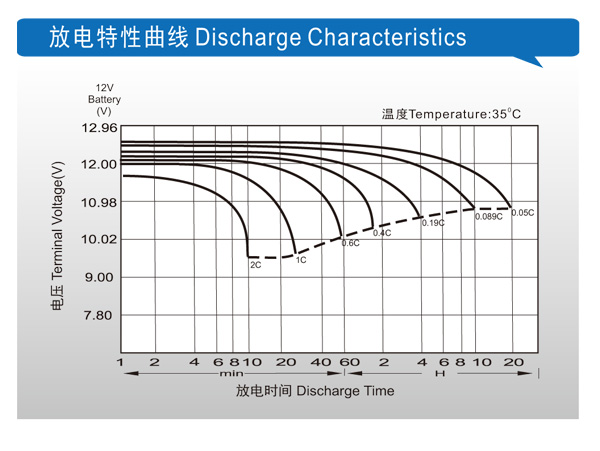

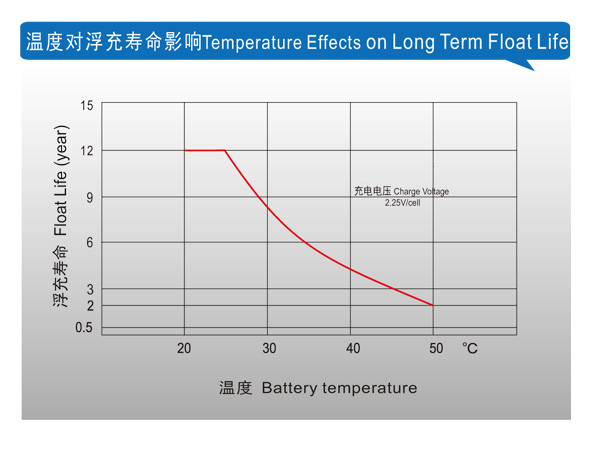

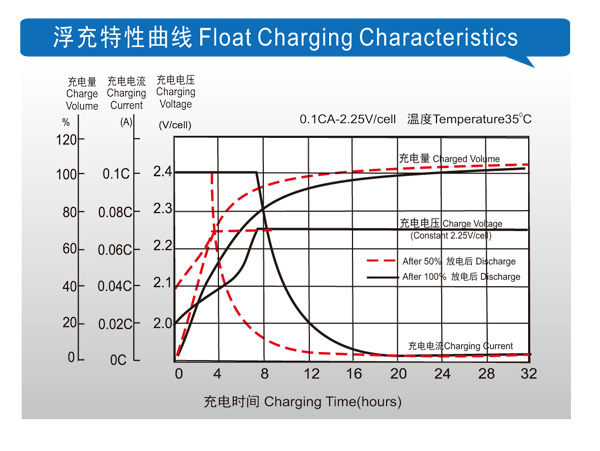

Specification Features Application Curves


20Hr10HrLength   WidthHightTotal hight WeightTerminal



LPFG12-70 127065.856422.201144.49187.07.36187.07.3626.758.9T6
LPFG12-100L 121009554522.051104.33232.59.17232.59.1734.876.7T6
LPFG12-100 12908550820.001104.33238.59.39238.59.3932.371.2T13
LPFG12-100H 12969039415.511104.33285.011.22285.011.2235.077.2T6
LPFG12-150 1214413555121.691104.33288.011.34288.011.3447.4104.5T6
LPFG12-180 1215815055021.651254.96280.011.02280.011.0251.7114.0T13

1. The maximum design life up to 16 years

2. Long time discharge

3. Suitable for space and storage electric power use

4. Special plate design, long cycle lifetime

5. Using special lead-calcium alloy to boost up the grid anti-corrosive performance and extend the battery using lifetime

6. Using special separator to boost up the battery performance inside

7. High thermal capacity, reduce the risk of thermal out of control and drying hard, can be used in bad environment

8. High gas recombined reaction efficiency

9. Little water losing, no electrolyte stratification phenomenon

10. Long storage time

11. Good deep discharge resilience performance

12. Using gas silicon dioxide, small granule degree, bigger than surface area

  • 1. Telecommunication backup
  • 2. Power plants
  • 3. Burglar alarms
  • 4. Medical equipments (stationary and portable i.e. X- ray)
  • 5. Computer back-up (high power)
  • 6. Communication systems
  • 7. Fire alarm systems
  • 8. Transmitter systems
  • 9. Cash register systems
  • 10. Emergency lights signal systems
