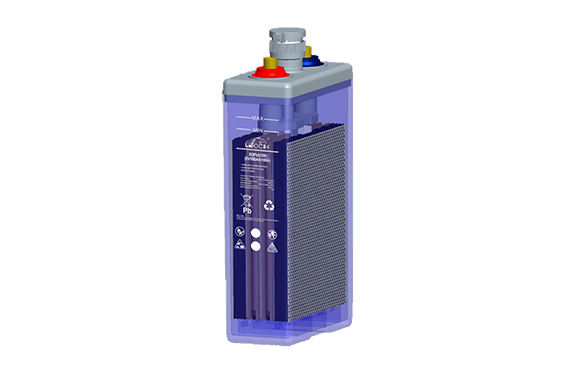

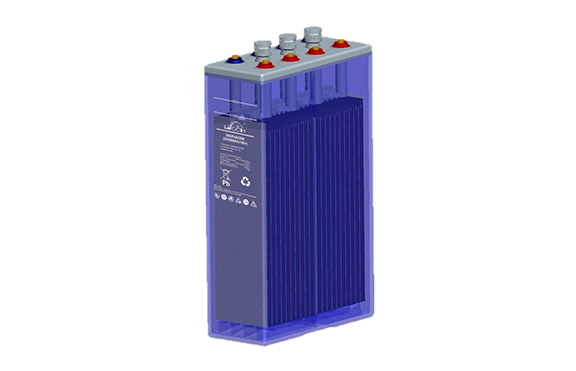

OPzV Series Batteries for Solar Energy Storage

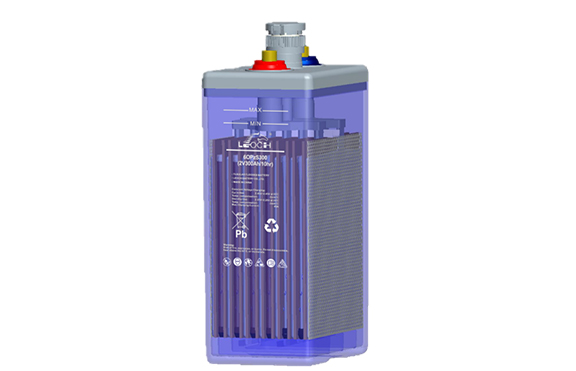

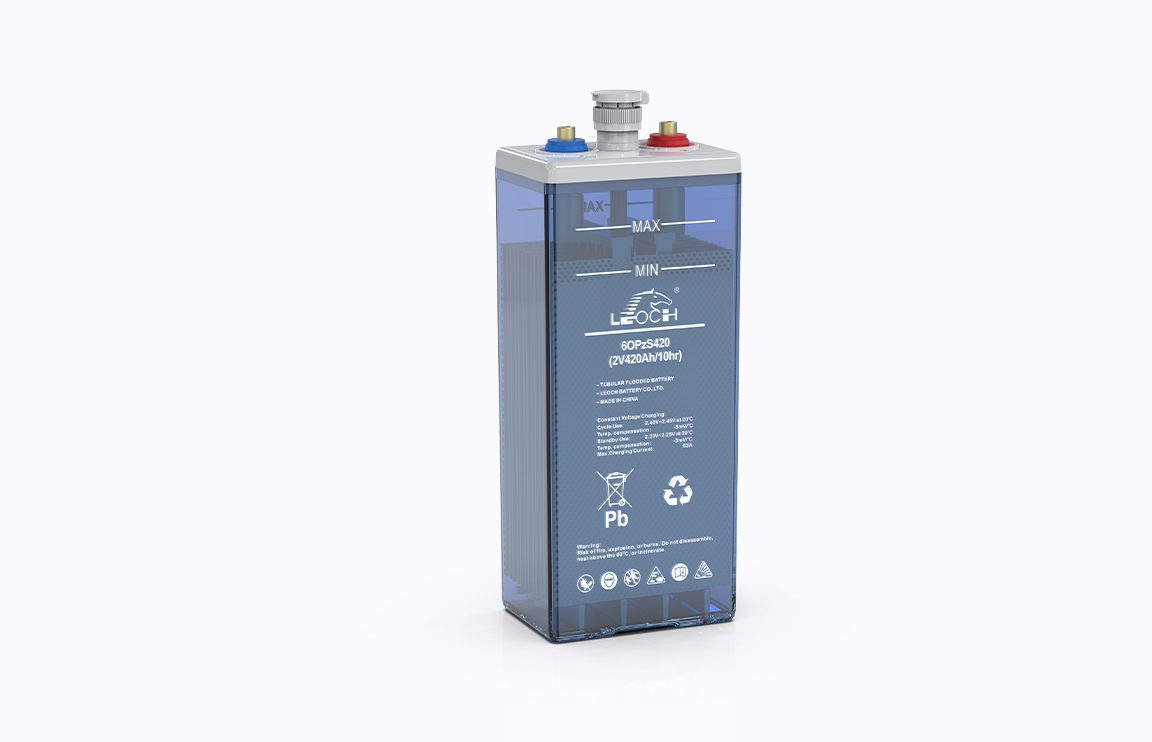

Leoch Flooded-OPzS battery

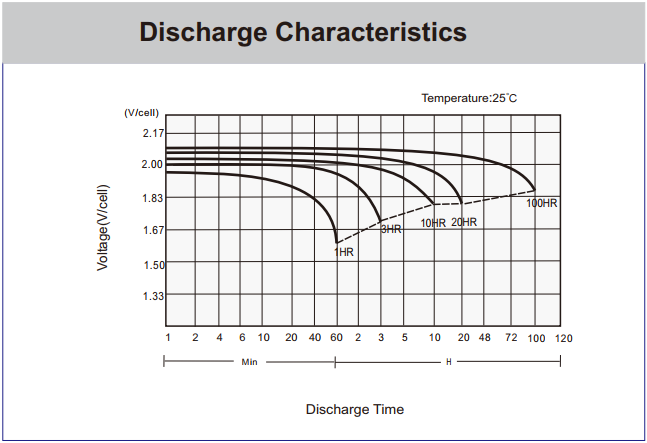

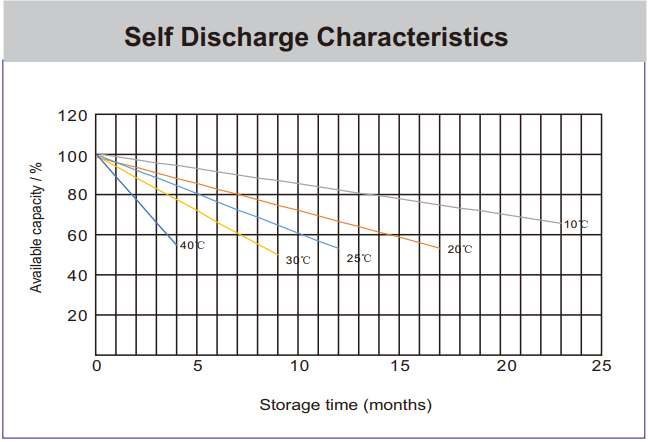

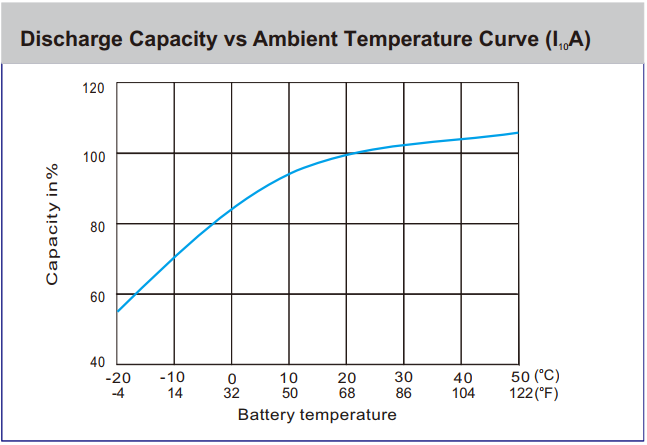

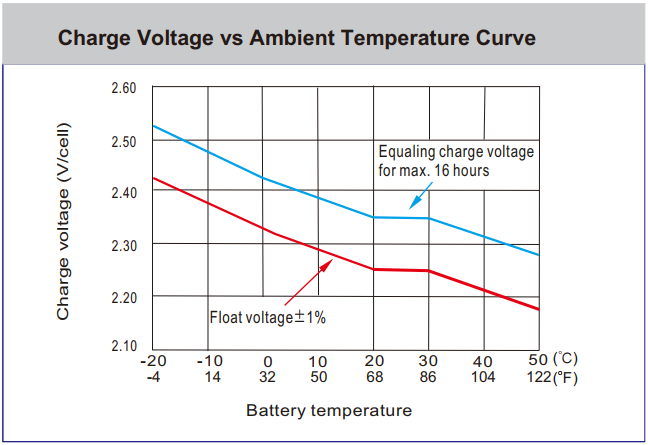

Specification Features Application Curves

Model	Rated Voltage	Rated Capacity		Approx. Dimensions										Terminal
		100Hr@ 1.80V/cell	10Hr@ 1.80V/cell	Length		Width		Height		TH		Weight
		100Hr@ 1.80V/cell	10Hr@ 1.80V/cell	Length		Width		Height		TH		Weight
	(V)	(AH)	(AH)	mm	in.	mm	in.	mm	in.	mm	in.	kg	lbs
4OPzV200	2	260	200	103	4.06	206	8.11	355	13.98	390	15.35	18.8	41.5	T7-A(M8)
5OPzV250	2	325	250	124	4.88	206	8.11	355	13.98	390	15.35	22.4	49.4	T7-A(M8)
6OPzV300	2	390	300	145	5.71	206	8.11	355	13.98	390	15.35	26.4	58.2	T7-A(M8)
5OPzV350	2	491	350	124	4.88	206	8.11	471	18.54	506	19.92	28.5	62.8	T7-A(M8)
6OPzV420	2	590	420	145	5.71	206	8.11	471	18.54	506	19.92	33.5	73.9	T7-A(M8)
7OPzV490	2	688	490	166	6.54	206	8.11	471	18.54	506	19.92	38.7	85.3	T7-A(M8)
6OPzV600	2	842	600	145	5.71	206	8.11	646	25.43	681	26.81	46.8	103.2	T7-A(M8)
8OPzV800	2	1120	800	191	7.52	210	8.27	646	25.43	681	26.81	63.5	140	T7-A(M8)
10OPzV1000	2	1400	1000	233	9.17	210	8.27	646	25.43	681	26.81	76.5	168.7	T7-A(M8)
12OPzV1200	2	1680	1200	275	10.83	210	8.27	646	25.43	681	26.81	91.2	201.1	T7-A(M8)
12OPzV1500	2	2110	1500	275	10.83	210	8.27	796	31.34	831	32.72	111.5	245.8	T7-A(M8)
16OPzV2000	2	2810	2000	399	15.71	214	8.27	772	30.39	807	31.77	155.1	341.9	T7-A(M8)
20OPzV2500	2	3510	2500	487	19.17	212	8.35	772	30.39	807	31.77	191	421.1	T7-A(M8)
24OPzV3000	2	4210	3000	576	22.68	212	8.35	772	30.39	807	31.77	226.5	499.4	T7-A(M8)
12V9OPzV200	12	240	200	521	20.5	268	10.6	220	8.66	226	8.9	70	154.3	T11(M8)
Parameter information subject to the contract, here for your reference only.
