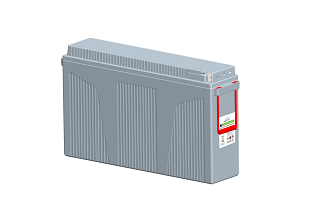

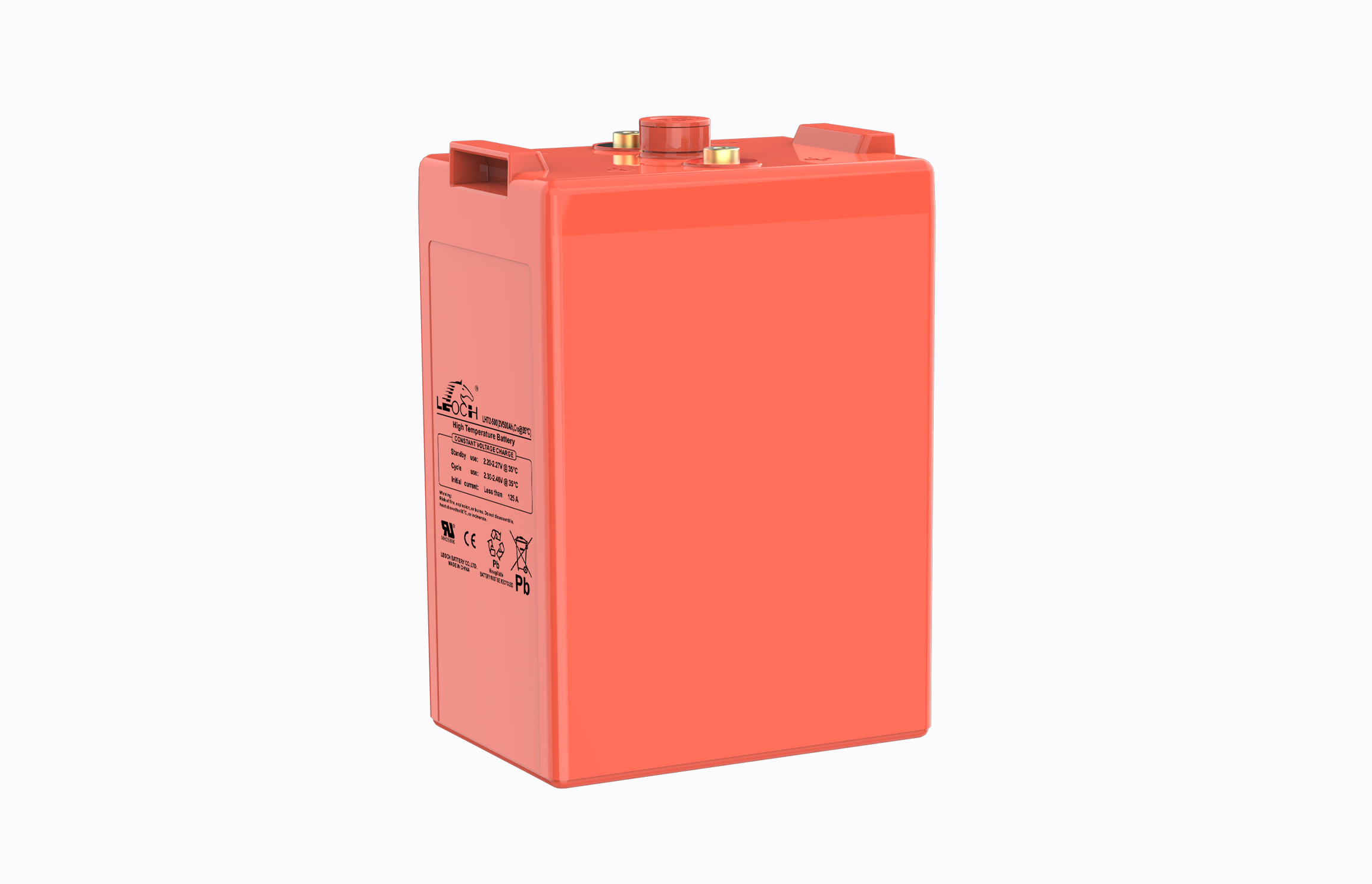

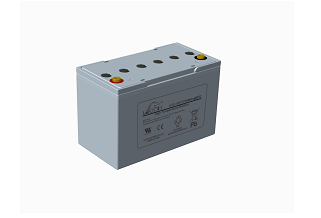

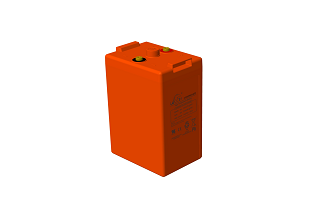

LHT Series

LHT Series

Air-condition of communication base station is used to guarantee the equipments work normally. Wireless facilities, transmission facilities, power supply facilities work well at 40℃, but the lead acid battery which constitutes power supply is sensitive to surrounding temperature. The battery requires 25℃ operating temperature and its service life will reduce to half when temperature rises by 10℃. As a result, it is significant to develop a battery specially for communication, which is energy saving, lower emission, and has a longer temperature range and service life.

Contact US

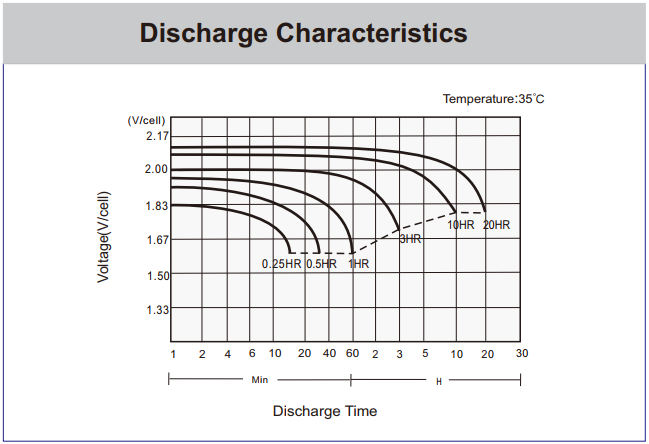

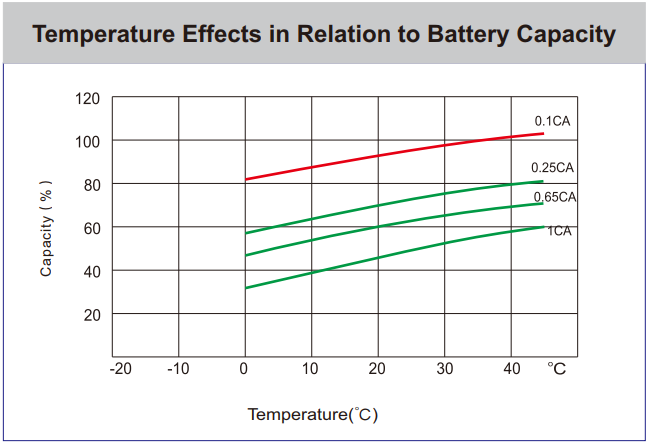

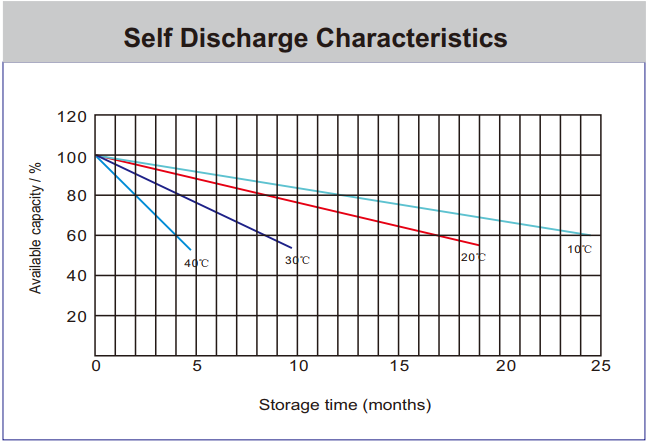

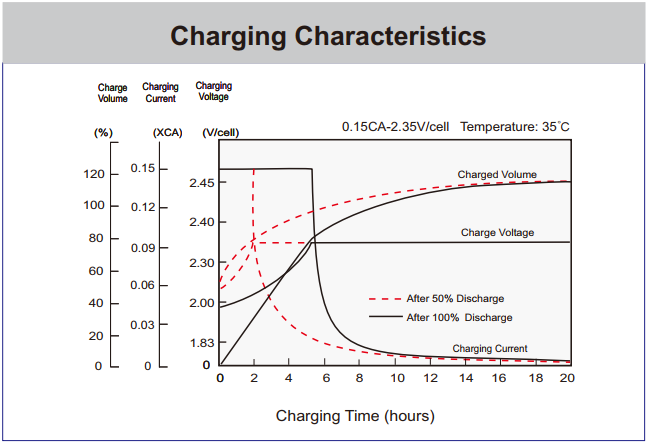

Specification Features Application Curves
External ModelRated Voltage10Hr Length Width HeightTHWeightTerminal
1.80V/cellmmin.mmin.mmin.mmin.kgibsType
LHT12-501250 32512.8 1676.6 1746.9 1746.9 19.041.9T6(M6)
LHT12-651265 26010.2 1686.6 2088.2 2148.4 22.349.2T6(M6)
LHT12-10012100 33013.0 1736.8 2128.3 2188.6 33.573.9T11(M8)
LHT12-15012150 53220.9 2078.1 2148.4 2208.7 56.0123.5T11(M8)
LHT12-20012200 52220.6 2409.4 2188.6 2248.8 67.4148.6T11(M8)
LHT2-2002200 1706.7 1104.3 32812.9 35013.8 15.133.3T11(M8)
LHT2-3002300 1706.7 1505.9 33013.0 35013.8 20.645.4T11(M8)
LHT2-4002400 2108.3 1756.9 33013.0 35013.8 29.264.4T11(M8)
LHT2-5002500 2409.4 1756.9 327.512.9 347.513.7 34.676.3T11(M8)
LHT2-6002600 30011.8 1756.9 33013.0 35013.8 42.393.3T11(M8)
LHT2-8002800 41016.1 1756.9 33013.0 35013.8 58.4128.7T11(M8)
LHT2-100021000 47518.7 1756.9 32812.9 35013.8 68.0149.9T11(M8)
LHT2-150021500 40315.9 35413.9 33913.3 34913.7 109.5241.4T11(M8)
LHT2-200022000 49019.3 35013.8 33913.3 34913.7 138.2304.7T11(M8)
LHT2-300023000 70927.9 35013.8 33713.3 34713.7 206.4455.0T11(M8)
LHTF12-10012100 39415.5 1104.3 28611.3 28611.3 31.569.4T6(M6)
LHTF12-15012150 55121.7 1104.3 28811.3 28811.3 46.0101.4T6(M6)
LHTF12-20012200 56022.0 1265.0 32012.6 32012.6 59.5131.2T11(M8)


1. Special anti-corrosion alloy

2. Special anti-high-temperature paste formula

3. Special anti-high-temperature container

4. Special double sealing and anti-high-temperature sealing agent

5. High performance separator

6. Special electrolyte formula


The battery is always on communication base station, high temperature station without air-condition, station in the open air, electric power system, solar energy, wind saving energy power supply.
