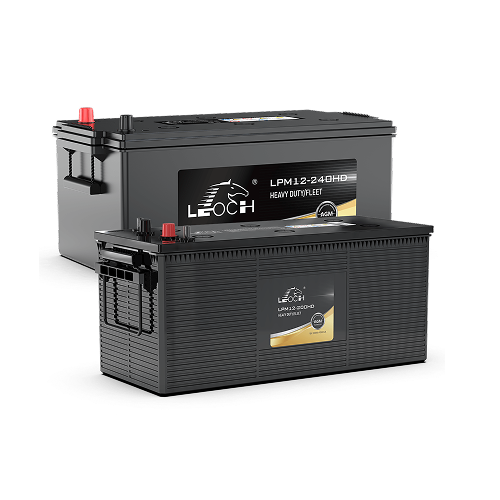

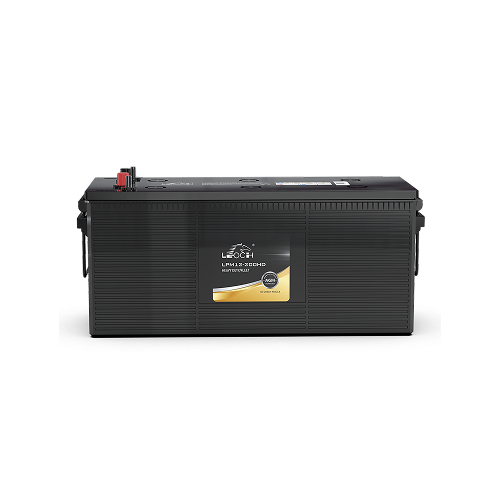

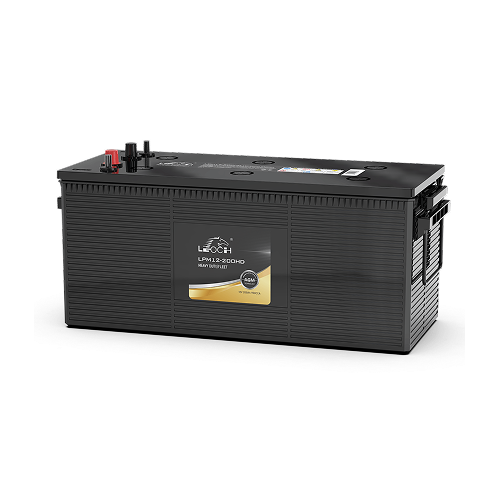

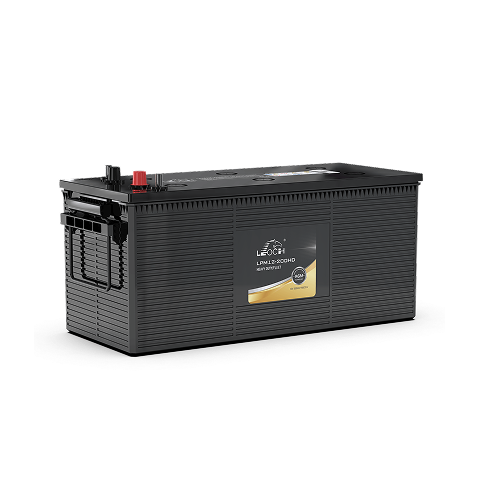

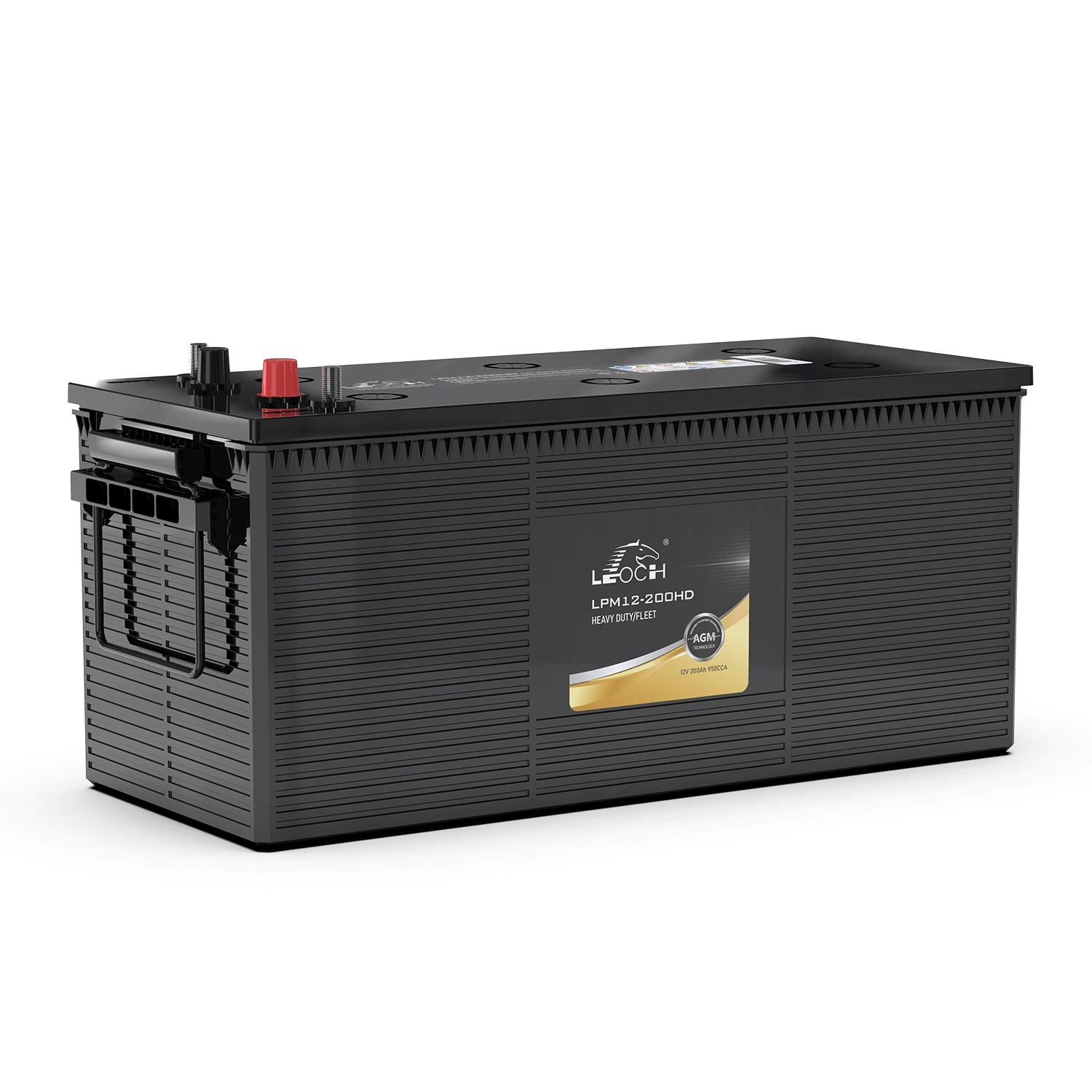

Commercial Starting & Parking AC AGM Series
The premium heavy-duty option for commercial vehicles with demanding on-board systems, providing deep-cycle endurance and vibration resistance to support continuous accessory loads and long-haul operations.
Key Features
-
Superior Deep Cycle Performance
Designed for truck AC application after engine off.
-
Superior Cranking Performance under Severe Cold Conditions
-
4x Higher Cycle Life Than Flooded Batteries
-
Excellent Vibration Resistance - EN V4 Class
Parameter List
Swipe View
| Model | Rated Voltage(V) | 20hr @1.75V/cell | RC(min) | CCA @-18°C(A) | Length(mm) | Width(mm) | Height(mm) | Weight(kg) | Cell Layout | Terminal | Hold Down | Handle |
| LPM12-140HD | 12 | 140 | 247 | 700 | 512 | 188 | 218 | 41.2 | 3 | 1 | B0 | TS8 |
| LPM12-170HD | 12 | 170 | 360 | 1000 | 513 | 222 | 214 | 48.5 | 3 | 5 | B0 | TS8 |
| LPM12-210HD | 12 | 210 | 450 | 1200 | 518 | 274 | 235 | 61.8 | 3 | 5 | B0 | TS8 |

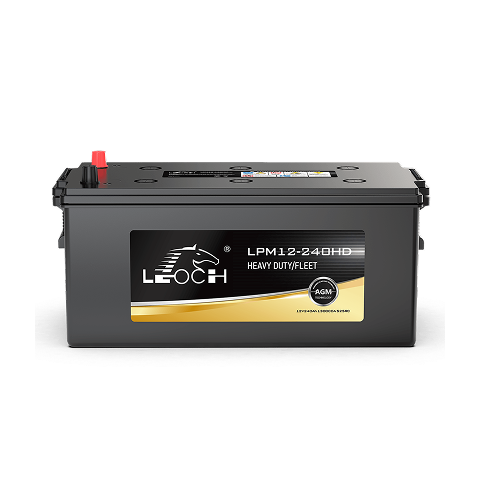

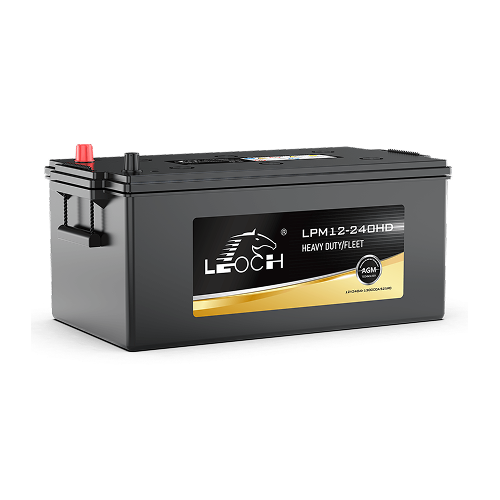

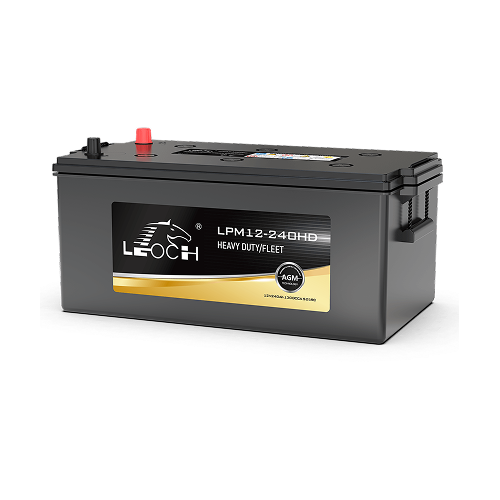

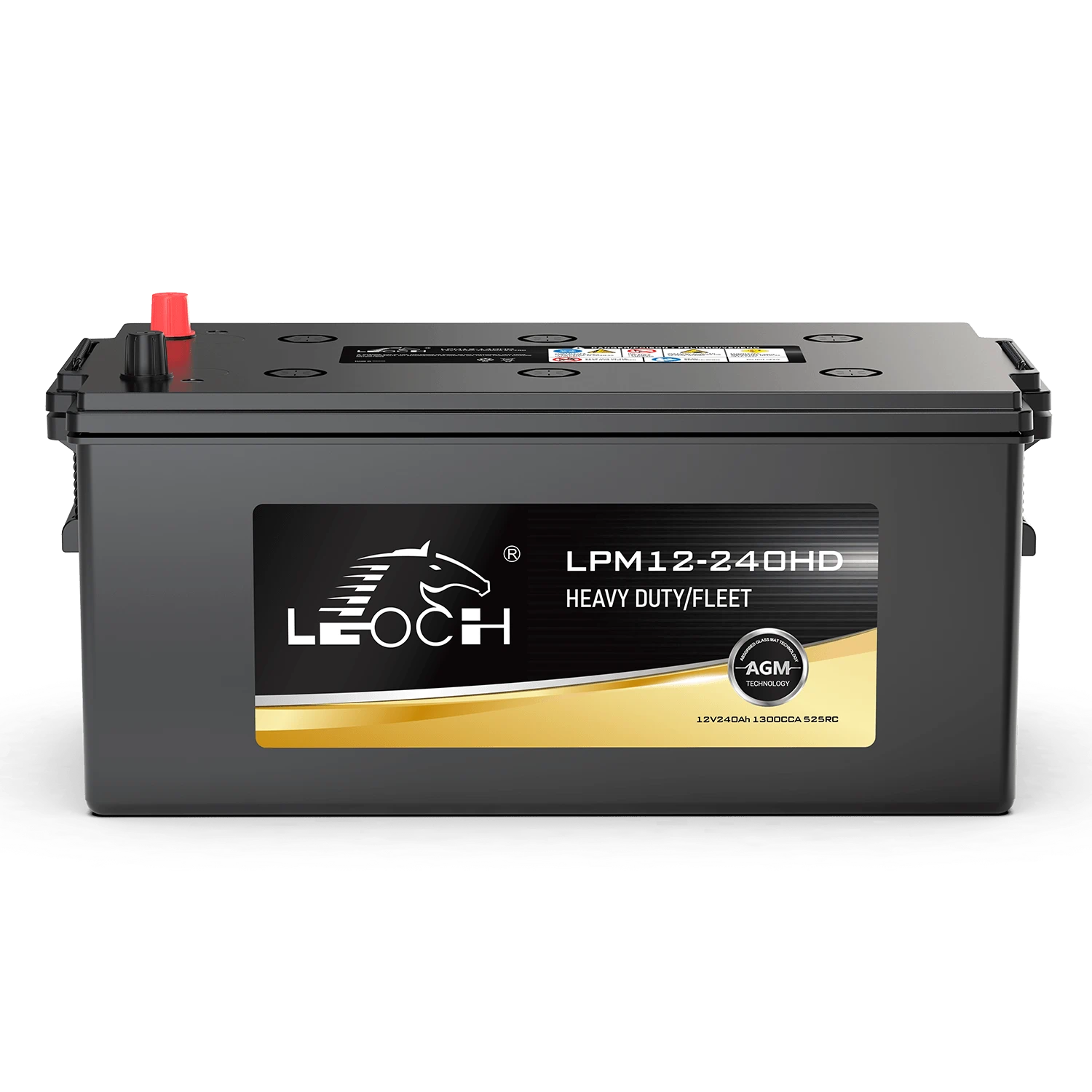

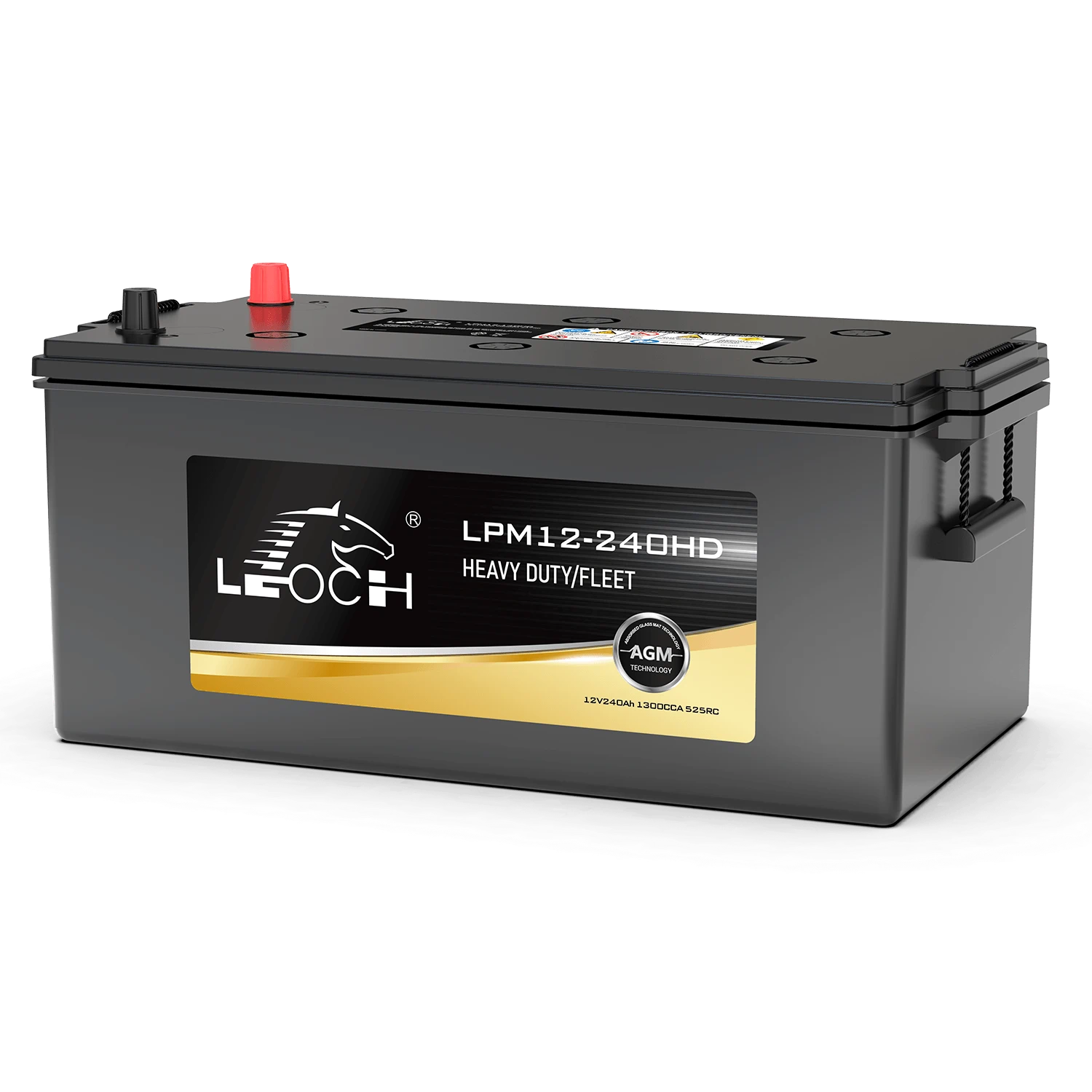

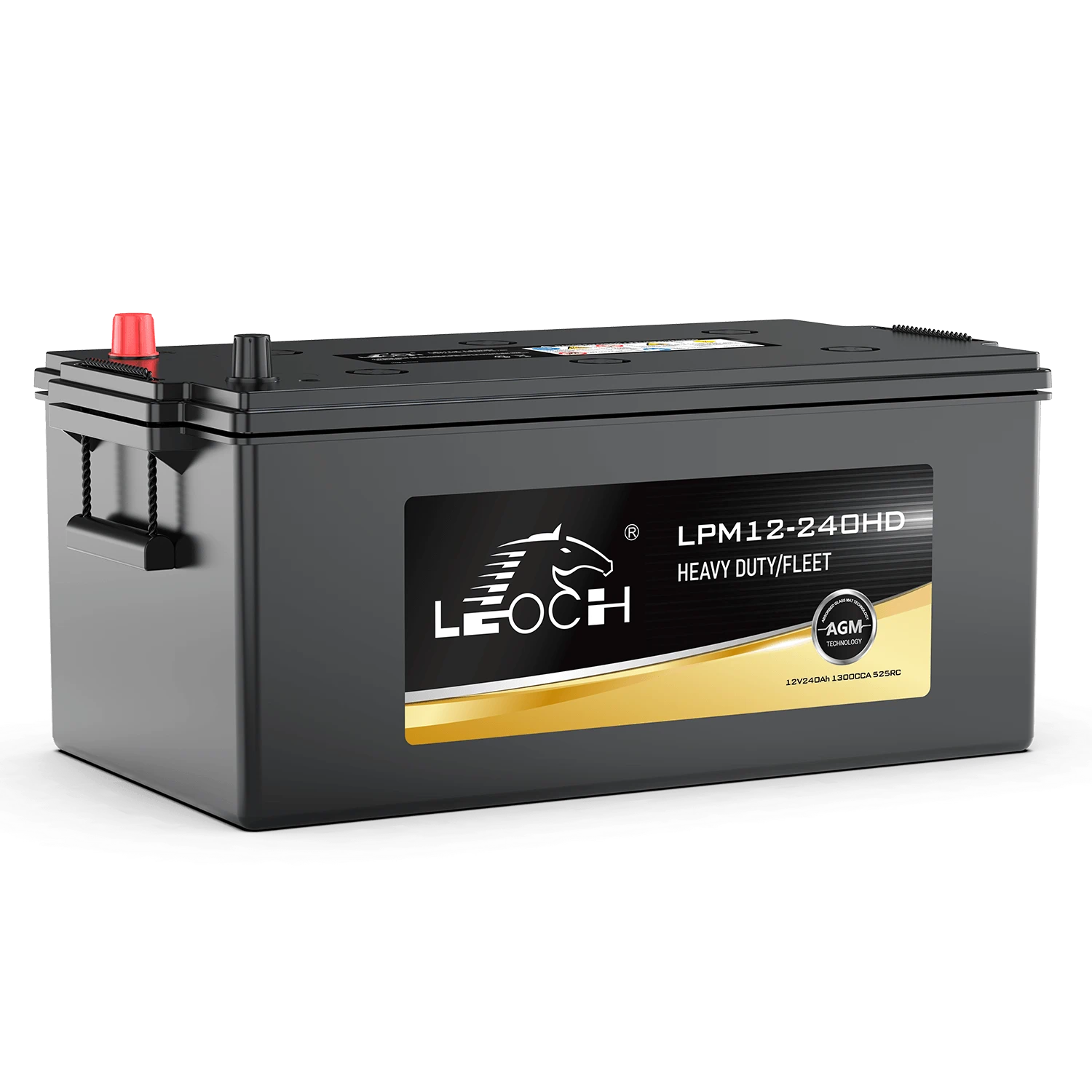

| LPM12-240HD | 12 | 240 | 525 | 1300 | 518 | 274 | 235 | 66.5 | 3 | 5 | B0 | TS8 |
| LPM12-330LHD | 12 | 330 | 745 | 1400 | 527 | 280 | 250 | 87.5 | 4 | 5 | B0 | TS8 |
