Automotive Start-Stop AGM Series

The premium choice for advanced Start-Stop vehicles and luxury cars with heavy regenerative braking and high electrical demands.

Applications:

Vehicles with auto start-stop system
Urban frequent stop-go commuting cars
MHEV 12V auxiliary power supply
High-electrical-load luxury passenger cars
Long-idle taxi & ride-hailing vehicles

Request a Quote

Key Features

VRLA Technology
Excellent Dynamic Charge Acceptance
Suitable for Partial State of Charge (PSoC) Operation
Premium Safety

Zero free electrolyte.
4x Cycle Life

Compared with standard flooded batteries.

Parameter List

DIN
JIS
BCI

Swipe View

Model	Series	Rated Voltage(V)	20hr @1.75V/cell	RC(min)	CCA @-18°C(A)	Length(mm)	Width(mm)	Height(mm)	Weight(kg)	Cell Layout	Terminal	Hold Down	Handle
AGM-L0	L0	12	40	60	420	175	175	190	12.5	0	1	B13	TS2
AGM-L0	L0	12	40	60	420	175	175	190	12.5	0	1	B13	/
AGM-L1	L1	12	40	61	400	207	175	190	14.2	0	1	B13	TS2
AGM-L1	L1	12	40	61	400	207	175	190	14.2	1	1	B13	TS2
AGM-L1	L1	12	50	80	570	207	175	190	15.5	0	1	B13	TS2
AGM-L1	L1	12	50	80	570	207	175	190	15.1	0	1	B13	TS2
AGM-L1	L1	12	50	80	570	207	175	190	15.1	1	1	B13	TS2
AGM-L2	L2	12	60	100	680	242	175	190	18.6	0	1	B13	TS2
AGM-L2	L2	12	60	100	660	242	175	190	17.8	0	1	B13	TS2
AGM-L2	L2	12	60	100	660	242	175	190	17.8	1	1	B13	TS2

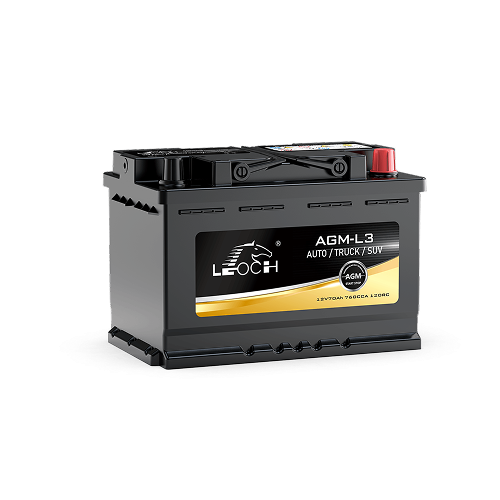

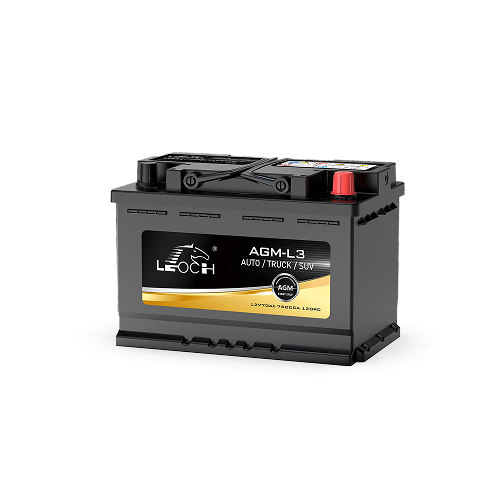

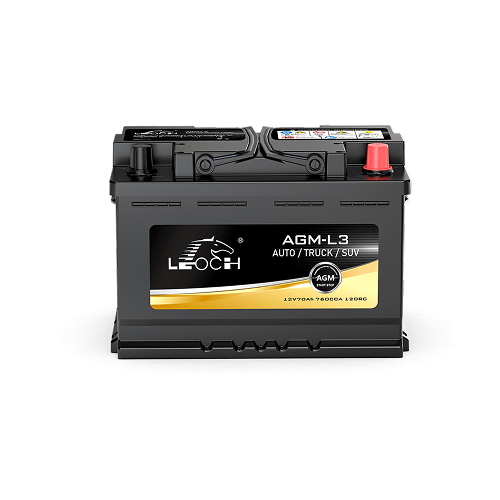

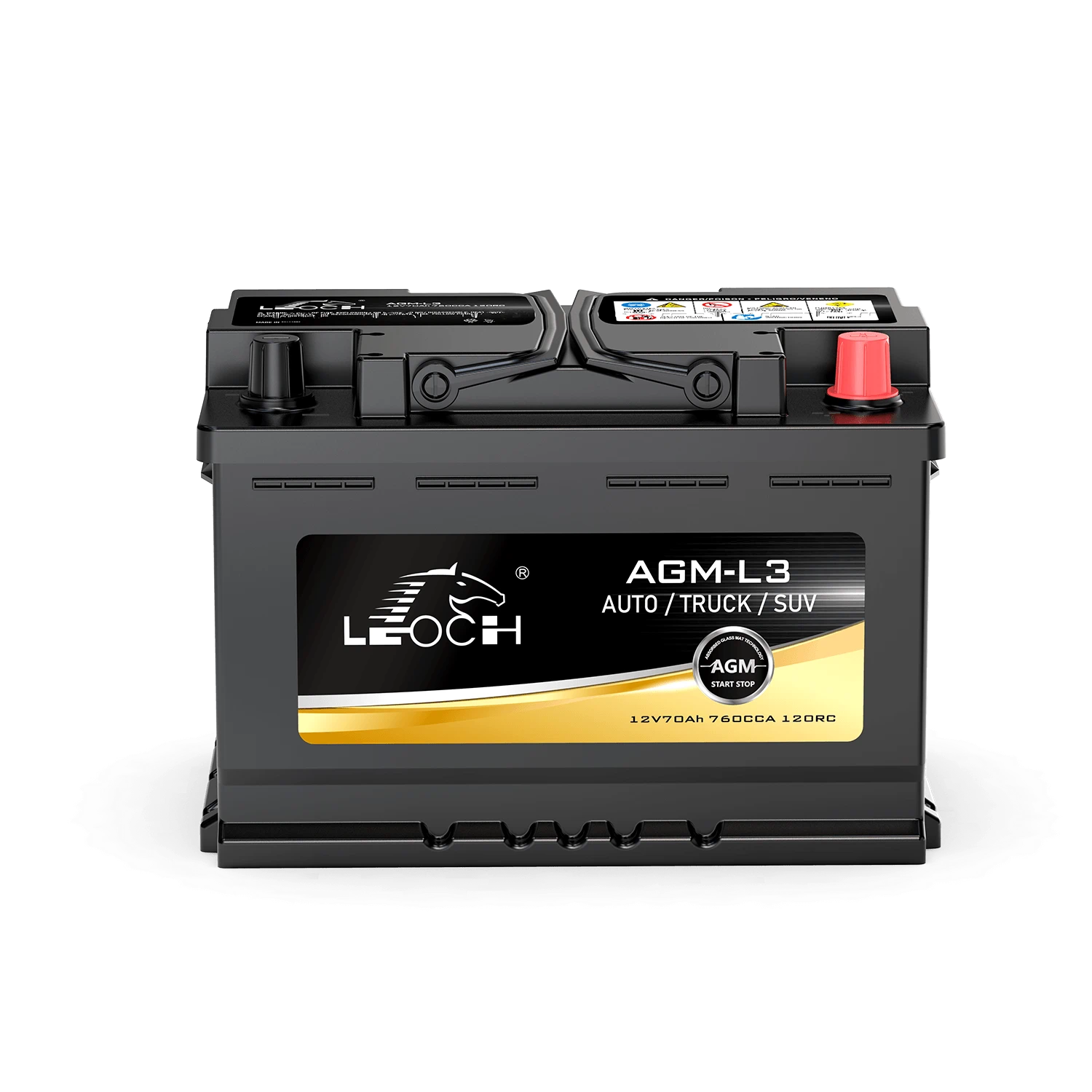

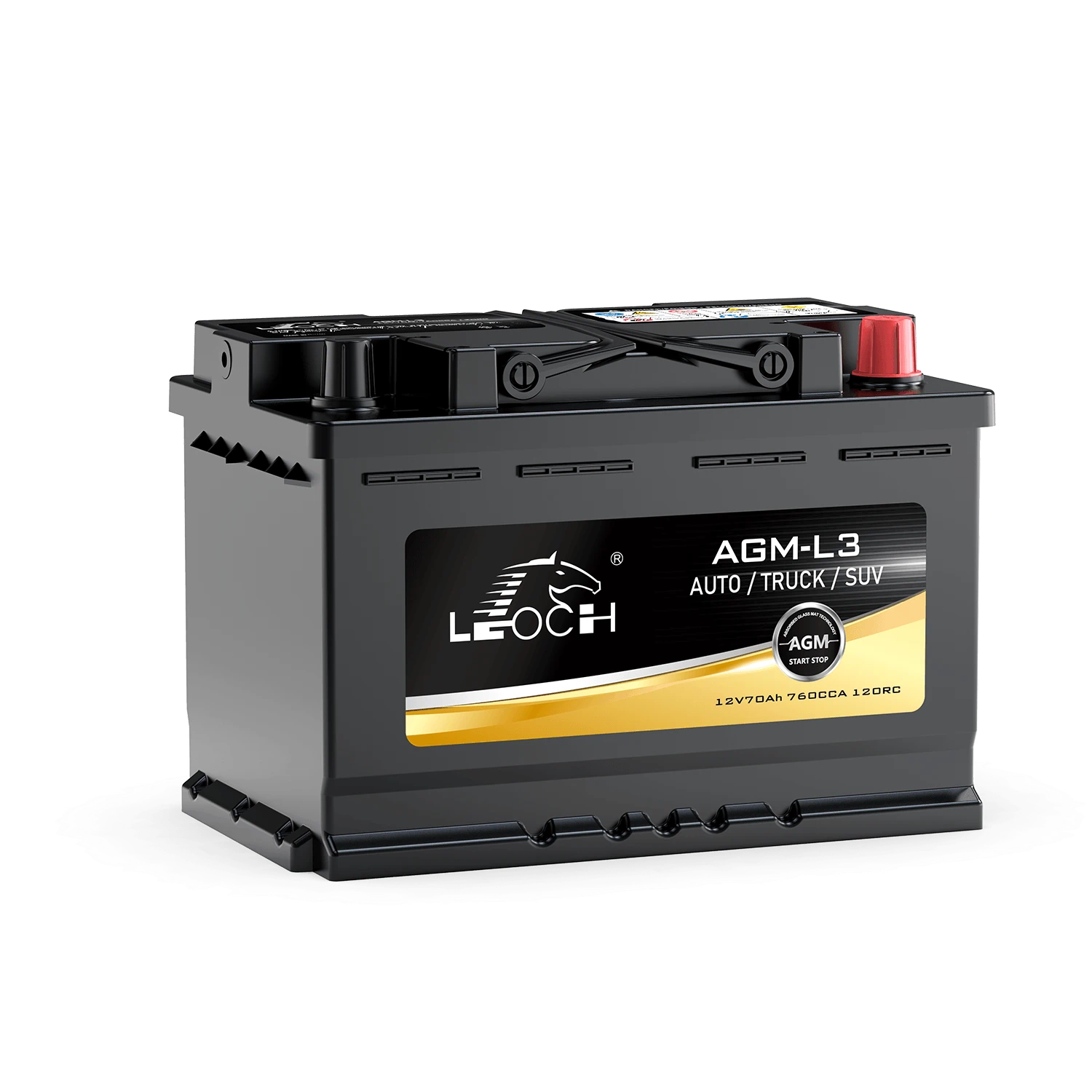

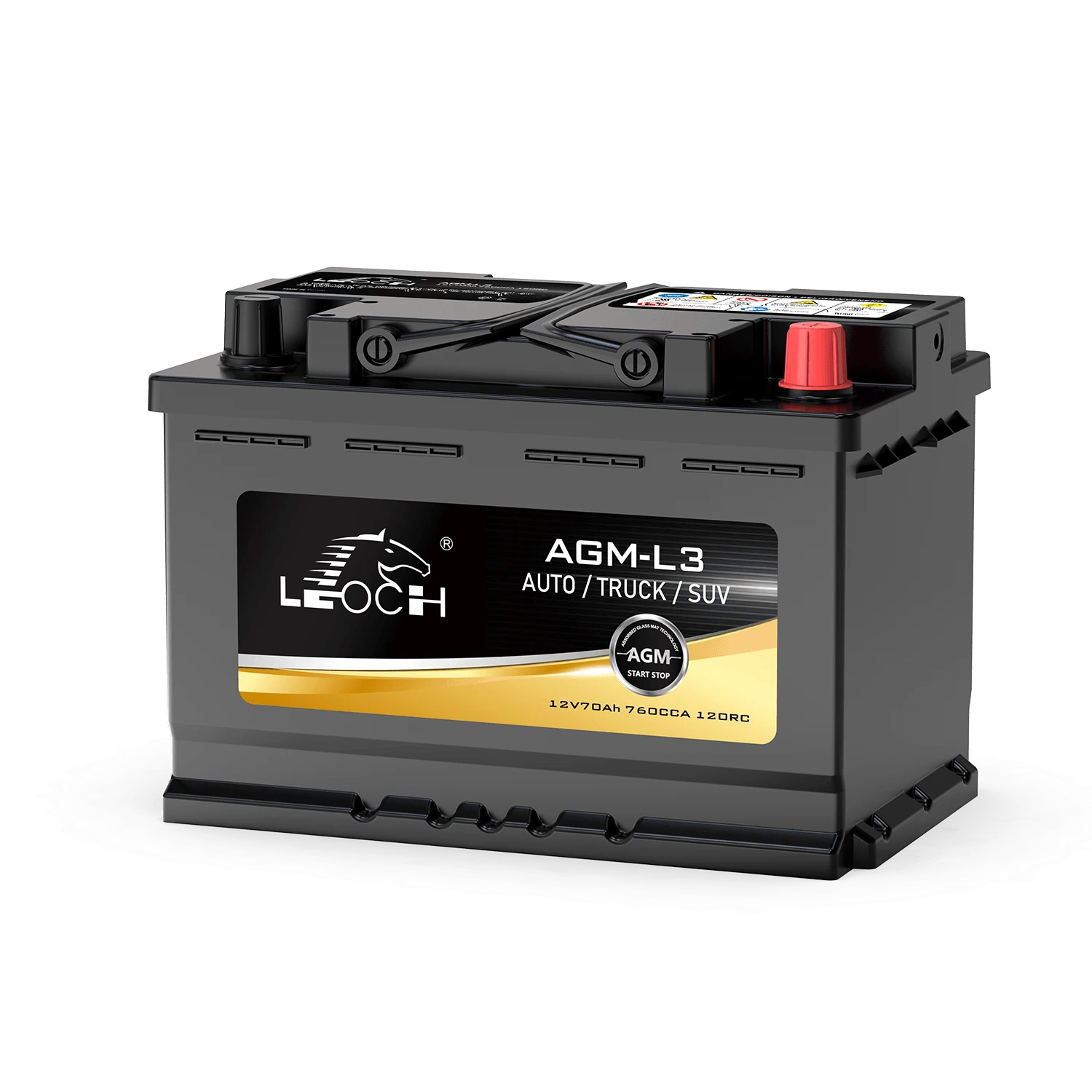

AGM-L3	L3	12	70	120	760	278	175	190	21.1	0	1	B13	TS6
AGM-L3	L3	12	70	120	760	278	175	190	20.5	0	1	B13	TS6
AGM-L3	L3	12	70	120	760	278	175	190	20.5	1	1	B13	TS6
AGM-L4	L4	12	80	140	850	315	175	190	24	0	1	B13	TS6
AGM-L4	L4	12	80	140	800	315	175	190	23.3	0	1	B13	TS6
AGM-L4	L4	12	80	140	800	315	175	190	23.3	1	1	B13	TS6
AGM-L5	L5	12	95	160	900	353	175	190	27.6	0	1	B13	TS6
AGM-L5	L5	12	95	160	850	353	175	190	26.5	0	1	B13	TS6
AGM-L5	L5	12	95	160	850	353	175	190	26.5	1	1	B13	TS6
AGM-L6	L6	12	105	190	950	394	175	190	30.6	0	1	B13	TS6
AGM-L6	L6	12	105	190	950	394	175	190	29.4	0	1	B13	TS6
AGM-L6	L6	12	105	190	950	394	175	190	29.4	1	1	B13	TS6

Model	Series	Rated Voltage(V)	20hr @1.75V/cell	RC(min)	CCA @-18°C(A)	Length(mm)	Width(mm)	Height(mm)	Weight(kg)	Cell Layout	Terminal	Hold Down	Handle
AGM-B21L	B21	12	40	61	330	200.5	134.5	224	12.3	0	1	B0	TS1
AGM-B21R	B21	12	40	61	330	200.5	134.5	224	12.3	1	1	B0	TS1
AGM-B21L-JIS	B21	12	40	61	330	200.5	134.5	224	12.1	0	3	B0	TS1
AGM-B21R-JIS	B21	12	40	61	330	200.5	134.5	224	12.1	1	3	B0	TS1
AGM-B21L	B21	12	40	61	330	206	141.5	224	12.3	0	1	B13	TS1
AGM-B24L	B24	12	45	68	380	236	128	222	13.7	0	1	B0	TS1
AGM-B24L-JIS	B24	12	45	68	380	236	128	222	13.6	0	3	B0	TS1
AGM-B24R-JIS	B24	12	45	68	380	236	128	222	13.6	1	3	B0	TS1

Model	Series	Rated Voltage(V)	20hr @1.75V/cell	RC(min)	CCA @-18°C(A)	Length(mm)	Width(mm)	Height(mm)	Weight(kg)	Cell Layout	Terminal	Hold Down	Handle

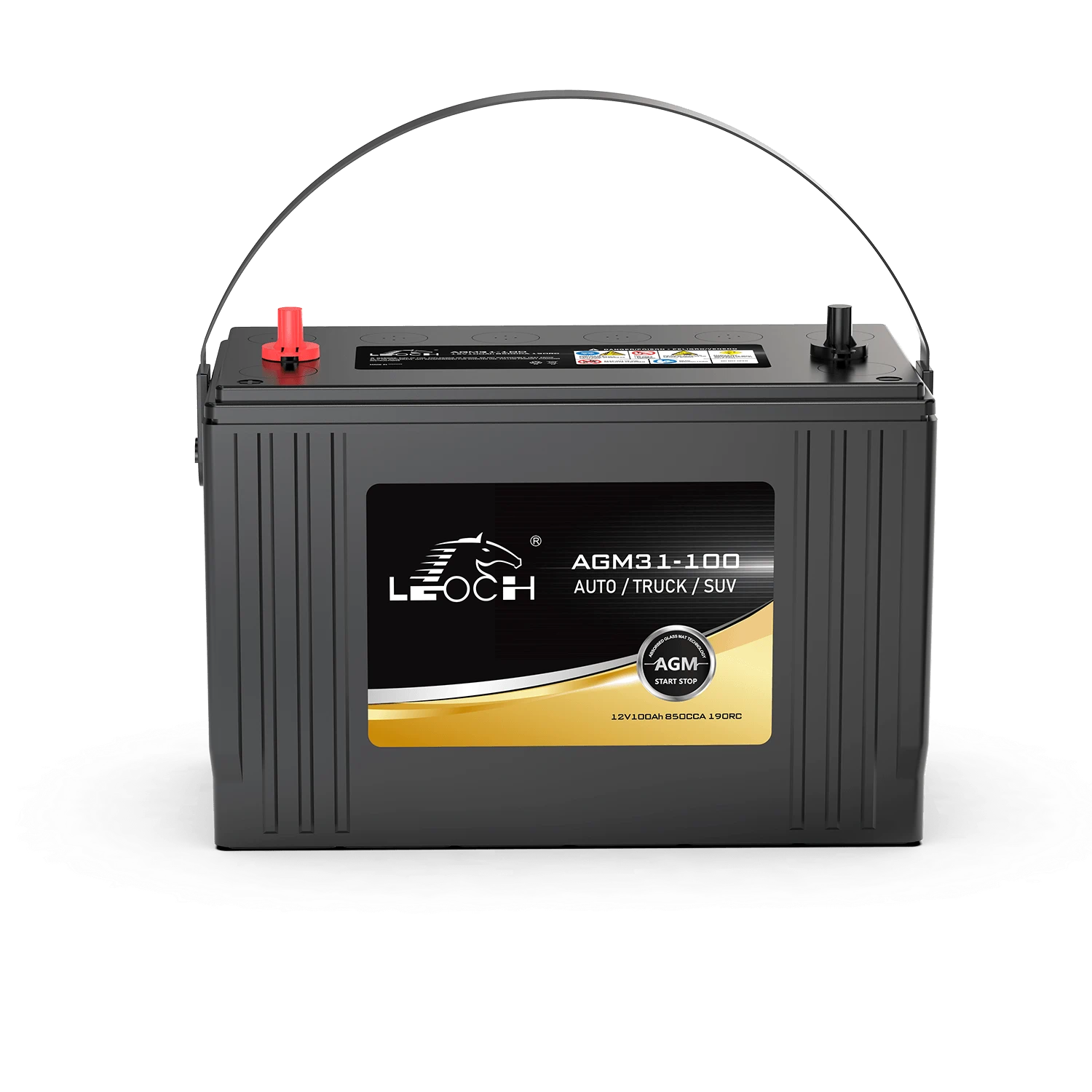

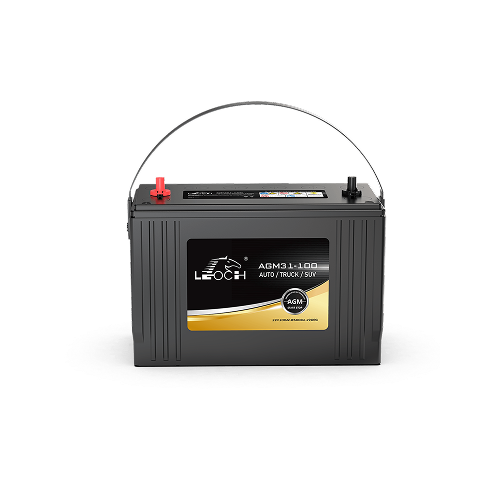

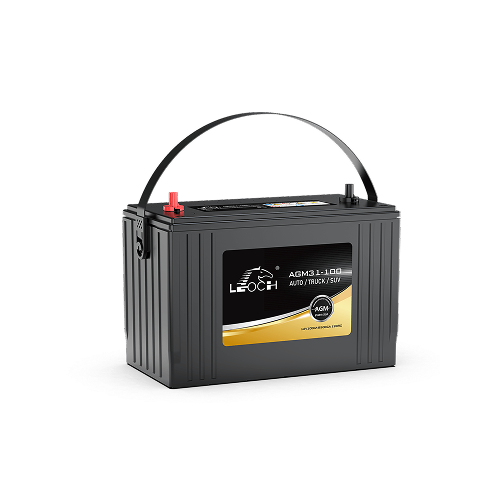

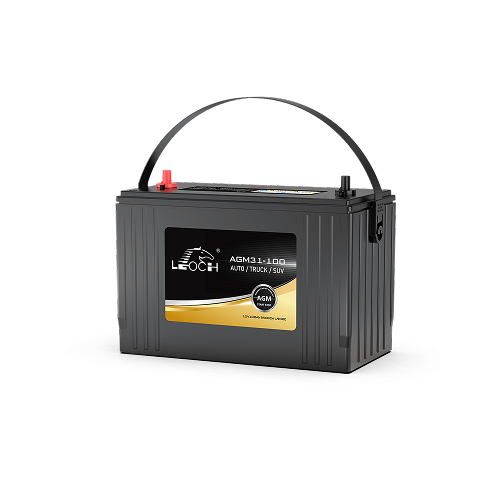

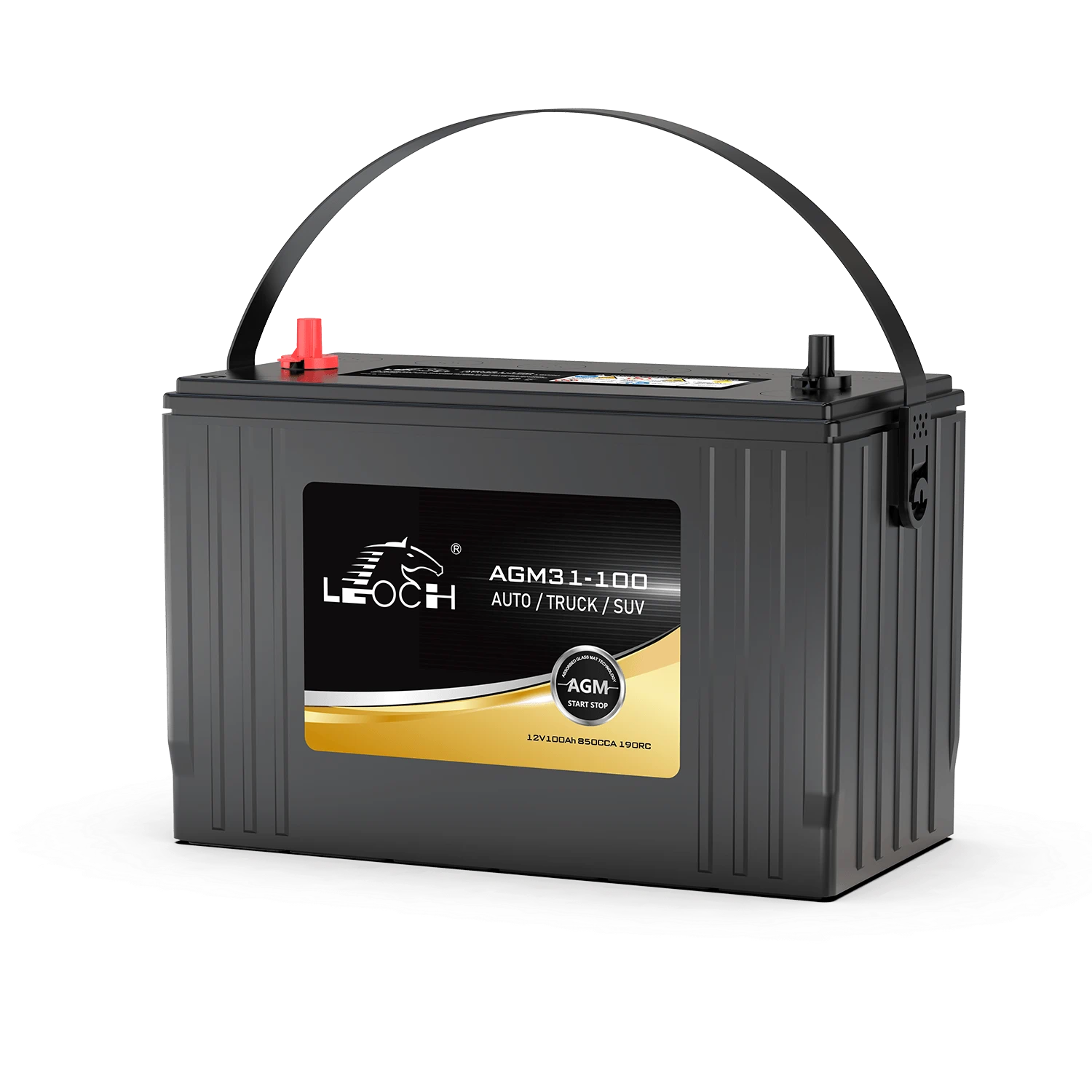

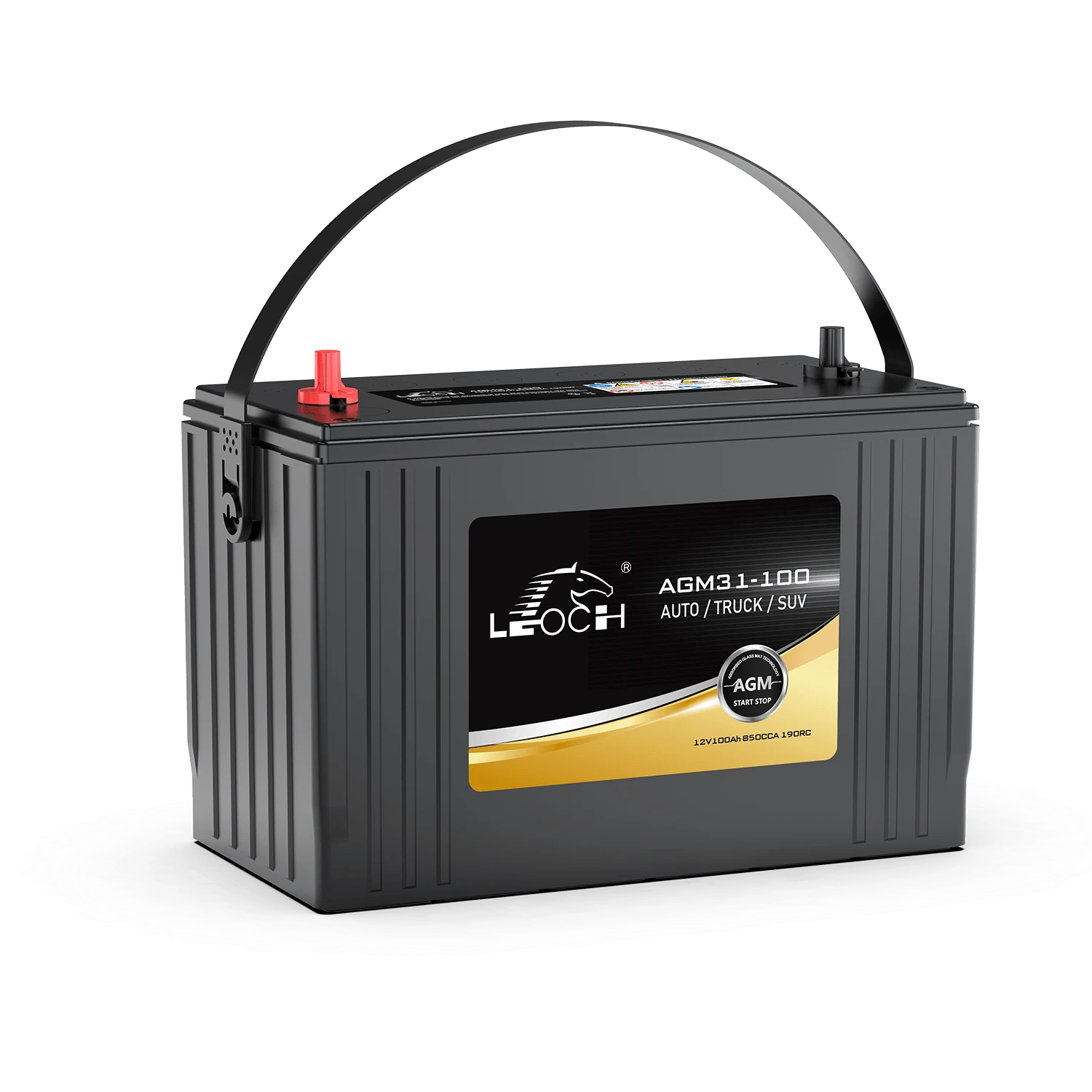

AGM31-100	31	12	100	190	850	346.5	174	239.5	31	1	13	B0	TS5
AGM31-100R-A	31	12	100	190	850	346.5	174	238	31.4	1	12	B0	TS5
AGM31-100R-B	31	12	100	190	850	346.5	174	238	31.4	1	12	B0	TS5
AGM34-55	34	12	55	120	650	276	168	196	19.1	1	1	B1	TS4
AGM34M-55	34M	12	55	120	650	276	168	206	19.3	1	12	B1	TS4
AGM78DT-55	78DT	12	55	120	650	275	177.5	202	19.5	6	1&20	B1	TS4
