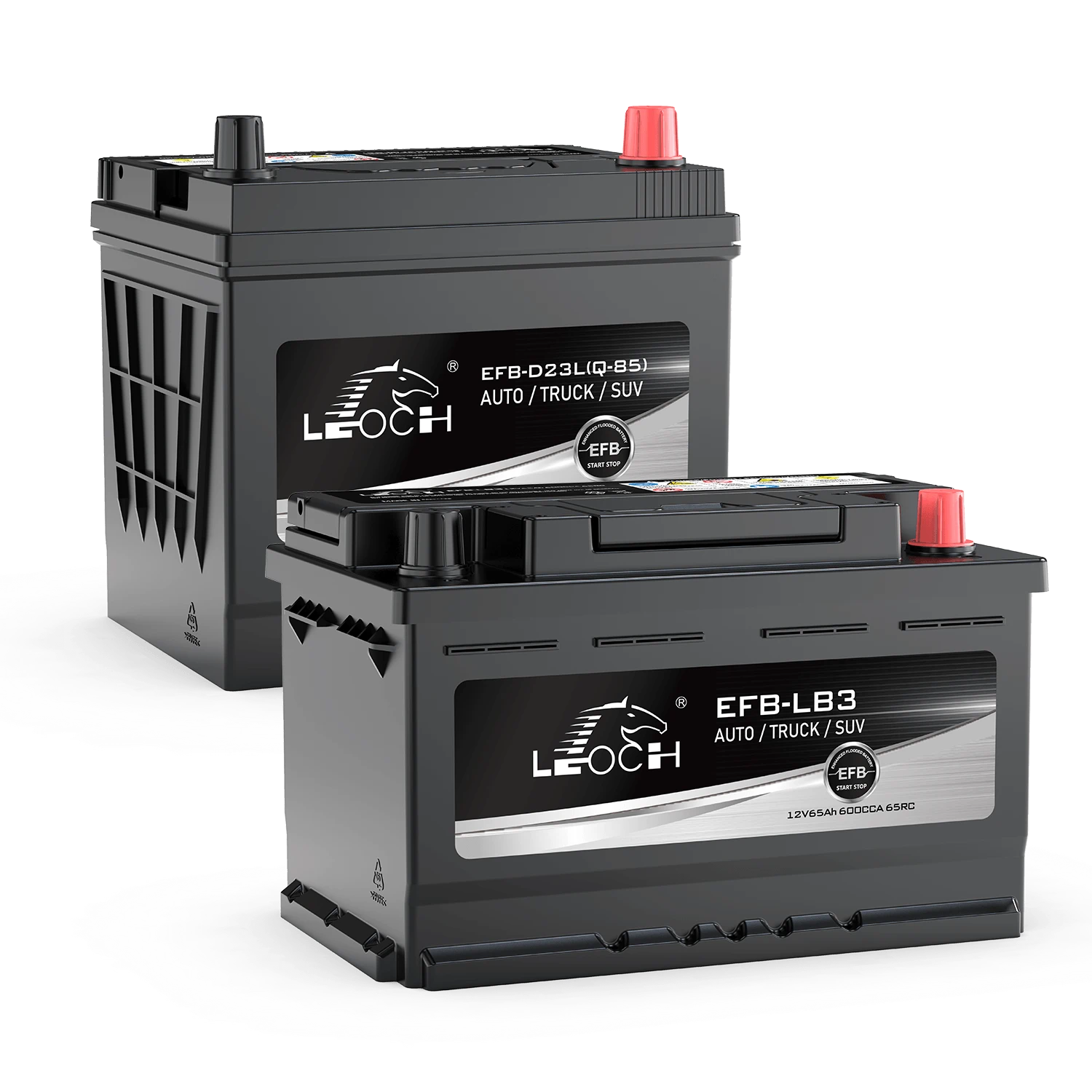

Automotive Start-Stop EFB Series

The highly durable, cost-effective upgrade for entry-level Start-Stop systems, offering excellent thermal stability and deep cycling capabilities.

Applications:

Entry-level start-stop passenger vehicles
Daily short-distance city driving cars
Mid-range family SUV & MPV
Low-to-medium onboard electrical equipment cars
Urban delivery light passenger vehicles

Request a Quote

Key Features

Fully Maintenance-Free
Outstanding Starting Performance under Frigid Conditions
2x Charge Acceptance

Than conventional flooded starter batteries.
3x Cycle Life

Than European standard flooded starter batteries.
Optimized for Partial State of Charge (PSoC) Operation

Parameter List

Swipe View

Model	Series	Magic Eye	Rated Voltage(V)	20hr @1.75V/cell	RC(min)	CCA @-18°C(A)	Length(mm)	Width(mm)	Height(mm)	Weight(kg)	Cell Layout	Terminal	Hold Down	Handle
EFB-L0	L0	×	12	35	50	280	175	175	190	11.2	0	1	B13	TS3
EFB-L0	L0	×	12	40	60	320	175	175	190	11.2	0	1	B13	/
EFB-L1	L1	×	12	50	80	540	207	175	190	14.6	0	1	B13	TS2
EFB-L2	L2	×	12	60	100	640	242	175	190	17.5	0	1	B13	TS2
EFB-L3	L3	√	12	70	120	700	278	175	190	20	0	1	B13	TS6
EFB-L3	L3	×	12	70	120	700	278	175	190	20	0	1	B13	TS6
EFB-L3	L3	×	12	70	120	700	278	175	190	20	1	1	B13	TS6
EFB-L4	L4	×	12	80	140	750	315	175	190	22.5	0	1	B13	TS6
EFB-L4	L4	×	12	80	140	750	315	175	190	22.5	1	1	B13	TS6
EFB-L4	L4	×	12	80	140	800	315	175	190	22.7	0	1	B13	TS6
EFB-L5	L5	×	12	95	180	900	351	174	188	25.7	0	1	B13	TS6
EFB-L5	L5	√	12	100	180	800	351	174	188	25	0	1	B13	TS6
EFB-L5	L5	×	12	100	180	800	351	174	188	25	0	1	B13	TS6
EFB-L6	L6	×	12	110	200	900	394	175	190	28	0	1	B13	TS6
EFB-L6	L6	√	12	110	200	900	394	175	190	28	0	1	B13	TS6
EFB-L6	L6	×	12	110	200	950	394	175	190	28.4	0	1	B13	TS6
EFB-L6	L6	√	12	110	200	950	394	175	190	28.4	0	1	B13	TS6

Model	Series	Magic Eye	Rated Voltage(V)	20hr @1.75V/cell	RC(min)	CCA @-18°C(A)	Length(mm)	Width(mm)	Height(mm)	Weight(kg)	Cell Layout	Terminal	Hold Down	Handle

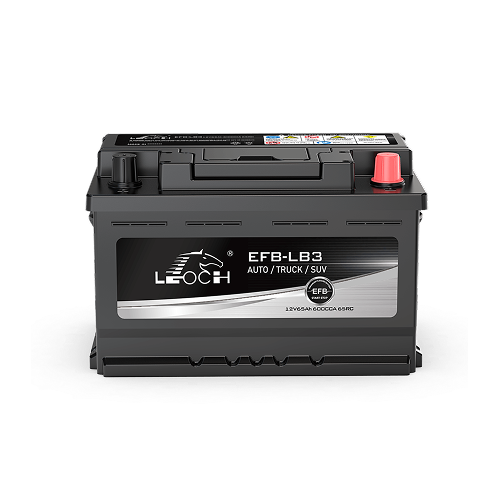

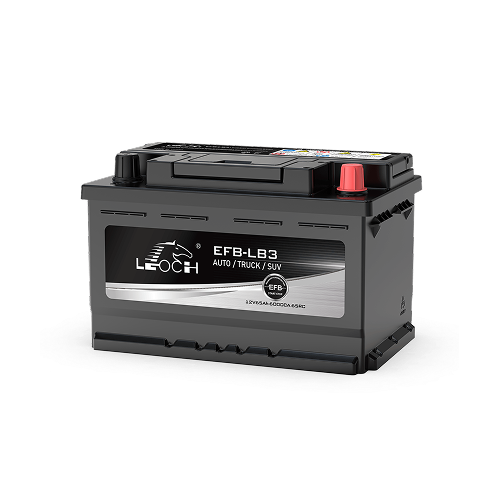

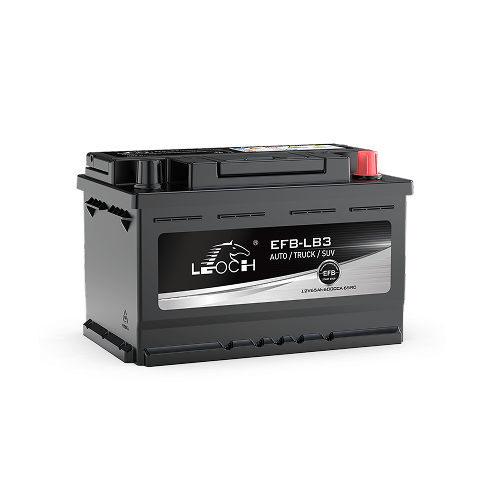

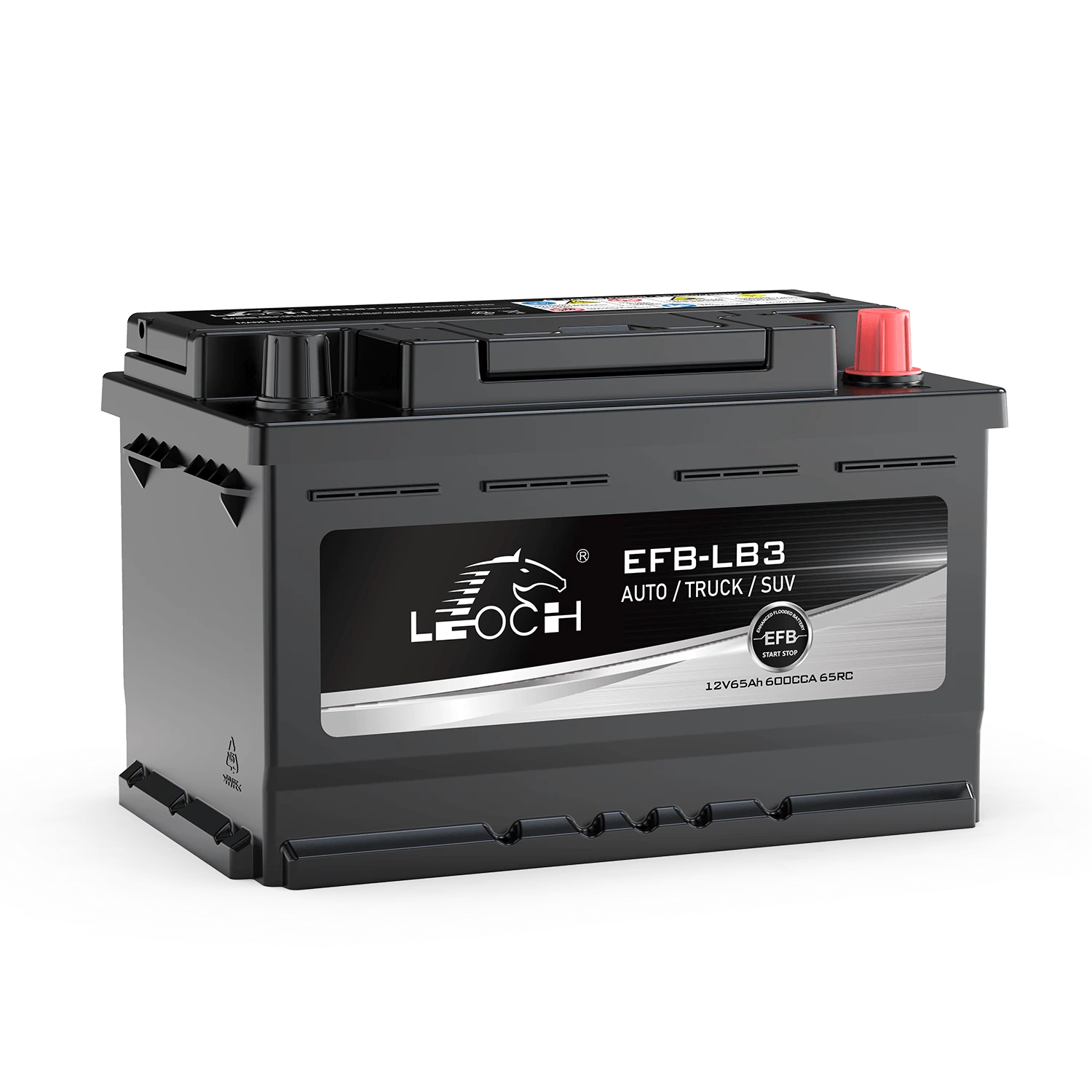

EFB-LB3	LB3	×	12	65	110	600	278	175	175	17.8	0	1	B13	TS9
EFB-LB3	LB3	×	12	65	110	600	278	175	175	17.8	0	1	B13	TS6
EFB-LB4	LB4	×	12	75	130	700	314	174	174	20.2	0	1	B13	TS6
EFB-LB5	LB5	√	12	85	150	780	351	174	173	22.5	0	1	B13	TS6
EFB-B20L	B20	×	12	40	60	360	195	126	222	10.7	0	3	B0	TS1
EFB-B20L	B20	√	12	40	60	360	195	126	222	10.7	0	3	B0	TS1
EFB-B20R	B20	×	12	40	60	360	195	126	222	10.7	1	3	B0	TS1
EFB-B20R	B20	√	12	40	60	360	195	126	222	10.7	1	3	B0	TS1
EFB-B20L	B20	√	12	40	60	390	195	126	222	11.2	0	3	B0	TS1
EFB-B20R	B20	√	12	40	60	390	195	126	222	11.2	1	3	B0	TS1
EFB-B24LS(N-55)	B24	√	12	45	70	450	236	128	222	13.5	0	1	B0	TS1
EFB-B24L(N-55)	B24	√	12	45	70	400	236	128	222	13.5	0	3	B0	TS1

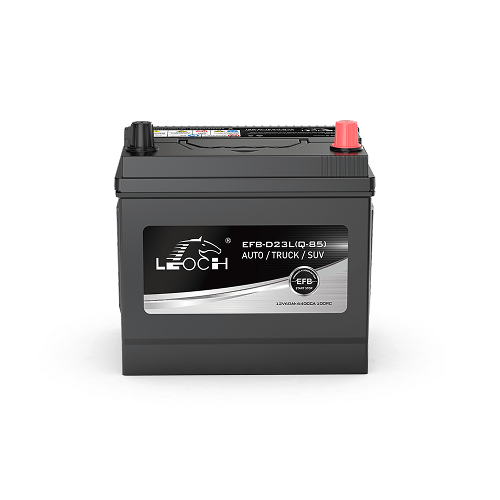

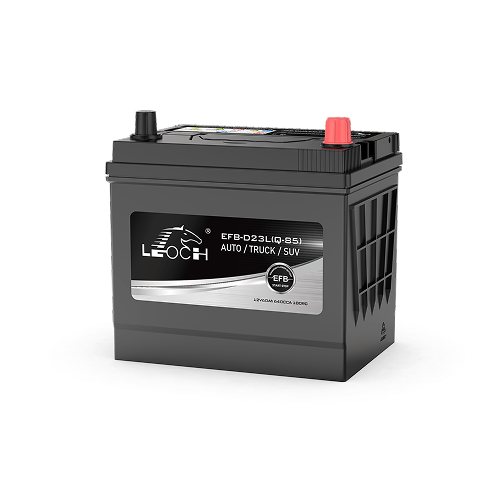

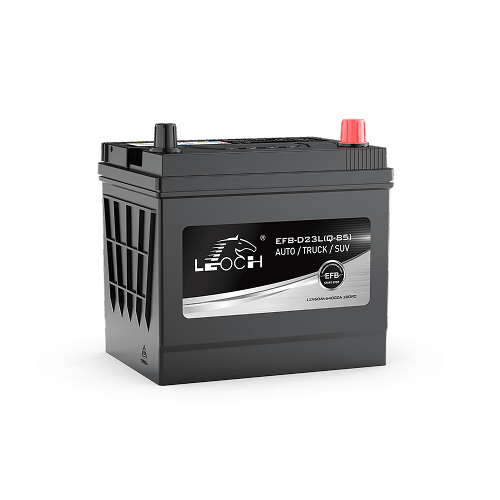

EFB-D23L(Q-85)	D23	×	12	60	100	610	231.5	172	223	17.2	0	1	B0	TS1
EFB-D23R(Q-85)	D23	×	12	60	100	610	231.5	172	223	17.2	1	1	B0	TS1
EFB-D23R(Q-85)	D23	√	12	60	100	610	231.5	172	223	17.2	1	1	B0	TS1
EFB-D23L(Q-85)	D23	√	12	65	115	620	231.5	174.5	223	17.5	0	1	B1	TS1
EFB-D23R(Q-85)	D23	√	12	65	115	620	231.5	174.5	223	17.5	1	1	B1	TS1
EFB-D23L(Q-85)	D23	√	12	70	120	640	231.5	174	223	18	0	1	B01	TS1
EFB-D23R(Q-85)	D23	√	12	70	120	640	231.5	174	223	18	1	1	B01	TS1
EFB-D26L(S-95)	D26	×	12	75	128	660	260	172	221	20.2	0	1	B01	TS1
EFB-D26L(S-95)	D26	√	12	75	128	660	260	172	221	20.2	0	1	B01	TS1
EFB-D26R(S-95)	D26	×	12	75	128	660	260	172	221	20.2	1	1	B01	TS1
EFB-D26R(S-95)	D26	√	12	75	128	660	260	172	221	20.2	1	1	B01	TS1
EFB-D26L(S-95)	D26	×	12	80	140	750	259	174.8	221	21.1	0	1	B1	TS1
EFB-D26R(S-95)	D26	×	12	80	140	750	259	174.8	221	21.1	1	1	B1	TS1
EFB-D31L(T-110)	D31	×	12	85	150	760	303	170	222	22.9	0	1	B1	TS1
EFB-D31L(T-110)	D31	√	12	85	150	760	303	170	222	22.9	0	1	B1	TS1
EFB-D31R(T-110)	D31	√	12	85	150	760	303	170	222	22.9	1	1	B1	TS1
EFB-31T-900	G31	×	12	100	180	900	329	171	237	26.9	1	13	B0	TS9
