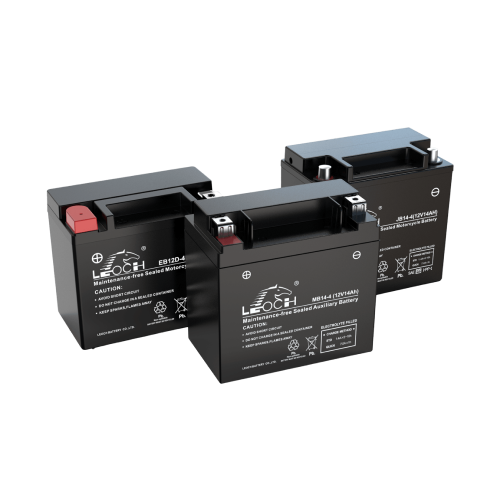

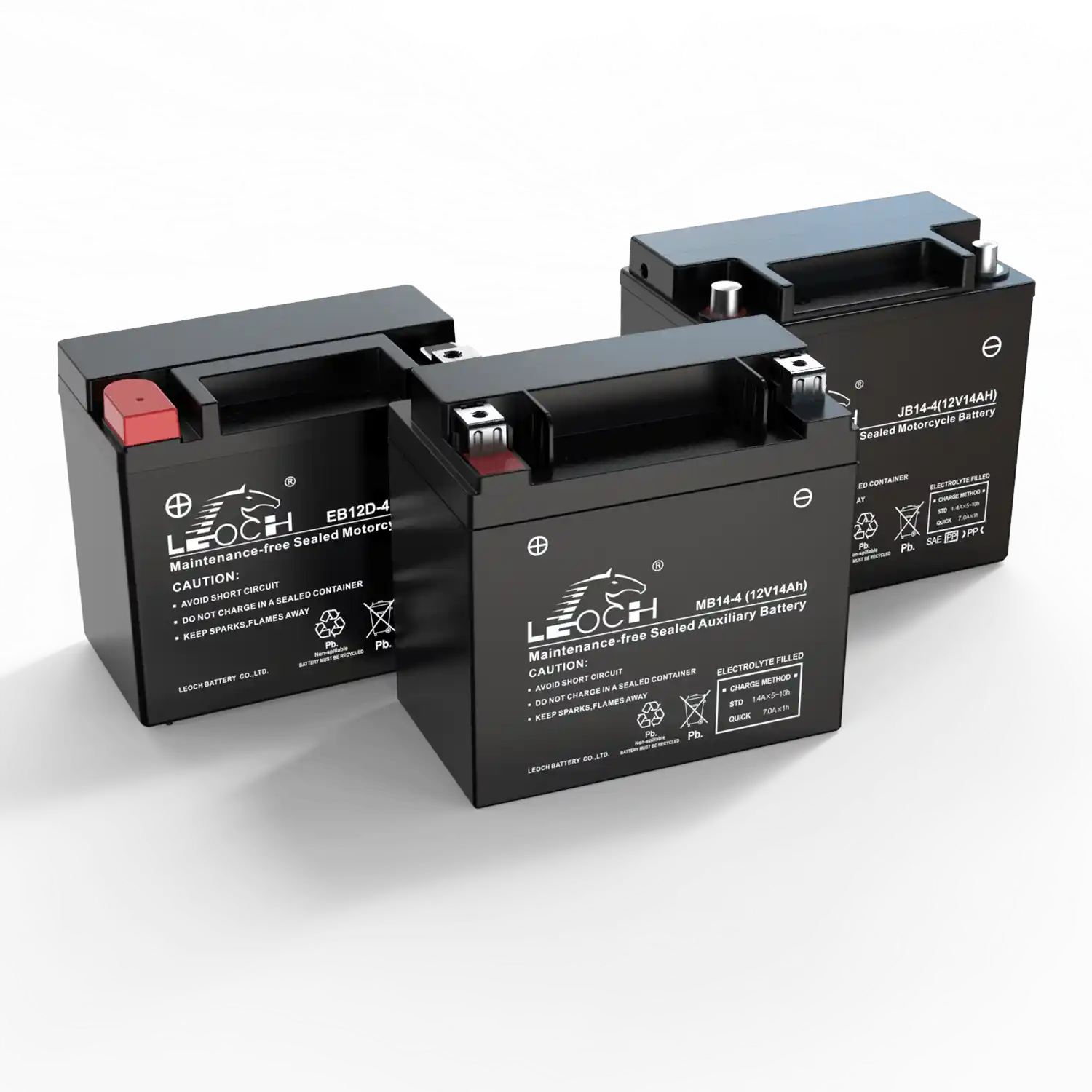

Automotive Auxiliary Series
Designed to provide specialized backup power for secondary electronic braking systems, steering, and advanced driver-assistance systems (ADAS).
Applications:
ATV
Jet ski
Motorcycle
Snowmobile
Lawn & Garden
Applied automotive assistance
Key Features
-
Auxiliary Applications
Designed and developed specifically for automotive auxiliary battery applications.
-
Maintenance-Free
Sealed maintenance-free design with enhanced safety and durability.
-
Optimized Grid Alloy
Lead paste formulation and AGM separator technology enhance durability and extend service life.
-
Enhanced Vibration Resistance
For demanding automotive environments.
-
High Reliability
Reliable auxiliary power supply for stable vehicle electronic systems.
Parameter List
Swipe View
| Model | Rated voltage (V) | 10hr @1.75V/cell | 20hr @1.75V/cell | CCA @-18℃(A) | Length(mm) | Width(mm) | Height(mm) | Length(in) | Width(in) | Height(in) | Weight (kg) | Terminal |

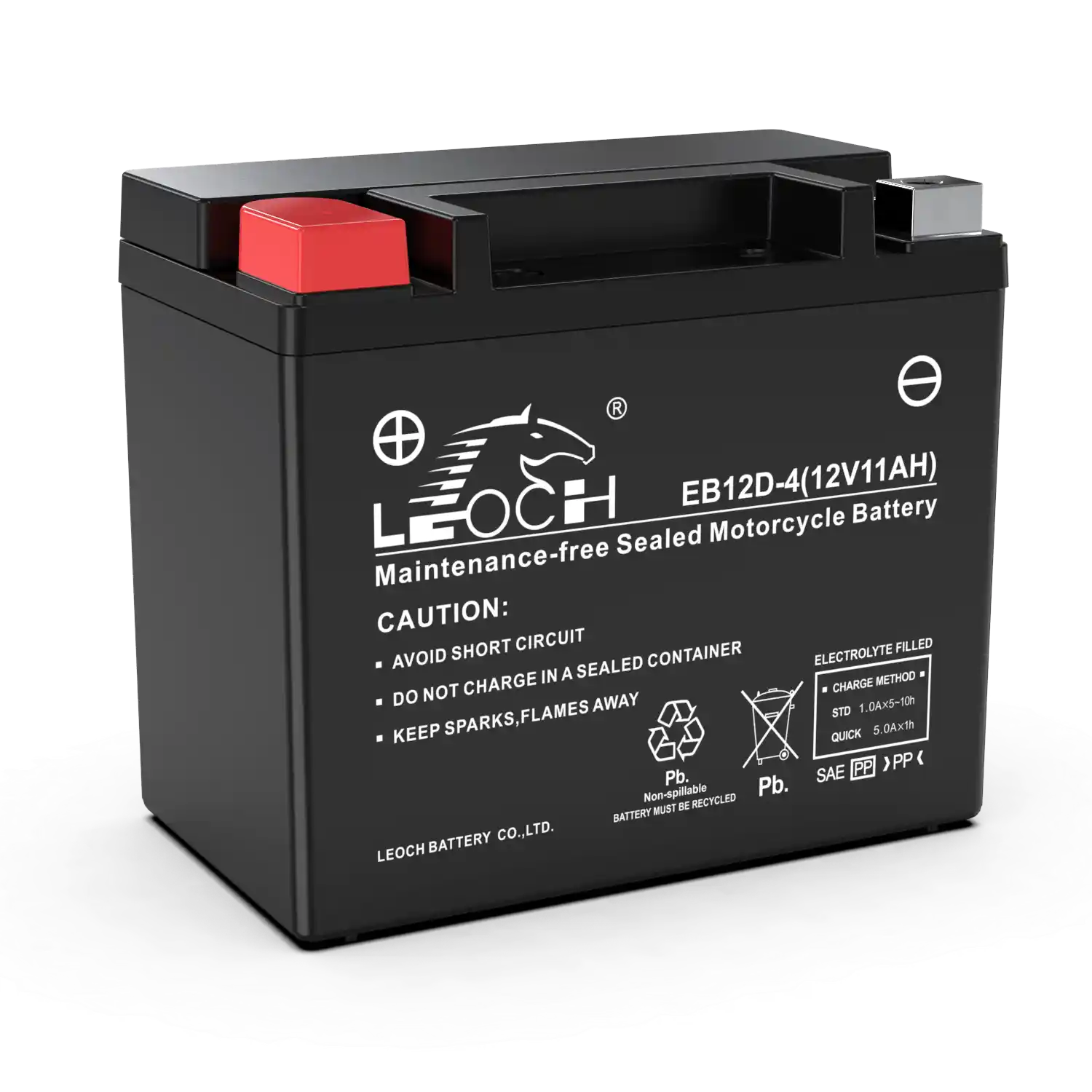

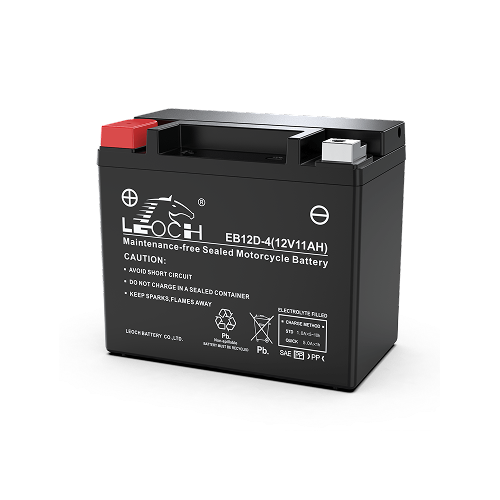

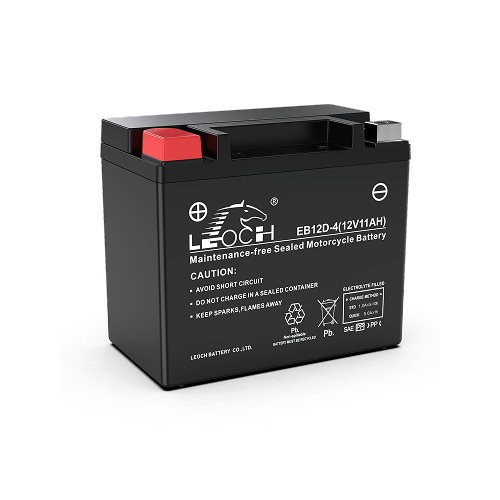

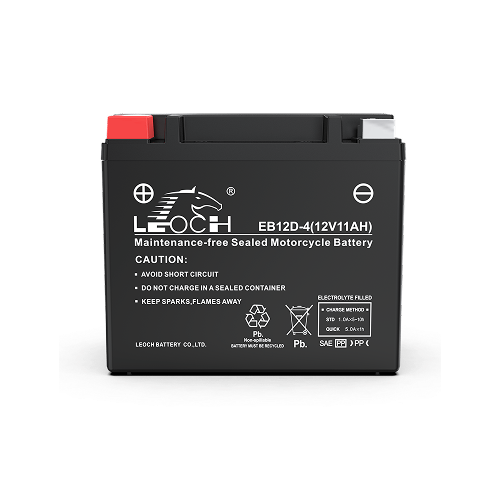

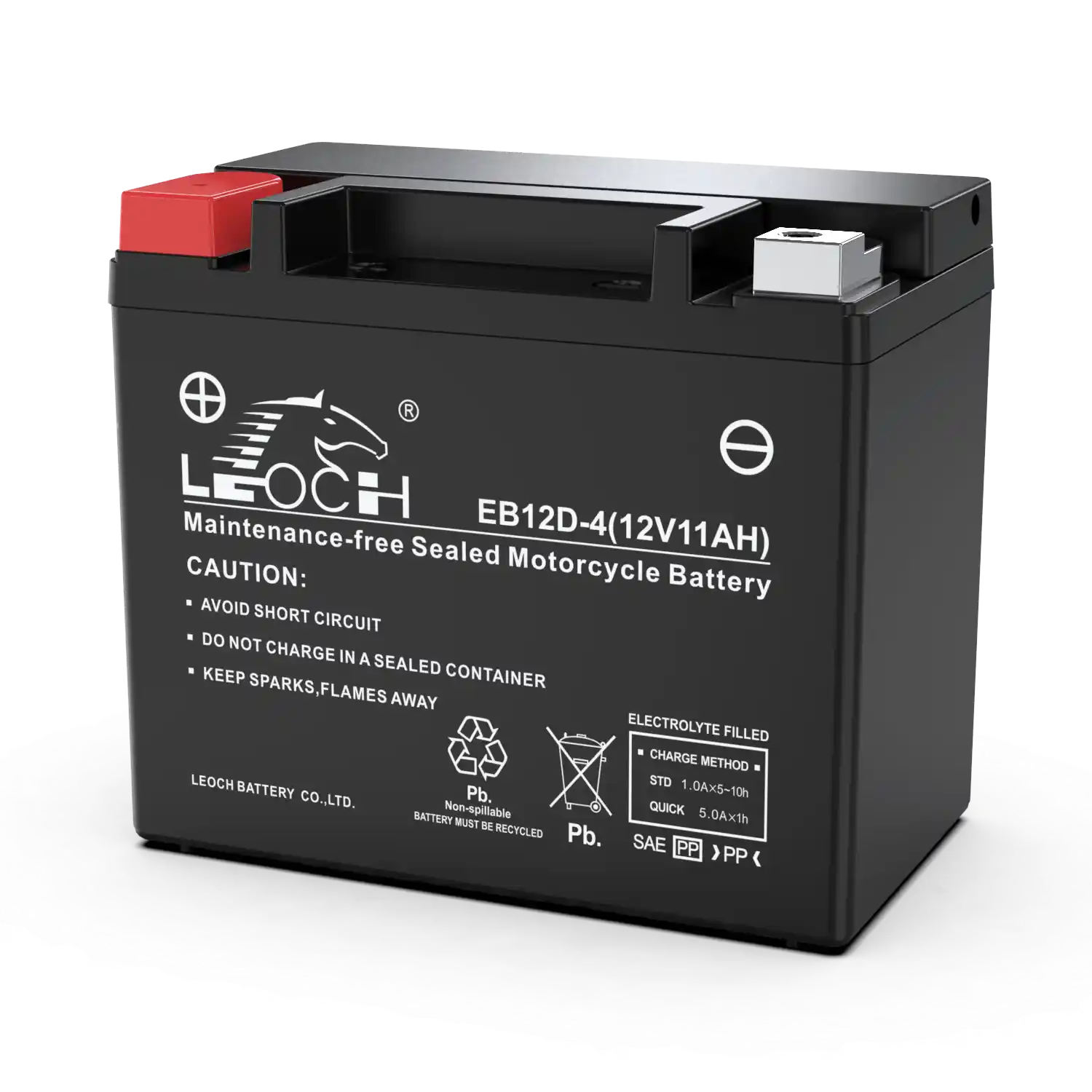

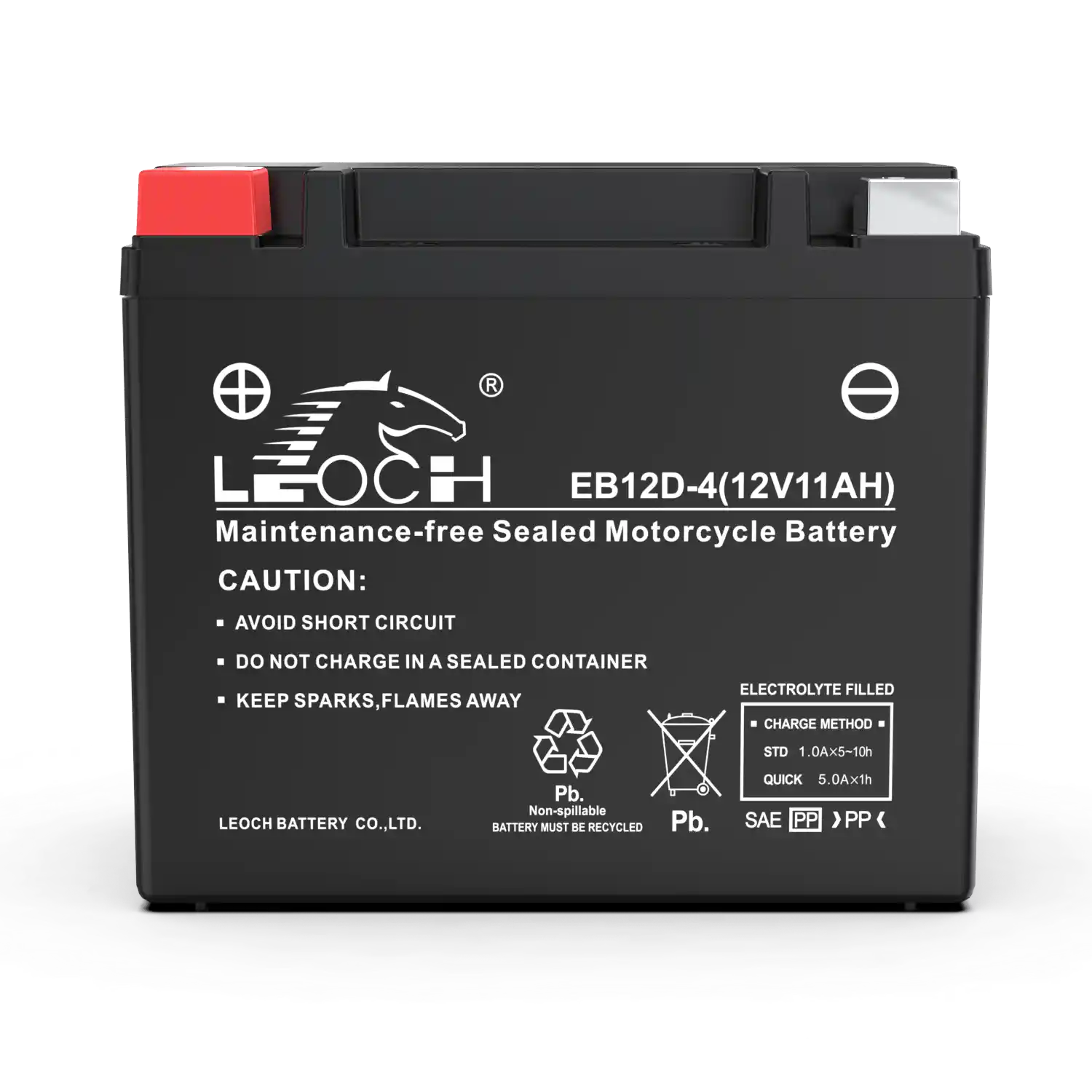

| EB12D-4 | 12 | 11 | 12 | 180 | 150 | 87 | 130 | 5 7/8 | 3 7/16 | 5 1/8 | 4.25 | O |
| EB14D-4 | 12 | 13 | 14 | 200 | 150 | 87 | 145 | 5 7/8 | 3 7/16 | 5 11/16 | 4.76 | O |
| EB14E-4 | 12 | 13 | 14 | 245 | 150 | 87 | 145 | 5 7/8 | 3 7/16 | 5 11/16 | 5.3 | O |

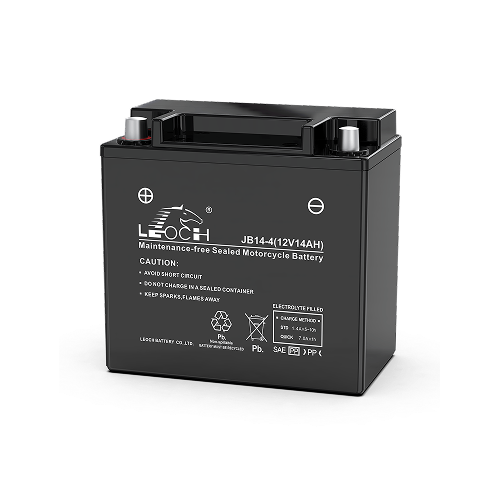

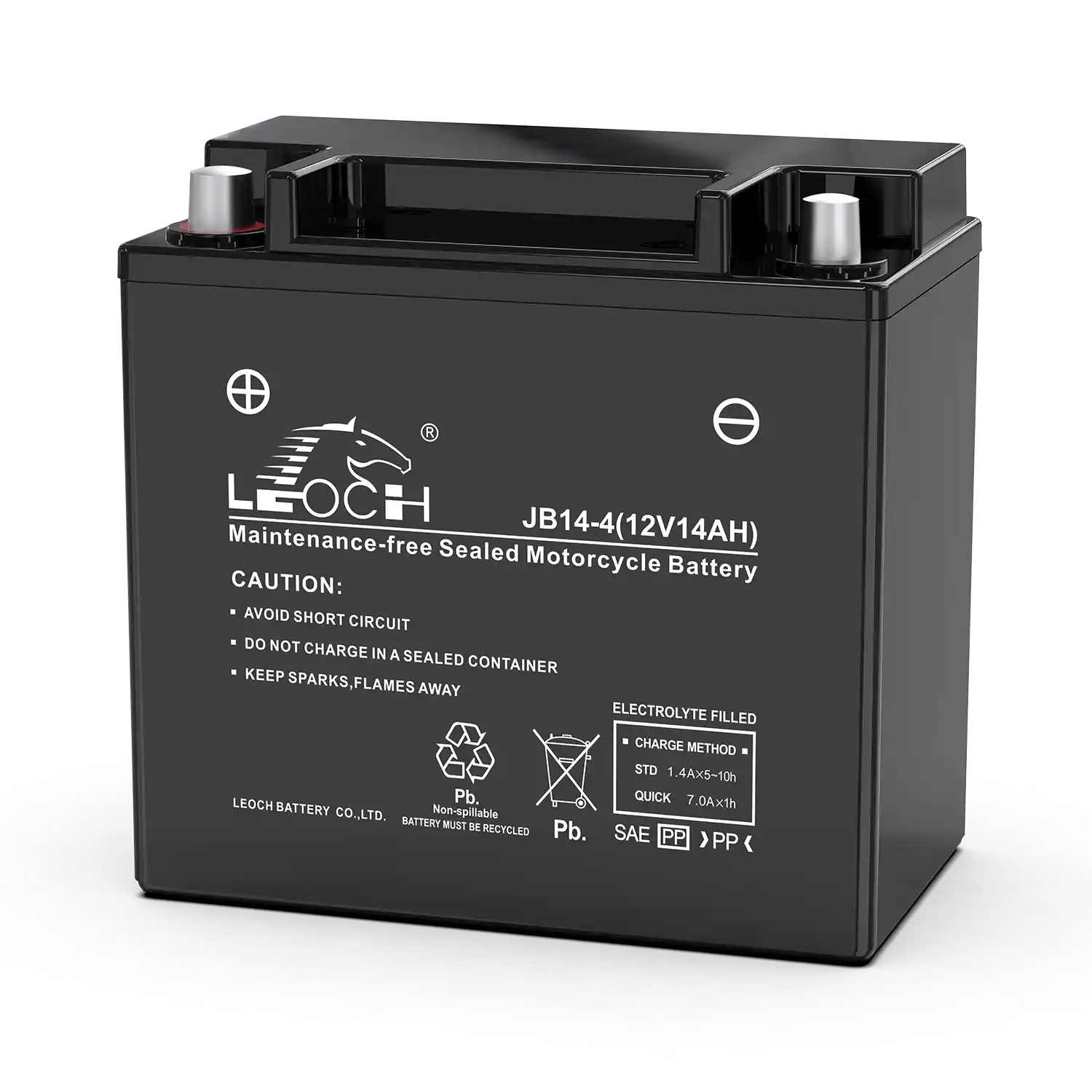

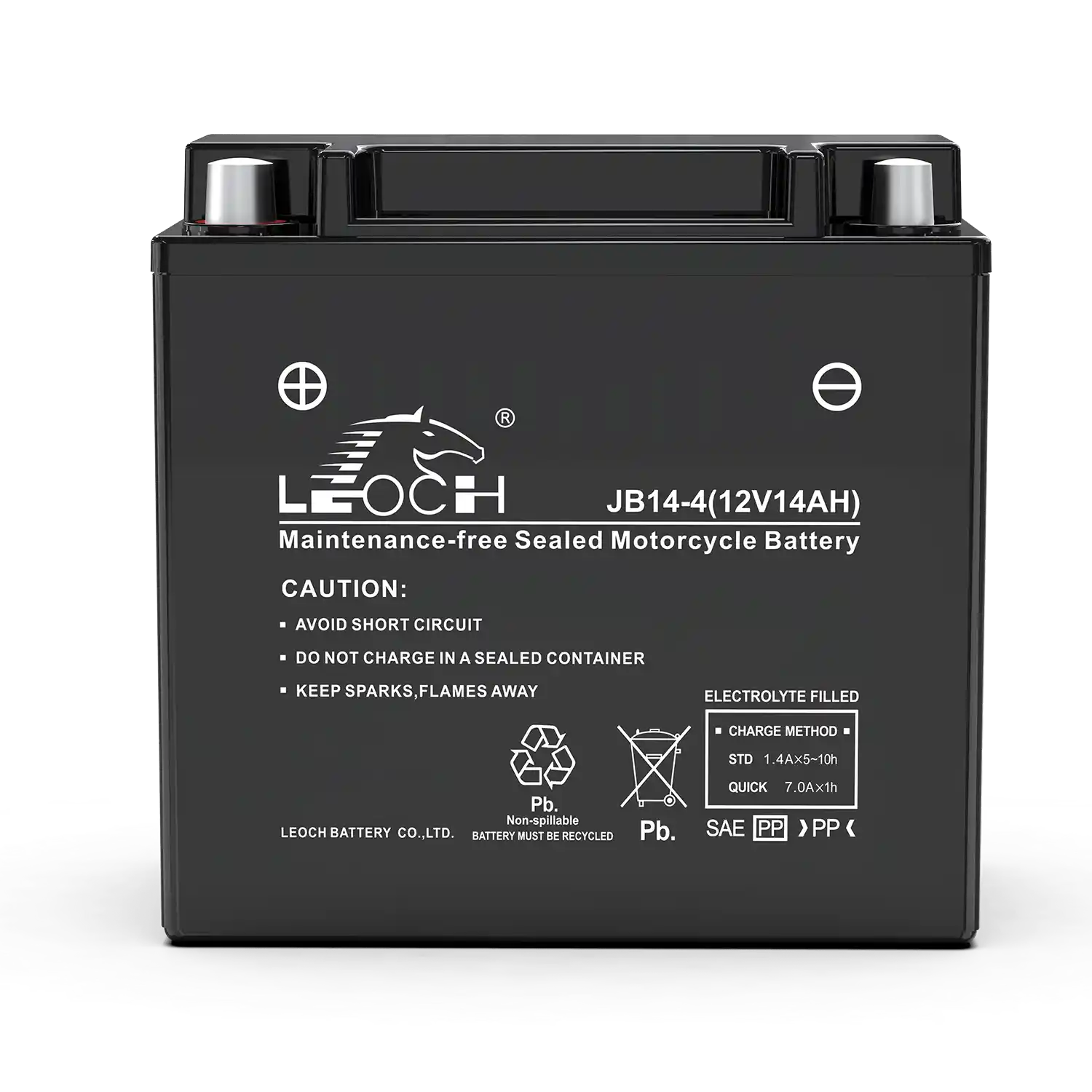

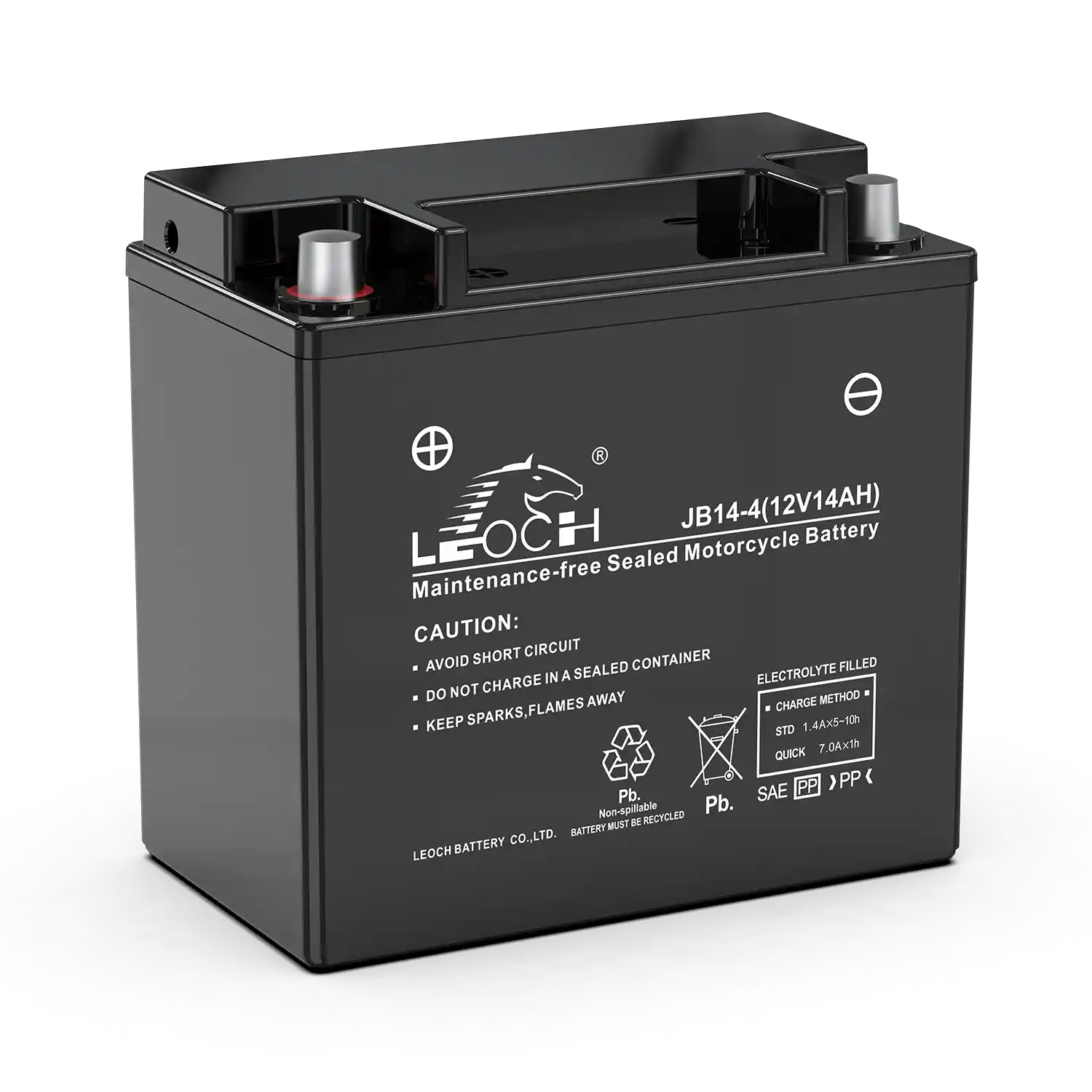

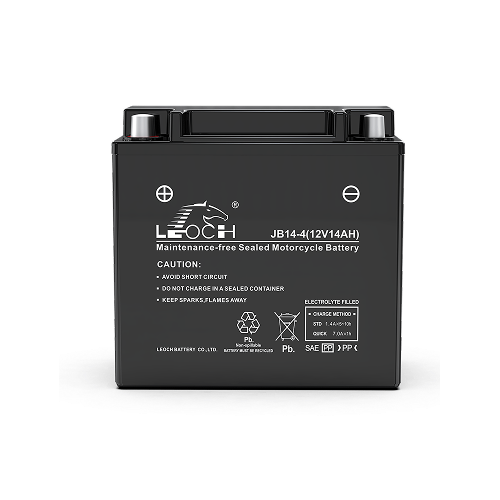

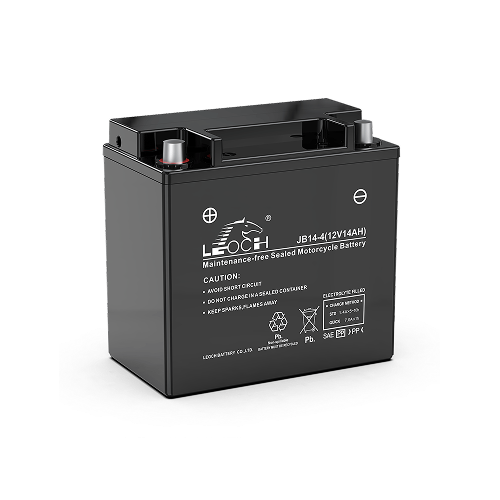

| JB14-4 | 12 | 13 | 14 | 200 | 150 | 87 | 145 | 5 7/8 | 3 7/16 | 5 11/16 | 4.62 | K |

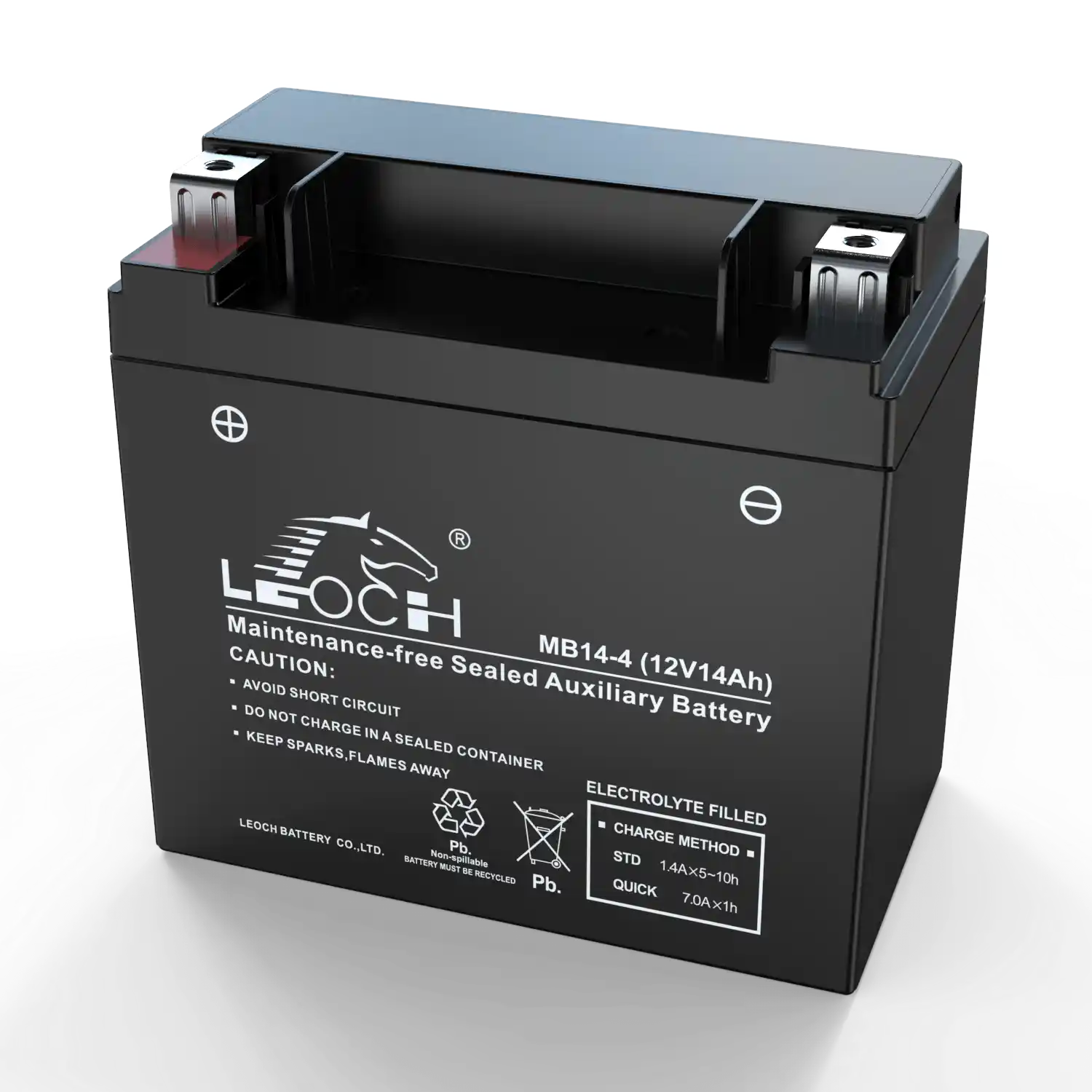

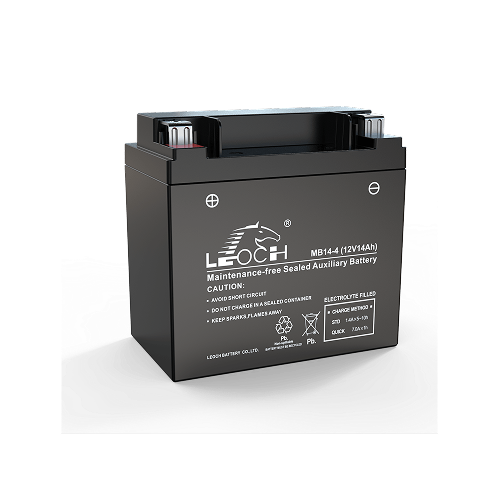

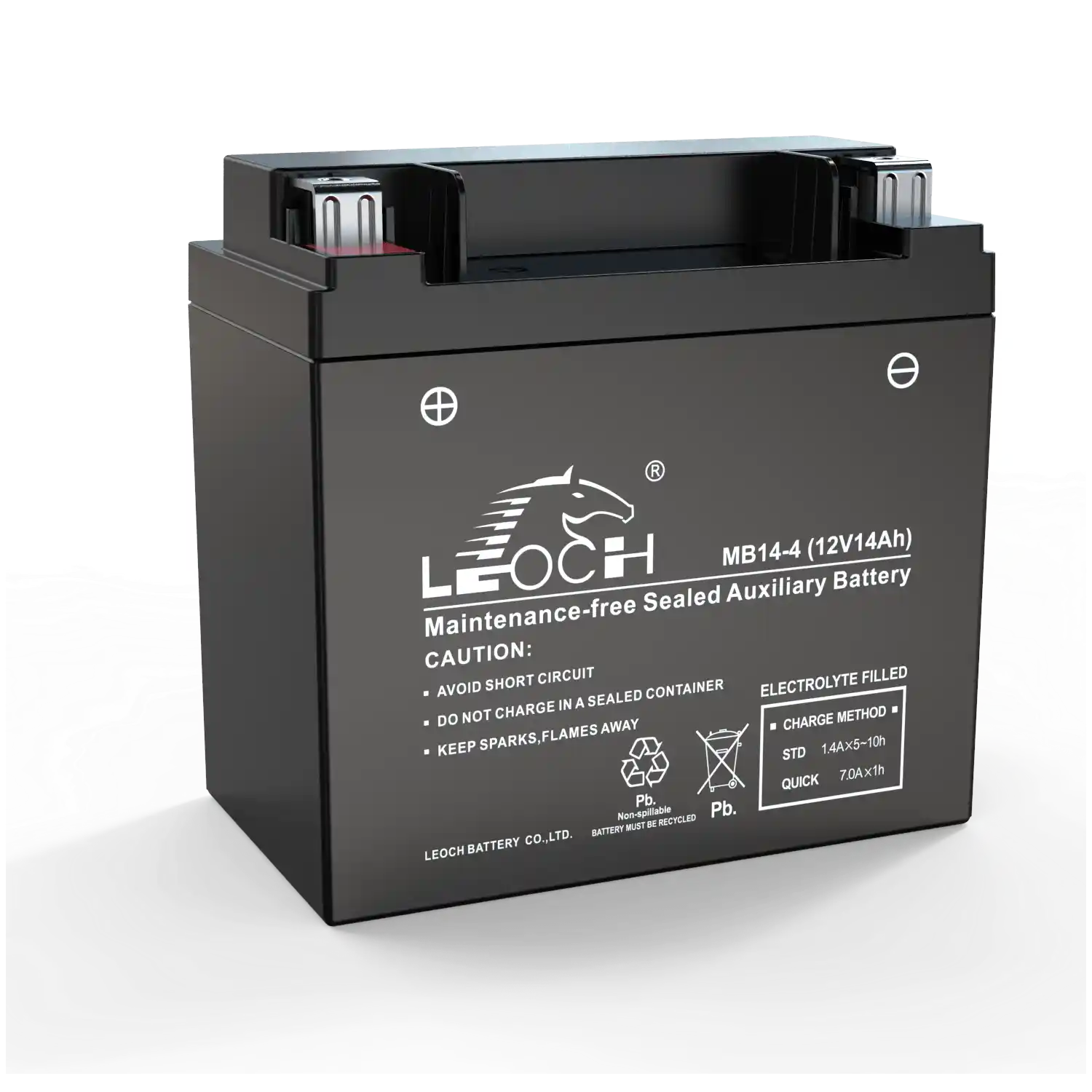

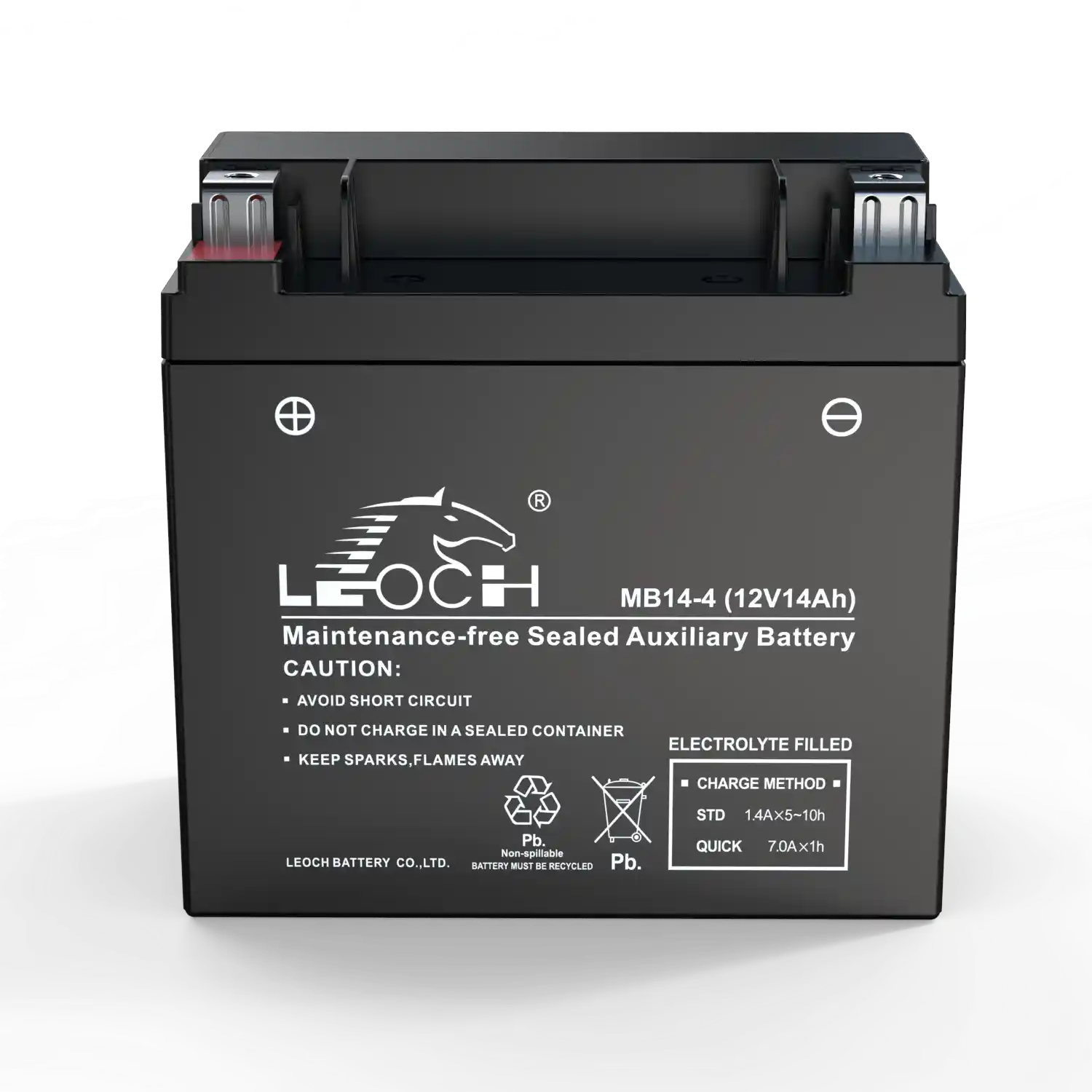

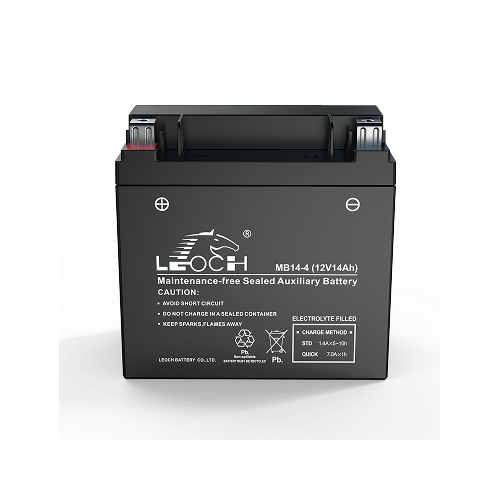

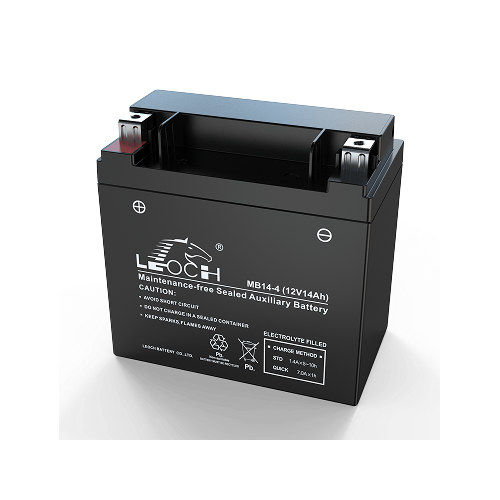

| MB14-4 | 12 | 13 | 14 | 210 | 150 | 87 | 148 | 5 7/8 | 3 7/16 | 5 11/16 | 4.8 | M |
