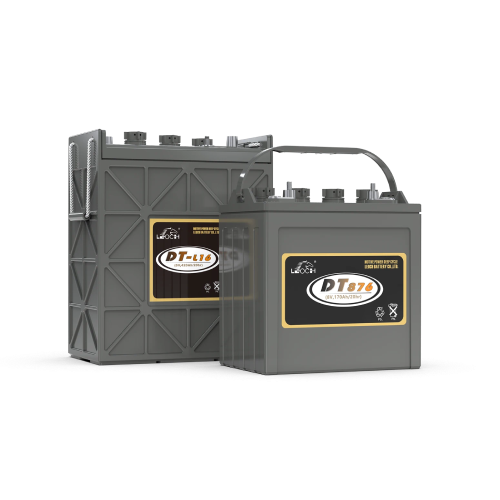

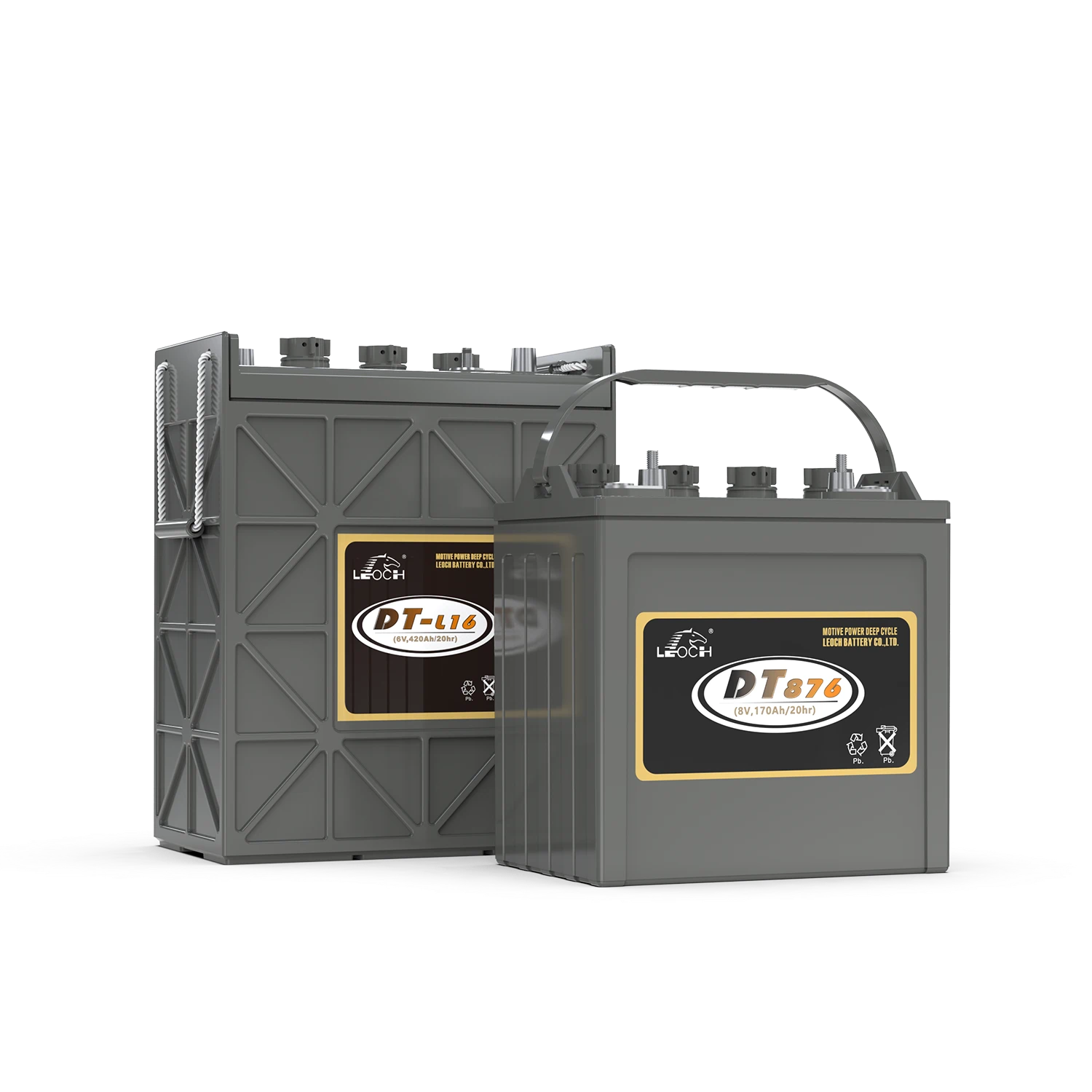

Deep Cycle DT Series
DT batteries are used as DC power supplies for forklifts, tractors, material carriers, underground mining locomotives, and other equipment. They are widely applied in airports, stations, ports, vegetable and fruit markets, and warehouses of industrial and mining enterprises. Meanwhile, as an electric-powered andpollution-free power solution, DC-powered vehicles are increasingly used in public transportation, sports venues, and entertainment facilities.
Key Features
-
Long Cycle Service Life
Strong recovery ability of deep discharge.
-
Good Heat Dissipation Conditions
Low risk of thermal runaway, easy maintenance.
-
High Energy
Low internal resistance, low self-discharge, no noise, easy to operate.
-
Reliable Performance
Reliable sealing structure ensures no leakage during use.
-
Special Plate Design & Grid Structure
Increase battery performance.
-
Special Alloy with Excellent Corrosion Resistance
Increase the service life of the battery and good deep discharge performance.
Parameter List
| Model | Rated Voltage(V) | 5hr @1.75V/cell | 20hr @1.75V/cell | Length(mm) | Width(mm) | Height(mm) | Total Height(mm) | Weight(kg) | Terminal |
| DT606 | 6 | 175 | 210 | 260 | 180 | 248 | 279.5 | 26.5 | DT-5/16" |
| DT606 | 6 | 175 | 210 | 260 | 180 | 248 | 279.5 | 26.5 | DT-M8 |
| DT106 | 6 | 185 | 225 | 260 | 180 | 248 | 279.5 | 28.6 | DT-5/16" |
| DT106 | 6 | 185 | 225 | 260 | 180 | 248 | 279.5 | 28.6 | DT-M8 |
| DT106 | 6 | 185 | 225 | 260 | 180 | 248 | 279.5 | 28.6 | DT(5/16") |

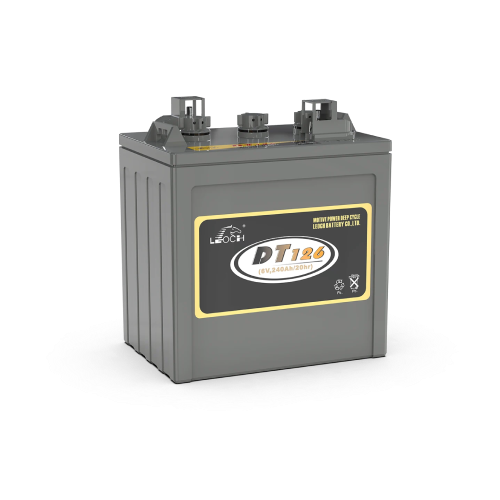

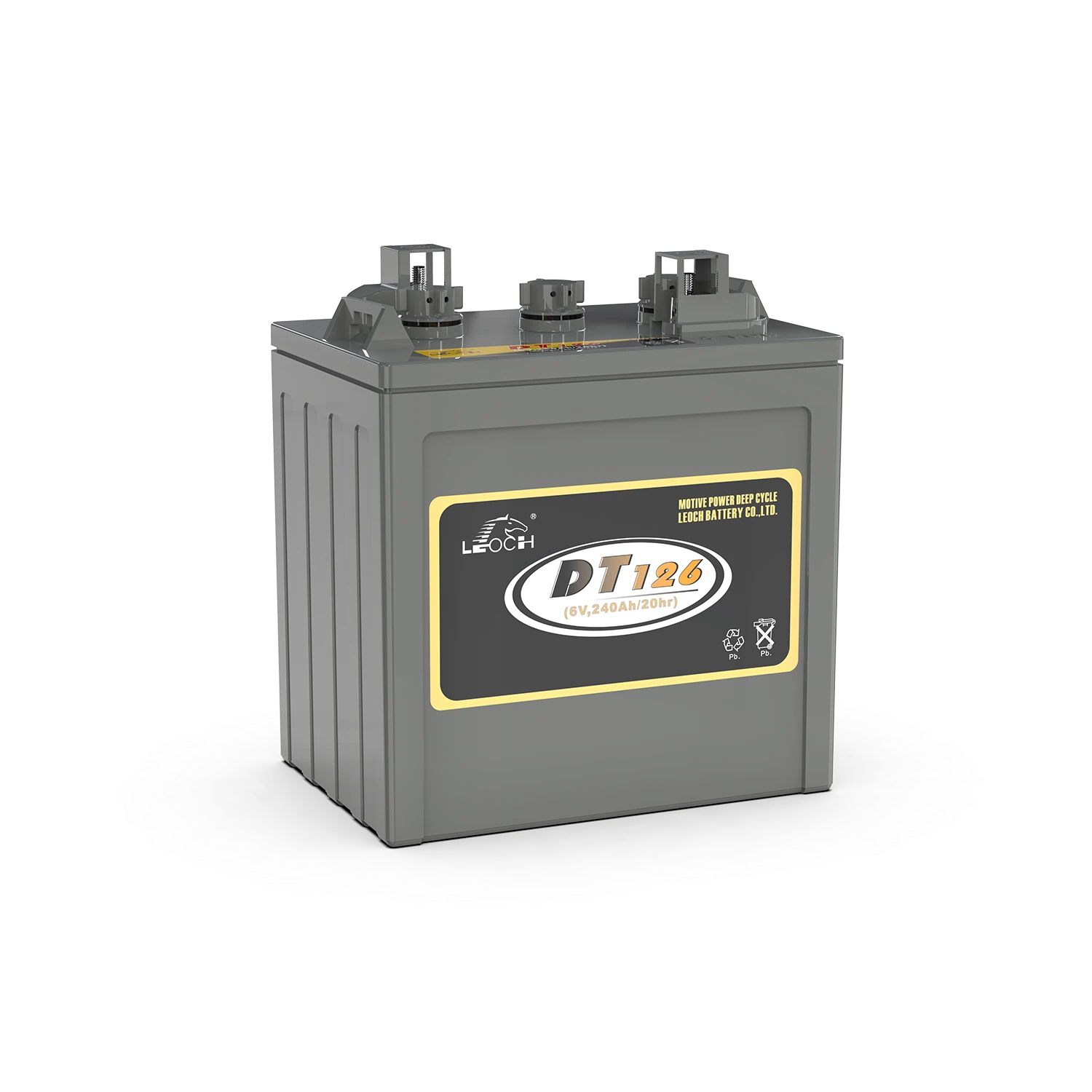

| DT126 | 6 | 195 | 240 | 260 | 180 | 248 | 279.5 | 29.7 | DT-5/16" |
| DT126 | 6 | 195 | 240 | 260 | 180 | 248 | 279.5 | 29.7 | DT(5/16") |
| DT126 | 6 | 195 | 240 | 260 | 180 | 248 | 279.5 | 29.7 | DT-M8 |
| DT136 | 6 | 201 | 245 | 244 | 191 | 246.5 | 268 | 31 | 1(AP) |
| DT146 | 6 | 215 | 260 | 260 | 180 | 248 | 279.5 | 30.4 | DT-5/16" |
| DT146 | 6 | 215 | 260 | 260 | 180 | 248 | 279.5 | 30.4 | DT(5/16") |
| DT146 | 6 | 215 | 260 | 260 | 180 | 248 | 279.5 | 30.4 | DT-M8 |
| DT-J305H | 6 | 295 | 360 | 296 | 176 | 343 | 366 | 45 | DT(5/16") |

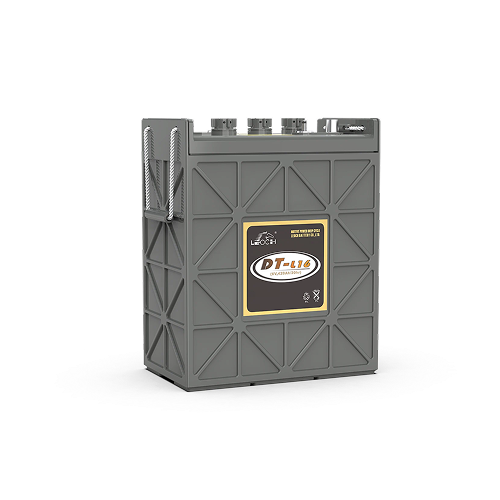

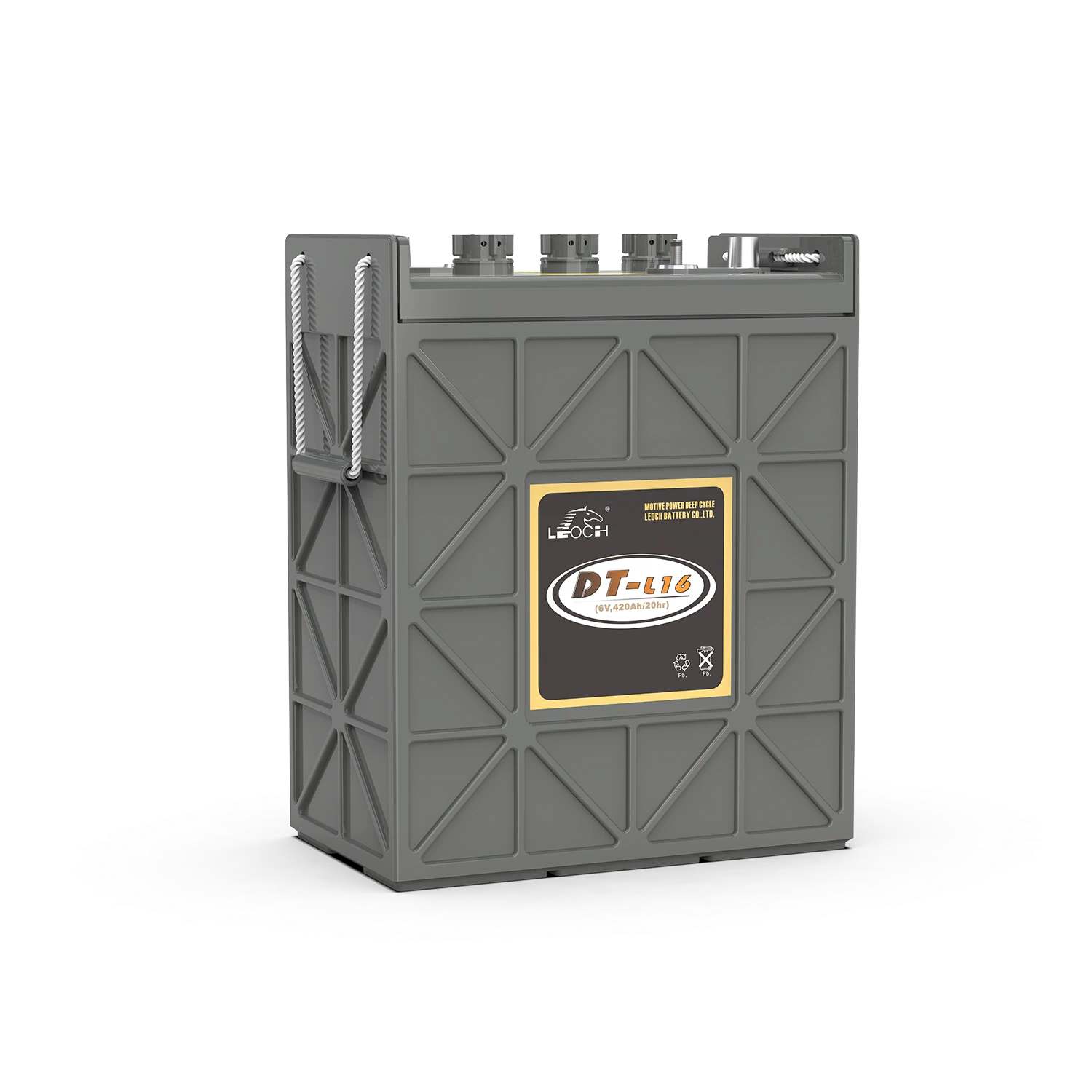

| DT-L16H | 6 | 357 | 435 | 296 | 176 | 402 | 425 | 55.5 | DT(5/16") |
| DT-J305 | 6 | 271 | 330 | 296 | 176 | 343 | 366 | 42 | DT(5/16") |
| DT-L16 | 6 | 344 | 420 | 296 | 176 | 402 | 425 | 52 | DT(5/16") |
| DT866 | 8 | 125 | 150 | 260 | 180 | 248 | 279.5 | 26.5 | DT-5/16" |
| DT866 | 8 | 125 | 150 | 260 | 180 | 248 | 279.5 | 26.5 | DT-M8 |

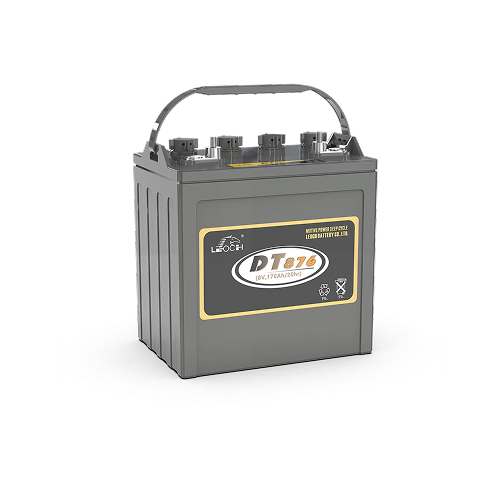

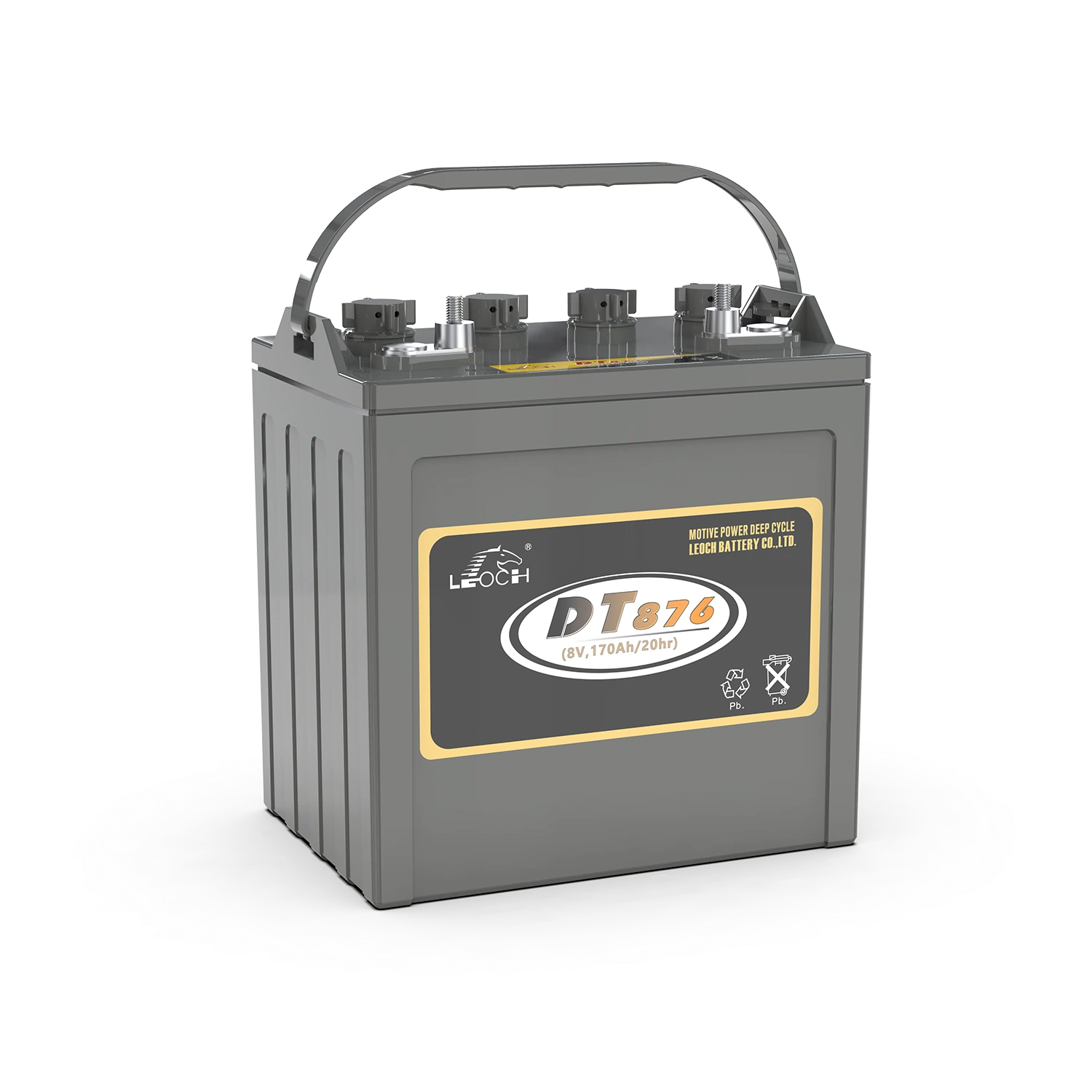

| DT876 | 8 | 145 | 170 | 260 | 180 | 248 | 279.5 | 29.2 | DT-5/16" |
| DT876 | 8 | 145 | 170 | 260 | 180 | 248 | 279.5 | 29.2 | DT(5/16") |
| DT876 | 8 | 145 | 170 | 260 | 180 | 248 | 279.5 | 29.2 | DT-M8 |
| DT896 | 8 | 155 | 190 | 260 | 180 | 248 | 279.5 | 31.5 | DT-5/16" |
| DT896 | 8 | 155 | 190 | 260 | 180 | 248 | 279.5 | 31.5 | DT-M8 |

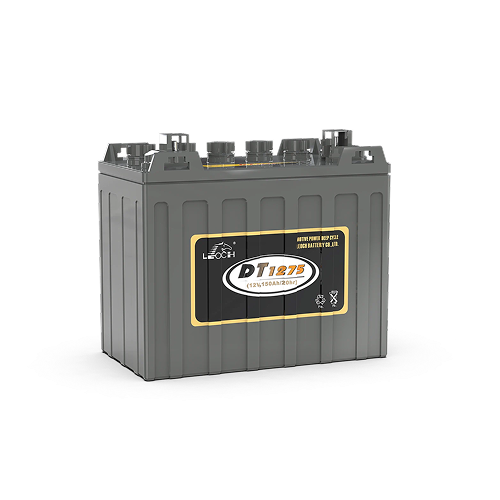

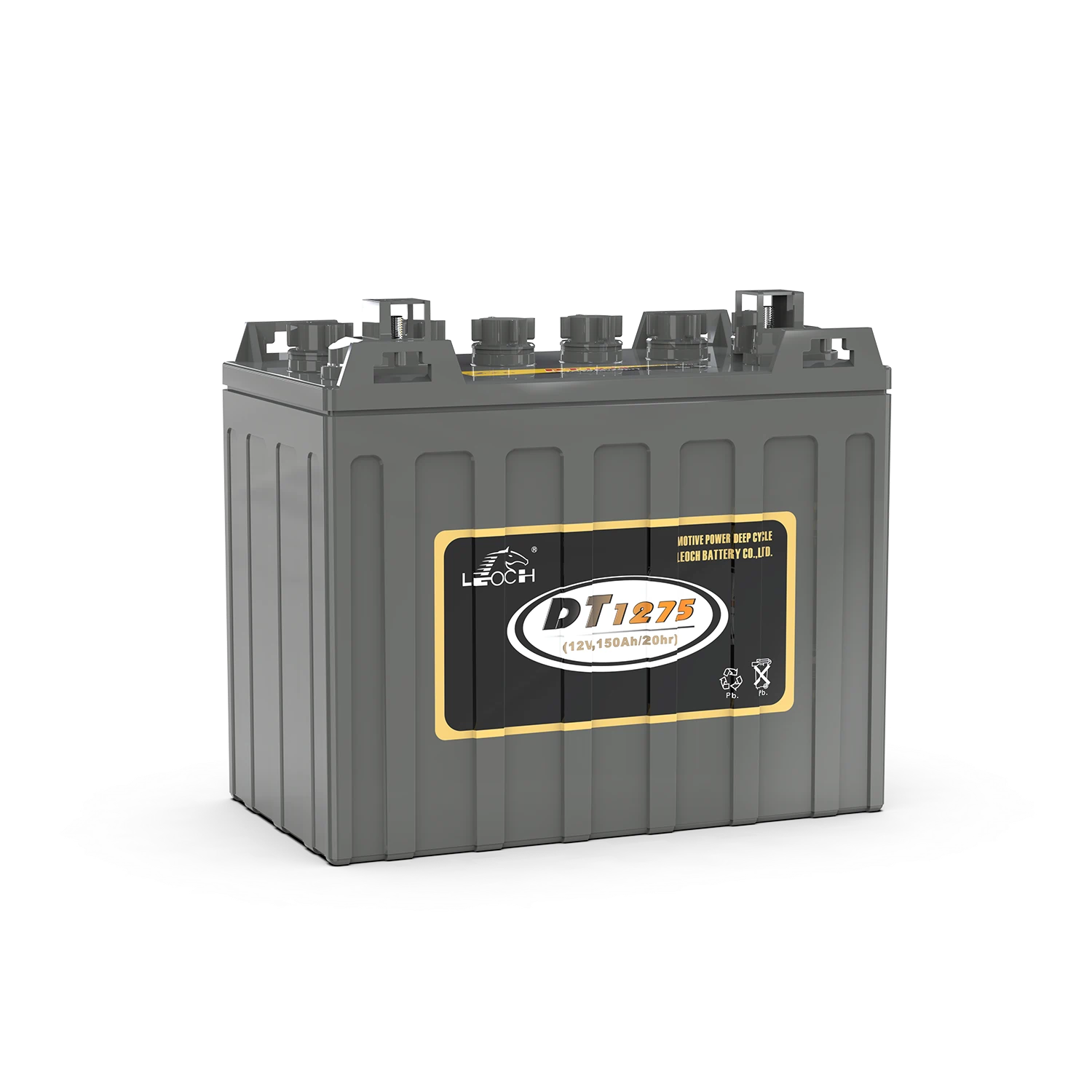

| DT1275 | 12 | 120 | 150 | 328 | 180 | 248 | 279.5 | 36.7 | DT-5/16" |
| DT1275 | 12 | 120 | 150 | 328 | 180 | 248 | 279.5 | 36.7 | DT(5/16") |
| DT1275 | 12 | 120 | 150 | 328 | 180 | 248 | 279.5 | 36.7 | DT-M8 |
