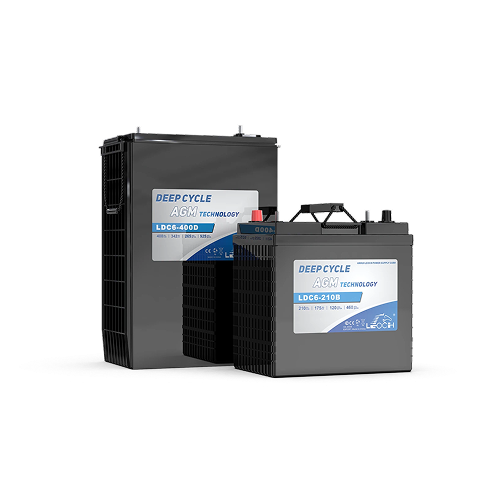

Deep Cycle LDC Series

LDC Batteries are mainly used in various electric vehicles, including electricbikes (e-bikes), electric tricycles, electric buses, golf carts, tourist sightseeing vehicles, and electric cleaning equipment. They are widely used in tourist scenic spots, hospitals, markets, industrial and mining enterprises, warehouses, docks, and stations.

Request a Quote

Key Features

Green Solution

True deep cycle AGM-GEL technology.
Over 99.99% Virgin Lead for Grid Plate
Carbon Active Material
Electrolyte + Gel

Longer cycle life.
Heavy Duty

Heavy duty grid/paste design for deep cycle application.
Maintenance Free

Non-spillable, valve-regulated.
Double Separator Configuration

Long cycle life & high energy density and super anti-vibration design.
Low Self-Discharge

Longer shelf lifetification.

Parameter List

Golf Carts & Cleaning Equipment
Two & Three-Wheelers
Aerial Work Platforms
Electric Wheelchairs

Swipe View

Model	Rated Voltage	20hr @1.75V/cell	5hr @1.75V/cell	3hr @1.75V/cell	Length(mm)	Width(mm)	Height(mm)	Total Height(mm)	Weight(kg)
LDC12-90-G24-T	12	85	73	68	260	168	208	214	23.5
LDC12-90-G24-DT	12	85	73	68	260	168	208	232.5	23.8
LDC12-100	12	100	89	80	260	168	211	214	25.8
LDC12-105-G27-T	12	105	88	78	306	168	208	214	27.3
LDC12-105-G27-DT	12	105	88	78	306	168	208	232.5	27.8
LDC12-115-G31-DT	12	115	95	85	330	173	212	237	31.7
LDC12-115-G31-T	12	115	95	85	330	173	212	220	31.4
LDC12-120	12	120	106	100	330	173	213	220	32.8
LDC12-140	12	144	126	120	408	176	224.5	224.5	39.2
LDC12-145	12	148	122	118	340	172	280	286	42.5
LDC12-150-GC12	12	150	136	125	327	180	274	274	42.2
LDC12-180	12	180	162	150	483	170	238.5	238.5	50.1
LDC12-220	12	220	190	170	387	180	346	368	59.7
LDC12-245	12	245	210	185	387	180	346	368	64.3
LDC6-210-GC2	6	210	175	165	260	180	252	274	27.2

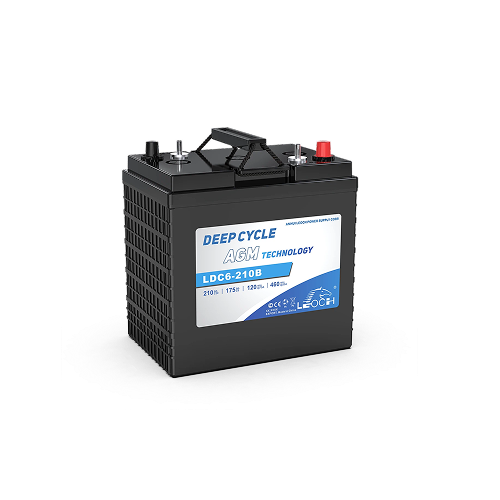

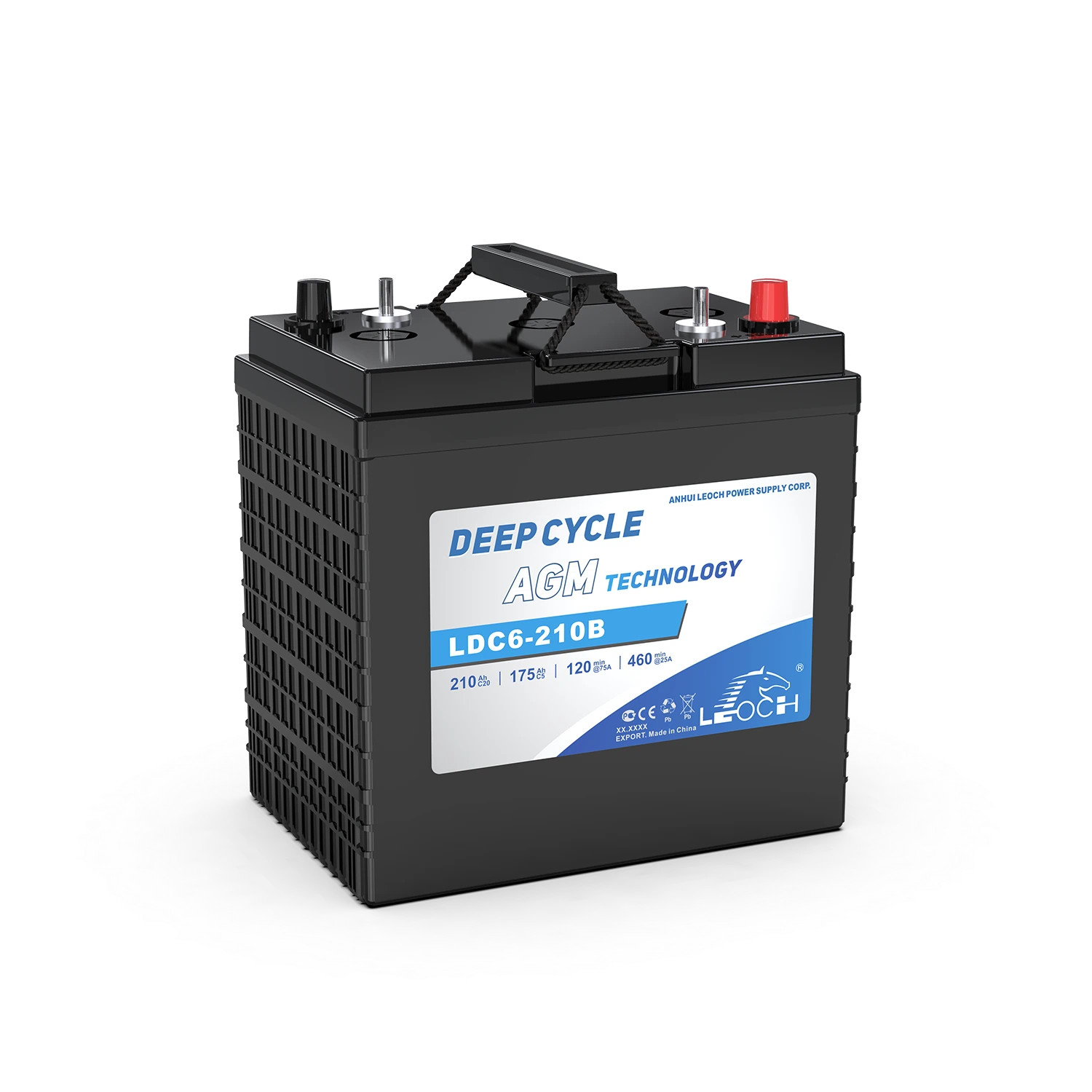

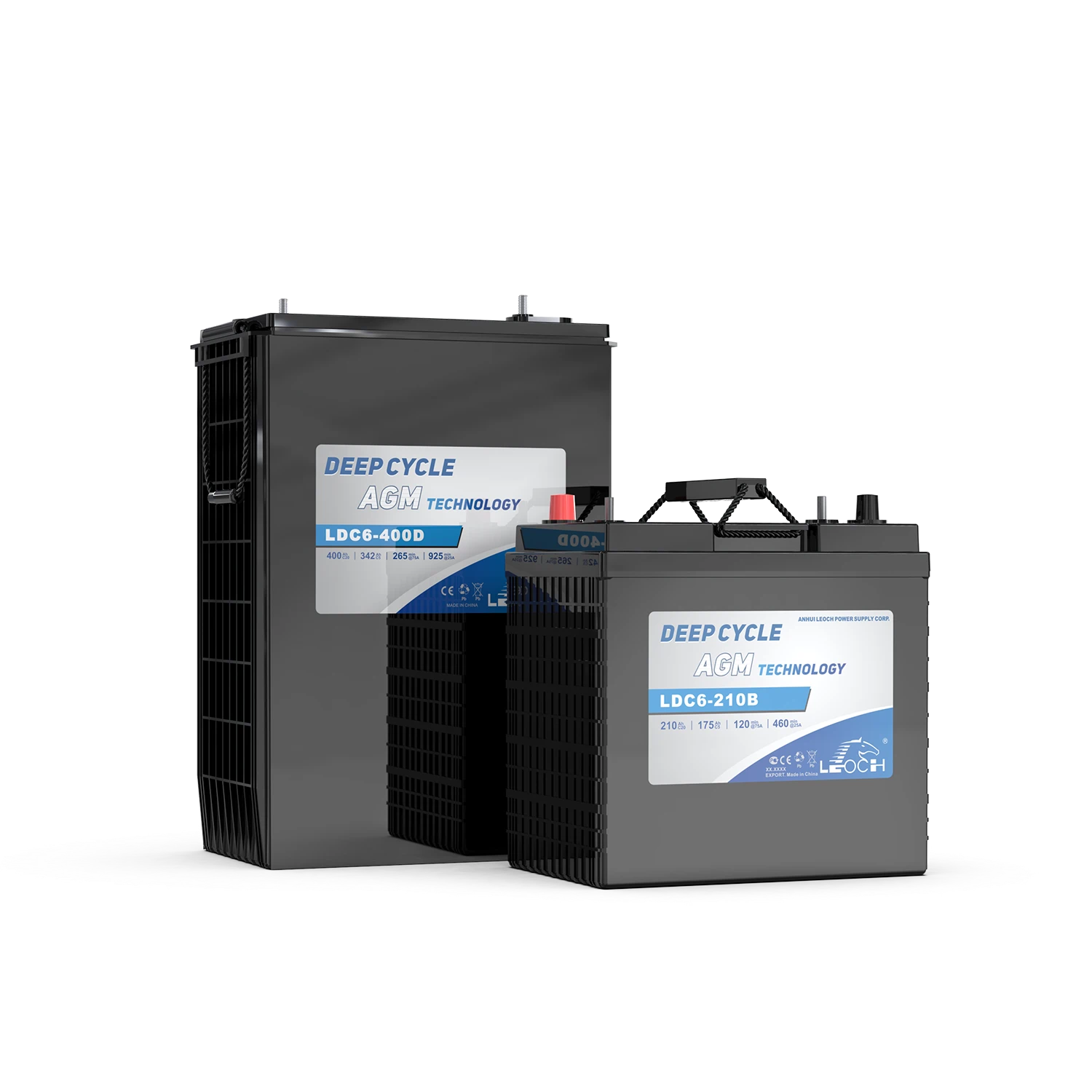

LDC6-210B	6	210	175	165	260	180	252	274	30.4
LDC6-400C	6	400	342	310	295	180	406	428	54.2
LDC6-400D	6	400	342	310	295	180	406	429	54.2
LDC6-224-GC2	6	224	192	173	260	180	247	253	30.5

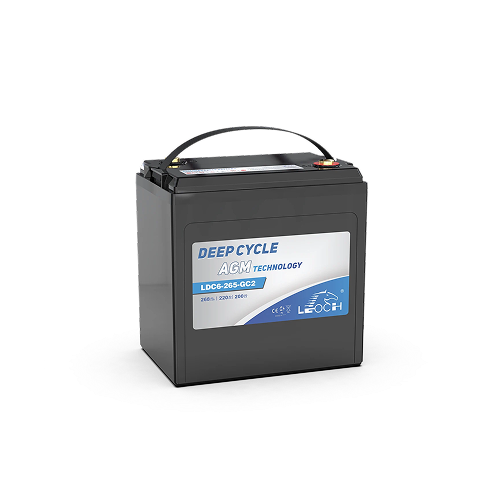

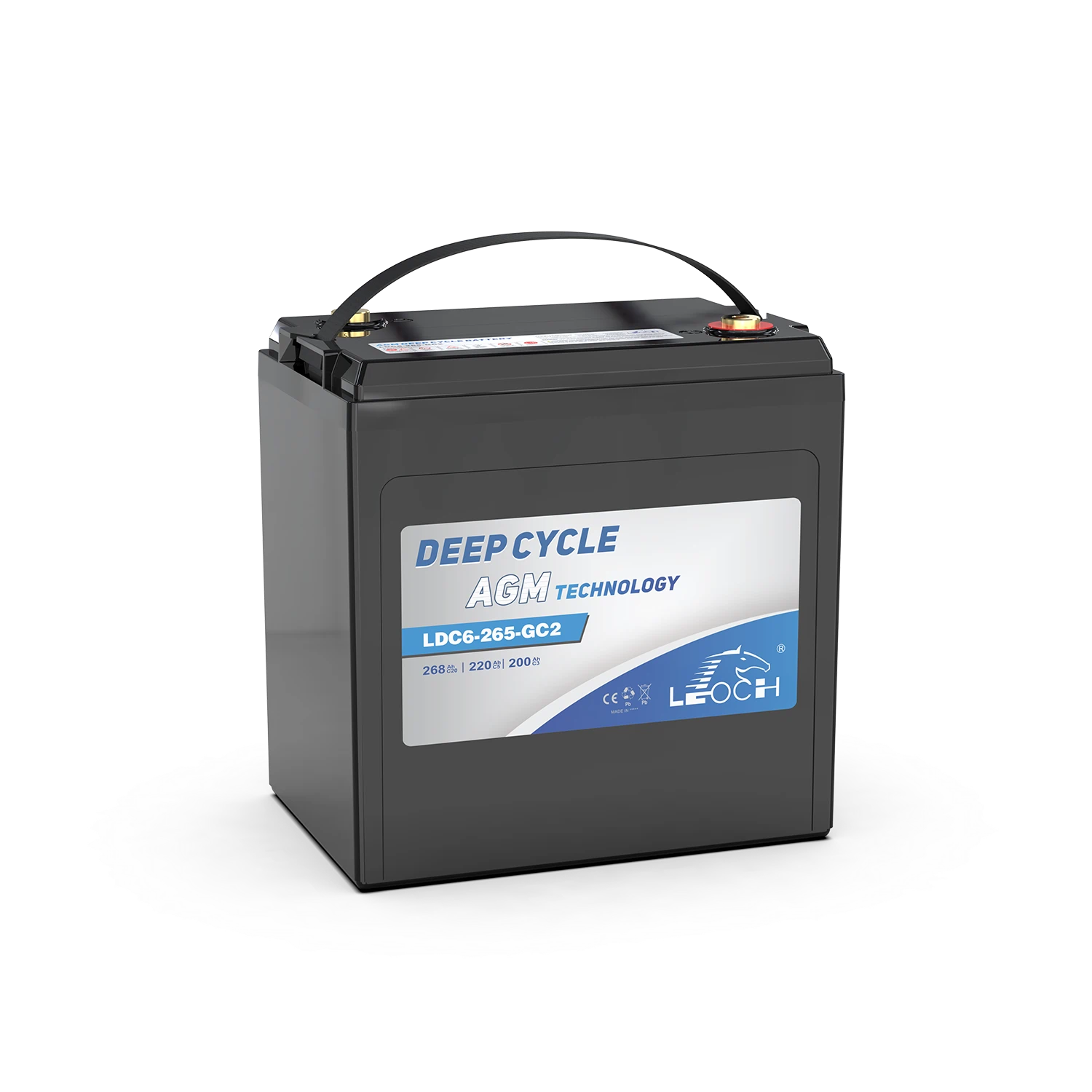

LDC6-265-GC2	6	268	220	200	260	180	265	268	32.9
LDC6-265C	6	265	220	200	260	180	265	268	32.9

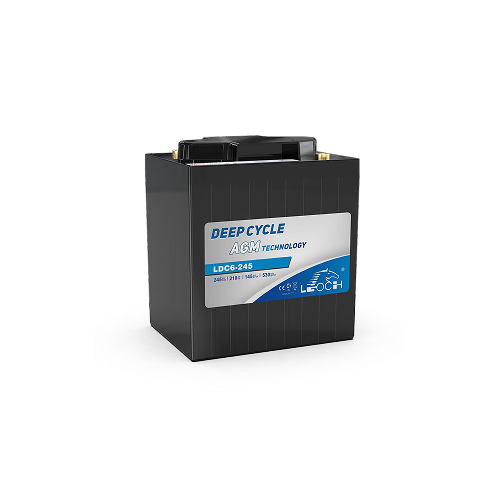

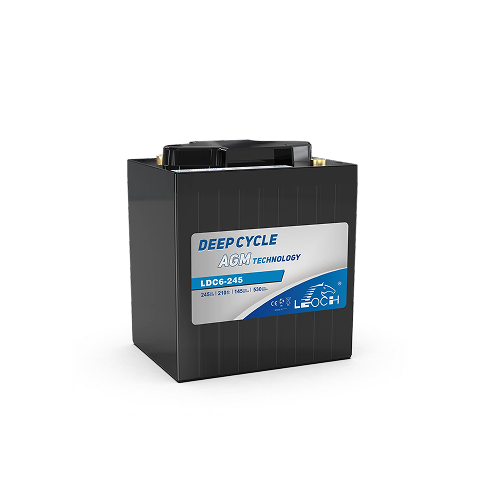

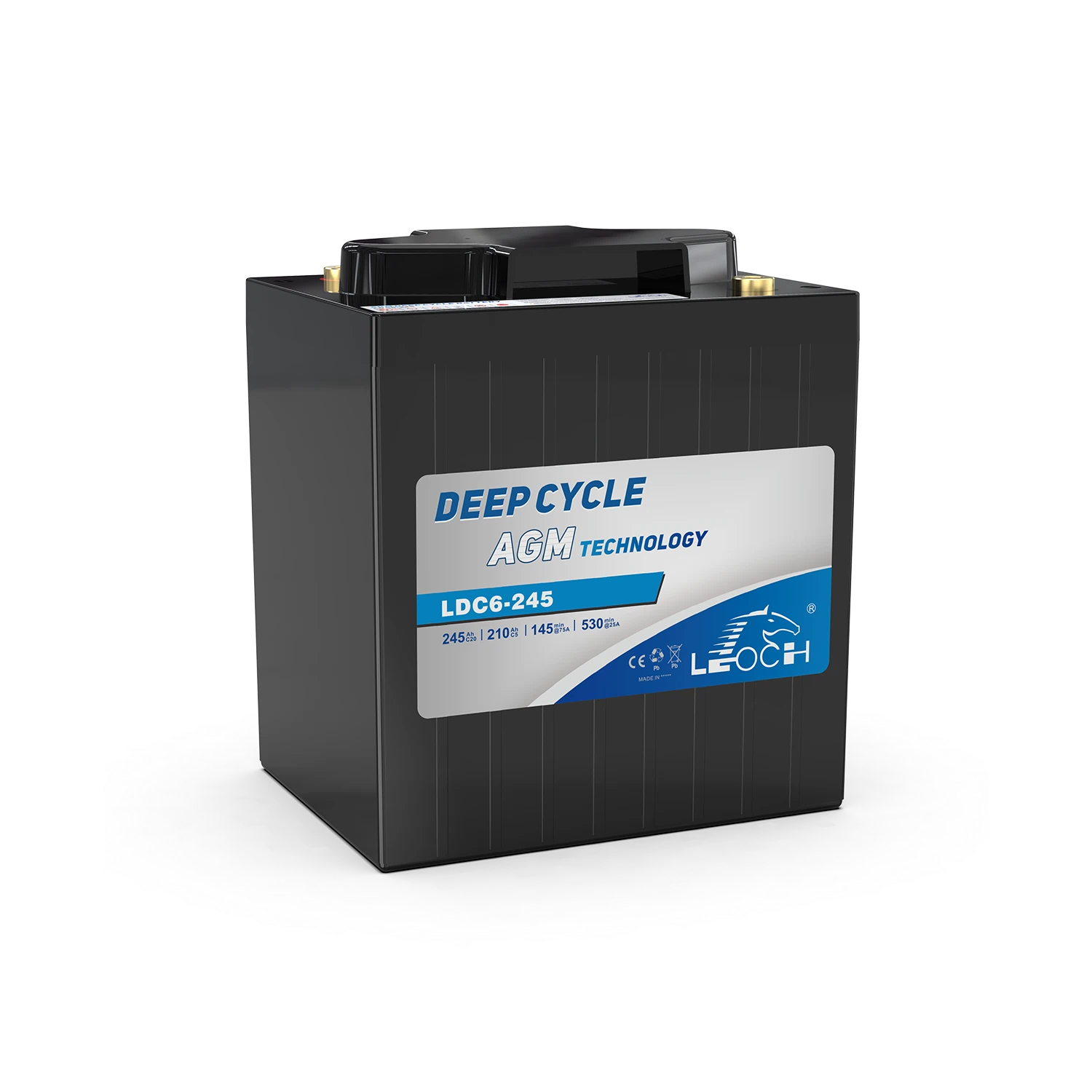

LDC6-245	6	245	210	196	243	187.5	275	275	32.4
LDC6-270	6	270	235	219	260	180	263	268	34.7
LDC6-275	6	275	240	225	295	180	274	296	36.5
LDC6-315	6	315	250	235	295	180	346	369	44
LDC6-350	6	350	305	285	295	180	346	368	48.2
LDC6-400-L16	6	400	342	310	295	180	406	428	54.2
LDC8-165-GC8	8	165	140	125	260	180	252	274	29.3
LDC8-195	8	195	163	150	262	180	278.5	278.5	33.6
LDC8-188	8	188	153	135	262	180	278.5	278.5	31.5
LDC8-210-GC8H	8	210	180	165	260	182	295	298	40.5

Model	Rated Voltage	20hr @1.75V/cell	5hr @1.75V/cell	3hr @1.75V/cell	Length(mm)	Width(mm)	Height(mm)	Total Height(mm)	Weight(kg)
LDC12-15	12	15	13.5	13	151.5	99.5	98	98.2	3.95

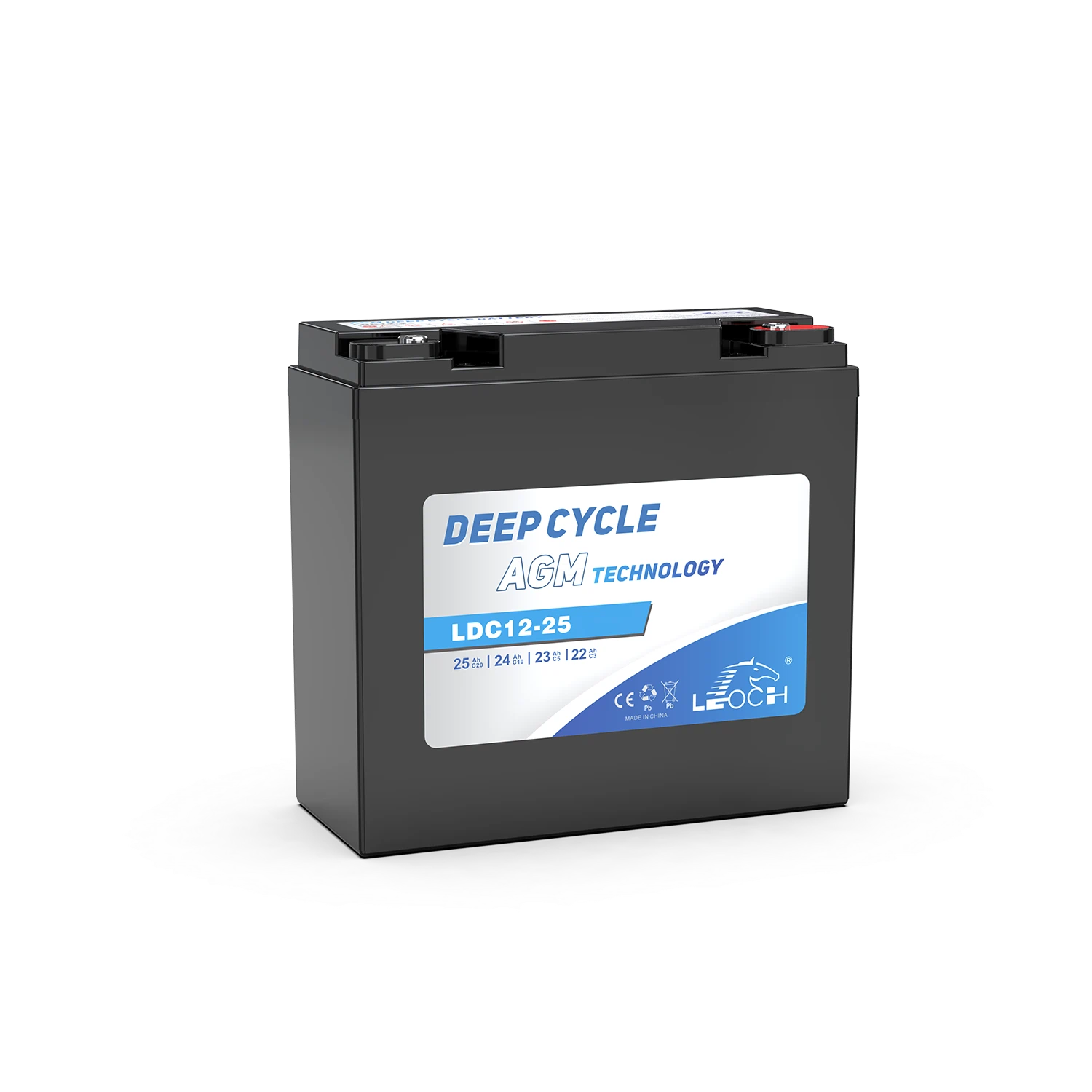

LDC12-25	12	25	22.6	21.7	181.4	77	170	170	6.4
LDC12-25	12	25	22.6	21.7	181.4	77	170	170	6
LDC12-25	12	25	23	22	181	76.5	171	171	6.5
LDC12-26	12	26	24	23	181	76.5	171	171	6.85
LDC12-26	12	26	24	23	181	76.5	171	171	6.9
LDC12-26CL	12	26	24	23	181	76.5	171	171	7
LDC12-28	12	28.5	/	23@2hr	181	76.5	171	171	7.2
LDC12-38	12	38	34	32	223	92.5	170	170	9.45
LDC12-39	12	39	35	33	195	130	164	167	11.3
LDC12-40	12	40	36	35	267.5	77.5	171	171	10
LDC12-43	12	43	34	32	267.5	77.5	171	171	10.1
LDC12-45	12	45	40	38	222.5	105.4	175	175	10.9
LDC12-54	12	54	47	45	223	120	175	175	12.4
LDC12-55	12	55	48	46.5	223	123	175	175	13.4
LDC12-63	12	63	56	54	224	135.5	177.5	177.5	15
LDC12-68	12	68	57	53	229	138	210	216.5	17.5
LDC12-70	12	70	61	59	224	150	177	177	16.6
LDC12-76	12	76	65	60	260	168	173	179	18.5
LDC12-90C	12	90	77	73	260	168	208	214	23.1

Model	Rated Voltage	20hr @1.75V/cell	5hr @1.75V/cell	3hr @1.75V/cell	Length(mm)	Width(mm)	Height(mm)	Total Height(mm)	Weight(kg)
LDC12-90C	12	90	77	73	260	168	208	214	23.1
LDC12-90-G24-T	12	85	73	68	260	168	208	214	23.5
LDC12-90-G24-DT	12	85	73	68	260	168	208	232.5	23.8
LDC12-100	12	100	89	80	260	168	211	214	25.8
LDC12-105-G27-T	12	105	88	78	306	168	208	214	27.3
LDC12-105-G27-DT	12	105	88	78	306	168	208	232.5	27.8
LDC12-115-G31-DT	12	115	95	85	330	173	212	237	31.7
LDC12-115-G31-T	12	115	95	85	330	173	212	220	31.4
LDC12-120	12	120	106	100	330	173	213	220	32.8
LDC12-140	12	144	126	120	408	176	224.5	224.5	39.2
LDC12-145	12	148	122	118	340	172	280	286	42.5
LDC12-150-GC12	12	150	136	125	327	180	274	274	42.2
LDC12-180	12	180	162	150	483	170	238.5	238.5	50.1
LDC12-220	12	220	190	170	387	180	346	368	59.7
LDC12-245	12	245	210	185	387	180	346	368	64.3
LDC6-210-GC2	6	210	175	165	260	180	252	274	27.2
LDC6-210B	6	210	175	165	260	180	252	274	30.4
LDC6-400C	6	400	342	310	295	180	406	428	54.2
LDC6-400D	6	400	342	310	295	180	406	429	54.2
LDC6-224-GC2	6	224	192	173	260	180	247	253	30.5
LDC6-265-GC2	6	268	220	200	260	180	265	268	32.9
LDC6-265C	6	265	220	200	260	180	265	268	32.9
LDC6-245	6	245	210	196	243	187.5	275	275	32.4
LDC6-270	6	270	235	219	260	180	263	268	34.7
LDC6-275	6	275	240	225	295	180	274	296	36.5
LDC6-315	6	315	250	235	295	180	346	369	44
LDC6-350	6	350	305	285	295	180	346	368	48.2
LDC6-400-L16	6	400	342	310	295	180	406	428	54.2
LDC8-165-GC8	8	165	140	125	260	180	252	274	29.3
LDC8-195	8	195	163	150	262	180	278.5	278.5	34.5
LDC8-188	8	188	153	135	262	180	278.5	278.5	31.5
LDC8-210-GC8H	8	210	180	165	260	182	295	298	40.5

Model	Rated Voltage	20hr @1.75V/cell	5hr @1.75V/cell	3hr @1.75V/cell	Length(mm)	Width(mm)	Height(mm)	Total Height(mm)	Weight(kg)
LDC12-15	12	15	13.5	13	151.5	99.5	98	98.2	3.95
LDC12-25	12	25	22.6	21.7	181.4	77	170	170	6.4
LDC12-25	12	25	22.6	21.7	181.4	77	170	170	6
LDC12-25	12	22	23	22	181	76.5	171	171	6.5
LDC12-26	12	26	24	23	181	76.5	171	171	6.85
LDC12-26	12	26	24	23	181	76.5	171	171	6.9
LDC12-26CL	12	26	24	23	181	76.5	171	171	7
LDC12-28	12	28.5	/	23@2hr	181	76.5	171	171	7.2
LDC12-38	12	38	34	32	223	92.5	170	170	9.45
LDC12-39	12	39	35	33	195	130	164	167	11.3
LDC12-40	12	40	36	35	267.5	77.5	171	171	10
LDC12-45	12	45	40	38	222.5	105.4	175	175	10.9
LDC12-54	12	54	47	45	223	120	175	175	12.4
LDC12-55	12	55	48	46.5	223	123	175	175	13.4
LDC12-63	12	63	56	54	224	135.5	177.5	177.5	15
LDC12-68	12	68	57	53	229	138	210	216.5	17.5
LDC12-70	12	70	61	59	224	150	177	177	16.6
LDC12-76	12	76	65	60	260	168	173	179	18.5
LDC12-90C	12	90	77	73	260	168	208	214	23.1
LDC12-100	12	100	89	80	260	168	211	214	25.8
LDC12-120	12	120	106	100	330	173	213	220	32.8
