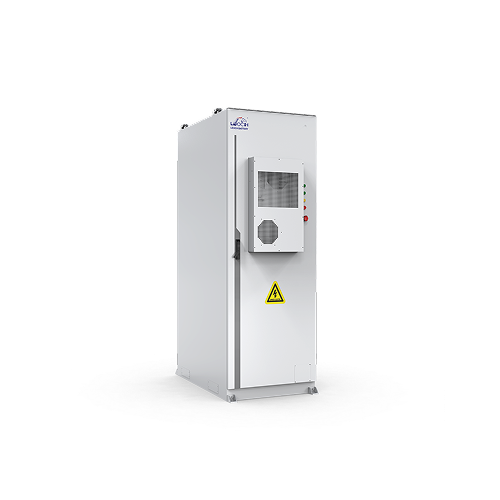

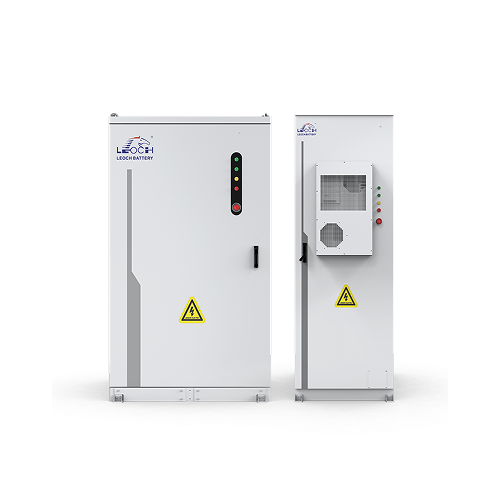

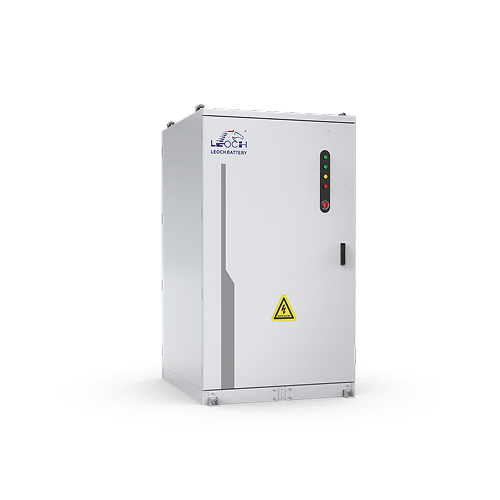

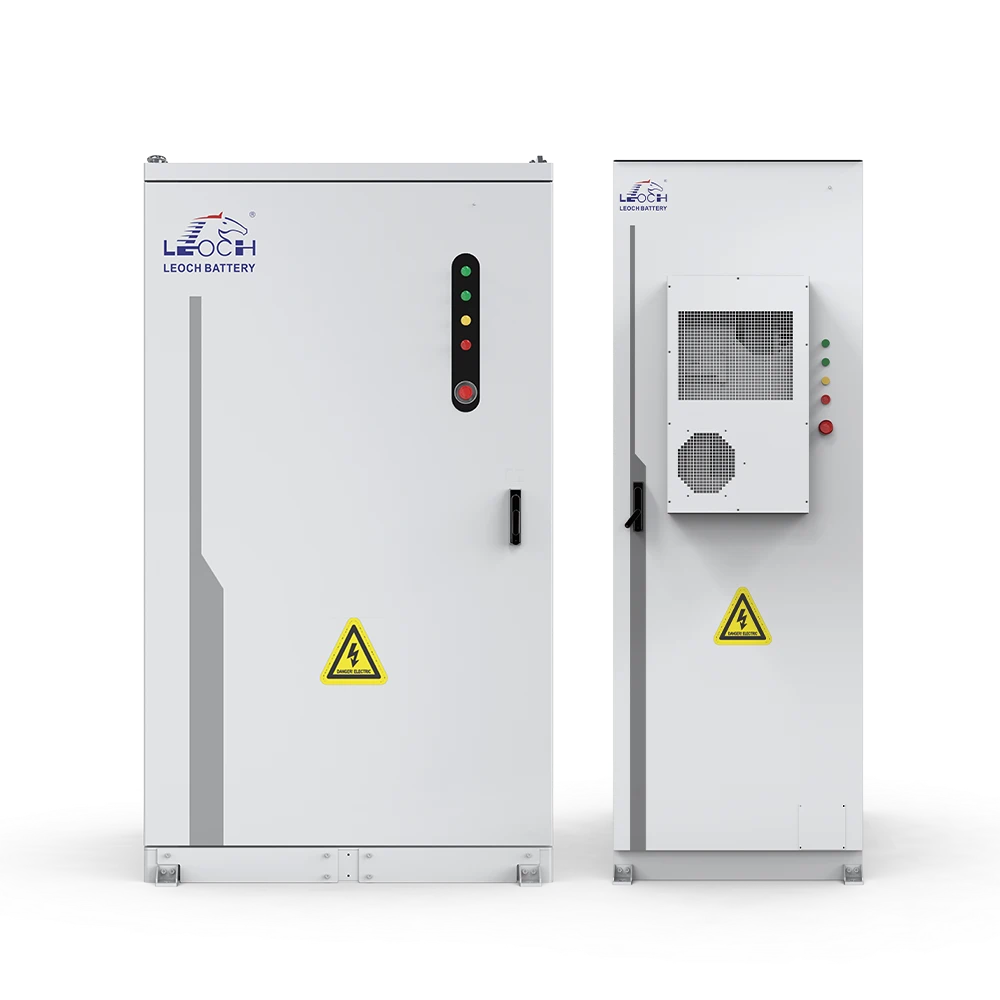

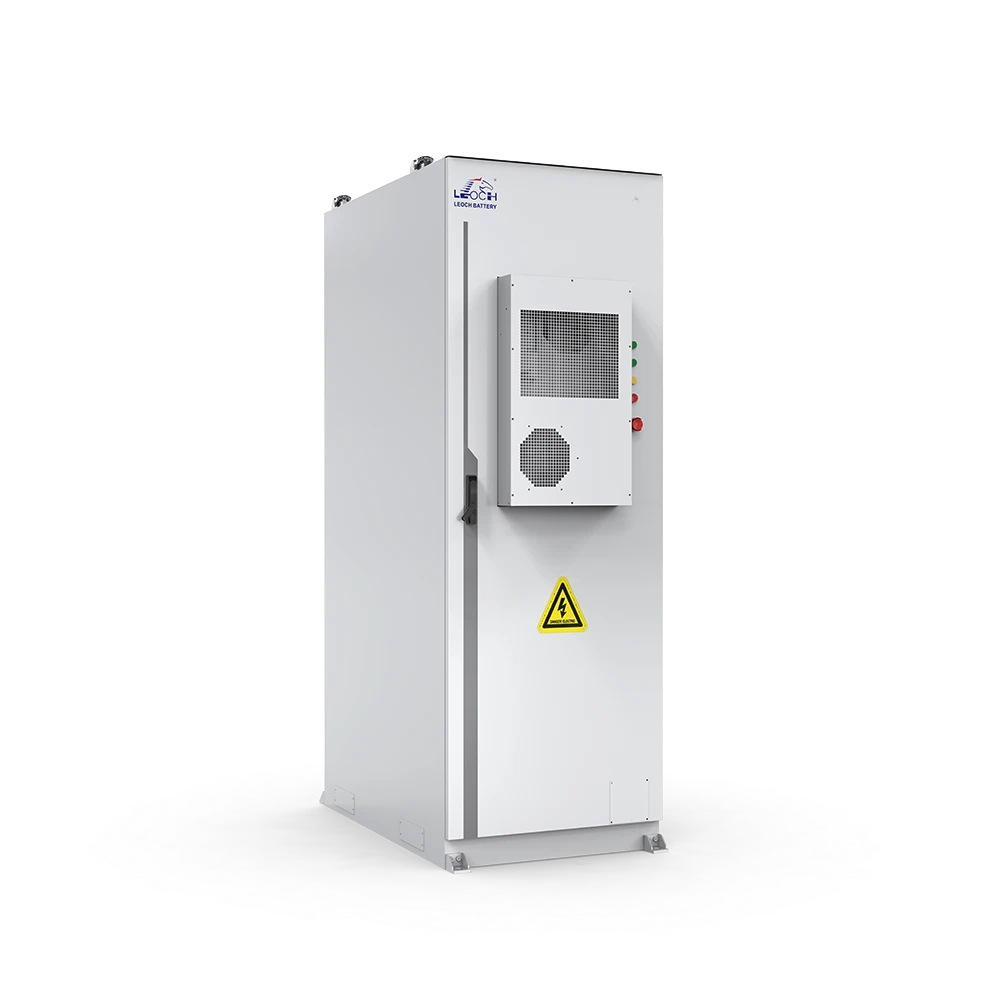

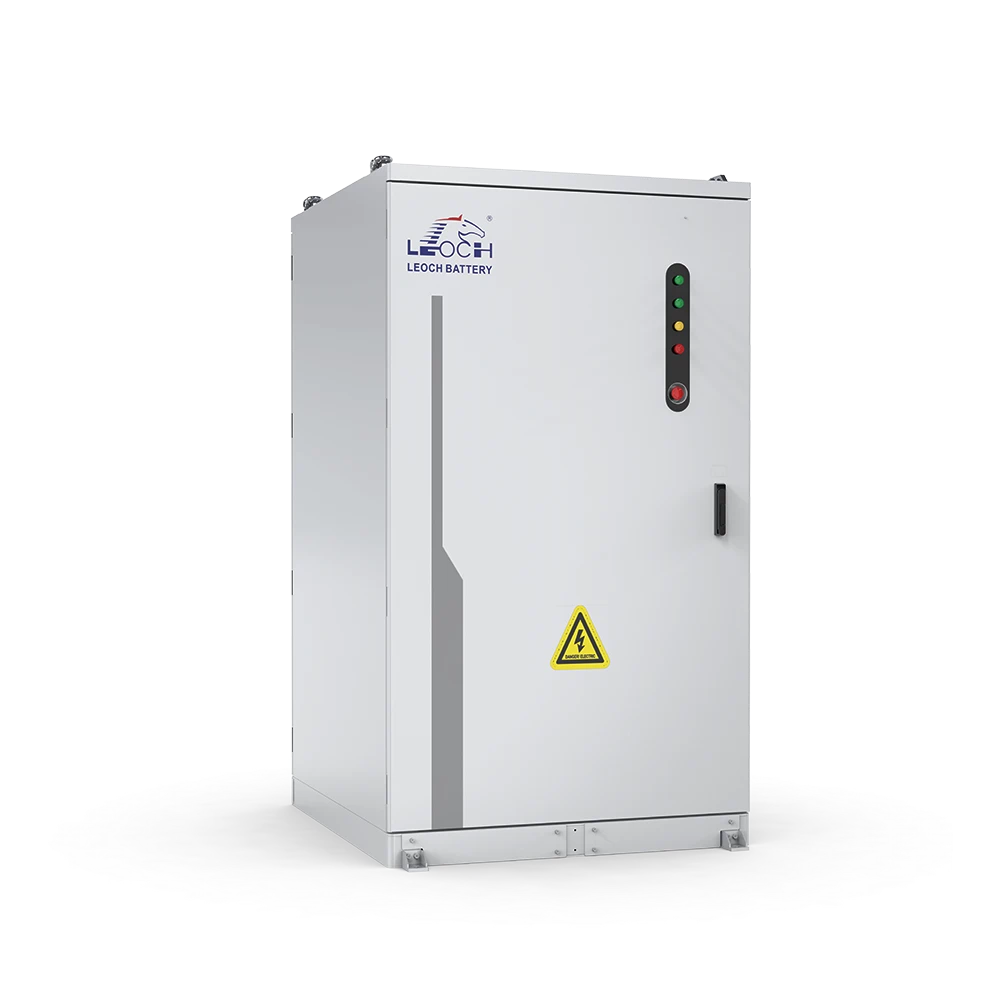

C&I Air-Cooled Titan Series(DC)

C&I Air-Cooled Titan Series (DC) is a modular DC battery cabinet designed for C&I energy storage applications. Featuring intelligent air cooling, integrated BMS and a compact modular design, it enables easy installation, flexible capacity expansion and reliable operation. The system is designed to work with compatible PCS and EMS for various C&I energy storage applications.

Applications:

Backup Power
Solar +Battery ESS
Peak Shaving
SME Factory ESS
On/Off-Grid Hybrid Operation
Commercial & Retail Buildings
Frequency Regulation
Microgrid Application
Telecom Backup Solution
Energy Cost Optimization

Request a Quote

Key Features

Easy to Install

Plug and play, instant use; The battery cabinet has IP55 protection grade and C3 corrosion protection grade, and can be deployed outdoors.
Flexible Deployment

Modular design, flexible expansion, parallel design of multiple machines, supporting rapid expansion to megawatt scale system.
Safe and Reliable

Multi-fire design, unit level temperature detection +Cabinet level aerosol fire extinguishing + explosion-proof pressure relief + water fire fighting.
Rich Configuration

Work with Inverter/PCS, It supports the simultaneous access of load, battery,grid and diesel generator and photovoltaic.

Parameter List

Swipe View

Model	Energy(kWh)	Dimensions (WDH/mm)	Weight(ton)	Battery voltage range
Titan-B80-W	80	80013302360	About1.076	224V～288V
Titan-B100-W	100	80013302360	About1.212	280V～360V
Titan-B120-W	120	80013302360	About1.348	336V~432V
Titan-B140-W	140	80013302360	About1.484	392V~504V
Titan-B160-W	160	80013302360	About1.62	448V～576V
Titan-B180-W	180	117014562100	About1.961	504V~648V
Titan-B200-W	200	117014562100	About2.097	560V~720V
Titan-B221-W	221	117014562100	About2.233	616V ~ 792V
Titan-B241-W	241	117014562100	About2.367	672V～864V
