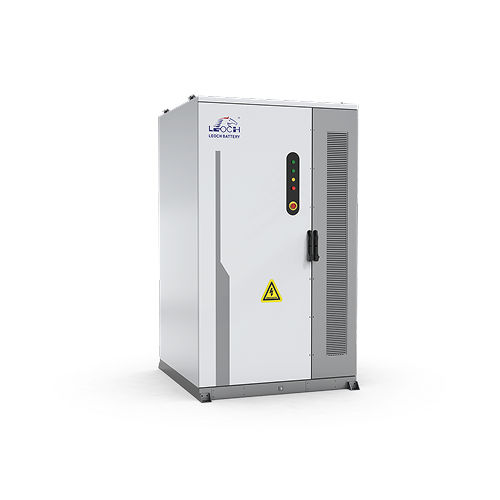

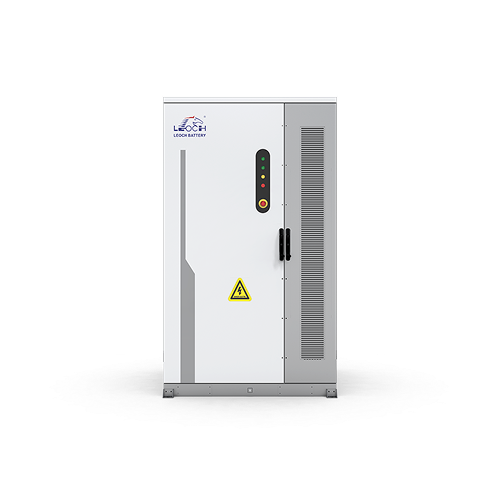

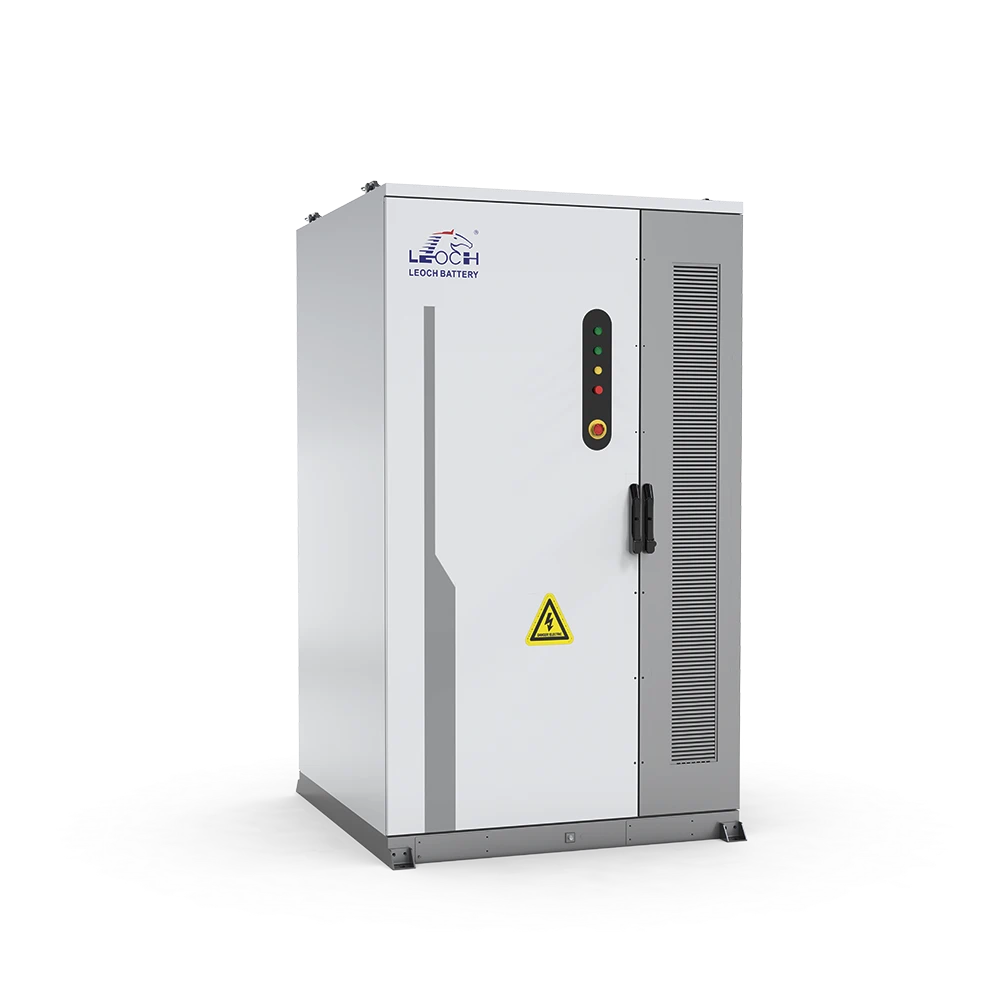

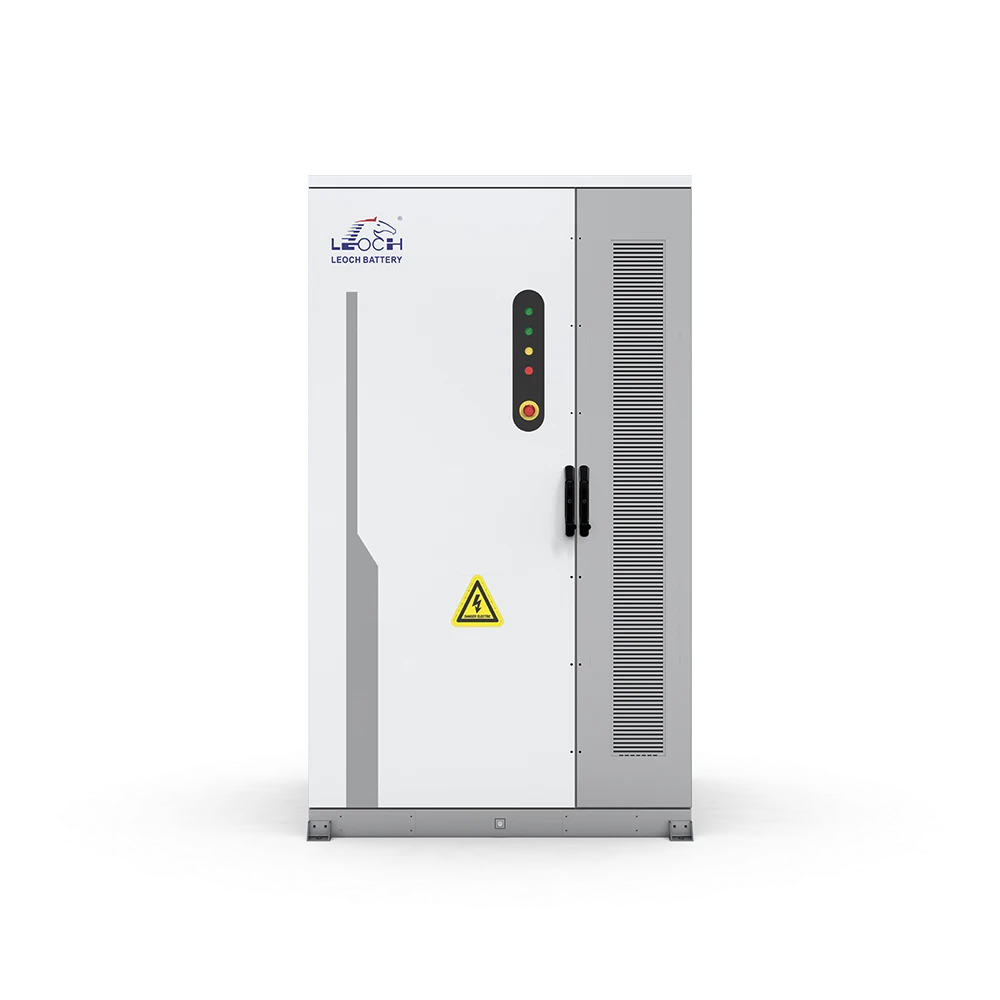

C&I Liquid-Cooled Quark Series(DC)
C&I Liquid-Cooled Quark Series (DC) is a high-density DC battery cabinet designed for medium- to large-scale C&I energy storage applications. Featuring high-efficiency liquid cooling, integrated BMS and a modular architecture, it provides uniform temperature control, high energy density and reliable long-term operation. The system is designed to work with compatible PCS and EMS for flexible C&I energy storage deployment.
Applications:
Utility-Scale ESS
Renewable Power Plant Integration
Frequency Regulation
Grid Stabilization
Peak Shaving
Large Microgrid
Key Features
-
Easy to Install
Plug and play, instant use; The battery cabinet has IP55 protection grade and C3 corrosion protection grade, and can be deployed outdoors.
-
Flexible Deployment
Modular design, flexible expansion, parallel design of multiple machines, supporting rapid expansion to megawatt scale system.
-
Safe and Reliable
Multi-fire design, unit level temperature detection +Cabinet level aerosol fire extinguishing + explosion-proof pressure relief + water fire fighting.
-
Rich Configuration
Work with Inverter/PCS, It supports the simultaneous access of load, battery,grid and diesel generator and photovoltaic.
Parameter List
| Model | Energy (kWh) | Dimensions (W*D*H/mm) | Weight (ton) | Battery voltage range (V) |
| Quark-B261-L | 261 | 1350*1350*2400 | About2.9 | 728V～936V |
| Quark-B313-L | 313 | 1350*1350*2400 | About3.2 | 873.6V～1123.2V |
| Quark-B365-L | 365 | 1350*1350*2400 | About3.6 | 1019.2V～1310.4V |
| Quark-B417-L | 417 | 1350*1350*2400 | About3.9 | 1164.8V～1497.6V |
