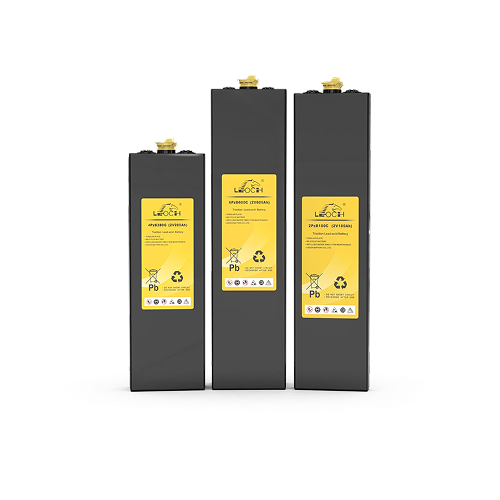

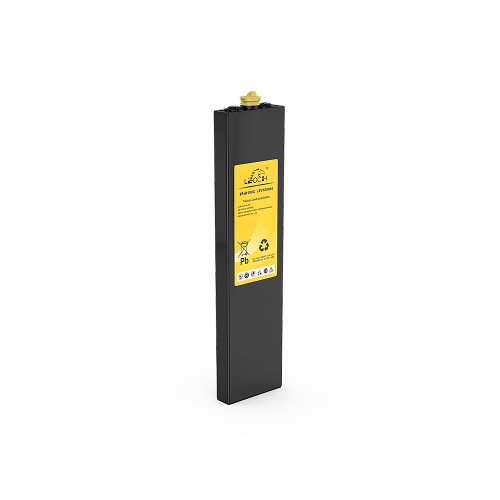

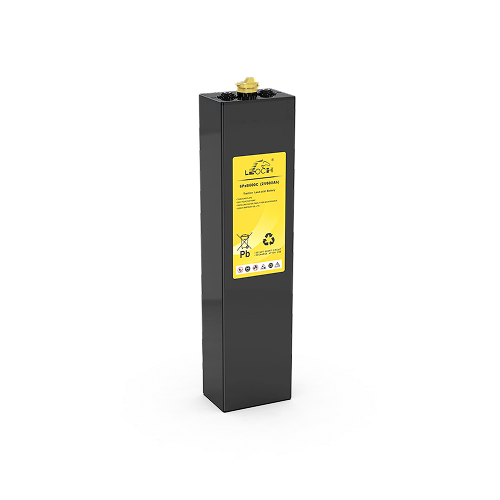

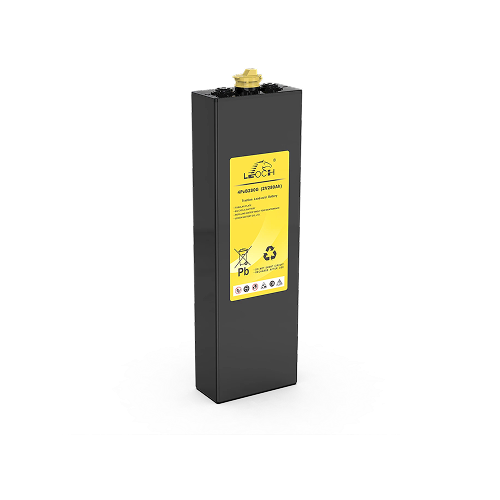

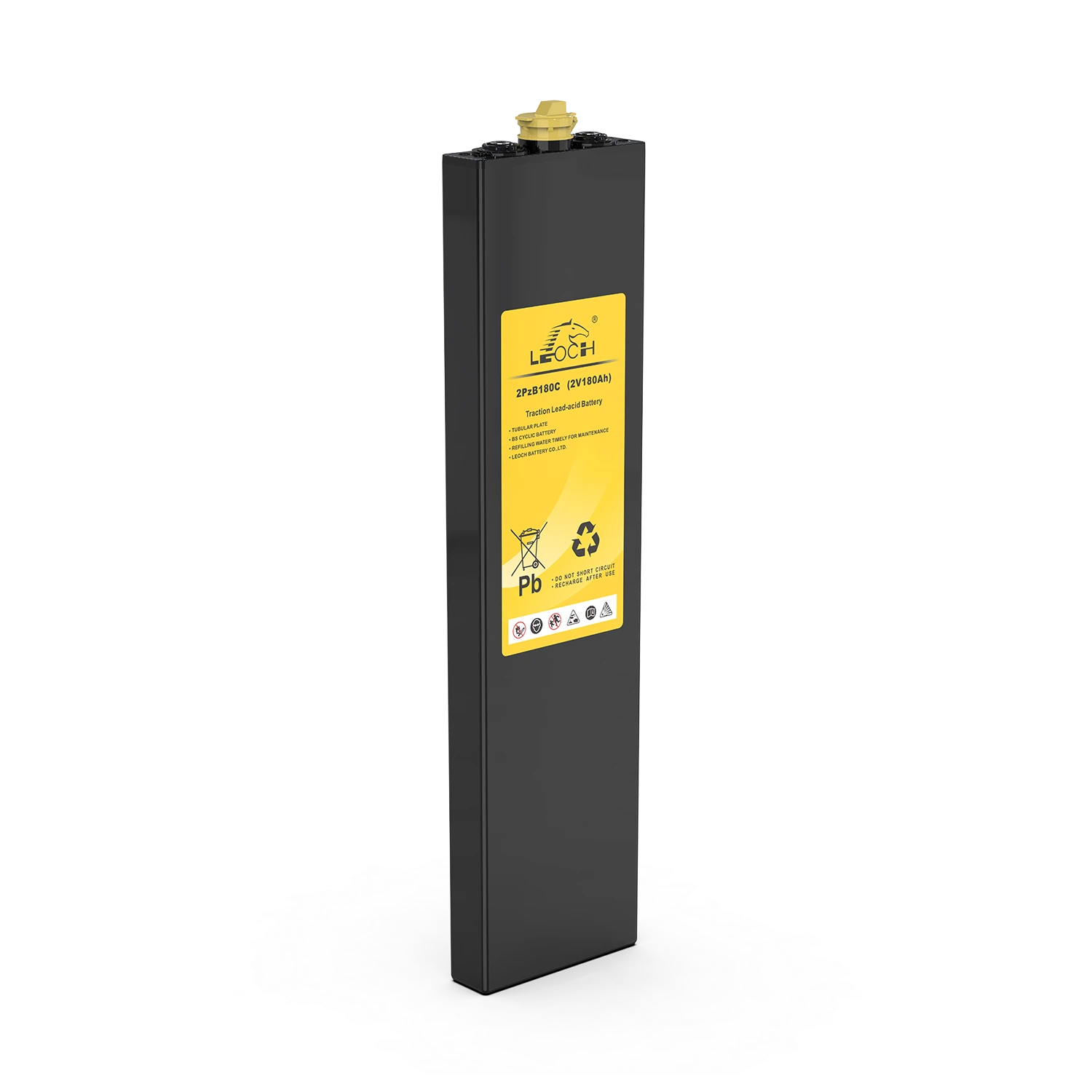

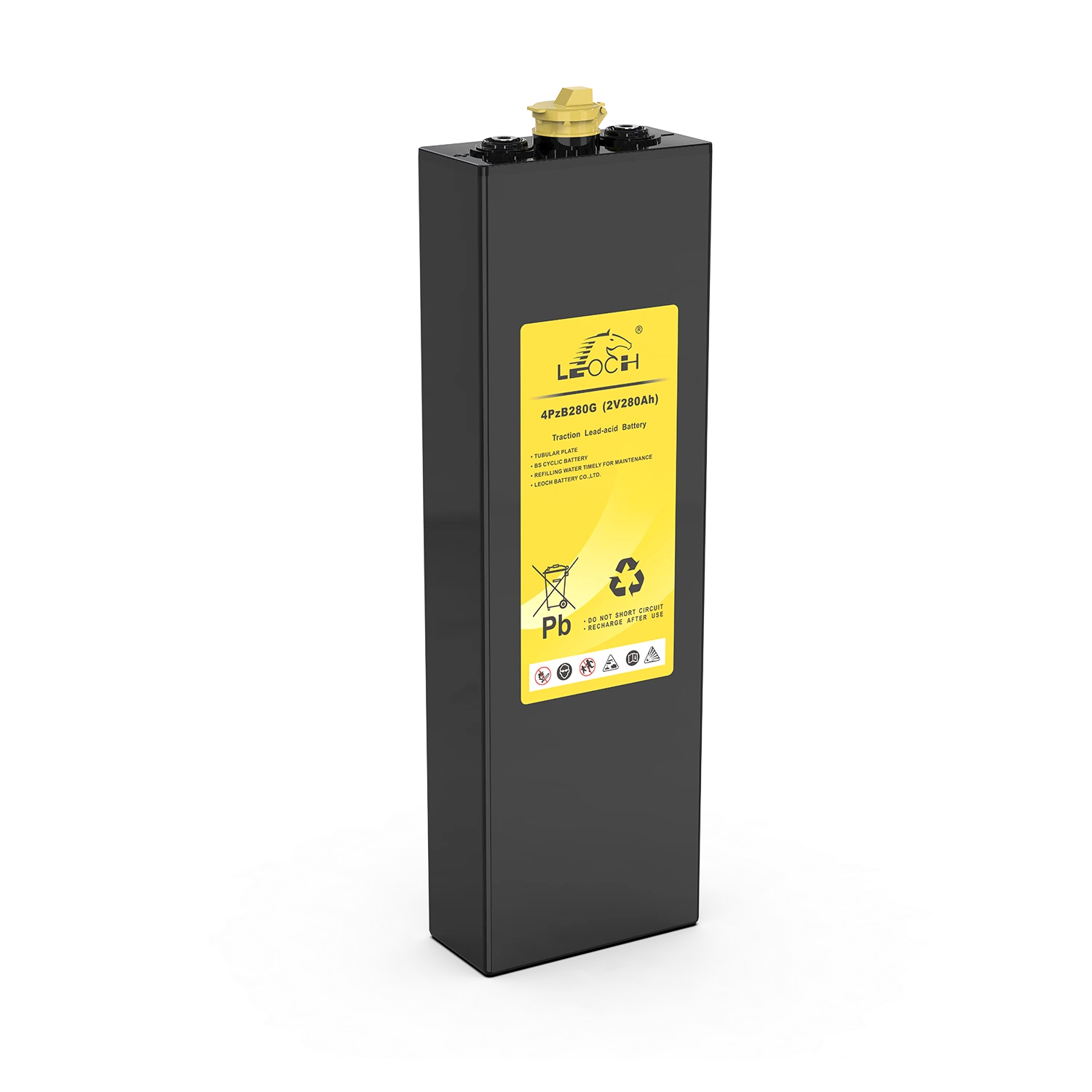

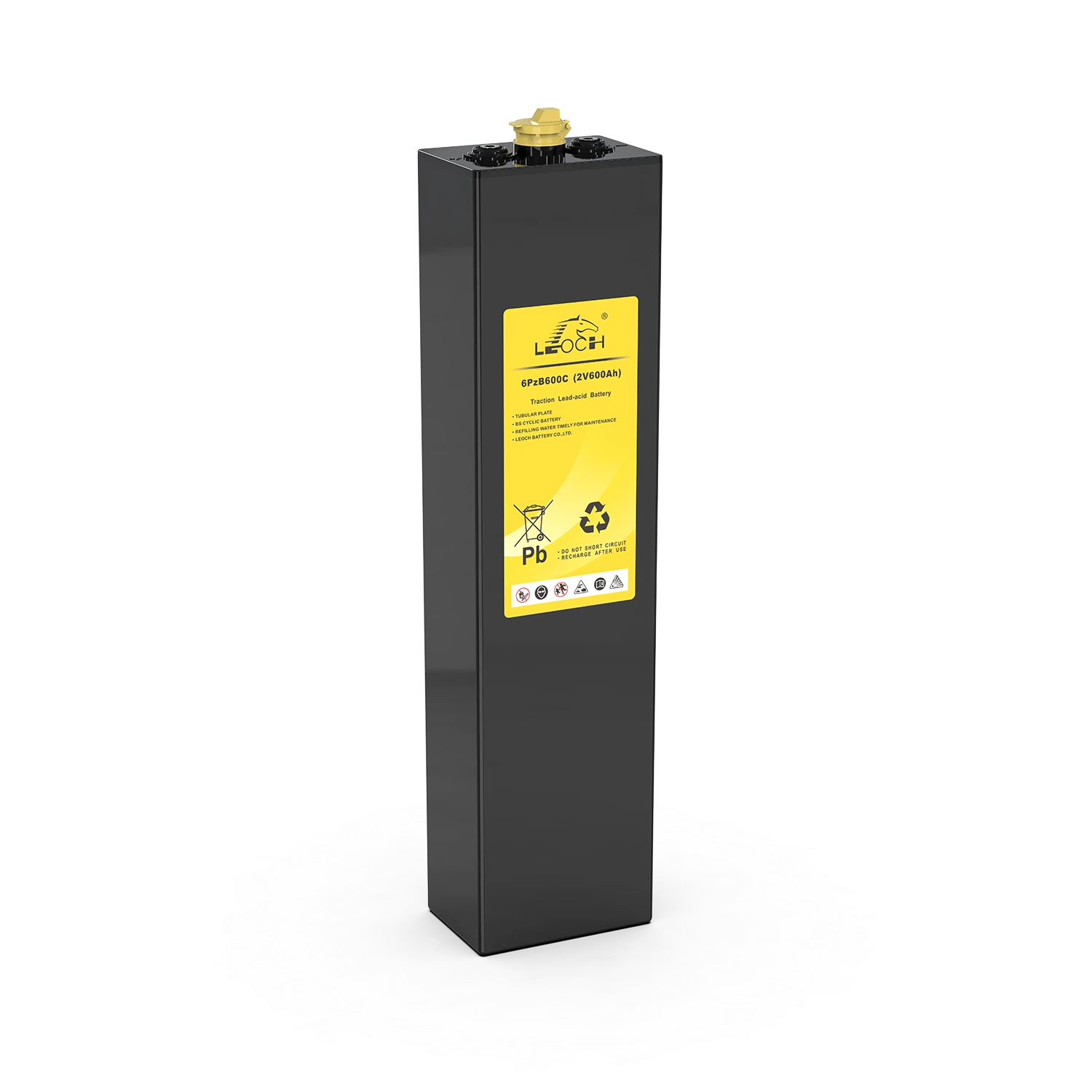

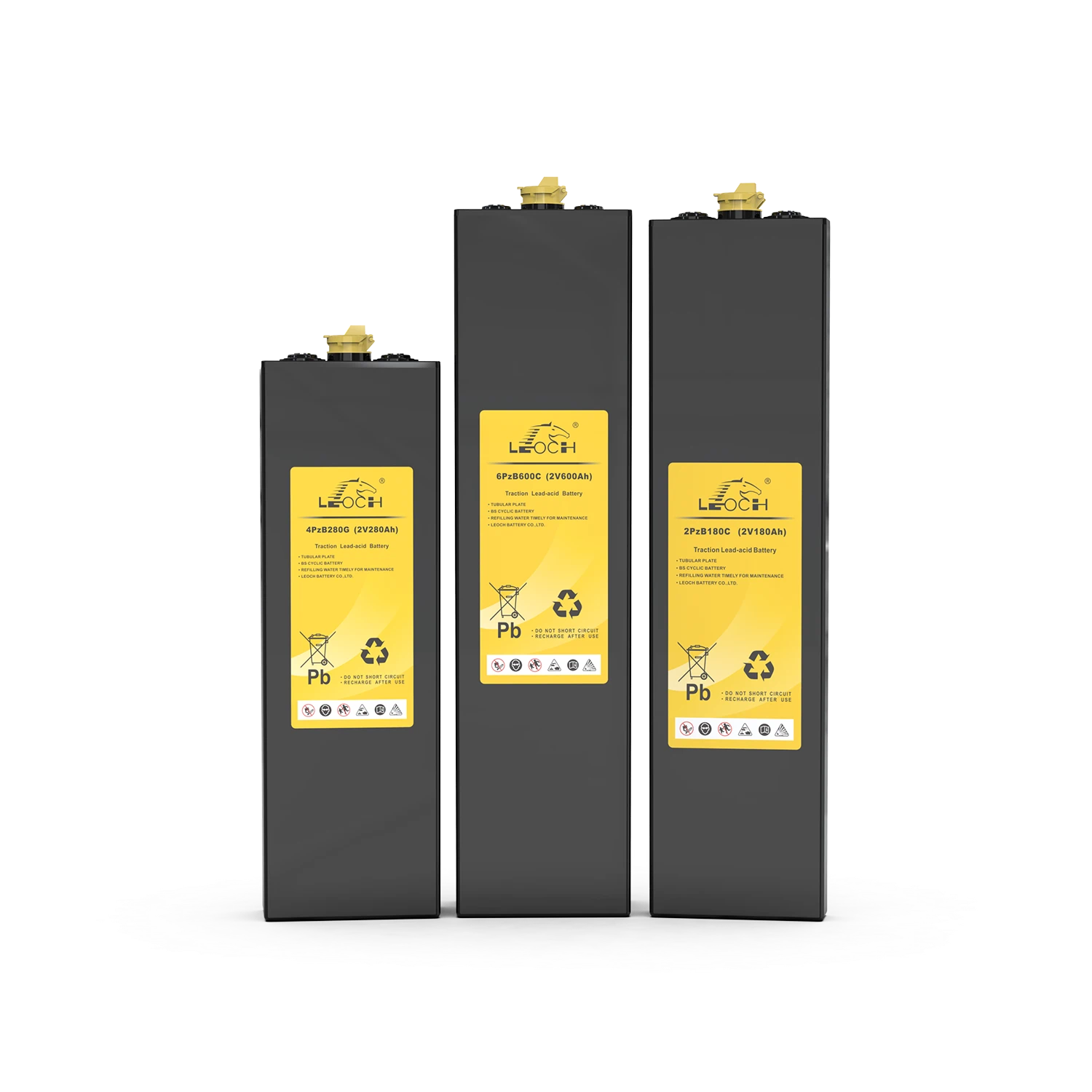

Forklift Tubular PzB Series

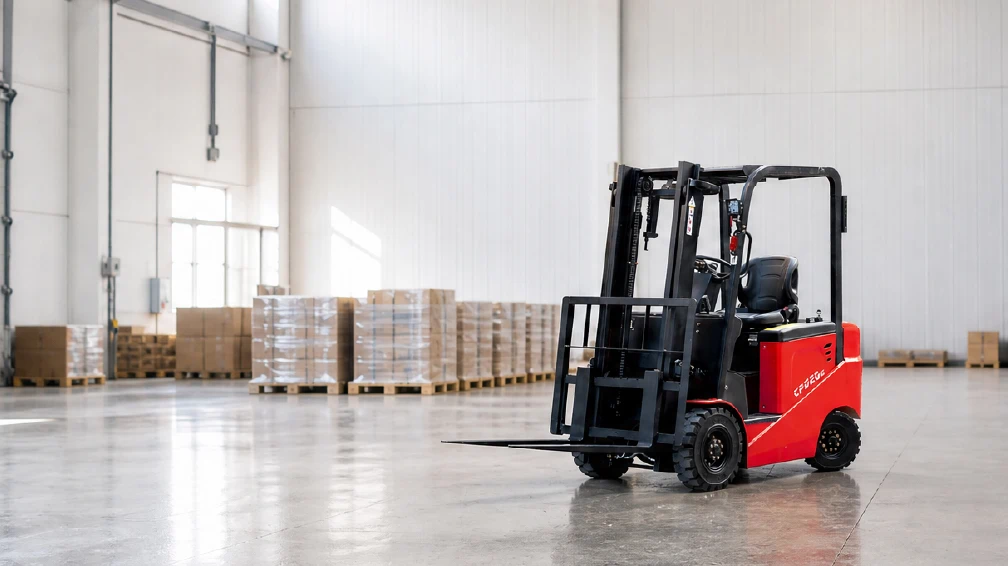

Traction lead-acid batteries serve as DC power sources for forklifts, tractors, carriers, underground mining locomotives, and other industrial equipment. They are widely used in airports, railway stations, ports, vegetable and fruit markets, and warehouses of industrial and mining enterprises. Meanwhile, vehicles powered by such DC power supplies are widely used in public transportation, sports venues, and entertainment facilities.

Request a Quote

Key Features

Tubular Positive Plate

Good corrosion resistance, long battery life.
Special Grid Alloy Formula

Slow down grid corrosion, reduce the water loss rate, reduce the number of maintenance, achieve half-maintenance, improve the battery life.
Improved Capacity & Life

Improve the density of the active substance in the tube positive plate, prevent the softening and shedding of the active substance, improve the capacity and life.
Special Electrolyte Formula

Used to prevent cathode passivation and dendrite short circuit.
Optional Automatic Water Filling System

Parameter List

Swipe View

Model	Rated Voltage(V)	5hr @1.70V/cell	Length(mm)	Width(mm)	Height(mm)	Total Height(mm)	Dry Weight (kg)	Gross Weight (kg)
2PzB120	2	120	45	158	401	433	6.2	7.9
2PzB140	2	140	45	158	456	488	7.2	9.1
3PzB150	2	150	61	158	402	434	8.1	10.2
2PzB160C	2	160	45	158	554	586	8.3	10.5
3PzB165G	2	165	61	158	402	434	8.2	10.5
3PzB165C	2	165	61	158	392	424	7.9	10.2
2PzB180C	2	180	45	158	620	652	9.1	11.7
3PzB195G	2	195	61	158	457	489	9.3	12
3PzB195C	2	195	61	158	447	479	9	11.7
4PzB200C	2	200	77	158	380	412	9.4	12.2
3PzB210	2	210	61	158	487	519	9.8	12.6
3PzB210C	2	210	61	158	480	512	9.4	12.4
4PzB220G	2	220	77	158	402	434	10.2	13.4
4PzB220C	2	220	77	158	392	424	9.9	13.1
3PzB240C	2	240	61	158	554	586	11.3	14.7
4PzB260C	2	260	77	158	447	479	11.5	15.2
3PzB270C	2	270	61	158	620	652	12.6	16.3
5PzB275G	2	275	93	158	402	434	12.4	16.3
5PzB275C	2	275	93	158	392	424	12	15.9
4PzB280C	2	280	77	158	480	512	11.9	15.9
5PzB280C	2	280	89	158	487	519	12.9	16.8
3PzB300C	2	300	61	158	680	712	13.5	18.2
6PzB300G	2	300	109	158	385	417	13.4	17.7
6PzB300C	2	300	109	158	380	412	13.1	17.4
5PzB325G	2	325	89	158	457	489	14.2	18.9
5PzB325C	2	325	89	158	447	479	13.8	18.5
5PzB350C	2	350	93	158	480	512	14.5	19.4
7PzB350C	2	350	125	158	380	412	15.1	20
4PzB360	2	360	77	158	554	586	14.8	19.9
5PzB375	2	375	89	158	495	527	16	21.4
8PzB384	2	384	141	158	380	412	16.4	21.9
7PzB385G	2	385	125	158	402	434	16.6	22.1
7PzB385C	2	385	125	158	392	424	16.1	21.6
6PzB390G	2	390	109	158	457	489	16.7	22.3
6PzB390C	2	390	109	158	447	479	16.3	21.9
4PzB400C	2	400	77	158	680	712	17.2	23.5
5PzB400C	2	400	93	158	554	586	17.2	22.9
8PzB400G	2	400	141	158	385	417	17.3	23
8PzB400C	2	400	141	158	380	412	16.9	22.6
6PzB420C	2	420	109	158	480	512	16.8	23
9PzB432	2	432	157	158	380	412	18.7	24.9
8PzB440G	2	440	141	158	402	434	18.7	25
8PzB440C	2	440	141	158	392	424	18.1	24.4
5PzB450C	2	450	93	158	620	652	19.2	25.6
9PzB450G	2	450	157	158	385	417	19.3	25.6
9PzB450C	2	450	157	158	380	412	18.9	25.2
10PzB480	2	480	173	158	346	378	20.8	27.6
6PzB480C	2	480	109	158	554	586	20.3	27.1
8PzB480	2	480	141	158	426	458	20.3	27.1
7PzB490C	2	490	125	158	480	512	19.3	26.5
10PzB500G	2	500	173	158	385	417	21.8	28.9
10PzB500C	2	500	173	158	380	412	21.3	28.4
5PzB500C	2	500	93	158	680	712	20.8	28.6
8PzB520G	2	520	141	158	457	489	21.6	29
8PzB520C	2	520	141	158	447	479	21.1	28.5
7PzB525	2	525	125	158	495	527	21.5	28.5
6PzB540C	2	540	109	158	620	652	22.6	30.3
9PzB540	2	540	157	158	402	434	21.9	29.6
10PzB550G	2	550	173	158	402	434	23	30.8
10PzB550EC	2	550	173	158	392	424	22.3	30.1
10PzB550C	2	550	173	158	392	424	22.9	30.7
7PzB560C	2	560	125	158	554	586	23.3	31.2
9PzB585C	2	585	157	158	447	479	24	32.3
6PzB600C	2	600	109	158	680	712	24.4	33.6
8PzB600	2	600	141	158	495	527	24.4	32.3
7PzB630C	2	630	125	158	620	652	26	34.9
10PzB650G	2	650	173	158	457	489	27	36.2
10PzB650C	2	650	173	158	447	479	26.4	35.6
10PzB700C	2	700	173	158	480	512	27.7	37.6
7PzB700C	2	700	125	158	680	712	28.2	38.9
