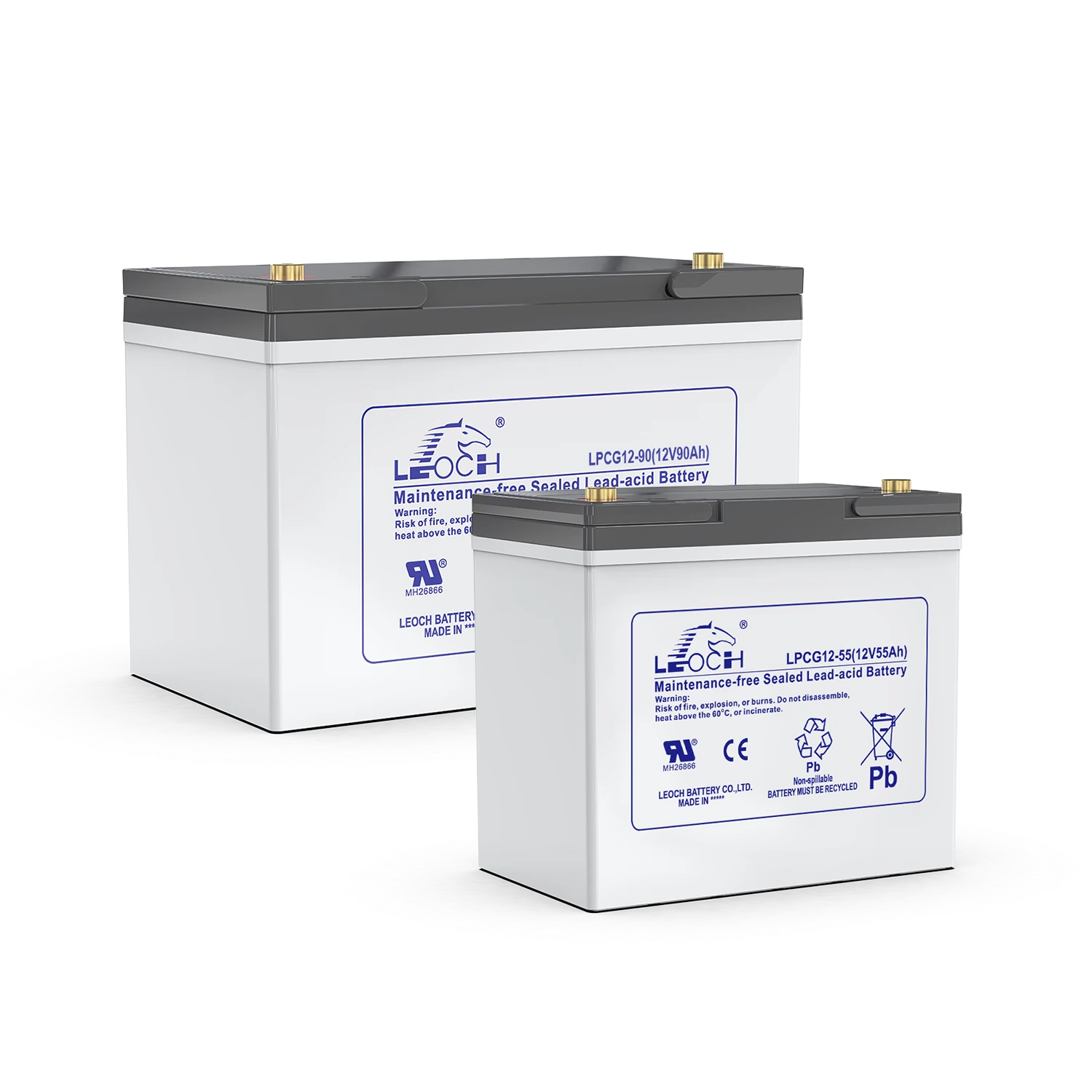

Gel LPCG Series
LPCG batteries are mainly used in various electric vehicles and light-cycle applications, including railway and marine systems, power tools, lawn mowers, personal mobility vehicles (e.g., golf trolleys, golf carts, wheelchairs), portable power supplies, and medical equipment. They are widely utilized in tourist attractions, hospitals, railways, industrial and mining enterprises, warehouses, docks, and stations.
Key Features
-
Long Cycle Life
The use of a special multi-element alloy and a unique grid structure design ensures the battery has a long cycle life.
-
Deep-Cycle Performance
Patented deep-cycle formulation and production processes, such as curing, ensure the product has a long cycle life
-
Safety & Reliability
Patented multi-layer terminal sealing technology enhances safety and reliability
-
Maintenance-Free
Advanced oxygen recombination technology enables maintenance-free operation
-
Enhanced ABS Case
The battery container is reinforced with ABS material to enhance the pressure resistance of the product
Parameter List
| Model | Rated Voltage(V) | 20hr@1.80V/cell | 10hr@1.75V/cell | Length(mm) | Width(mm) | Height(mm) | Total Height(mm) | Weight(kg) | Terminal |

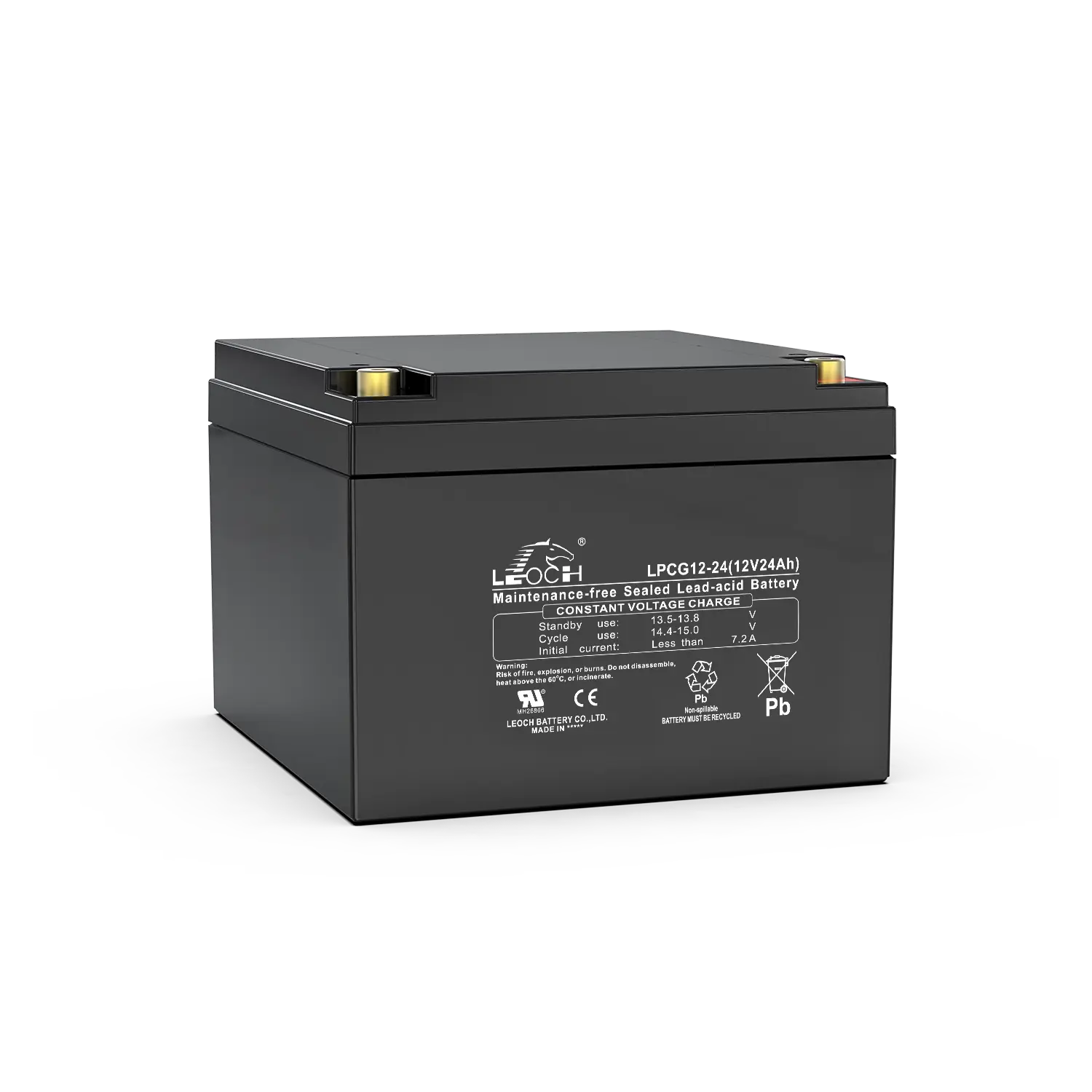

| LPCG12-24 | 12 | 24 | 22.6 | 166 | 175 | 125 | 125 | 8.5 | T12/T12-I(M5) |
| LPCG12-30 | 12 | 30 | 27.6 | 195 | 130 | 164 | 178 | 10.2 | T5 |
| LPCG12-40 | 12 | 38 | 35 | 197 | 165 | 170 | 170 | 12.8 | T6(M6) |

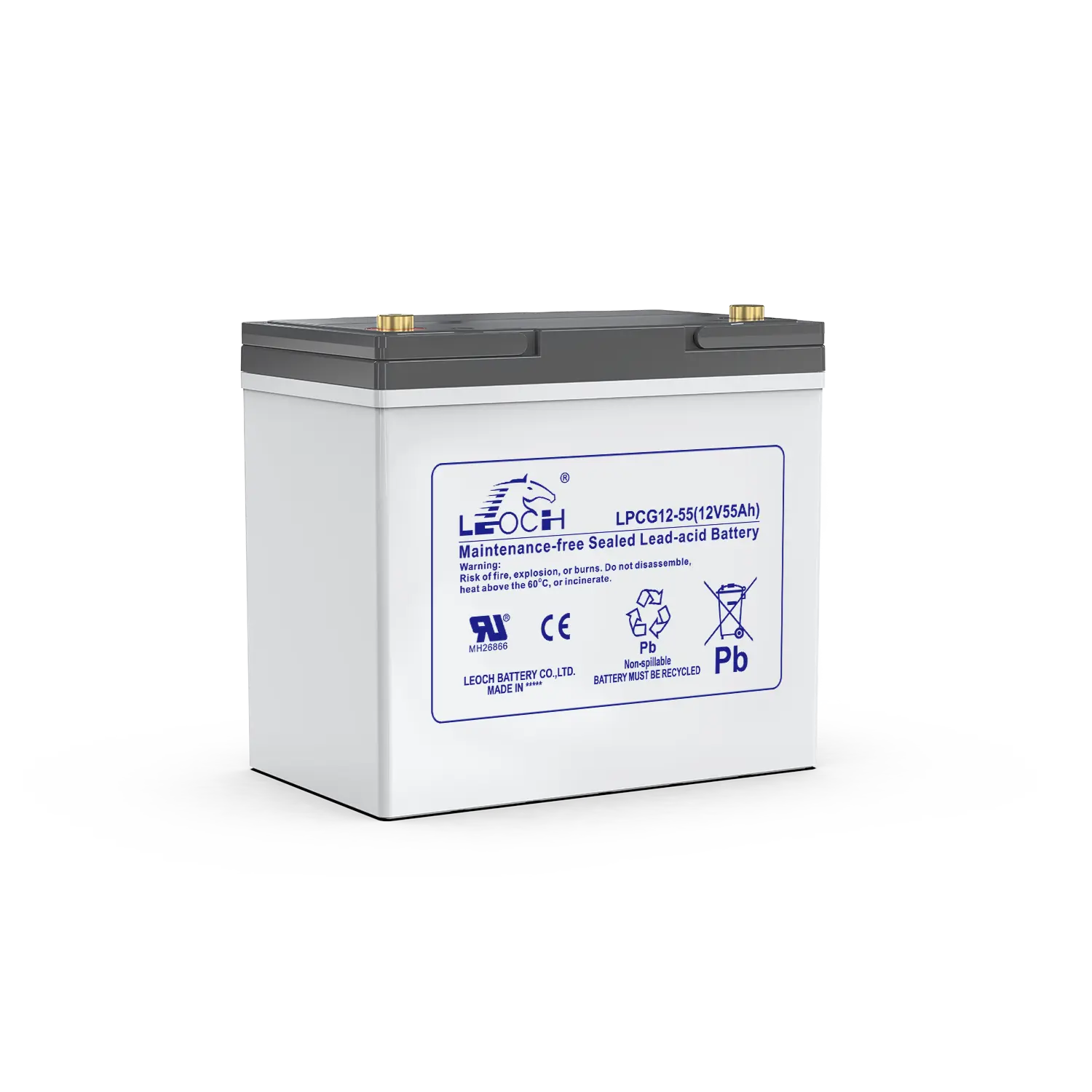

| LPCG12-55 | 12 | 55 | 50 | 229 | 138 | 205 | 211 | 16.1 | T6(M6) |
| LPCG12-60 | 12 | 60 | 55 | 255 | 170 | 174.5 | 177.5 | 18.5 | T6(M6) |
| LPCG12-65 | 12 | 65 | 60 | 325 | 167 | 174 | 174 | 20.5 | T6(M6) |
| LPCG12-70 | 12 | 75 | 70 | 260 | 168 | 208 | 214 | 22.9 | T6(M6) |

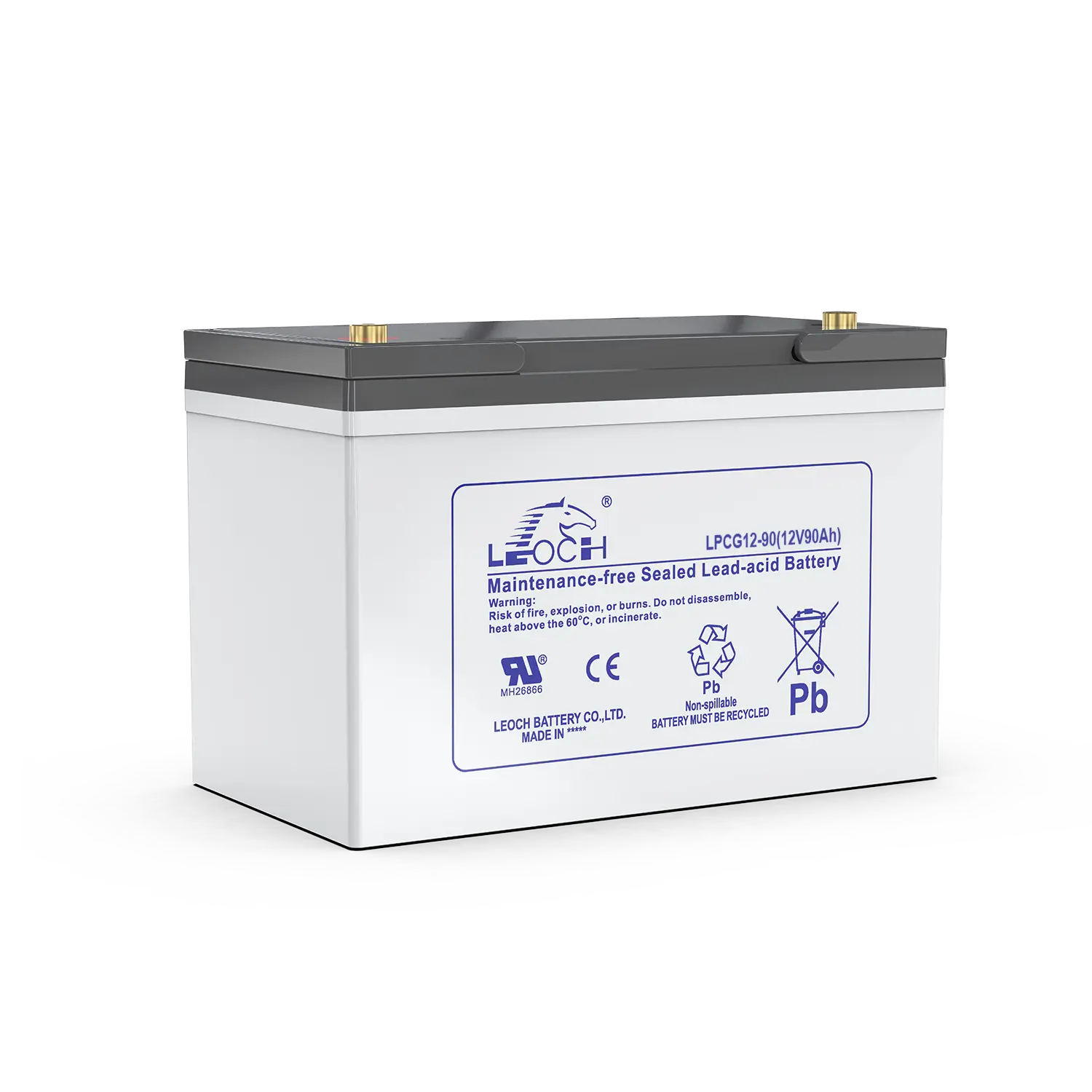

| LPCG12-90 | 12 | 90 | 85 | 306 | 168 | 208 | 214 | 27.5 | T6(M6) |
| LPCG12-100 | 12 | 100 | 90 | 330 | 173 | 212 | 218 | 31.2 | T11(M8) |
