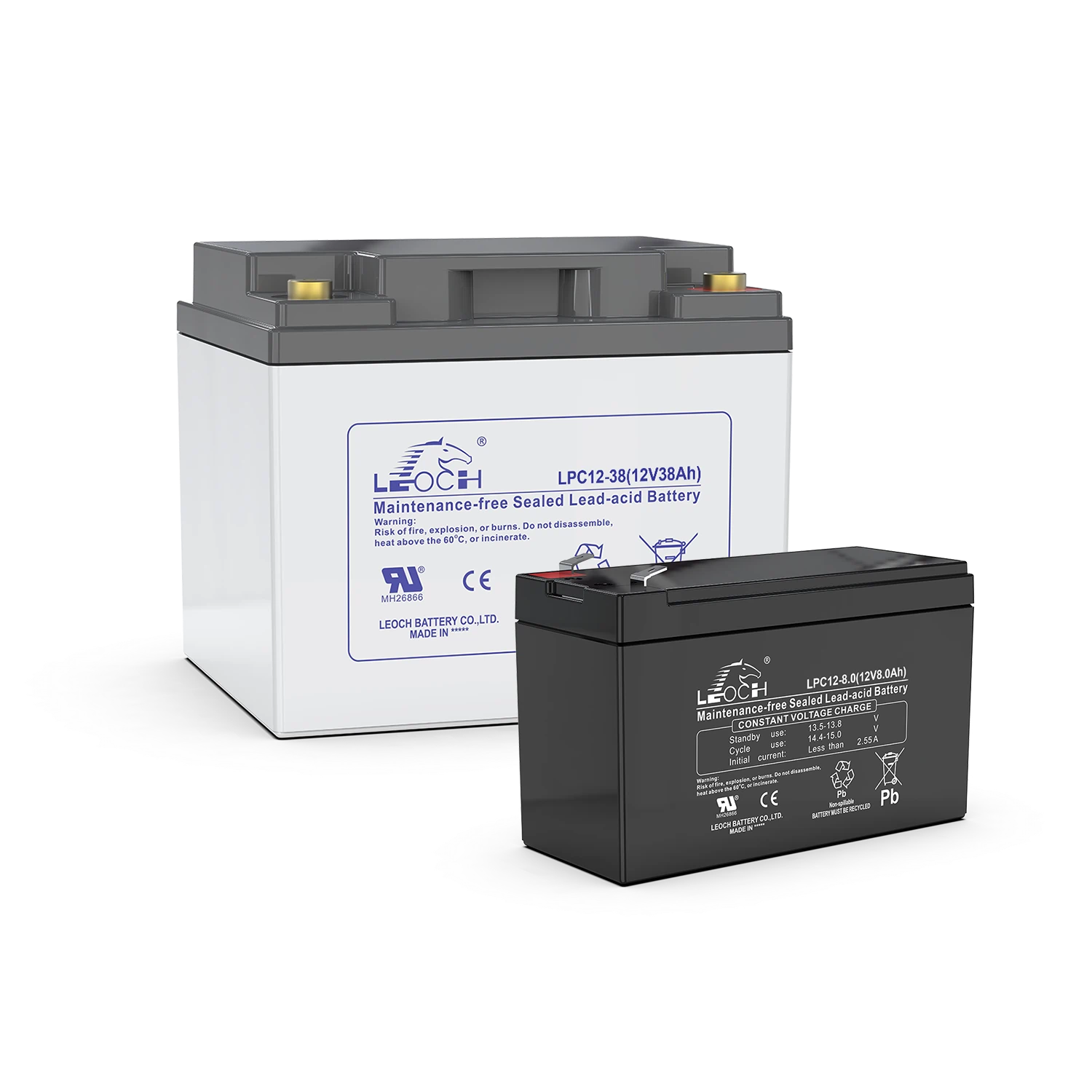

VRLA-AGM LPC Series
LPC batteries are mainly used on various portable electrical equipment, including electric tools, mobility scooters, golf carts, portable lighting equipment, portable electronic instruments, electric toys, portable power supplies, and electric wheelchairs. They are widely applied in tourist attractions, hospitals, markets, industrial and mining sites, and stations.
Applications:
Electric wheelchair
Mobility Scooter
Golf trolleys
Portable lights and instruments
Electric toys
Portable power
Electric tools
Key Features
-
Long Cycle Life
The use of a special multi-element alloy and a unique grid structure design ensures the battery has a long cycle life.
-
Patented Deep-Cycle Formulation
Patented deep-cycle formulation and production processes, such as curing, ensure the product has a long cycle life.
-
Safety & Reliability
Patented multi-layer terminal sealing technology enhances safety and reliability.
-
Maintenance-Free
Advanced oxygen recombination technology enables maintenance-free operation.
-
Enhanced ABS Case
The battery container is reinforced with ABS material to enhance the pressure resistance of the product.
Parameter List
| Model | Weight(kg) | Rated Voltage(V) | 20hr @1.75V/cell | 10hr @1.80V/cell | Length(mm) | Width(mm) | Height(mm) | Total Height(mm) | IR(mΩ) | Terminal | Short Current(A) |
| LPC6-5.6 | 0.9 | 6 | 5.5 | 70 | 47 | 100 | 106 | 16 | T1/T2 | 154 | |
| LPC6-13 | 1.9 | 6 | 14 | 151 | 50.5 | 94 | 100 | 10 | T1/T2 | 392 | |
| LPC12-3.5 | 1.19 | 12 | 3.5 | 134 | 67 | 59.5 | 65.5 | 40 | T1/T2 | 98 | |
| LPC12-5.6 | 1.8 | 12 | 5.4 | 90 | 70 | 101 | 107 | 25 | T1/T2 | 151.2 | |

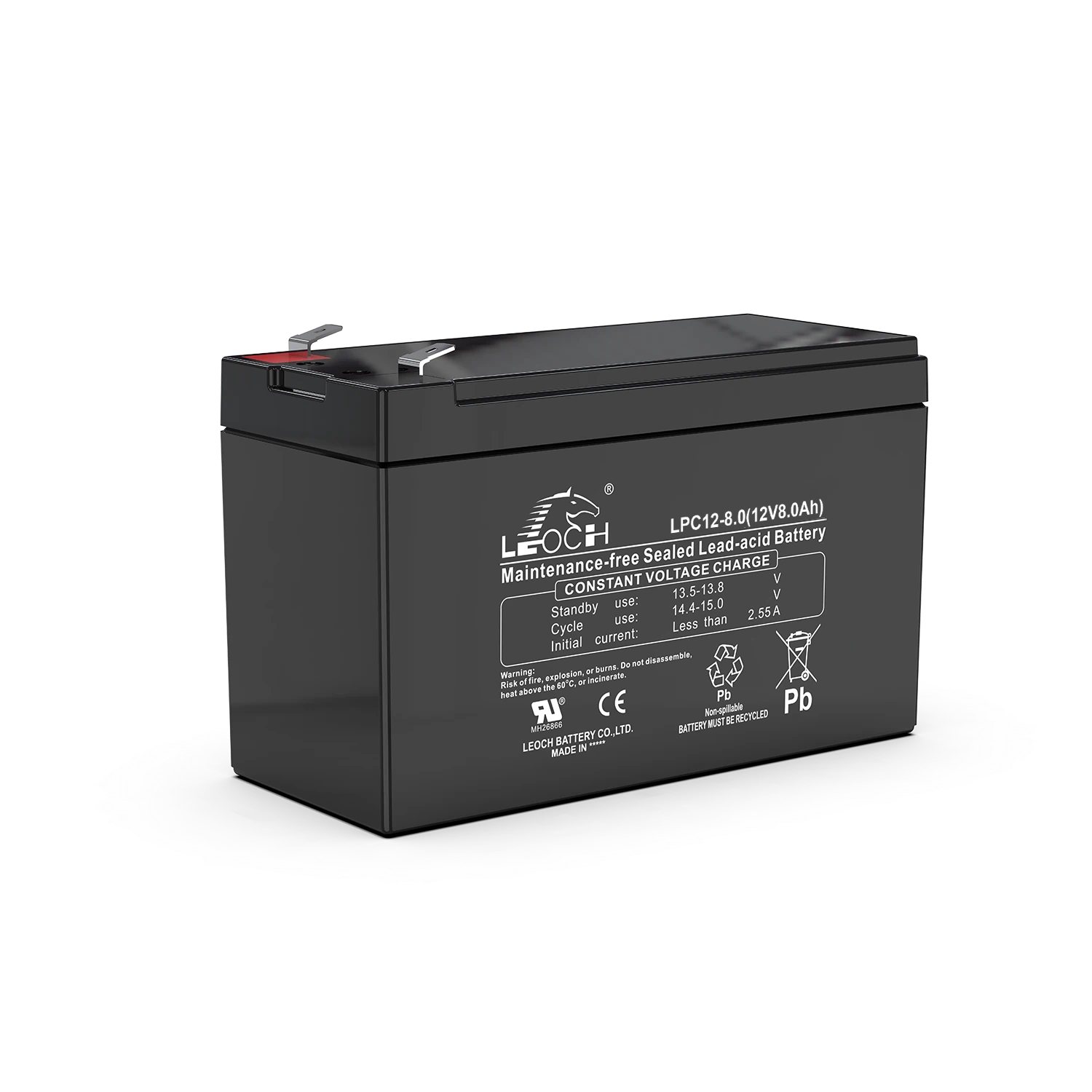

| LPC12-8.0 | 2.5 | 12 | 8 | 151 | 65 | 93.5 | 99.5 | 20 | T1/T2 | 224 | |
| LPC12-12 | 3.43 | 12 | 12 | 151 | 98 | 95 | 101 | 16 | T1/T2 | 336 | |
| LPC12-13 | 3.78 | 12 | 14 | 151 | 98 | 95 | 101 | 14 | T1/T2 | 392 | |
| LPC12-18 | 5.65 | 12 | 20 | 181.5 | 76.5 | 167.5 | 167.5 | 16 | T3 | 560 | |
| LPC12-20 | 6 | 12 | 20 | 181.5 | 76.5 | 167.5 | 167.5 | 14 | T12/12-I(M5) | 560 | |
| LPC12-24 | 8.2 | 12 | 26 | 166 | 175 | 126 | 126 | 12 | T12(M5) | 728 | |
| LPC12-24H | 9.1 | 12 | 28 | 164 | 125 | 176 | 176 | 14 | T3-A/T2 | 700 | |
| LPC12-26 | 7.8 | 12 | 26 | 166 | 175 | 125 | 125 | 14 | T3 | 650 | |
| LPC12-33 | 10.15 | 12 | 33 | 195 | 130 | 164 | 178 | 12 | T5 | 825 | |

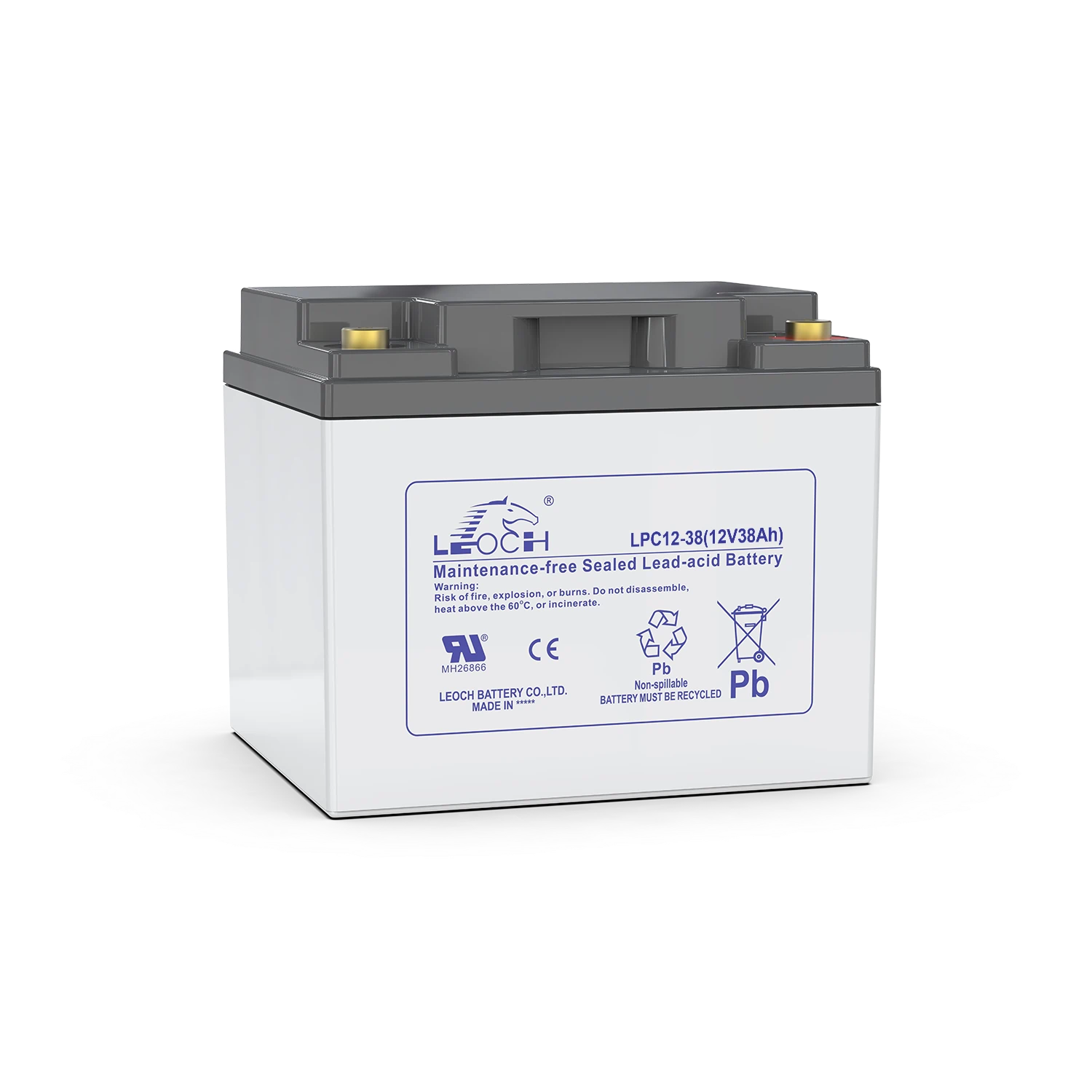

| LPC12-38 | 12 | 12 | 38 | 197 | 165 | 170 | 170 | 10 | T6(M6) | 950 | |
| LPC12-42 | 14.6 | 12 | 42 | 197 | 165 | 170 | 170 | 9 | T6(M6) | 1050 | |
| LPC12-50 | 17.6 | 12 | 50 | 257 | 132 | 200 | 200 | 9 | T6(M6) | 1250 | |
| LPC12-55 | 16.2 | 12 | 55 | 229 | 138 | 205 | 211 | 9 | T6(M6) | 1375 | |
| LPC12-75 | 22.3 | 12 | 75 | 260 | 168 | 208 | 214 | 6.6 | T6(M6) | 1875 | |
| LPC12-90 | 26.8 | 12 | 90 | 306 | 168 | 208 | 214 | 5.5 | T6(M6) | 2070 | |

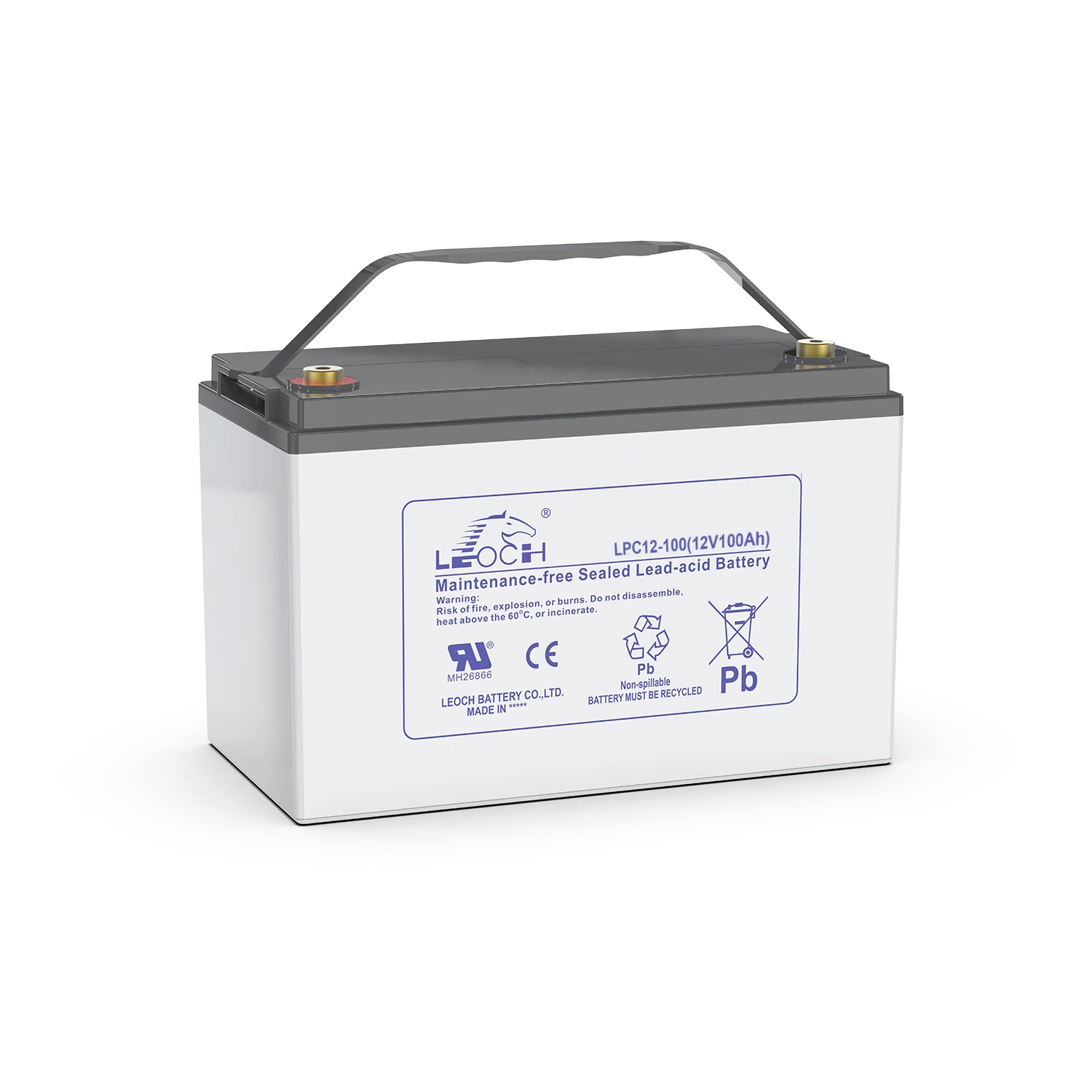

| LPC12-100 | 30.6 | 12 | 100 | 330 | 173 | 212 | 220 | 4.9 | T11(M8) | 2000 | |
| LPC12-120 | 37.3 | 12 | 120 | 408 | 177 | 225 | 225 | 3.6 | T11(M8) | 2400 | |
| LPC12-150 | 43.2 | 12 | 150 | 483 | 170 | 238.5 | 238.5 | 3.5 | T11(M8) | 3000 |
