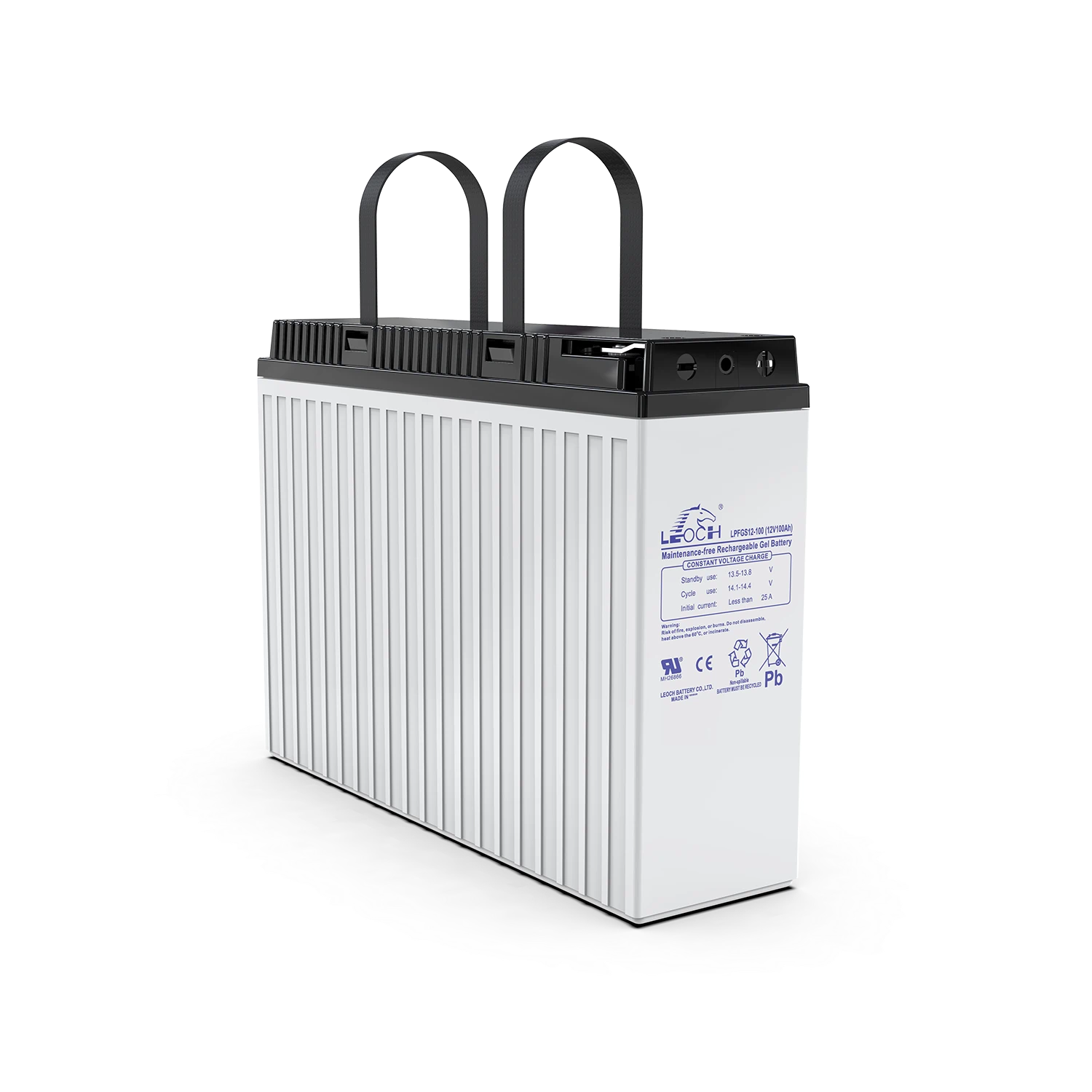

Hybrid Gel LPGS & LPFGS Series

Hybrid gel technology supports applications experiencing periodic cycling, variable grid availability and demanding operating conditions. Front-terminal LPFGS models facilitate cabinet-based installation and servicing.

Applications:

Wind & solar & renewable energy
Street lamp & CATV & oil and gas
Poor grid reliability backup applications
Hybrid telecom remote base stations
All extreme environment off-grid applications
They are compliant with both AGM and Gel applications
UPS

Request a Quote

Key Features

Special Hybrid Gel Technology

Effectively reduces short circuits and extends the service life of the product.
Long Cycle Life

The use of a special multi-element alloy and a unique grid structure design ensures the battery has a long cycle life.
Safety & Reliability

Patented multi-layer terminal sealing technology enhances safety and reliability.
Maintenance-Free

Advanced oxygen recombination technology enables maintenance-free operation.
Enhanced ABS Case

The battery container is reinforced with ABS material to enhance the pressure resistance of the product.

Parameter List

Swipe View

Model	Rated Voltage(V)	20hr @1.80V/cell	10hr @1.80V/cell	Length(mm)	Width(mm)	Height(mm)	Total Height(mm)	Weight(kg)	Terminal
LPGS12-33	12	33		195	130	164	167	10.5	T6-I(M6)
LPGS12-38	12		38	197	165	170	170	12.8	T6(M6)

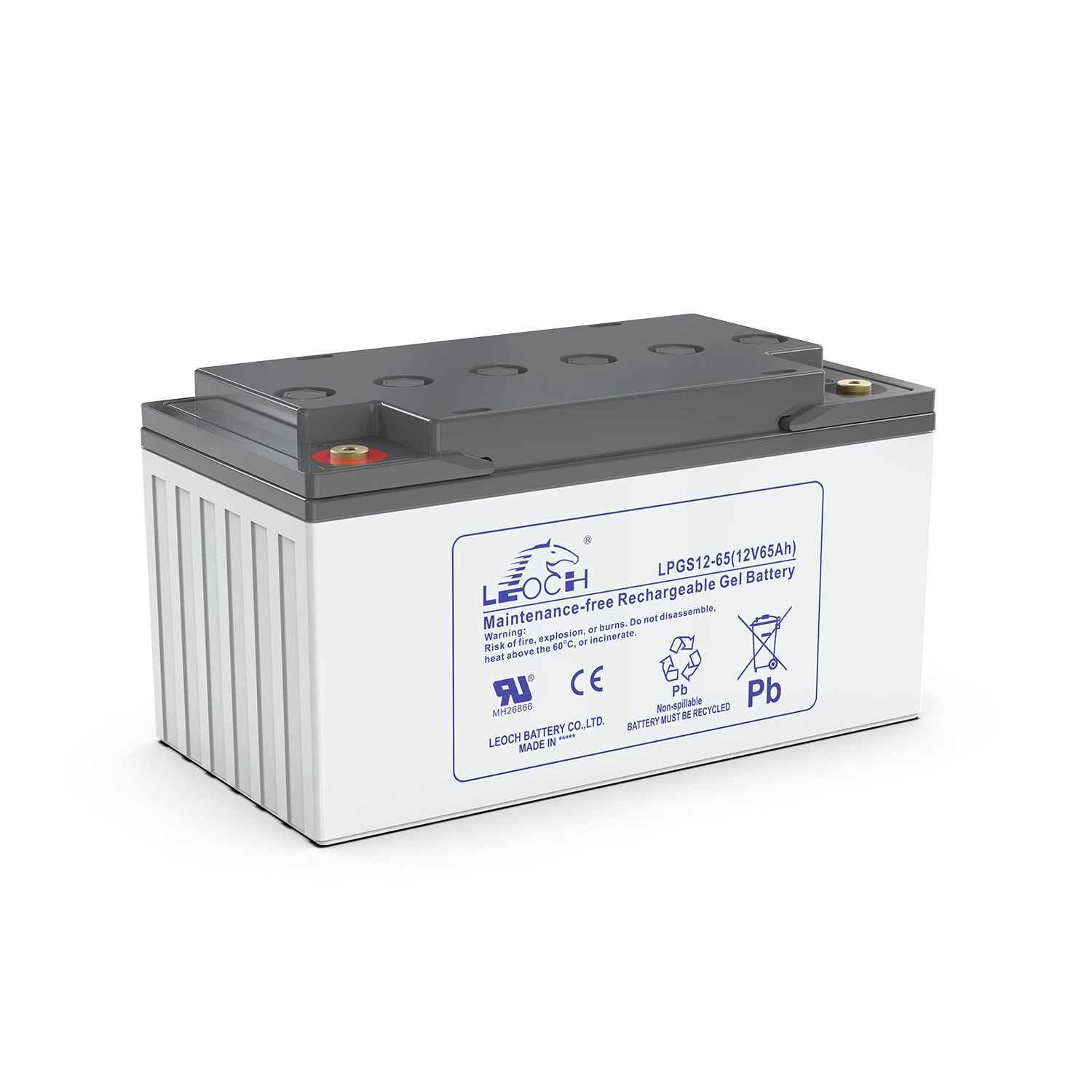

LPGS12-65	12		65	325	167	174	174	21.05	T6(M6)

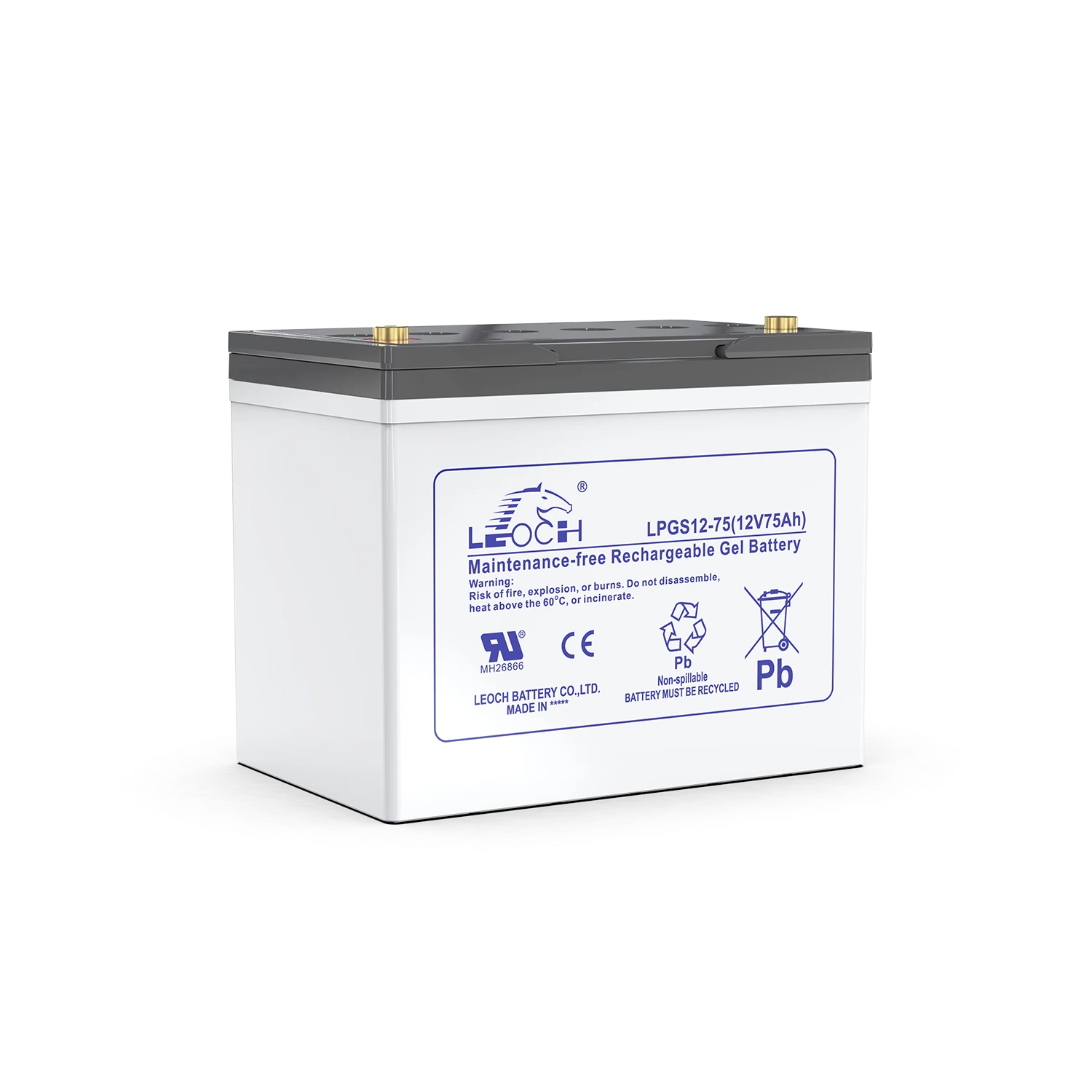

LPGS12-75	12		75	260	168	208	214	22.5	T6(M6)
LPGS12-80	12		80	260	168	208	214	24	T6(M6)

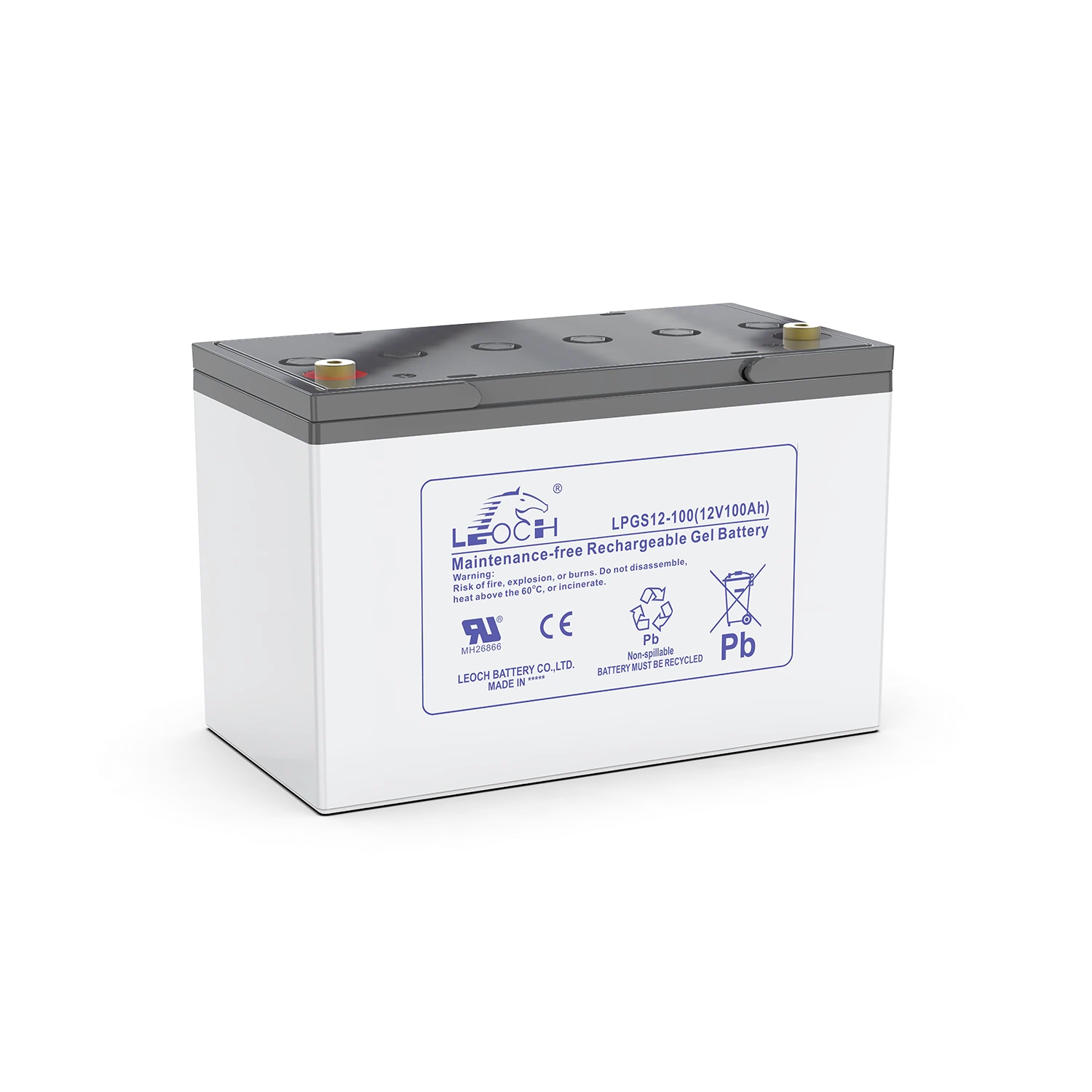

LPGS12-100	12		100	330	173	212	220	28.2	T11(M8)
LPGS12-120	12		120	408	177	225	225	35.3	T11(M8)
LPGS12-140	12		140	483	170	238.5	238.5	41.8	T11(M8)

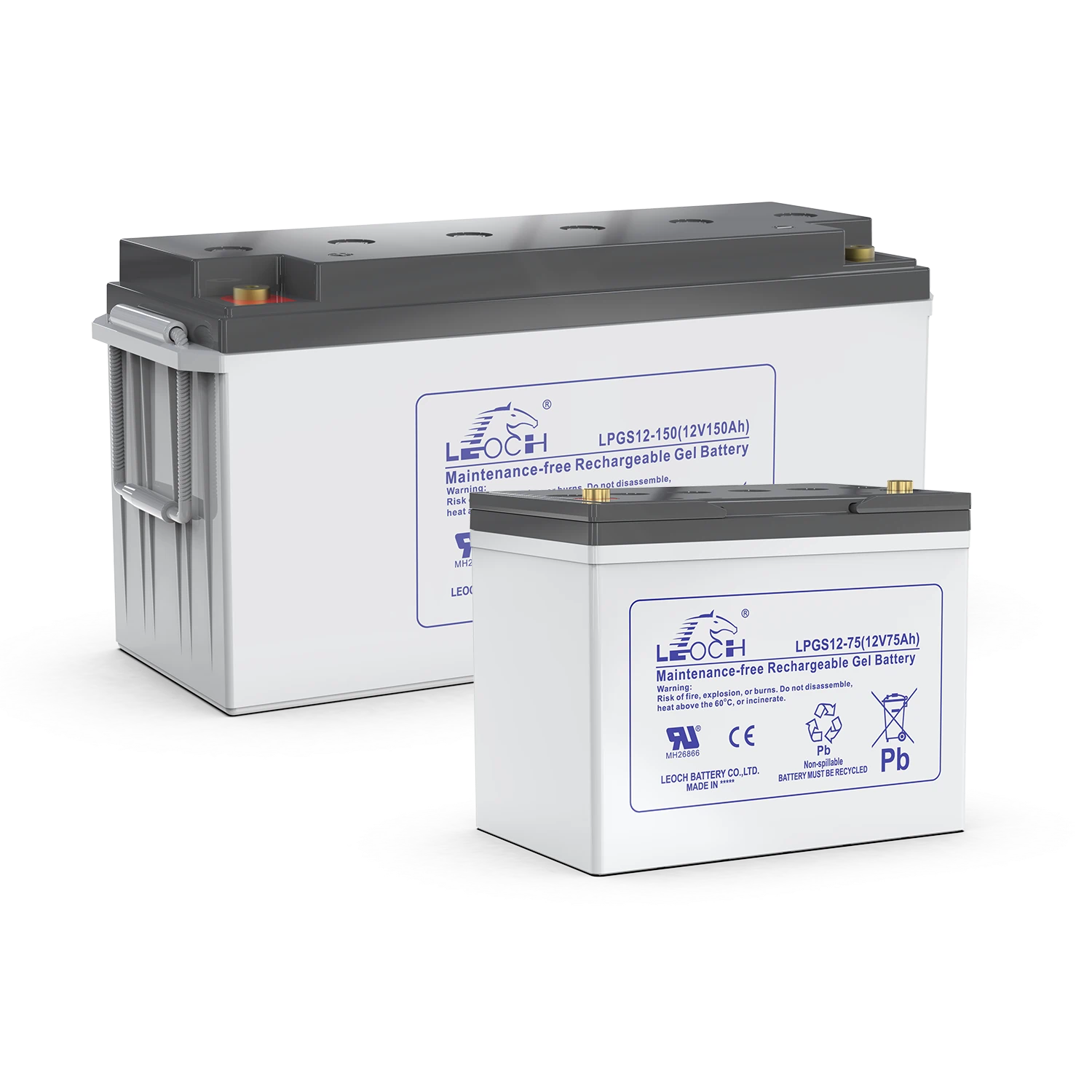

LPGS12-150	12		150	483	170	238.5	238.5	43.6	T11(M8)
LPGS12-180	12		180	532	207	214	220	54	T11(M8)
LPGS12-200	12		200	522	240	218	224	60.3	T11(M8)
LPGS12-250	12		250	522	268	220	226	73.1	T11(M8)
LPGS2-200	2		200	170	110	328	337	13.3	T11(M8)
LPGS2-300	2		300	170	150	328	337	18.5	T11(M8)
LPGS2-400	2		400	210	175	330	339	25.5	T11(M8)
LPGS2-500	2		500	240	175	330	339	30	T11(M8)
LPGS2-600	2		600	300	175	330	340	37	T11(M8)
LPGS2-800	2		800	410	175	330	340	50.4	T11(M8)
LPFGS12-100	12		100	508	110	238.5	238.5	32.2	T13(M6)
LPFGS12-100L	12		100	545	110	232.5	232.5	34.2	T6(M6)
LPFGS12-150	12		150	551	110	288	288	47	T6(M6)
LPFGS12-180	12	180	170	550	125	281.5	281.5	51.4	T8(M6)
LPFG12-50HS	12		50	390	105	200	200	18.5	T6(M6)
LPFG12-100HS	12		100	394	110	286	286	31.7	T6(M6)
LPFG12-150HS	12		150	551	110	288	288	46.4	T6(M6)
LPFG12-170HS	12		170	550	125	281.5	281.5	51.4	T8(M6)
LPFG12-190HS	12		190	560	126	320	320	60.5	T11(M8)
