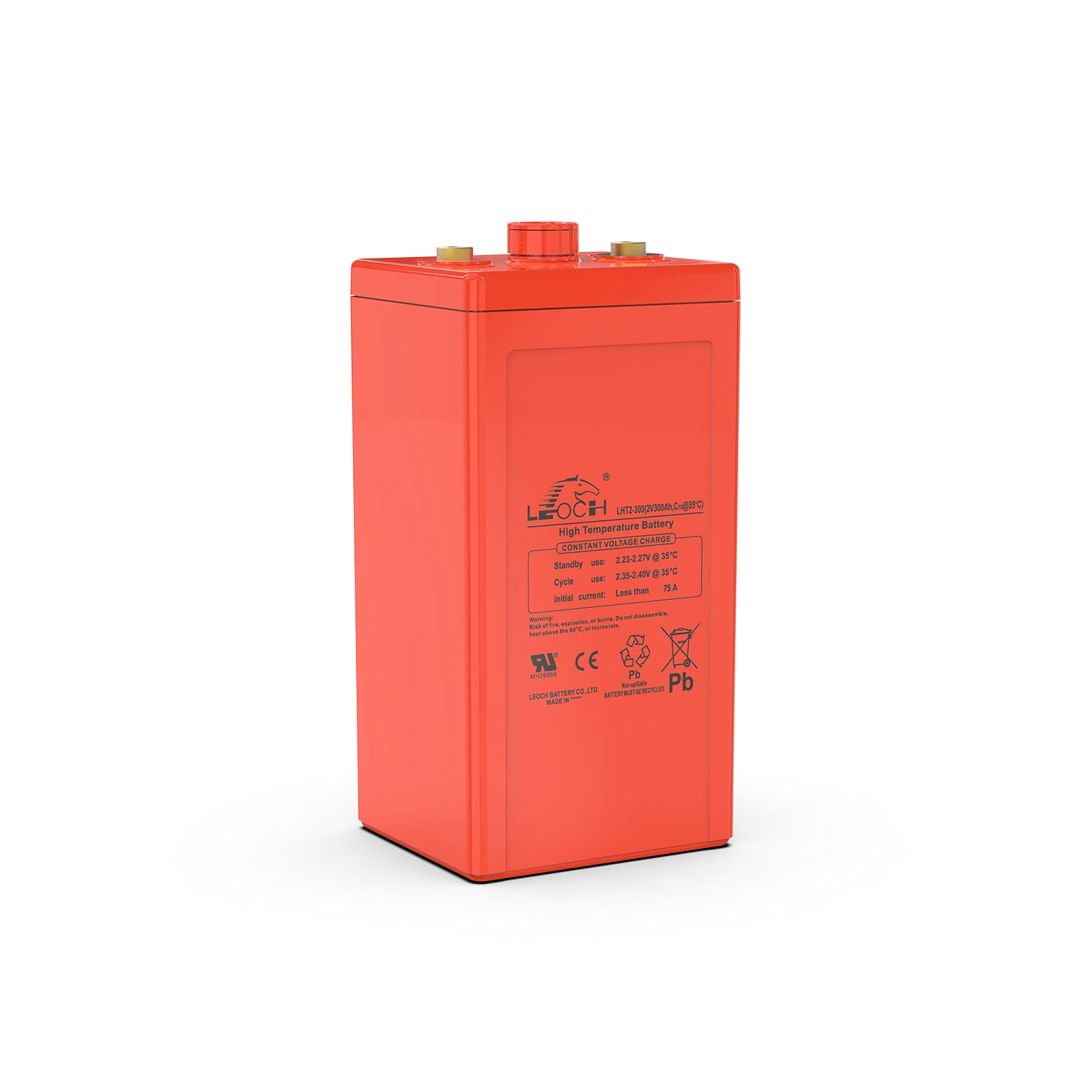

High-Temp LHT & LHTF Series
Specialized materials and construction support telecom base stations, outdoor cabinets and sites operating without continuous air conditioning.
Key Features
-
High-Temperature Reliability
Features a high-temperature plate-grid structure design, providing superior corrosion resistance in high-temperature environments.
-
Operate Stably up to 35°C
Incorporates a patented high-temperature formulation to ensure that wireless facilities, transmission equipment, and power supply systems at communication base stations operate stably at temperatures up to 35°C.
-
Safety and Reliability
The use of a specially designed casing material ensures safety and reliability in high-temperature environments.
-
Patented Multi-Layer Terminal Sealing Tech
Patented multi-layer terminal sealing technology enhances safety and reliability.
-
Maintenance-Free
Advanced oxygen recombination technology enables maintenance-free operation.
Parameter List
-

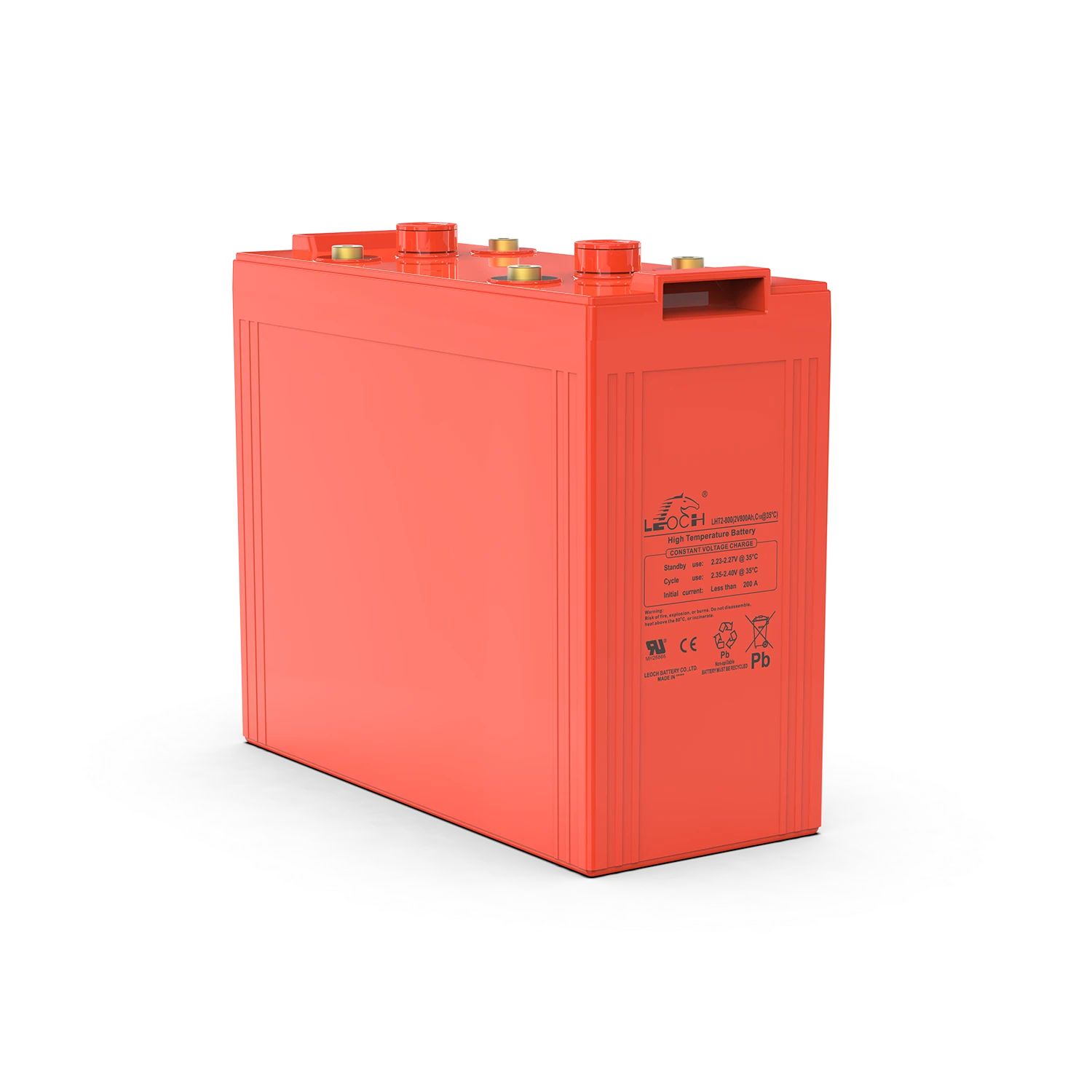

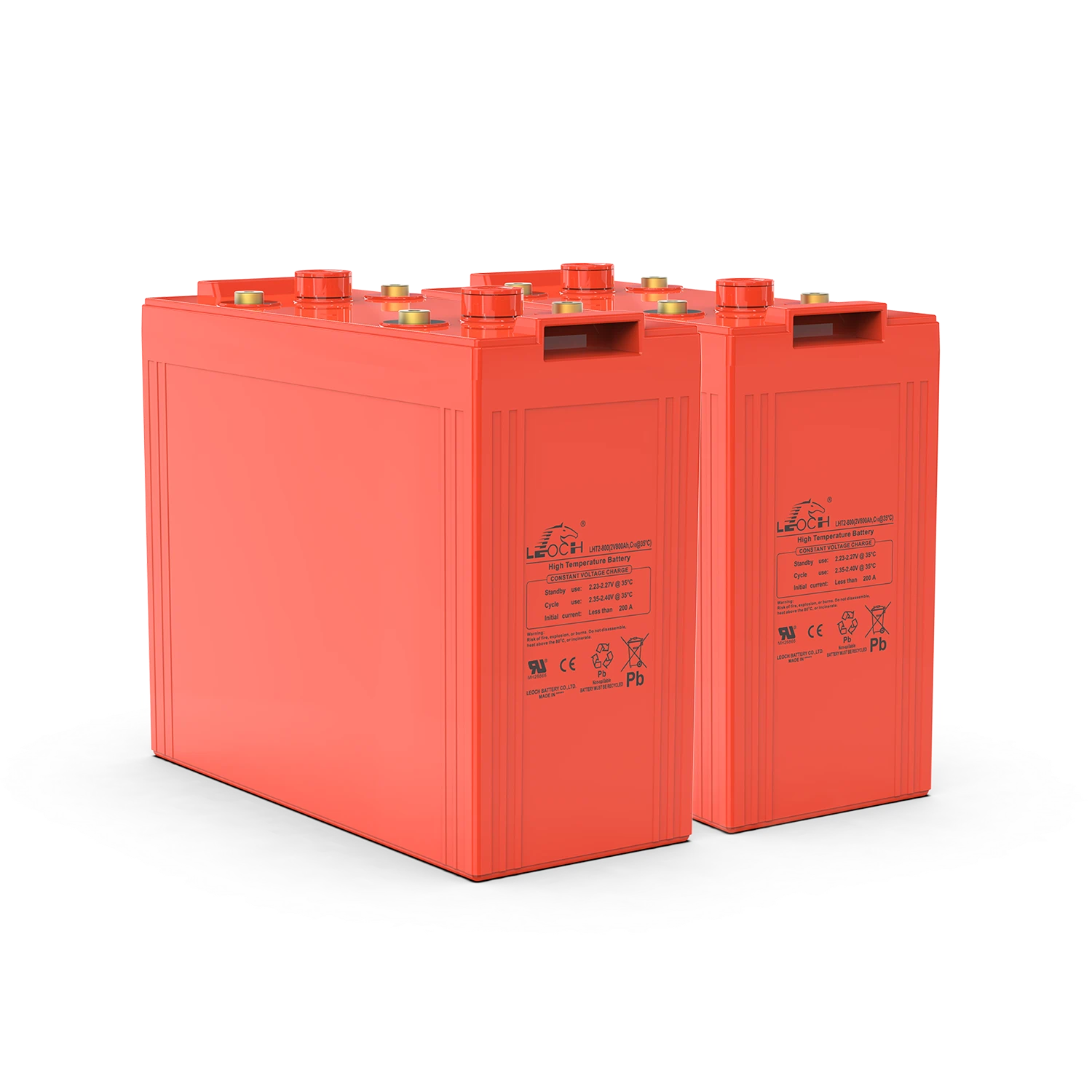

LHT Series(Top Terminal)
-

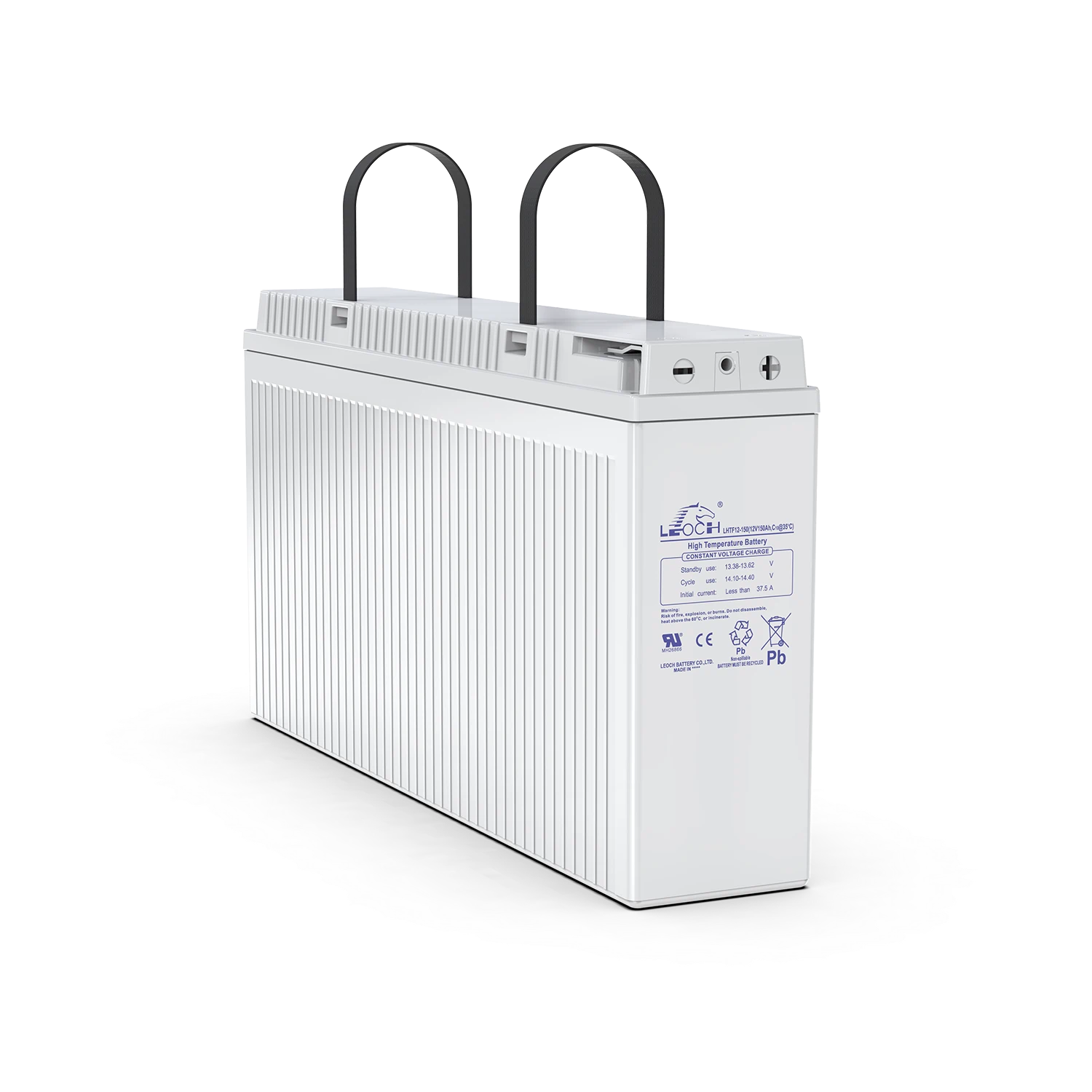

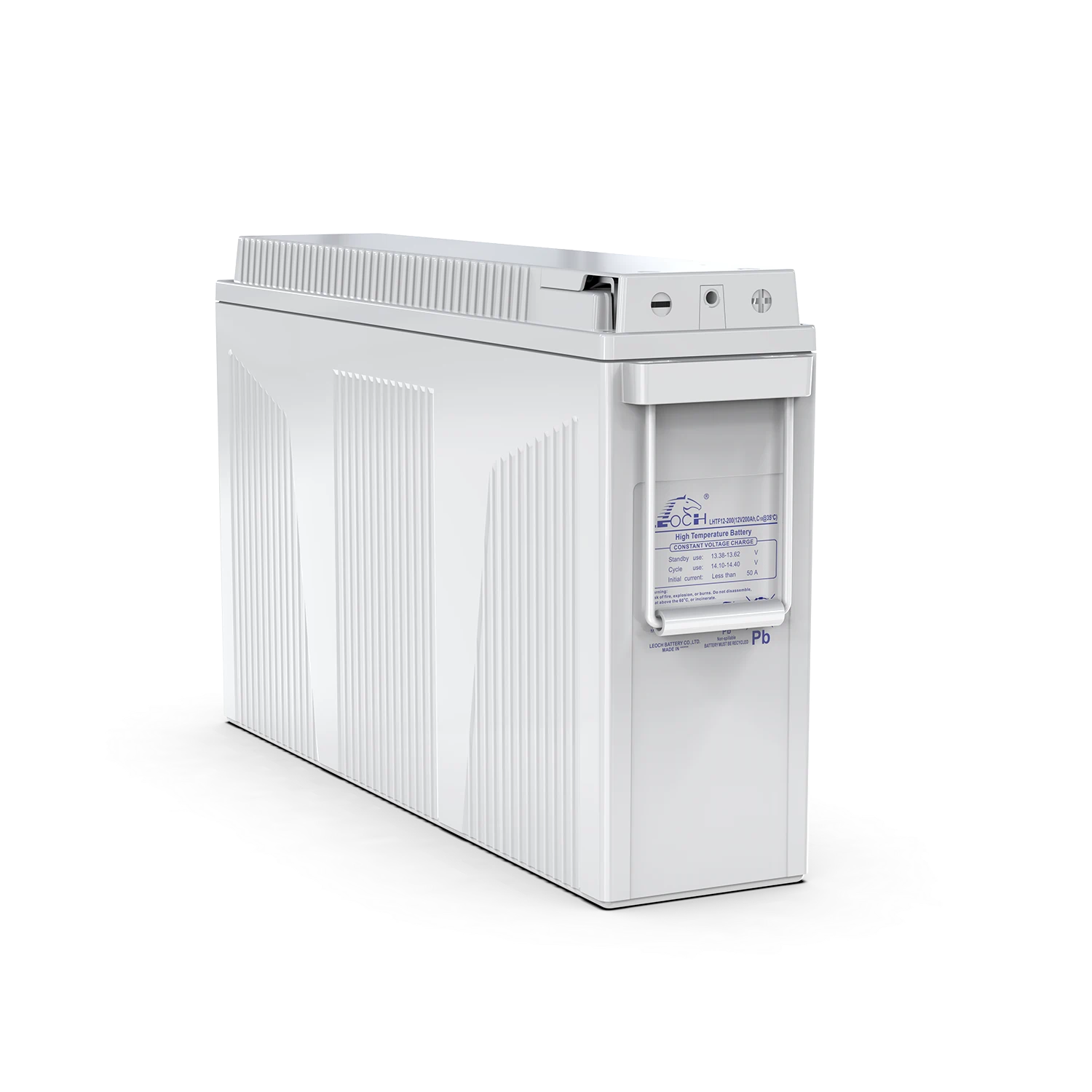

LHTF Series(Front Terminal)
| Model | Rated Voltage(V) | 10hr @1.80V/cell | Length(mm) | Width(mm) | Height(mm) | Total Height(mm) | Weight(kg) | Terminal |
| LHT12-100 | 12 | 100 | 330 | 173 | 212 | 218 | 33.5 | T11(M8) |
| LHT12-150 | 12 | 150 | 532 | 207 | 214 | 220 | 56 | T11(M8) |
| LHT12-200 | 12 | 200 | 522 | 240 | 218 | 224 | 67.4 | T11(M8) |
| LHT2-200 | 2 | 200 | 170 | 110 | 328 | 348 | 13.5 | T11(M8) |
| LHT2-300 | 2 | 300 | 170 | 150 | 328 | 348 | 18.8 | T11(M8) |
| LHT2-500 | 2 | 500 | 240 | 175 | 330 | 350 | 30 | T11(M8) |
| LHT2-800 | 2 | 800 | 410 | 175 | 330 | 350 | 50.4 | T11(M8) |
| LHT2-1000 | 2 | 1000 | 475 | 175 | 328 | 350 | 60 | T11(M8) |
| Model | Rated Voltage(V) | 10hr @1.80V/cell | Length(mm) | Width(mm) | Height(mm) | Total Height(mm) | Weight(kg) | Terminal |
| LHTF12-100 | 12 | 100 | 394 | 110 | 286 | 286 | 31.5 | T6(M6) |
| LHTF12-150 | 12 | 150 | 551 | 110 | 288 | 288 | 46.6 | T6(M6) |
| LHTF12-200 | 12 | 190 | 560 | 126 | 320 | 320 | 59.5 | T11(M8) |
