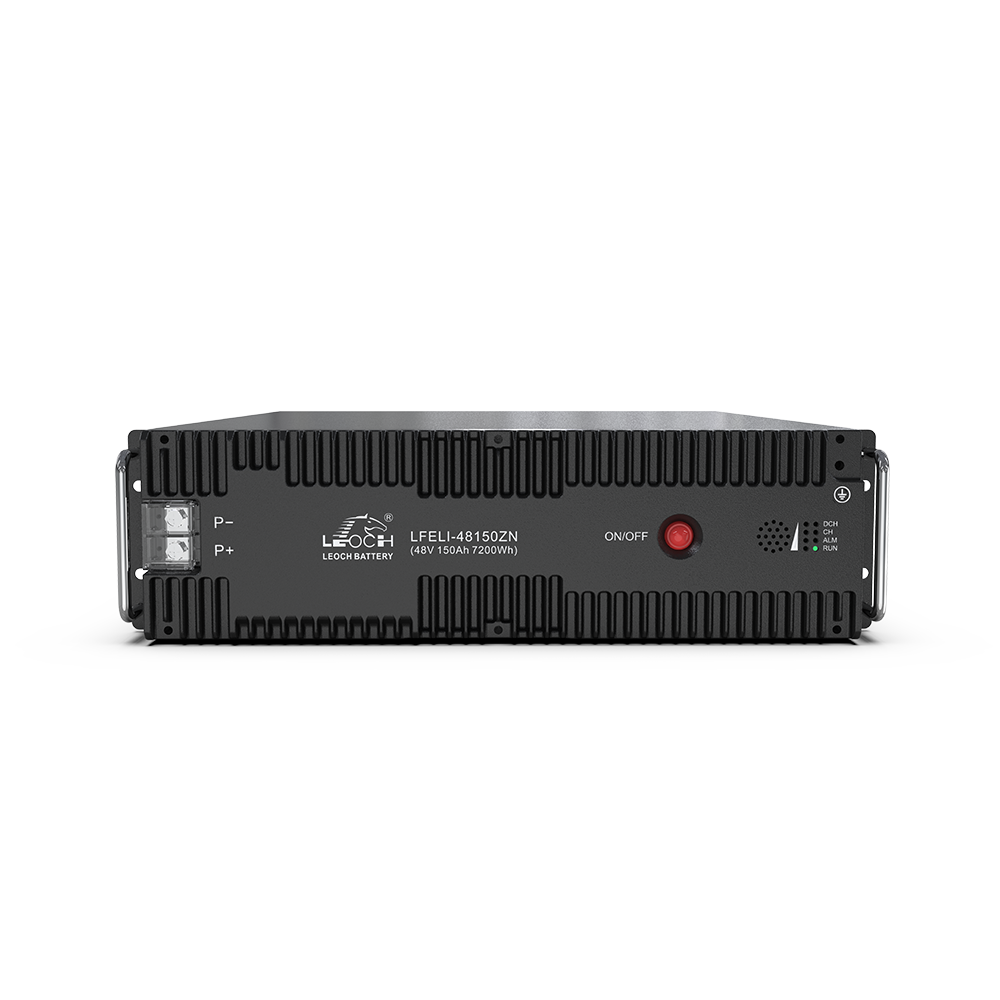

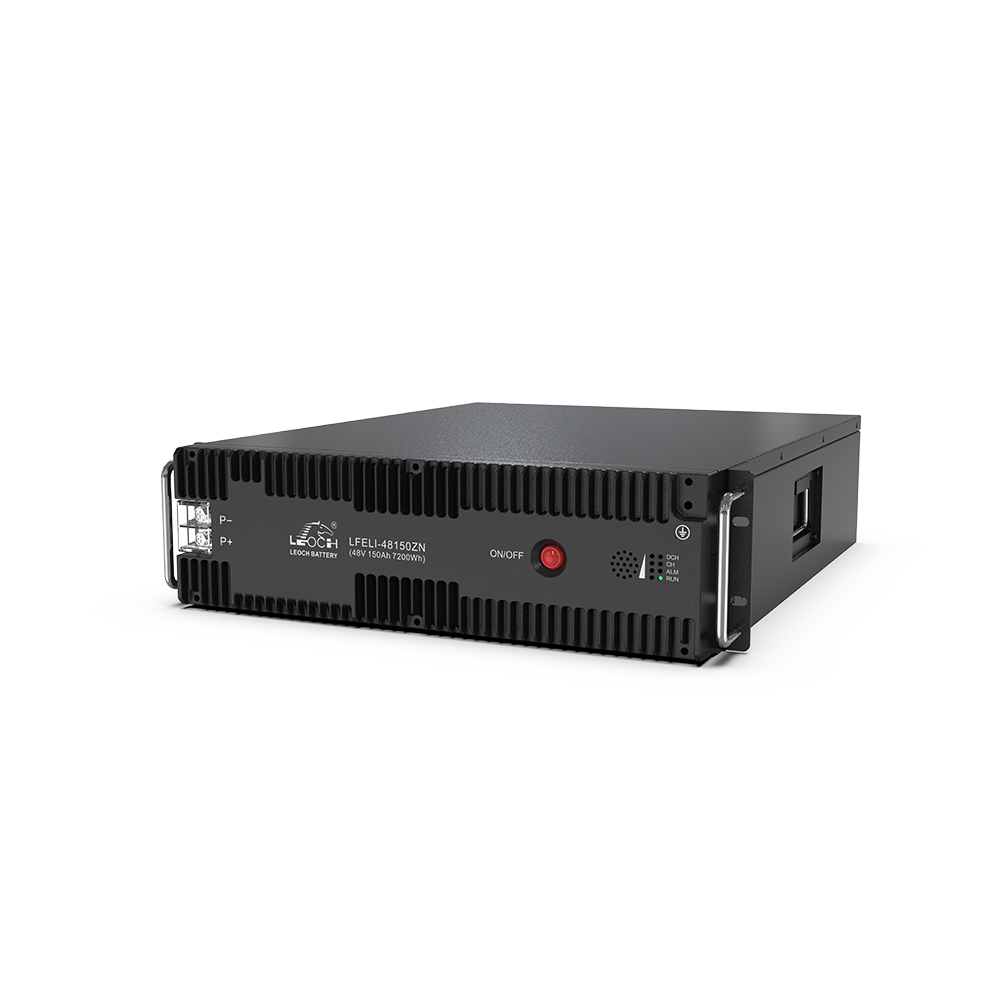

Telecom 48V Intelligent Lithium Battery
Telecom Lithium LFELI series is LiFePO4 backup battery for 5G base stations & telecom rooms. Equipped with smart BMS full protection, rack-mounted lightweight design, long cycle life, wide temperature adaptability and maintenance-free, supporting parallel expansion for reliable telecom power supply.
Applications:
Access Network Equipment
Remote Switching Offices
Transmission Equipment
Mobile Communication Equipment
Communication field as backup power supply
Key Features
-
Reuse and Expansion
Compatible with lead-acid and cascaded lithium batteries, integrates with existing DC power systems to optimize and reduce base station construction and maintenance costs.
-
Auxiliary Power Supply
Works in conjunction with switching power supplies to assist in peak shaving for loads, reducing base station expansion costs.
-
Boost Power Supply
Maintains stable discharge voltage adjustable within the 48V-57V range, compensates for voltage over long distances, minimizes line loss, and reduces investment in boost converters.
-
Parallel Expansion
Supports parallel connection of up to 32 units with automatic address allocation via CAN bus, enabling intelligent self-management and stable continuous output.
Parameter List
| Model | Nominal Voltage(V) | Capacity(Ah) | Energy(kWh) | Height(1U=44.45mm) | Dimensions(mm) | Weight(kg) |
| LFELI-48100ZN | 48 | 100 | 4.8 | 3U | 442*450*133 | 40.3 |
