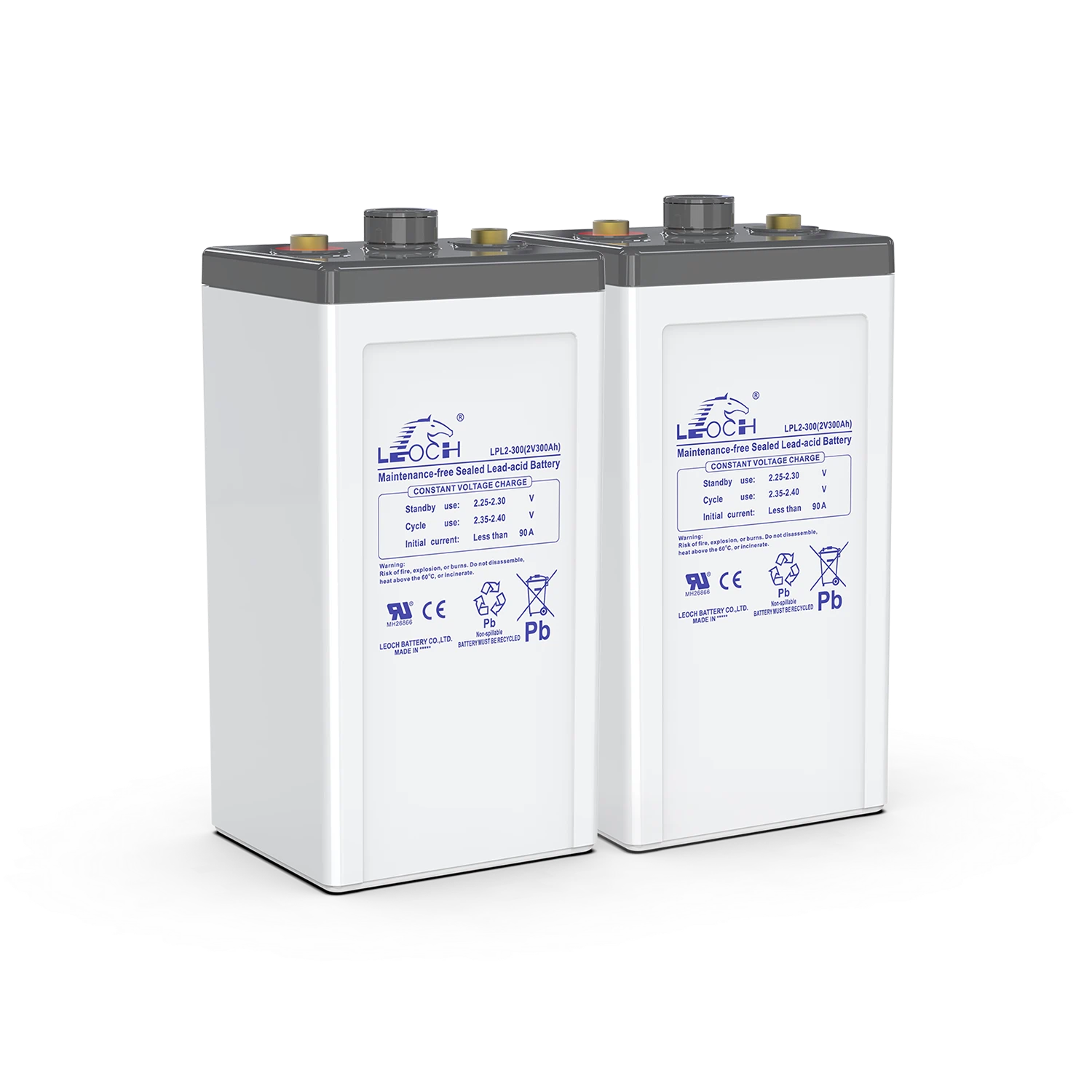

VRLA-AGM LPL Series

Developed for continuously floated systems where dependable readiness, extended standby life and replacement planning are priorities.

Applications:

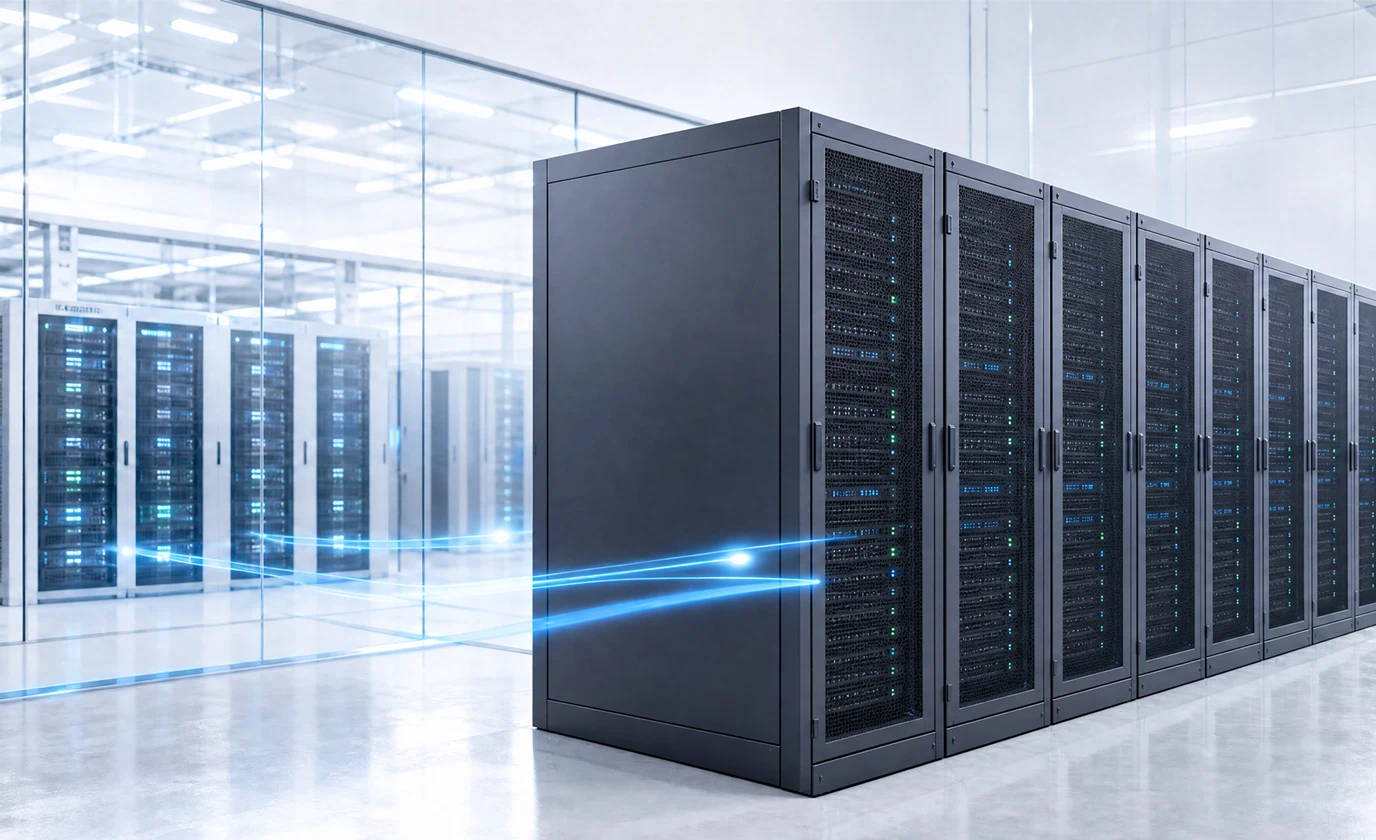

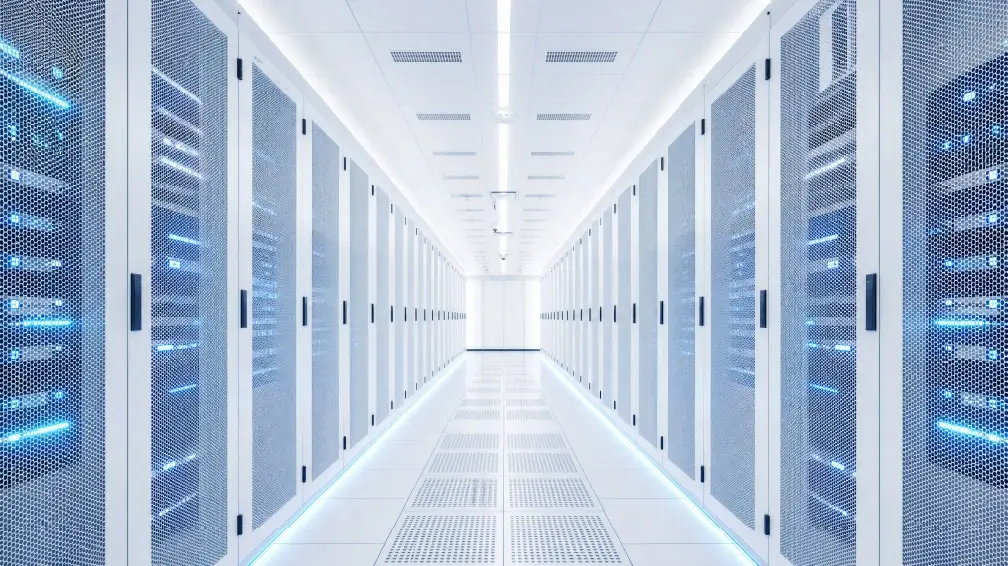

UPS and EPS
Emergency light
Railway signal and aircraft signal system
Marine and power stations
Alarm and security system
Electronic apparatus and equipment

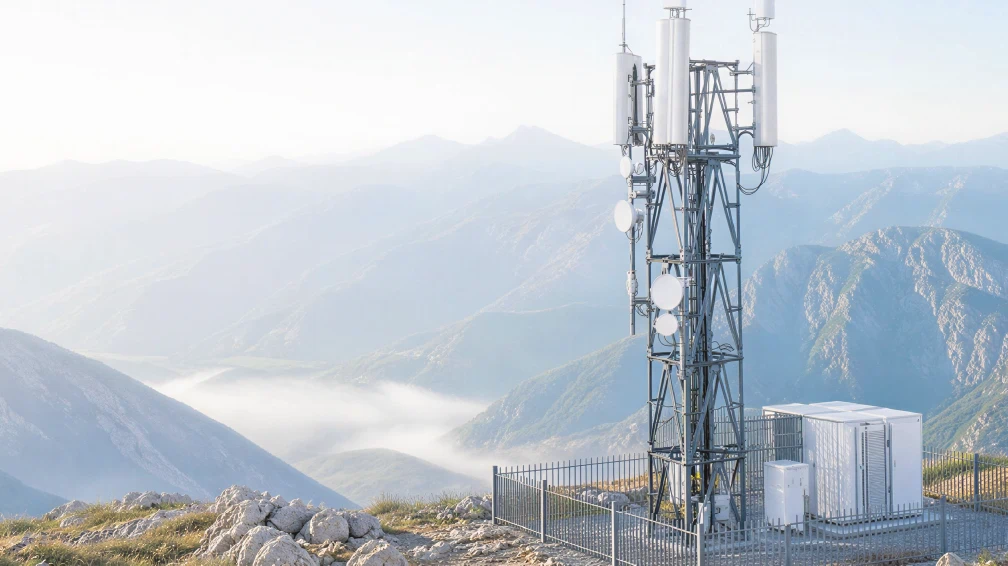

Communication power supply, DC power supply

Request a Quote

Key Features

Special Multi-Alloy Grid

Extends service life and improves corrosion resistance.
Compact Assembly Design

Reduces internal resistance and enhances power delivery.
Low self-discharge rate

Less than 3% per month.
Excellent charge acceptance

Engineered for efficient energy recovery.
Advanced Sealing Technology

Ensures leak-free operation throughout the battery's service life.
Optimized Valve Design

Controls water loss while preventing air and spark ingress.

Parameter List

Small Size
Normal

Swipe View

Model	Rated Voltage(V)	10hr@1.80V/cell	Length(mm)	Width(mm)	Height(mm)	Total Height(mm)	Weight(kg)	Terminal
LPL2-200M	2	200	90	181	350	365	12.4	T11(M8)
LPL2-300M	2	300	124	181	350	365	18	T11(M8)
LPL2-400M	2	400	158	181	350	365	22.7	T11(M8)
LPL2-500M	2	500	191	181	350	365	28.4	T11(M8)
LPL2-600M	2	600	225	181	350	365	33.1	T11(M8)
LPL2-800M	2	800	303	181	350	365	44.5	T11(M8)
LPL2-1000M	2	1000	370	181	350	365	55.8	T11(M8)
LPL2-1500M	2	1500	355	337	330	350	84.6	T11(M8)
LPL2-1500H	2	1500	282.5	230	539	549	91.5	T17(M8)
LPL2-1600M	2	1600	355	337	330	350	86.4	T11(M8)
LPL2-2000M	2	2000	476	337	330	350	112.1	T11(M8)
LPL2-2000H	2	2000	358	232	539	549	118.5	T17(M8)
LPL2-3000M	2	3000	697	340	330	350	169.1	T11(M8)

Model	Rated Voltage(V)	20hr @1.75V/cell	10hr @1.80V/cell	Length(mm)	Width(mm)	Height(mm)	Total Height(mm)	Weight(kg)	Terminal
LPL6-6.5	6	6.5		150	34	94	100	1.26	T1/T2
LPL6-9.0	6	9		151	50.5	94	100	1.7	T1/T2
LPL6-11	6	11		151	50.5	94	100	1.95	T1/T2
LPL6-18	6	18		157	83	125	125	3.3	T3-A
LPL12-7.0	12	7		151	65	93.5	99.5	2.43	T1/T2
LPL12-12	12	12		151	98	95	101	3.87	T1/T2
LPL12-18	12	18		181.5	76.5	167.5	167.5	5.7	T3
LPL12-24	12	24		166	175	125	125	7.6	T12/T12-I(M5)
LPL12-28H	12	28		164	125	176	176	9.1	T3-A/T2
LPL12-28	12	28		166	175	125	125	8.2	T12/T12-I(M5)
LPL6-180	6		180	306	168	222	228	30.3	T8(M6)
LPL12-38	12		38	197	165	170	170	12.7	T6(M6)
LPL12-40	12		40	197	165	170	170	14.5	T6(M6)
LPL12-45	12		45	197	165	170	170	14.2	T6(M6)
LPL12-55	12		55	229	138	210	230	18	T9
LPL12-60	12		60	260	168	210	216	20.7	T6(M6)
LPL12-65	12		65	348	167	178	178	21	T6(M6)
LPL12-70	12		70	348	167	178	178	23.1	T6(M6)
LPL12-75	12		75	260	168	208	214	22.7	T6(M6)
LPL12-90H	12		90	330	173	212	220	29.5	T11(M8)
LPL12-100	12		100	330	173	212	220	30.5	T11(M8)
LPL12-120	12		120	408	177	225	225	36.3	T11(M8)
LPL12-150	12		150	483	170	238.5	238.5	46.5	T11(M8)

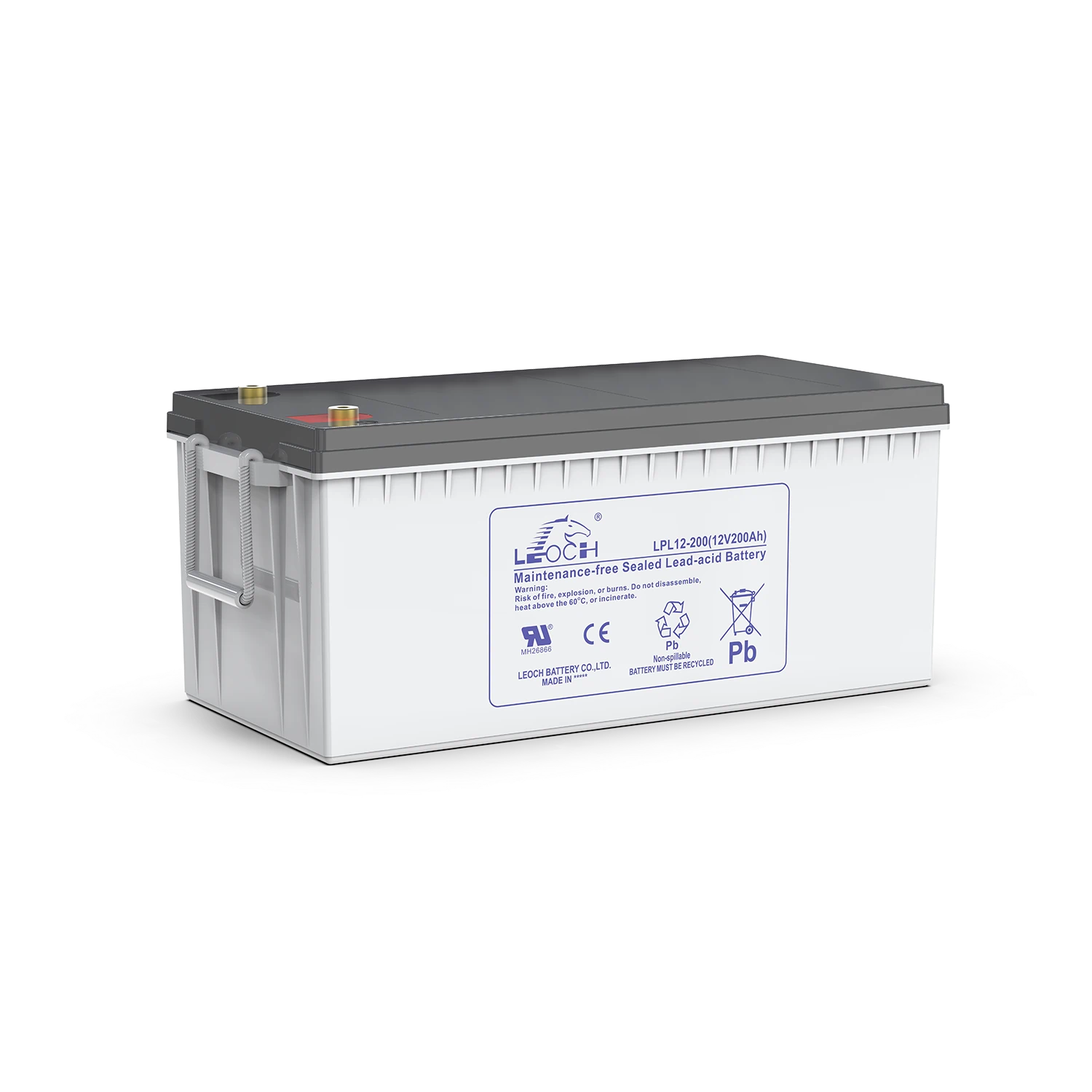

LPL12-200	12		200	522	240	218	224	62.3	T11(M8)
LPL12-225	12		225	522	268	220	226	70.5	T11(M8)
LPL12-250	12		250	522	268	220	226	76.5	T11(M8)
LPL2-100	2		100	170	72	205	214	5.7	T6(M6)

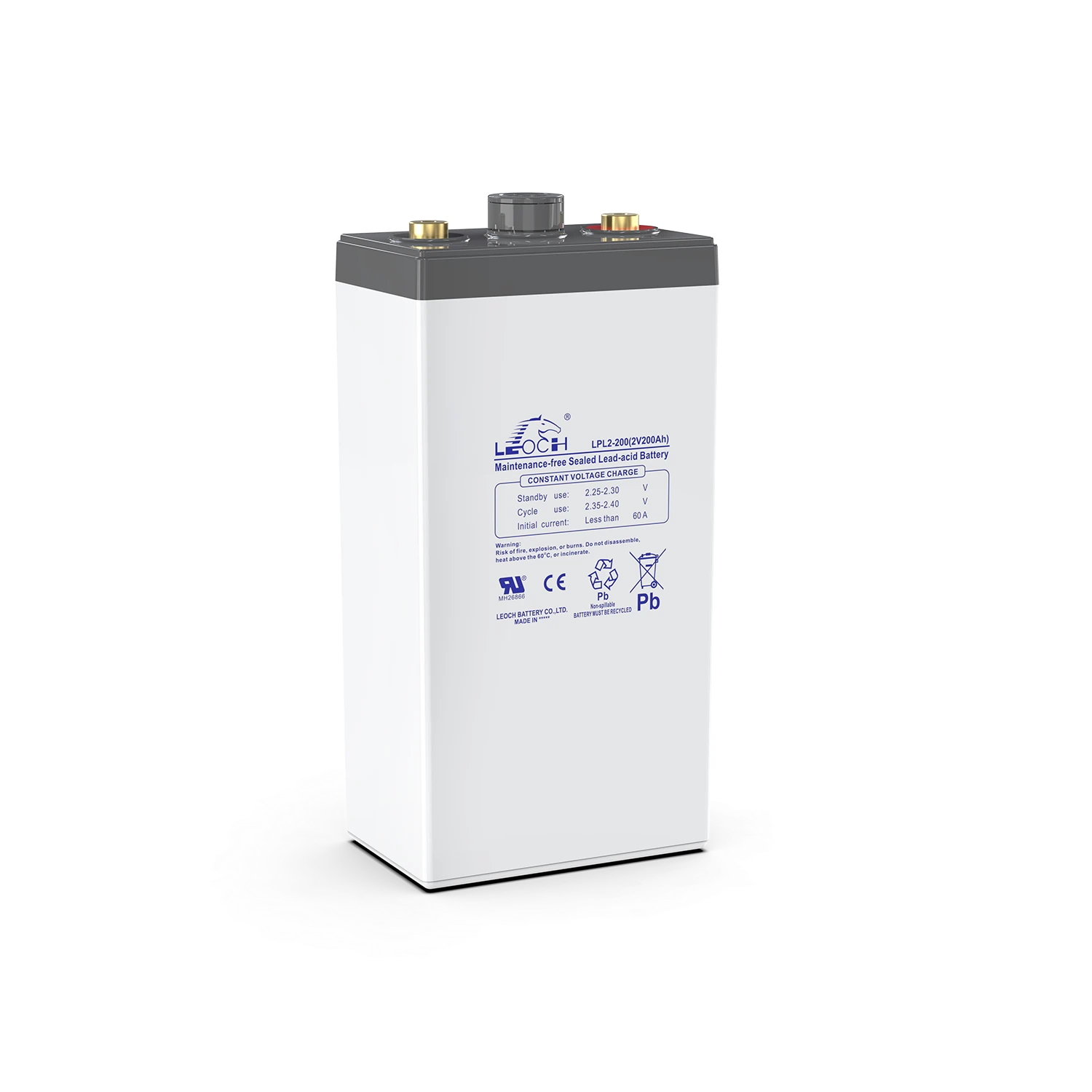

LPL2-200	2		200	170	110	328	348	13.3	T11(M8)

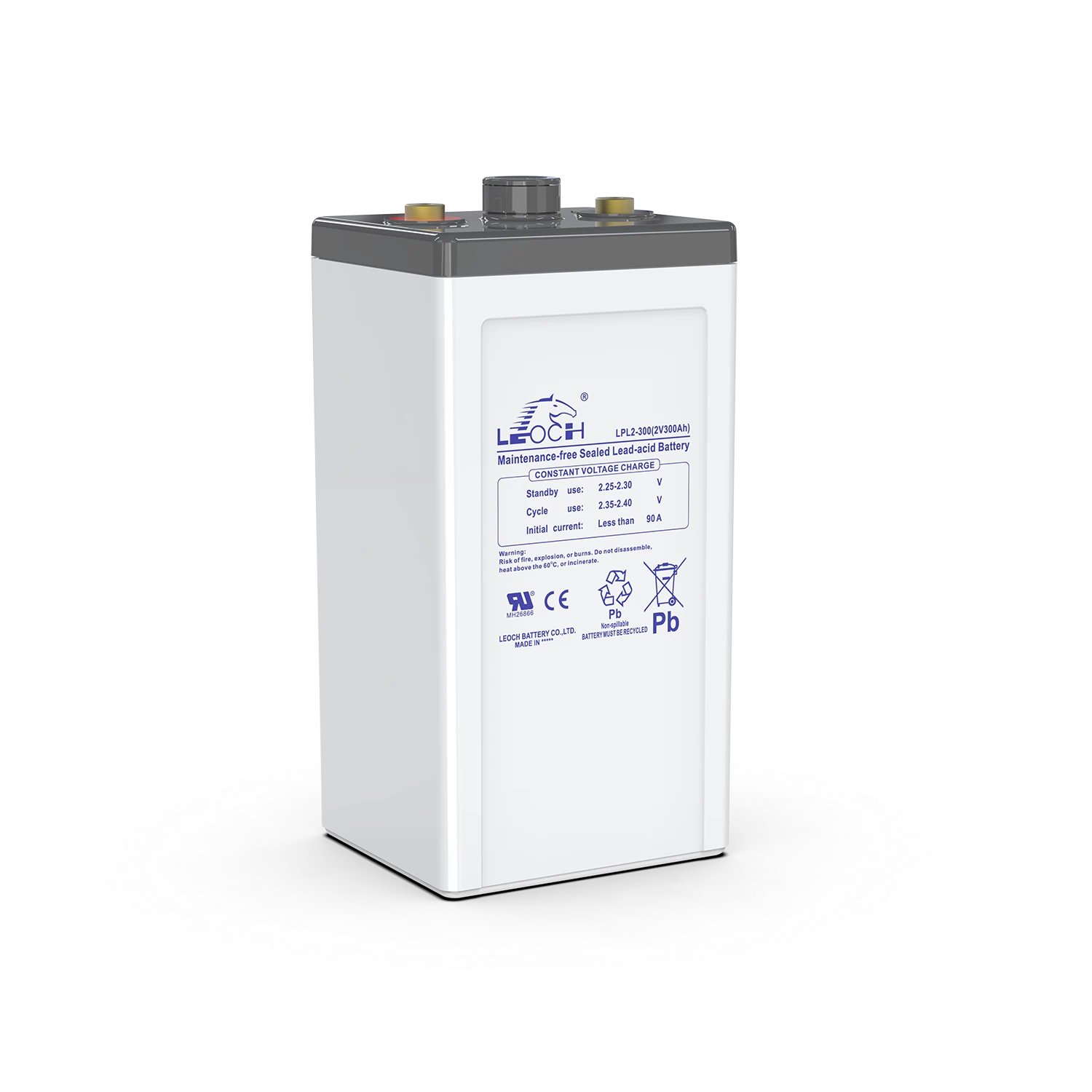

LPL2-300	2		300	170	150	328	348	18.5	T11(M8)
LPL2-400	2		400	210	175	330	350	25.5	T11(M8)

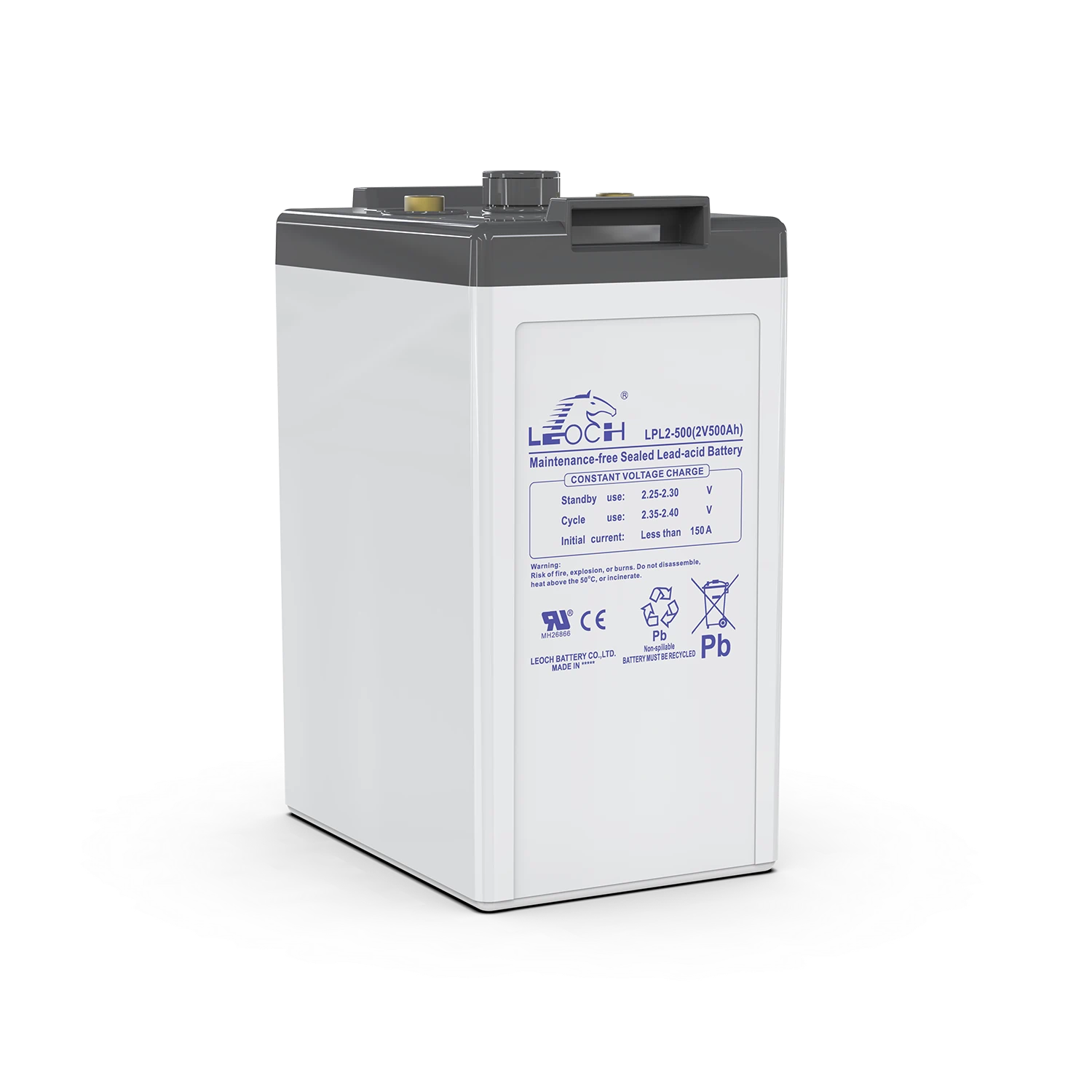

LPL2-500	2		500	240	175	330	350	30	T11(M8)
LPL2-600	2		600	300	175	330	350	37	T11(M8)
LPL2-800	2		800	410	175	330	350	50.4	T11(M8)
LPL2-1000	2		1000	475	175	328	350	60	T11(M8)
