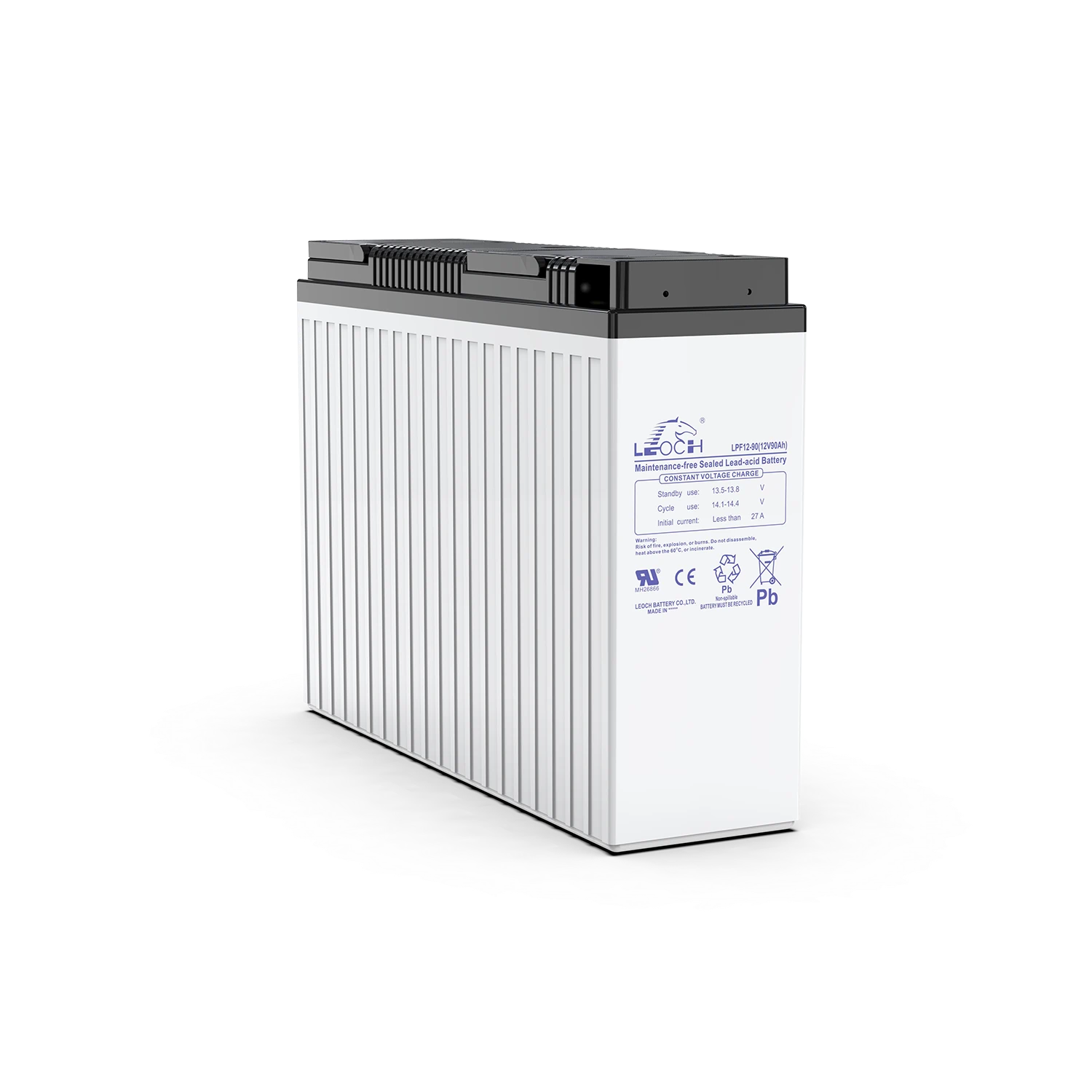

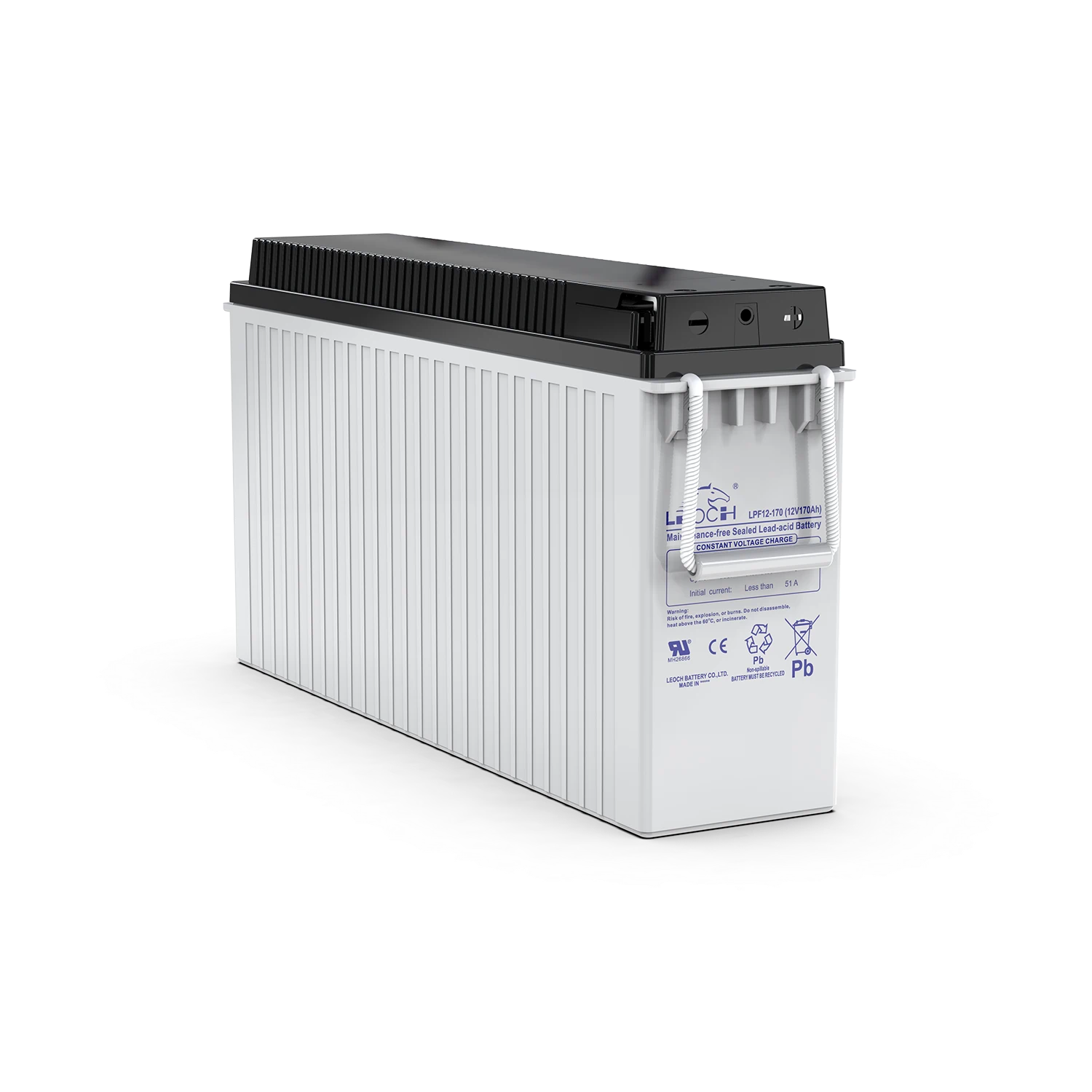

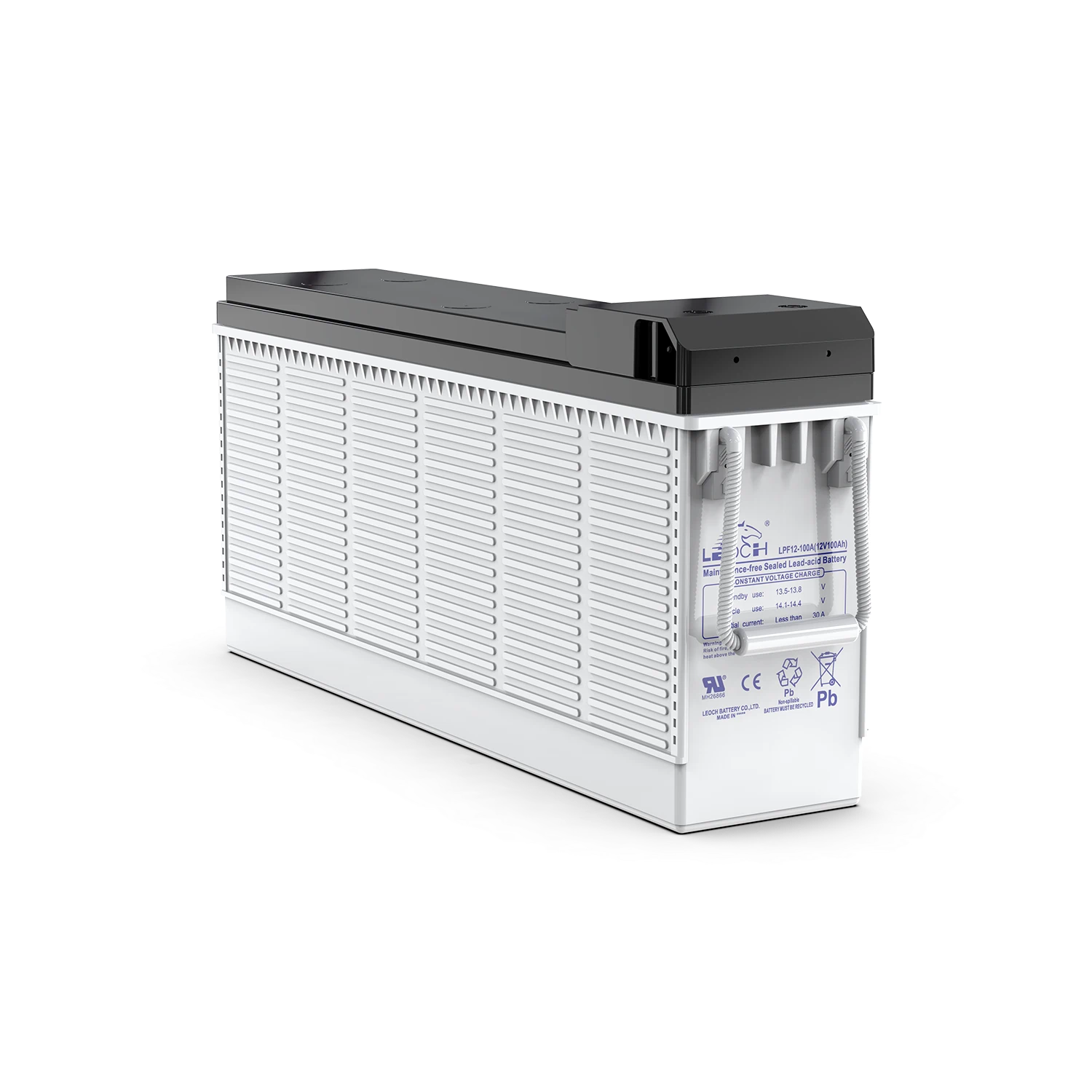

VRLA-AGM LPF Series

LEOCH LPF series batteries are designed with front conversion terminal, faster installation and save floor space, long life float service design, and high energy density, used in back-up power for communication and UPS system.

Applications:

For standard 19 inch or 23 inch power cabinets
Network connection equipment of communication system
Power system of special network or local area network
UPS, standby power supply
Power station systems

Request a Quote

Key Features

Safety & Reliability

Patented multi-layer terminal sealing technology enhances safety and reliability.
Low Self-Discharge

Low self-discharge characteristics reduce standby energy consumption.
Fits Standard 19" & 23" Cabinets

Compatible with standard 19-inch and 23-inch telecom battery cabinets.
Front-Terminal Design

Simplifies installation and maintenance while optimizing cabinet space.
Long Service Life & High Energy Density

Make the series ideal for telecommunications and UPS backup applications.

Parameter List

Swipe View

Model	Rated Voltage(V)	10hr@1.80V/cell	Length(mm)	Width(mm)	Height(mm)	Total Height(mm)	Weight(kg)	Terminal
LPF12-40	12	40	277	106	222	222	14.6	T6(M6)
LPF12-50	12	50	390	105	200	200	18.5	T6(M6)
LPF12-55	12	55	277	106	222	222	17.3	T6(M6)
LPF12-70	12	70	564	114	187	187	25.5	T6(M6)
LPF12-75	12	75	564	114	187	187	26	T6(M6)
LPF12-90	12	90	394	110	285	285	31	T6(M6)
LPF12-100	12	100	394	110	286	286	31	T6(M6)
LPF12-100A	12	100	508	110	238.5	238.5	32	T13(M6)
LPF12-125	12	125	551	110	288	288	41.5	T6(M6)
LPF12-150	12	150	551	110	288	288	44.8	T6(M6)
LPF12-150V	12	150	550	125	281.5	281.5	50.6	T8(M6)
LPF12-170	12	170	550	125	281.5	281.5	51	T8(M6)
LPF12-190	12	190	560	126	320	320	57	T8(M6)
LPF12-200	12	200	560	126	320	320	61	T11(M8)
LPF12-100(P)	12	100	405.4	108	287	287	29.8	T8(M6)
LPF12-190(P)	12	190	559	125	320	320	56.8	T8(M6)
