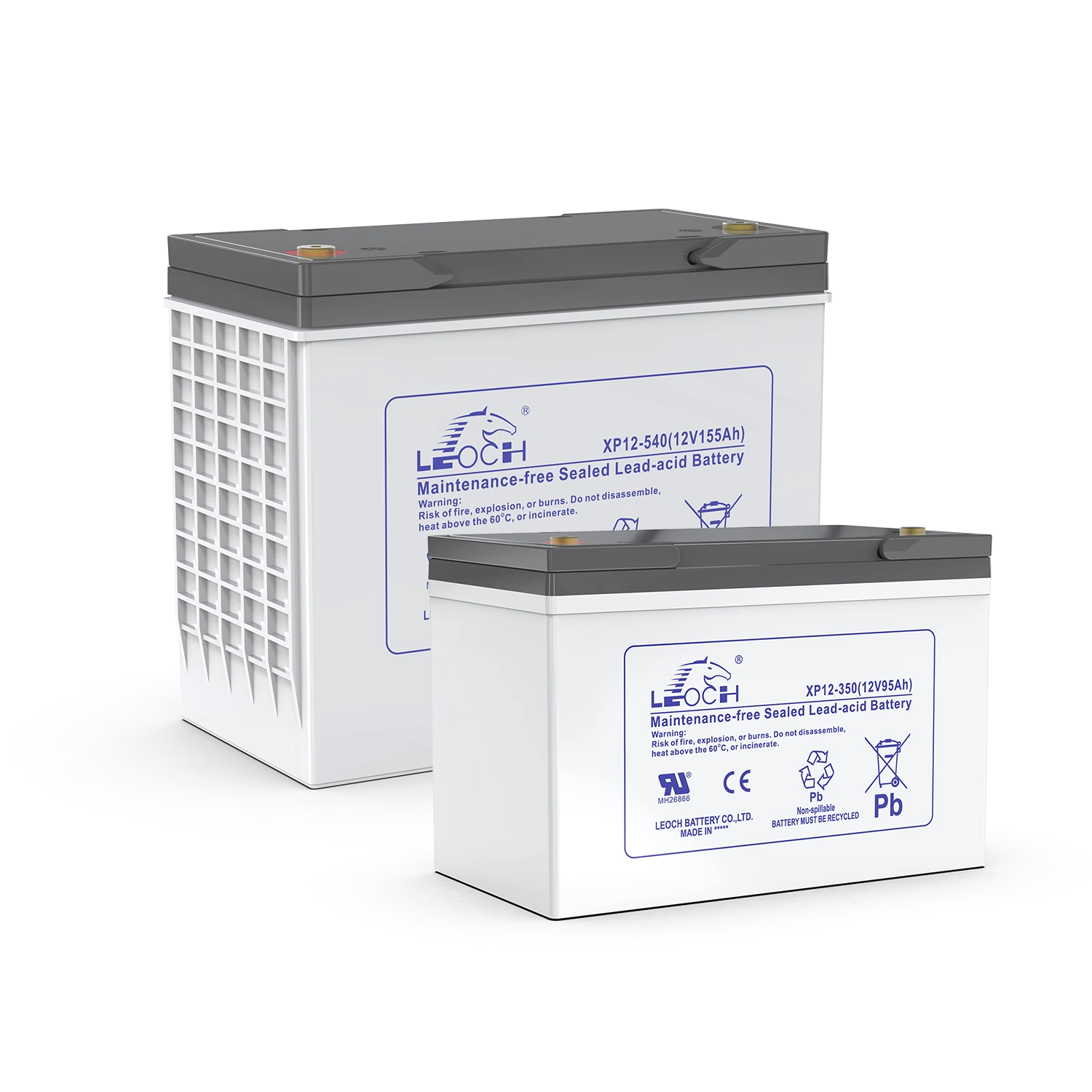

High-Rate XP Series

The XP series batteries utilize advanced VRLA & TTP technology and are specifically designed for UPS and power supply applications, achieving a design life of 12 years at an ambient temperature of 25°C. By employing high-strength grids and special paste plates, they ensure excellent durability and stable performance even under high-rate discharge conditions.

Applications:

Data Centre (High Rate UPS)
Telecommunication
Banks & Financial Centre
Hospital& Testing Laboratories
Power Generation Plants
Emergency Lighting
Emergency Power Supply
High Power Backup Supply

Request a Quote

Key Features

Advanced VRLA TTP Technology

Specifically designed for uninterruptible power supply (UPS)and power distribution applications.
High Performance

Through the use of high-strength grid and plate structures, it ensures exceptional durability and stable performance even under high-rate discharge conditions.
Modular Installation

Saves space and offers excellent seismic resistance.
Automated Production

Ensures superior consistency in capacity, internal resistance, and voltage.
Safety & Reliability

Terminals feature both structural and chemical sealing to prevent the risk of battery leakage, ensuring safety and reliability.

Parameter List

Swipe View

Model	Rated Voltage(V)	W15min @1.67V/cell	20hr @1.80V/cell	10hr @1.80V/cell	Length(mm)	Width(mm)	Height(mm)	Total Height(mm)	Gross Weight(kg)	Terminal
XP12-100	12	100	27.6	26.2	164	125	174	174	8.4	T12-I(M5)
XP12-150	12	150	35	33.5	195	130	164	167	10.44	T6-I(M6)

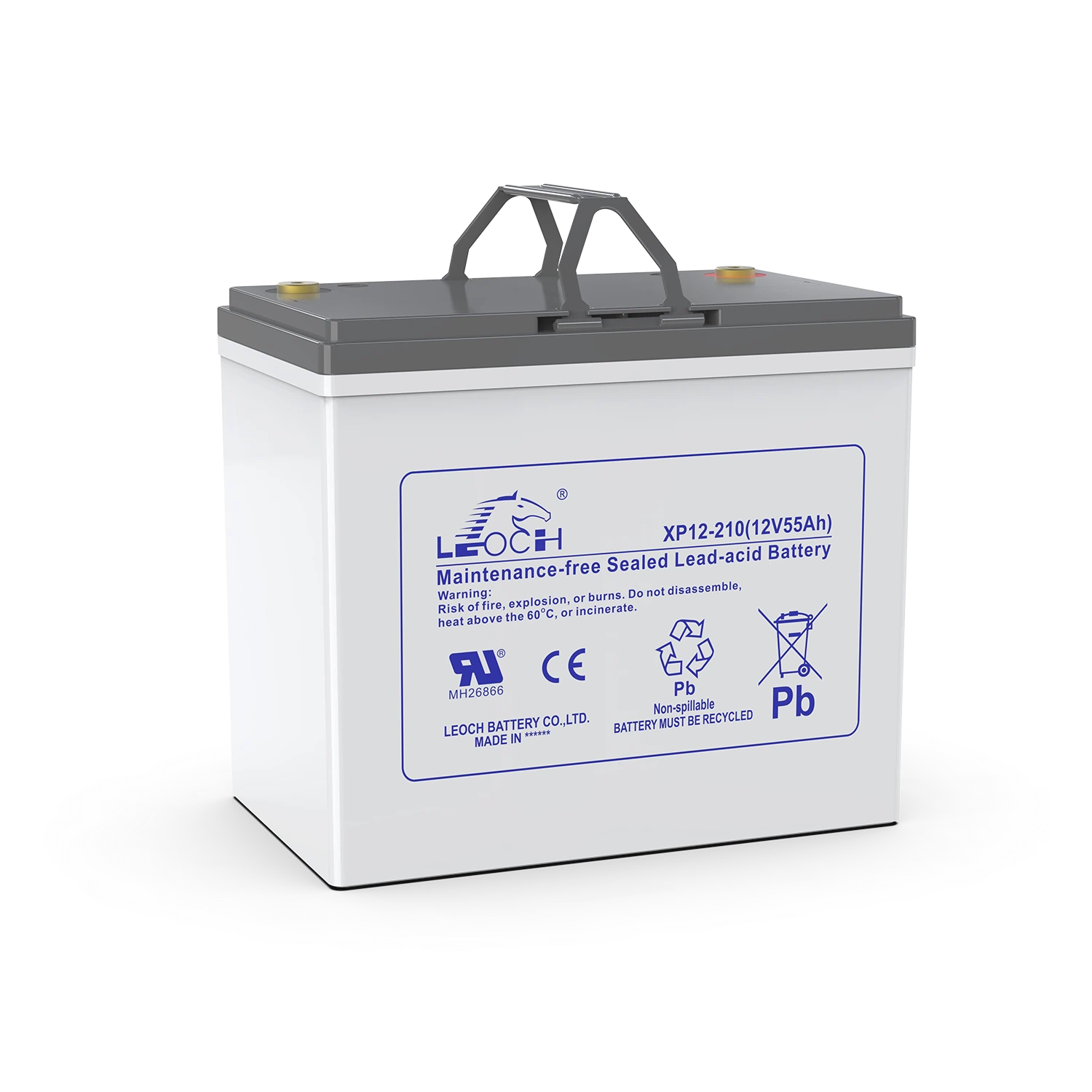

XP12-210	12	210	55	52.6	229	138	200	203	17.7	T6(M6)

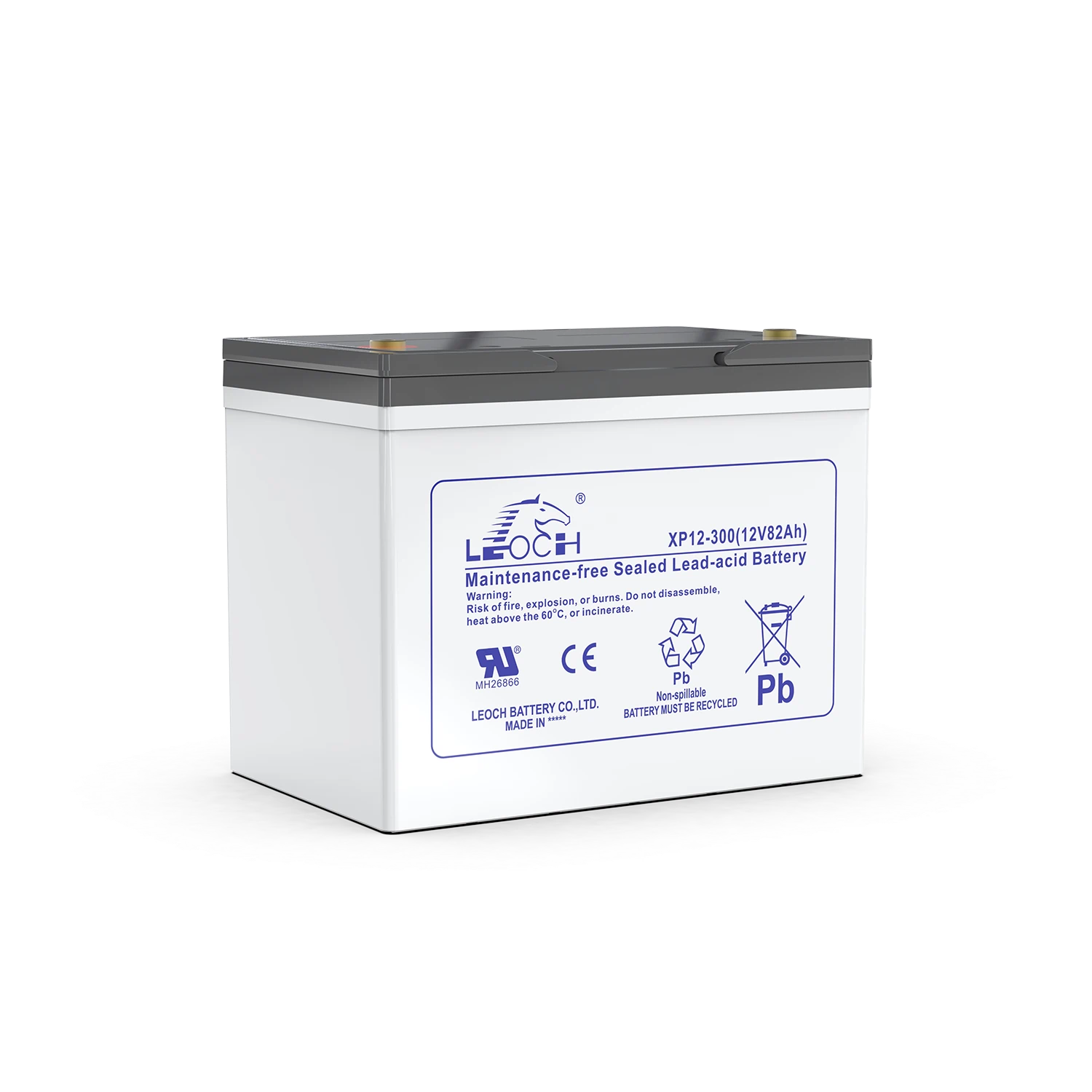

XP12-300	12	300	82	78.6	260	168	208	211	24.2	T6(M6)

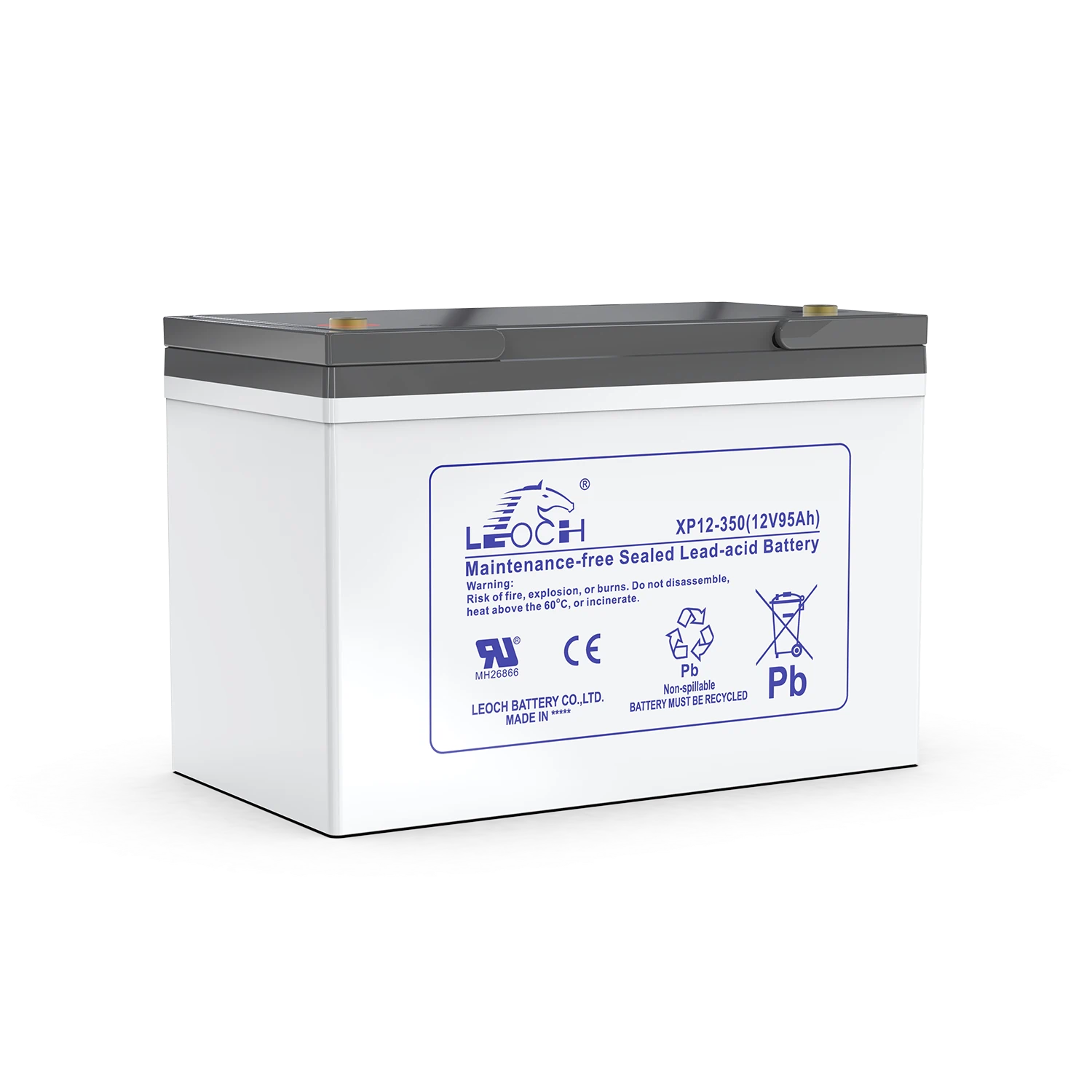

XP12-350	12	350	95	90.7	306	168	208	211	28.2	T6(M6)
XP12-400	12	400	101.6	96	325.5	170	213	216	31.6	T8(M6)
XP12-490	12	490	142	136	335	172	275	278	42.6	T8(M6)

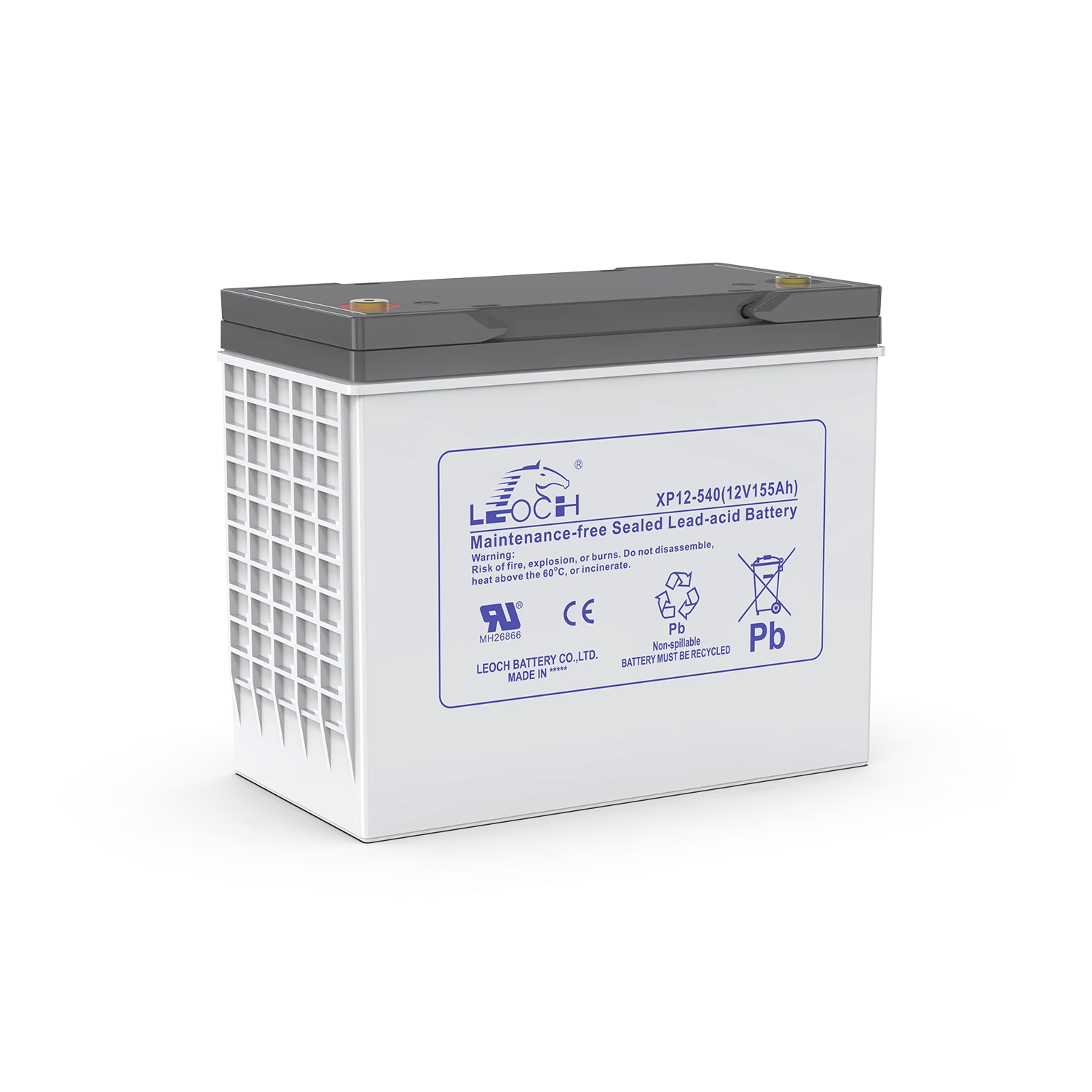

XP12-540	12	540	155	147	335	172	275	278	42.4	T8(M6)
