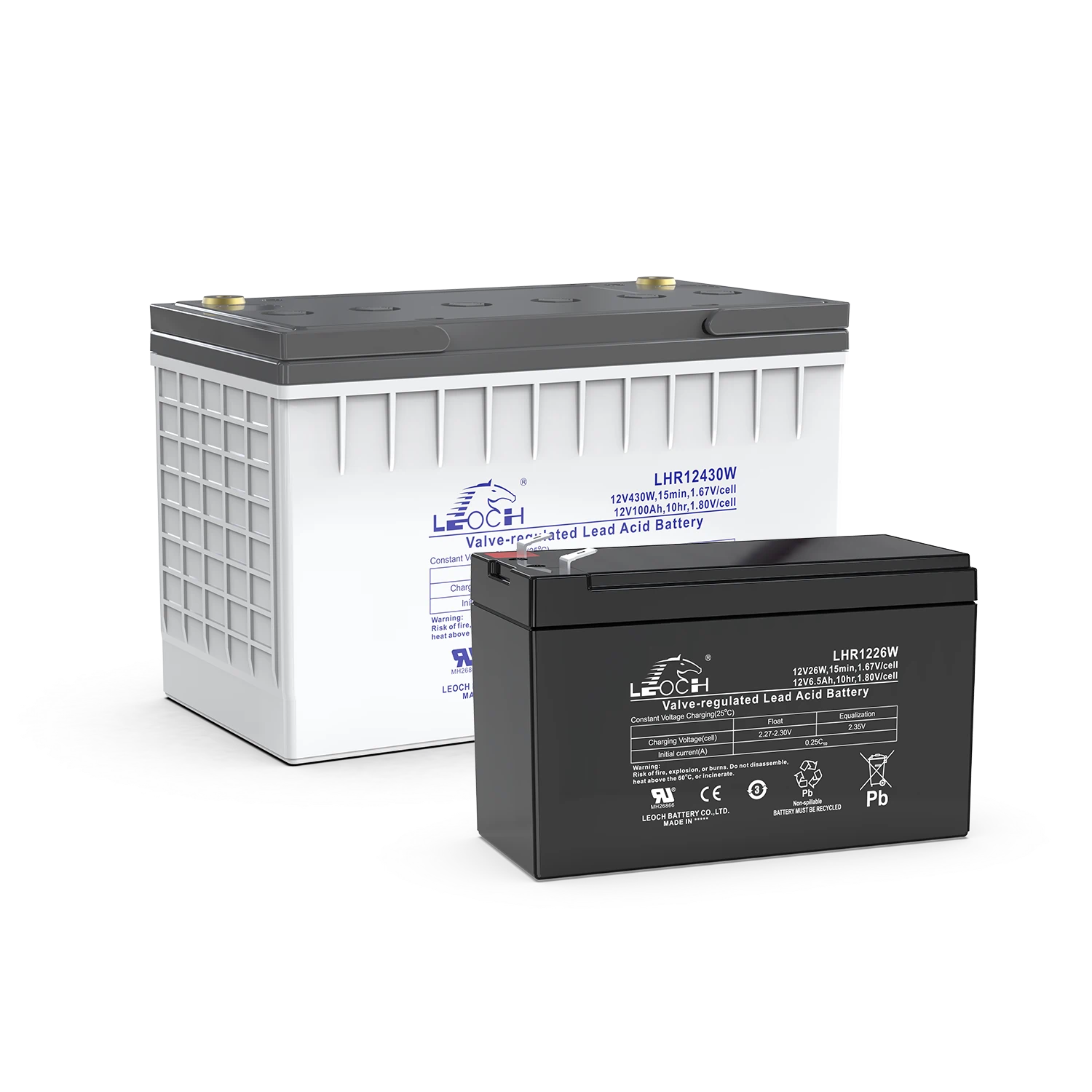

High-Rate LHR & LHRF Series

Special grid and plate manufacturing technology, automatic manufacturing line raise the life and uniformity of battery. 3D structure: optimized design of active material adhesion, fine mesh grid provides more surface area for high power output. Special paste formula, advanced welding technology to ensure excellent high power discharge capacity(W/15Mr, up to 20%).

Applications:

Bank and Finance Market
Emergency Power System
Industrial Process Control Facility
Hotel and Testing Lab
Control Facility Data Center(IDC)

Request a Quote

Key Features

High-Power Load Capacity

The use of a specially designed plate grid structure and an automated production line has significantly improved high-power load capacity and product consistency.
Three-Dimensional Structure

The design optimizes the adhesion of active materials, and the fine mesh structure provides a larger surface area to achieve high power output.
High-Power Discharge

A unique slurry formulation combined with advanced welding technology ensures exceptional high-power discharge performance and excellent performance at both high and low temperatures.
Eco-Friendly

Leak-free, acid-fog-free, and corrosion-resistant sealed design that prevents environmental pollution.
Compact Structure

Allows for installation in the same room as equipment; can be installed vertically or horizontally, requiring minimal floor space.

Parameter List

6V & 12V
2V

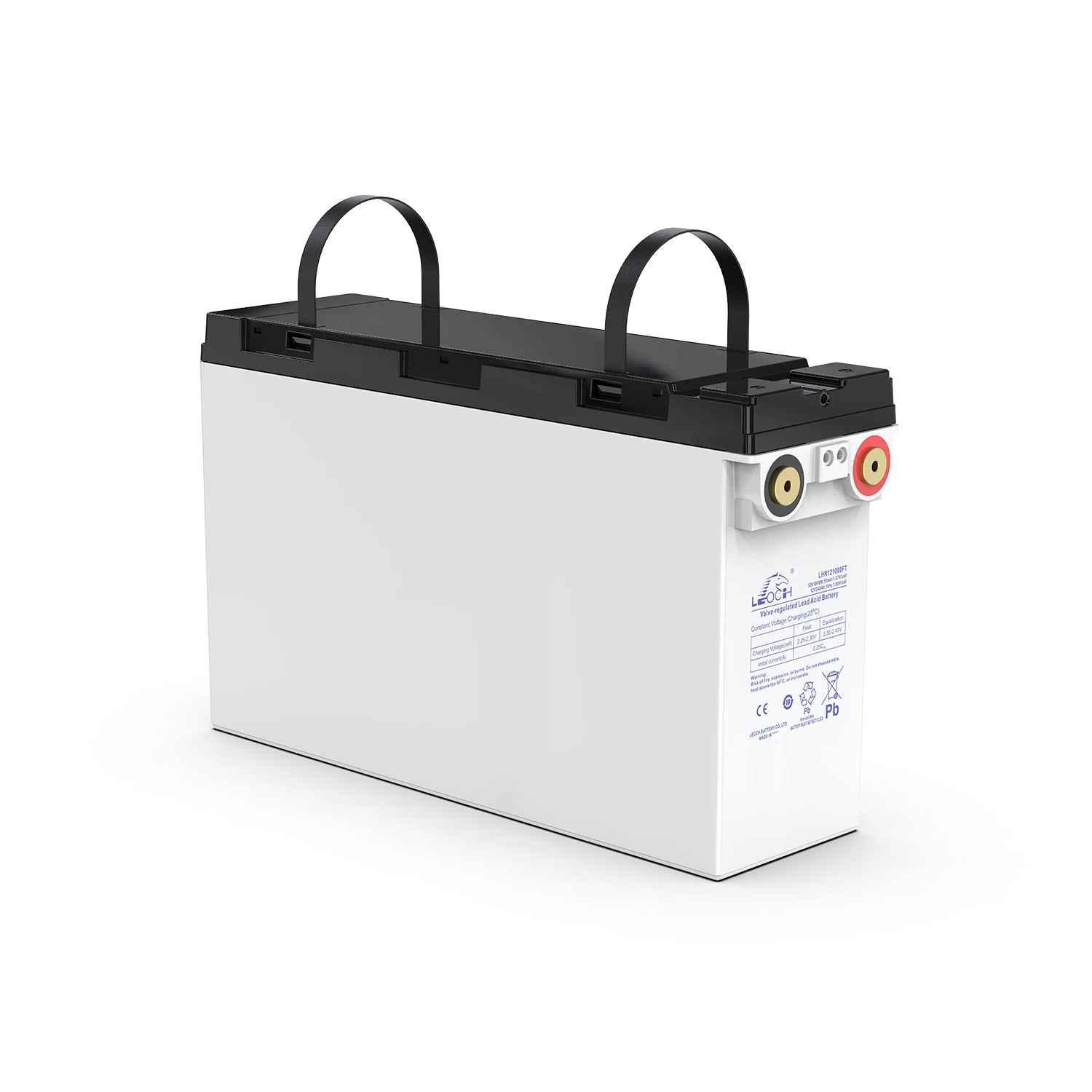

Front Terminal(LHRF Series)

Swipe View

Model	Rated Voltage(V)	W15min @1.67V/cell	10hr @1.80V/cell	Length(mm)	Width(mm)	Height(mm)	Total Height(mm)	Gross Weight(kg)	Terminal Type
LHR619W(A)	6	19	4.68	70	47	100	106	0.77	T1/T2
LHR621W(A)	6	21	5.06	70	47	100	106	0.8	T1/T2
LHR1217W(A)	12	17	4.21	90	70	101	107	1.45	T1/T2
LHR1219W(A)	12	19	4.68	90	70	101	107	1.52	T1/T2
LHR1221W(A)	12	21	5.06	90	70	101	107	1.58	T1/T2
LHR1224W(A)	12	24	6.56	151	65	93.5	99.5	2.13	T1/T2
LHR1226W(A)	12	26	6.56	151	65	93.5	99.5	2.17	T1/T2
LHR1228W(A)	12	28	7.02	151	65	93.5	99.5	2.24	T1/T2
LHR1232W(A)	12	32	7.49	151	65	93.5	99.5	2.31	T1/T2
LHR1234W(A)	12	34	7.49	151	65	93.5	99.5	2.35	T1/T2
LHR1236W(A)	12	36	8.43	151	65	93.5	99.5	2.46	T1/T2
LHR1224W	12	24	5.3	90	70	101	107	1.88	T1/T2
LHR1226W	12	26	6.51	151	65	93.5	99.5	2.08	T1/T2
LHR1230W	12	30	7	151	65	93.5	99.5	2.38	T1/T2
LHR1235W	12	35	7.8	151	65	93.5	99.5	2.5	T1/T2

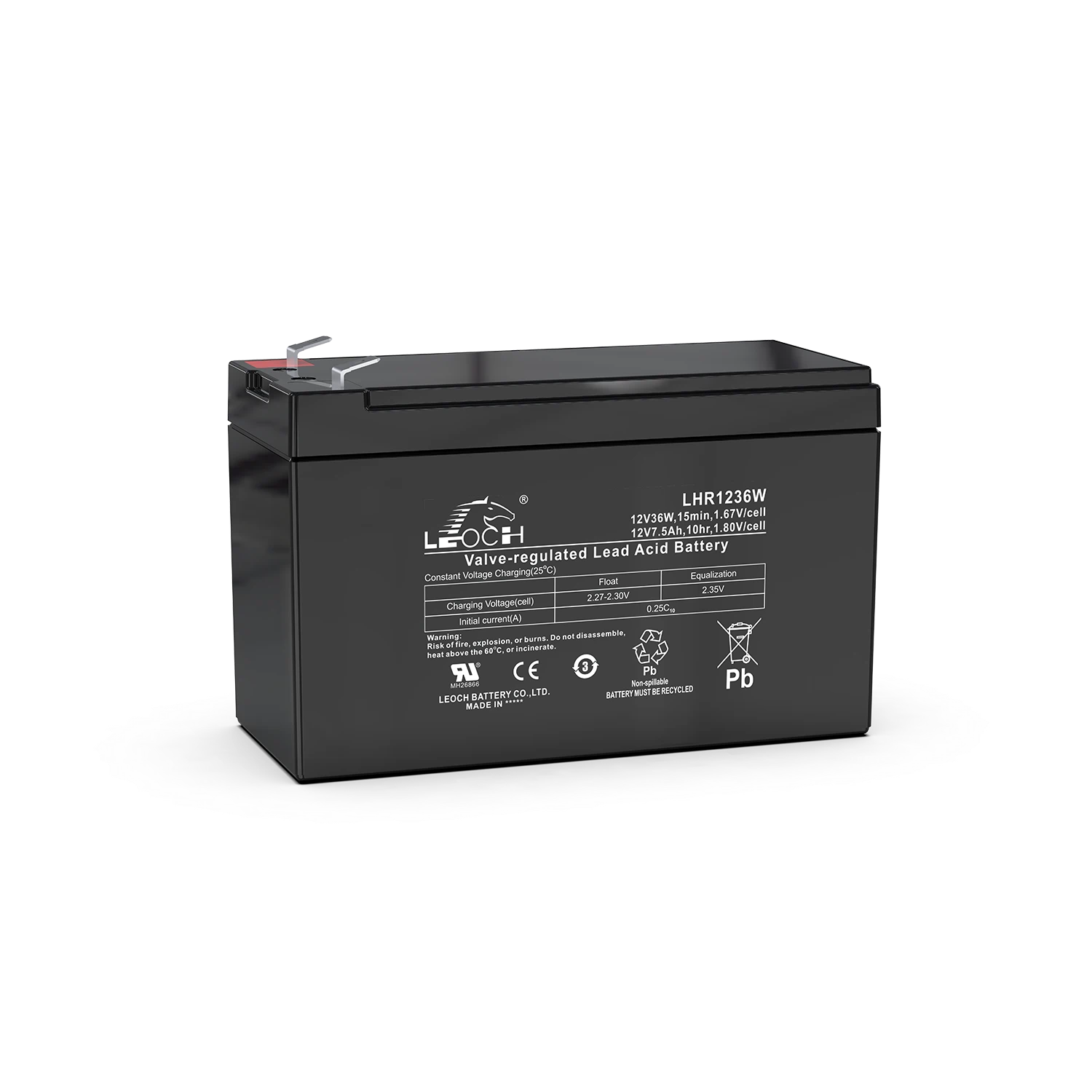

LHR1236W	12	36	7.49	151	65	93.5	99.5	2.7	T2
LHR1242W	12	42	8.43	151	65	94.5	100.5	2.8	T1/T2
LHR1255W	12	55	13	151	98	95	101	3.78	T1/T2
LHR1285W	12	85	18.6	181.5	76.5	167.5	167.5	6	T12/T12-I(M5)
LHR12120W	12	120	38	197	165	170	170	11.6	T6(M6)
LHR12160W	12	160	45	197	165	170	170	14.2	T6(M6)
LHR12185W	12	185	55	229	138	205	211	16.2	T6(M6)

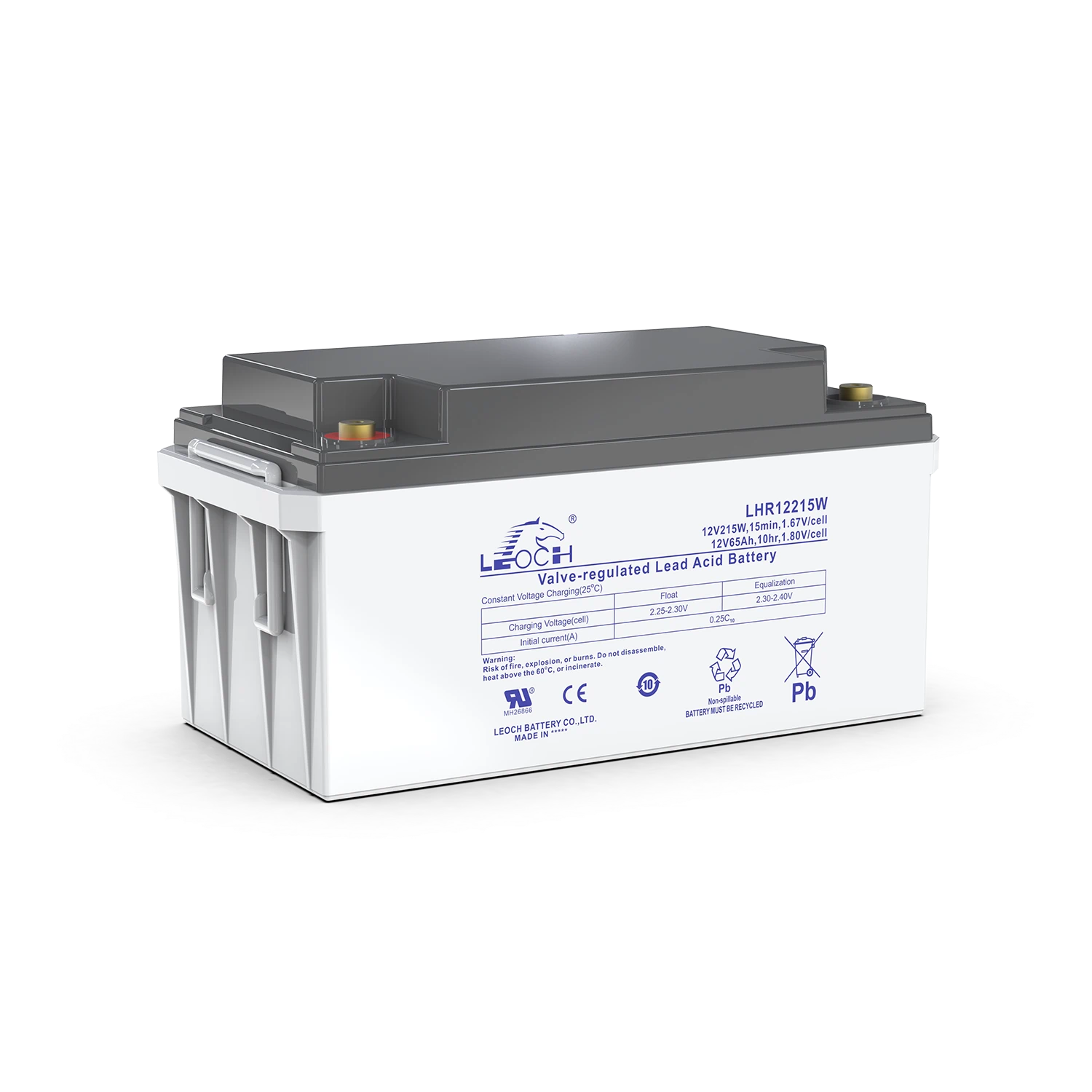

LHR12215W	12	215	65	348	167	178	178	19.2	T6(M6)
LHR12255W	12	255	70	348	167	178	178	21.4	T6(M6)
LHR12300W	12	300	75	256	173	213	216	23.7	T11(M8)
LHR12330W(A)	12	330	80	293	173	213	216	26.7	T11(M8)
LHR12350W	12	350	85	293	173	213	216	27.4	T11(M8)
LHR12360W	12	360	100	330	173	213	216	30	T11(M8)
LHR12400W	12	400	100	330	173	213	216	31.2	T11(M8)

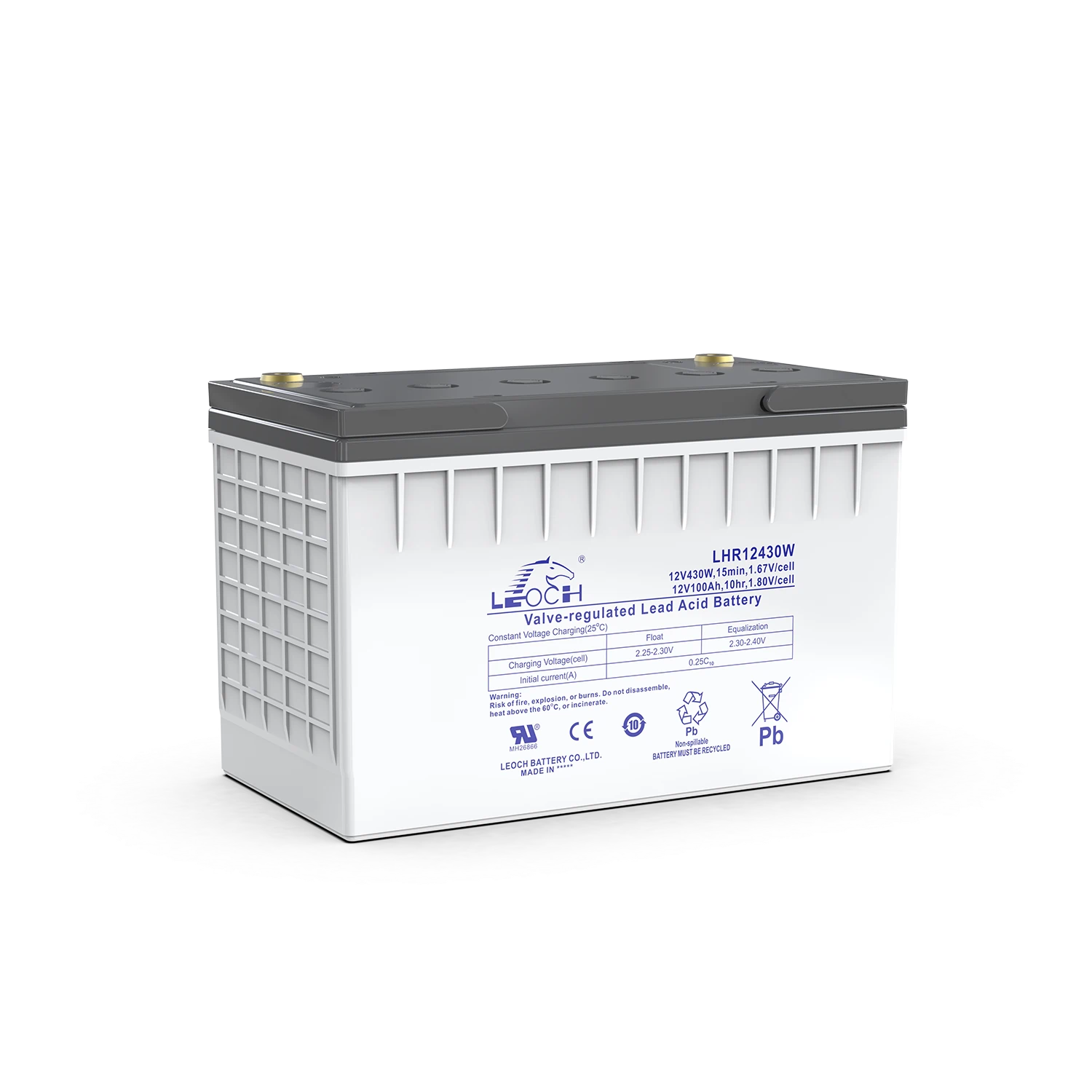

LHR12430W	12	430	100	330	173	213	216	32	T11(M8)
LHR12440W(A)	12	440	115	379	174	214	220	36.6	T11(M8)
LHR12370W	12	370	100	330	173	212	220	30.7	T11(M8)
LHR12600W(A)	12	600	145	483	172	220	226	47.5	T11(M8)
LHR12605W	12	605	170	532	207	214	220	54.8	T11(M8)
LHR12650W	12	650	170	522	207	220	226	56	T11(M8)
LHR12705W	12	705	180	522	207	220	226	57.3	T11(M8)
LHR12750W	12	750	190	522	207	220	226	59.7	T11(M8)
LHR12800W	12	800	210	522	240	220	226	66.8	T11(M8)
LHR12820W(A)	12	820	215	522	240	218	224	69	T11(M8)
LHR12460W	12	460	120	408	177	225	225	37.5	T11(M8)
LHR12480W	12	480	115	379	174	214	217	40.5	T11(M8)
LHR12510W	12	510	140	483	170	238.5	239	43.6	T11(M8)
LHR12560W	12	560	140	483	172	220	226	45.5	T11(M8)
LHR12845W	12	845	215	522	240	220	226	68.8	T11(M8)
LHR12890W	12	890	235	496	259	227	233	77	T11(M8)
LHR12950W	12	950	230	521	268	220	226	77.5	T11(M8)
LHR121000W	12	1000	250	521	268	220	226	79.5	T11(M8)

Model	Rated Voltage(V)	W15min @1.67V/cell	10hr @1.80V/cell	Length(mm)	Width(mm)	Height(mm)	Total Height(mm)	Gross Weight(kg)	Terminal Type
LHR500W	2	500	150	170	98	205	214	8.4	T7(M6)
LHR750W	2	750	250	171	111	328	344	14.9	T18(M8)
LHR1000W	2	1000	300	171	150	328	344	20.2	T18(M8)
LHR1250W	2	1250	400	210	175	330	346	27.1	T18(M8)
LHR1520W	2	1520	500	210	175	330	346	29.7	T18(M8)
LHR2000W	2	2000	600	240	175	330	346	36.1	T18(M8)
LHR2400W	2	2400	800	303	181	350	365	48.5	T18(M8)
LHR2500W	2	2500	720	300	175	330	345	45.5	T18(M8)
LHR2900W	2	2900	900	410	175	330	345	57.3	T18(M8)

Model	Rated Voltage(V)	W15min @1.67V/cell	10hr @1.80V/cell	Length(mm)	Width(mm)	Height(mm)	Total Height(mm)	Gross Weight(kg)	Terminal Type
LHR12390FT	12	390	95	508	110	235	239.5	34	T6-A(M8)
LHR12550FT	12	550	140	551	110	288	292.5	47.9	T6-A(M8)
LHR12600FT	12	600	150	550	125	281.5	285	51.5	T11(M8)
LHR12700FT	12	700	180	560	125	318	321.5	60	T11(M8)
LHR12750FT	12	750	190	560	125	318	321.5	64	T11(M8)
LHR12800FT	12	800	230	541	154	322	322	74	T13-C(M8)
LHR12900FT	12	900	240	541	154	322	322	77.5	T13-C(M8)
LHR121000FT	12	1000	250	541	154	322	322	82.2	T13-C(M8)
