VRLA-AGM LP Series

A versatile and cost-effective VRLA-AGM solution for standard standby and occasional cyclic use, with broad model options for different voltage, capacity, and installation requirements.

Applications:

All purpose
Uninterruptible Power Supply (UPS)
Electric Power System (EPS)
Emergency light
Emergency backup power supply
Auto control system
Telecom central station (wired or cellular)
Power system communication
Network communication including: data transmission, television signal transmission, etc.
Uninterruptible Power System (UPS- for Telecom)

Request a Quote

Key Features

Wide Compatibility

Suitable for a variety of applications.
Maintenance-Free

Advanced oxygen recombination technology enables maintenance-free operation.
Pb-Ca-Sn Alloy Grid Design

Minimizes gassing and reduces self-discharge.
Premium AGM Separators

Enhance cycle life and help prevent internal short circuits.
Robust ABS Containers

Provide superior mechanical strength; flame-retardant ABS available.
High-Purity Raw Materials

Contribute to excellent charge retention and low self-discharge
Enhanced Electrical Performance

Silver-plated copper and high-conductivity terminal options improve electrical performance and reliability.

Parameter List

Swipe View

Model	Rated Voltage(V)	20hr@1.75V/cell	10hr@1.80V/cell	Length(mm)	Width(mm)	Height(mm)	Total Height(mm)	Weight(kg)	Terminal
LP4-4.0	4	4		47.5	47.5	100	106	0.48	T1
LP4-4.5	4	4.5		52.5	48	94	100	0.6	T1/T2
LP4-10	4	10		101.5	50	93	99	1.14	T1/T2
LP6-1.0	6	1		51	42	51	57	0.25	T1
LP6-1.2	6	1.2		97	24	51.5	57.5	0.25	T1
LP6-2.0	6	2		43	37	76	76	0.33	/
LP6-2.8	6	2.8		66	33	97	103	0.55	T1
LP6-3.2	6	3.2		134	34	60	66	0.6	T1
LP6-4.0	6	4		70	47	100	106	0.65	T1/T2
LP6-4.5	6	4.5		70	47	100	106	0.74	T1/T2
LP6-4.5H	6	4.5		70	47	100	106	0.72	T1/T2
LP6-4.5S	6	4.5		67	67	96	109	0.78	Spring
LP6-5.0	6	5		169.5	34.5	70	74	0.89	T1
LP6-5.4	6	5.4		70	47	100	106	0.8	T1/T2
LP6-6.0	6	6		70	47	100	106	0.9	T1/T2
LP6-7.0	6	7		150	34	94	100	1	T1/T2
LP6-7.2	6	7.2		150	34	94	100	1.05	T1/T2
LP6-7.5	6	7.5		150	34	94	100	1.26	T1/T2
LP6-7.8	6	7.8		150	34	94	100	1.2	T1/T2
LP6-8.5	6	8.5		150	34	94	100	1.2	T1/T2
LP6-8.5H	6	8.5		98	56	118	119.5	1.42	T2
LP6-10	6	10		151	50.5	94	100	1.54	T1/T2
LP6-12	6	12		151	50.5	94	100	1.6	T1/T2
LP6-13	6	13		107.5	70	140	140	2.24	NTI/PT2
LP6-14	6	14		151	50.5	94	100	1.9	T1/T2
LP6-20	6	20		157	83	125	125	3.3	T3-A
LP6-36	6	36		161	87	163	169	5.12	T2
LP8-3.2	8	3.2		134	36.5	63	69	0.75	T1
LP12-0.8	12	0.8		96	25	62	62	0.33	/
LP12-1.2	12	1.2		97	43	52	58	0.48	T1
LP12-1.9	12	1.9		178	35	60	66	0.85	T1
LP12-2.2	12	2.2		70.5	47.5	97	103	0.78	T1
LP12-2.3	12	2.3		178	35	60	66	0.925	T1
LP12-2.8	12	2.8		132.5	33.5	98	104	1.08	T1
LP12-2.9	12	2.9		79	56	99	105	1.04	T1/T2
LP12-3.5	12	3.5		134	67	59.5	65.5	1.19	T1/T2
LP12-4.0	12	4		90	70	101	107	1.26	T1/T2
LP12-4.0L	12	4		195	47	70	76	1.5	T1/T2
LP12-4.5	12	4.5		90	70	101	107	1.44	T1/T2
LP12-5.0	12	5		151	53	93	99	1.73	T1
LP12-5.4	12	5.4		90	70	101	107	1.68	T1/T2
LP12-6.0	12	6		90	70	101	107	1.82	T1/T2
LP12-6.5	12	6.5		151	51	93	99	1.82	T1/T2
LP12-7.0E	12	6		151	65	93.5	99.5	1.81	T1/T2
LP12-7.0	12	7		151	65	93.5	99.5	1.98	T1/T2

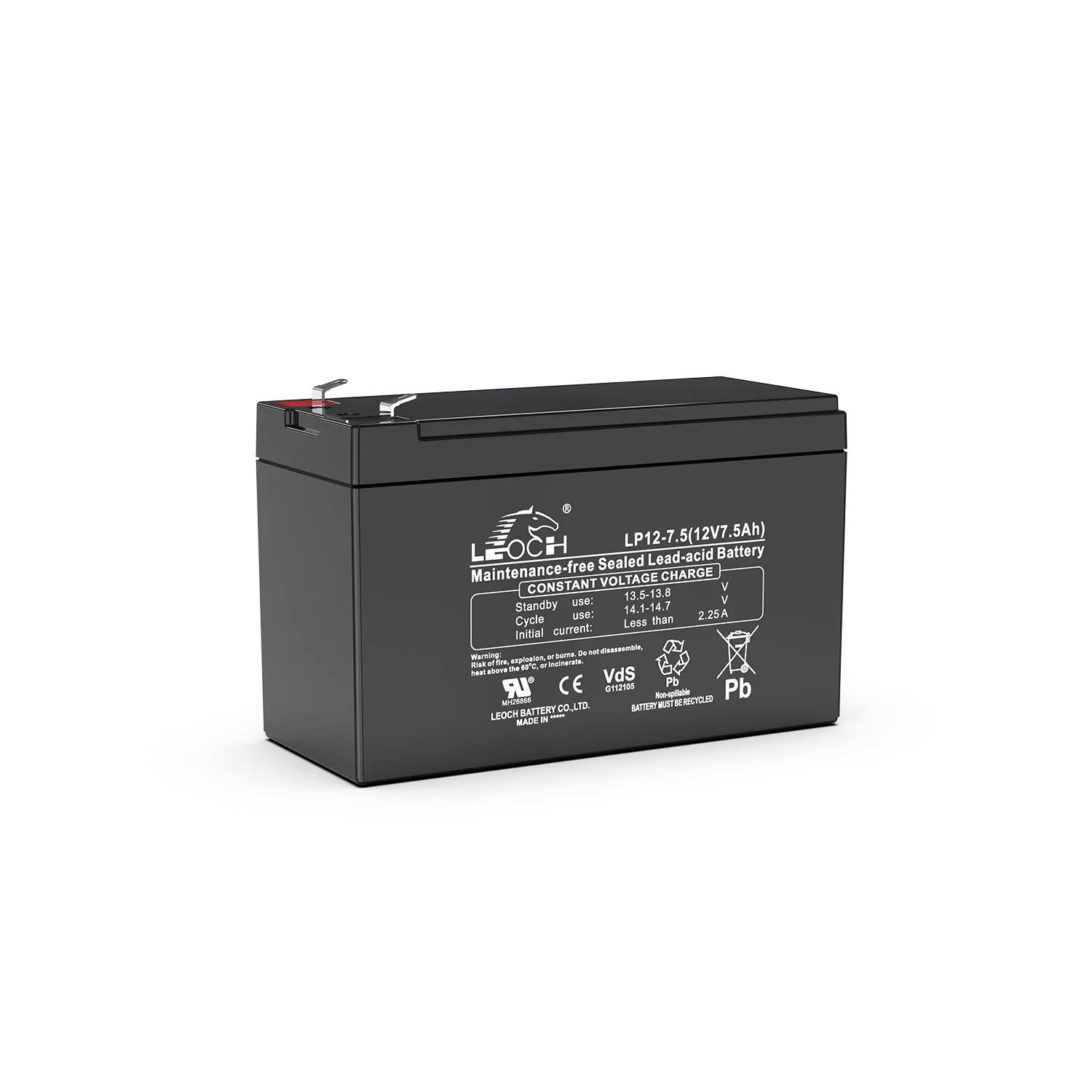

LP12-7.5	12	7.5		151	65	93.5	99.5	2.28	T1/T2
LP12-8.0	12	8		151	65	93.5	99.5	2.5	T1/T2
LP12-8.5	12	8.5		151	65	93.5	99.5	2.45	T1/T2
LP12-9.0	12	9		151	65	93.5	99.5	2.52	T1/T2
LP12-10	12	10		151	98	95	101	3.06	T1/T2
LP12-10H	12	10		151	65	111	117	3.07	T1/T2
LP12-12	12	12		151	98	95	101	3.23	T1/T2
LP12-14	12	14		151	98	95	101	3.78	T1/T2
LP12-15	12	15		181.5	76.5	167.5	167.5	4.7	T3/T2
LP12-18	12	18		181.5	76.5	167.5	167.5	4.85	T12(M5)
LP12-20	12	20		181.5	76.5	167.5	167.5	5.65	T12/T12-I(M5)
LP12-22	12	22		181.5	77	166	166	6.85	T12(M5)
LP12-24	12	24		166	175	125	125	7.2	T3
LP12-24H	12	24		164	125	174	174	7.6	T12-I(M5)
LP12-26	12	26		166	175	125	125	7.8	T12/T12-I(M5)
LP12-28	12	28		166	175	125	125	8.2	T3
LP12-28H	12	28		164	125	174	174	8.35	T12/T12-I(M5)
LP12-30	12	30		195	130	164	167	9.3	T6-I(M6)
LP12-30H	12	30		195	130	164	178	9.3	T5
LP12-33	12	33		195	130	164	167	9.8	T6-I(M6)
LP12-35	12	35		195	130	164	167	10.2	T6-I/T6(M6)
LP6-60	6		60	185	112	205	205	9.1	T2
LP6-200	6		200	322	178	226	232	30.3	T11(M8)
LP12-38	12		38	197	165	170	170	12	T6(M6)
LP12-40	12		40	197	165	170	170	13.2	T6(M6)
LP12-45	12		45	197	165	170	170	14.2	T6(M6)
LP12-50	12		50	257	132	200	200	15.7	T6(M6)
LP12-55	12		55	229	138	205	211	16.2	T6(M6)
LP12-60	12		60	260	168	208	214	18.4	T6(M6)
LP12-65	12		65	348	167	178	178	19.2	T6(M6)
LP12-70	12		70	348	167	178	178	21.4	T6(M6)

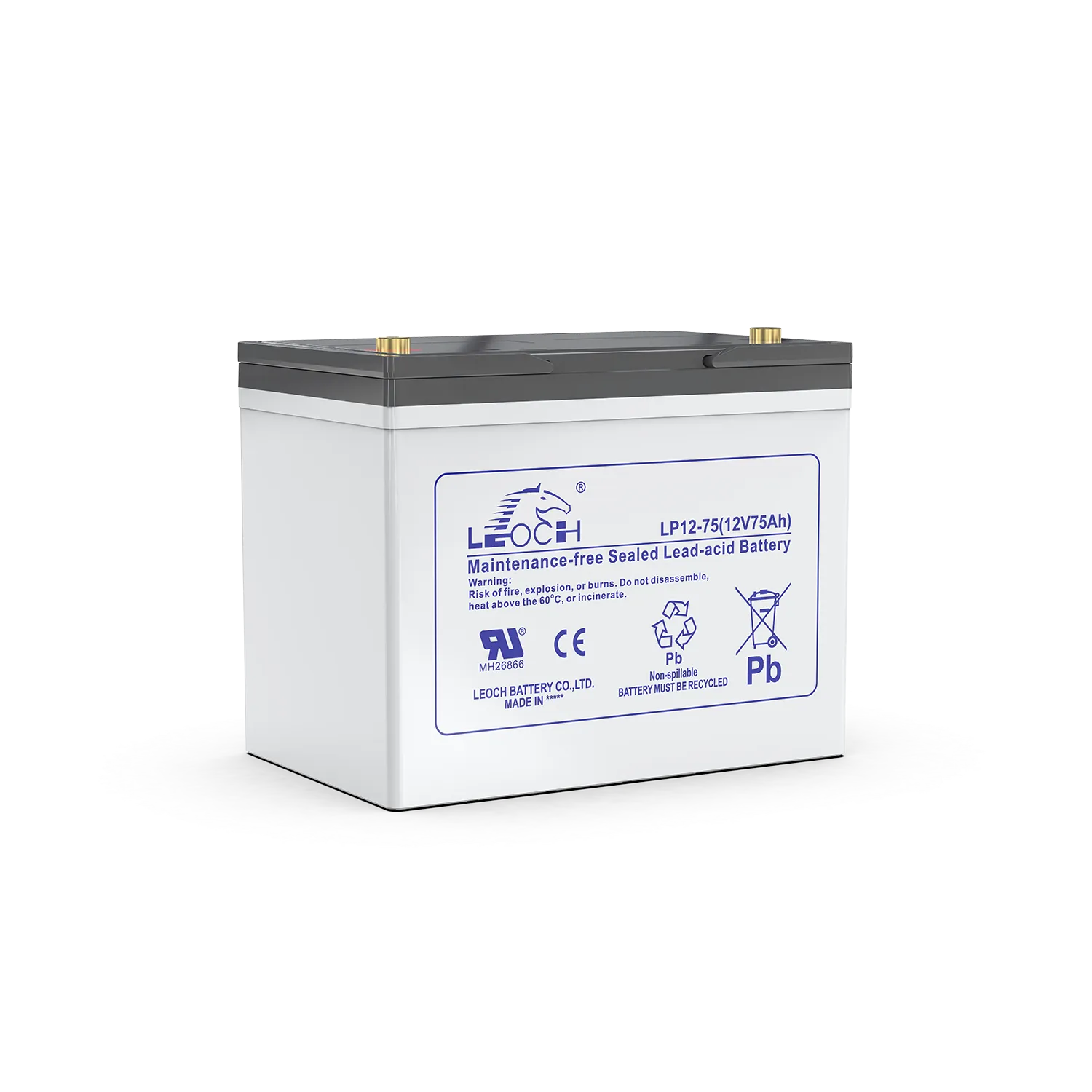

LP12-75	12		75	260	168	208	214	21.4	T6(M6)
LP12-80	12		80	260	168	208	214	23.8	T6(M6)
LP12-90	12		90	330	172	212	220	27.6	T11(M8)
LP12-100	12		100	330	173	213	220	27.8	T11(M8)
LP12-120	12		120	408	177	225	225	35	T11(M8)
LP12-140	12		140	345	172	274	280	42.1	T11(M8)
LP12-150	12		150	483	172	220	226	41.9	T11(M8)
LP12-180	12		180	520	207	220	226	50.3	T11(M8)

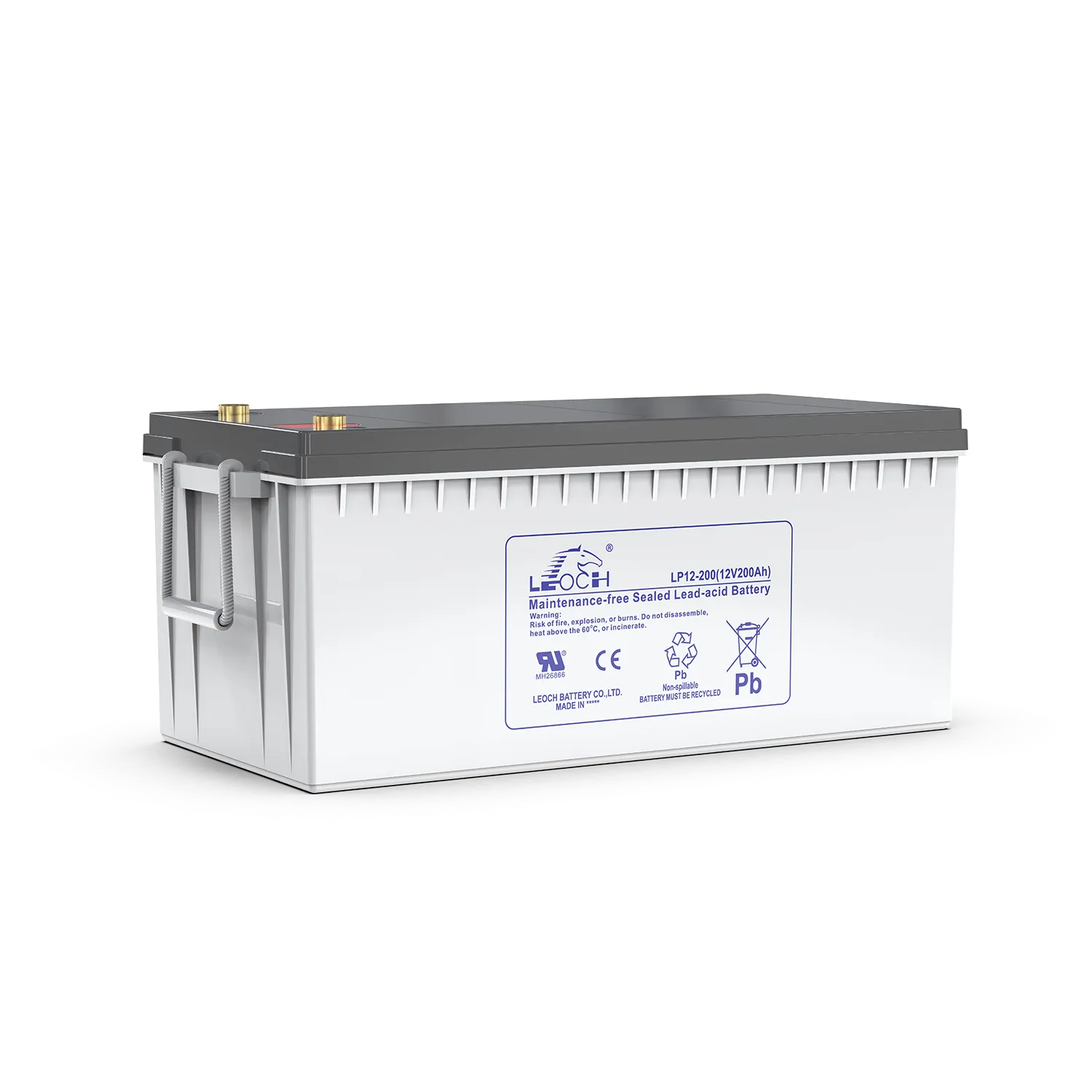

LP12-200	12		200	522	240	220	226	59	T11(M8)
LP12-225	12		225	522	240	220	226	63.5	T11(M8)
LP12-250	12		250	522	268	220	226	70.6	T11(M8)
LP24-7.0	24	7		188	102	94	100	4	T2
LP24-8.0	24	8		188	102	94	100	4.6	T2
LP2-65	2		65	170	72	205	214	4.2	T6(M6)
LP2-100	2		100	170	72	205	214	5.7	T6(M6)
LP2-120	2		120	170	98	205	214	7	T7(M6)
LP2-150	2		150	170	98	205	214	8.4	T7(M6)

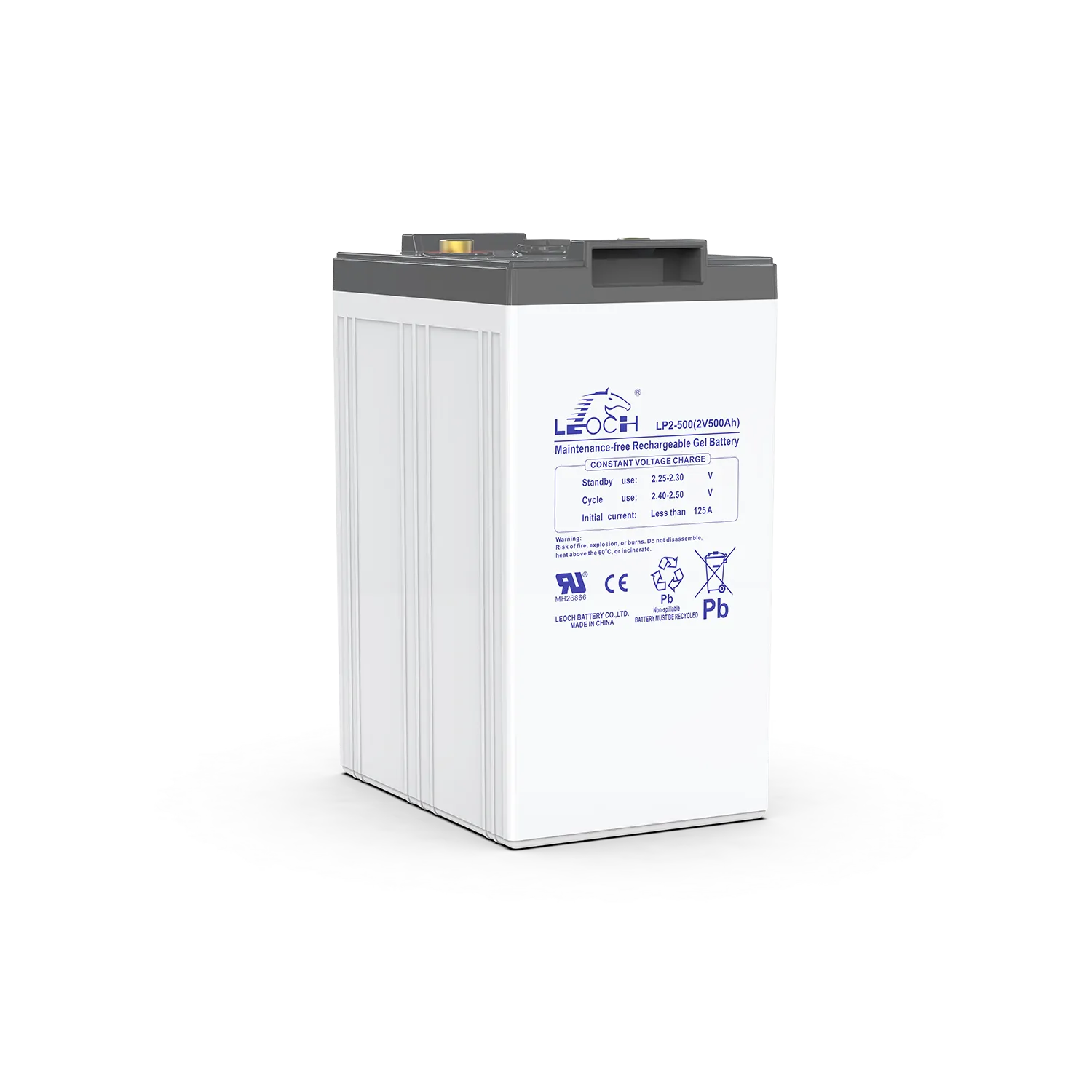

LP2-200	2		200	170	110	328	348	12.5	T11(M8)
LP2-250	2		250	170	110	328	350	14	T11(M8)
LP2-300	2		300	170	150	328	348	17.3	T11(M8)
LP2-350	2		350	170	150	328	348	19.2	T11(M8)
LP2-400	2		400	210	175	330	350	23.9	T11(M8)
LP2-450	2		450	210	175	330	350	26	T11(M8)
LP2-500	2		500	240	175	330	350	28.3	T11(M8)
LP2-600	2		600	300	175	330	350	34.9	T11(M8)
LP2-800	2		800	410	175	330	350	47.3	T11(M8)
LP2-1000	2		1000	475	175	328	350	56.6	T11(M8)
LP2-1200	2		1200	475	175	328	350	63.8	T11(M8)
LP2-2500	2		2500	490	350	339	349	133	T11(M8)
