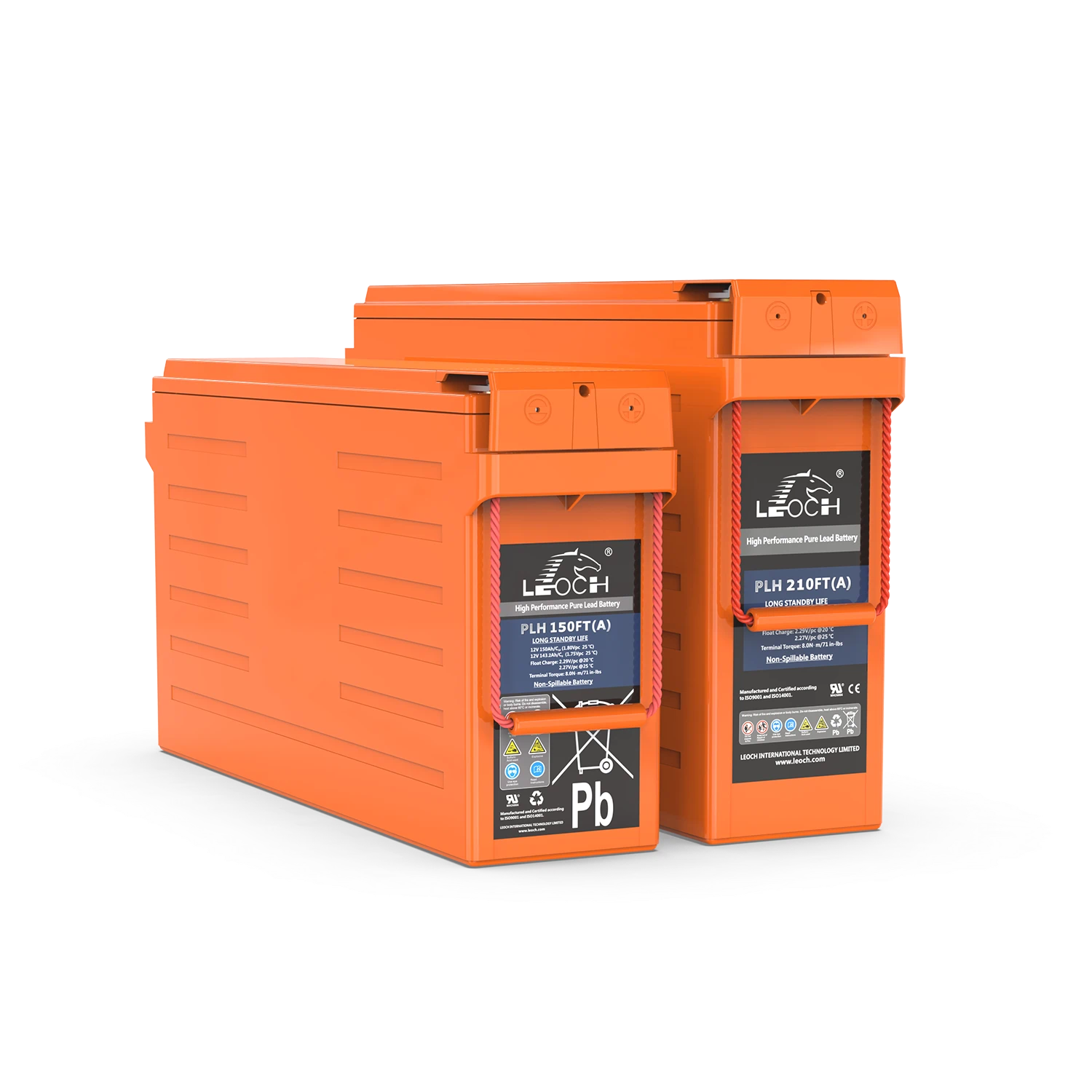

Pure Lead PLH Series

Pure Lead-Thin Plate technology supports long standby life, strong charge acceptance, and dependable performance where space and climate conditions are demanding.

Applications:

Telecommunication
Uninterruptible Power Supply (UPS)
Electric Power System (EPS)
Emergency backup power supply
Emergency lighting
Railway signal
Aircraft signal
Alarm and security system
Electronic apparatus and equipment
Communication power supply
DC power supply
Auto control system

Request a Quote

Key Features

Stability & Consistency

The automated continuous stamping process for grid plates improves the stability and consistency of the metal crystal structure.
Maintenance-Free

The use of a high-temperature curing process effectively extends the service life of the product.
High-Rate Discharge

Pure lead thin-plate technology provides superior high-rate discharge capability.
Wide temperature range (-40°C to +65°C)
Low Self-Discharge Rate

Retains over 60% of capacity after 2 years of storage.

Parameter List

Swipe View

Model	Rated Voltage(V)	10hr @1.80V/cell	Length (mm)	Length (in.)	Width (mm)	Width (in.)	Height (mm)	Height (in.)	Total Height(mm)	Total Height(in.)	Weight (kg)	Weight (lbs)	Terminal
PLH26	12	26	250	9.84	100	3.94	152.5	6	152.5	6	9.5	20.9	T6(M6)
PLH40FT(A)	12	38	298.7	11.76	97	3.82	184	7.24	184	7.24	12.5	27.6	T6(M6)
PLH62FT(A)	12	62	298.7	11.76	97	3.82	267	10.51	267	10.51	19.1	43	T6(M6)
PLH90FT(A)	12	90	405.4	15.96	108	4.25	287	11.3	287	11.3	28.7	63.3	T8(M6)
PLH100FT(A)	12	100	405.4	15.96	108	4.25	287	11.3	287	11.3	30.8	67.9	T8(M6)
PLH110FT(A)	12	110	559	22.01	125	4.92	227	8.94	227	8.94	36.5	80.5	T8(M6)

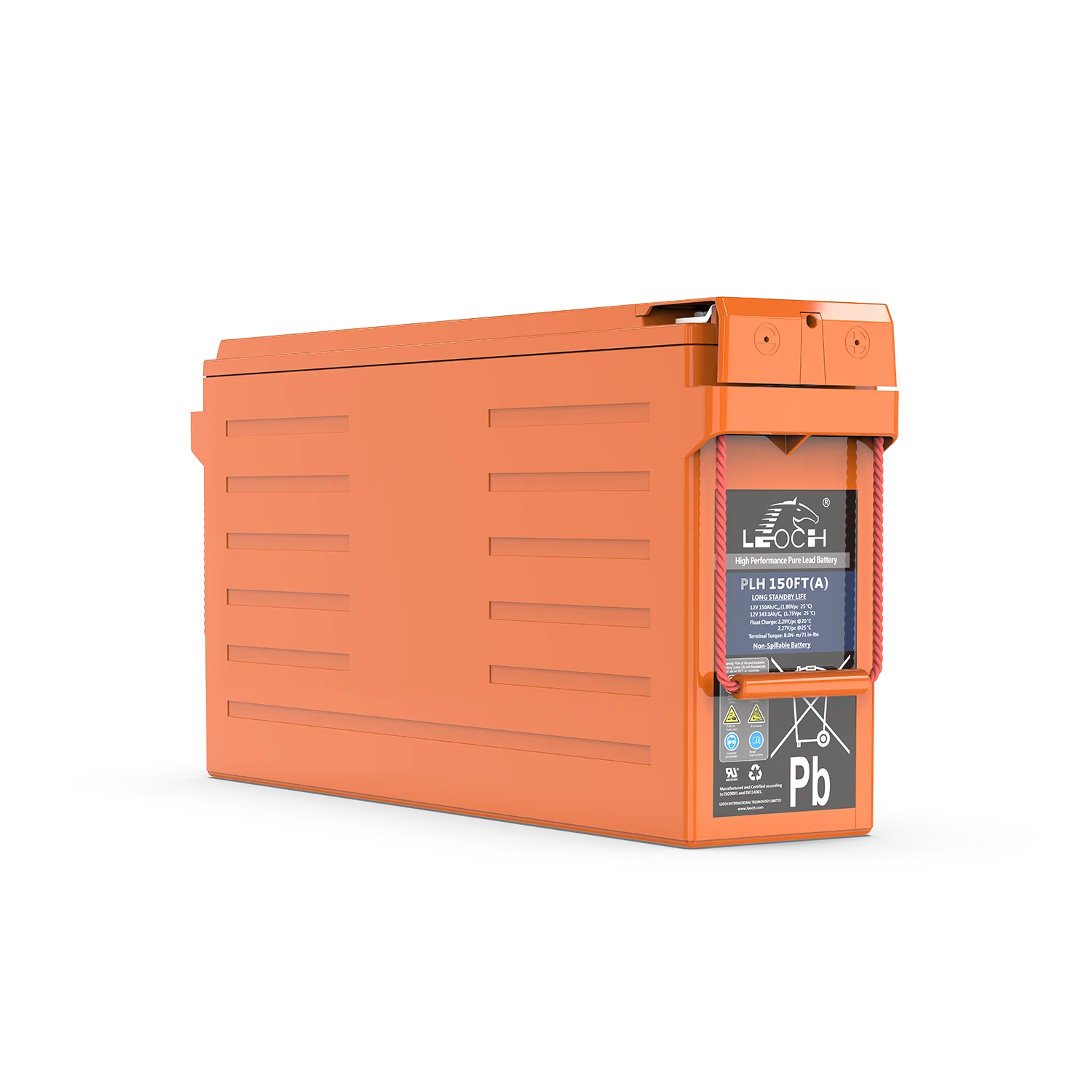

PLH150FT(A)	12	150	559	22.01	125	4.92	277	10.91	277	10.91	48	105.8	T8(M6)
PLH170FT(A)	12	170	559	22.01	125	4.92	320	12.6	320	12.6	54.2	119.5	T8(M6)
PLH190FT(A)	12	190	559	22.01	125	4.92	320	12.6	320	12.6	57.6	127	T8(M6)

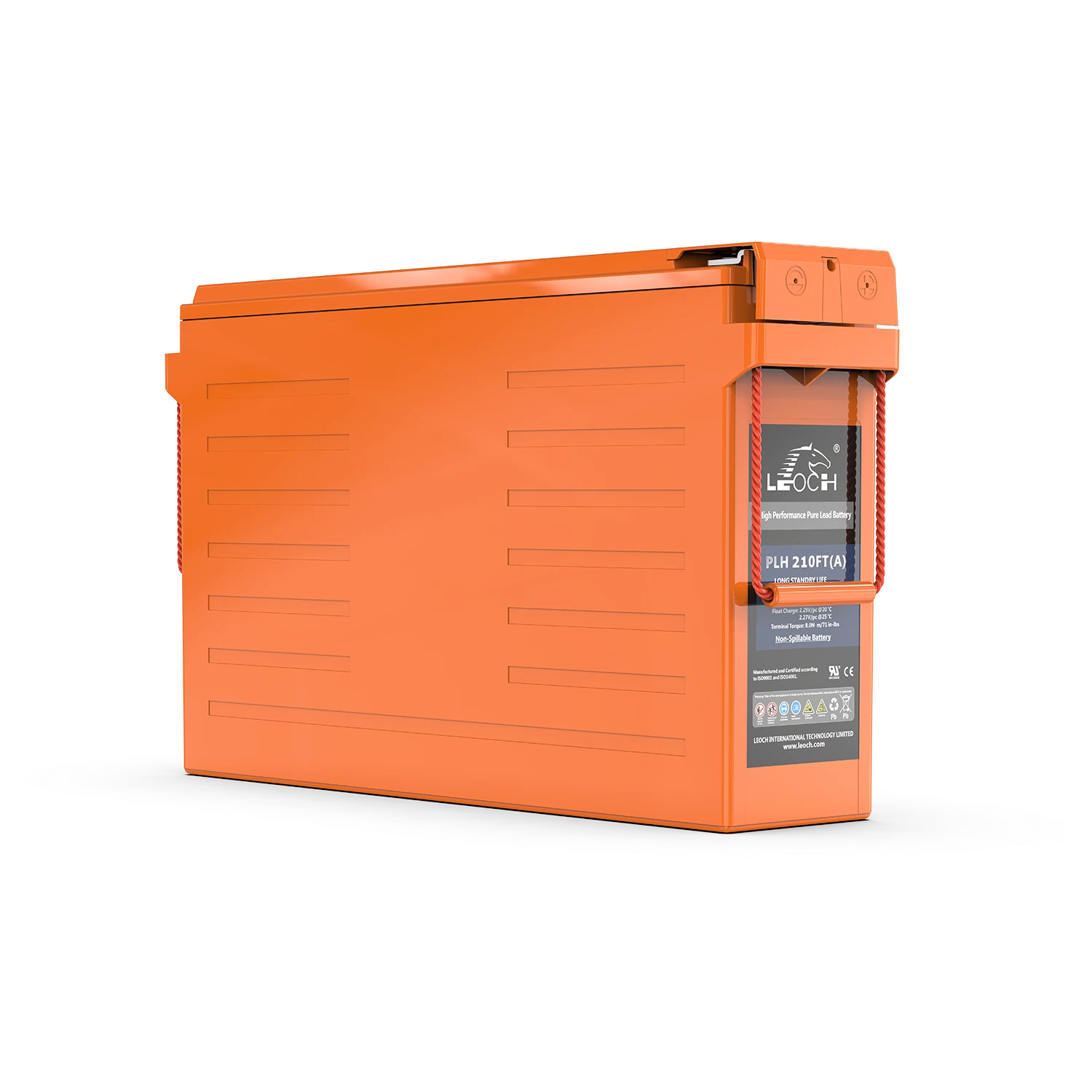

PLH210FT(A)	12	210	559	22.01	125	4.92	328	12.91	328	12.91	60.5	133.4	T8(M6)
