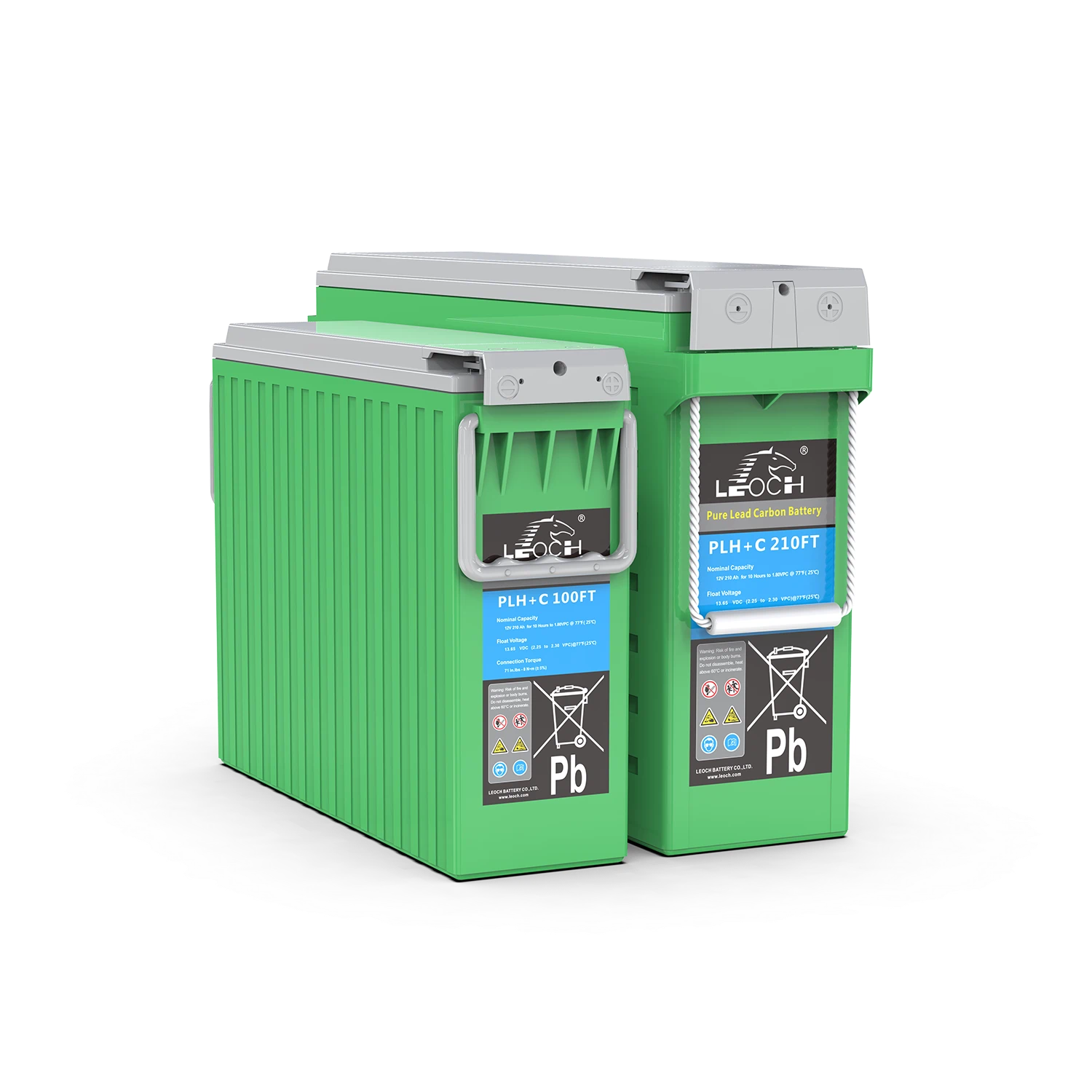

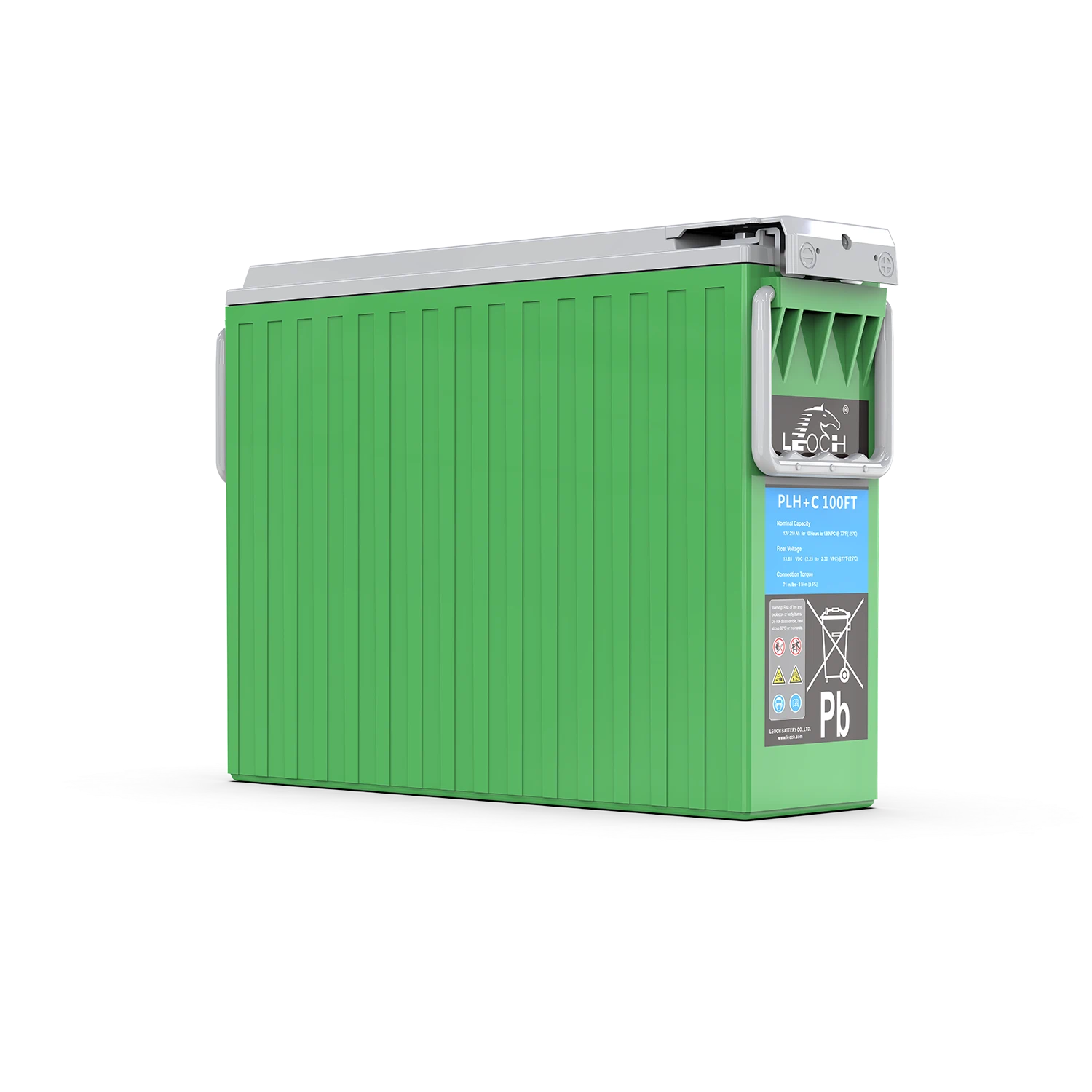

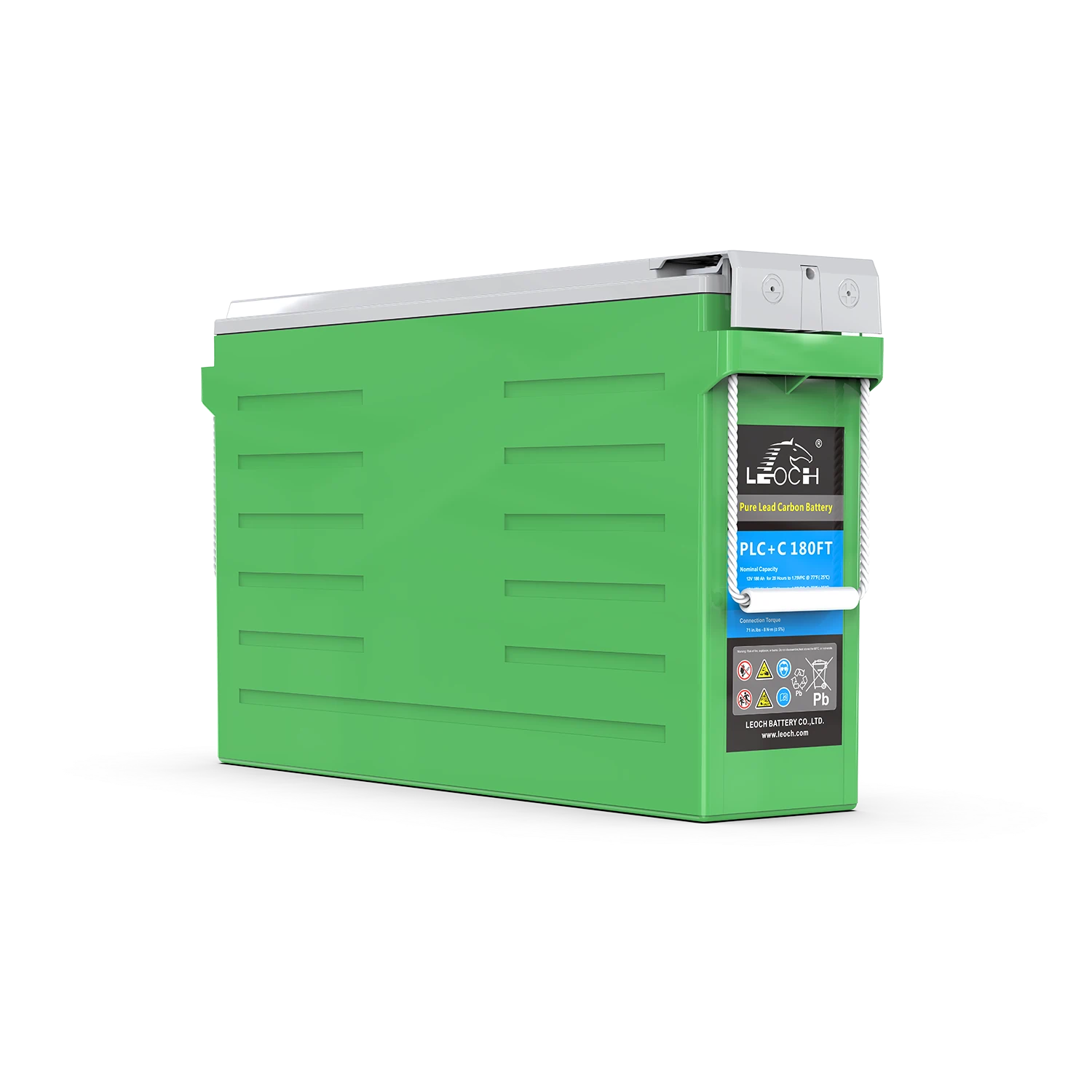

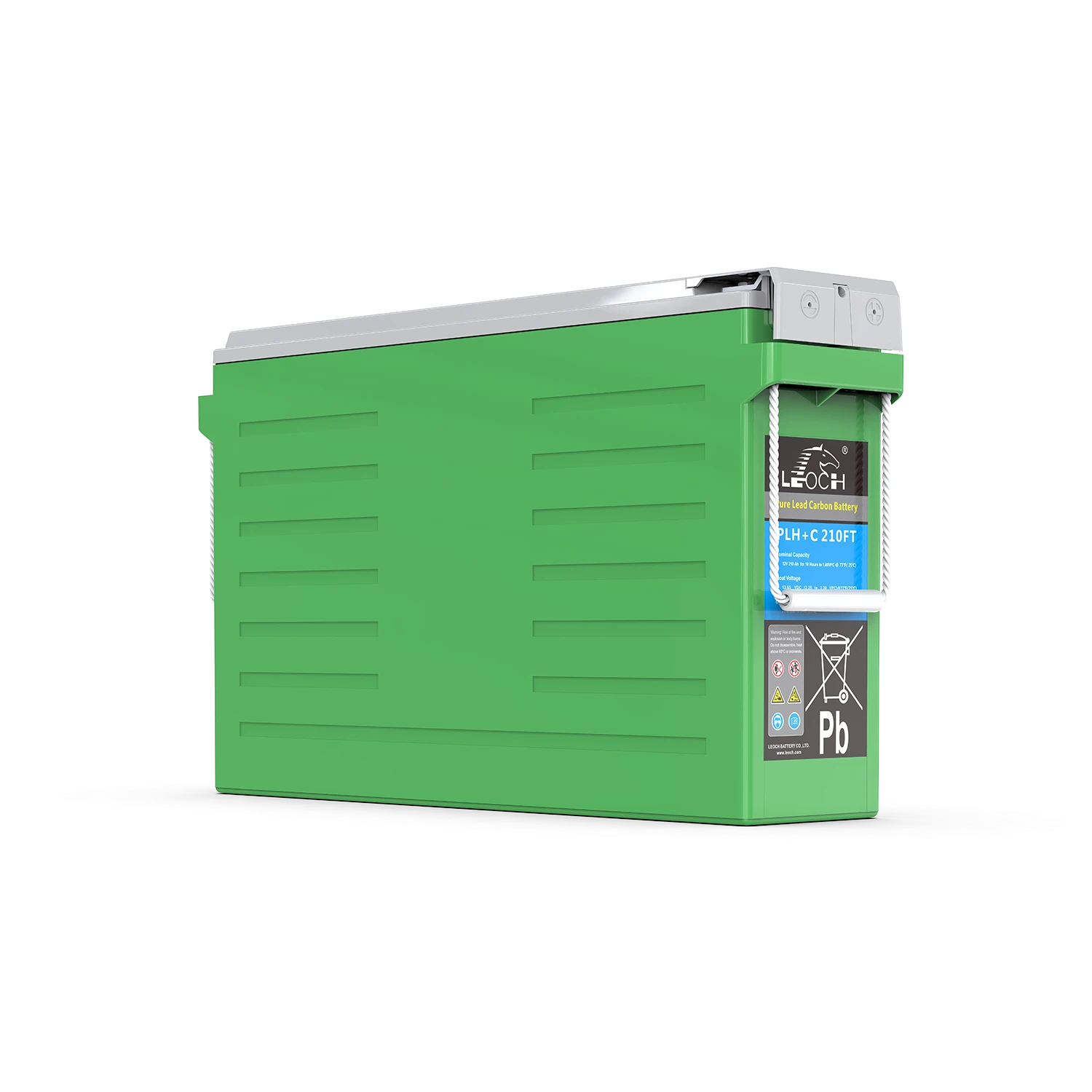

Pure Lead PLH+C Series
Pure lead carbon technology combines fast charge acceptance and cycling capability for telecom sites experiencing frequent outages or light hybrid operation.
Applications:
Backup Power
Telecom base station with unstable mains
Key Features
-
Advanced Lead-Carbon Tech
The utilization of a lead-carbon formulation significantly improves the service life of the product in unstable power grids.
-
Stability & Consistency
The automated continuous grid stamping design enhances the stability and consistency of the metal crystal structure.
-
Extended Service Life
The use of a high-temperature curing process effectively extends the service life of the product.
-
Pure Lead Plate Technology
Pure lead plate technology significantly enhances the charging speed of the product.
-
Low Internal Resistance
The use of organic fiber composite separators and a tight-fitting assembly design results in low internal resistance.
Parameter List
| Model | Rated Voltage(V) | 10hr @1.80V/cell | Length (mm) | Length (in.) | Width (mm) | Width (in.) | Height (mm) | Height (in.) | Total Height(mm) | Total Height(in.) | Weight (kg) | Weight (lbs) | Terminal |
| PLH+C 40FT | 12 | 38 | 298.7 | 11.76 | 97 | 3.82 | 184 | 7.24 | 184 | 7.24 | 12.5 | 27.56 | T6-A(M8) |
| PLH+C 100FT | 12 | 100 | 405.4 | 15.96 | 108 | 4.25 | 287 | 11.3 | 287 | 11.3 | 30.8 | 67.9 | T11(M8) |
| PLH+C 100 | 12 | 100 | 341.5 | 13.44 | 175 | 6.89 | 213 | 8.39 | 215 | 8.46 | 31.2 | 68.78 | T11(M8) |
| PLH+C 170FT | 12 | 170 | 559 | 22.01 | 125 | 4.92 | 320 | 12.6 | 320 | 12.6 | 54.2 | 119.49 | T11(M8) |
| PLH+C 190FT | 12 | 190 | 559 | 22.01 | 125 | 4.92 | 320 | 12.6 | 320 | 12.6 | 57.6 | 126.98 | T11(M8) |
| PLH+C 210FT | 12 | 210 | 559 | 22.01 | 125 | 4.92 | 328 | 12.91 | 328 | 12.91 | 60.5 | 133.38 | T11(M8) |
