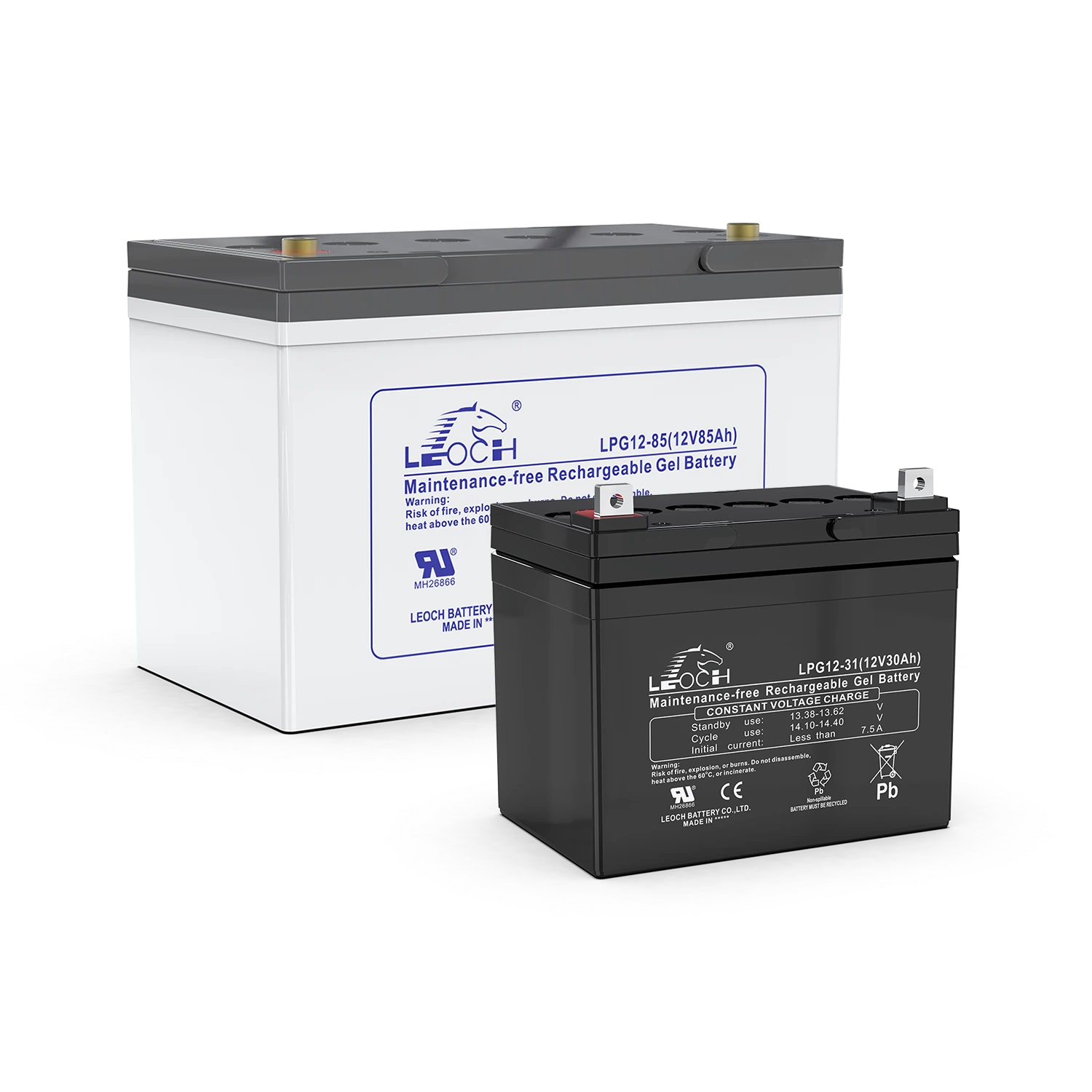

Gel LPG & LPFG Series
The LPG Series offers long-discharge performance, deep-discharge recovery and broad capacity coverage for equipment and auxiliary systems requiring dependable energy delivery.
Applications:
Telecommunication backup
Power plants
Burglar alarms
Medical equipments (stationary and portable i.e. X- ray)
Computer backup (high power)
Communication systems
Fire alarm systems
Transmitter systems
Cash register systems
Emergency lights signal systems
Key Features
-
Gel Technology
Gel battery technology reduces electrolyte stratification, effectively extending the service life of the product.
-
High Energy
An adequate amount of electrolyte is stored within the gel, allowing the active material to react fully and providing a sufficient energy supply.
-
Safety & Reliability
Patented multi-layer terminal sealing technology enhances safety and reliability.
-
Advanced Separator
High-quality separators effectively reduce the risk of short circuits, with a monthly self-discharge rate of less than 2%.
-
Enhanced ABS Case
The battery container is reinforced with ABS material to enhance the pressure resistance of the product.
Parameter List
-
Top Terminal
-
Front Terminal
| Model | Rated Voltage(V) | 20hr @1.80V/cell | 10hr @1.80V/cell | Length(mm) | Width(mm) | Height(mm) | Total Height(mm) | Weight(kg) | Terminal |
| LPG12-17 | 12 | 17 | 181.5 | 76.5 | 167.5 | 167.5 | 5.8 | T12/T12-I(M5) | |
| LPG12-24 | 12 | 24 | 166 | 175 | 125 | 125 | 8.5 | T12/T12-I(M5) | |

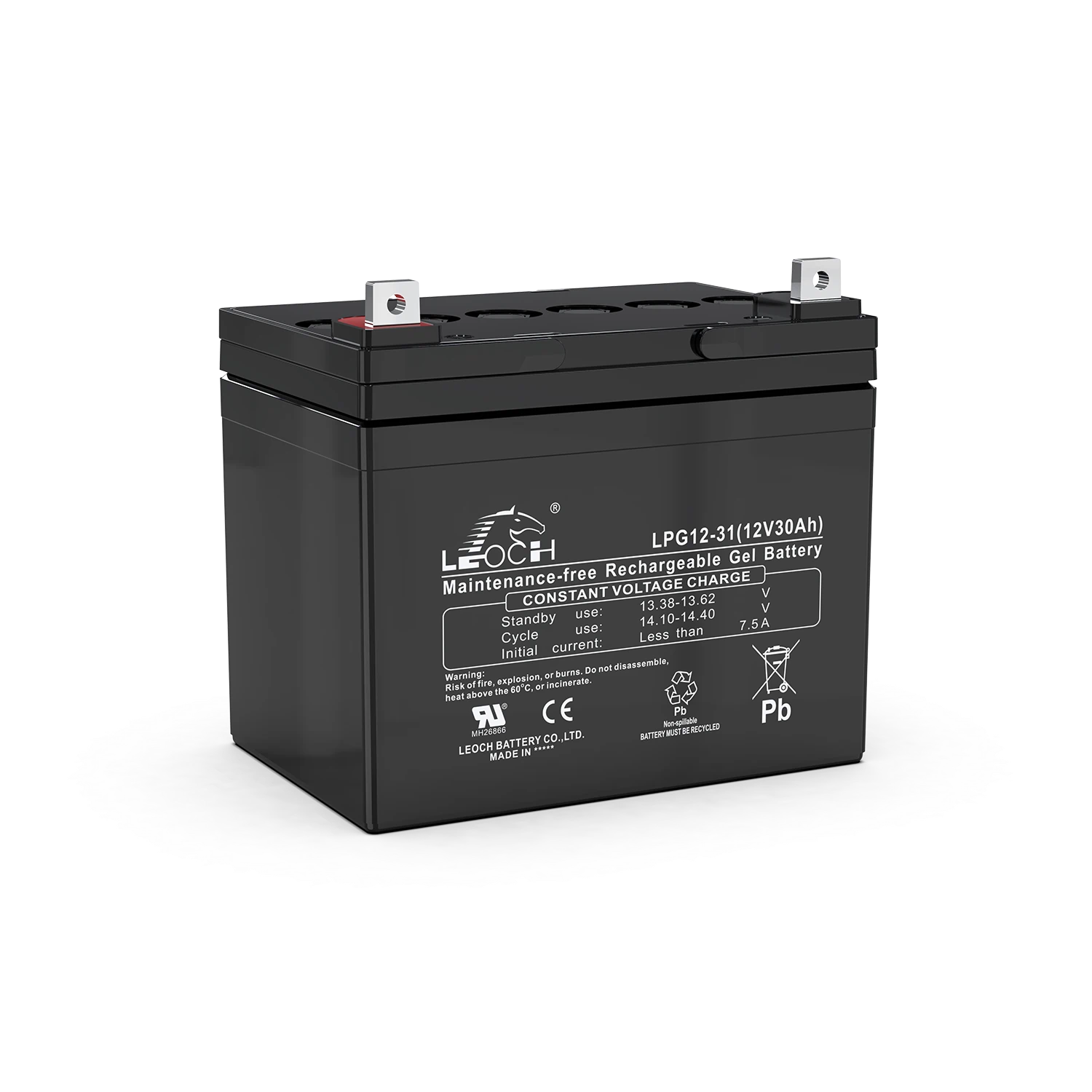

| LPG12-31 | 12 | 30 | 195 | 130 | 164 | 178 | 10.2 | T5 | |
| LPG12-38 | 12 | 38 | 197 | 165 | 170 | 170 | 12.8 | T6(M6) | |
| LPG12-45 | 12 | 45 | 257 | 132 | 200 | 200 | 15.5 | T6(M6) | |
| LPG12-50 | 12 | 50 | 229 | 138 | 205 | 211 | 16.1 | T6(M6) | |

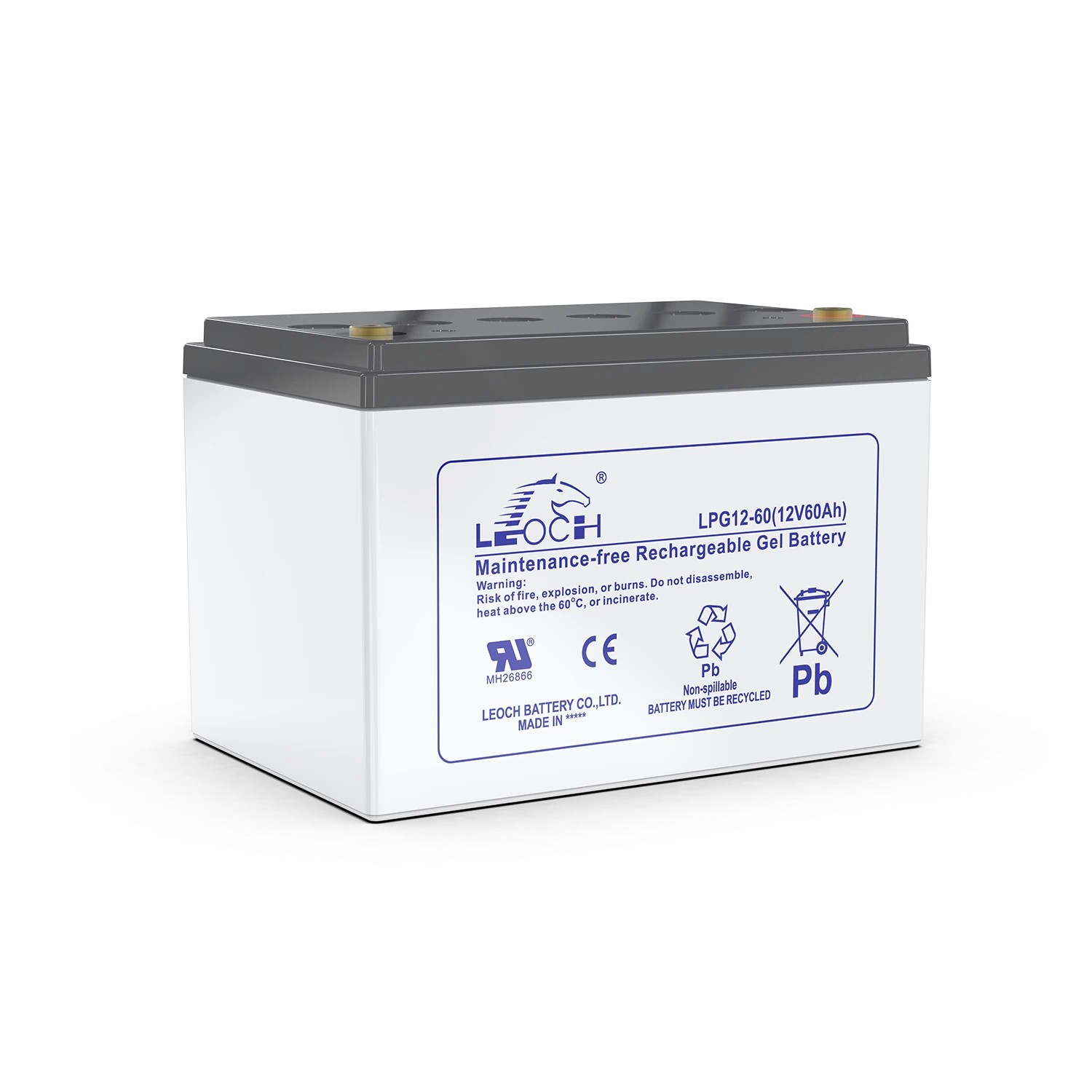

| LPG12-60 | 12 | 60 | 255 | 170 | 174.5 | 177.5 | 18.5 | T6(M6) | |
| LPG12-65 | 12 | 65 | 325 | 167 | 174 | 174 | 20.5 | T6(M6) | |
| LPG12-70H | 12 | 70 | 260 | 168 | 208 | 214 | 22.9 | T6(M6) | |

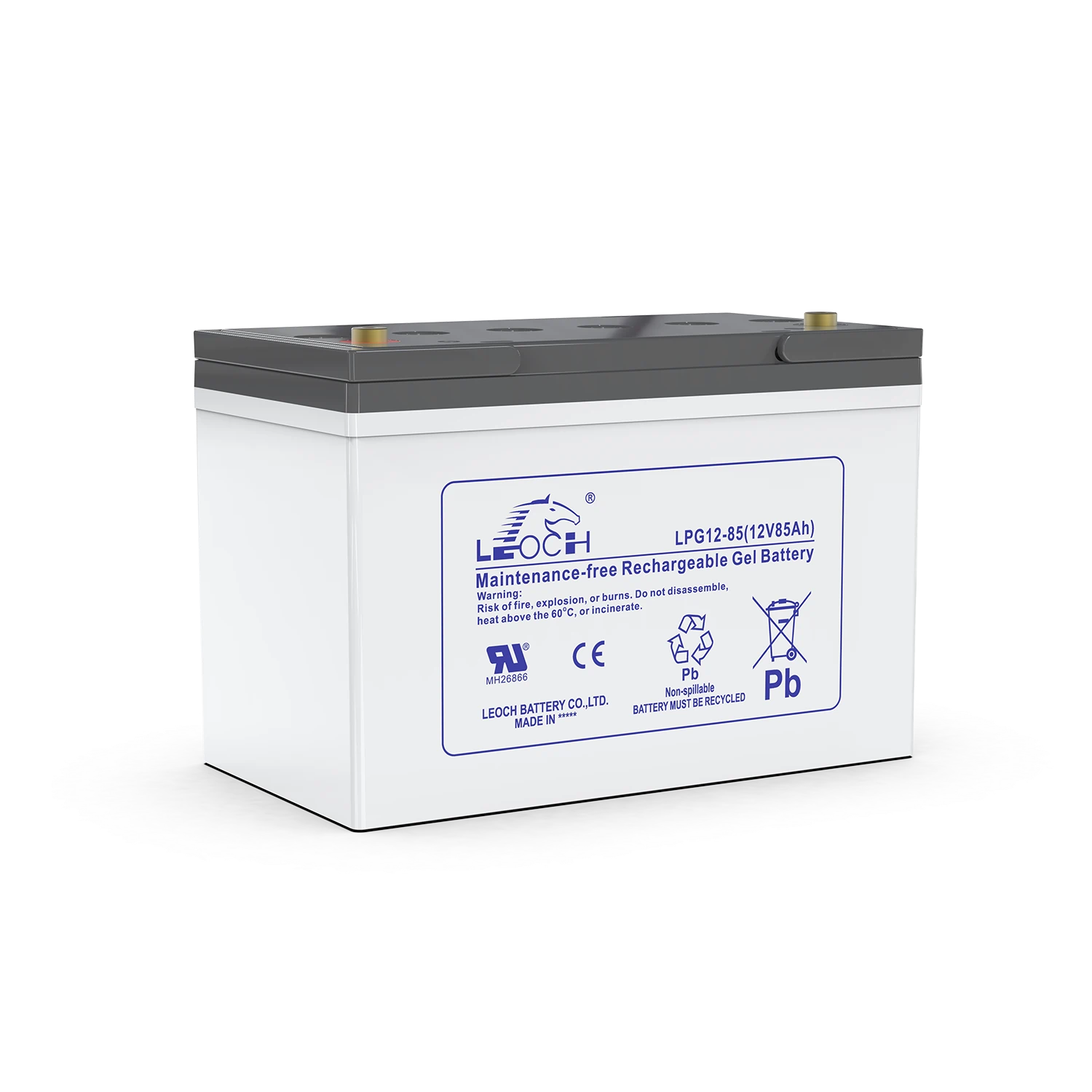

| LPG12-85 | 12 | 85 | 306 | 168 | 208 | 214 | 27.5 | T6(M6) | |
| LPG12-100 | 12 | 100 | 330 | 173 | 212 | 218 | 31.2 | T11(M8) | |
| LPG12-110 | 12 | 110 | 408 | 177 | 225 | 225 | 34.5 | T11(M8) | |
| LPG12-125 | 12 | 125 | 345 | 172 | 274 | 280 | 40 | T11(M8) | |
| LPG12-140 | 12 | 140 | 483 | 170 | 238.5 | 238.5 | 43.8 | T11(M8) | |
| LPG12-160 | 12 | 160 | 522 | 240 | 218 | 224 | 57.5 | T11(M8) | |

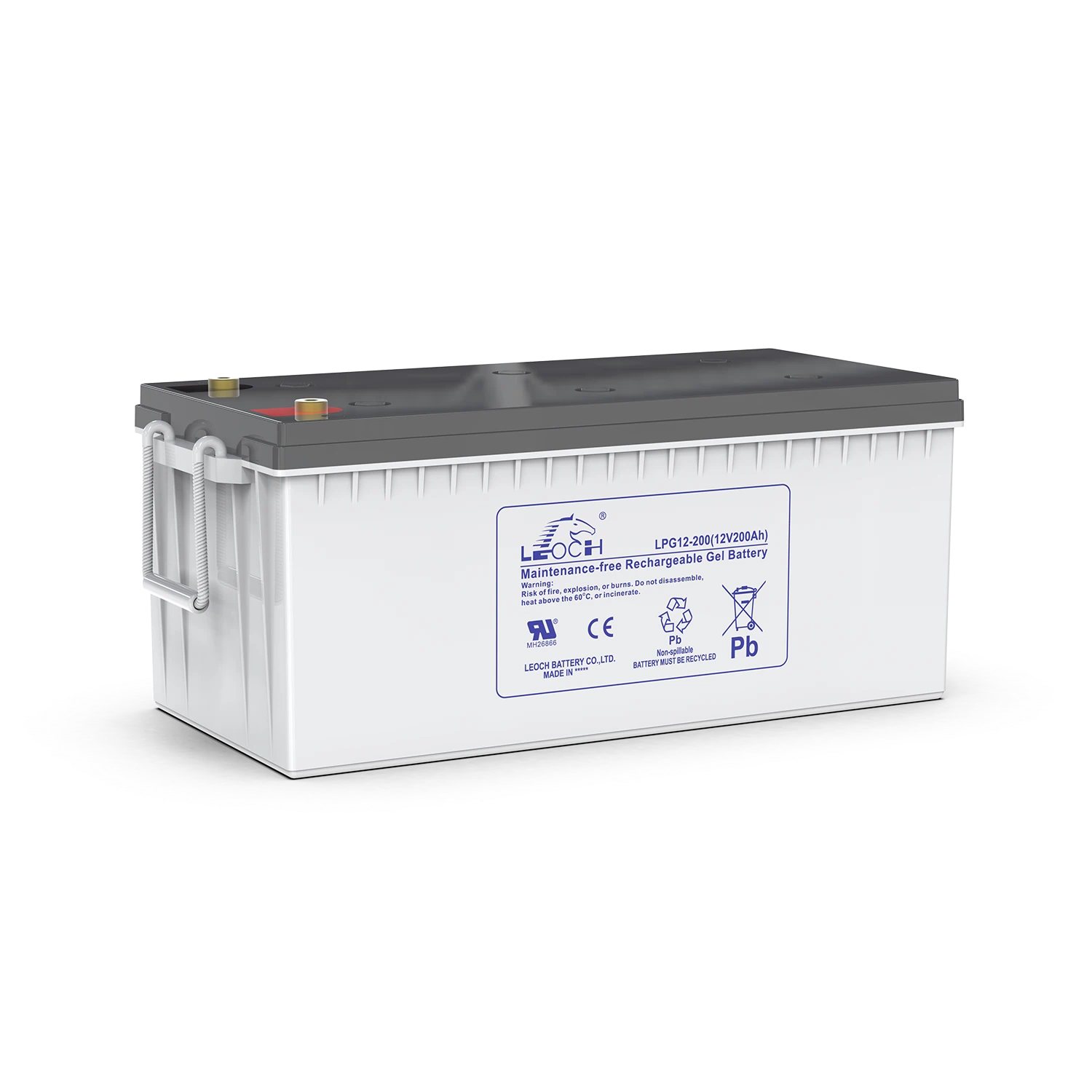

| LPG12-200 | 12 | 200 | 522 | 240 | 218 | 224 | 62.3 | T11(M8) | |
| LPG12-240 | 12 | 240 | 522 | 268 | 220 | 226 | 73.3 | T11(M8) | |
| LPG2-100 | 2 | 100 | 170 | 72 | 205 | 214 | 6 | T6(M6) | |
| LPG2-200 | 2 | 200 | 170 | 110 | 328 | 337 | 14.1 | T11(M8) | |
| LPG2-300 | 2 | 300 | 170 | 150 | 330 | 339 | 19.5 | T11(M8) | |
| LPG2-400 | 2 | 400 | 210 | 175 | 330 | 339 | 27 | T11(M8) | |
| LPG2-500 | 2 | 500 | 240 | 175 | 327.5 | 338 | 31.8 | T11(M8) | |
| LPG2-600 | 2 | 600 | 300 | 175 | 330 | 340 | 40 | T11(M8) | |
| LPG2-800 | 2 | 800 | 410 | 175 | 330 | 340 | 54 | T11(M8) | |
| LPG2-1000 | 2 | 1000 | 475 | 175 | 328 | 328 | 64.1 | T11(M8) | |
| LPG2-1500 | 2 | 1500 | 403 | 354 | 339 | 349 | 102 | T11(M8) | |
| LPG2-2000 | 2 | 2000 | 490 | 350 | 339 | 349 | 130 | T11(M8) | |
| LPG2-3000 | 2 | 3000 | 709 | 350 | 337 | 347 | 190 | T11(M8) |
| Model | Rated Voltage(V) | 20hr @1.80V/cell | 10hr @1.80V/cell | Length(mm) | Width(mm) | Height(mm) | Total Height(mm) | Weight(kg) | Terminal |
| LPFG12-70 | 12 | 70 | 65 | 564 | 114 | 187 | 187 | 26.7 | T6(M6) |
| LPFG12-100H | 12 | 95 | 90 | 394 | 110 | 285 | 285 | 35 | T6(M6) |
| LPFG12-150 | 12 | 138 | 130 | 551 | 110 | 288 | 288 | 46.7 | T6(M6) |
| LPFG12-180 | 12 | 160 | 150 | 550 | 125 | 281.5 | 281.5 | 52 | T8(M6) |
