Tubular Gel OPzV Series

Tubular positive plates and gel electrolyte support deep-cycle performance, high-capacity storage and long-duration operation without routine water addition.

Applications:

Green energy systems (solar, wind, hydro, etc)
Telecommunications installations
Alarm installations
Street lightening
Solar power stations
Signal station
Traffic lights
Railway crossing
Pump systems
Street signs
Lawn lamp

Request a Quote

Key Features

Long Service Life

The tubular positive plate effectively prevents active material from falling off, giving the battery an exceptionally long service life.
High Performance

The gel electrolyte exhibits no stratification, significantly extending service life and ensuring full energy release.
Patented Anti-Shrinkage Design

Prevents short circuits, ensuring an exceptionally long service life.
Advanced Separator

High-quality, non-interfering sleeve material and high-porosity PVC-SiO₂ separators provide low internal resistance and an exceptionally long cycle life.
Special Mesh Design

The negative plate features a special mesh design that increases active material content and enhances high-current charge/discharge capabilities.
Superior PSOC Performance

With a cycle life exceeding 3,000 cycles (60% DOD)

Parameter List

Swipe View

Model	Rated Voltage(V)	100hr @1.80V/cell	10hr @1.80V/cell	Length(mm)	Length(in.)	Width(mm)	Width(in.)	Height(mm)	Height(in.)	Total Height(mm)	Total Height(in.)	Weight(kg)	Weight(lbs)	Terminal

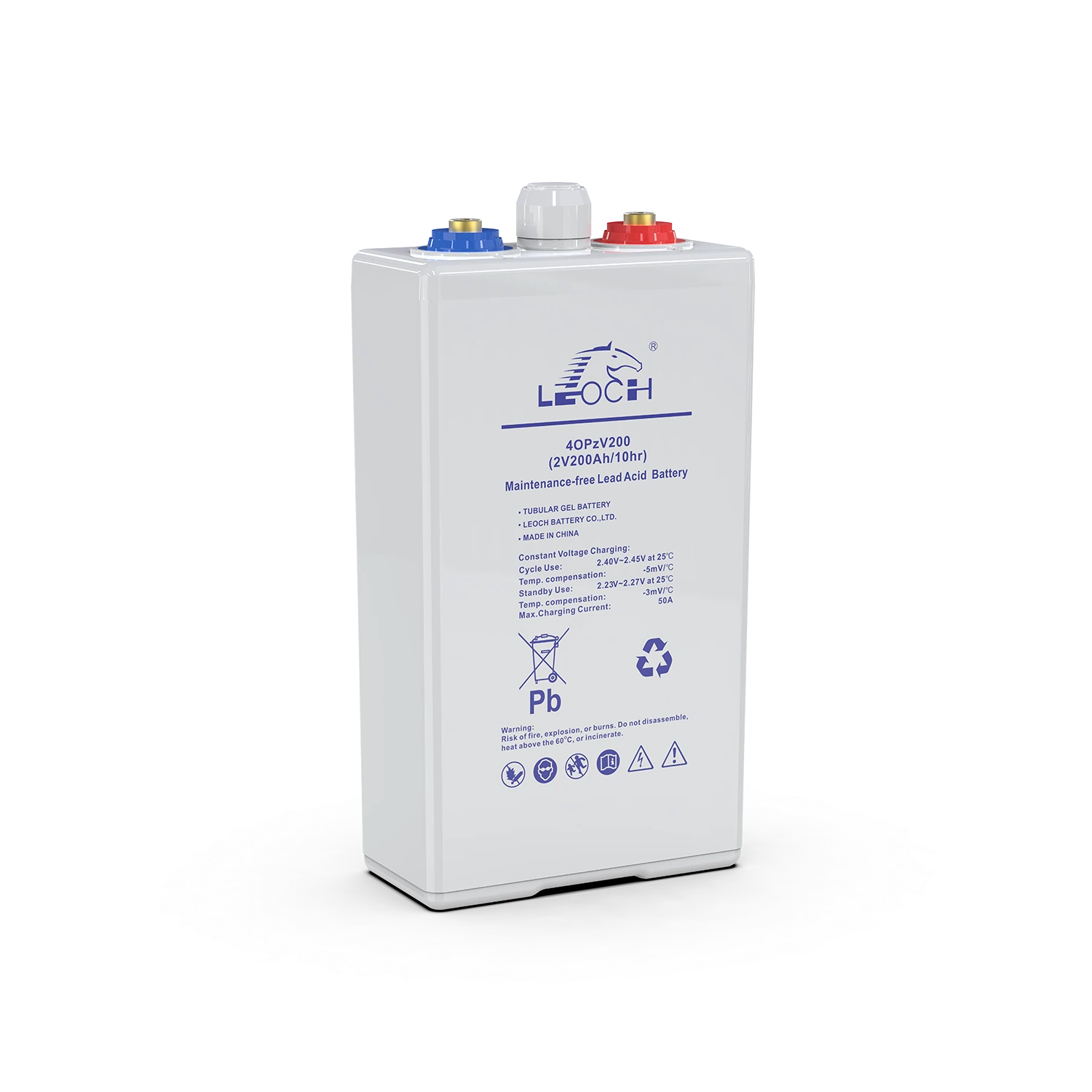

4OPzV200	2	260	200	103	4.06	206	8.11	355	13.98	390	15.35	18.8	41.5	T7-A(M8)
5OPzV250	2	325	250	124	4.88	206	8.11	355	13.98	390	15.35	22.4	49.4	T7-A(M8)
6OPzV300	2	390	300	145	5.71	206	8.11	355	13.98	390	15.35	26.4	58.2	T7-A(M8)
5OPzV350	2	491	350	124	4.88	206	8.11	471	18.54	506	19.92	28.5	62.8	T7-A(M8)
6OPzV420	2	590	420	145	5.71	206	8.11	471	18.54	506	19.92	33.5	73.9	T7-A(M8)
7OPzV490	2	688	490	166	6.54	206	8.11	471	18.54	506	19.92	38.7	85.3	T7-A(M8)

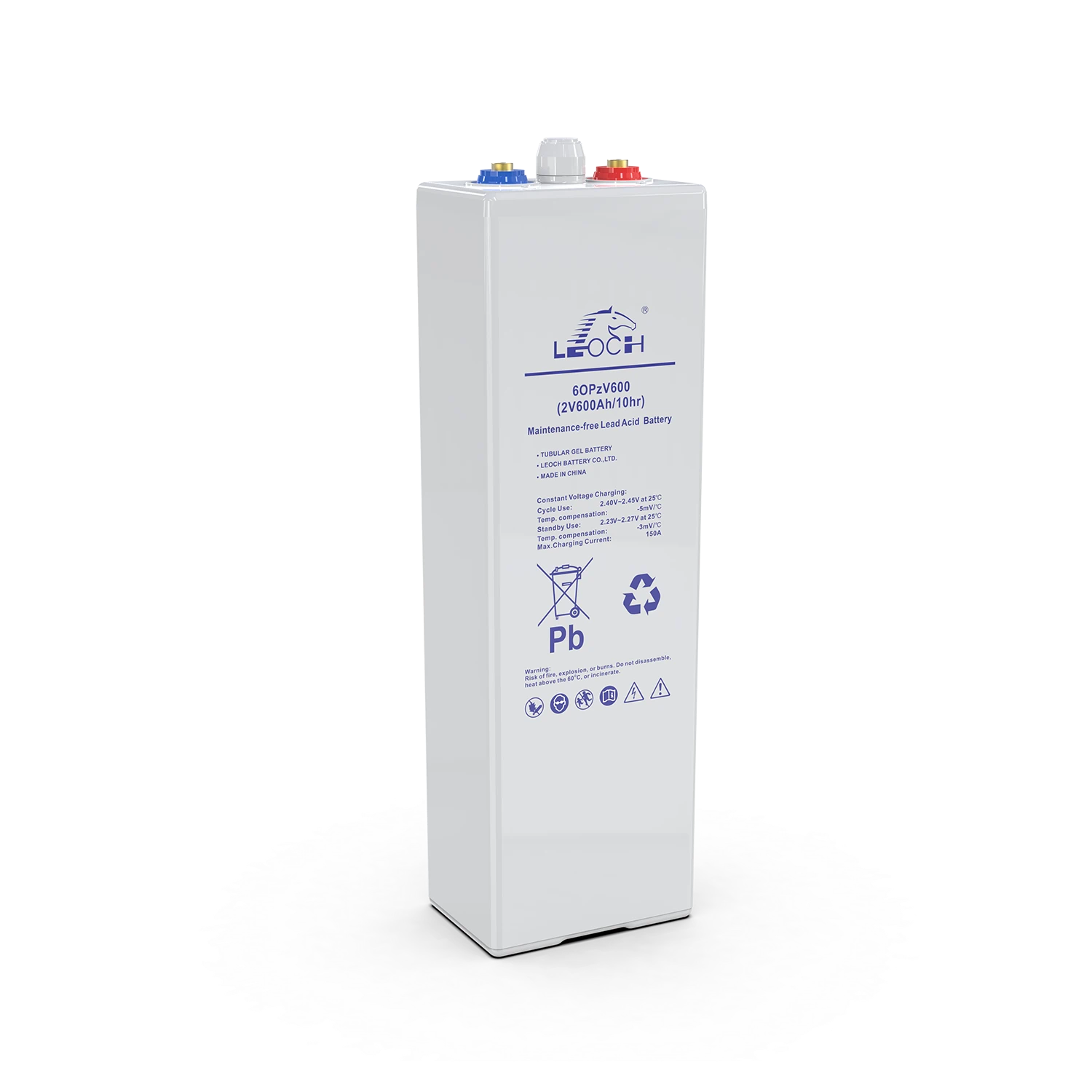

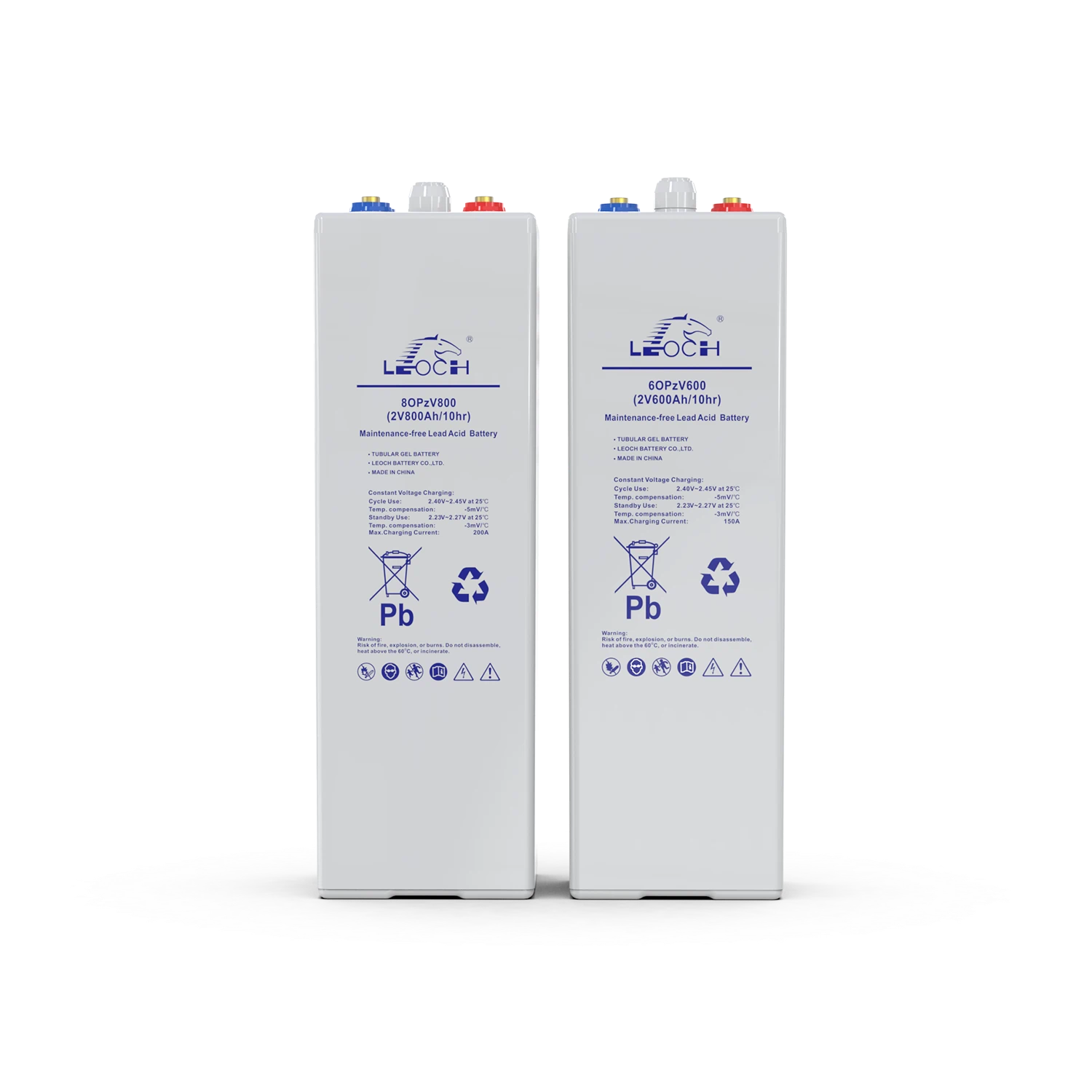

6OPzV600	2	842	600	145	5.71	206	8.11	646	25.43	681	26.81	46.8	103.2	T7-A(M8)

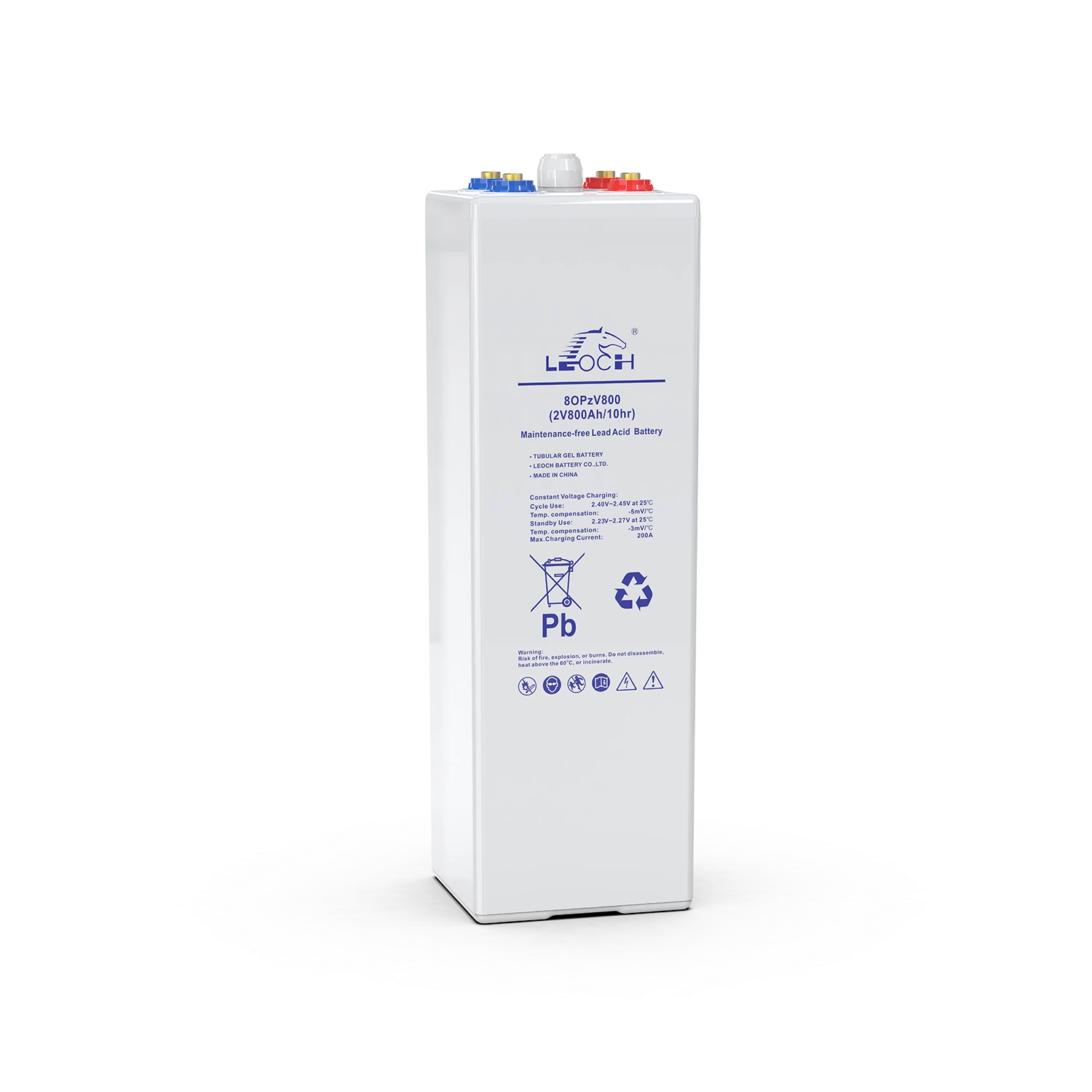

8OPzV800	2	1120	800	191	7.52	210	8.27	646	25.43	681	26.81	63.5	140	T7-A(M8)
10OPzV1000	2	1400	1000	233	9.17	210	8.27	646	25.43	681	26.81	76.5	168.7	T7-A(M8)
12OPzV1200	2	1680	1200	275	10.83	210	8.27	646	25.43	681	26.81	91.2	201.1	T7-A(M8)
12OPzV1500	2	2110	1500	275	10.83	210	8.27	796	31.34	831	32.72	111.5	245.8	T7-A(M8)
16OPzV2000	2	2810	2000	399	15.71	214	8.27	772	30.39	807	31.77	155.1	341.9	T7-A(M8)
20OPzV2500	2	3510	2500	487	19.17	212	8.35	772	30.39	807	31.77	191	421.1	T7-A(M8)
24OPzV3000	2	4210	3000	576	22.68	212	8.35	772	30.39	807	31.77	226.5	499.4	T7-A(M8)
12V9OPzV200	12	240	200	521	20.5	268	10.6	220	8.66	226	8.9	70	154.3	T11(M8)
