Lead Carbon LRC Series
Super Carbon and deep-cycle technologies provide strong charge acceptance and Partial State of Charge performance for renewable systems exposed to frequent or incomplete charging cycles.
Applications:
New energy generation (solar, wind, PV/wind hybrid) access to energy storage systems
Peak load shifting energy storage system
Load tracking energy storage system
Smart grid, micro-grid system
Mobile container storage system
Oil and electricity hybrid energy storage system
Grid frequency adjustment energy storage system
New energy communication base station, Core computer room, IDC ,UPS
Other energy Storage System
Key Features
-
Long Service Life
The use of Super Carbon Technology and Deep Cycle Technology ensures the product has an exceptionally long service life under cyclic use.
-
Safety and Reliability
Patented multi-layer terminal sealing technology enhances safety and reliability.
-
High-Quality Separator Material
High-quality separator material ensures excellent charge acceptance and ultra-fast charging/high-discharge performance.
-
Modular Design
Saves space, allows for horizontal installation, and facilitates maintenance.
-
Superior PSOC Performance
With a cycle life exceeding 4,000 cycles (60% DOD).
Parameter List
| Model | Rated Voltage(V) | 10hr@1.80V/cell | Length(mm) | Width(mm) | Height(mm) | Total Height(mm) | Weight(kg) | Terminal |

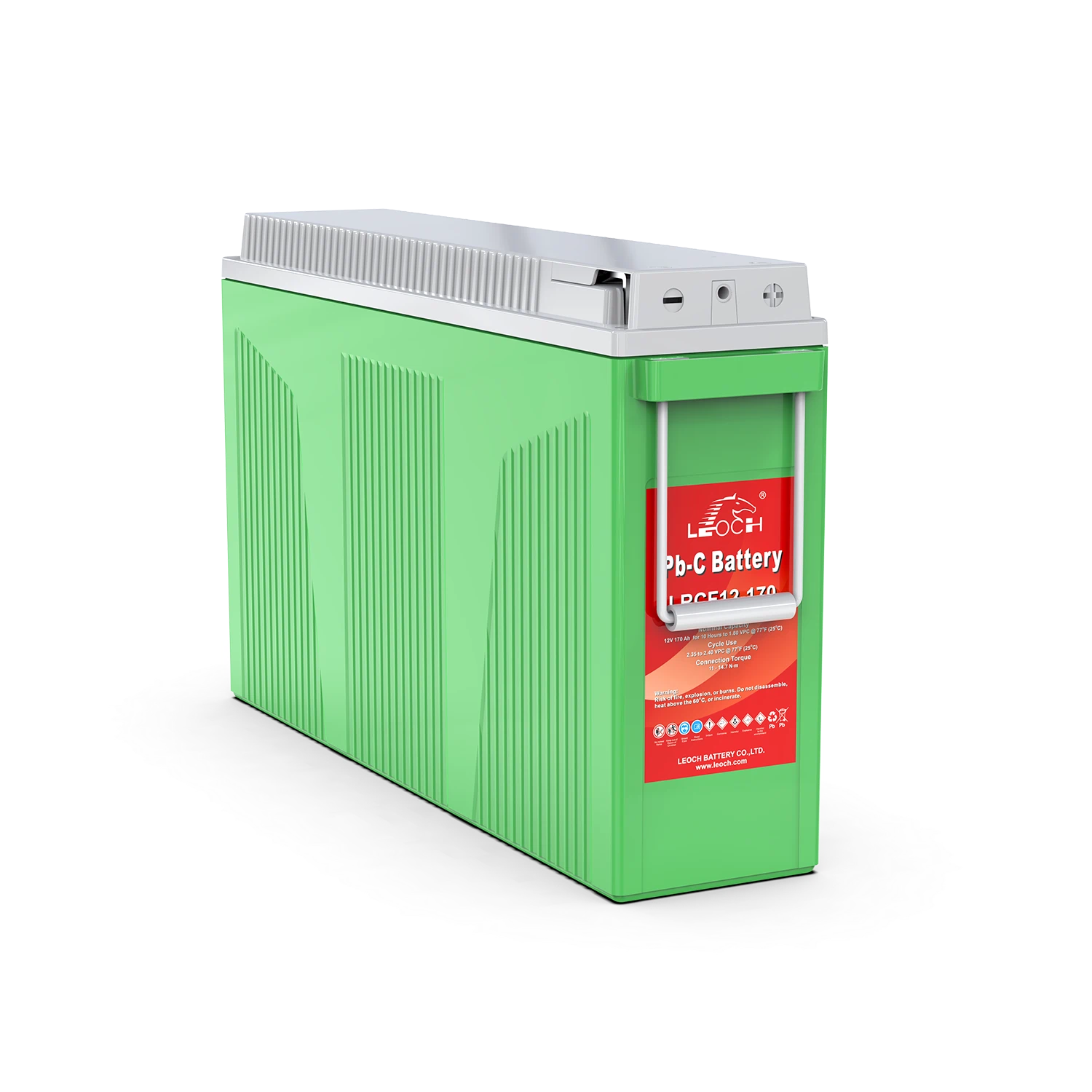

| LRCF12-170 | 12 | 170 | 560 | 126 | 320 | 320 | 62 | T11(M8) |
| LRC12-80 | 12 | 80 | 330 | 173 | 212 | 218 | 33 | T11(M8) |

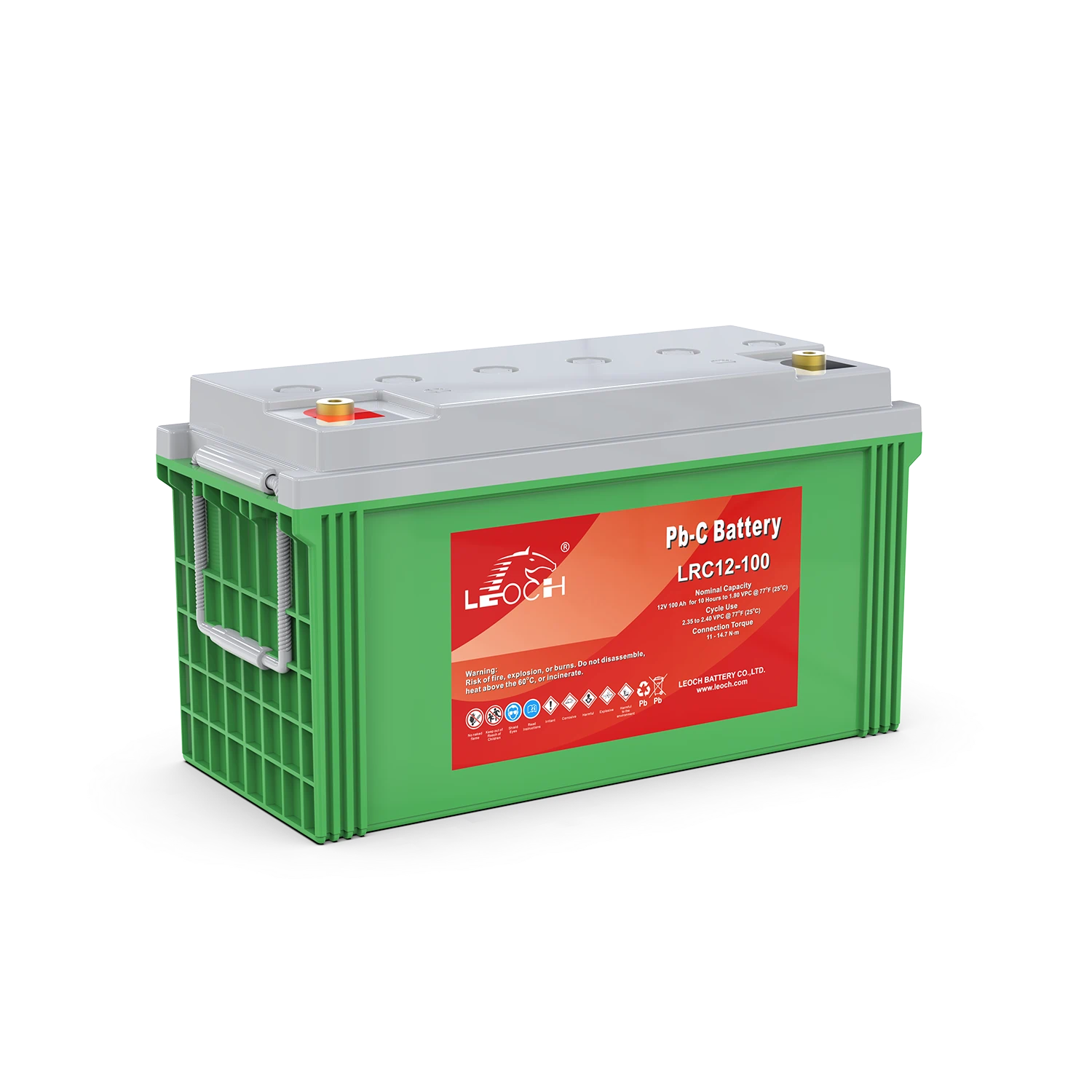

| LRC12-100 | 12 | 100 | 408 | 177 | 225 | 225 | 39 | T11(M8) |
| LRC12-150 | 12 | 150 | 532 | 207 | 214 | 220 | 59 | T11(M8) |

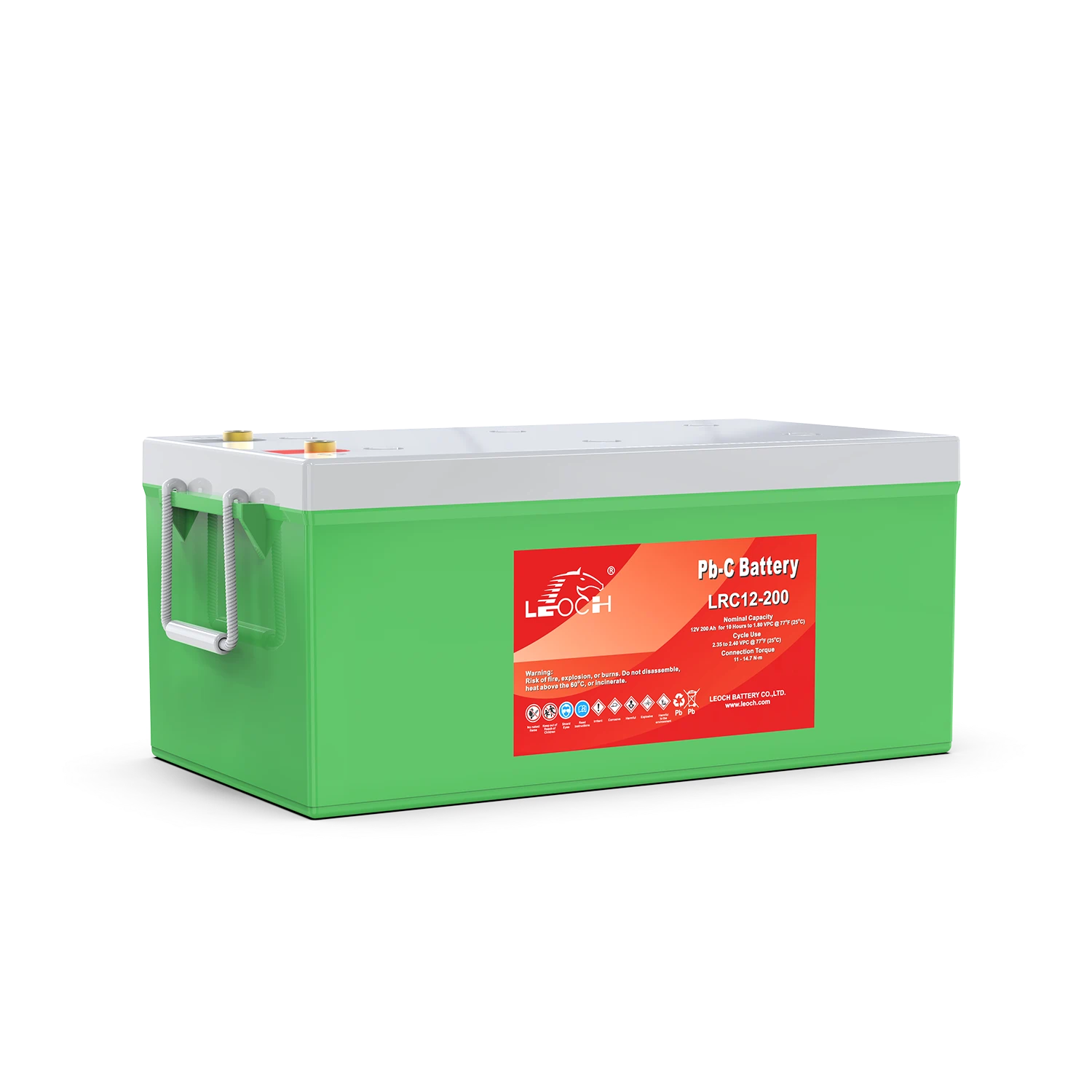

| LRC12-200 | 12 | 200 | 522 | 268 | 220 | 226 | 75.6 | T11(M8) |

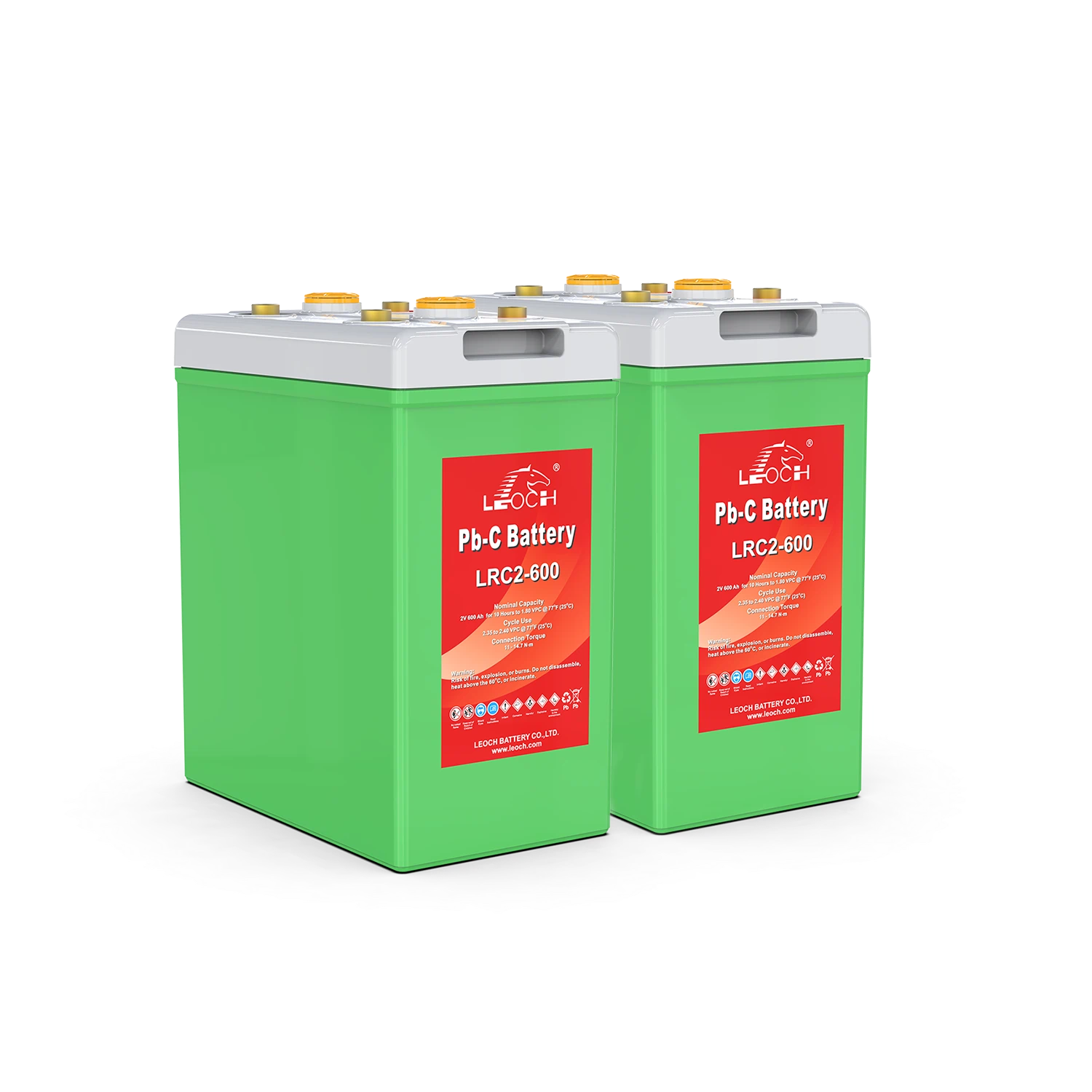

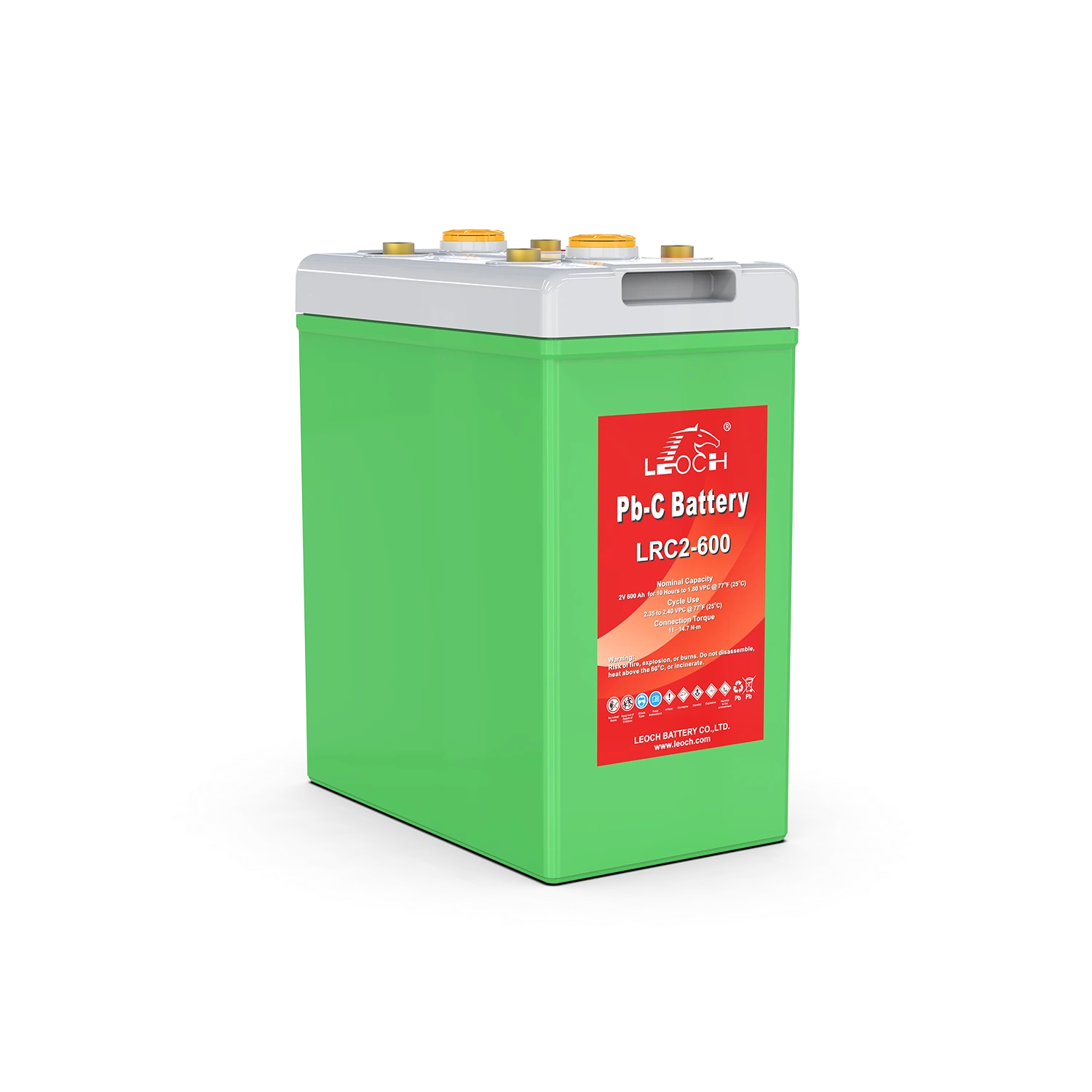

| LRC2-600 | 2 | 600 | 303 | 181 | 350 | 365 | 48.8 | T11(M8) |
| LRC2-800 | 2 | 800 | 370 | 181 | 350 | 365 | 61.8 | T11(M8) |
| LRC2-1000 | 2 | 1000 | 440 | 181 | 350 | 365 | 75.8 | T11(M8) |
