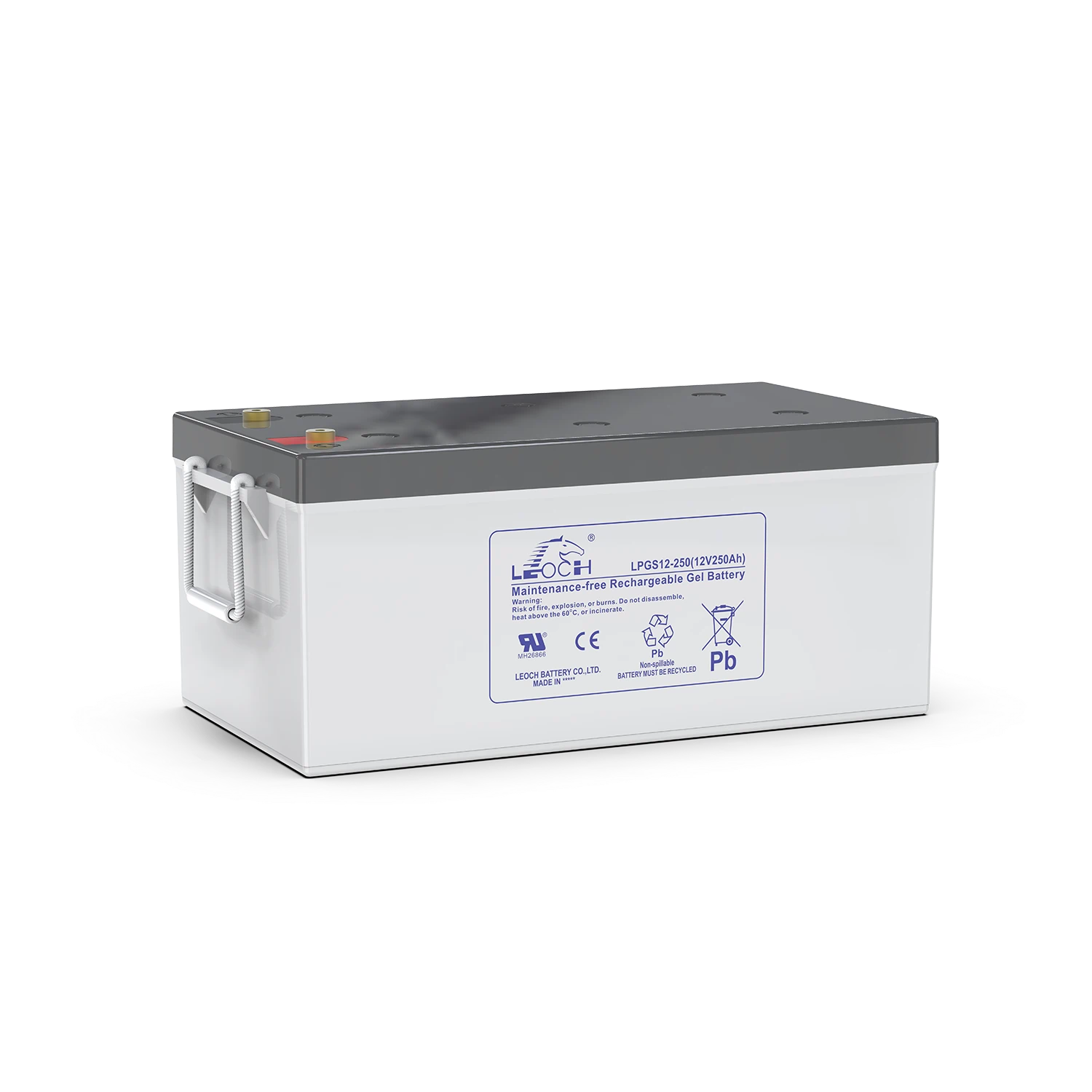

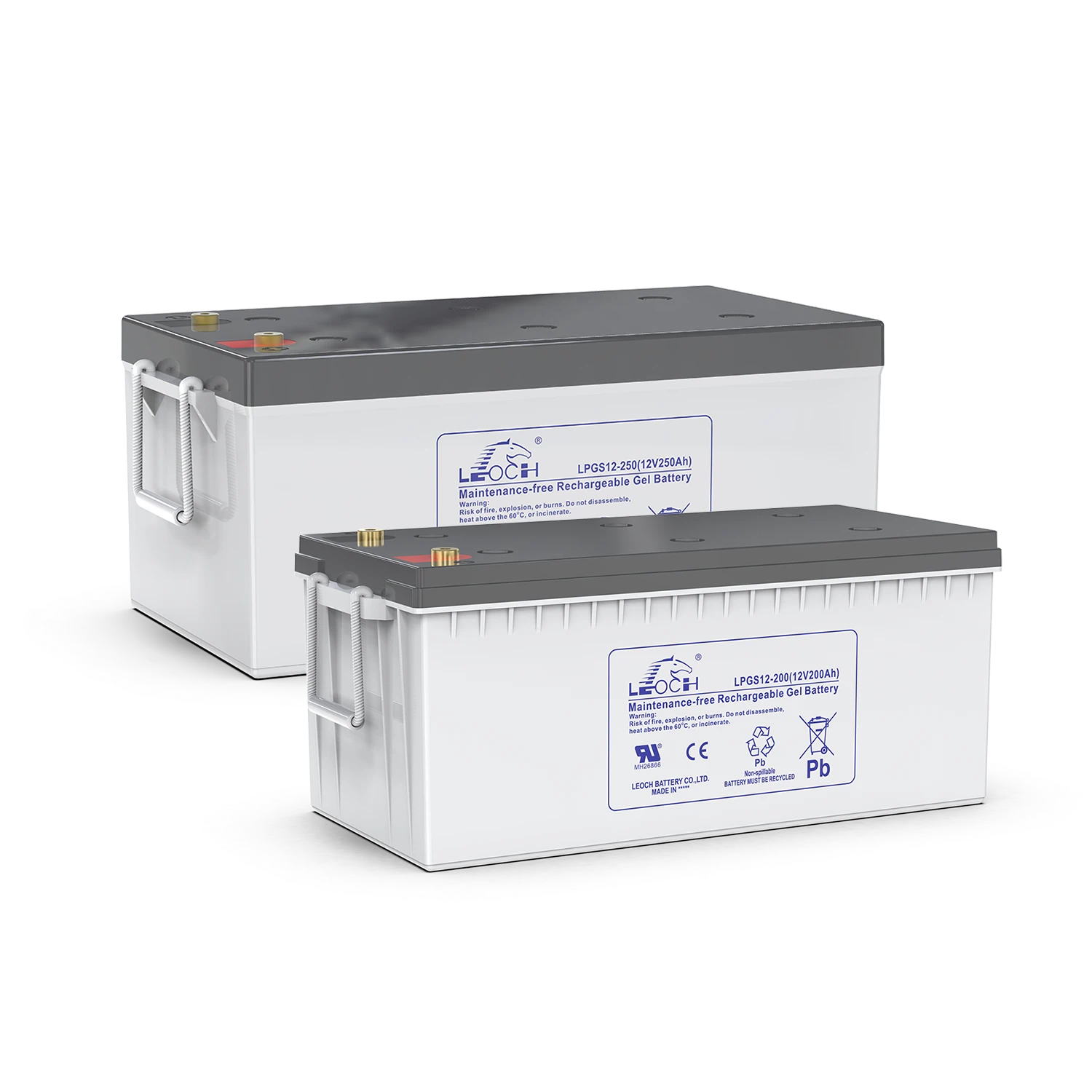

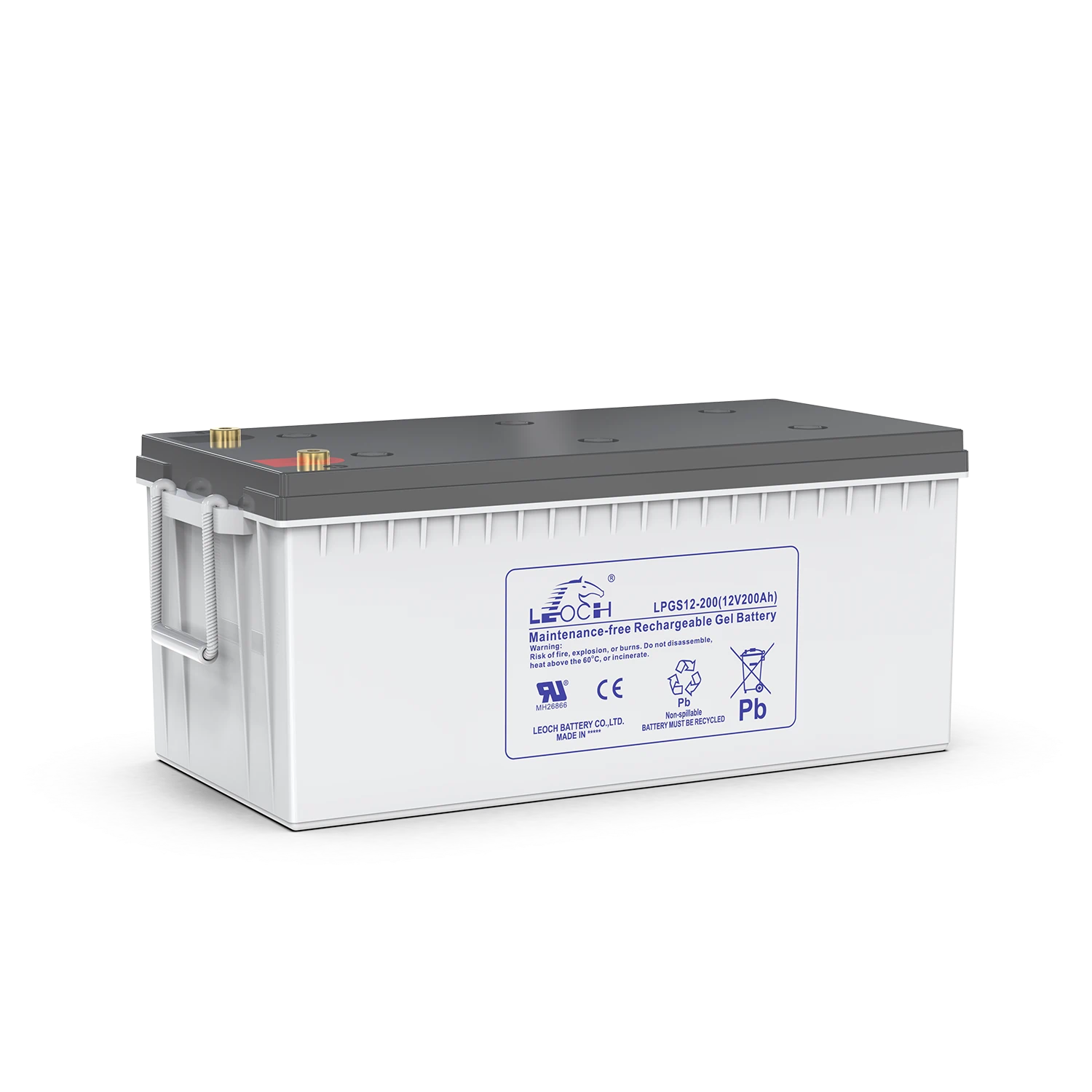

Hybrid Gel LPGS(DCA) Series
AGM-GEL technology combines strong deep-discharge recovery, low self-discharge and fast recharge capability for renewable systems operating under variable charging conditions.
Applications:
Solar energy (wind energy) household system /communication /communication base station;
Movable energy storage system
Solar traffic lights
Solar, wind and solar power generation
Emergency lighting system
Key Features
-
Hybrid Gel Technology
A special hybrid gel technology effectively reduces short circuits and extends the service life of the product.
-
Long Cycle Life
The use of a special multi-element alloy and a unique grid structure design ensures the battery has a long cycle life.
-
Safety and Reliability
Patented multi-layer terminal sealing technology enhances safety and reliability.
-
Maintenance-Free
Advanced oxygen recombination technology enables maintenance-free operation.
-
Superior PSOC Performance
Superior PSOC performance, with a cycle life exceeding 600 cycles (80% DOD)
Parameter List
| Model | Rated Voltage(V) | 20hr @1.75V/cell | 10hr @1.80V/cell | Length(mm) | Width(mm) | Height(mm) | Total Height(mm) | Weight(kg) | Terminal |
| LPGS12-110 | 12 | 110 | 100 | 330 | 173 | 212 | 220 | 31.5 | T11(M8) |
| LPGS12-154 | 12 | 154 | 140 | 483 | 170 | 238.5 | 238.5 | 44.9 | T11(M8) |
| LPGS12-190 | 12 | 190 | 173 | 532 | 207 | 214 | 220 | 58 | T11(M8) |
| LPGS12-200 | 12 | 200 | 182 | 522 | 240 | 218 | 224 | 60.9 | T11(M8) |
| LPGS12-210 | 12 | 210 | 191 | 522 | 240 | 218 | 224 | 62.5 | T11(M8) |
| LPGS12-250 | 12 | 250 | 228 | 522 | 268 | 220 | 226 | 75.5 | T11(M8) |
