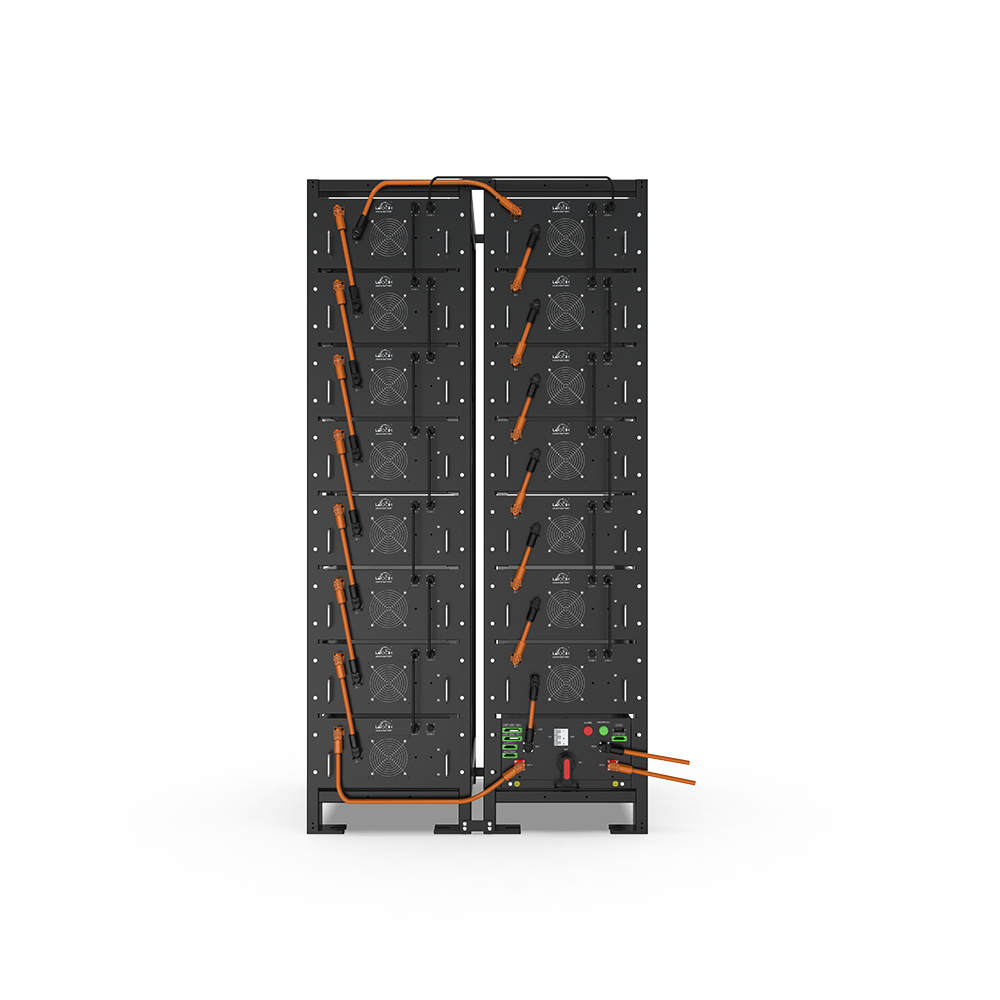

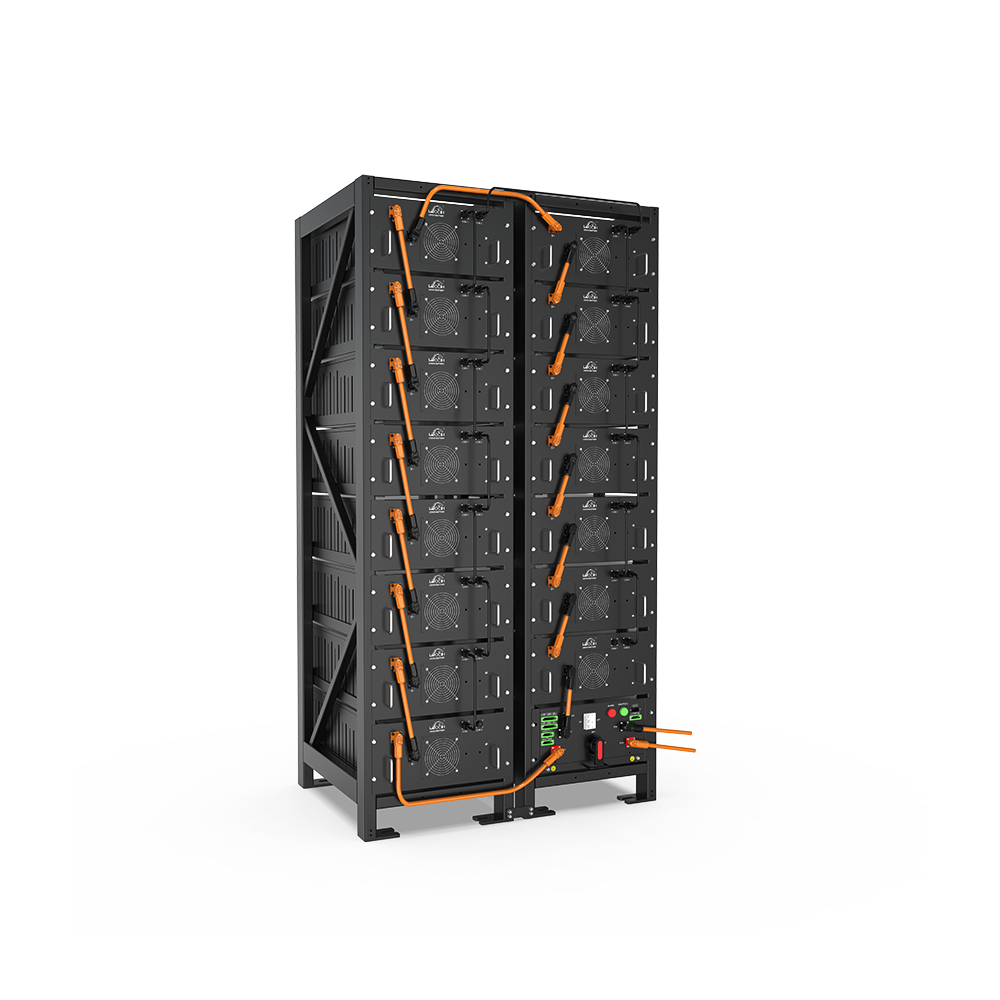

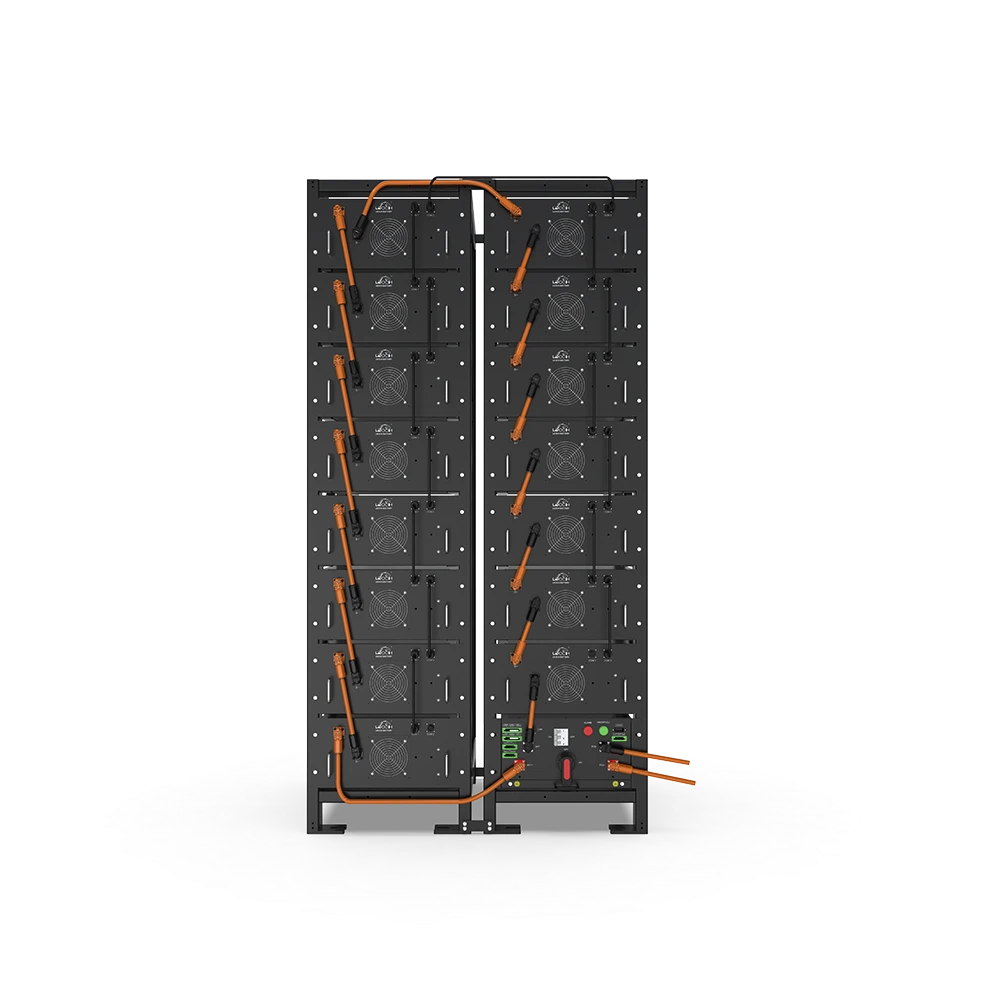

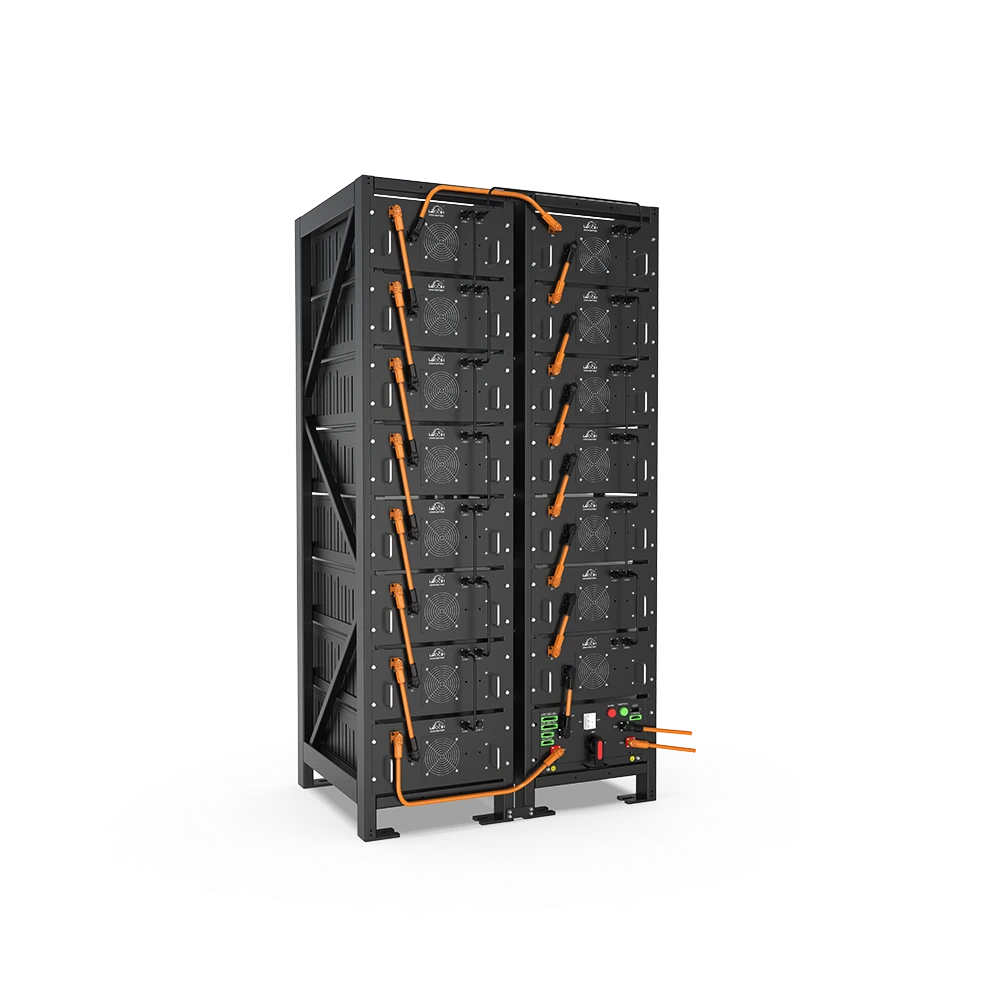

C&I Air-Cooled High-Voltage Lithium Battery
The High Voltage Lithium System adopts a high-voltage cascaded integrated architecture, greatly reducing line losses and improving system operating efficiency with a high-voltage platform. Equipped with intelligent temperature control and full-dimensional safety protection, it features high energy density, flexible expansion, and easy maintenance, suitable for various C&I and large-scale energy storage projects.
Applications:
Backup Power
Solar + Battery ESS
Peak Shaving
On/Off-Grid Hybrid Operation
Commercial & Retail Buildings
Microgrid Application
Energy Cost Optimization
Key Features
-
High Voltage & High Efficiency
Efficiency ≥94%
-
Safe & Long Lifespan
More than 6000 cycles
-
Standard Design
Fit to 19-inch rack & easy to install.
-
Active Balancing
Monitor cells and adjust balance accordingly to protect them and maintain consistency.
Parameter List
| Model | Energy(kWh) |
Dimensions (W*D*H/mm) |
Weight(ton) | Battery voltage range |
| CF-5S-1P16S-314W0.5-Ba | 80 | 555*780*1632 | About0.829 | 224~288V |
| CF-10S-1P16S-314W0.5-Ba | 160 | 1110*780*1632 | About1.389 | 448~576V |
| CF-12S-1P16S-314W0.5-Ba | 192 | 1110*780*1866 | About1.613 | 537.6~691.2V |
| CF-15S-1P16S-314W0.5-Ba | 241 | 1100*780*2100 | About1.949 | 672V～864V |
