Residential Low-Voltage & Stackable Battery

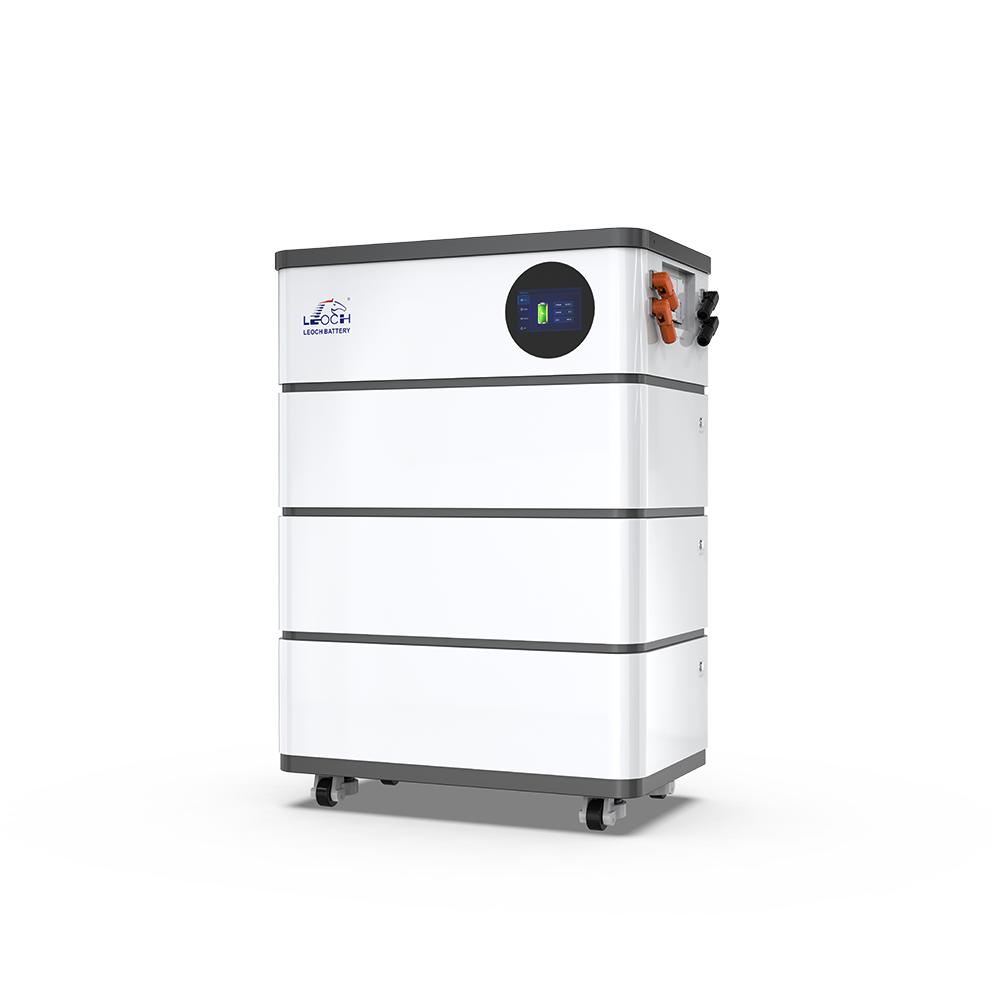

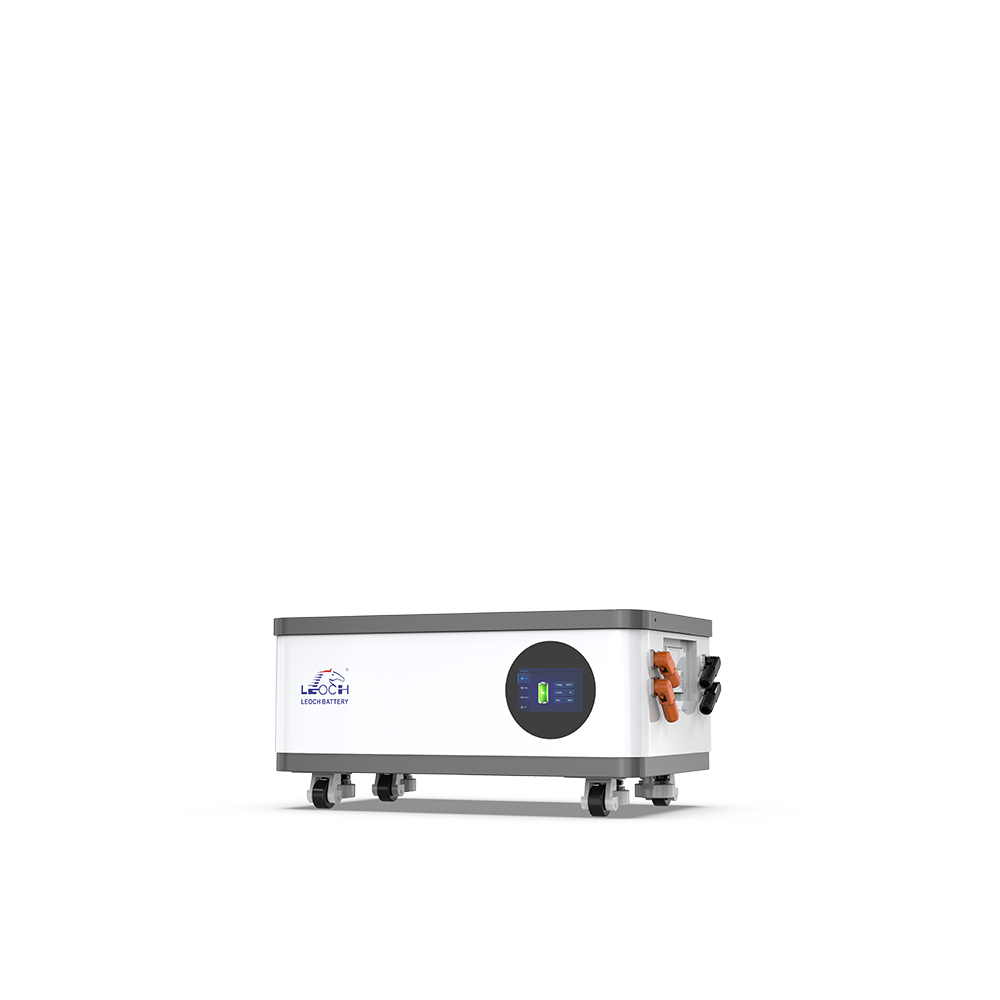

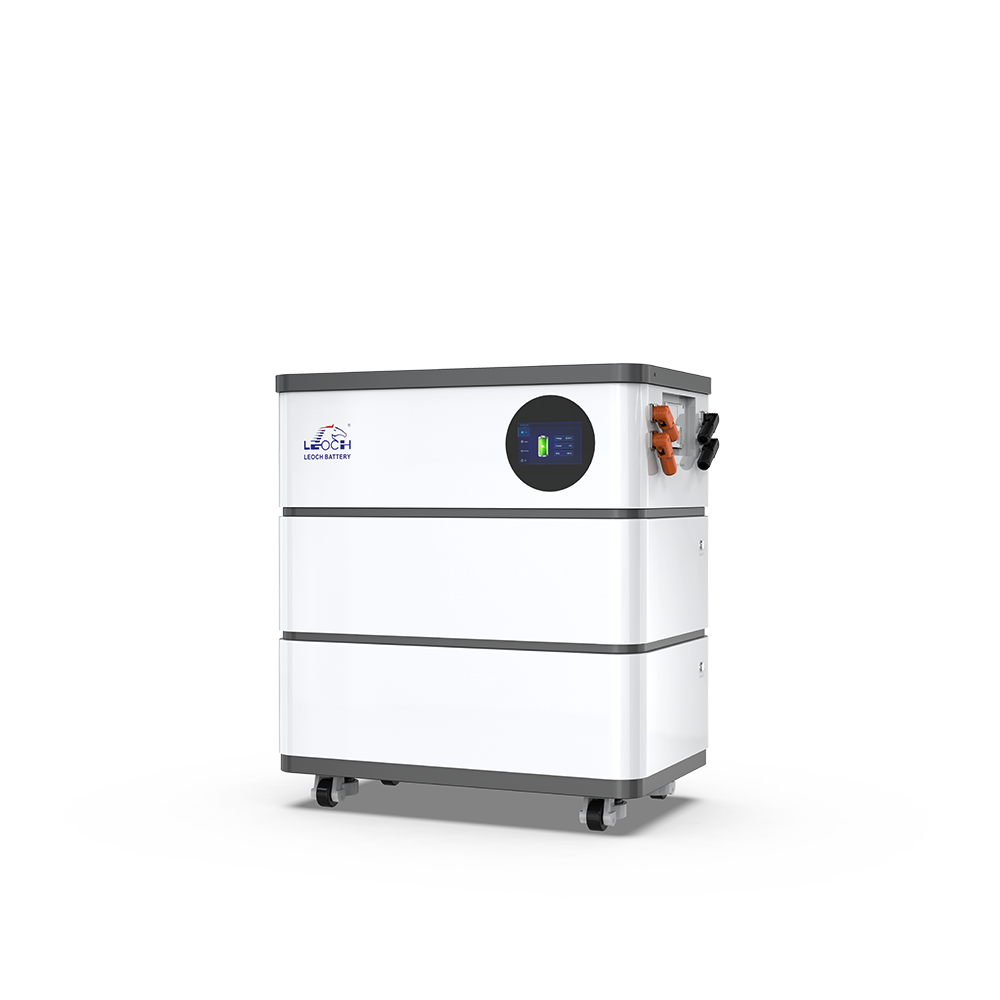

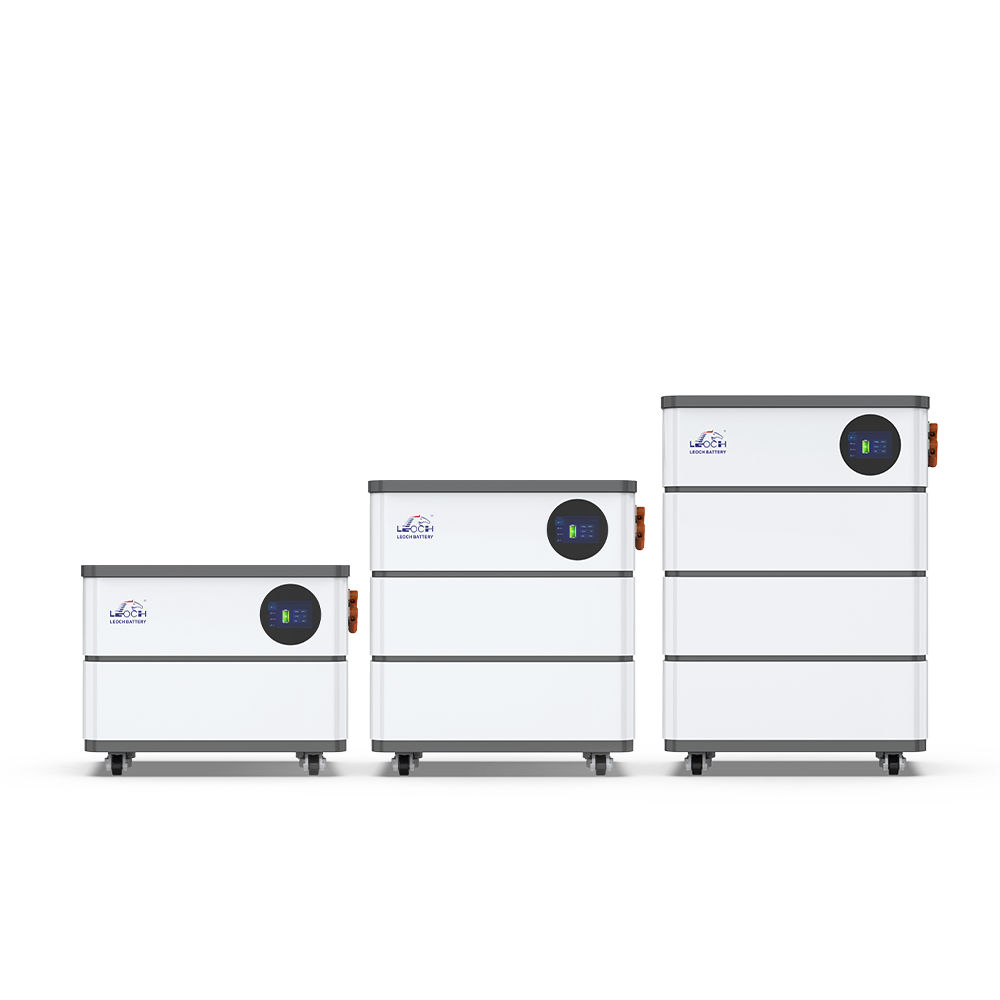

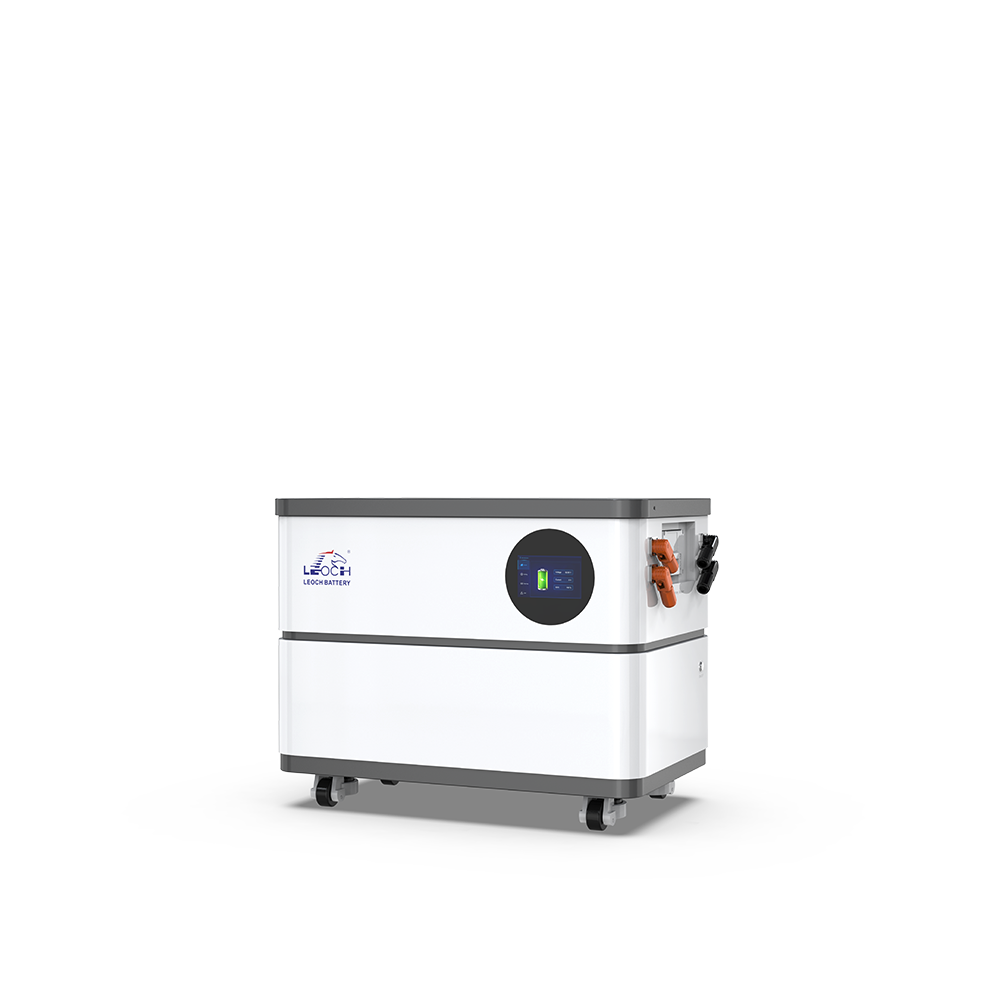

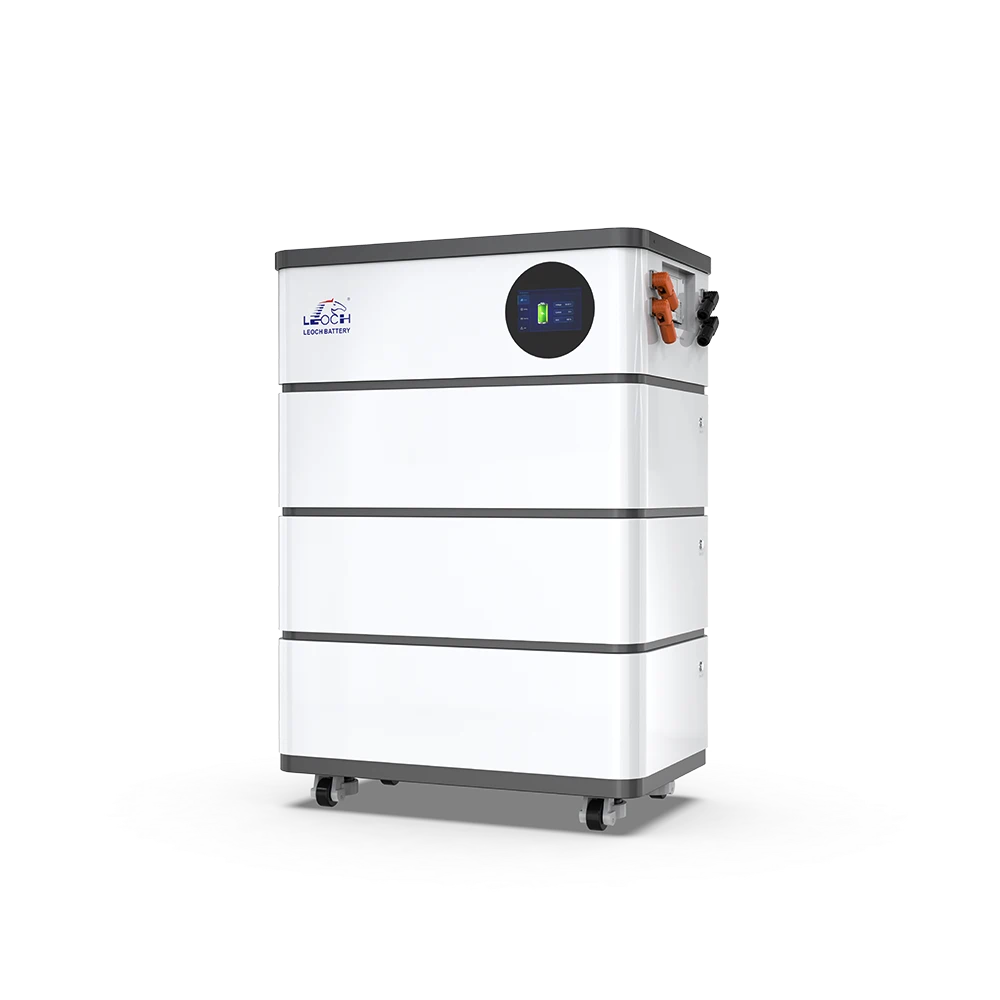

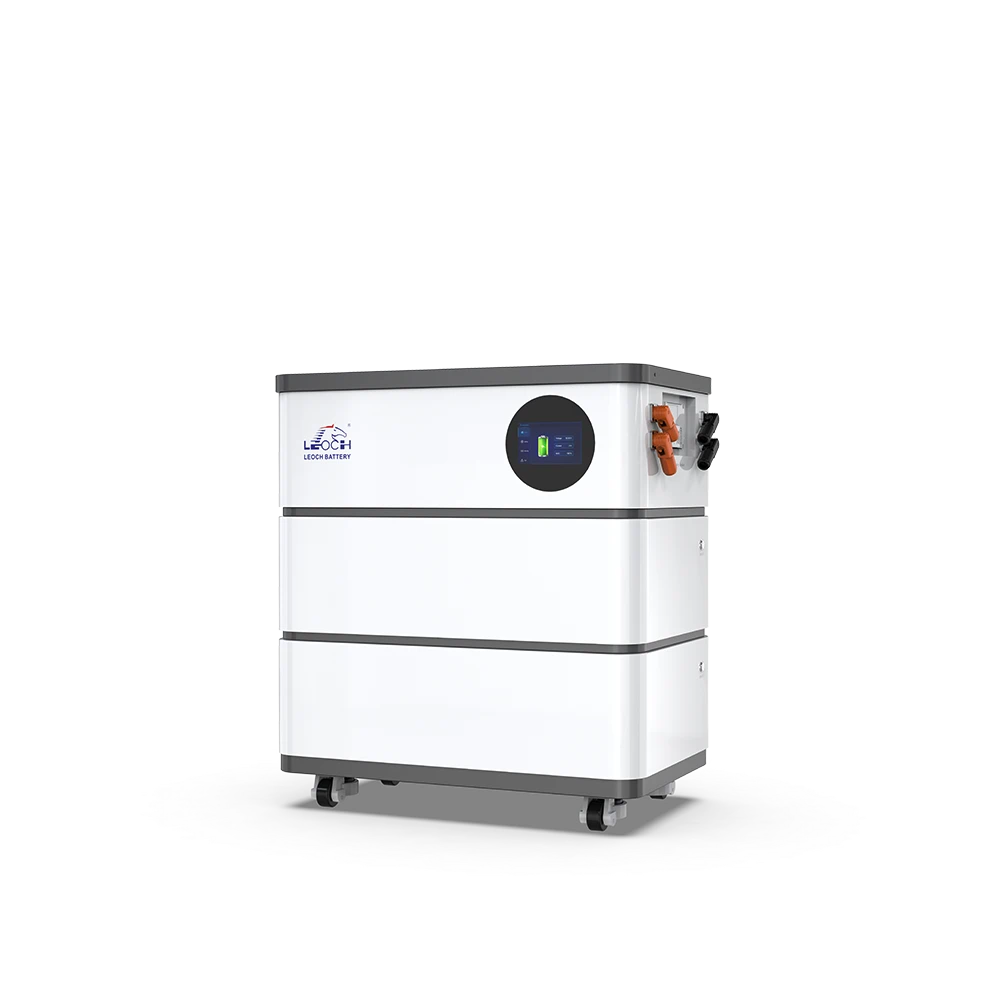

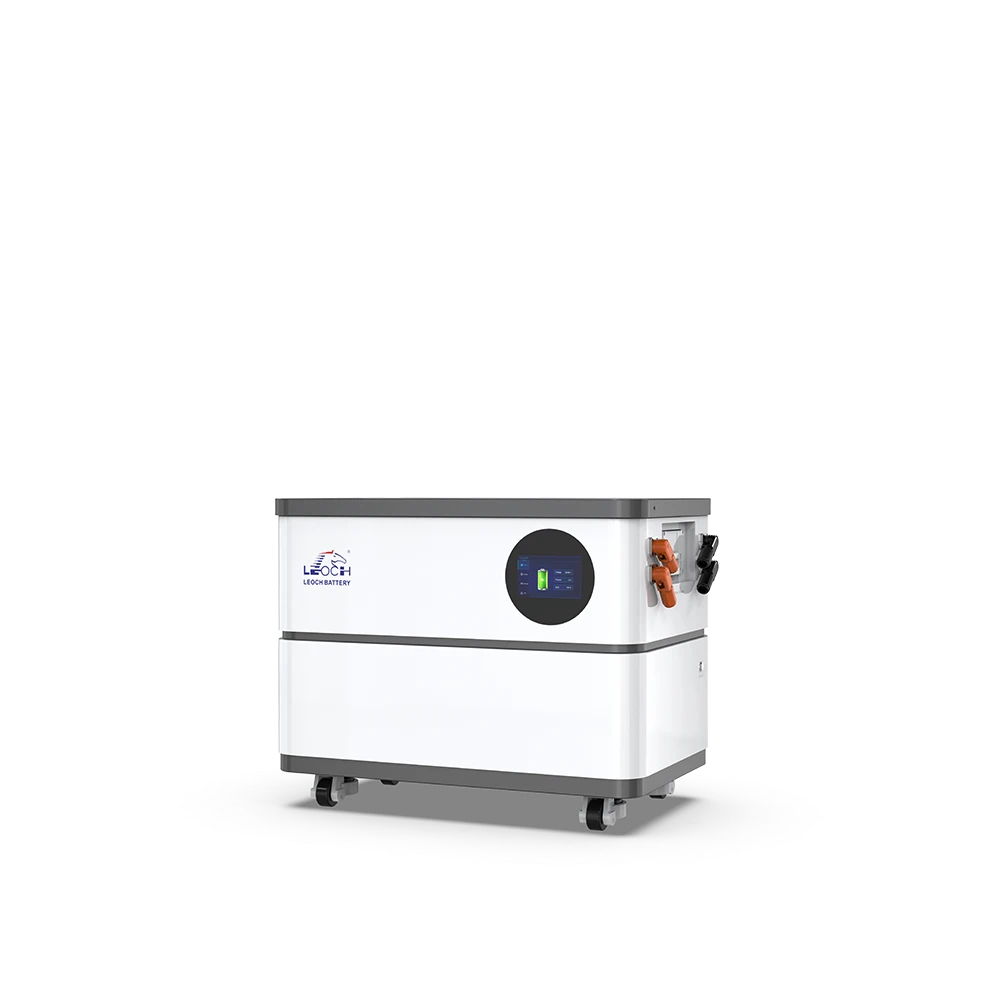

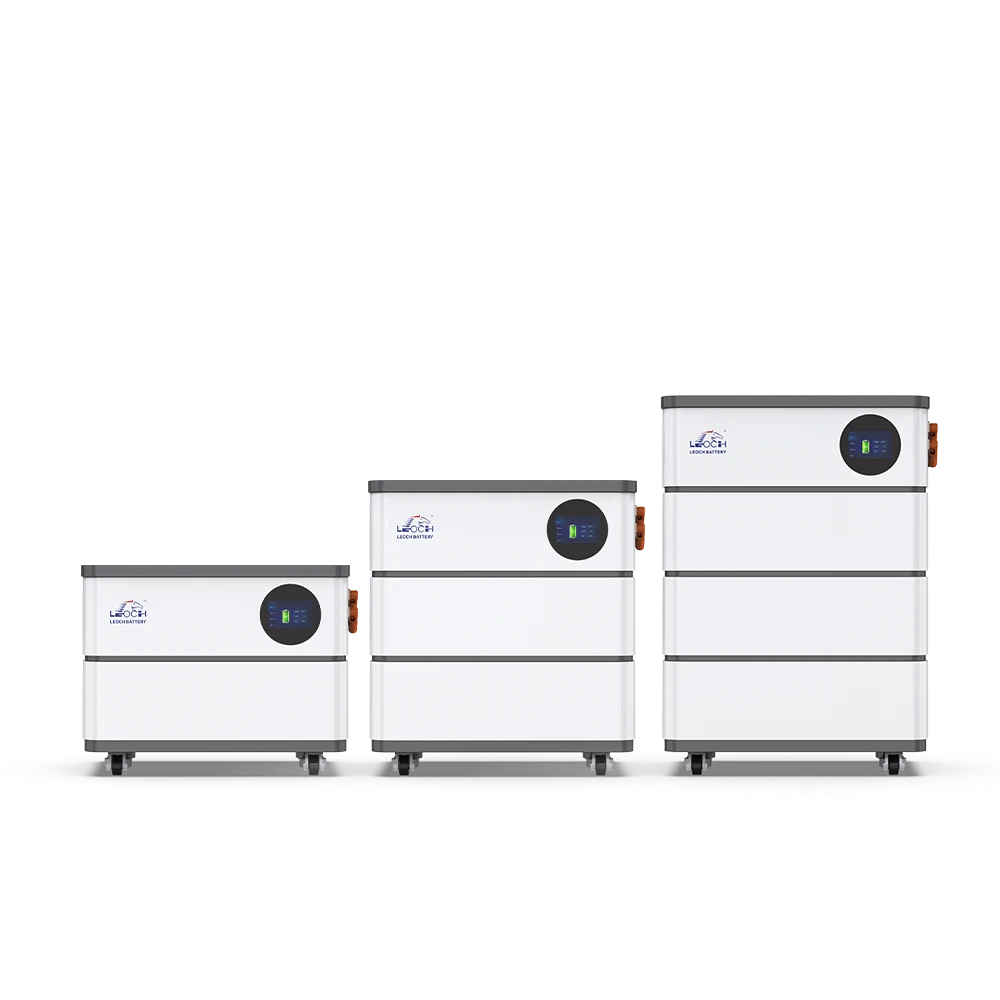

Low voltage stackable energy storage battery adopts modular stacked structure with standard 51.2V low voltage system. Single modules can be stacked vertically to assemble complete energy storage cabinet flexibly without rack or wall installation. Standard module options: 5.12kWh(100Ah), combined capacity ranges from 10kWh up to 30kWh. Widely used for large luxury home storage, C&I PV system, off-grid solar plant and peak-valley arbitrage projects, hot-sale product for global energy storage market.
Key Features
-
Modular Stackable Structure
Standard single module design, vertical snap stacking, capacity increased by adding modules step by step to cut initial investment.
-
Flexible capacity expansion, 5kWh-30kWh
-
Supports both off-grid and grid-tied applications
-
Low-voltage solution with lower energy consumption and higher system efficiency
-
LiFePO4 battery cells ensure high safety and long cycle life
Parameter List
Swipe View
| Model | Nominal Voltage(V) | Capacity(Ah) | Energy(kWh) | Dimensions(mm) | Weight(kg) |

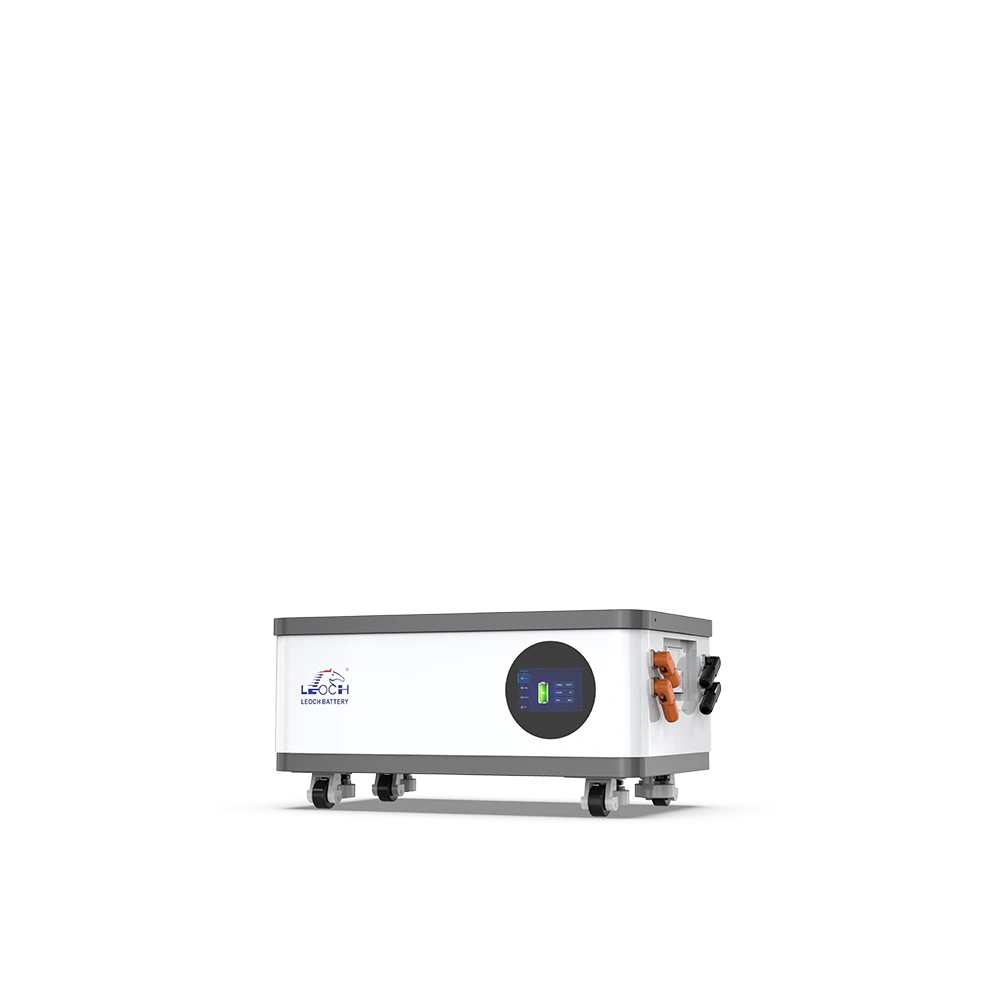

| SOL-51.2/100-L | 51.2 | 100 | 5.12 | 680*429*215 | 50 |
| SOL-5L-B | 51.2 | 100 | 5.12 | 680*429*320 | 65 |
| SOL-10L-B | 51.2 | 200 | 10.24 | 680*429*540 | 115 |
| SOL-15L-B | 51.2 | 300 | 15.36 | 680*429*750 | 165 |
| SOL-20L-B | 51.2 | 400 | 20.48 | 680*429*960 | 225 |
