Residential Rack-Mounted Battery

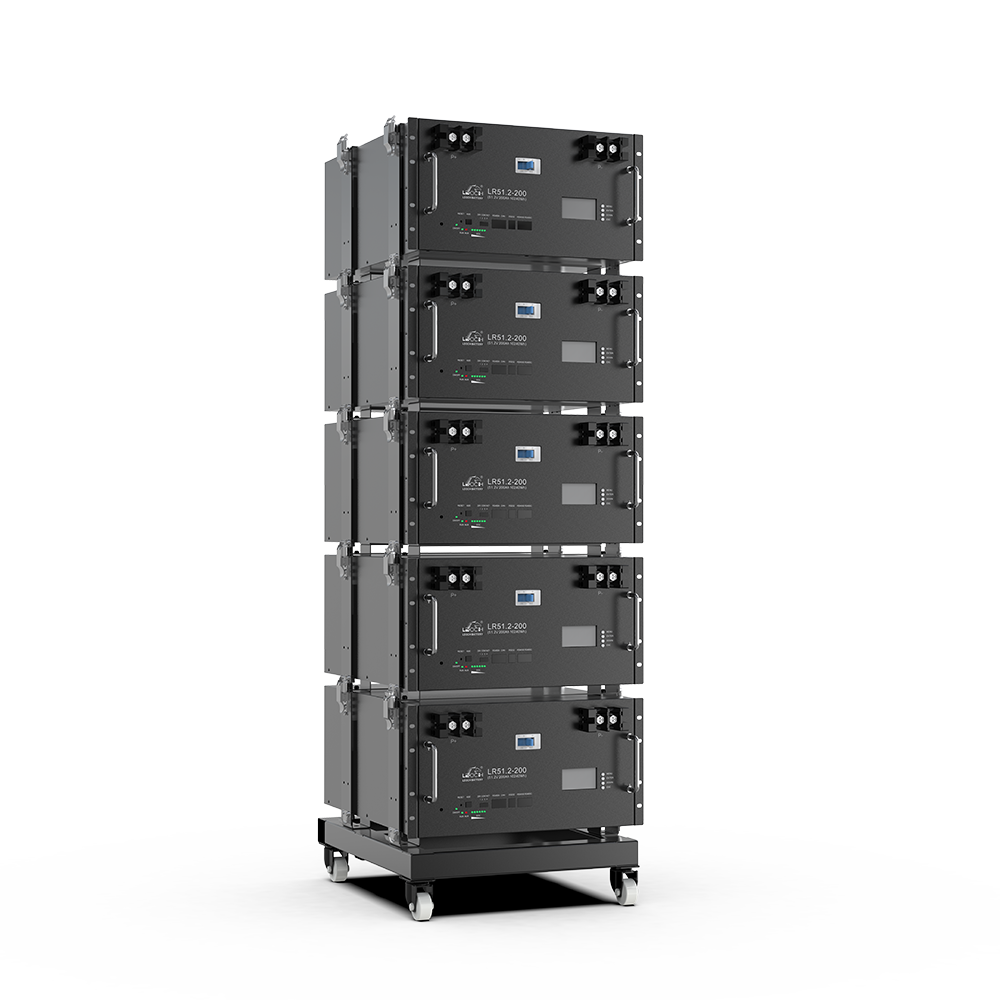

Our rack-mounted LiFePO4 battery adopts standard 19-inch rack dimension (3U/4U height), modular drawer design with 25.6V/51.2V low voltage platform & Grade-A LiFePO4 cells. Widely used for commercial & industrial solar storage, data center UPS, telecom base station, large villa energy storage. Main models:2.56kWh(25.6V100Ah) 5.12kWh(51.2V100Ah),10.24kWh(51.2V200Ah), max 15 units parallel for system capacity expansion, the core module of container & cabinet energy storage project.
Applications:

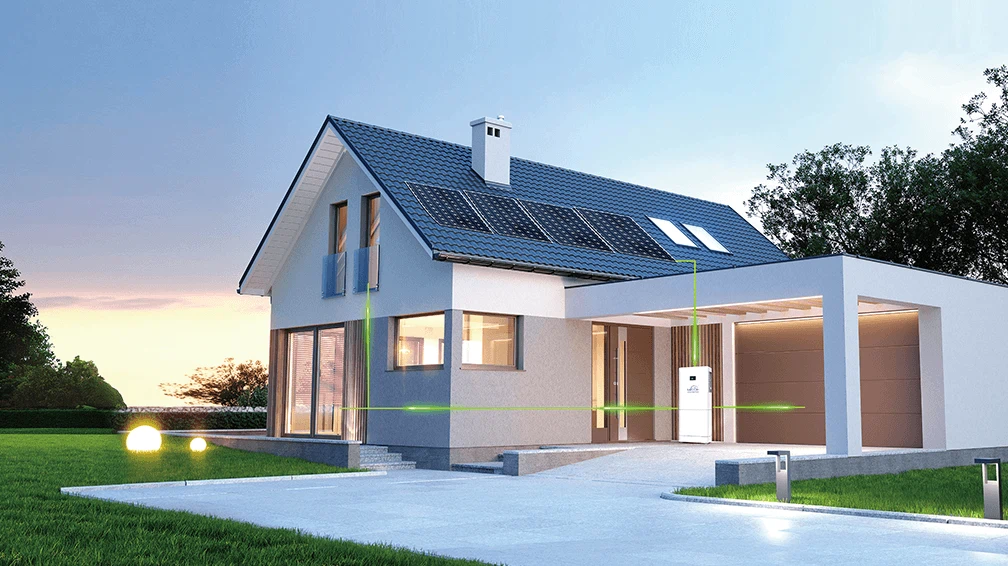

Household Energy Storage
PV Off-Grid Backup
Island Backup Power
Key Features
-
Standard 19-inch Rack Size
Standard 3U/4U cabinet dimension, directly slide into universal server rack for neat centralized installation.
-
Utilizes LiFePO₄ battery cells for enhanced safety and extended lifecycle
-
Supports up to 1C charge/discharge rates
-
User-friendly human-machine interface (HMI)
-
Compatible with multiple brands of inverters simultaneously
Parameter List
| Model | Nominal Voltage(V) | Capacity(Ah) | Energy(kWh) | Height(1U=44.45mm) | Dimensions(mm) | Weight (Kg) |

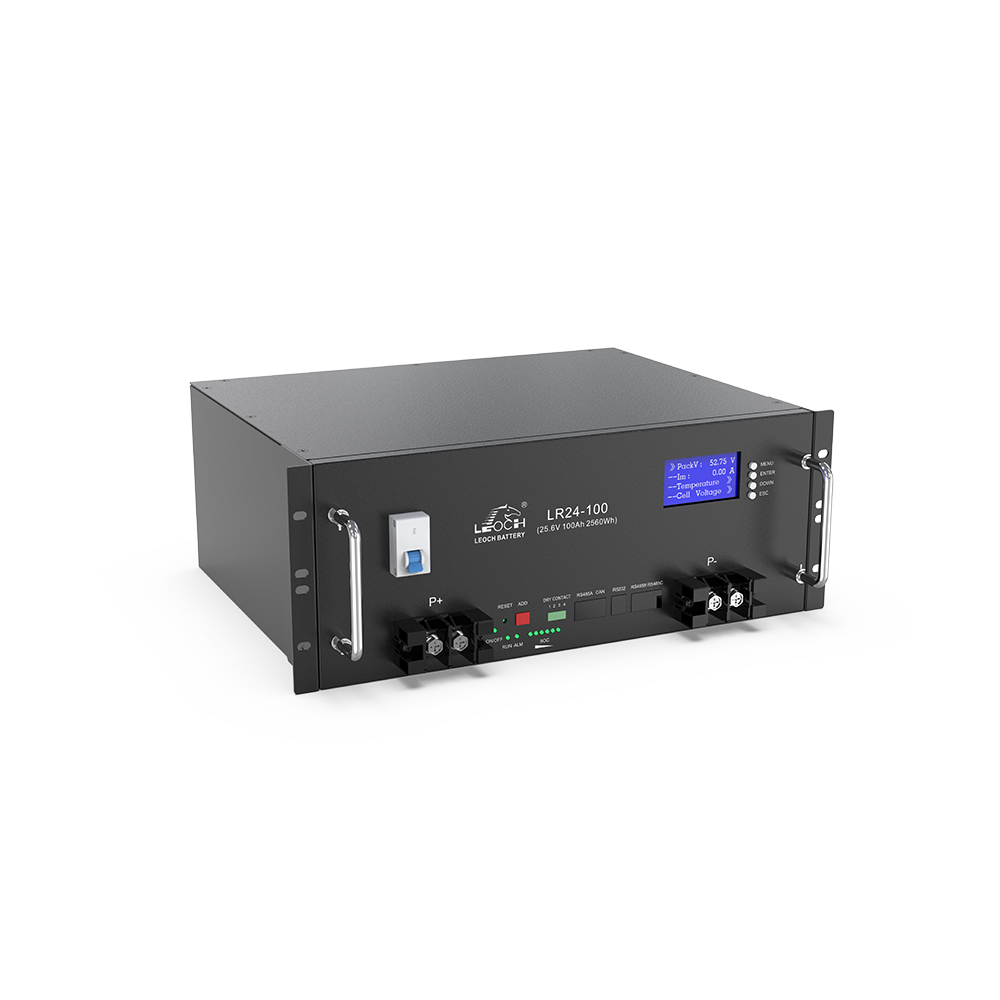

| LR24-100 | 25.6 | 100 | 2.56 | 4U | 442*350*177 | 26 |

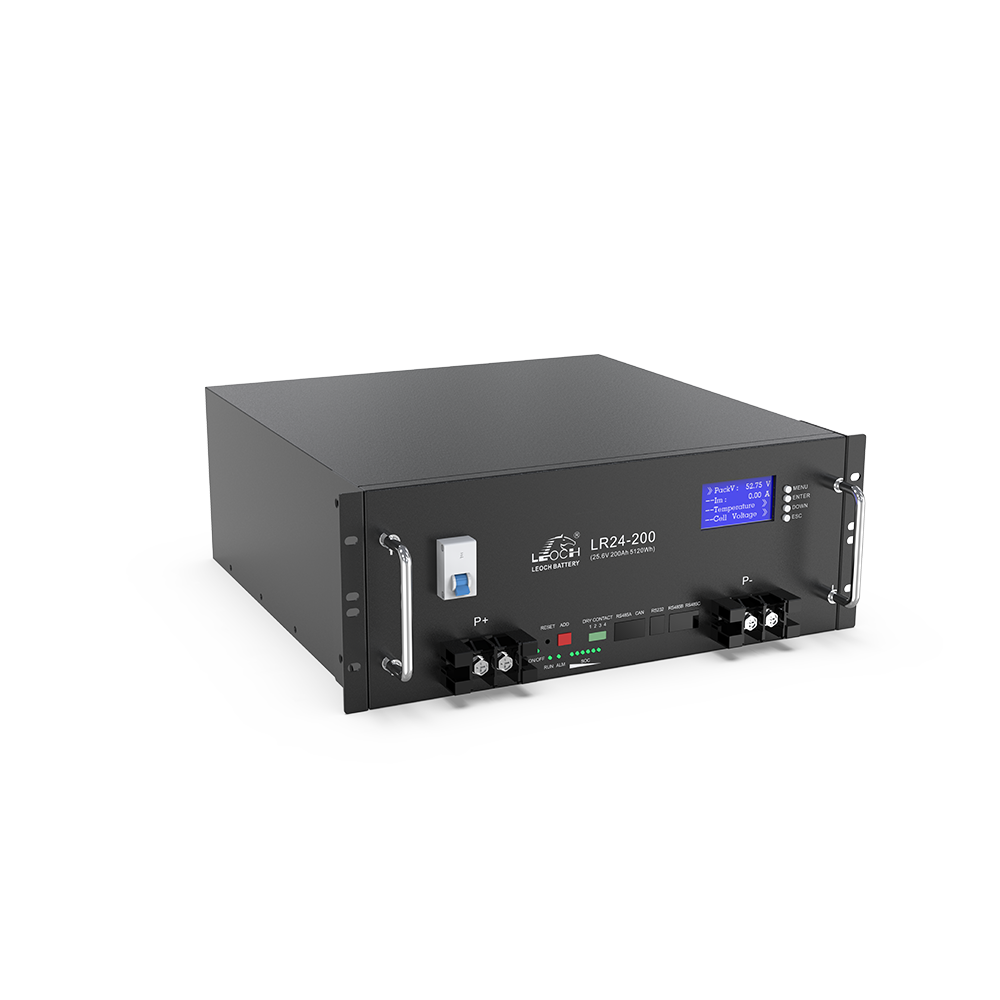

| LR24-200 | 25.6 | 200 | 5.12 | 4U | 442*450*177 | 43 |

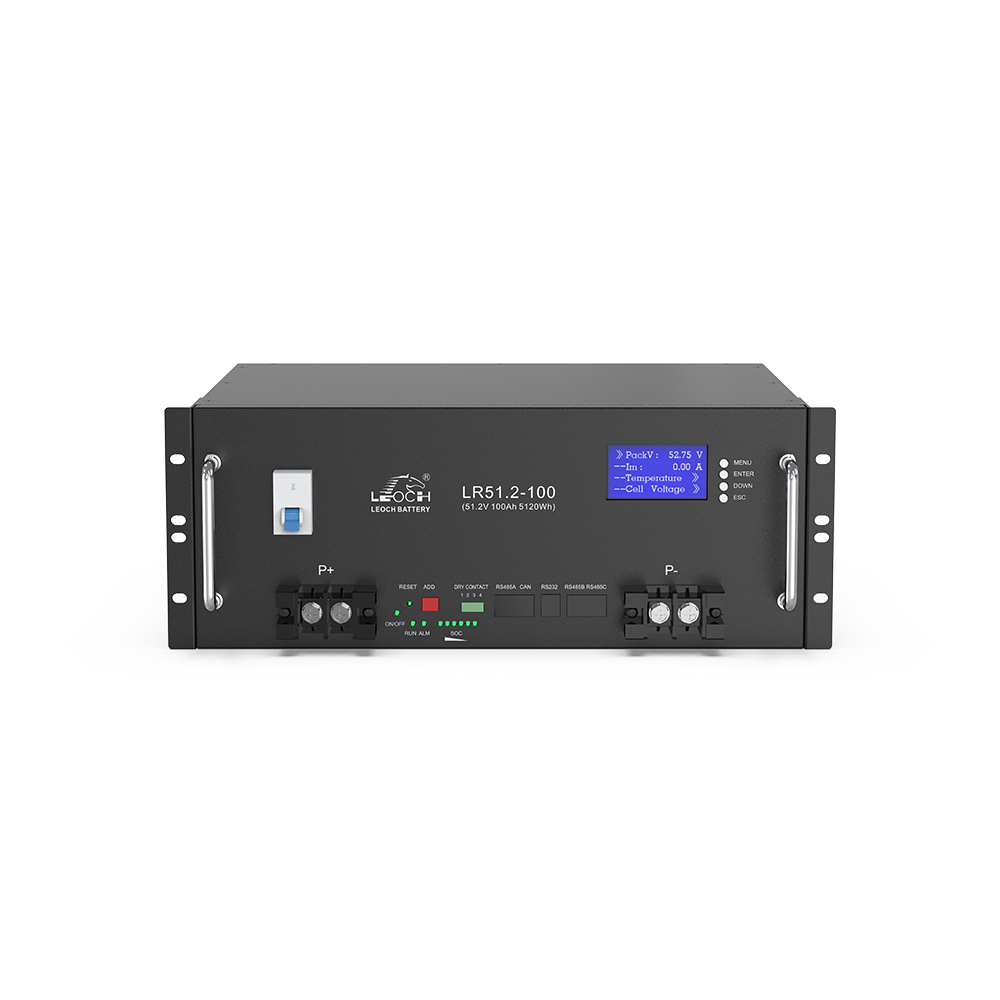

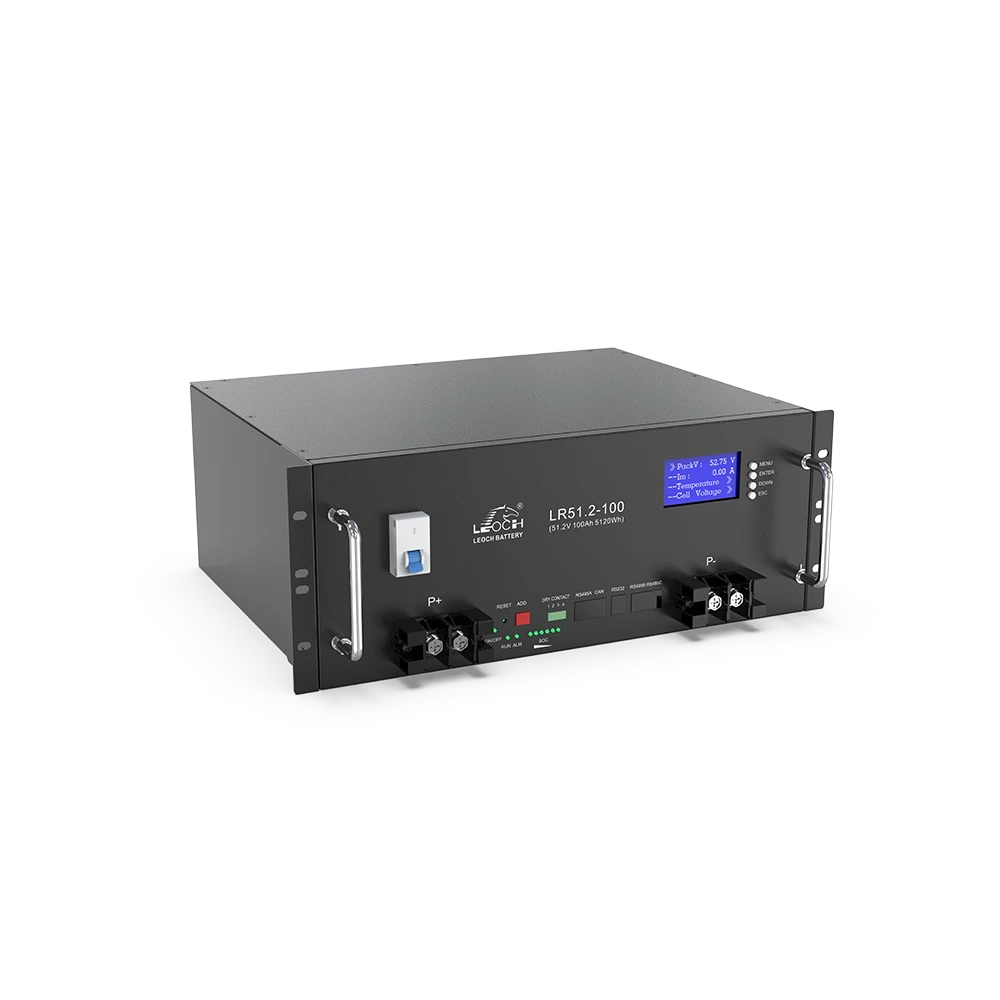

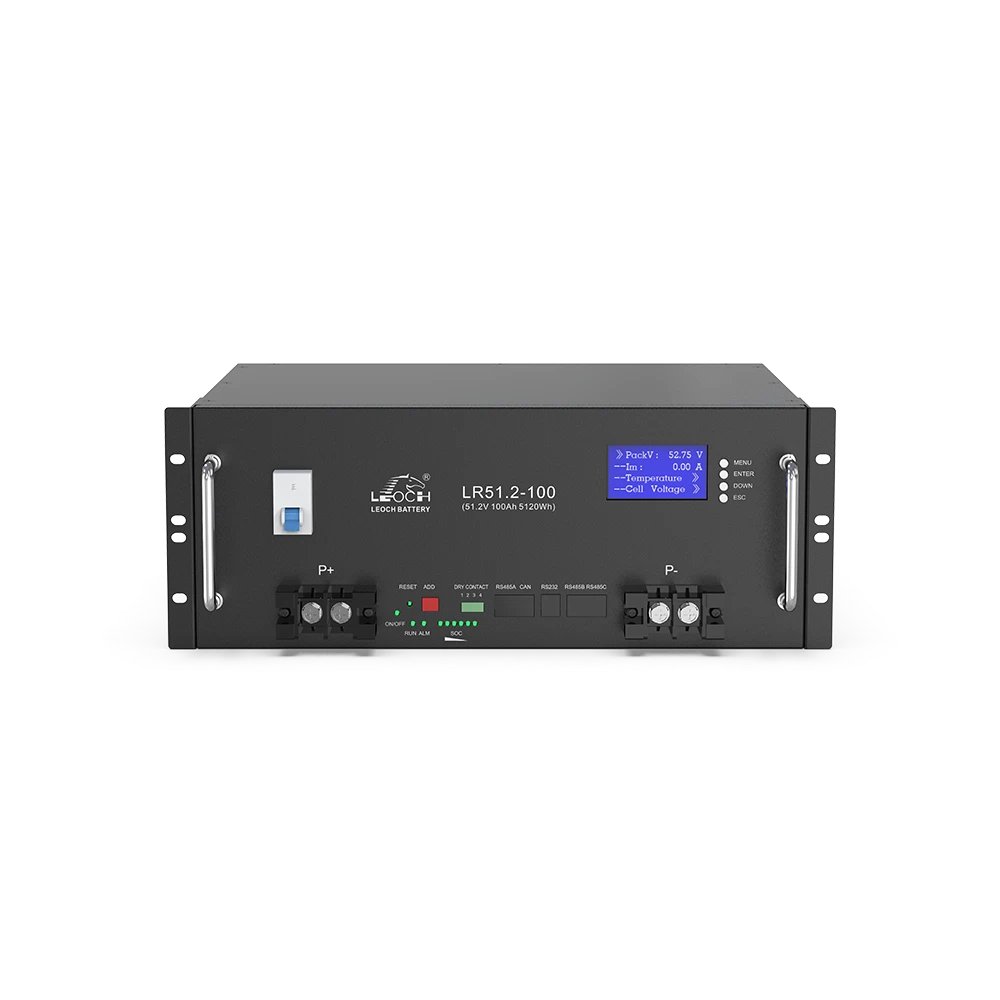

| LR51.2-100 | 51.2 | 100 | 5.12 | 4U | 442*431*177 | 43 |
| LR51.2-100 | 51.2 | 100 | 5.12 | 3U | 442*460*133 | 43 |

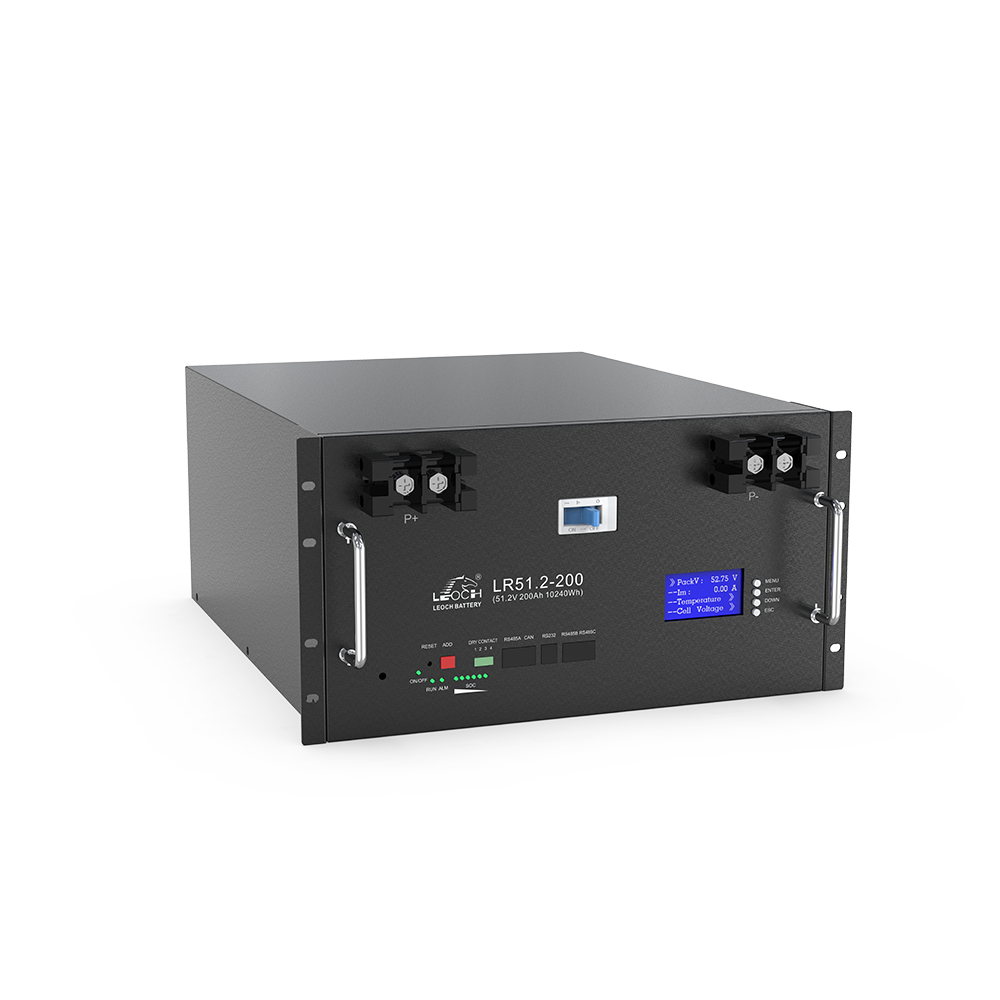

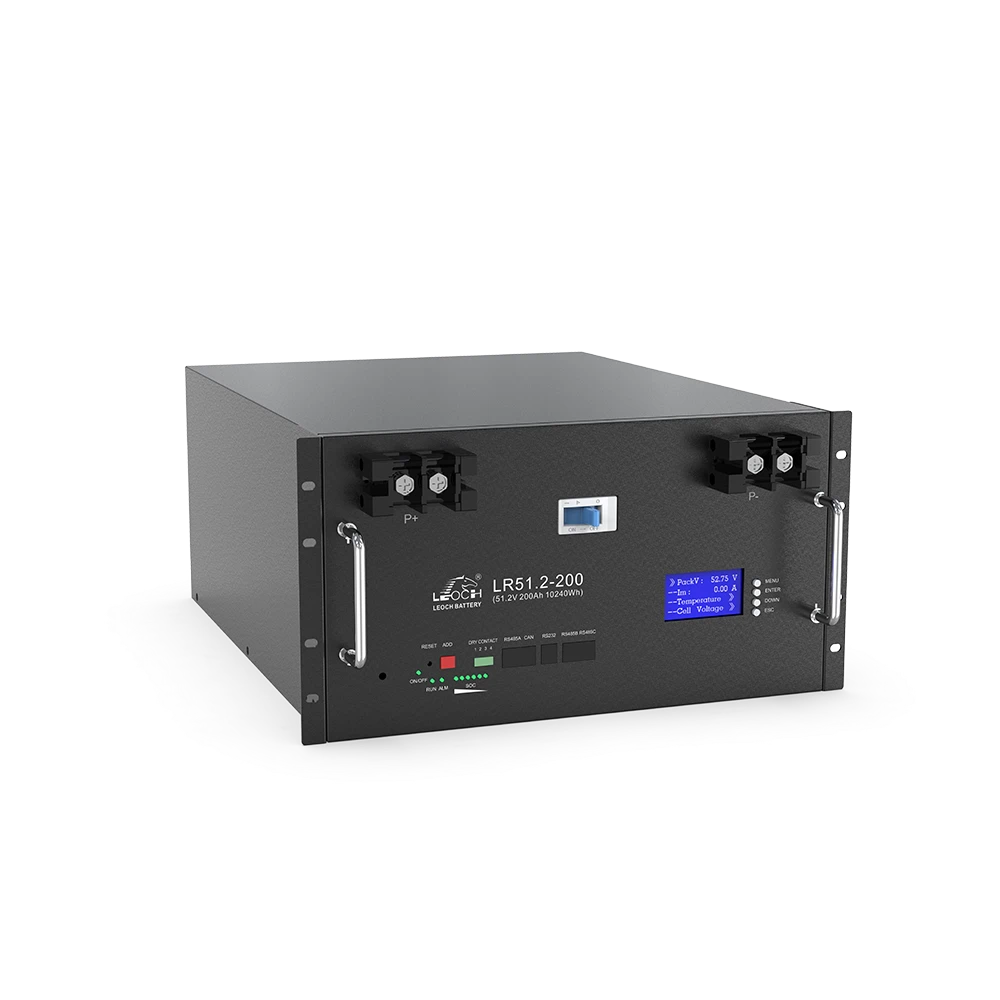

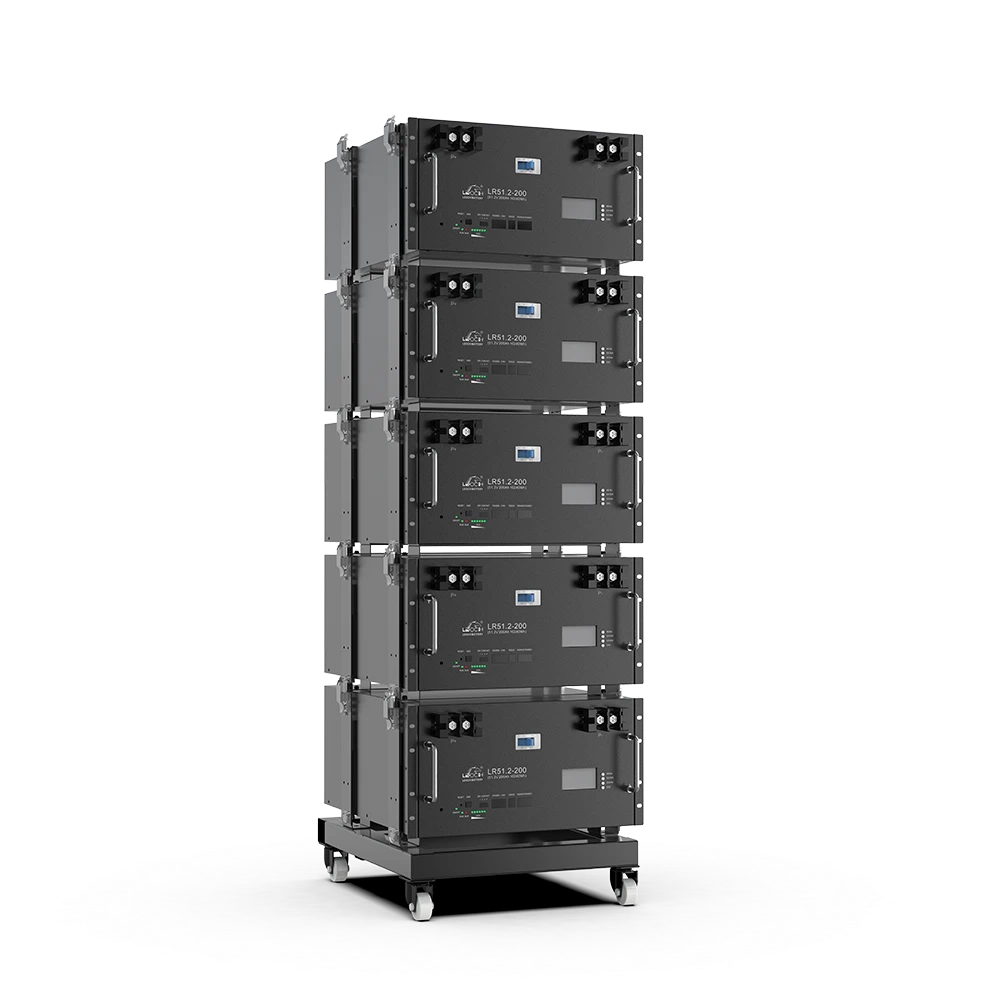

| LR51.2-200 | 51.2 | 200 | 10.24 | 5.5U | 442*550*244 | 82 |
