Residential Low-Voltage & Stackable All-in-One System

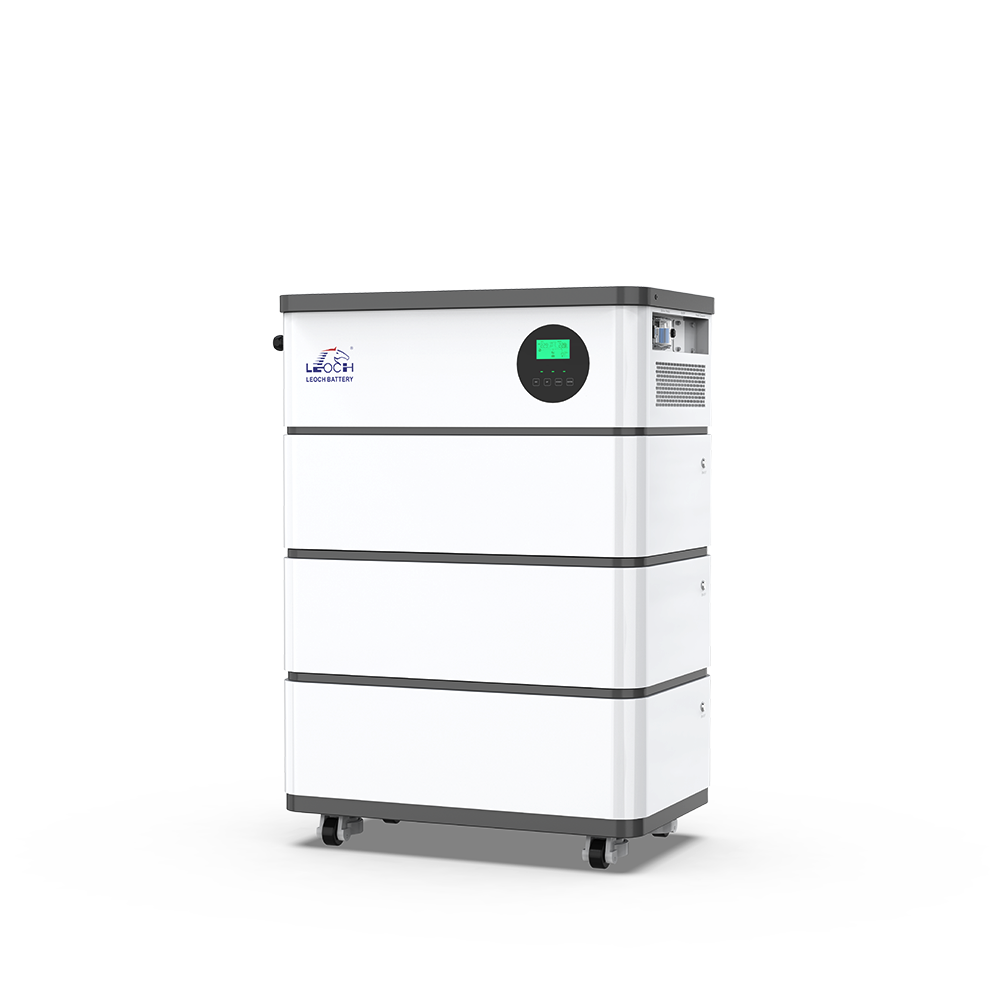

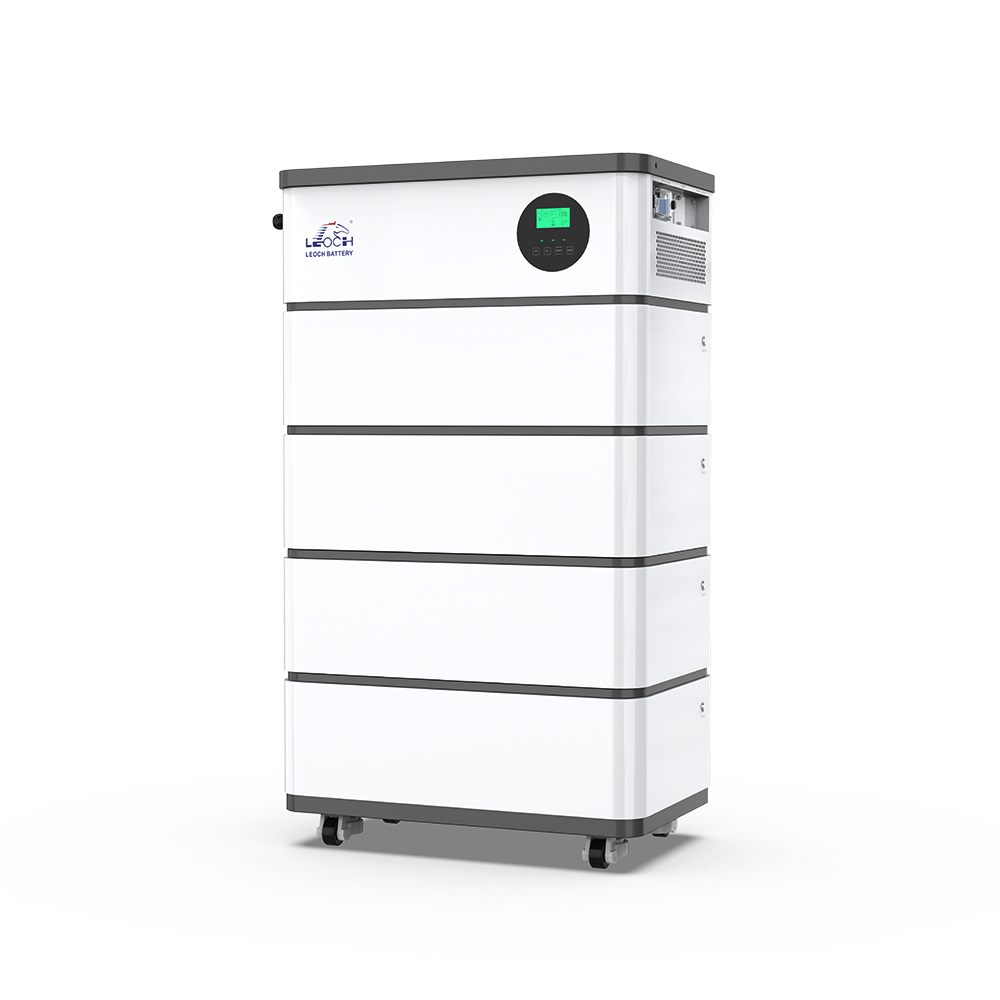

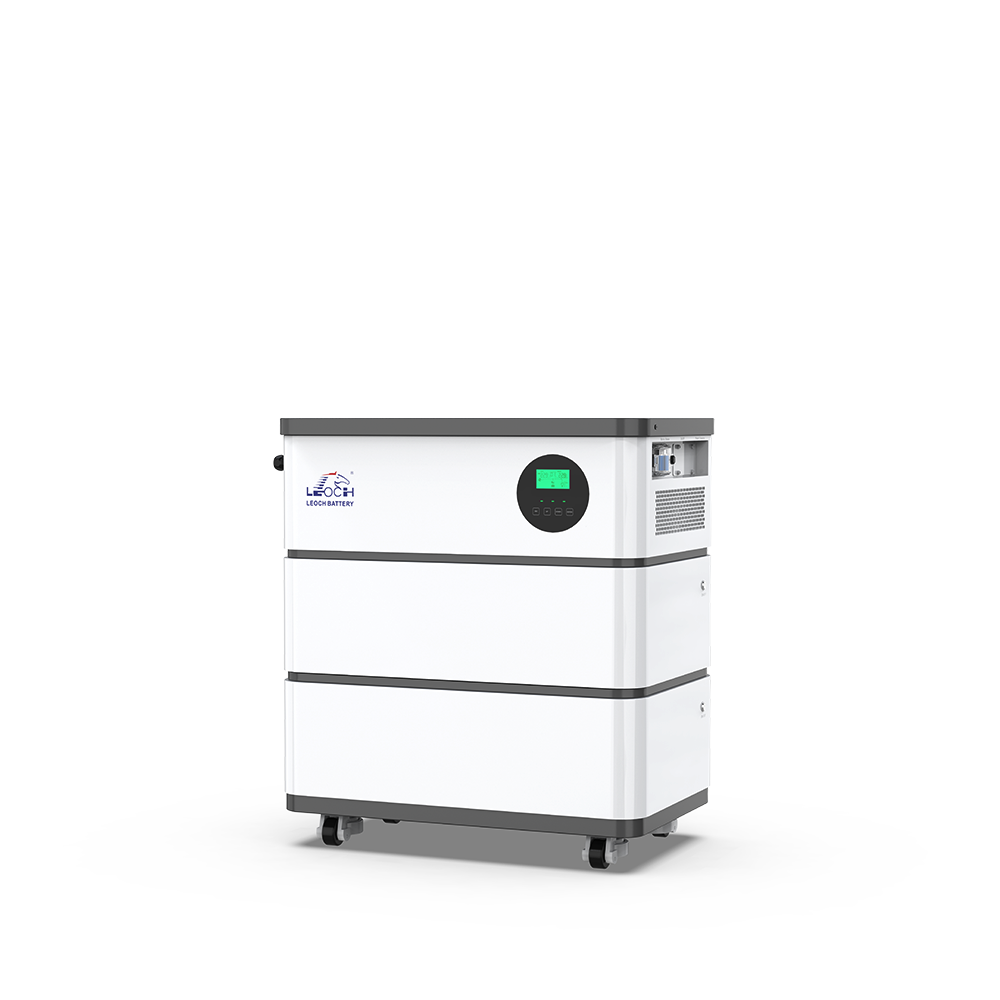

This 51.2V low voltage stackable all-in-one battery integrates LiFePO4 cells, hybrid inverter and intelligent BMS in one cabinet. Standard single modules: 5.12kWh(100Ah) with built-in 5.6kW low voltage inverter. No extra inverter or rack cabinet required. Modules stack vertically , expandable from 5.12kWh up to 30kWh by adding modules. Widely used for European & American residential villa storage, small commercial PV system and off-grid backup power.
Key Features
-
Flexible capacity expansion, 5kWh-30kWh
-
Optimized for self-consumption
-
Supports parallel connection of up to 6 units
-
All-in-one energy storage and inverter design eliminates compatibility concerns
-
LiFePO4 battery cells ensure high safety and long cycle life
-
Stackable design for easy installation and individual maintenance
-
Provides high-power backup discharge and off-grid backup capability
Parameter List
Swipe View

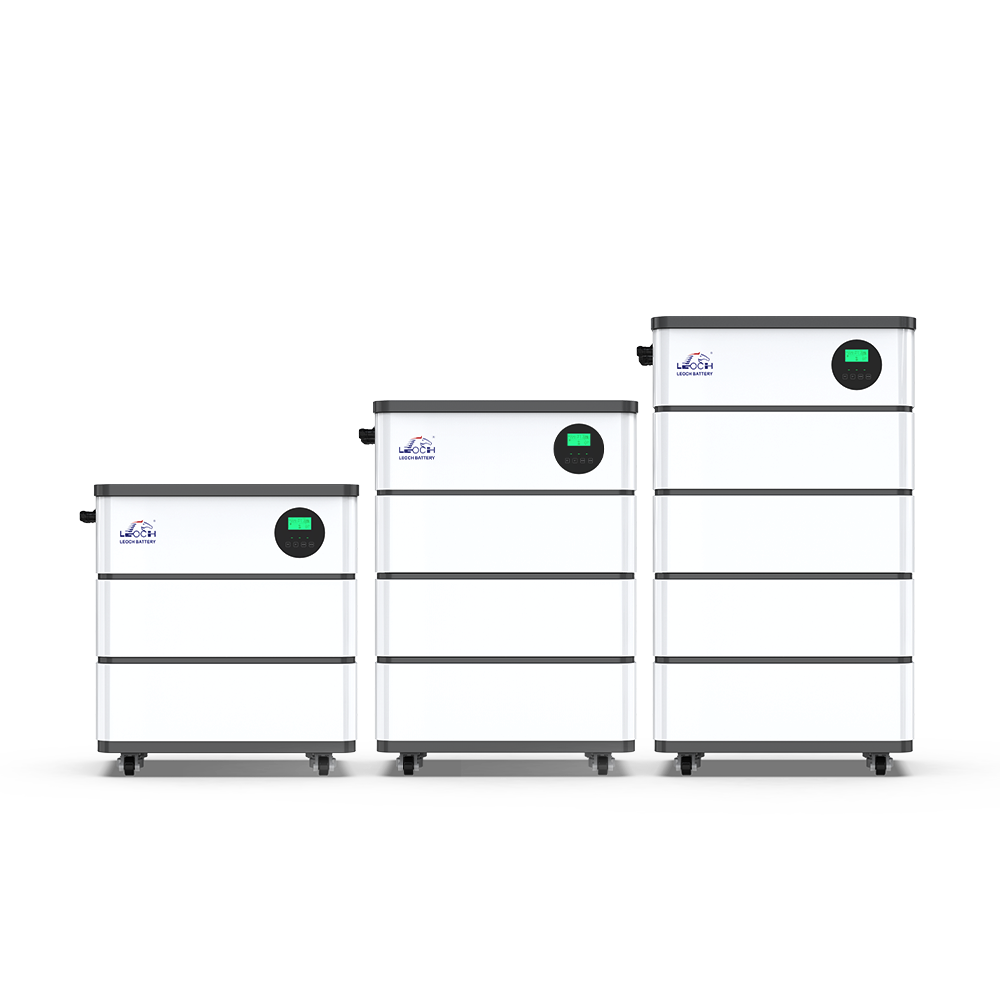

| Model | Nominal Voltage(V) | Capacity(Ah) | Energy(kWh) | Dimensions(mm) | Weight(kg) |
| SOL-10-5.6LS | 51.2 | 200 | 10.24 | 680*429*750 | 135 |
| SOL-15-5.6LS | 51.2 | 300 | 15.36 | 680*429*980 | 185 |
| SOL-20-5.6LS | 51.2 | 400 | 20.48 | 680*429*1185 | 235 |
