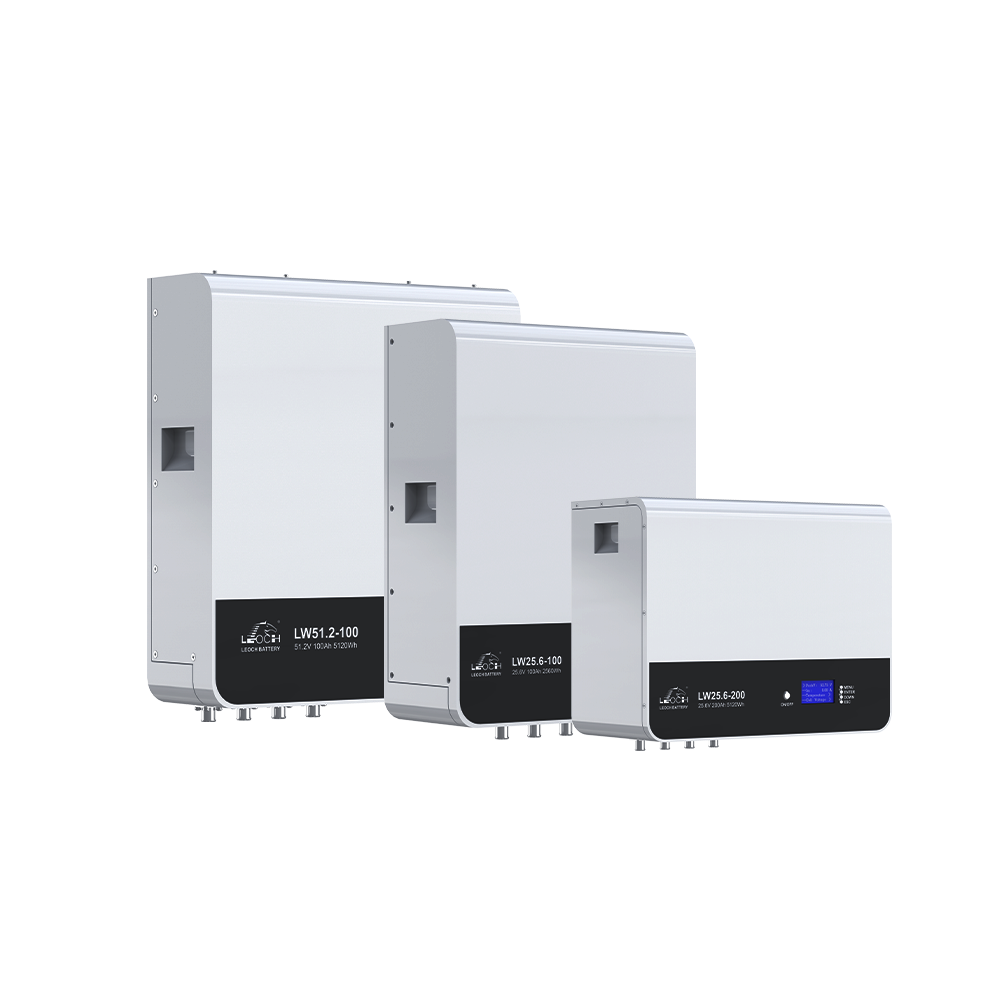

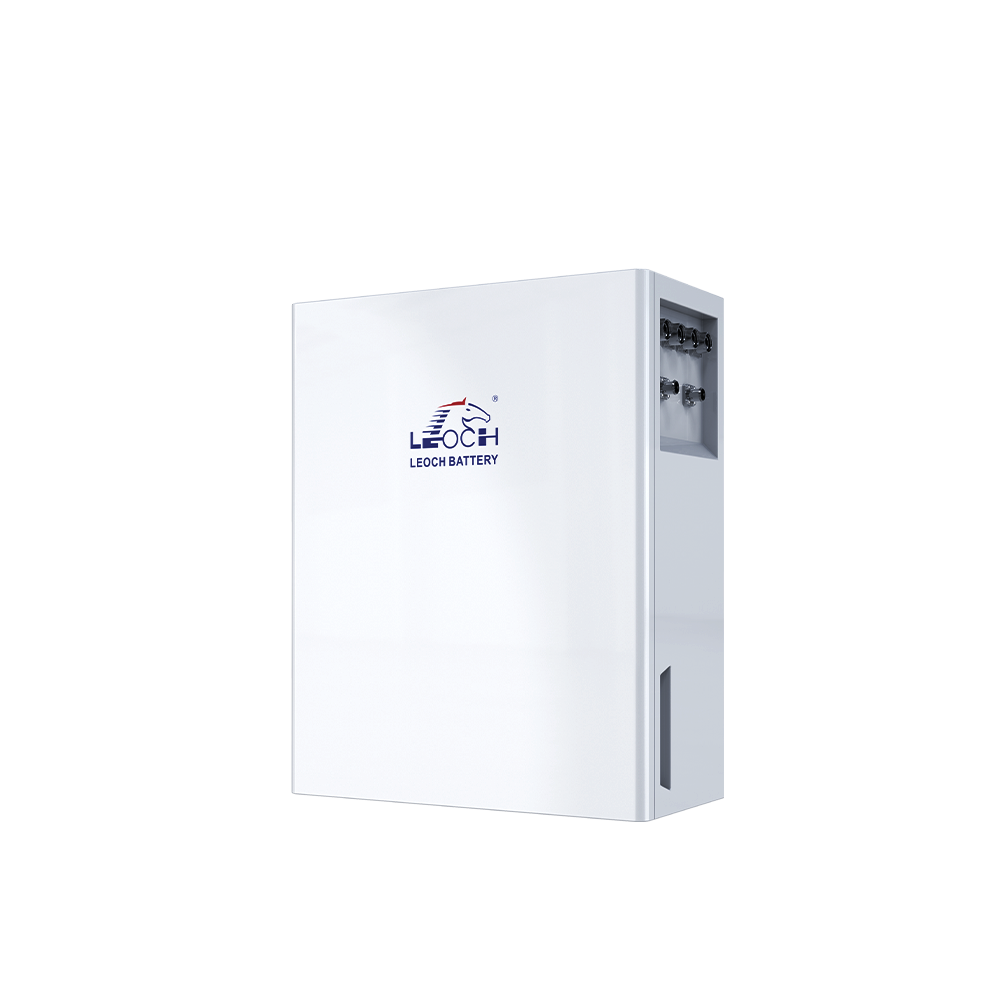

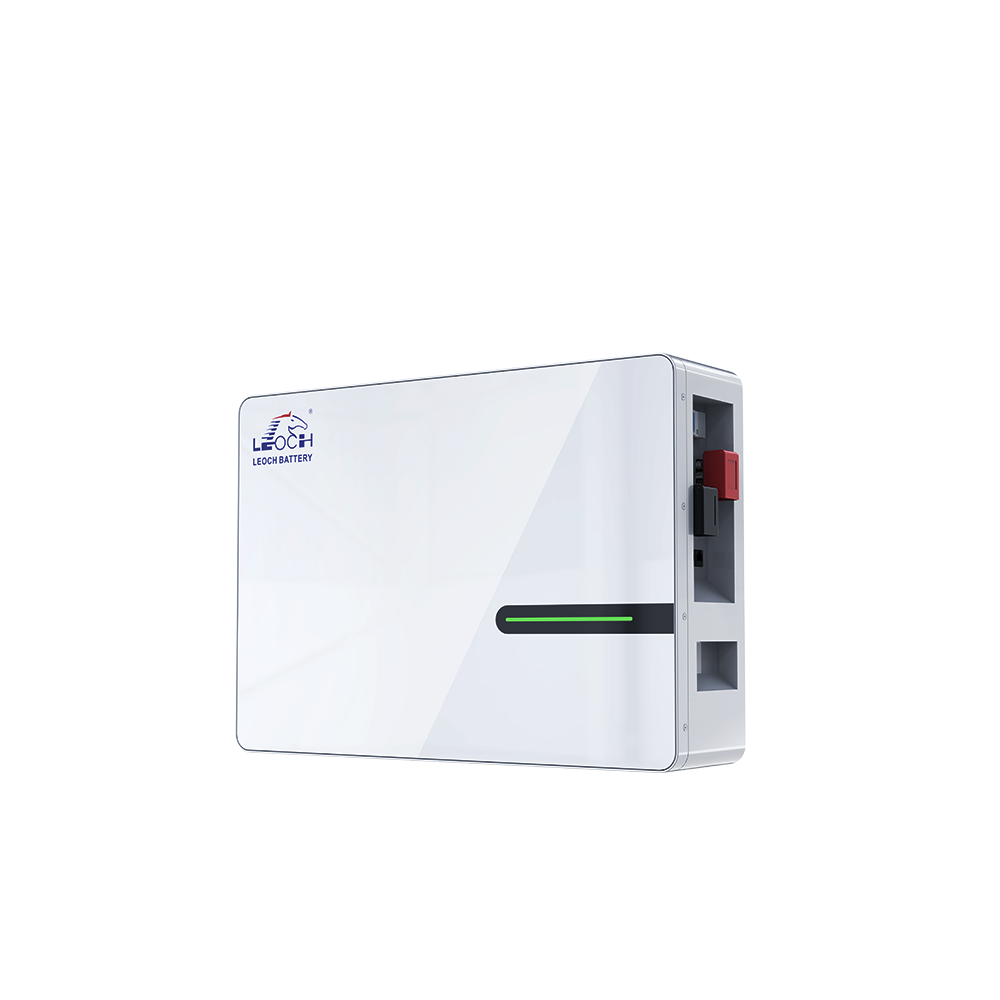

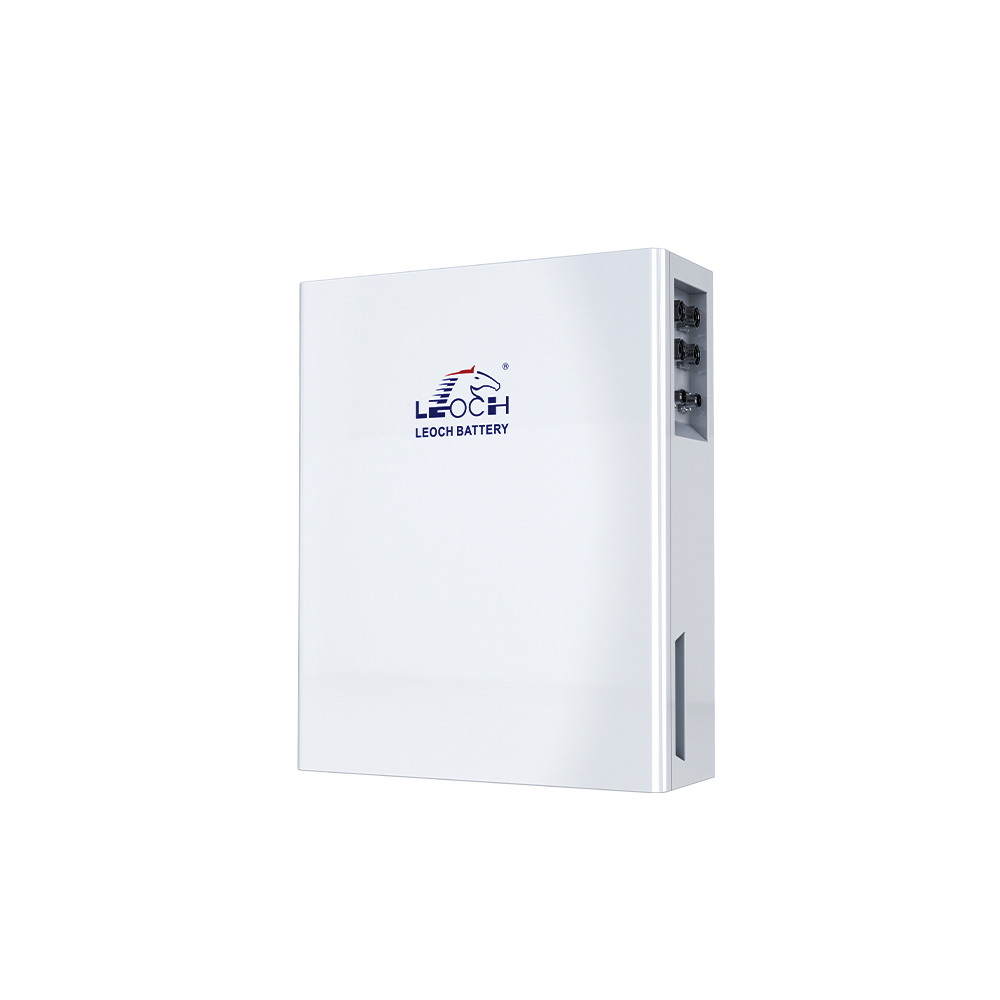

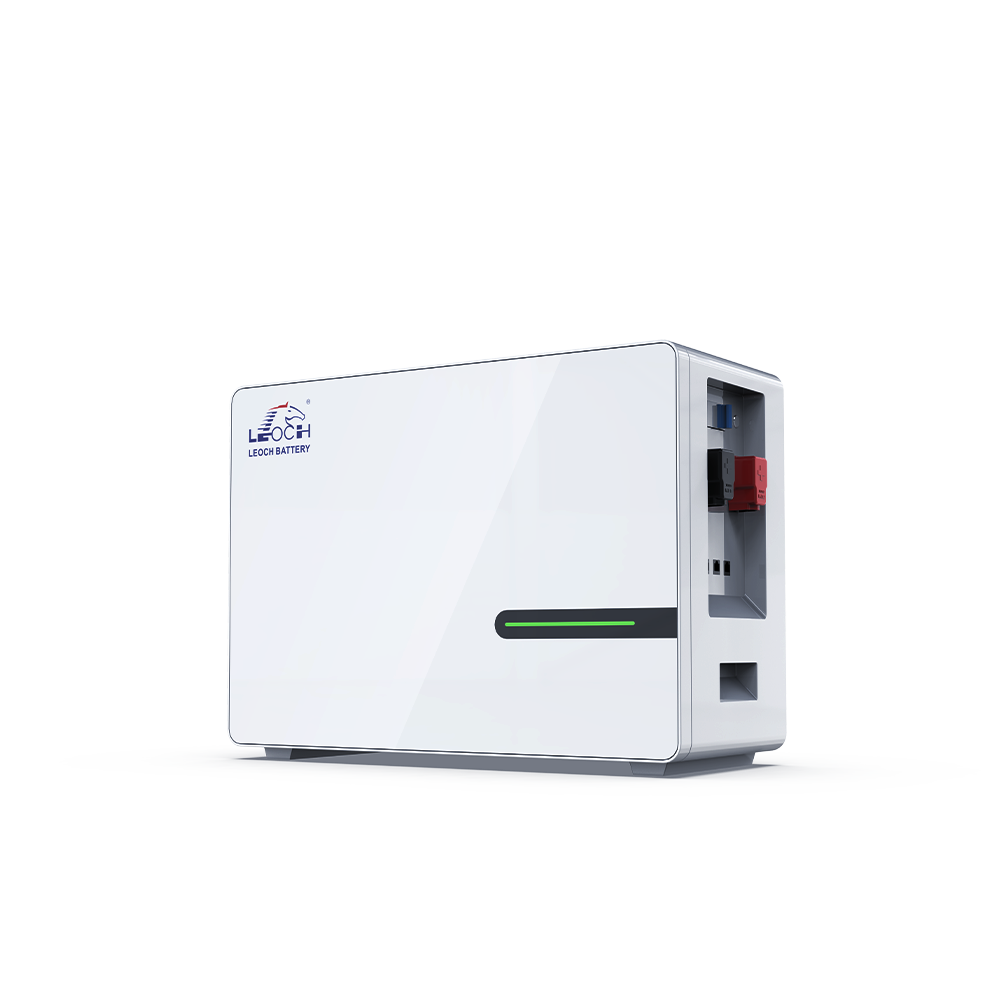

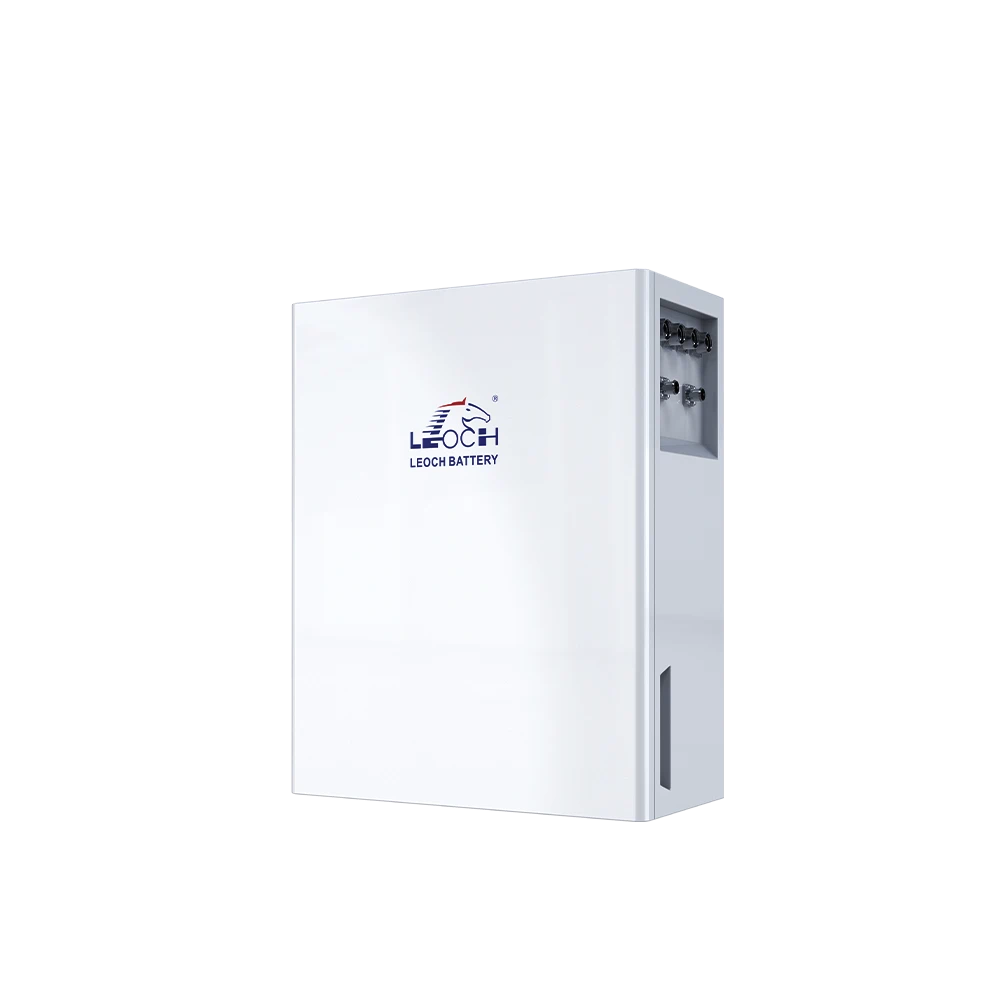

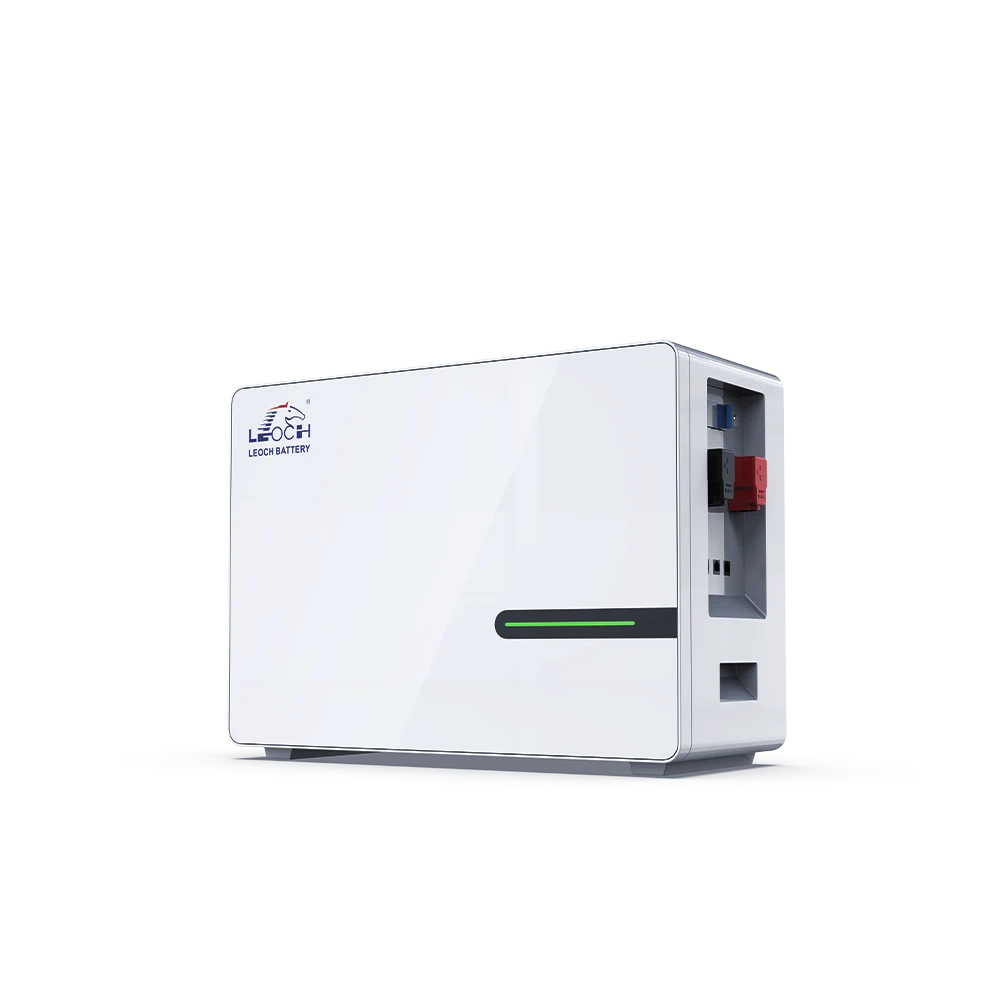

Residential Wall-Mounted Battery
Our 51.2V wall-mounted LiFePO4 battery is mainstream low-voltage home energy storage equipment for residential & small commercial solar systems, available in 2.5kWh(25.6V100Ah), 5kWh(51.2V100Ah),10kWh(51.2V200Ah) three standard capacities. Adopting slim household-style appearance, the unit is fixed on indoor/outdoor wall directly without occupying floor space, perfectly matching hybrid/off-grid solar inverters for PV self-consumption, peak-valley electricity arbitrage and emergency backup power, widely sold to Europe, Southeast Asia, Middle East & Latin America markets.
Applications:
Household Energy Storage
PV Off-Grid Backup
Island Backup Power
Key Features
-
Wall-mounted & Space-saving Design
Ultra-thin wall-mounted structure requires no floor space, fits walls, balconies and utility rooms perfectly, adapting to various home and small commercial space layouts.
-
Utilizes LiFePO₄ battery cells
Enhanced safety and extended life cycle
-
Supports up to 1C charge/discharge rates
-
User-friendly human-machine interface (HMI)
-
Compatible with multiple brands of inverters simultaneously
Parameter List

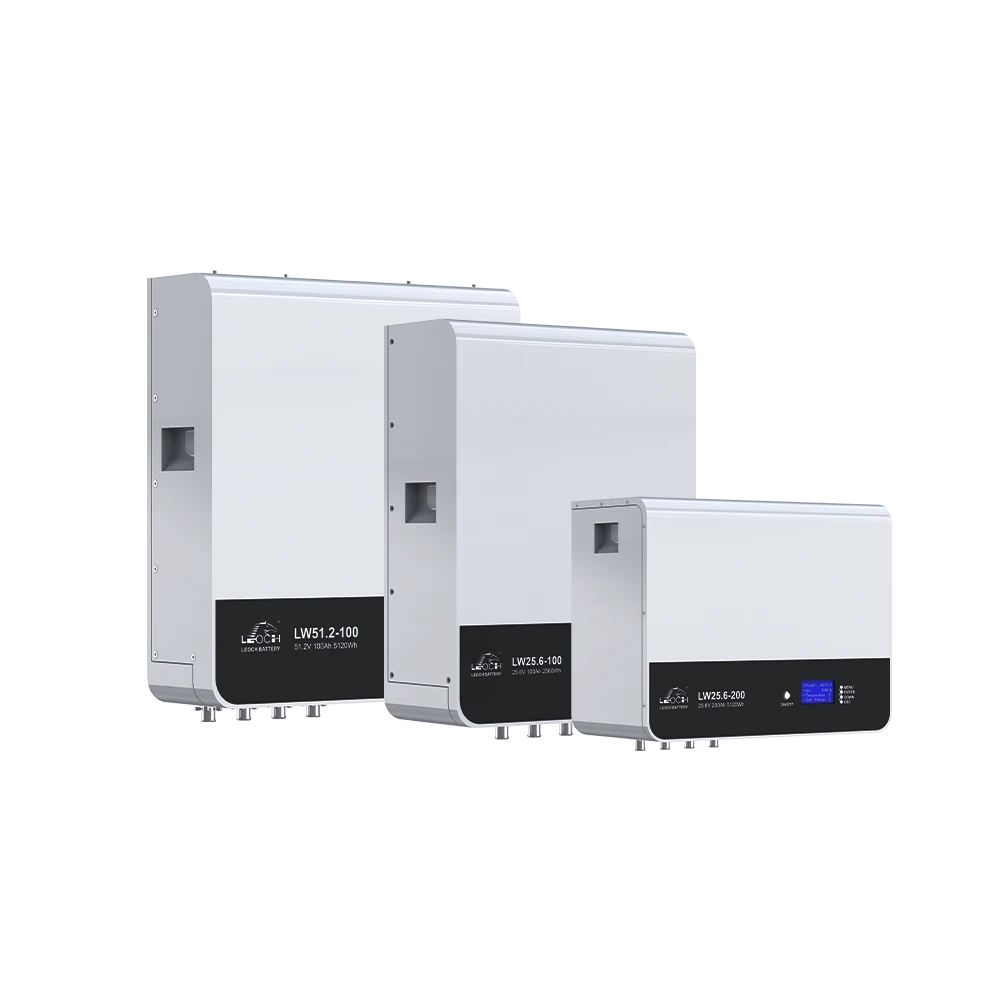

| Model | Nominal Voltage(V) | Capacity(Ah) | Energy(kWh) | Dimensions(mm) | Weight(Kg) |

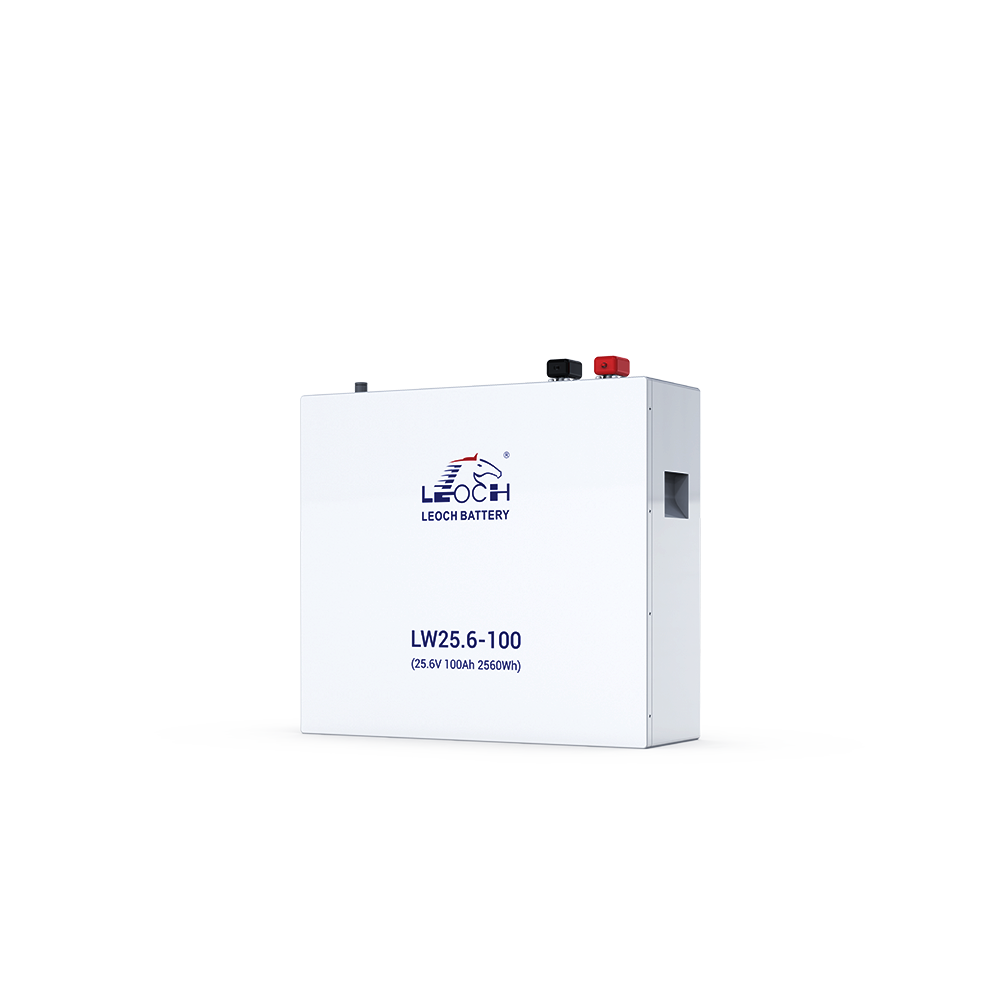

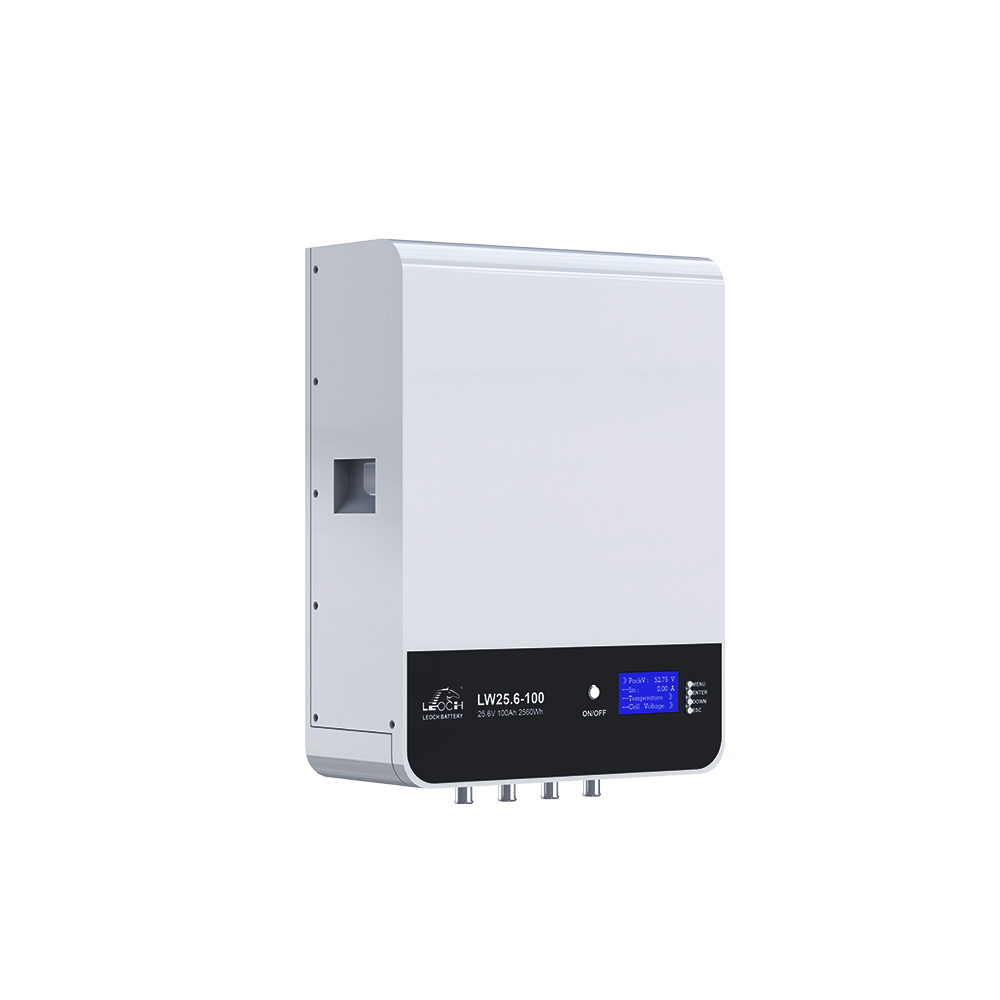

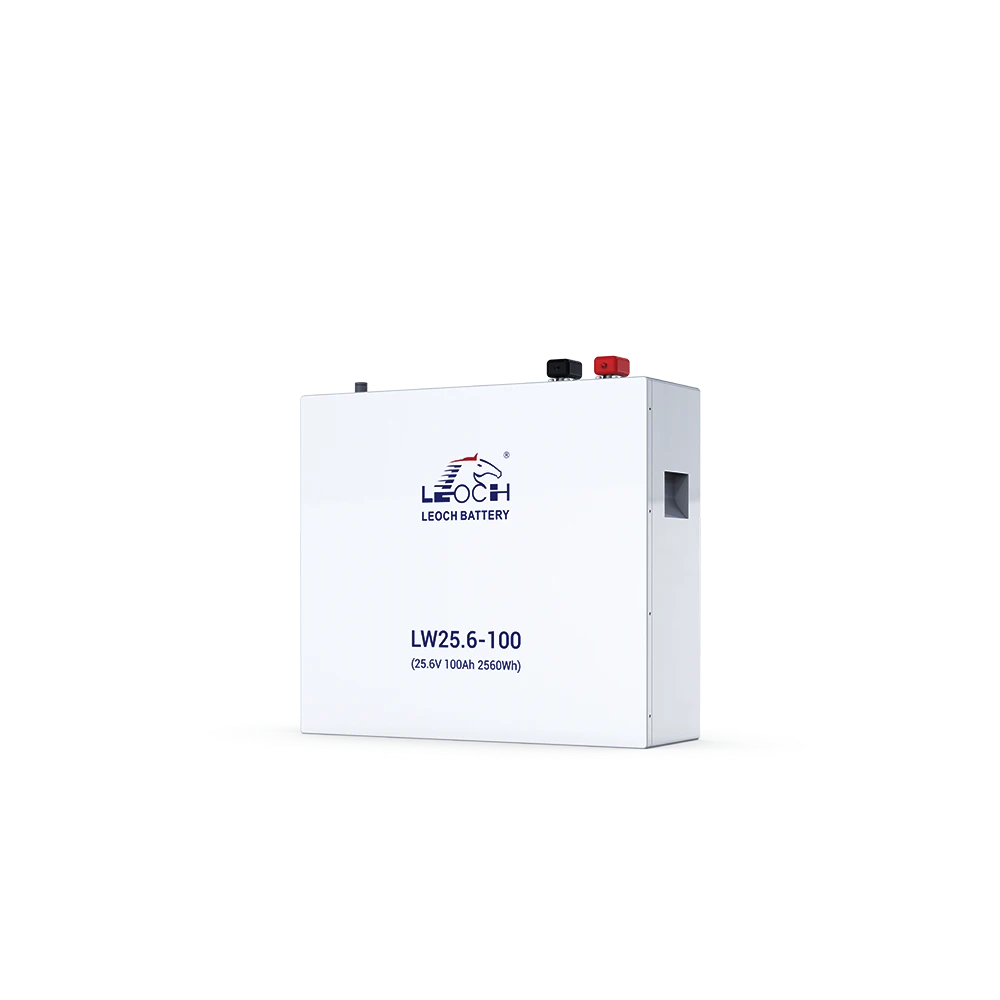

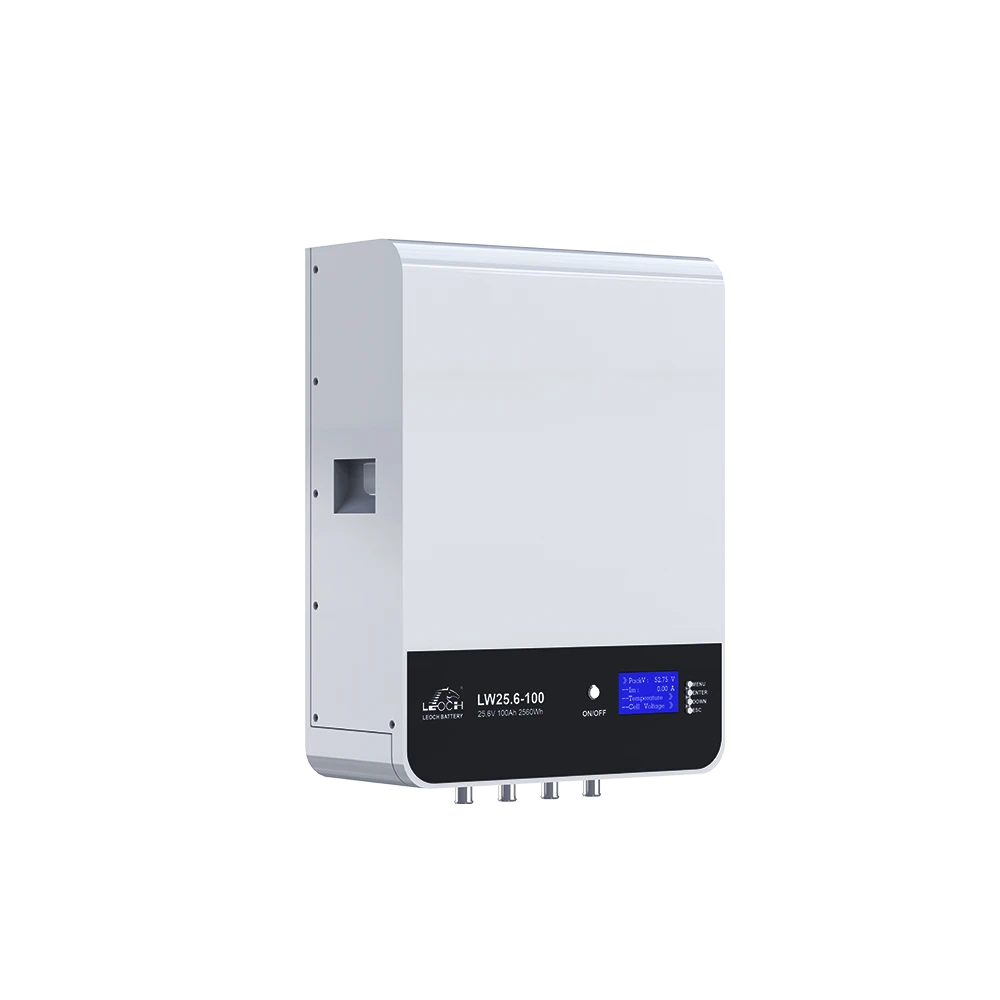

| LW25.6-100 | 25.6 | 100 | 2.56 | 375*500*165 | 29 |

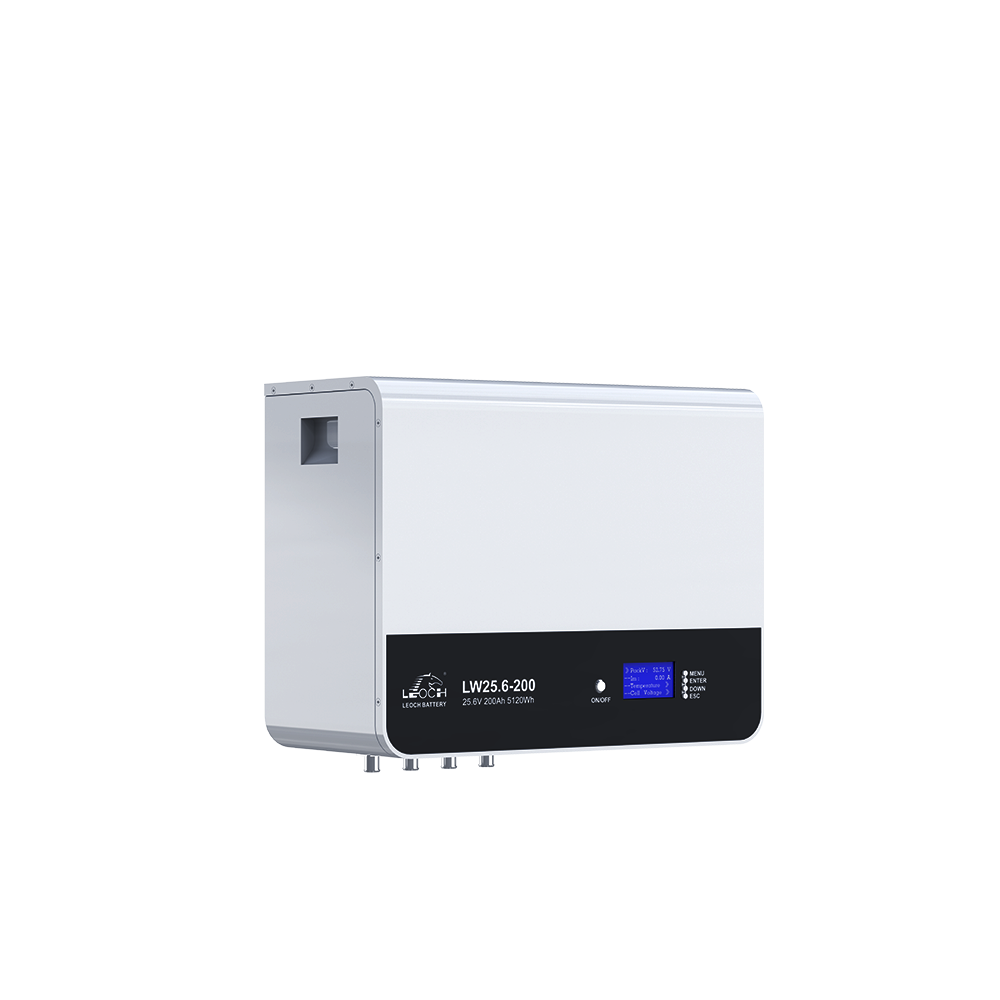

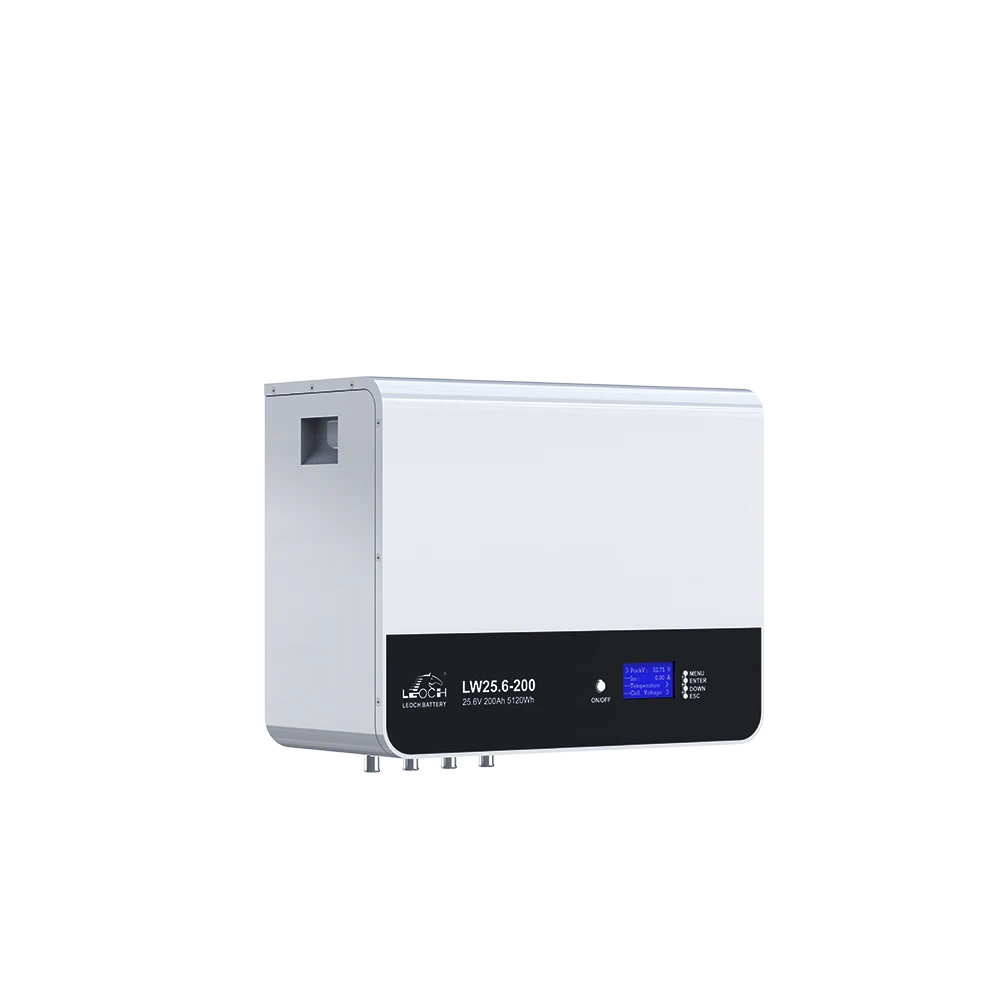

| LW25.6-200 | 25.6 | 200 | 5.12 | 510*400*240 | 52 |

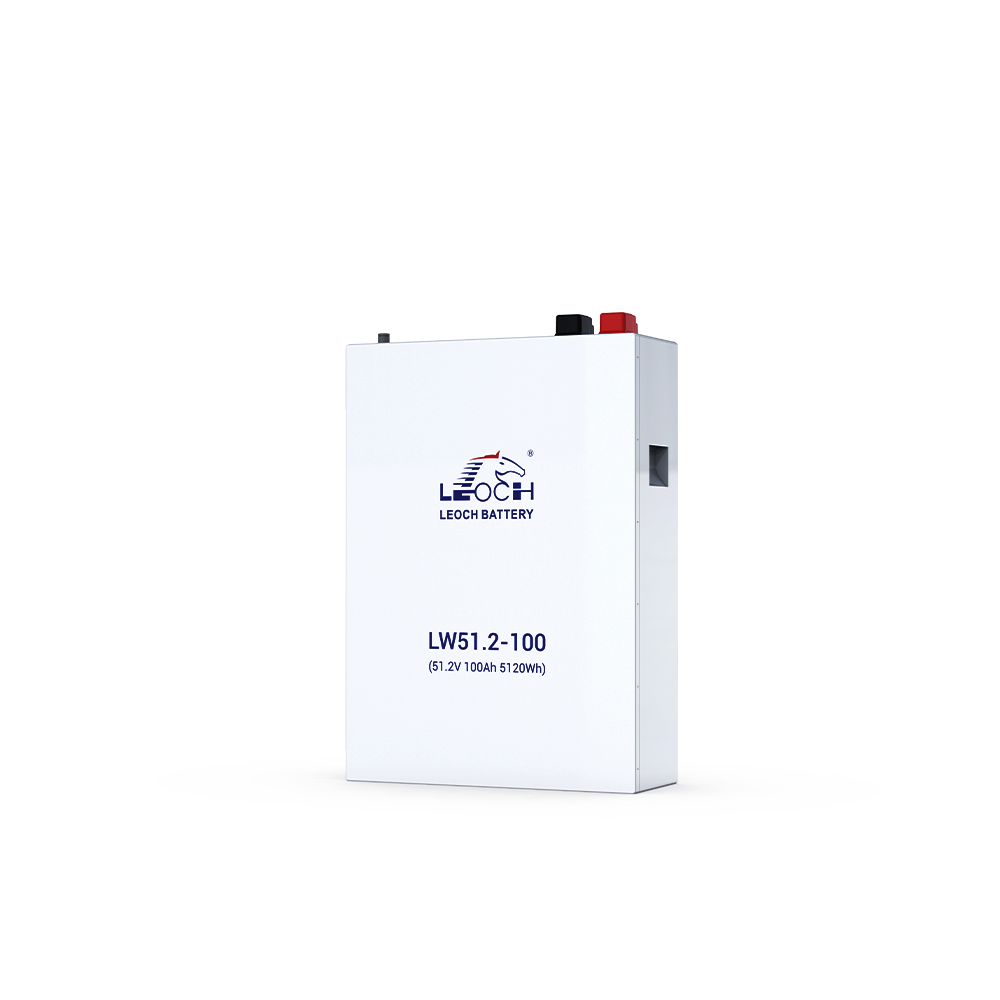

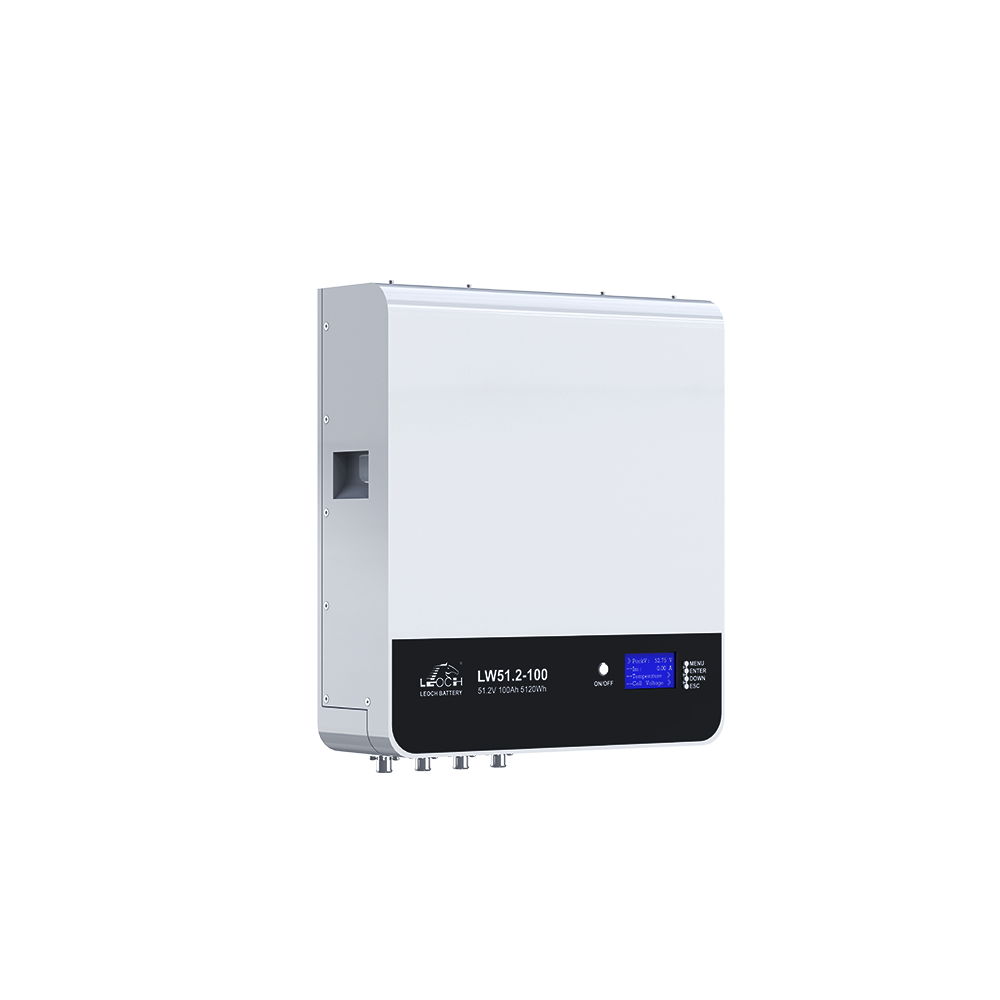

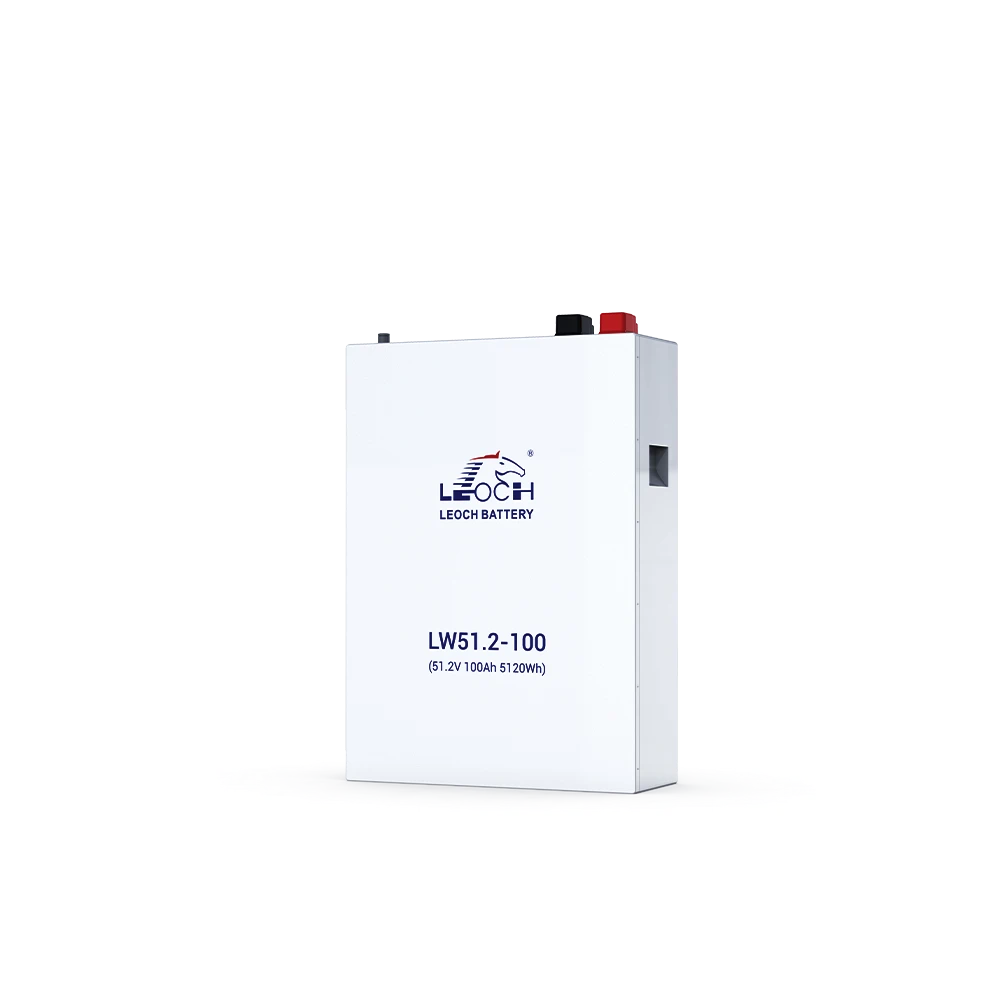

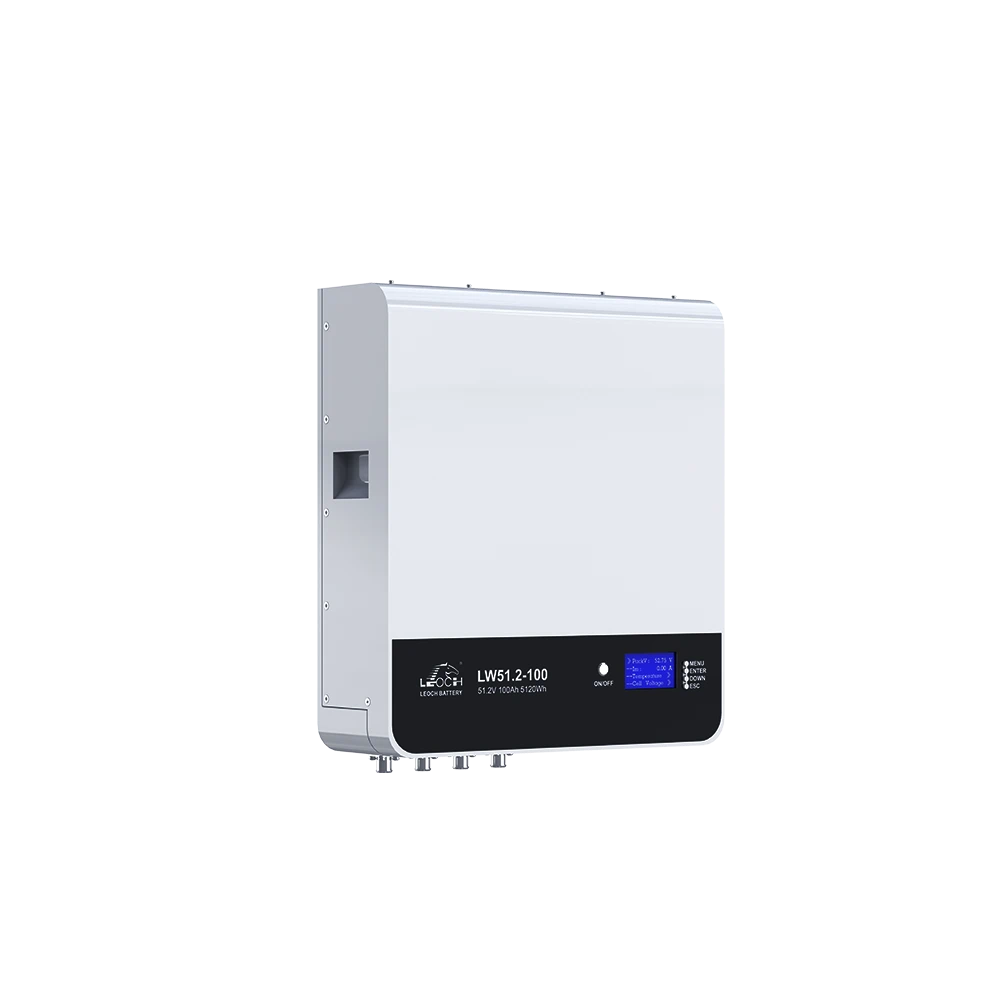

| LW51.2-100 | 51.2 | 100 | 5.12 | 450*500*140 | 50 |

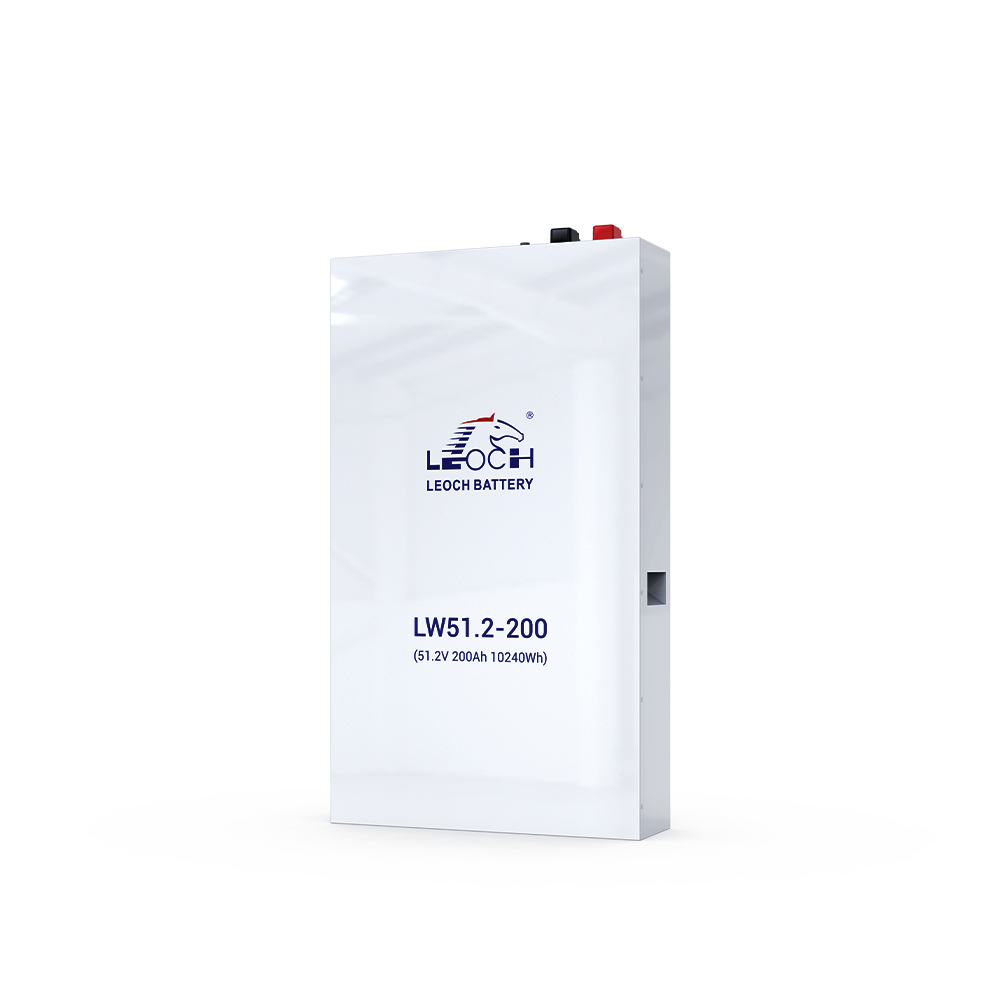

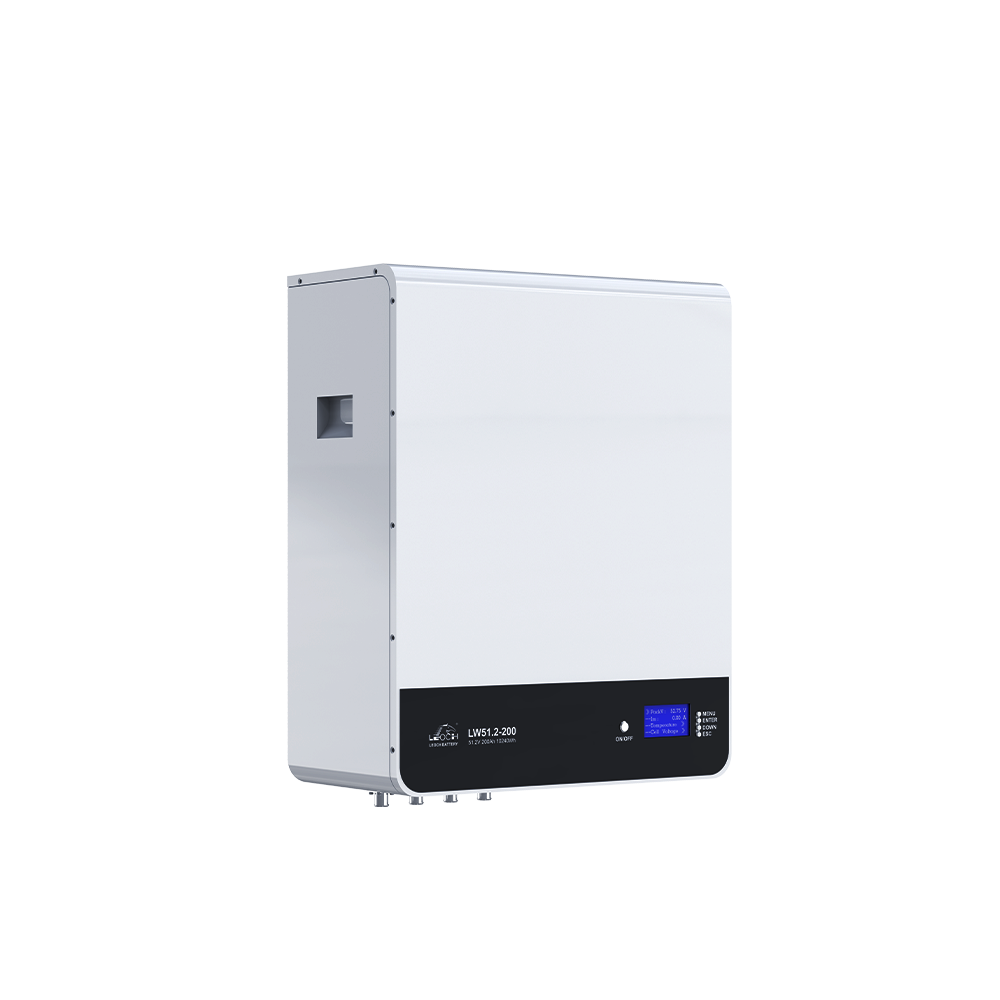

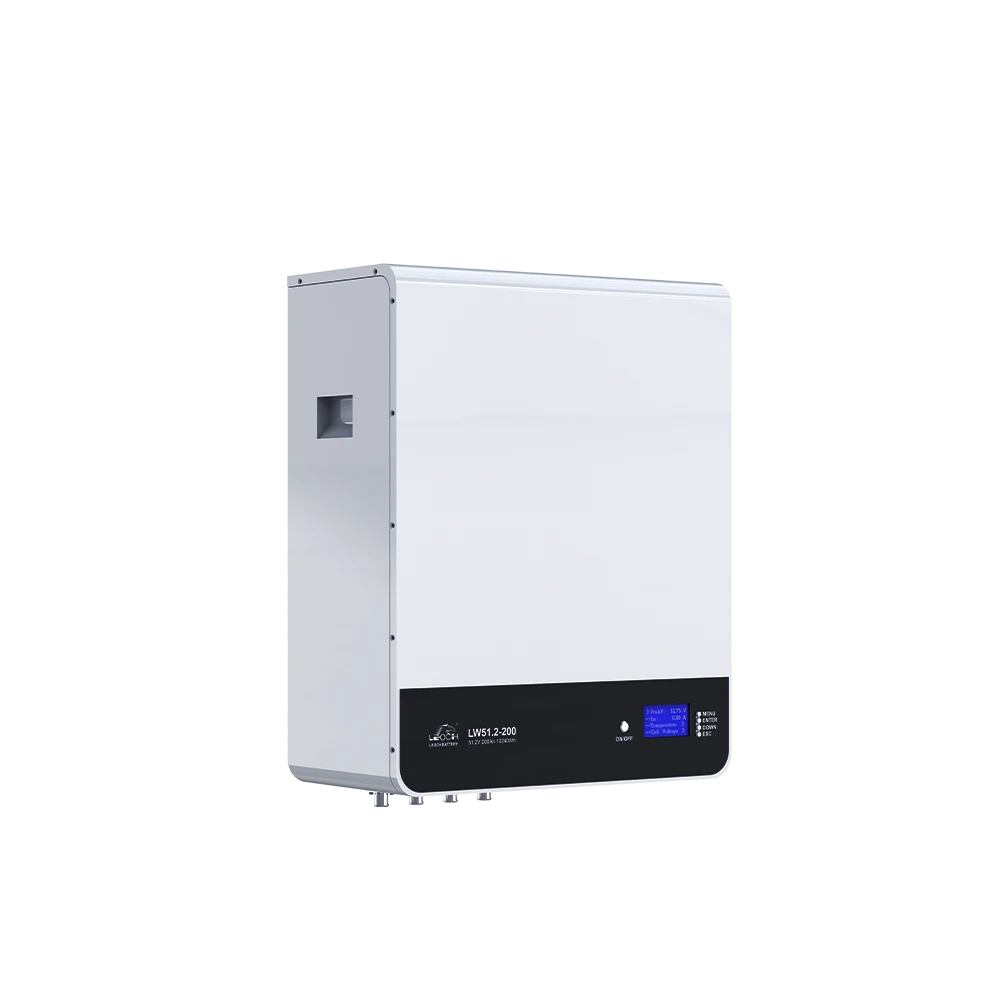

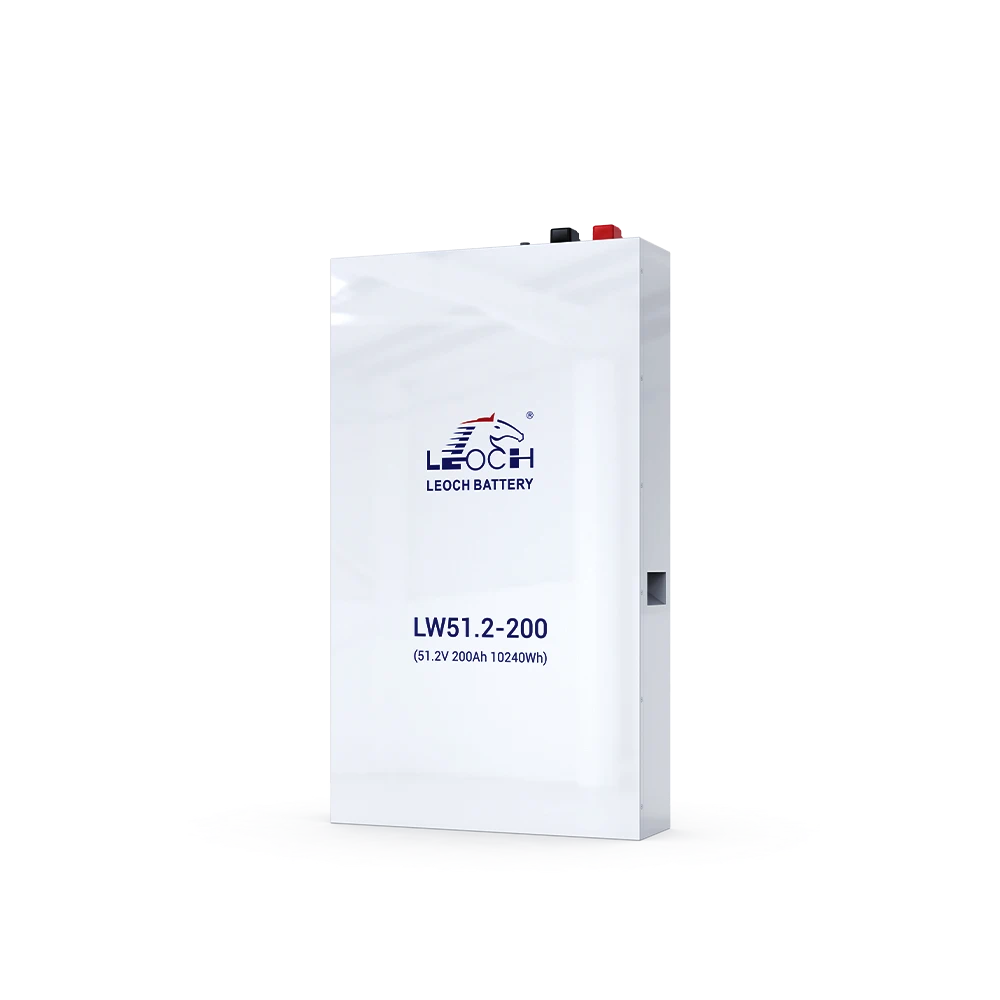

| LW51.2-200 | 51.2 | 200 | 10.24 | 500*620*245 | 94 |
