Automotive NEV Series
The intelligent 12V auxiliary solution specifically developed for EVs and Hybrids (New Energy Vehicles), powering critical safety systems and cabin electronics when the main high-voltage pack is disengaged.
Applications:
EV
HEV
PHEV
Emergency power for EV vehicle electronic modules
Key Features
-
High Temperature Charging Acceptance
-
Longer Cycle Life
-
High Reliability & Stable Output Voltage
-
The Preferred Supplier of Many Mainstream Car Companies
-
Highly Customizable
Customized design and development of new energy vehicle battery applications, perfect fit.
Parameter List
Swipe View
| Model | Series | Magic Eye | Rated Voltage(V) | 20hr @1.75V/cell | RC(min) | CCA @-18°C(A) | Length(mm) | Width(mm) | Height(mm) | Weight(kg) | Cell Layout | Terminal | Hold Down | Handle |
| 54011 | L0 | √ | 12 | 40 | 61 | 350 | 175 | 175 | 190 | 10.6 | 0 | 1 | B13 | / |
| 36B20L | B20 | √ | 12 | 32 | 47 | 310 | 195 | 126 | 222 | 9.58 | 0 | 3 | B0 | TS1 |
| 46B24LS | B24 | √ | 12 | 45 | 70 | 350 | 236 | 128 | 222 | 11.7 | 0 | 1 | B0 | TS1 |

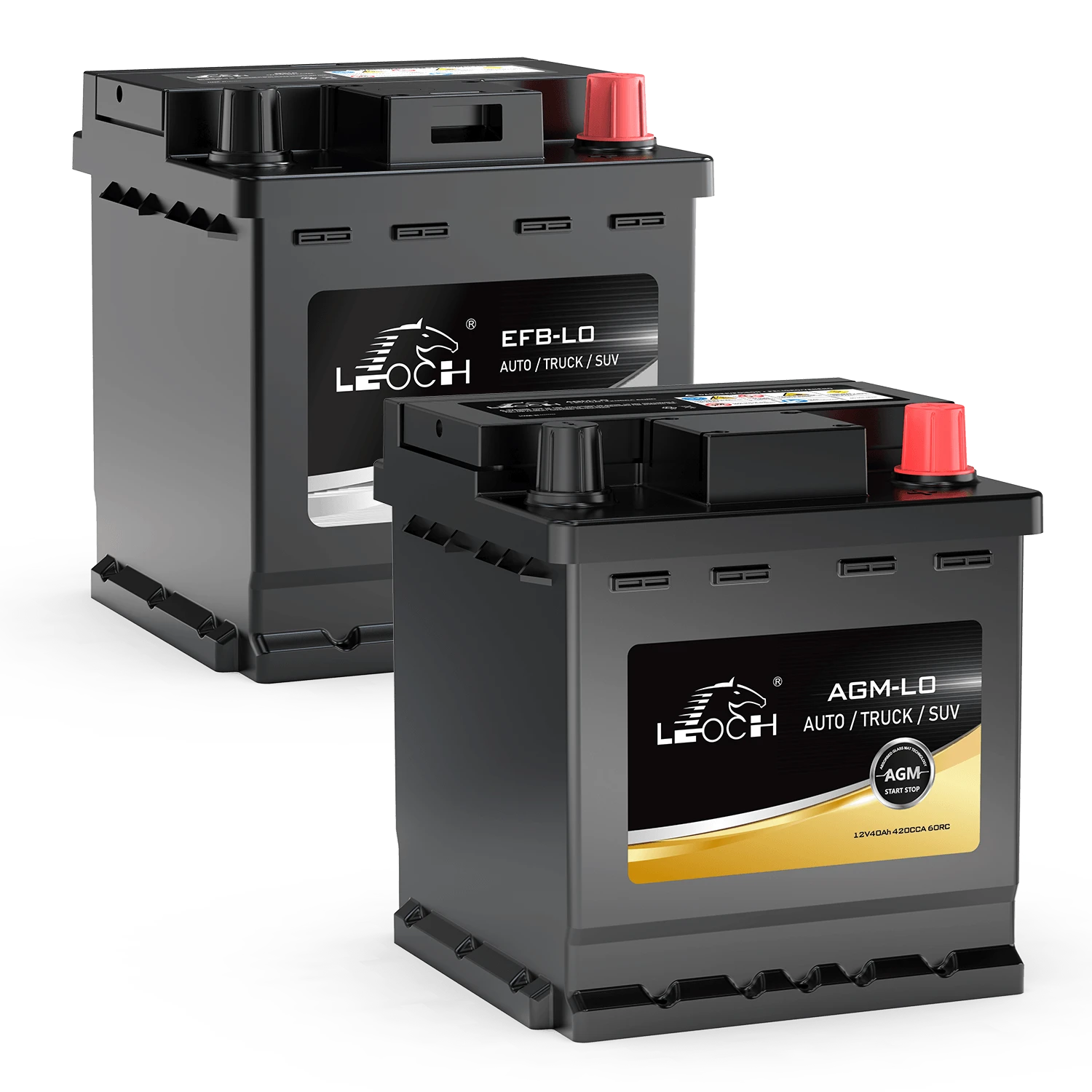

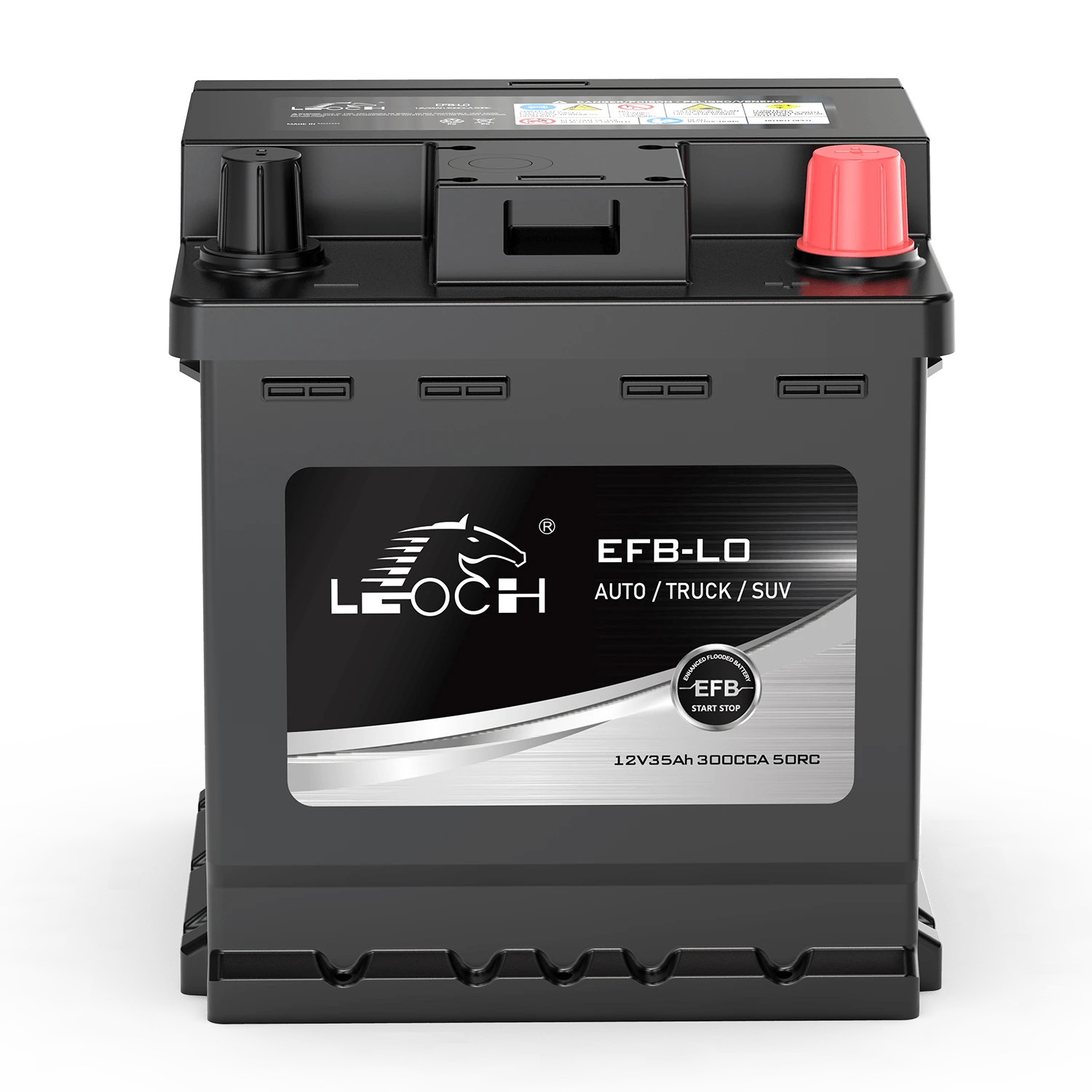

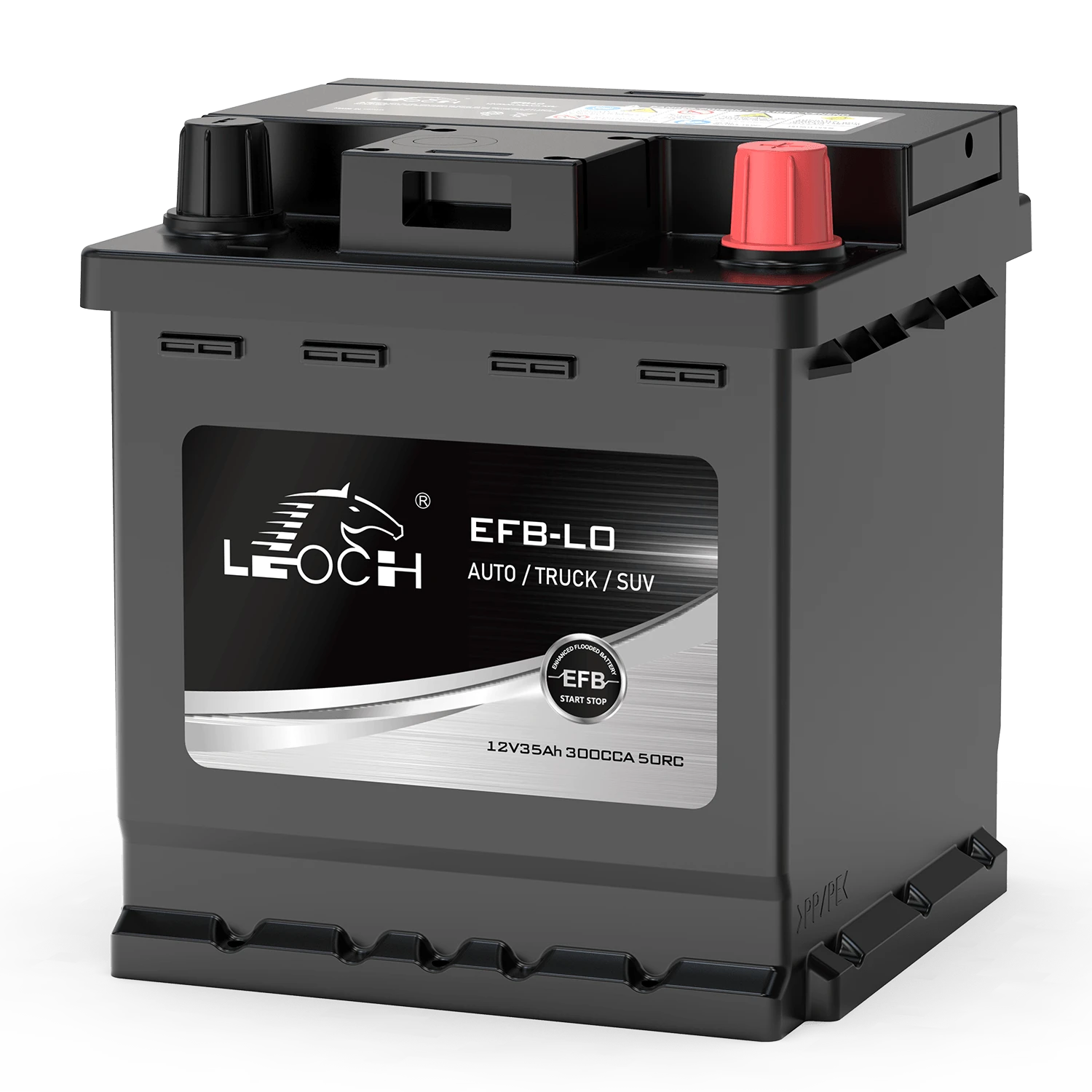

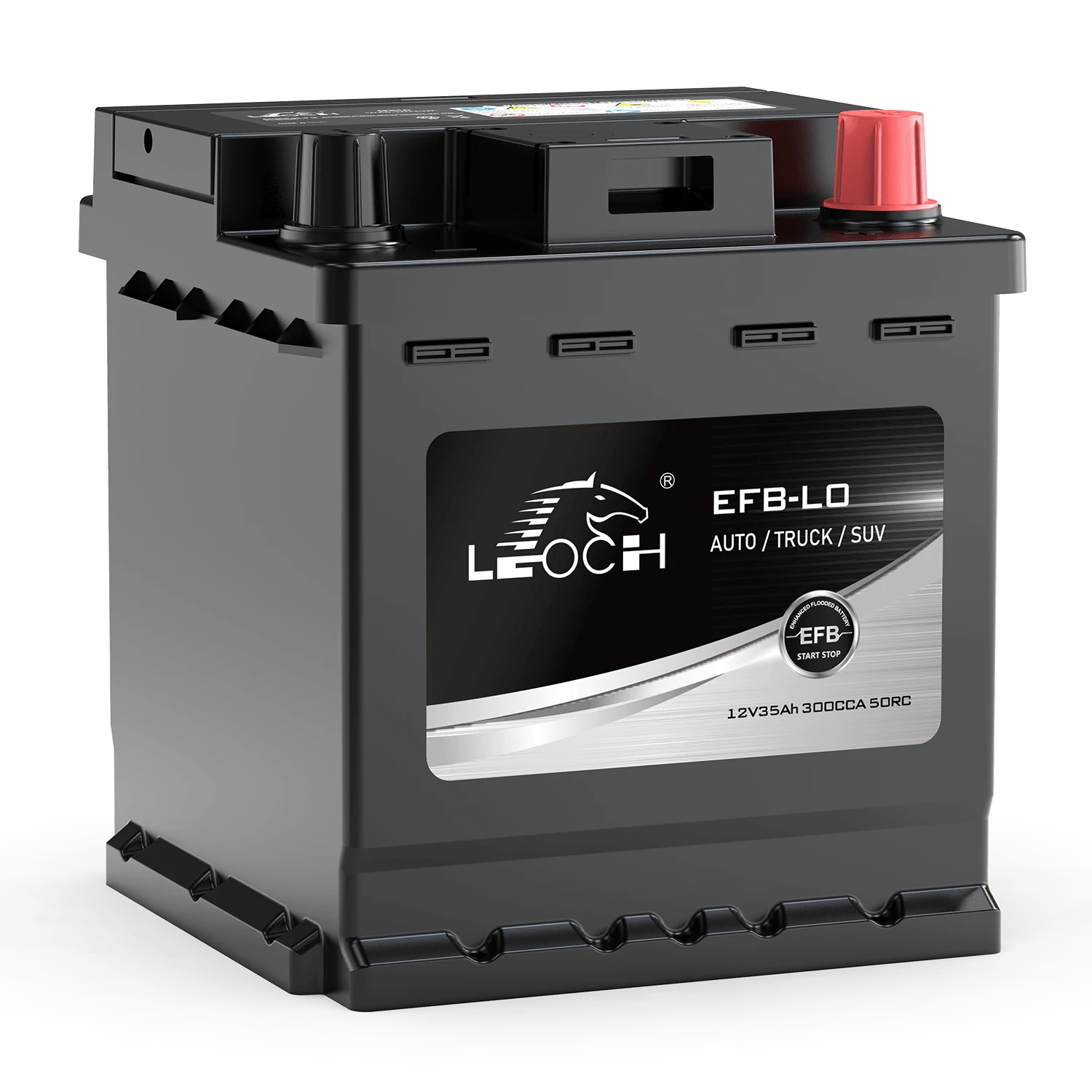

| EFB-L0 | L0 | √ | 12 | 35 | 50 | 280 | 175 | 175 | 190 | 11.2 | 0 | 1 | B13 | TS3 |
| EFB-L1 | L1 | √ | 12 | 50 | 80 | 540 | 207 | 175 | 190 | 14.8 | 0 | 1 | B13 | TS2 |
| EFB-B20L | B20 | √ | 12 | 40 | 60 | 360 | 195 | 126 | 222 | 10.7 | 0 | 1 | B0 | TS1 |
| EFB-B24LS | B24 | √ | 12 | 45 | 70 | 400 | 236 | 128 | 222 | 13.5 | 0 | 3 | B0 | TS1 |

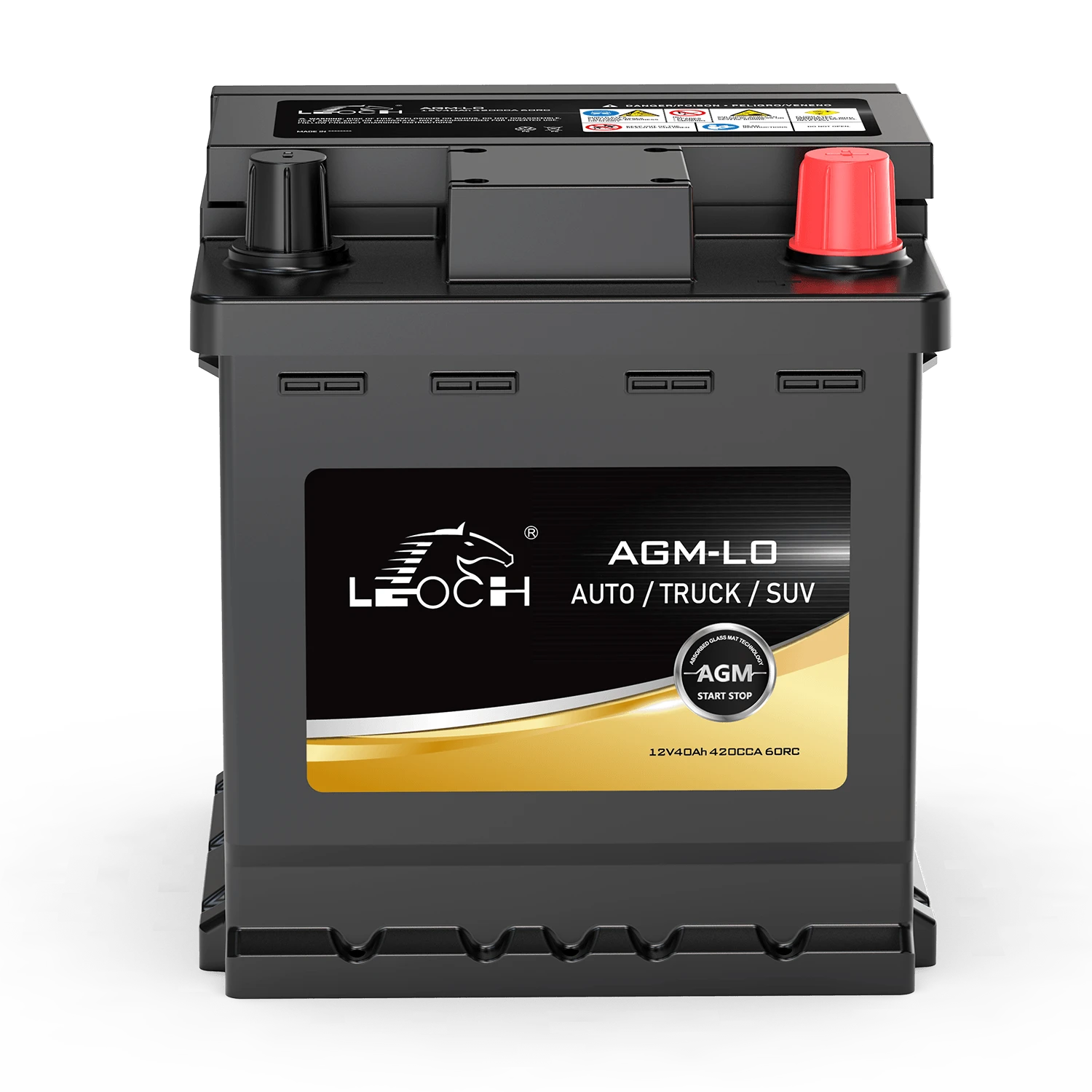

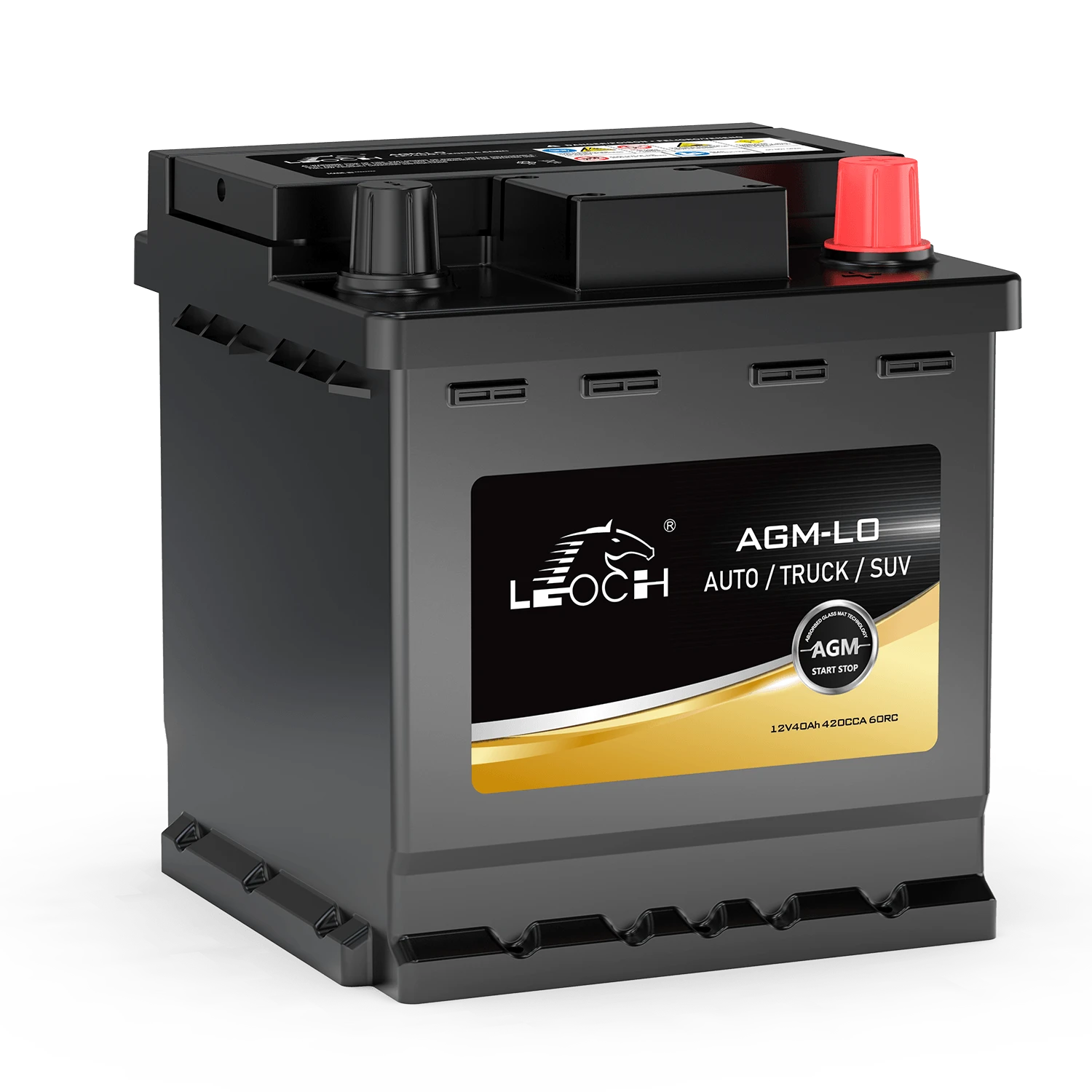

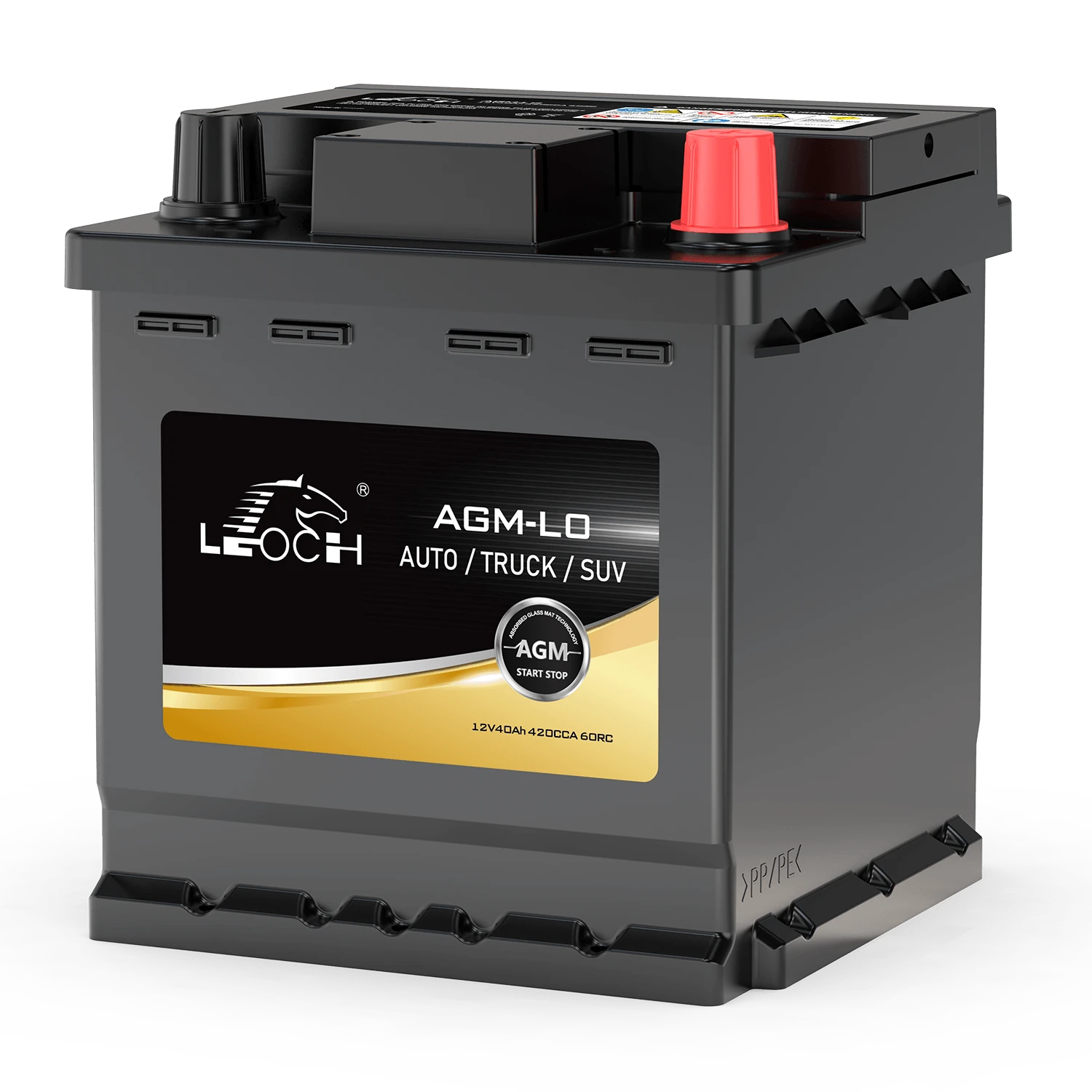

| AGM-L0 | L0 | / | 12 | 40 | 60 | 420 | 175 | 175 | 190 | 12.5 | 0 | 1 | B13 | / |
| AGM-L1 | L1 | / | 12 | 50 | 80 | 570 | 207 | 175 | 190 | 15.1 | 0 | 1 | B13 | TS2 |
| AGM-B21L | B21 | / | 12 | 40 | 61 | 330 | 200.5 | 134.5 | 224 | 12.3 | 0 | 1 | B 0 | TS1 |
| AGM-B24L | B24 | / | 12 | 45 | 68 | 380 | 236 | 128 | 222 | 13.7 | 0 | 3 | B 0 | TS1 |
