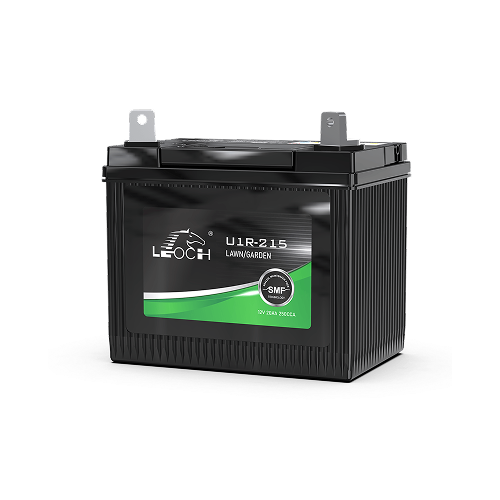

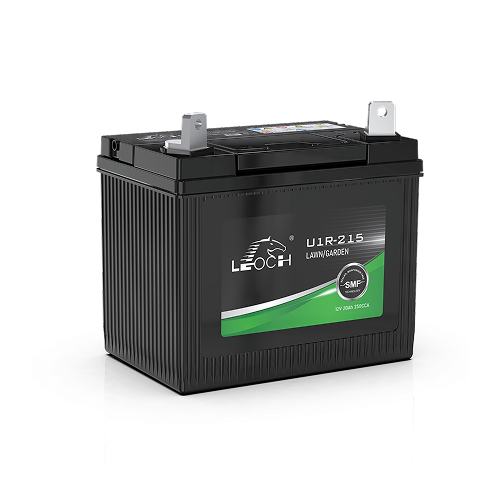

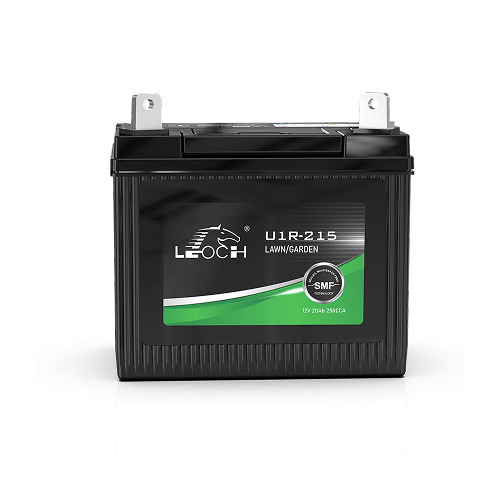

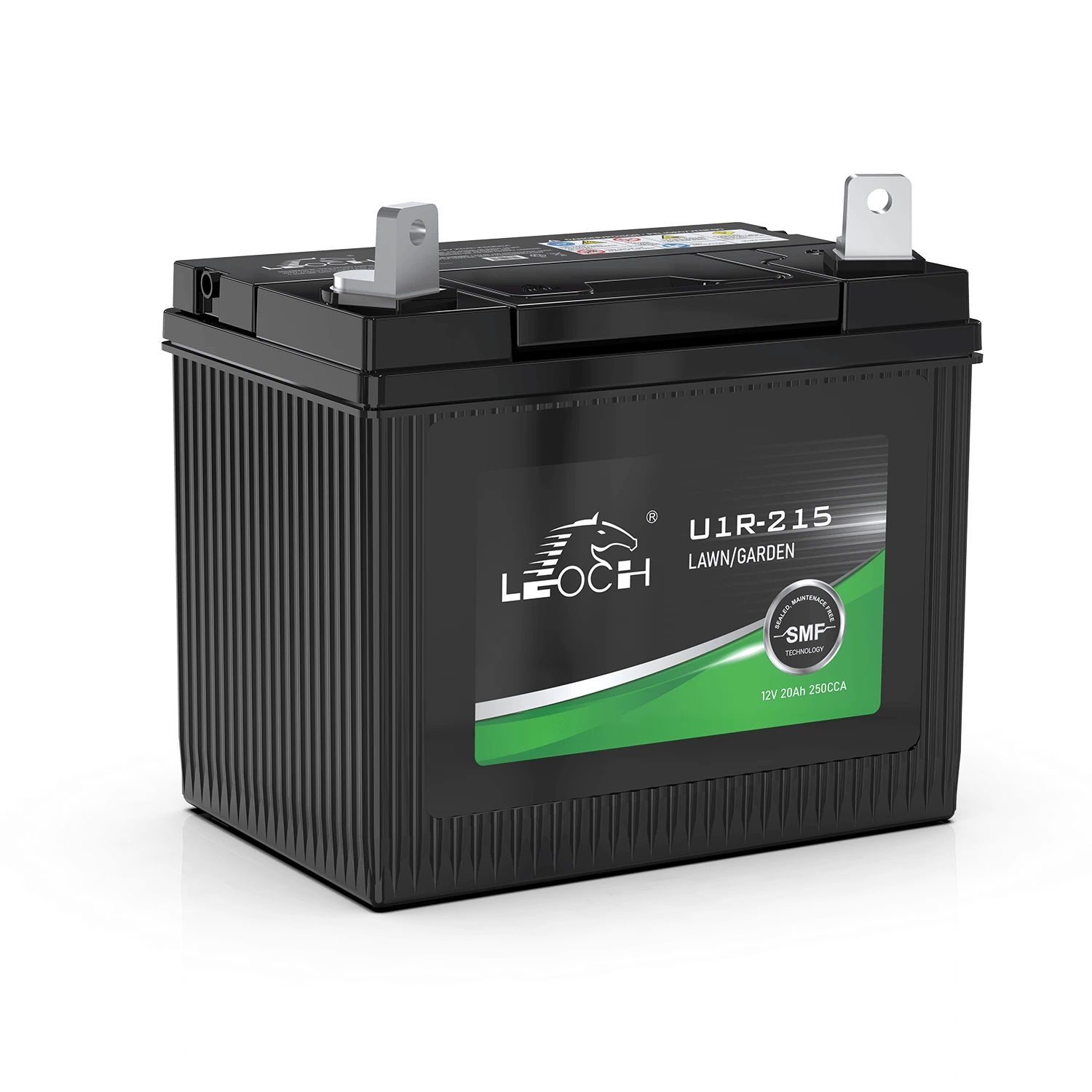

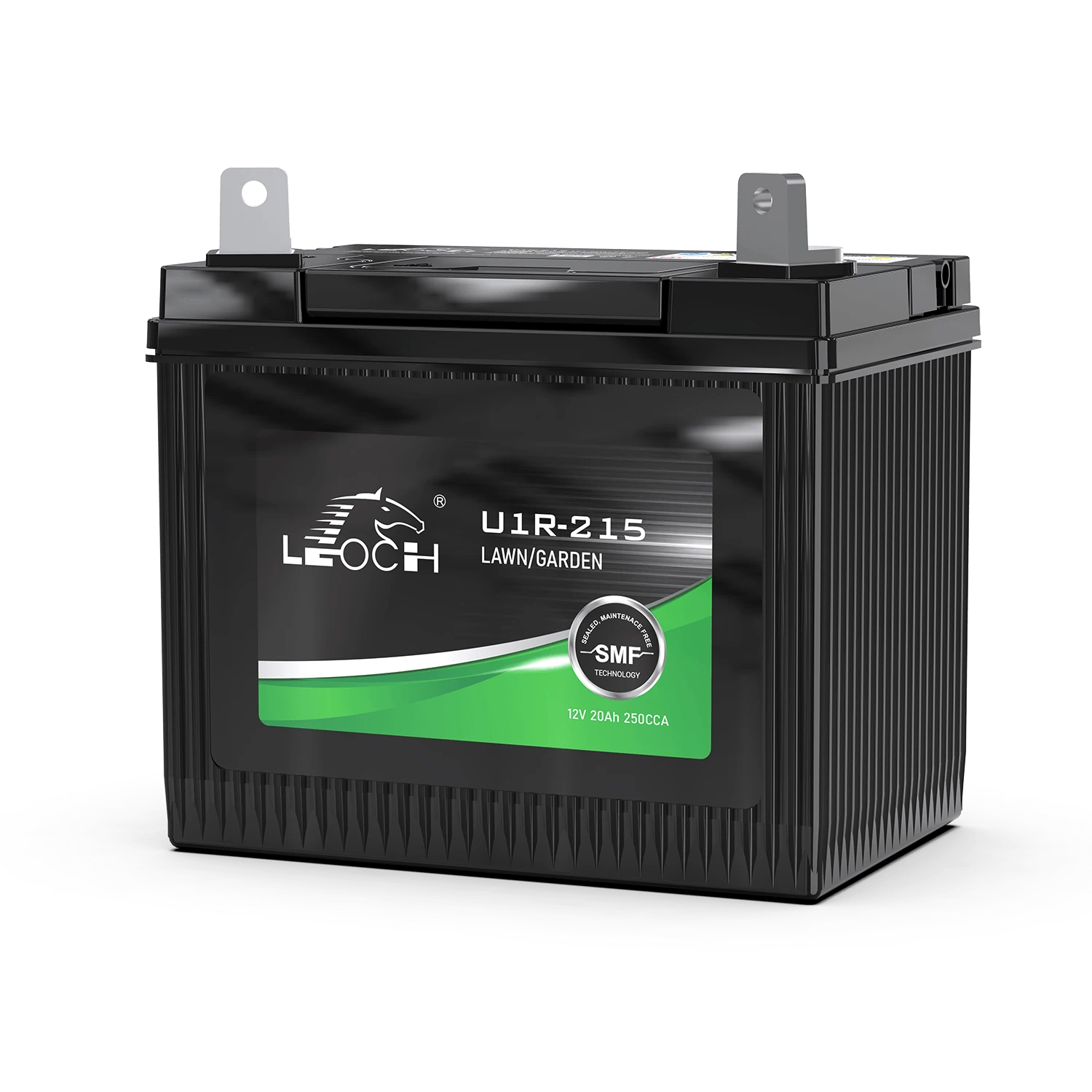

Lawn Mower Flooded U1 Series

Cost-effective flooded U1 batteries built for standard lawn and garden machinery. Offering dependable cranking power and good temperature adaptability, they are the practical choice for residential mowers and light-duty yard equipment.

Applications:

Garden Tractors
Lawn Tractors
Riding Mowers
Rear Engine Riders
Zero Turn Mowers
Small Engines

Request a Quote

Key Features

Specially Designed for Garden Equipment
Faster Charging Speed
Patented Labyrinth Structure
Manufactured by Automatic Production Lines with Stable Quality

Parameter List

Swipe View

Model	Magic Eye	Rated Voltage(V)	20hr @1.75V/cell	RC(min)	CCA @-18°C(A)	Length(mm)	Width(mm)	Height(mm)	Weight(kg)	Cell layout	Terminal	Hold Down	Handle
U1R-215	√	12	17	22	215	196	132	185	7	0	4	B0	TS9
U1L-215	√	12	17	22	215	196	132	185	7	1	4	B0	TS9
U1L-215	×	12	17	22	215	196	132	185	7	1	4	B0	TS9
U1R-250	√	12	20	24	250	196	132	185	7.4	0	4	B0	TS9
U1R-250	×	12	20	24	250	196	132	185	7.4	0	4	B0	TS9
U1L-250	√	12	20	24	250	196	132	185	7.4	1	4	B0	TS9
U1L-250	×	12	20	24	250	196	132	185	7.4	1	4	B0	TS9
U1R-300	√	12	23	32	300	196	132	185	7.7	0	4	B0	TS9
U1R-300	×	12	23	32	300	196	132	185	7.7	0	4	B0	TS9
U1L-300	√	12	23	32	300	196	132	185	7.7	1	4	B0	TS9
U1L-300	×	12	23	32	300	196	132	185	7.7	1	4	B0	TS9
U1R-355	√	12	29	41	355	196	132	185	8.4	0	4	B0	TS9
U1L-355	√	12	29	41	355	196	132	185	8.4	1	4	B0	TS9
U1L-355	×	12	29	41	355	196	132	185	8.4	1	4	B0	TS9
U1L-215	×	12	17	22	215	196	132	180	7	1	4	B0	TS9
U1R-250	×	12	20	24	250	196	132	180	7.4	0	4	B0	TS9
U1L-250	×	12	20	24	250	196	132	180	7.4	1	4	B0	TS9
U1R-300	×	12	23	32	300	196	132	180	7.7	0	4	B0	TS9
U1L-300	×	12	23	32	300	196	132	180	7.7	1	4	B0	TS9
U1R-355	×	12	29	41	355	196	132	180	8.4	0	4	B0	TS9
U1L-355	×	12	29	41	355	196	132	180	8.4	1	4	B0	TS9
