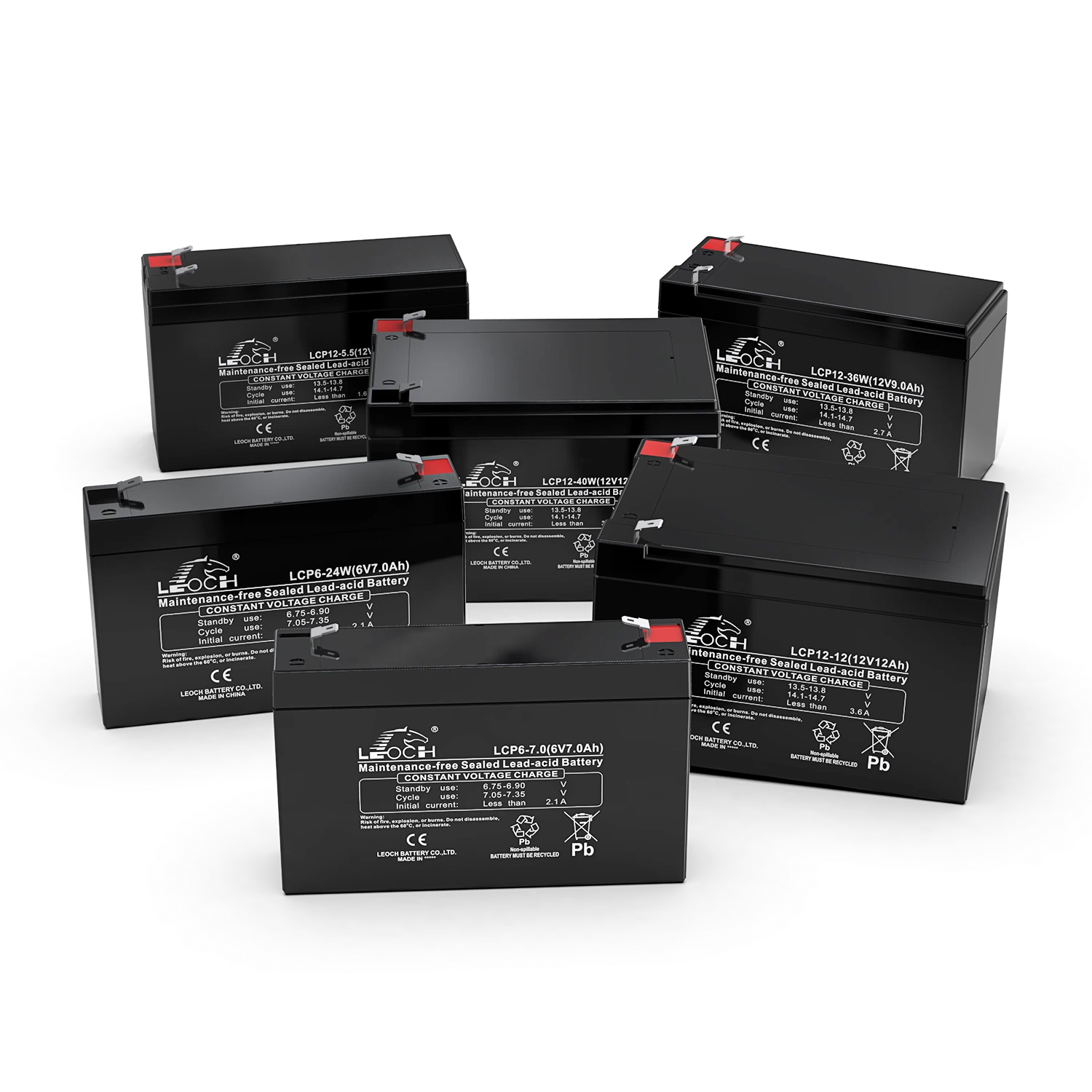

VRLA-AGM LCP Series
LCP Series Batteries use the most advanced technology of fast punched thin plate (FPTP) for punching grid batteries. Compared with traditional technologies, FPTP technology is faster, simpler, more energy efficient, more environmentally friendly, also higher product consistency. This technology enables mechanized and automated production, reducing lead consumption by 30% and saving 40% of energy.
Applications:
Uninterruptible Power Supply (UPS)
Electric Power System (EPS)
Emergency backup power supply
Alarm and security system
Communication power supply
DC power supply
Auto control system
Key Features
-
Maintenance-Free
Enabled by advanced oxygen recombination technology.
-
Minimize Self-Discharge
Pb-Ca-Sn alloy grids reduce gassing and minimize self-discharge.
-
Premium AGM Separators
Extend service life and improve operational reliability.
-
Enhanced ABS Case
Robust ABS battery containers provide superior mechanical strength; flame-retardant ABS available.
-
Secure Sealed Design
Improves safety and eliminates routine maintenance requirements.
-
Advanced Fast Pressed Thin Plate
Advanced Fast Pressed Thin Plate (FPTP) manufacturing technology delivers superior product consistency, increased production efficiency, and reduced environmental impact.
-
Eco-Friendly
Automated manufacturing processes reduce energy consumption by up to 40%.
Parameter List
| Model | Rated Voltage(V) | W15min @1.67V/cell | 20hr @1.75V/cell | 10hr @1.80V/cell | Length(mm) | Width(mm) | Height(mm) | Total Height(mm) | Weight(kg) | Terminal |

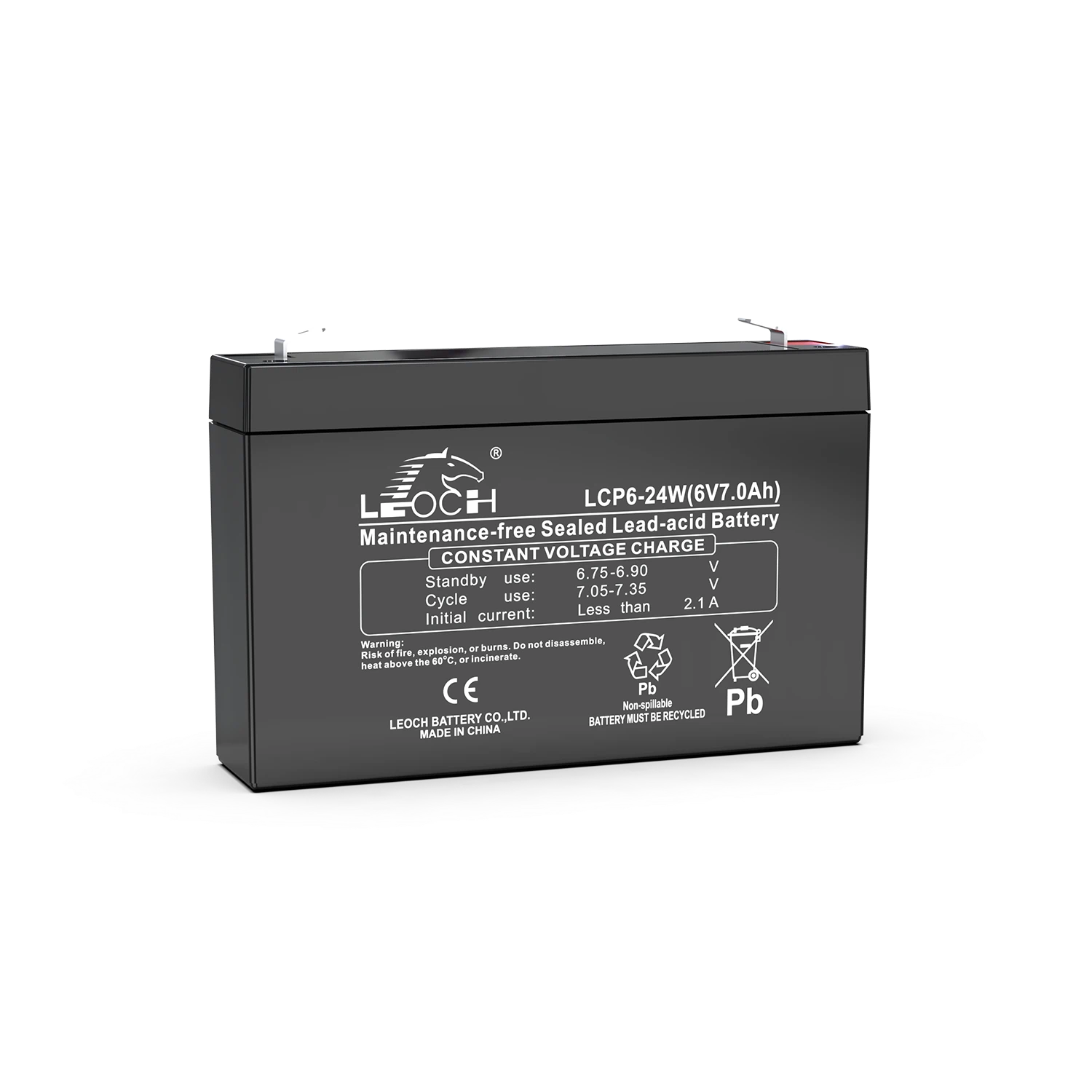

| LCP6-24W | 6 | 24 | 7 | 150 | 34 | 94 | 100 | 1.05 | T1/T2 | |
| LCP12-19W | 12 | 19 | 5.5 | 151 | 51 | 93 | 99 | 1.7 | T1/T2 | |
| LCP12-22W | 12 | 22 | 7 | 151 | 65 | 93.5 | 99.5 | 1.79 | T1/T2 | |
| LCP12-24W | 12 | 24 | 7 | 151 | 65 | 93.5 | 99.5 | 2.09 | T1/T2 | |
| LCP12-26W | 12 | 26 | 7 | 151 | 65 | 93.5 | 99.5 | 2.15 | T1/T2 | |
| LCP12-28W | 12 | 28 | 7.5 | 151 | 65 | 93.5 | 99.5 | 2.17 | T1/T2 | |
| LCP12-32W | 12 | 32 | 8 | 151 | 65 | 93.5 | 99.5 | 2.22 | T1/T2 | |
| LCP12-34W | 12 | 34 | 9 | 151 | 65 | 93.5 | 99.5 | 2.26 | T1/T2 | |

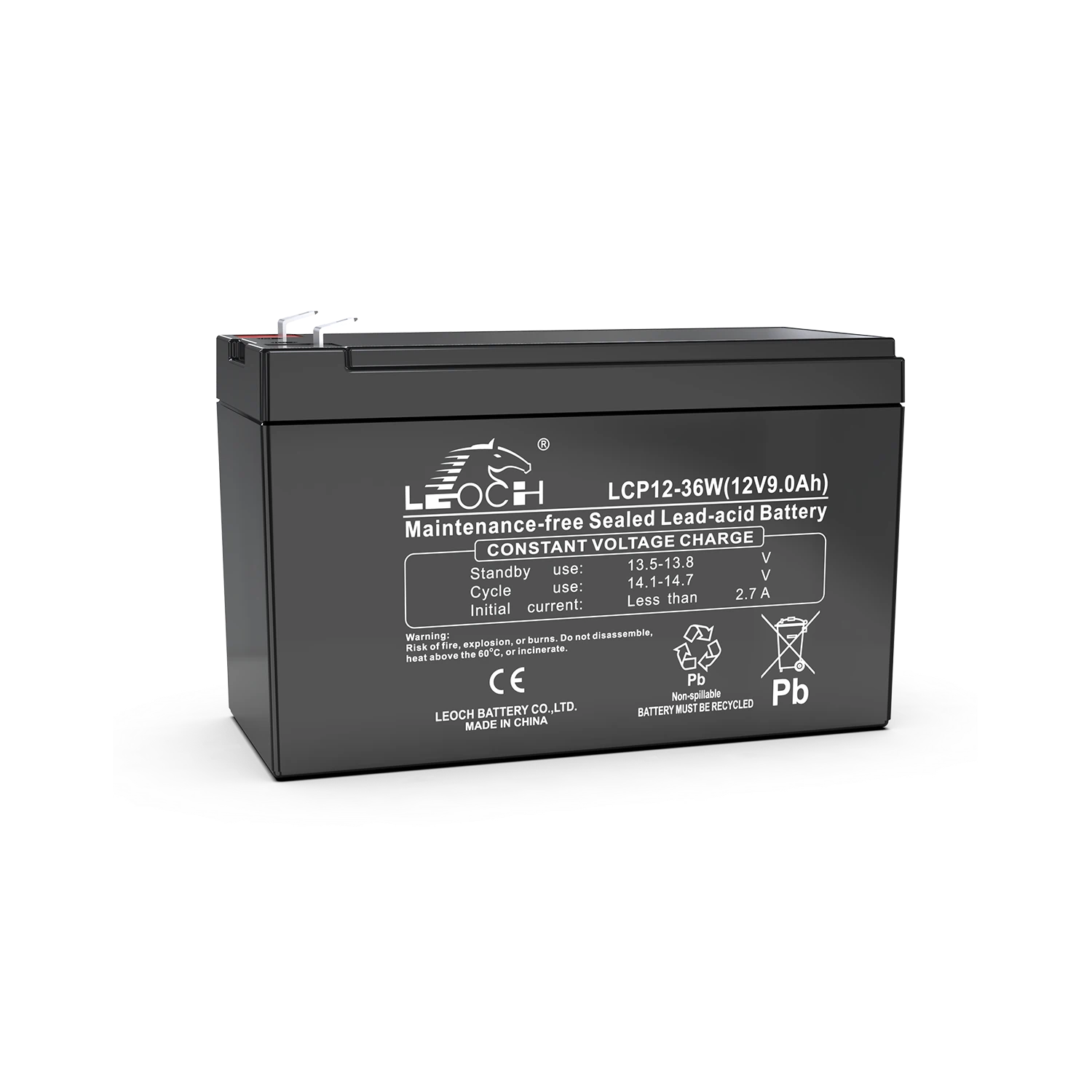

| LCP12-36W | 12 | 36 | 9 | 151 | 65 | 93.5 | 99.5 | 2.31 | T1/T2 | |
| LCP12-40W | 12 | 40 | 12 | 151 | 98 | 95 | 101 | 3.28 | T1/T2 | |
| LCP12-42W | 12 | 42 | 12 | 151 | 98 | 95 | 101 | 3.38 | T1/T2 | |
| LCP12-50W | 12 | 50 | 14 | 151 | 98 | 95 | 101 | 3.48 | T1/T2 |
Industries
-
Security & Industrial System Battery Solution
Keep fire alarms, emergency lighting, security networks and industrial control systems ready with dependable VRLA-AGM backup power.
-
Data Center & UPS Battery Solution
Keep critical loads online through power interruptions with UPS batteries matched to your power, runtime and footprint requirements.
