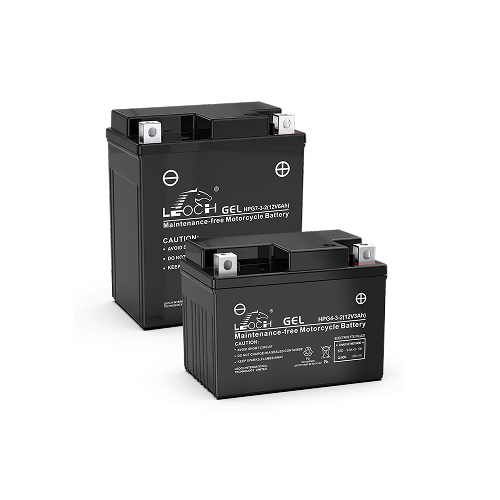

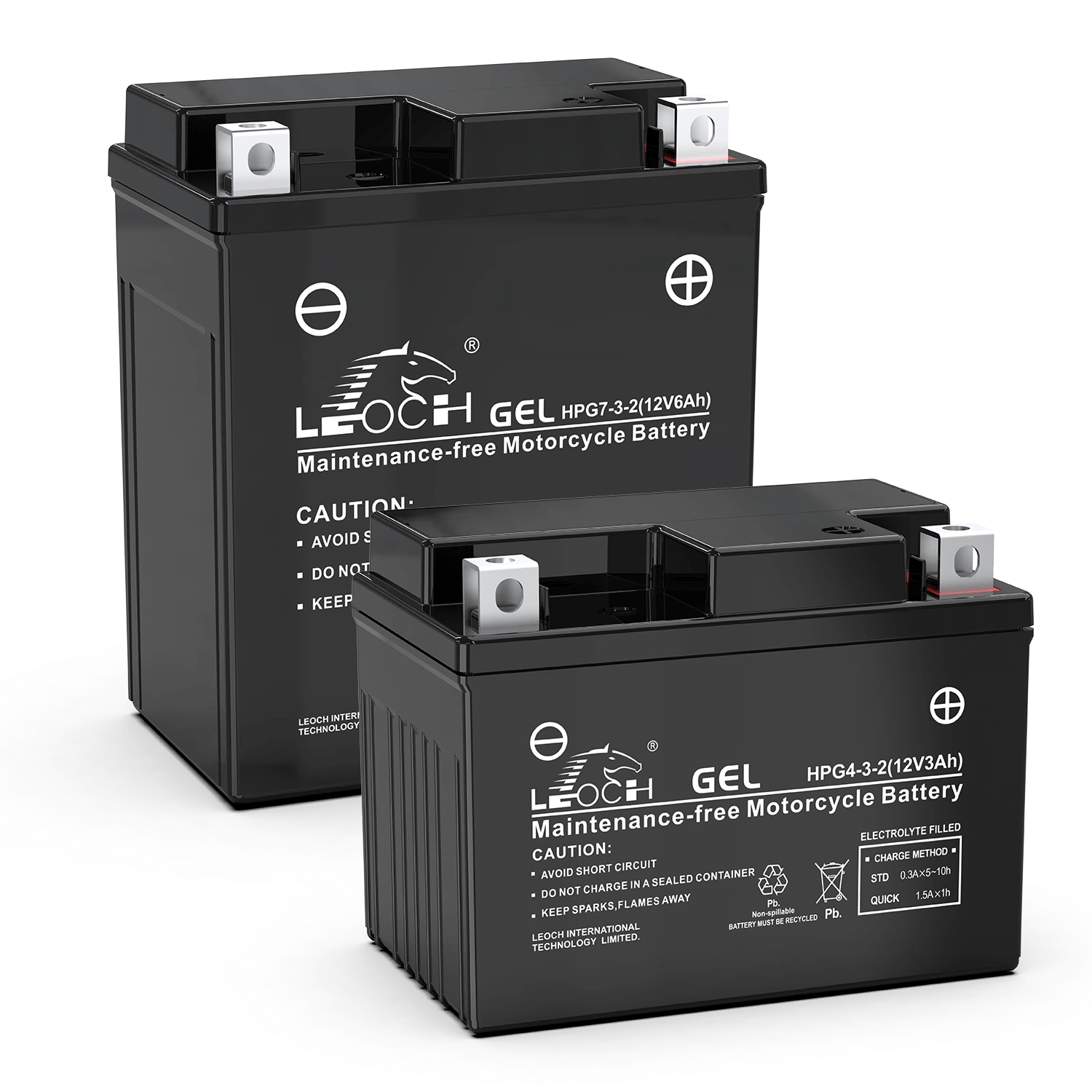

Motorcycle Gel HPG Series

Immobilized electrolyte effectively minimizes acid stratification and enhances cycle durability.

Applications:

Motorcycle
ATV
Snowmobile
Lawn & Garden

Request a Quote

Key Features

100% Maintenance-Free & AGM Design

Fully sealed construction for convenient and reliable operation.
Lead-Calcium Alloy Technology

Minimizes water loss and enhances maintenance-free.
Advanced Gel Technology

Immobilized electrolyte effectively minimizes acid stratification and enhances cycle durability.
Ready-to-Install Design

Pre-filled and ready for immediate application.

Parameter List

Swipe View

Model	Rated Voltage(V)	10hr @1.75V/cell	CCA @-18°C(A)	Length(mm)	Width(mm)	Height(mm)	Length(in)	Width(in)	Height(in)	Weight(kg)	Terminal
HPG4A-5	12	2.3	30	113	48	85	4 7/16	1 7/8	3 3/8	0.96	I
HPG4A-3	12	4	55	120	70	92	4 3/4	2 3/4	3 5/8	1.59	A

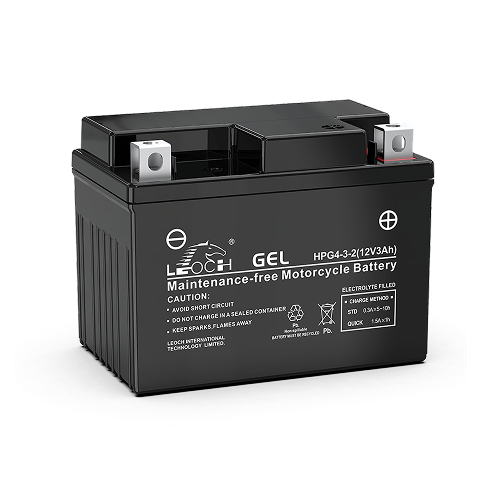

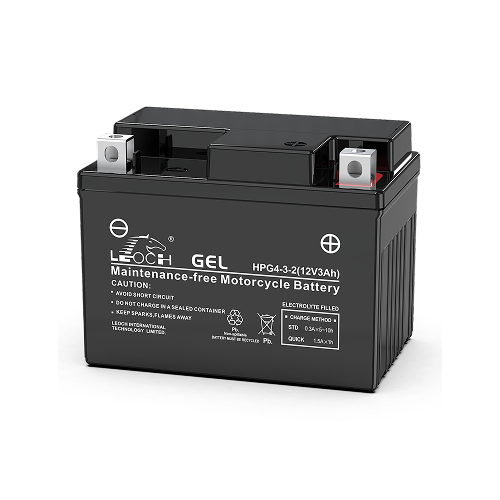

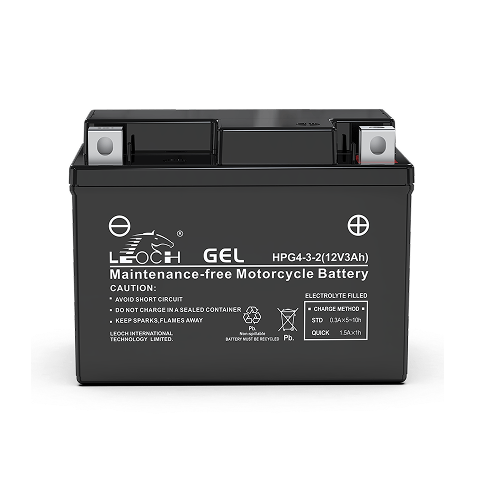

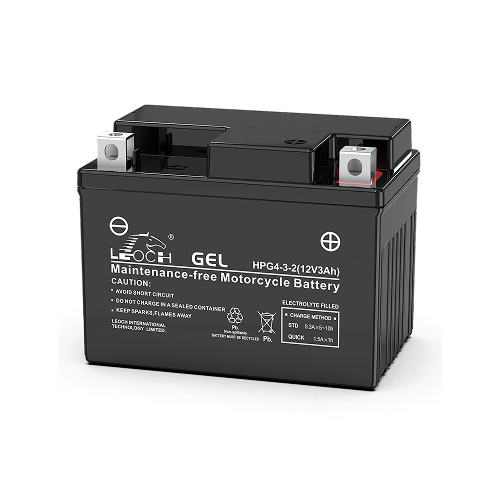

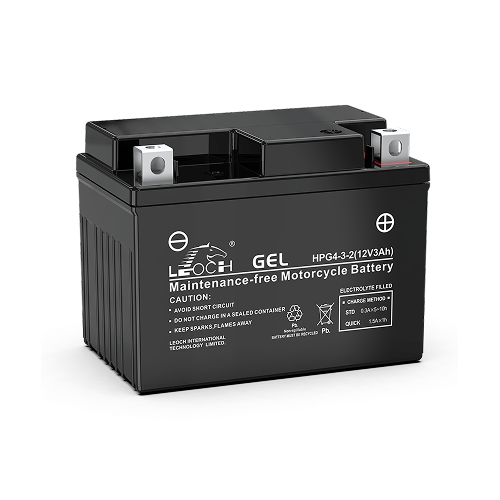

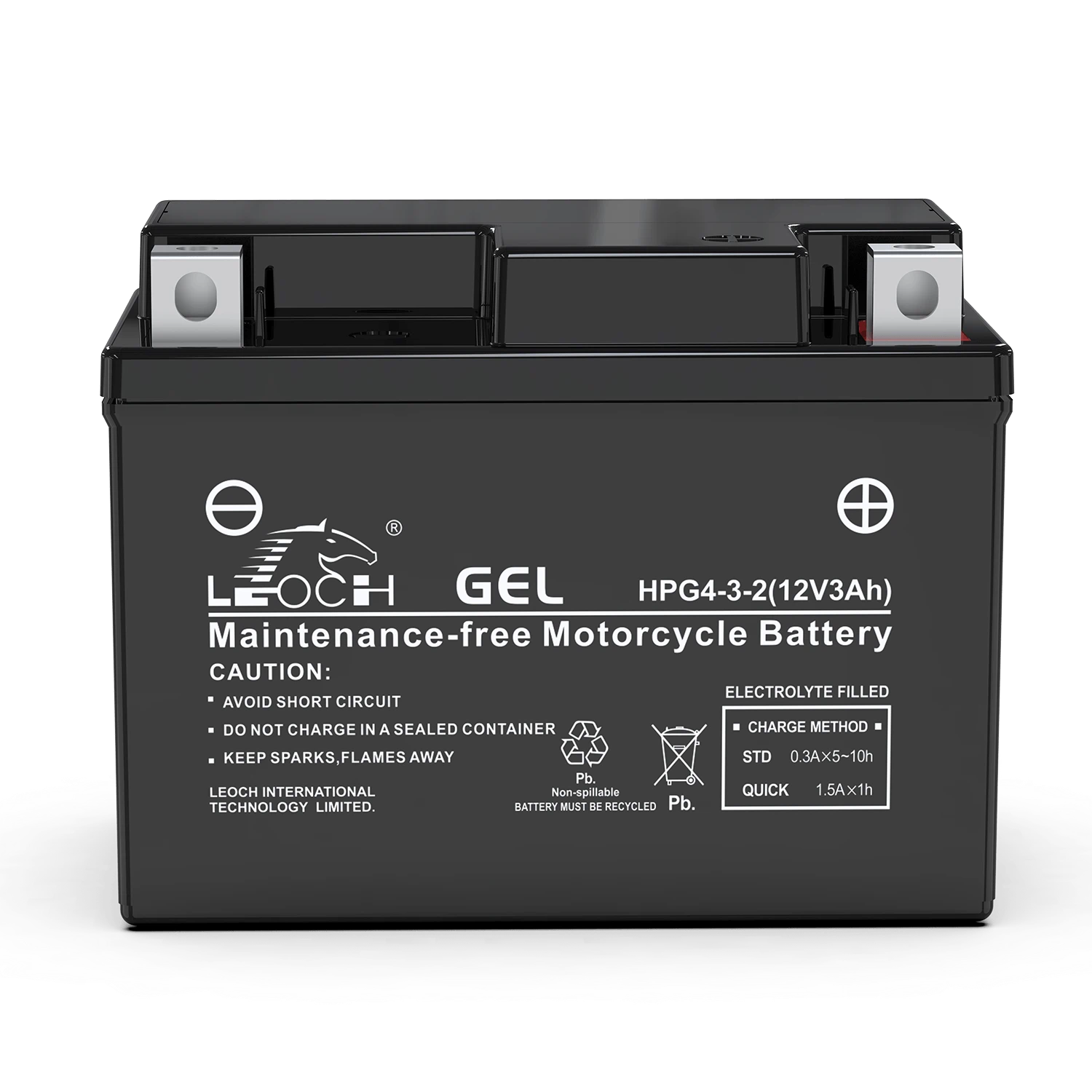

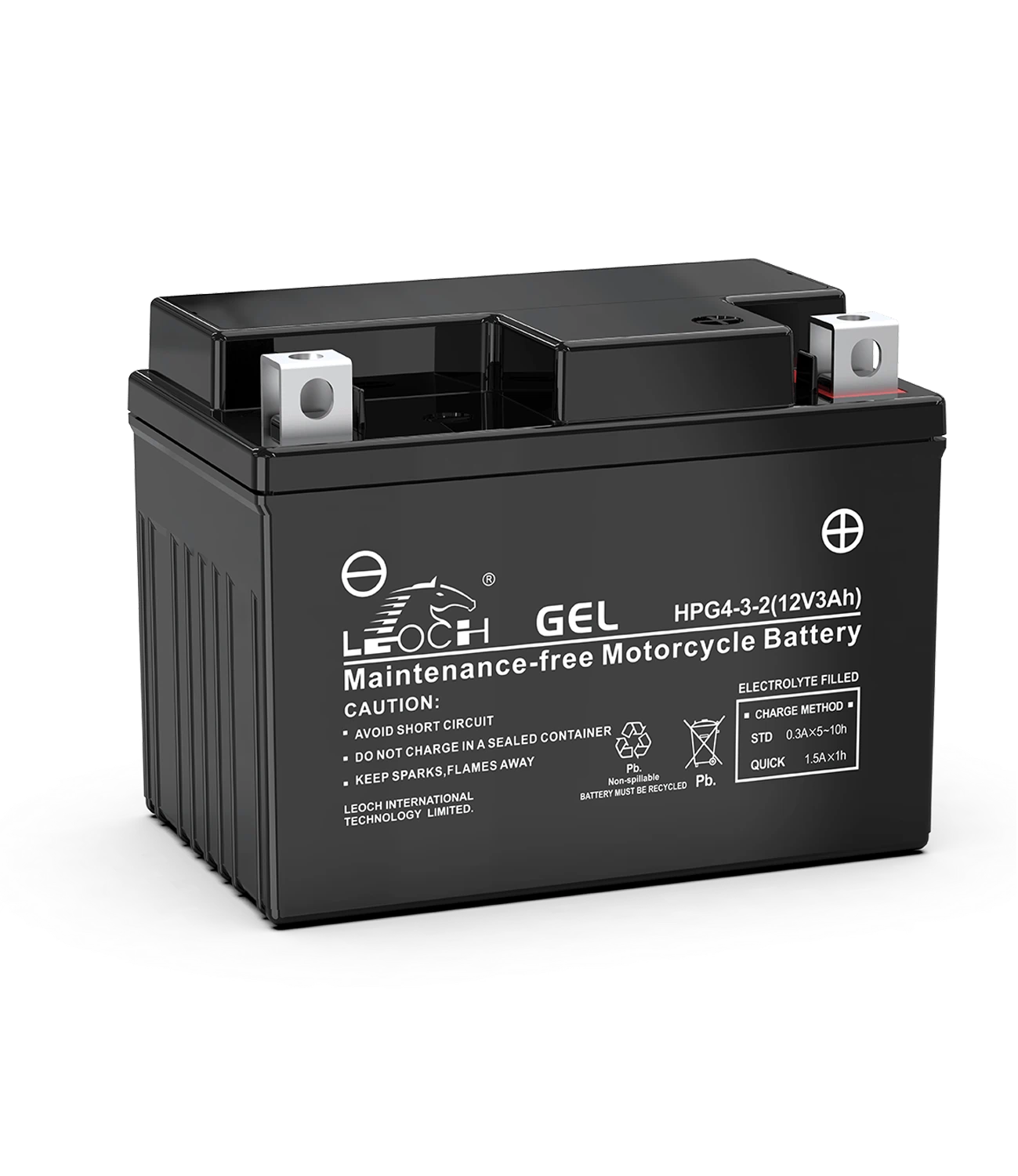

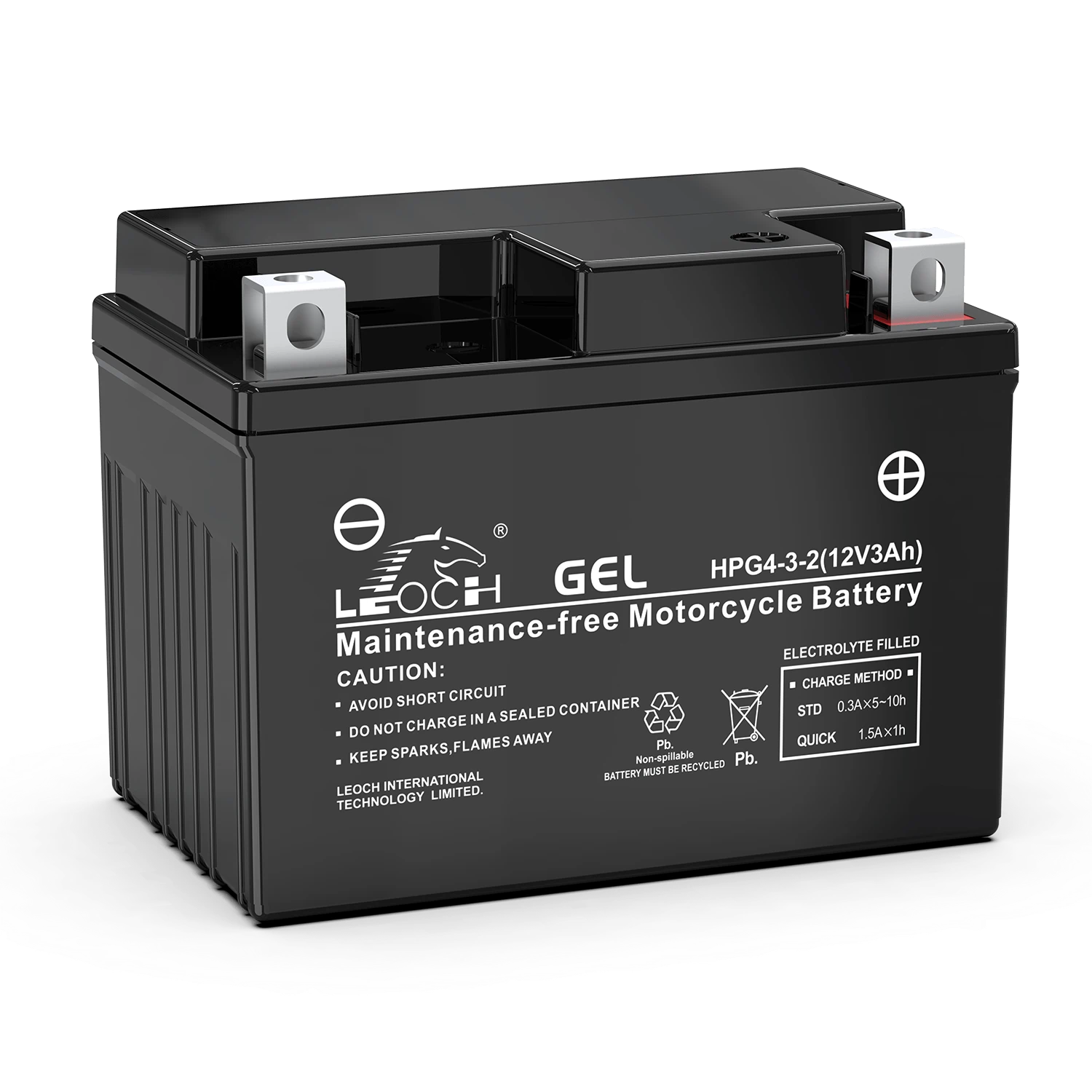

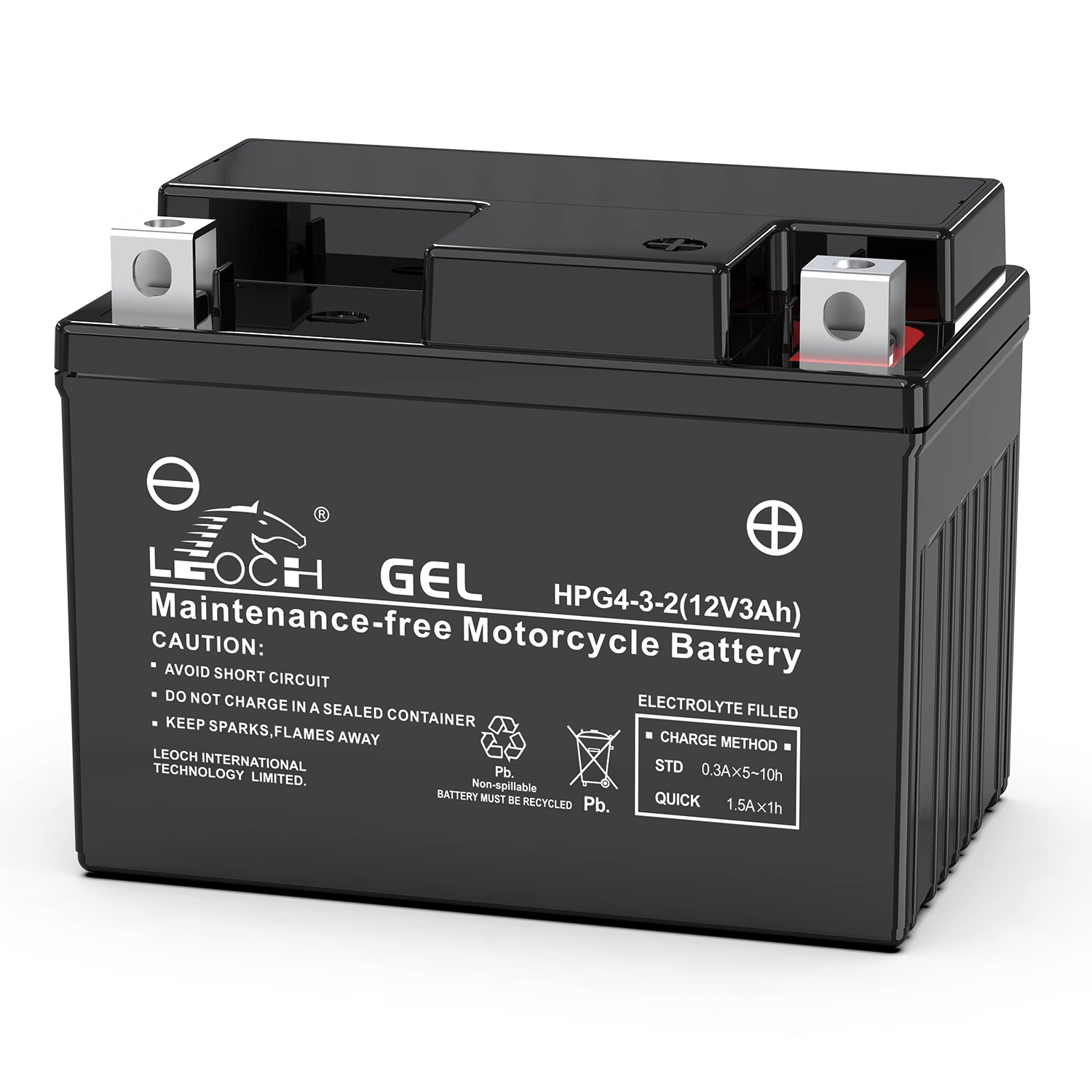

HPG4-3-2	12	3	50	113	70	85	4 7/16	2 3/4	3 6/16	1.36	A
HPG5-3-2	12	4	70	113	70	105	4 7/16	2 3/4	4 2/16	1.78	A
HPG5A-3-1	12	5	75	119	59	130	4 11/16	2 5/16	5 2/16	1.91	B
HPG6.5-3	12	6.5	85	139	66	102	5 8/16	2 5/8	4	2.3	B

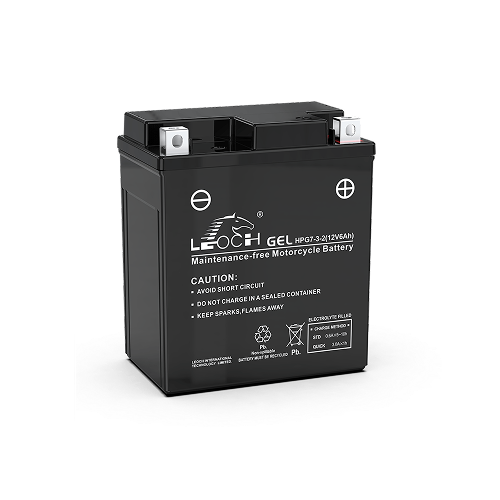

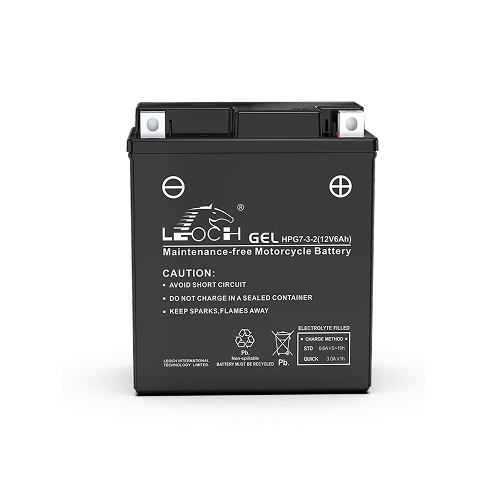

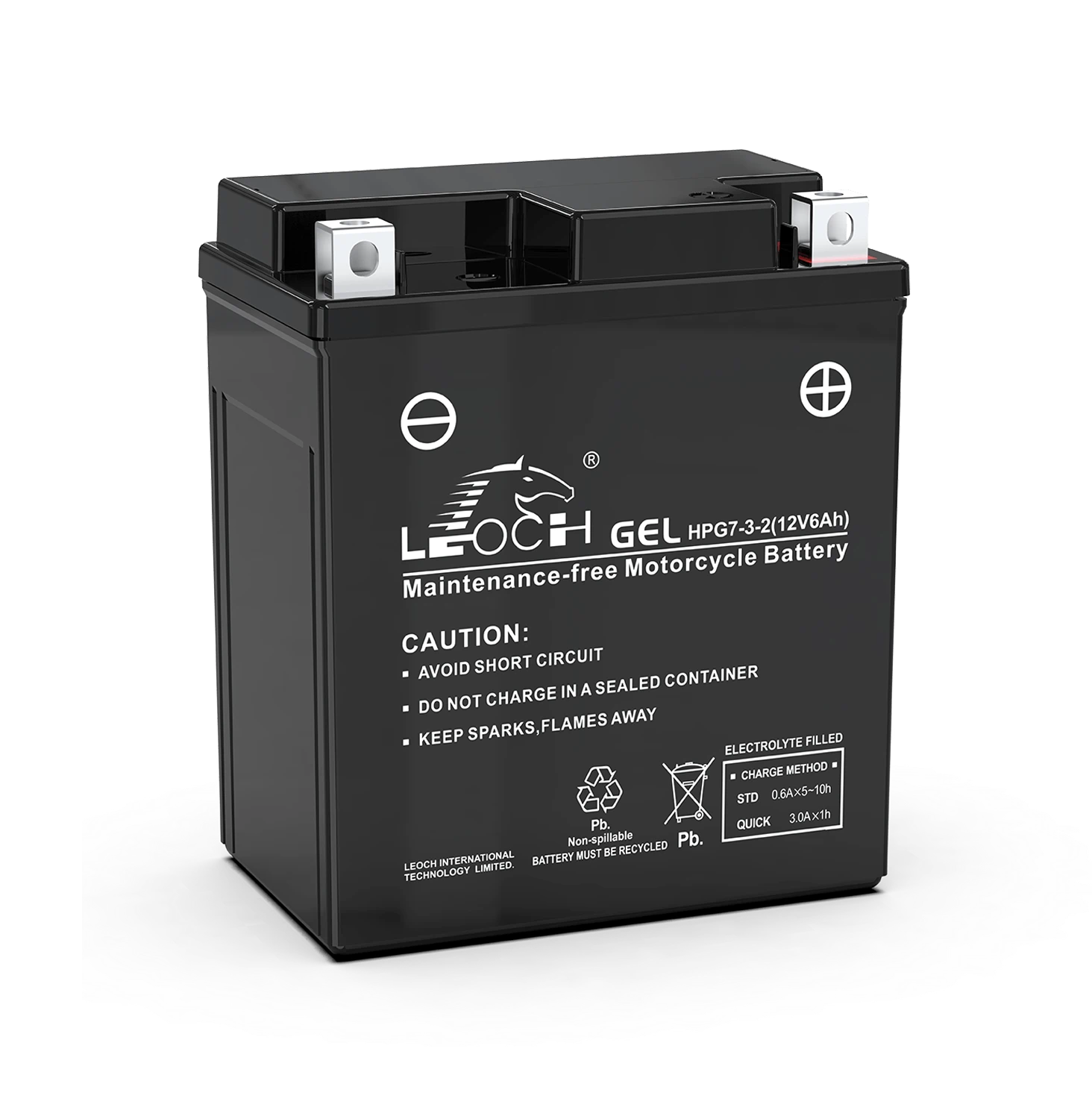

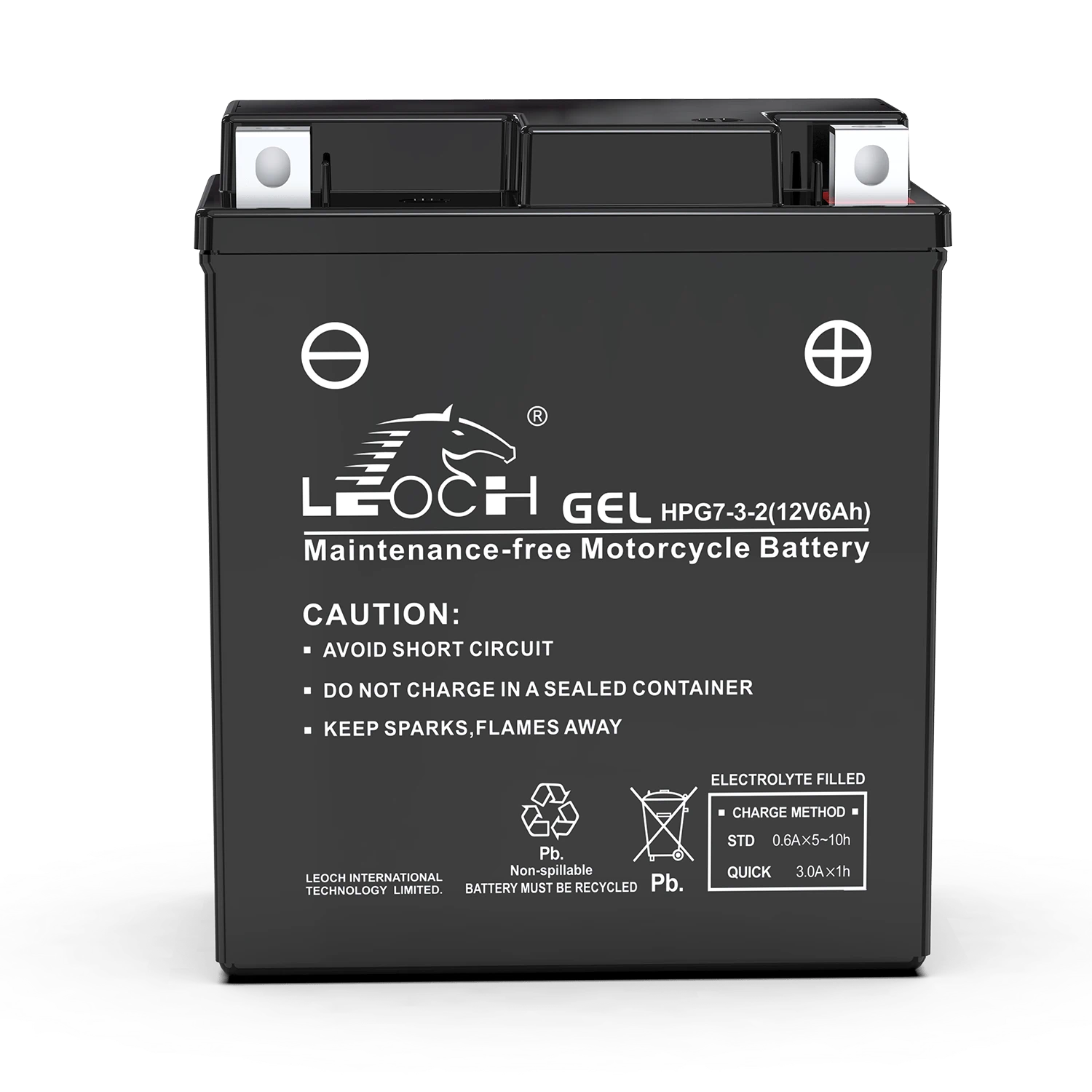

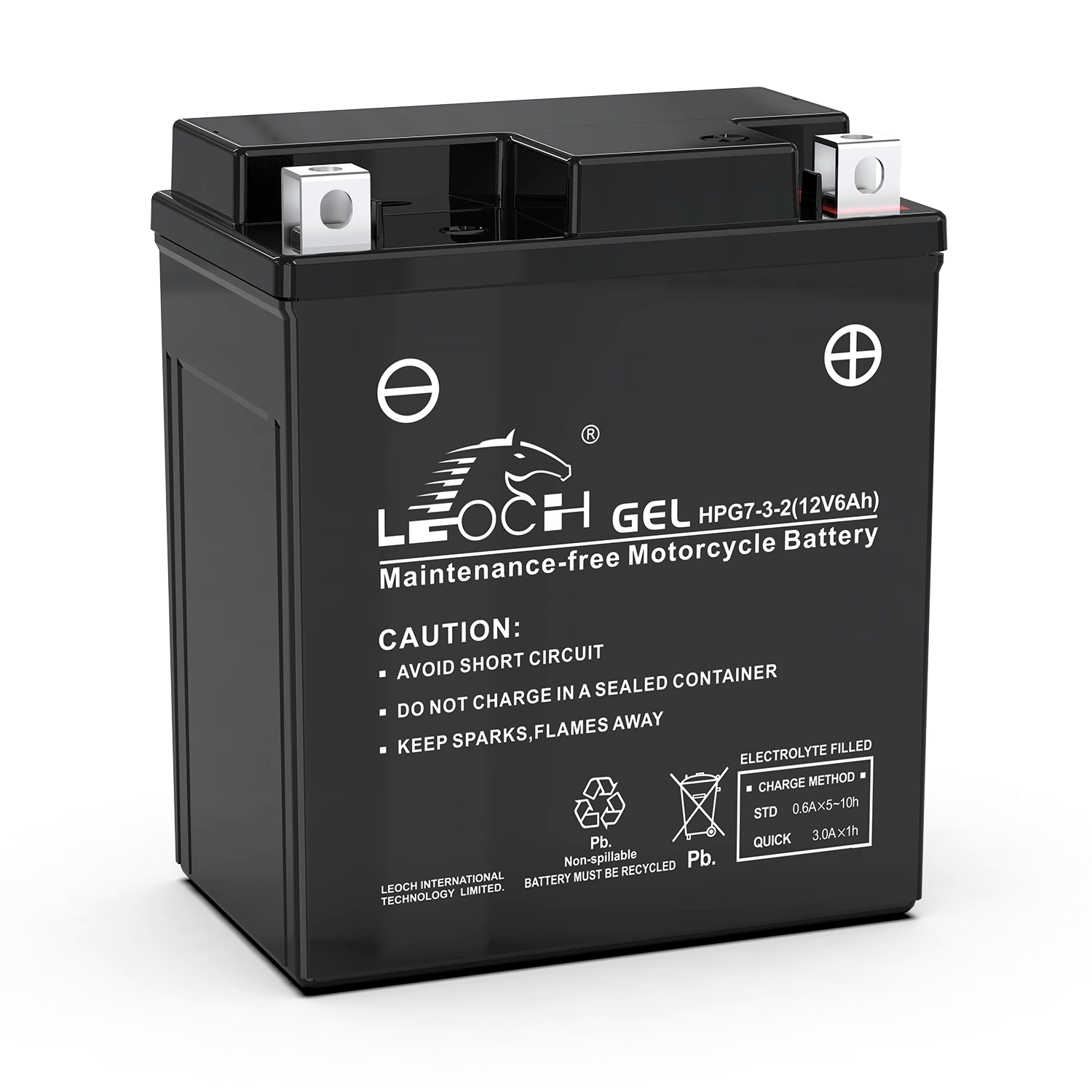

HPG7-3-2	12	6	85	113	70	130	4 7/16	2 3/4	5 2/16	2.29	A
HPGZ7-3-2	12	6	90	113	70	105	4 7/16	2 3/4	4 2/16	2.13	A
HPG7A-4-I	12	6	100	150	87	93	5 7/8	3 7/16	3 11/16	2.28	A
HPG7B-4-1	12	6.5	90	150	66	93	5 7/8	2 5/8	3 11/16	2.3	A
HPG7D-3	12	7	90	146	60	130	5 3/4	2 3/8	5 1/8	2.4	B
HPG9-4-1	12	8	120	150	87	105	5 7/8	3 7/16	4 2/16	3	A
HPG9A-4	12	9	100	135	75	139	5 5/16	2 15/16	5 8/16	3.07	B
HPG10-3-1	12	10	120	133	90	142	5 1/4	3 9/16	5 9/16	3.68	A
HPG12A-4-1	12	10	145	150	88	105	5 7/8	3 7/16	4 1/8	3.29	A
HPG12-4-P	12	12	180	150	87	130	5 7/8	3 7/16	5 2/16	3.92	A
HPG12E-3	12	12	135	134	81	160	5 1/4	3 3/16	6 5/16	3.88	B
HPG14-4-1	12	12	180	150	87	145	5 7/8	3 7/16	5 11/16	4.31	A
HPG14A-3-1	12	12	220	133	90	164	5 1/4	3 9/16	6 7/16	4.4	A
HPG14A-4-1	12	12	220	133	90	164	5 1/4	3 9/16	6 7/16	4.4	A
HPG16-4-1	12	14	215	150	87	161	5 7/8	3 7/16	6 5/16	5.02	A
HPG20H-3-1	12	18	250	175	87	155	6 7/8	3 7/16	6 2/16	5.93	A
HPG20CH-4-1	12	18	230	150	87	161	5 7/8	3 7/16	6 5/16	5.53	A
HPG22-3	12	18	230	186	82	171	7 5/16	3 4/16	6 3/4	5.55	G
HPG24-3-1	12	21	320	205	87	162	8 1/16	3 7/16	6 3/8	7	A
HPGMX20-3-3	12	18	310	176	89	154	6 15/16	3 8/16	6 1/16	6.55	N
HPGMX30-3-3	12	30	420	170	132.5	175	6 11/16	5 3/16	6 7/8	9.9	N
HPGMX30-3-P	12	32	480	170	132.5	175	6 11/16	5 3/16	6 7/8	10.38	R
HPGZ10-4-2	12	8.6	150	150	88	93	5 7/8	3 7/16	3 5/8	3.15	A
HPG12A-4-1	12	10	145	150	88	105	5 7/8	3 7/16	4 1/8	3.29	A
HPGZ14-4-2	12	11.2	210	150	88	110	5 7/8	3 7/16	4 5/16	3.82	A
HPG30-3-1	12	30	385	166	126	173	6 8/16	4 15/16	6 13/16	9.38	A
HPGU1-4-P	12	25	320	195	125	176	7 11/16	4 15/16	6 15/16	8.34	G
HPGU1R-4-P	12	25	320	195	125	176	7 11/16	4 15/16	6 15/16	8.34	G
HPG30A-3(J)	12	30	315	184	124	170	7 1/4	4 7/8	6 11/16	8.55	G
