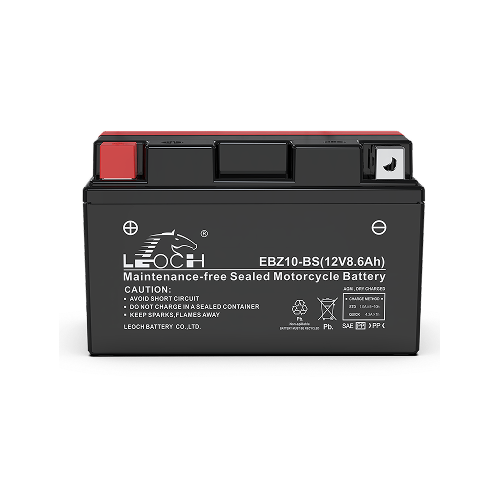

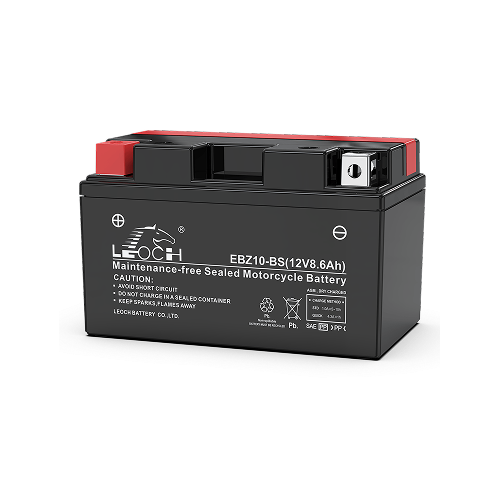

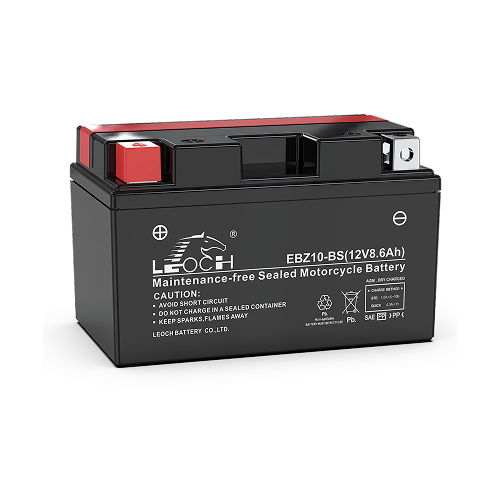

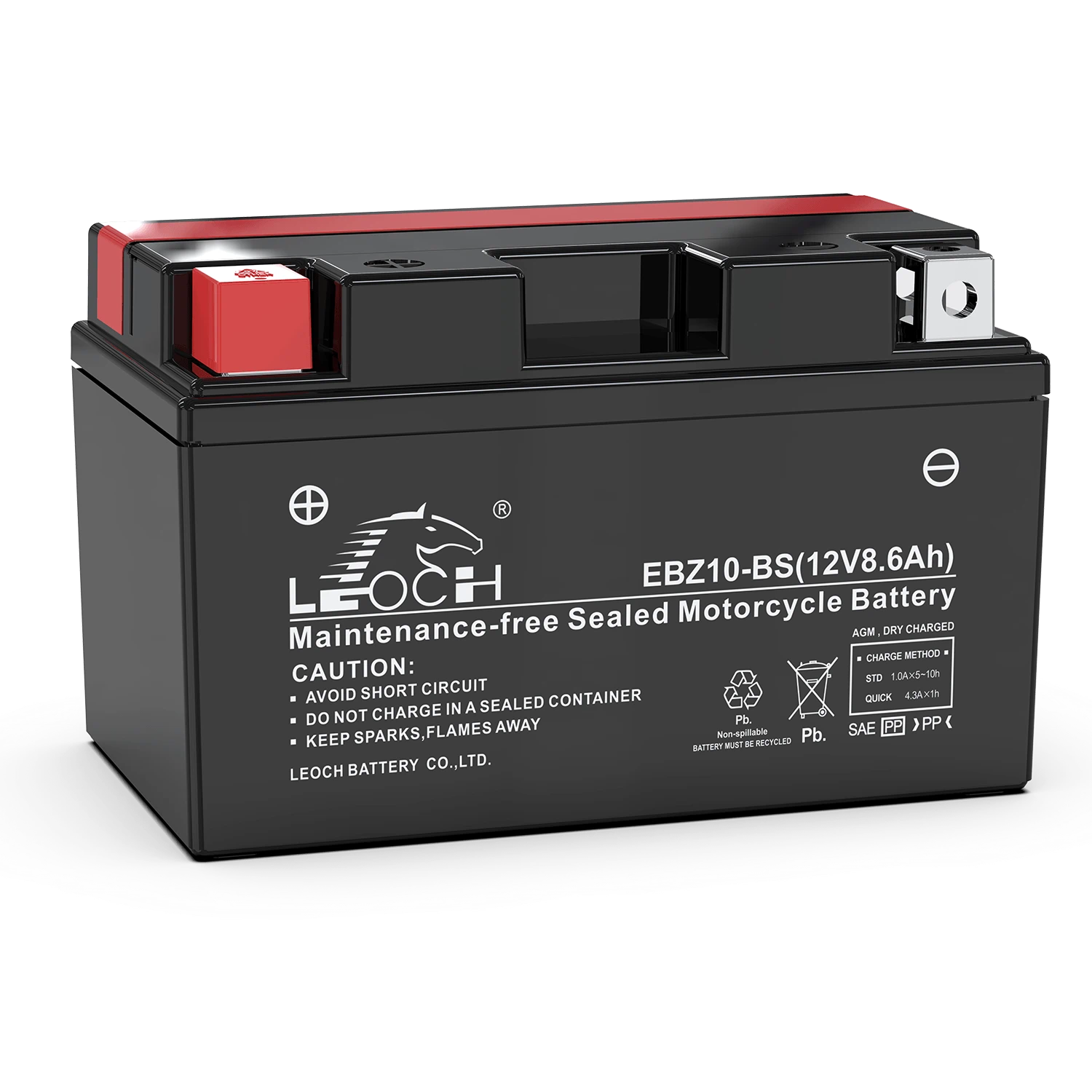

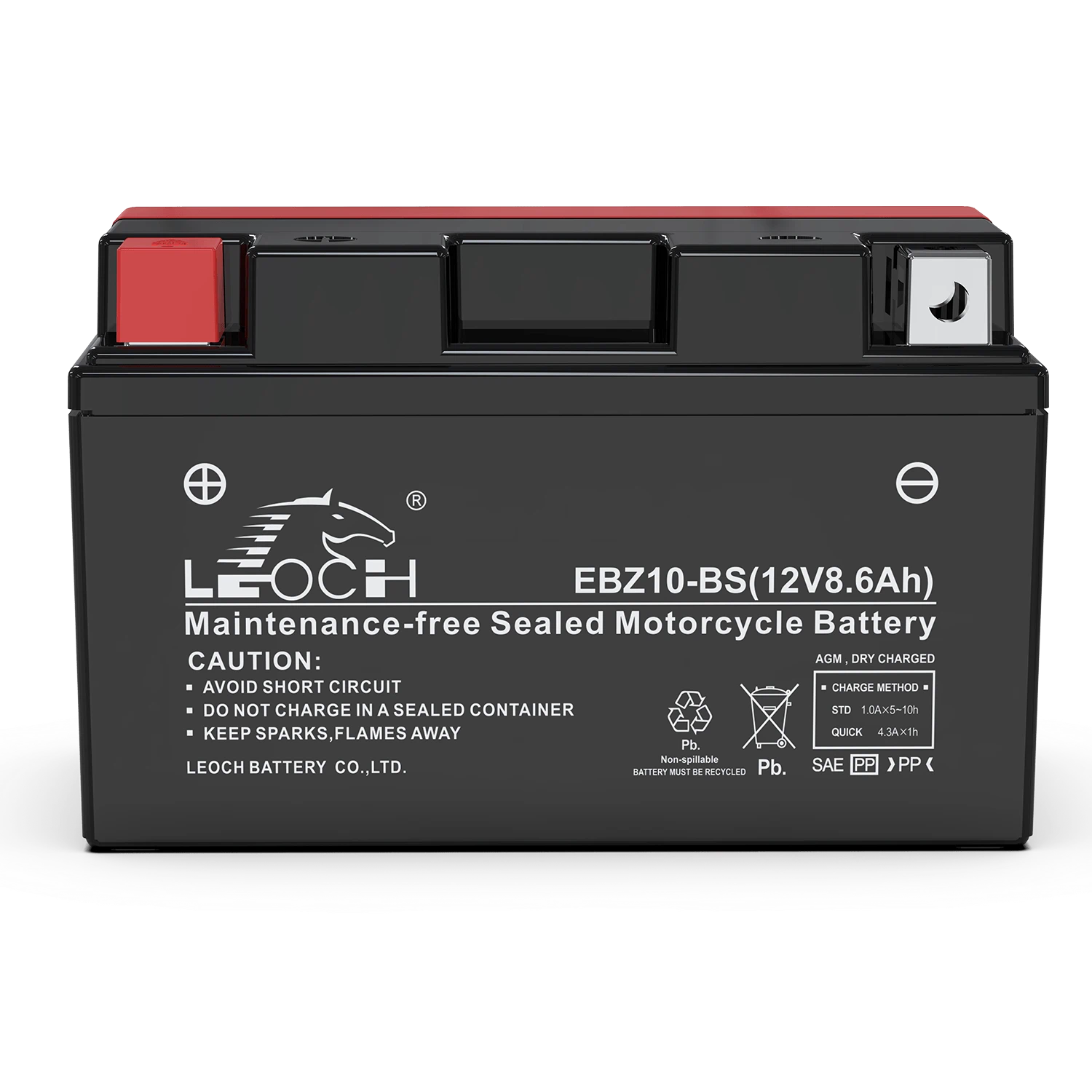

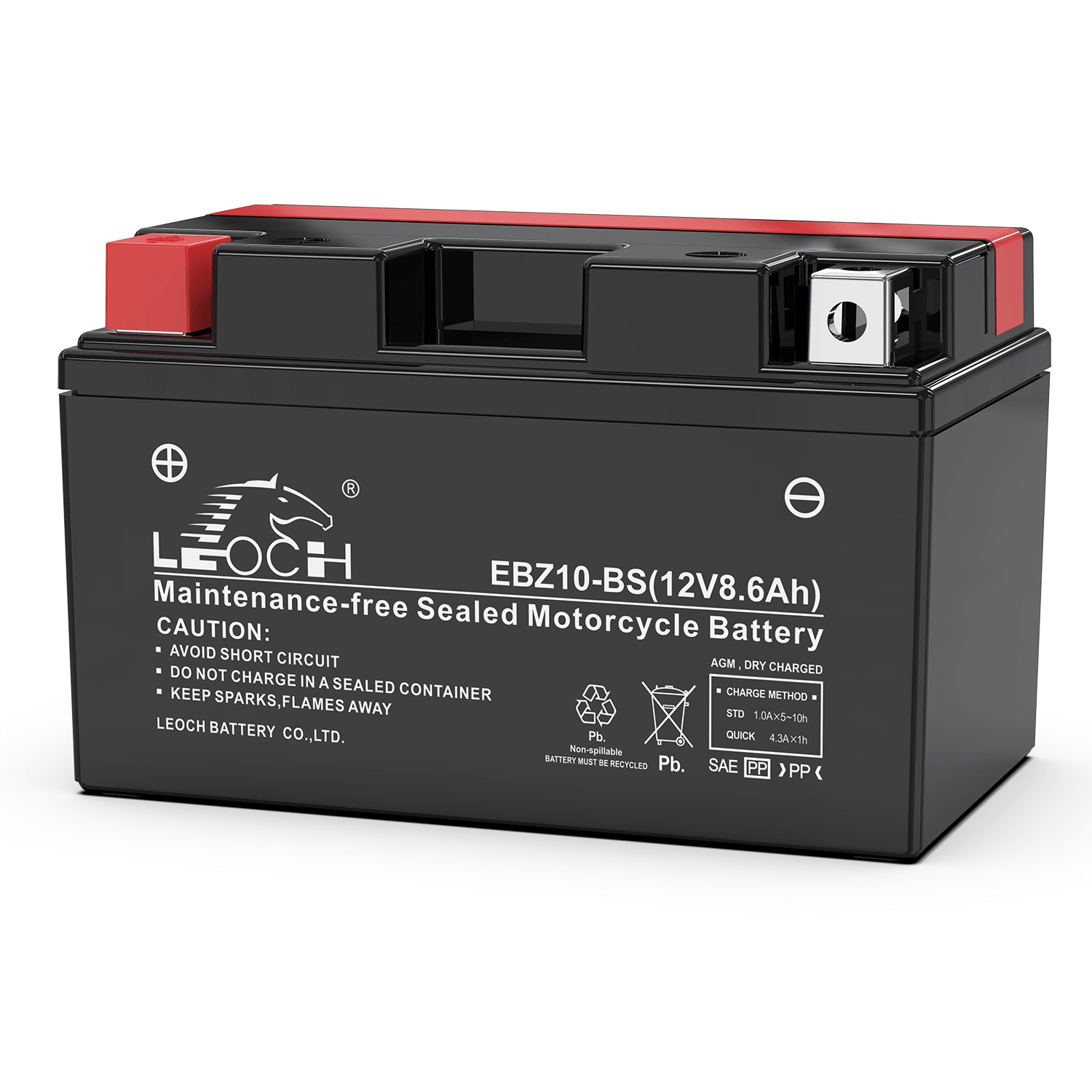

Motorcycle Dry-Charged EB Series

AGM maintenance-free technology, embedded terminals, stable welding quality, factory-supplied separate acid bottle, superior shelf life.

Applications:

ATV
Jet ski
Motorcycle
Snowmobile
Lawn & Garden

Request a Quote

Key Features

100% Maintenance-Free & AGM Design

Fully sealed construction for convenient and reliable operation.
Superior Cranking Performance

CCA for reliable starting power.
Lead-Calcium Alloy Technology

Minimizes water loss and enhances maintenance-free performance.
PP Material

Excellent weather resistance for long-lasting performance.
Patented Embedded Terminals

Stable welding quality with a clean and premium appearance.

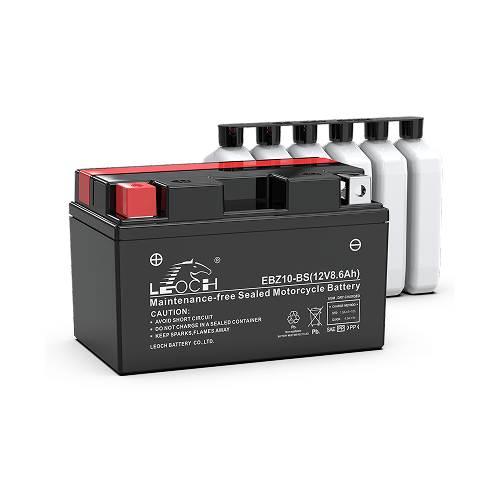

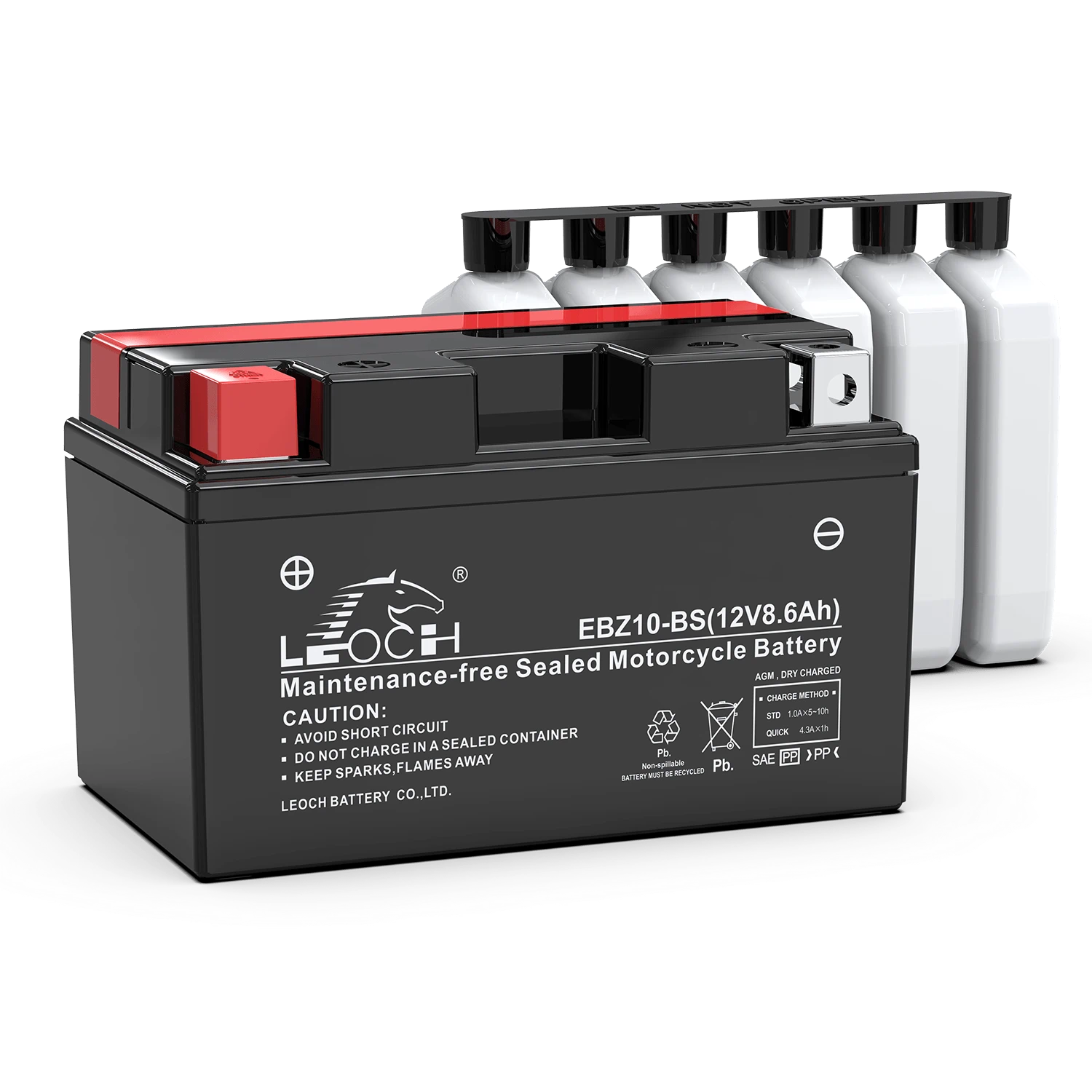

Dry-Charged Design

Supplied with a dedicated acid pack for extended dry storage and easy activation.

Parameter List

Swipe View

Model	Rated Voltage(V)	10hr @1.75V/cell	CCA @-18°C(A)	Length(mm)	Width(mm)	Height(mm)	Length(in)	Width(in)	Height(in)	Weight(kg)	Terminal
EBX4L-BS-I	12	3	50	113	70	85	4 7/16	2 3/4	3 6/16	1.3	A
EBX4L-BS-I(J)	12	3	40	113	70	85	4 7/16	2 3/4	3 6/16	1.23	A
EBZ5L-BS	12	3.5	50	113	70	85	4 7/16	2 3/4	3 6/16	1.39	A
EBZ4.5L-BS	12	4	55	113	70	85	4 7/16	2 3/4	3 6/16	1.51	A
EBX5L-BS	12	4	80	113	70	105	4 7/16	2 3/4	4 2/16	1.83	A
EBX5L-BS(J)	12	4	60	113	70	105	4 7/16	2 3/4	4 2/16	1.67	A
EB5AL-BS	12	5	75	120	60	130	4 3/4	2 6/16	5 2/16	1.92	B
EBZ7L-BS	12	6	95	113	70	105	4 7/16	2 3/4	4 2/16	2.14	A
EBX7L-BS	12	6	95	113	70	130	4 7/16	2 3/4	5 2/16	2.36	A
EBX7L-BS(J)	12	6	70	113	70	130	4 7/16	2 3/4	5 2/16	2.17	A
EBX7A-BS-I	12	6	100	150	87	93	5 7/8	3 7/16	3 11/16	2.29	A
EB7B-BS	12	6.5	90	150	66	93	5 7/8	2 5/8	3 11/16	2.29	A
EB7B-BS(J)	12	6.5	75	150	66	93	5 7/8	2 5/8	3 11/16	2.15	A
EBX9-BS	12	8	135	150	87	105	5 7/8	3 7/16	4 2/16	3.04	A
EBX9-BS(J)	12	8	100	150	87	105	5 7/8	3 7/16	4 2/16	2.85	A
EBX9-BS-I	12	8	120	150	87	105	5 7/8	3 7/16	4 2/16	2.85	A
EBX9-BS-I(J)	12	8	100	150	87	105	5 7/8	3 7/16	4 2/16	2.7	A
EB9A-BS	12	9	100	135	75	139	5 5/16	2 15/16	5 8/16	3.1	A
EB9A-BS(J)	12	8.5	85	135	75	139	5 5/16	2 15/16	5 8/16	2.87	A
EB9AL-BS(J)	12	8.5	85	135	75	139	5 5/16	2 15/16	5 8/16	2.87	A
EB9A-BS-1	12	9	100	135	75	139	5 5/16	2 15/16	5 8/16	3.08	B
EB9B-BS	12	8	120	150	70	105	5 7/8	2 3/4	4 2/16	2.78	A
EB9B-BS(J)	12	8	95	150	70	105	5 7/8	2 3/4	4 2/16	2.6	A
EB10A-BS	12	9	150	194	59	112	7 5/8	2 5/16	4 7/16	3.26	A
EBZ10-BS	12	8.6	150	150	88	93	5 7/8	3 7/16	3 11/16	3.11	A
EBZ12-BS	12	11	210	150	88	110	5 7/8	3 7/16	4 5/16	3.78	A
EBZ14-BS	12	11.2	220	150	88	110	5 7/8	3 7/16	4 5/16	3.8	A
EBX12-BS-I	12	10	160	150	87	130	5 7/8	3 7/16	5 2/16	3.63	A
EBX12-BS	12	10	180	150	87	130	5 7/8	3 7/16	5 2/16	3.86	A
EBX12-BS(J)	12	10	130	150	87	130	5 7/8	3 7/16	5 2/16	3.58	A
EBX12-BS-I(J)	12	10	130	150	87	130	5 7/8	3 7/16	5 2/16	3.44	A
EB12A-BS	12	10	145	150	88	105	5 7/8	3 7/16	4 2/16	3.29	A
EB12B-BS	12	10	165	150	70	130	5 7/8	2 3/4	5 2/16	3.55	A
EB12B-BS(J)	12	10	130	150	70	130	5 7/8	2 3/4	5 2/16	3.36	A
EBX14L-BS	12	12	200	150	87	145	5 7/8	3 7/16	5 11/16	4.37	A
EBX14L-BS(J)	12	12	160	150	87	145	5 7/8	3 7/16	5 11/16	4.06	A
EBX14L-BS-I(J)	12	12	160	150	87	145	5 7/8	3 7/16	5 11/16	3.95	A
EBX14-BS-I(J)	12	12	160	150	87	145	5 7/8	3 7/16	5 11/16	3.95	A
EBX14L-BS-I	12	12	180	150	87	145	5 7/8	3 7/16	5 11/16	4.17	A
EBX14-BS-I	12	12	180	150	87	145	5 7/8	3 7/16	5 11/16	4.17	A
EBX14-BS	12	12	200	150	87	145	5 7/8	3 7/16	5 11/16	4.37	A
EBX14-BS(J)	12	12	160	150	87	145	5 7/8	3 7/16	5 11/16	4.06	A
EB14B-BS	12	12	175	150	70	145	5 7/8	2 3/4	5 11/16	4.11	A
EB14B-BS(J)	12	12	150	150	70	145	5 7/8	2 3/4	5 11/16	3.89	A
EBX14AHL-BS	12	12	220	133	90	164	5 4/16	3 9/16	6 7/16	4.42	A
EBX14AHL-BS(J)	12	12	170	133	90	164	5 4/16	3 9/16	6 7/16	4.24	A
EBX14AH-BS	12	12	220	133	90	164	5 4/16	3 9/16	6 7/16	4.42	A
EBX14AH-BS(J)	12	12	170	133	90	164	5 4/16	3 9/16	6 7/16	4.24	A
EBX16-BS	12	14	220	150	87	161	5 7/8	3 7/16	6 5/16	4.99	A
EBX20L-BS	12	18	250	175	87	155	6 7/8	3 7/16	6 2/16	5.94	A
EBX20L-BS(J)	12	18	230	175	87	155	6 7/8	3 7/16	6 2/16	5.62	A
EBX20-BS	12	18	250	175	87	155	6 7/8	3 7/16	6 2/16	5.94	A
EBX20-BS(J)	12	18	230	175	87	155	6 7/8	3 7/16	6 2/16	5.62	A
EBX20CH-BS	12	18	250	150	87	161	5 7/8	3 7/16	6 5/16	5.53	A
EBX20HL-BS-P	12	18	310	175	87	155	6 7/8	3 7/16	6 2/16	6.55	A
EBX20H-BS-P	12	18	310	175	87	155	6 7/8	3 7/16	6 2/16	6.55	A
EBX20HL-BS-P1	12	18	310	175	87	155	6 7/8	3 7/16	6 2/16	6.17	A
EBX30L-BS	12	30	385	166	126	173	6 9/16	4 15/16	6 13/16	9.48	A
