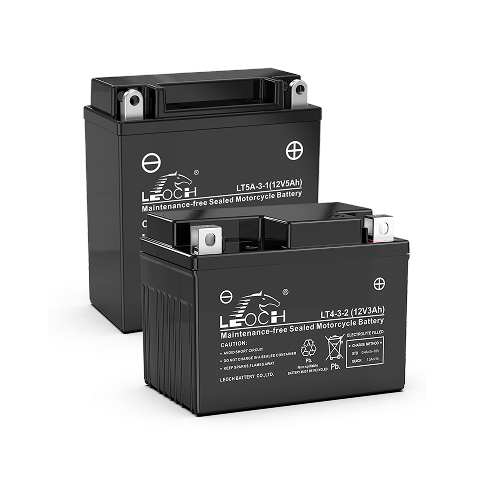

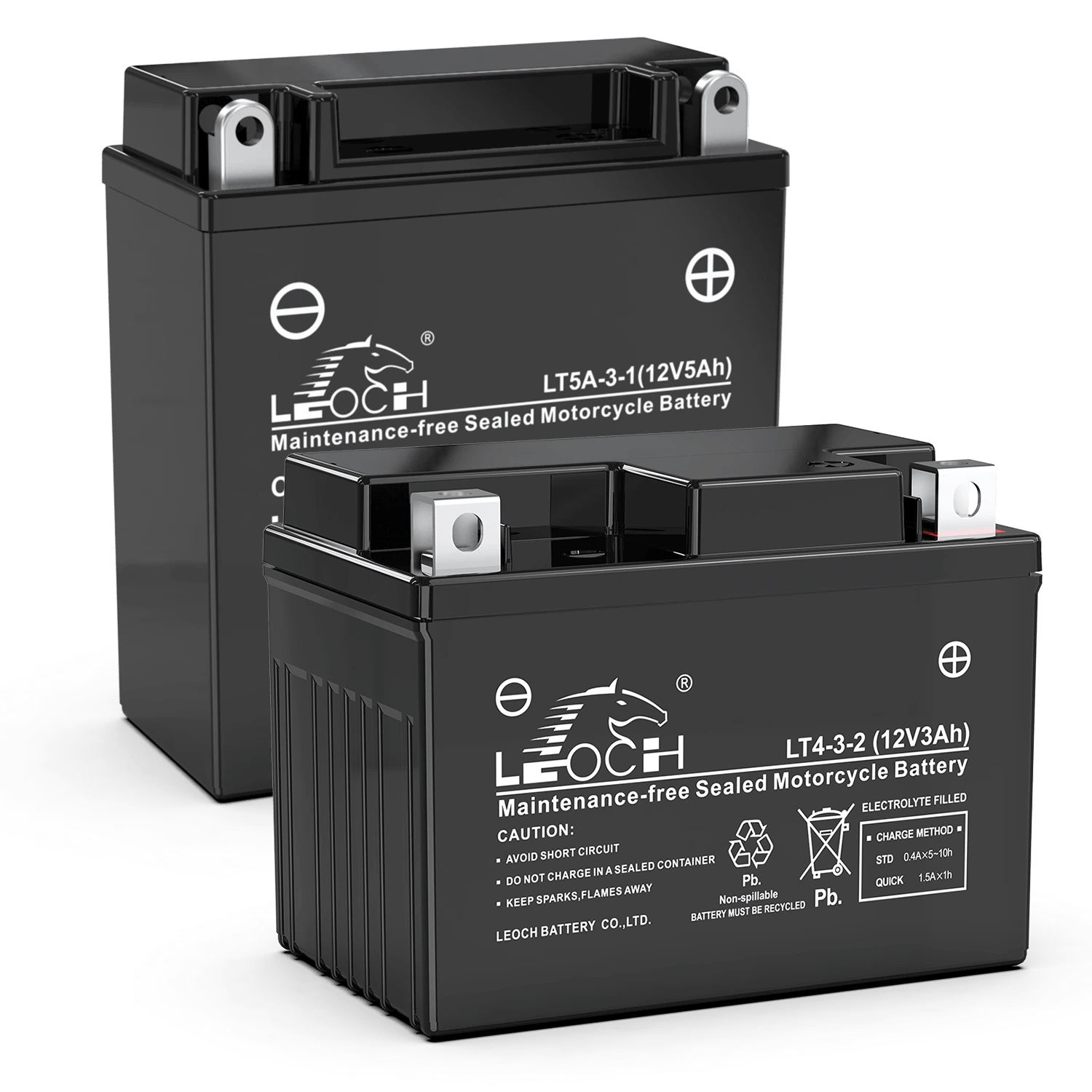

Motorcycle Factory-Activated LT Series

The same reliable AGM performance as our standard LT series, but pre-filled, sealed, and fully charged at the factory for immediate "plug-and-play" installation.

Applications:

Motorcycle
ATV
Snowmobile
Lawn & Garden

Request a Quote

Key Features

100% Maintenance-Free & AGM Design

Fully sealed construction for convenient and reliable operation.
Superior Cranking Performance

CCA for reliable starting power.
Lead-Calcium Alloy Technology

Minimizes water loss and enhances maintenance-free performance.
ABS Material

Strong structure with excellent deformation resistance.
Color-Coded Terminals

Easy polarity identification for convenient installation.
Ready-to-Install Design

Pre-filled and ready for immediate application.

Parameter List

Swipe View

Model	Rated Voltage(V)	10hr @1.75V/cell	CCA @-18°C(A)	Length(mm)	Width(mm)	Height(mm)	Length(in)	Width(in)	Height(in)	Weight(kg)	Terminal
LTC4-3-P	12	4	60	113	70	85	4 7/16	2 3/4	3 6/16	1.45	A
6LT4-2	6	4	N/A	70	70	95	2 3/4	2 3/4	3 3/4	0.85	/
LTR4A-5	12	2.3	30	113	48	85	4 7/16	1 7/8	3 6/16	0.96	I
LT4B-5	12	2.3	30	113	38	85	4 7/16	1 8/16	3 6/16	0.91	J
LT2.5-3-2	12	2.5	20	80	70	105	3 2/16	2 3/4	4 2/16	1.04	/
LT3-3	12	3	30	98	56	110	3 7/8	2 3/16	4 5/16	1.2	B

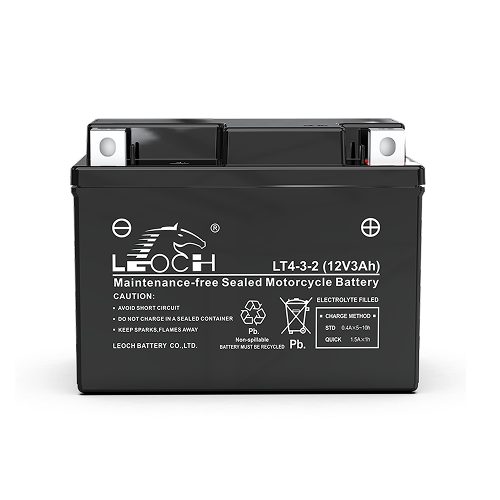

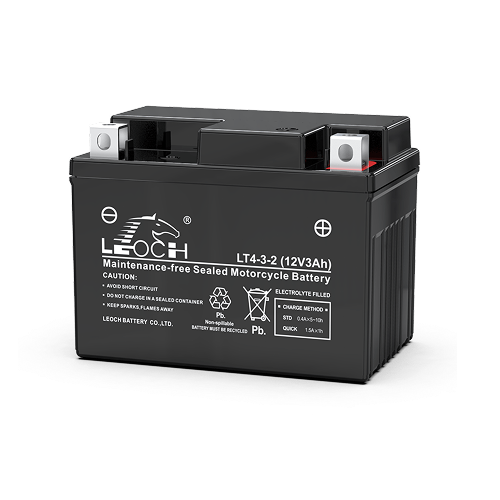

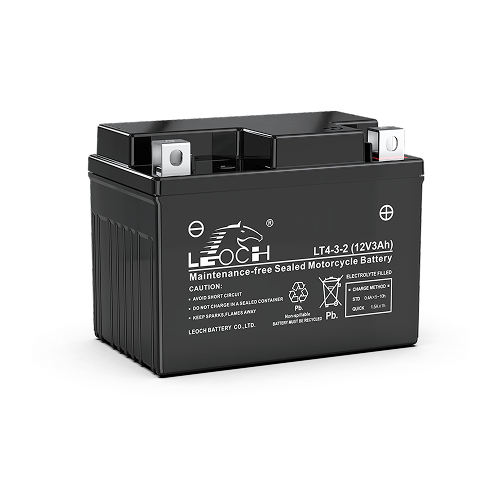

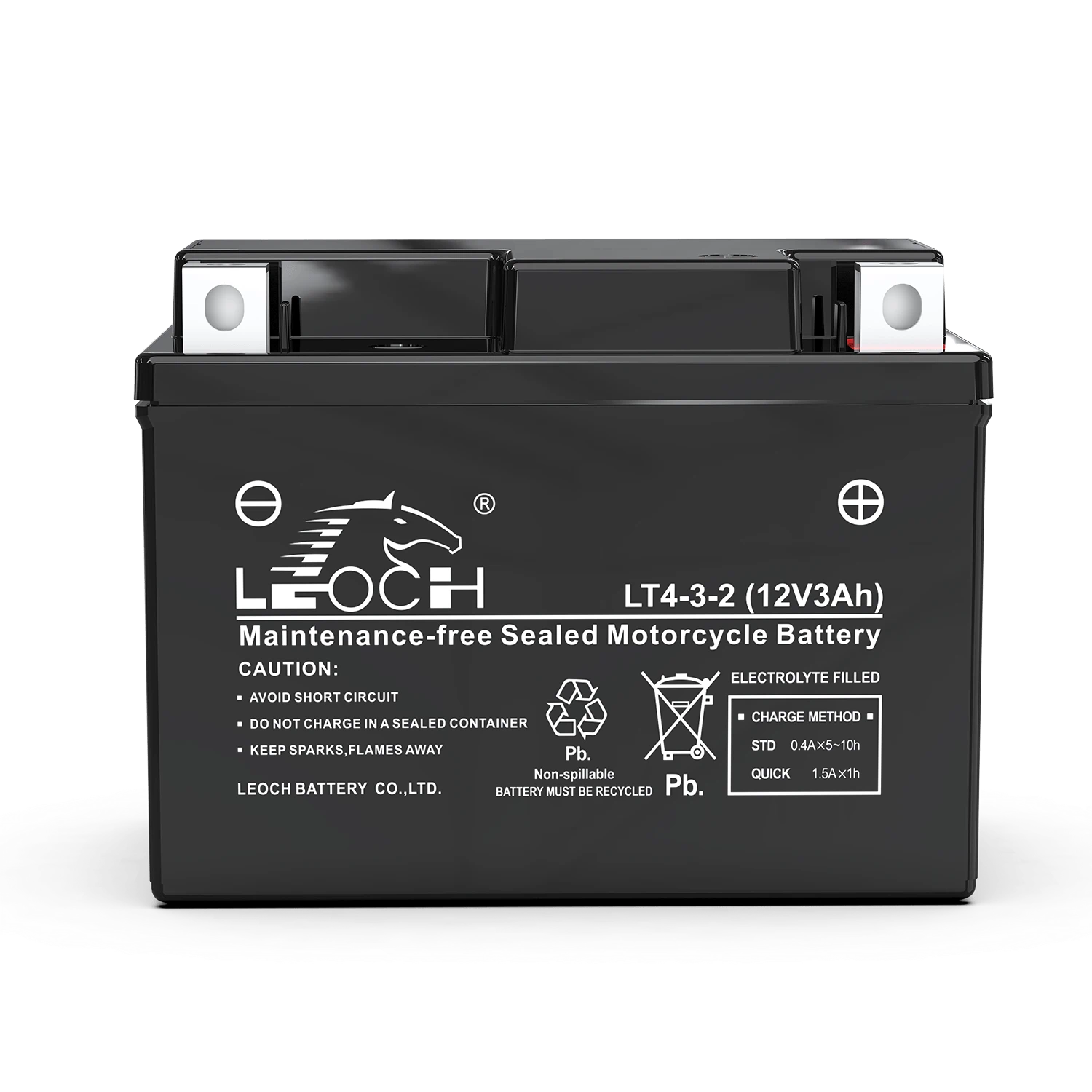

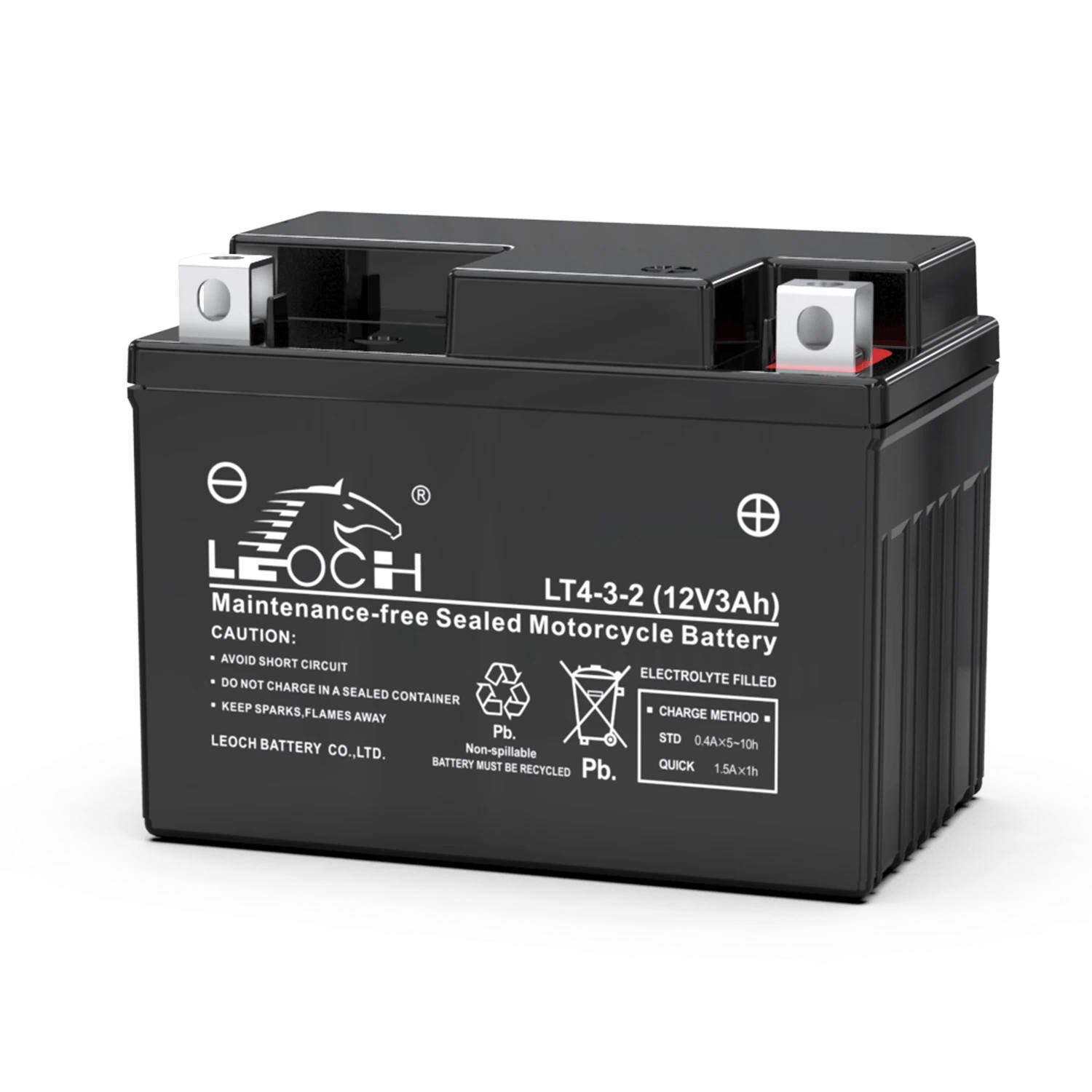

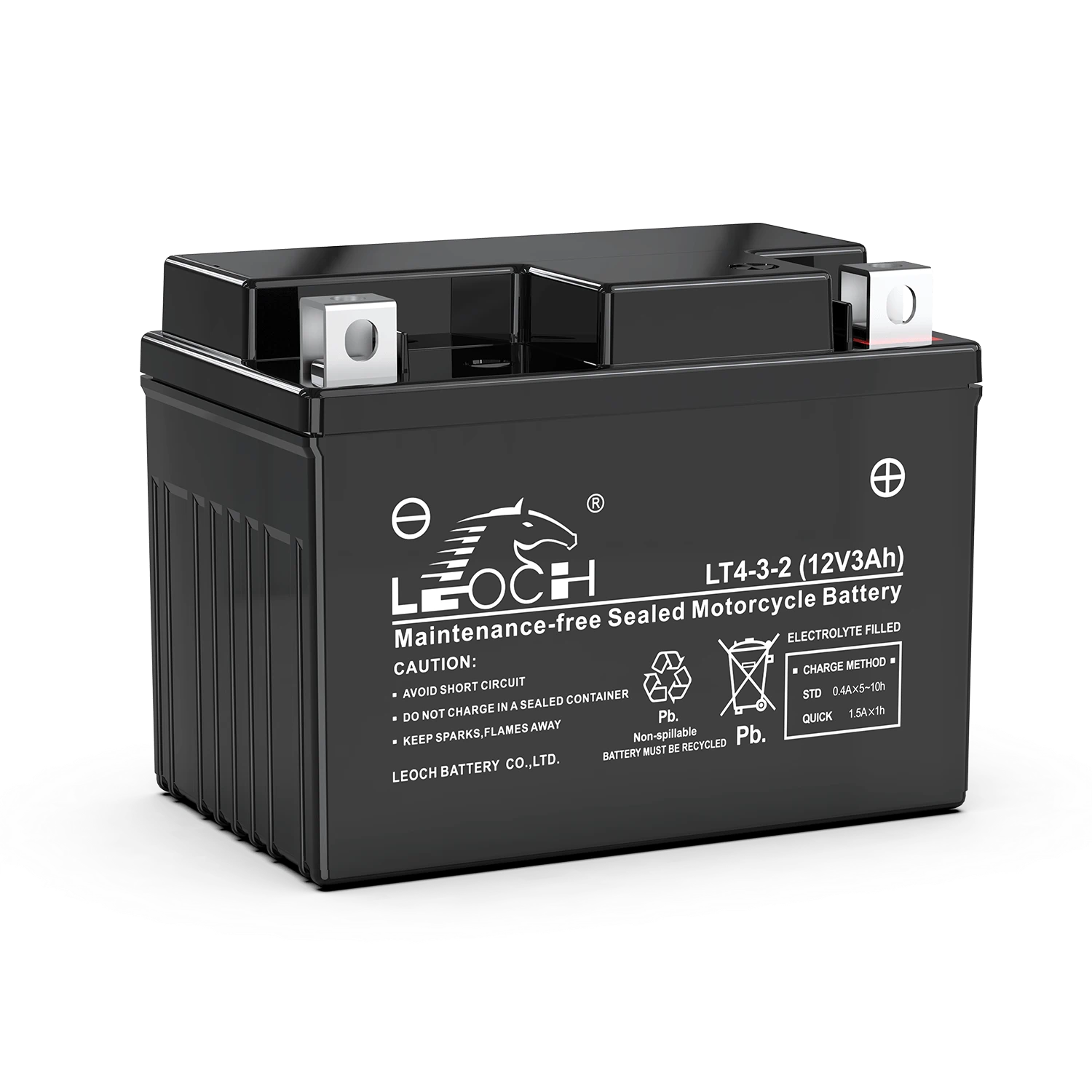

LT4-3-2	12	3	50	113	70	85	4 7/16	2 3/4	3 6/16	1.36	A
LT4-3-2(J)	12	3	40	113	70	85	4 7/16	2 3/4	3 6/16	1.25	A
LT4A-3	12	4	55	120	70	92	4 3/4	2 3/4	3 5/8	1.59	A
LT5-3-2	12	4	75	113	70	105	4 7/16	2 3/4	4 2/16	1.78	A
LT5-3-2(J)	12	4	60	113	70	105	4 7/16	2 3/4	4 2/16	1.64	A

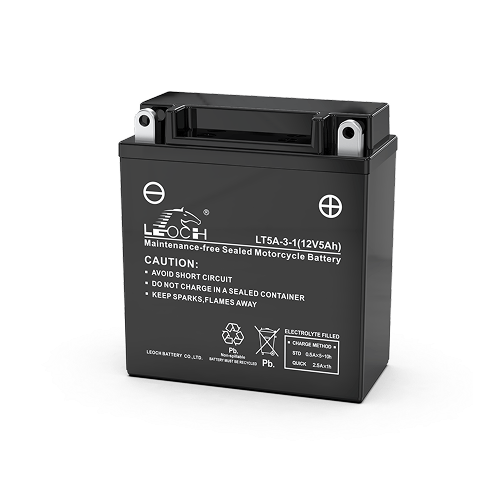

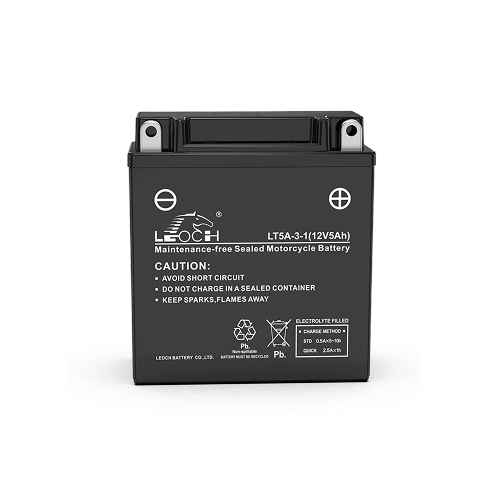

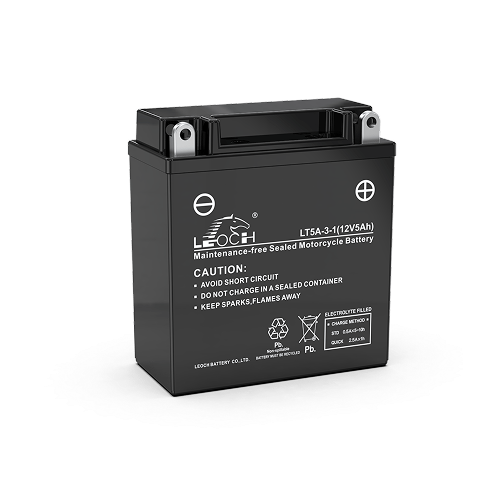

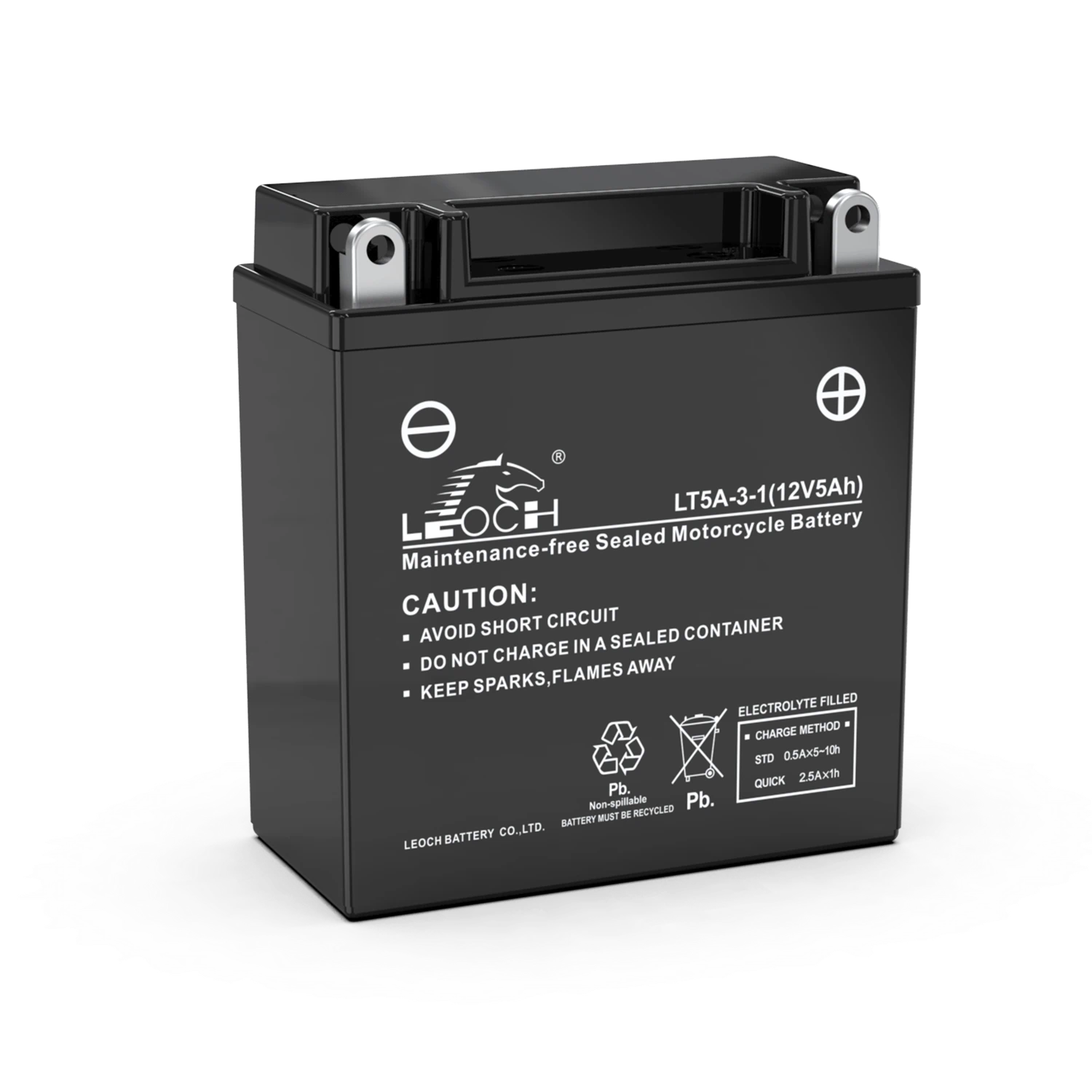

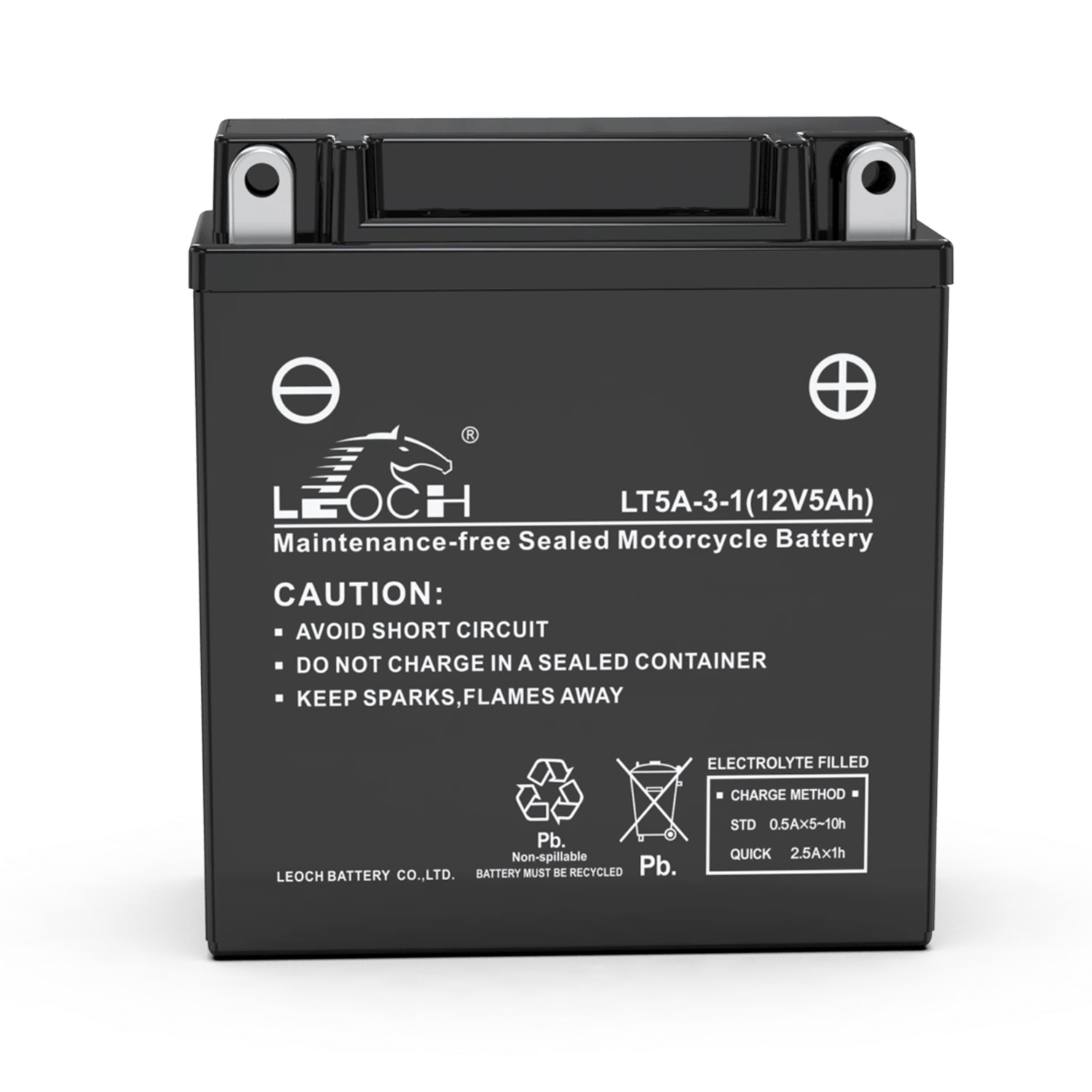

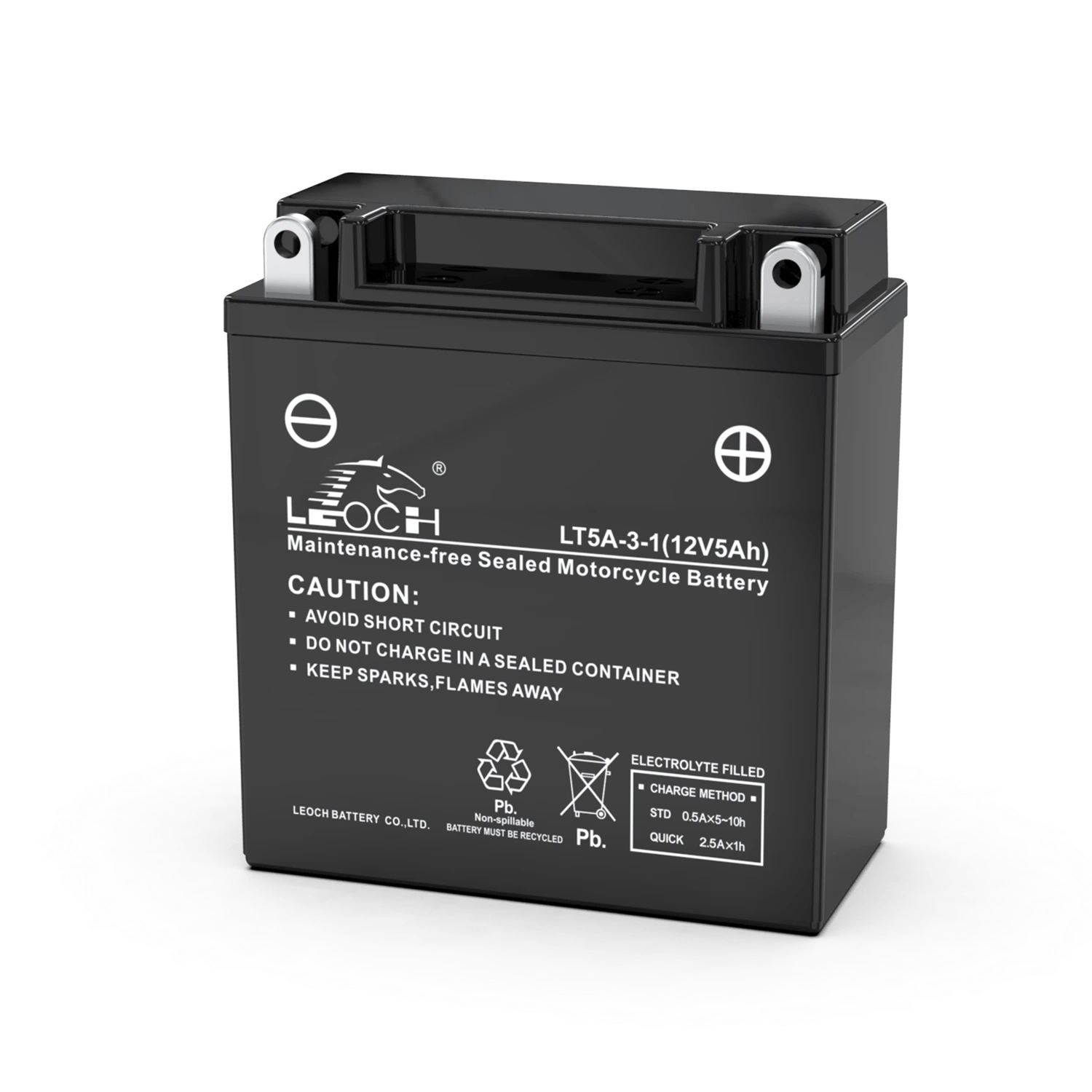

LT5A-3-1	12	5	75	120	60	130	4 3/4	2 6/16	5 2/16	1.9	B
LT5A-3-1(J)	12	5	55	120	60	130	4 3/4	2 6/16	5 2/16	1.76	B
LT6-3-2	12	5	70	113	70	105	4 7/16	2 3/4	4 2/16	1.94	A
LT6.5-3	12	6.5	85	139	66	102	5 8/16	2 5/8	4	2.3	B
LT6.5-3(J)	12	6.5	70	139	66	102	5 8/16	2 5/8	4	2.18	B
LT6.5-4(J)	12	6.5	70	139	66	102	5 8/16	2 5/8	4	2.18	B
LT7-3-2	12	6	90	113	70	130	4 7/16	2 3/4	5 2/16	2.29	A
LT7-3-2(J)	12	6	70	113	70	130	4 7/16	2 3/4	5 2/16	2.1	A
LT7D-3	12	7	90	146	60	130	5 3/4	2 6/16	5 2/16	2.4	B
LT7D-3(J)	12	7	75	146	60	130	5 3/4	2 6/16	5 2/16	2.27	B
LT7D-4	12	7	90	146	60	130	5 3/4	2 6/16	5 2/16	2.4	B
LT7D-4(J)	12	7	75	146	60	130	5 3/4	2 6/16	5 2/16	2.27	B
LT7E-4	12	7	90	135	75	122	5 5/16	2 15/16	4 13/16	2.75	B
LT7E-3	12	7	90	135	75	122	5 5/16	2 15/16	4 13/16	2.75	B
LT7A-4(N)	12	7	100	151	81	93	5 15/16	3 3/16	3 11/16	2.66	A
LT9A-3	12	9	100	135	75	139	5 5/16	2 15/16	5 8/16	3.05	B
LT9A-4	12	9	100	135	75	139	5 5/16	2 15/16	5 8/16	3.05	B
LT9A-4(J)	12	8.5	85	135	75	139	5 5/16	2 15/16	5 8/16	2.85	B
