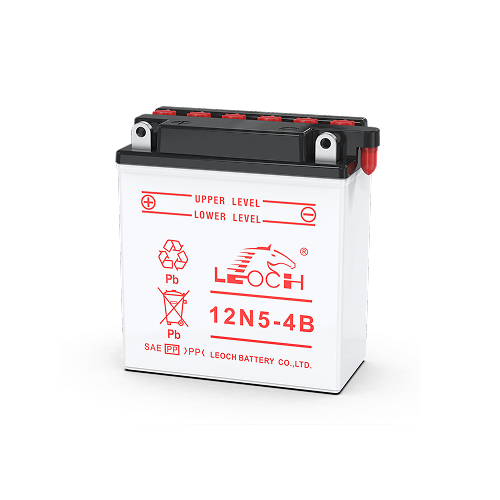

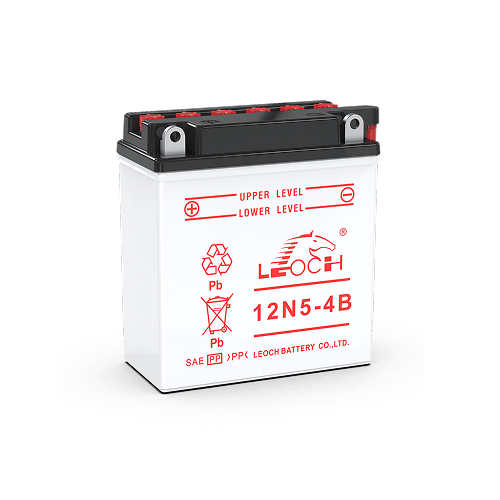

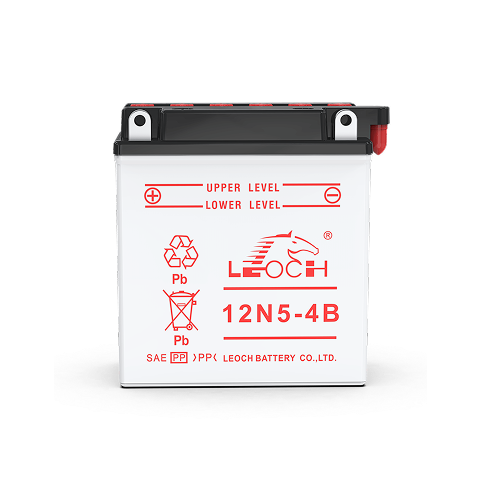

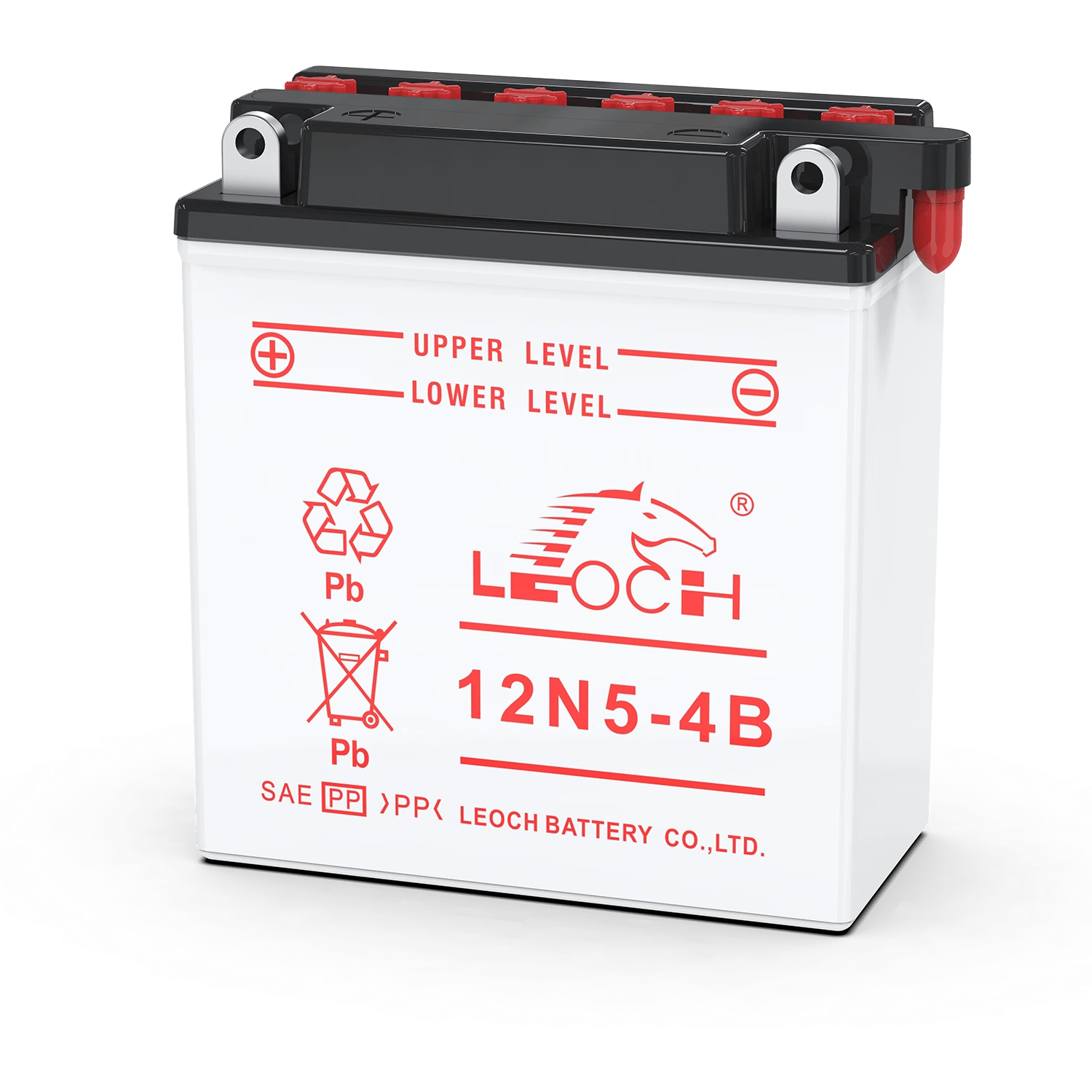

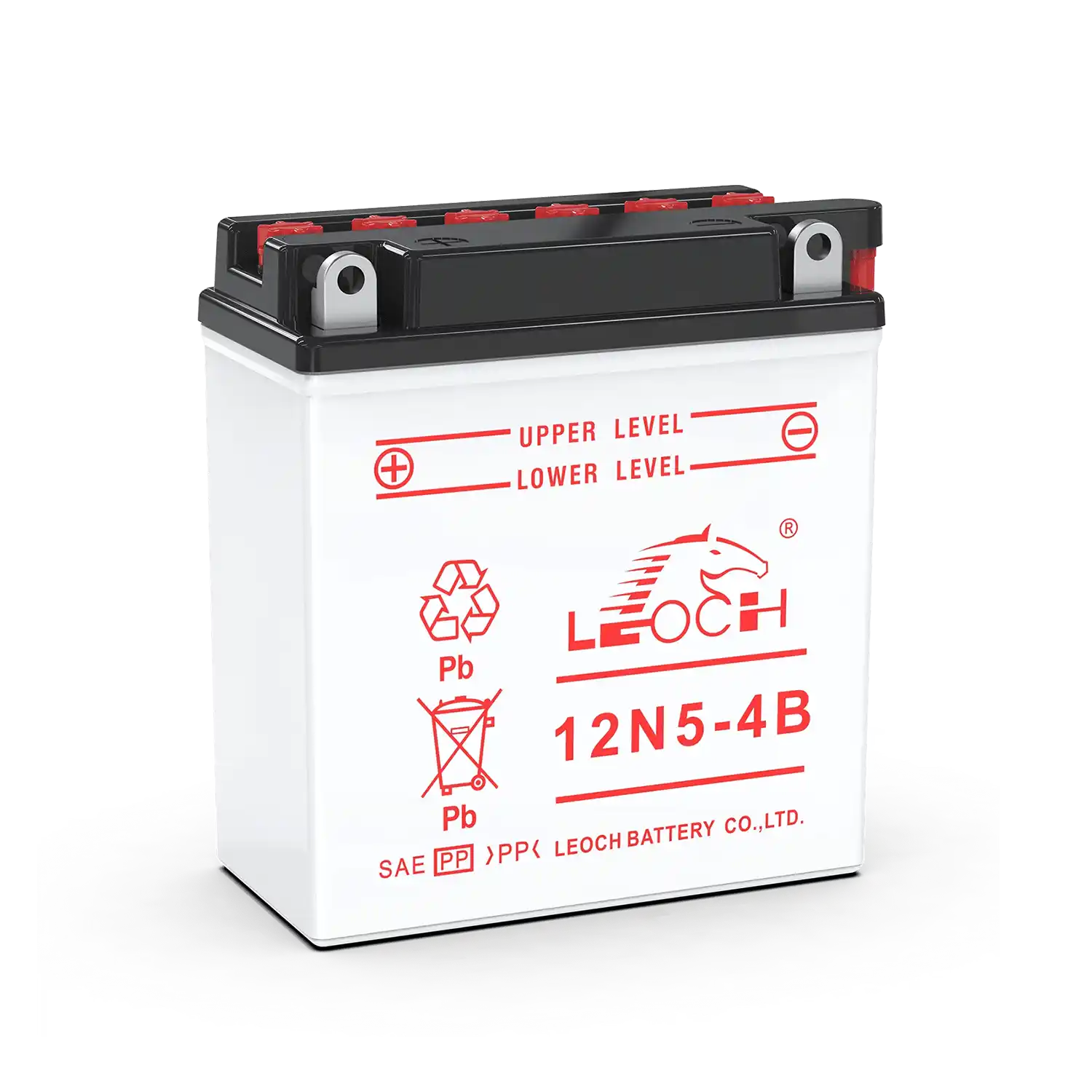

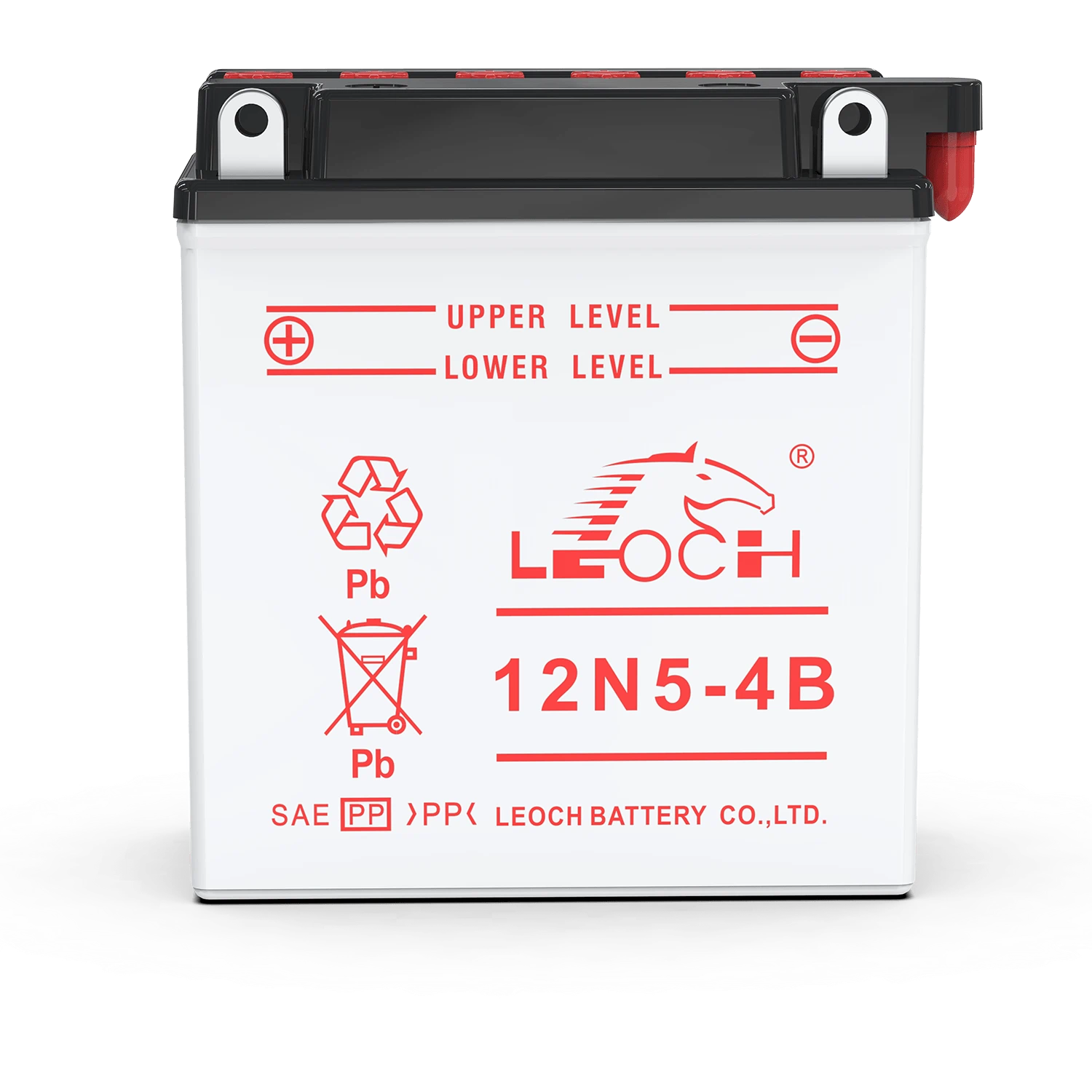

Motorcycle Flooded N Series
The classic conventional battery with white casing, perfect for older, standard, and vintage motorcycles requiring routine maintenance.
Applications:
ATV
Jet ski
Motorcycle
Snowmobile
Lawn & Garden
Key Features
-
Broad Vehicle Compatibility
Compatible with mainstream motorcycle models.
-
Thin Plate Technology
Increased active material area for stronger and more reliable starting performance.
-
TTP Welding Technology
Lower internal resistance for enhanced power output and efficiency.
-
Flooded Design
Supplied with a dedicated acid pack for extended dry storage and easy activation.
Parameter List
Swipe View
| Model | Rated Voltage(V) | 10hr @1.75V/cell | CCA @-18°C(A) | Length(mm) | Width(mm) | Height(mm) | Length(in) | Width(in) | Height(in) | Weight(kg) | Terminal |
| 6N6-3B | 6 | 6 | N/A | 99 | 57 | 111 | 3 7/8 | 2 4/16 | 4 6/16 | 1.24 | B |
| 6N6-3B-1 | 6 | 6 | N/A | 99 | 57 | 111 | 3 7/8 | 2 4/16 | 4 6/16 | 1.24 | B |
| 6N11A-1B | 6 | 11 | N/A | 122 | 62 | 131 | 4 13/16 | 2 7/16 | 5 3/16 | 2.06 | B |
| 6N11A-3A | 6 | 11 | N/A | 122 | 62 | 131 | 4 13/16 | 2 7/16 | 5 3/16 | 2.06 | B |
| 12N5S-3B | 12 | 5 | 55 | 120 | 61 | 130 | 4 3/4 | 2 6/16 | 5 2/16 | 1.95 | B |
| 12N5-4B | 12 | 5 | 40 | 120 | 61 | 130 | 4 3/4 | 2 6/16 | 5 2/16 | 2.12 | B |
| 12N5.5-3B | 12 | 5.5 | 44 | 135 | 60 | 130 | 5 5/16 | 2 6/16 | 5 2/16 | 2.22 | B |
| 12N6-3B | 12 | 5.5 | 50 | 137 | 72 | 95 | 5 6/16 | 2 13/16 | 3 3/4 | 2.09 | B |
| 12N6.5-3B | 12 | 6.5 | 55 | 138 | 73 | 107 | 5 7/16 | 2 7/8 | 4 3/16 | 2.36 | B |
| 12N7-3A | 12 | 7 | 74 | 135 | 75 | 133 | 5 5/16 | 2 15/16 | 5 4/16 | 2.86 | B |
| 12N7-3B | 12 | 7 | 74 | 135 | 75 | 133 | 5 5/16 | 2 15/16 | 5 4/16 | 2.86 | B |
| 12N7-3B(J) | 12 | 7 | 65 | 135 | 75 | 133 | 5 5/16 | 2 15/16 | 5 4/16 | 2.66 | B |
| 12N7-4A | 12 | 7 | 74 | 135 | 75 | 133 | 5 5/16 | 2 15/16 | 5 4/16 | 2.86 | B |
| 12N7-4A(J) | 12 | 7 | 65 | 135 | 75 | 133 | 5 5/16 | 2 15/16 | 5 4/16 | 2.66 | B |
| 12N7-4B | 12 | 7 | 74 | 135 | 75 | 133 | 5 5/16 | 2 15/16 | 5 4/16 | 2.86 | B |
| 12N7A-3A | 12 | 7 | 70 | 150 | 60 | 130 | 5 7/8 | 2 6/16 | 5 2/16 | 2.63 | B |
| 12N7A-3A(J) | 12 | 7 | 60 | 150 | 60 | 130 | 5 7/8 | 2 6/16 | 5 2/16 | 2.49 | B |
| 12N9-3B | 12 | 9 | 85 | 135 | 75 | 139 | 5 5/16 | 2 15/16 | 5 8/16 | 2.99 | B |
| 12N9-4B-1 | 12 | 9 | 85 | 135 | 75 | 139 | 5 5/16 | 2 15/16 | 5 8/16 | 2.99 | B |
| 12N9-4B-1(J) | 12 | 9 | 70 | 135 | 75 | 139 | 5 5/16 | 2 15/16 | 5 8/16 | 2.81 | B |
| 12N10-3B | 12 | 10 | 95 | 134 | 89 | 145 | 5 4/16 | 3 8/16 | 5 11/16 | 3.67 | B |
| 12N12A-4A-1 | 12 | 12 | 113 | 134 | 81 | 160 | 5 4/16 | 3 3/16 | 6 5/16 | 4.18 | B |
| 12N12A-4A-1(J) | 12 | 12 | 95 | 134 | 81 | 160 | 5 4/16 | 3 3/16 | 6 5/16 | 3.9 | B |
| 12N14-3A2 | 12 | 14 | 128 | 134 | 89 | 166 | 5 4/16 | 3 8/16 | 6 9/16 | 4.19 | D |
| 12N14-4A | 12 | 14 | 128 | 134 | 89 | 166 | 5 4/16 | 3 8/16 | 6 9/16 | 4.19 | D |
| 12C16A-3A | 12 | 18 | 210 | 186 | 82 | 171 | 7 5/16 | 3 4/16 | 6 3/4 | 5.93 | G |
| 12C16A-3B | 12 | 18 | 210 | 186 | 82 | 171 | 7 5/16 | 3 4/16 | 6 3/4 | 5.93 | G |
| 12N24-4 | 12 | 24 | 218 | 184 | 124 | 175 | 7 4/16 | 4 7/8 | 6 7/8 | 7.52 | G |
| 12N24-3A(J) | 12 | 24 | 200 | 184 | 124 | 175 | 7 4/16 | 4 7/8 | 6 7/8 | 7.07 | G |
| CHD4-12 | 12 | 28 | 280 | 205 | 130 | 165 | 8 1/16 | 5 2/16 | 6 8/16 | 8.22 | H |
