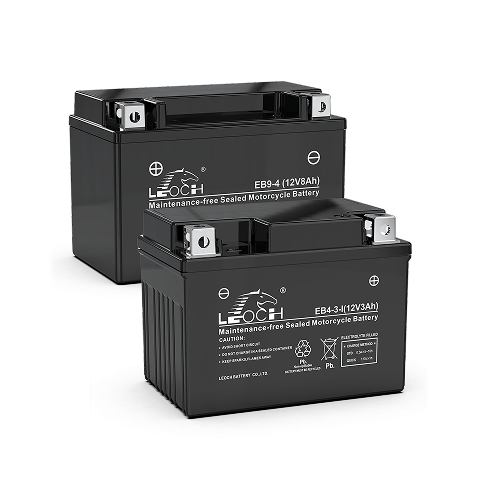

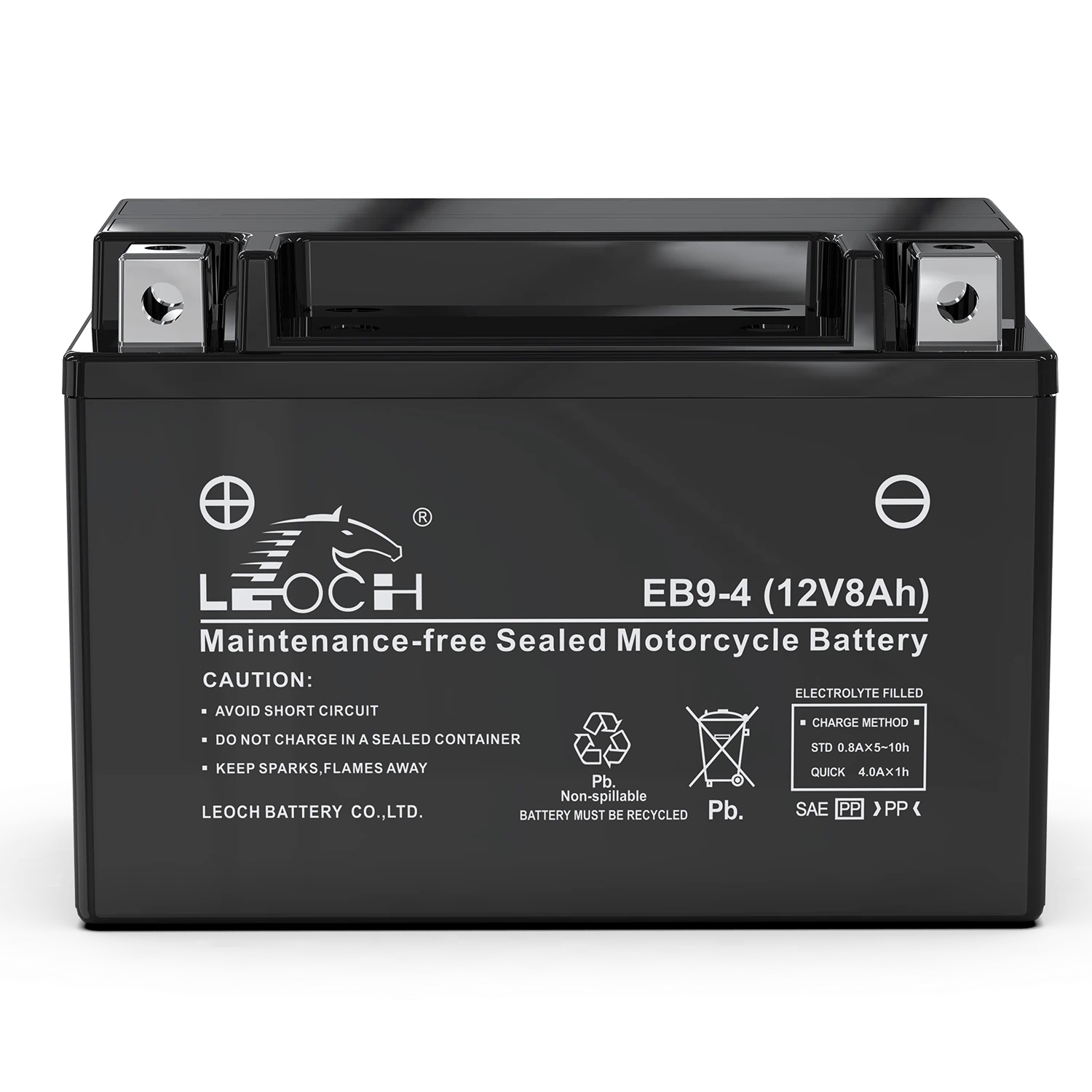

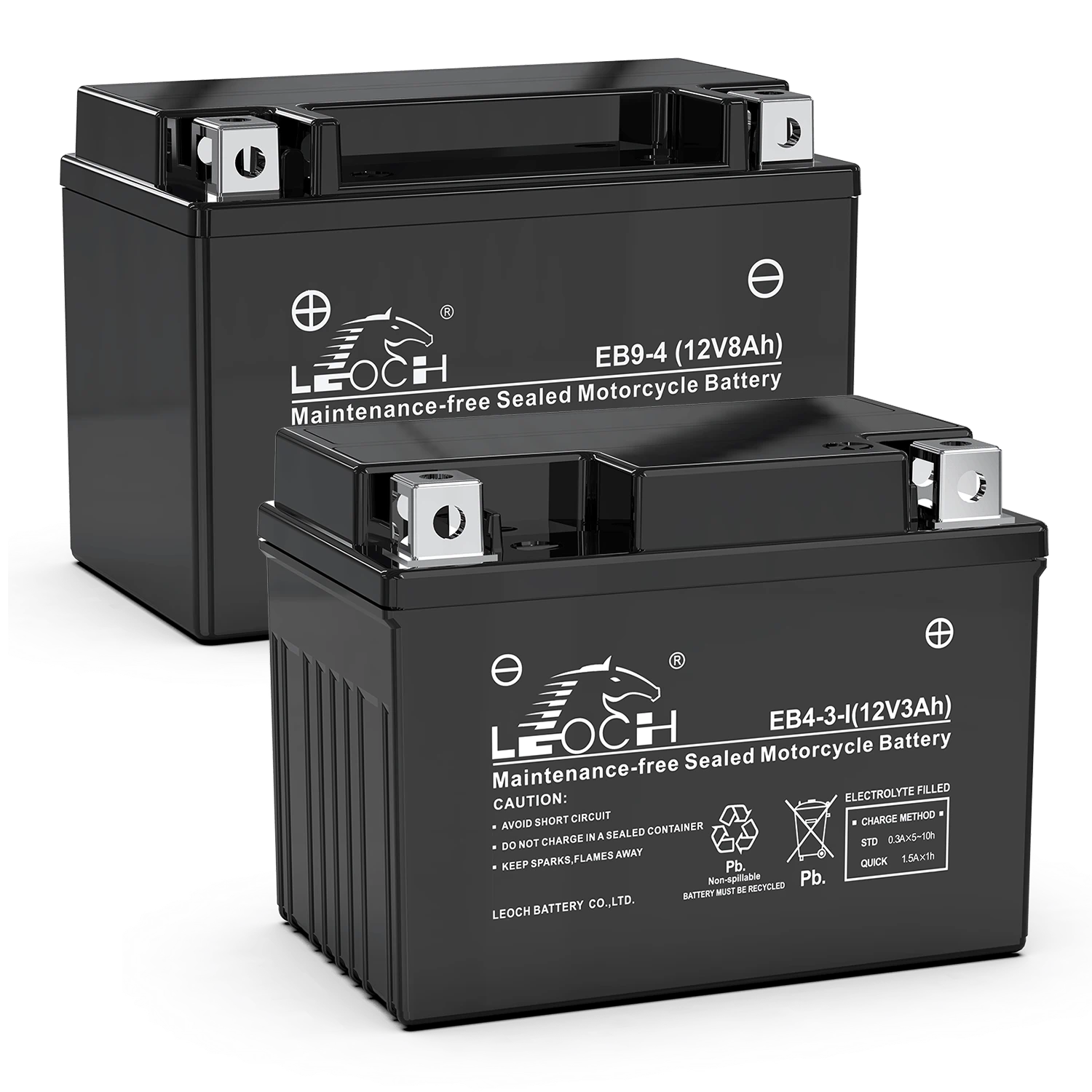

Motorcycle Factory-Activated EB Series

High-performance, pre-activated AGM technology delivering premium starting reliability straight out of the box with zero maintenance required.

Applications:

ATV
Jet ski
Motorcycle
Snowmobile
Lawn & Garden

Request a Quote

Key Features

100% Maintenance-Free & AGM Design

Fully sealed construction for convenient and reliable operation.
Superior Cranking Performance

CCA for reliable starting power.
Lead-Calcium Alloy Technology

Minimizes water loss and enhances maintenance-free performance.
PP Material

Excellent weather resistance for long-lasting performance.
Patented Embedded Terminals

Stable welding quality with a clean and premium appearance.
Ready-to-Install Design

Pre-filled and ready for immediate application.

Parameter List

Swipe View

Model	Rated Voltage(V)	10hr @1.75V/cell	CCA @-18°C(A)	Length(mm)	Width(mm)	Height(mm)	Length(in)	Width(in)	Height(in)	Weight(kg)	Terminal
EB7-3-P	12	7	120	113	70	130	4 7/16	2 3/4	5 2/16	2.6	A
EBC9-4	12	9	135	150	87	105	5 7/8	3 7/16	4 2/16	2.8	A
EBC12-4	12	12	180	150	87	130	5 7/8	3 7/16	5 2/16	3.6	A
EBC14C-3-P	12	14	200	150	87	145	5 7/8	3 7/16	5 11/16	4.28	A
EBC14C-4-P	12	14	200	150	87	145	5 7/8	3 7/16	5 11/16	4.28	A
EBC14D-4	12	14	200	150	87	145	5 7/8	3 7/16	5 11/16	4.3	O
EBC12-4-P	12	14	220	150	87	130	5 7/8	3 7/16	5 2/16	4.05	A
EBC14A-3	12	14	220	133	90	164	5 4/16	3 9/16	6 7/16	4.5	A
EBC14A-4	12	14	220	133	90	164	5 4/16	3 9/16	6 7/16	4.5	A
EBC20-3	12	20	270	175	87	155	6 7/8	3 7/16	6 2/16	5.47	A
EBC20-4	12	20	270	175	87	155	6 7/8	3 7/16	6 2/16	5.47	A
EBC20H-3	12	20	310	175	87	155	6 7/8	3 7/16	6 2/16	6.1	A
EBC20H-4	12	20	310	175	87	155	6 7/8	3 7/16	6 2/16	6.1	A

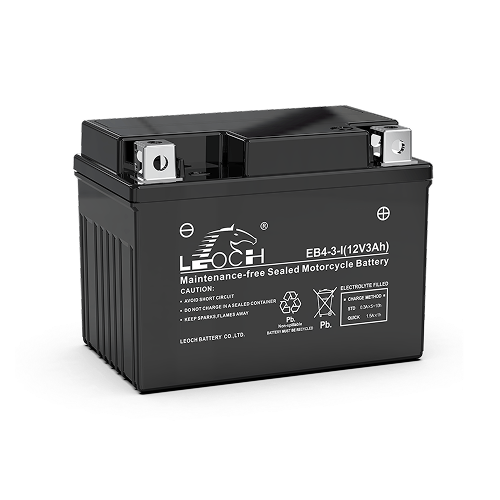

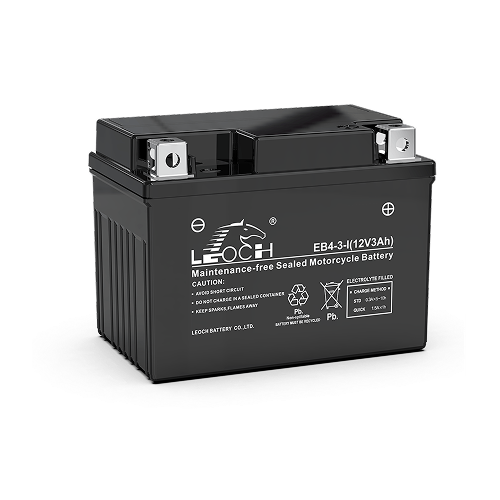

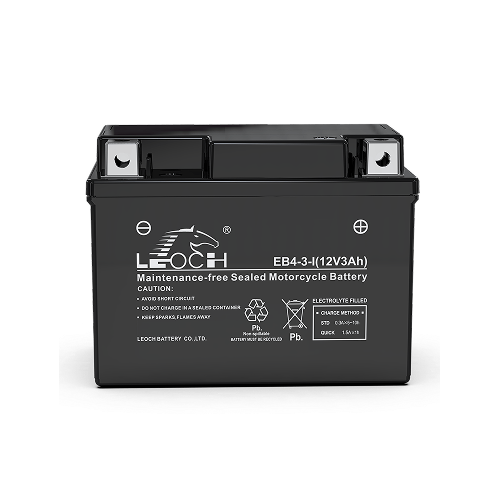

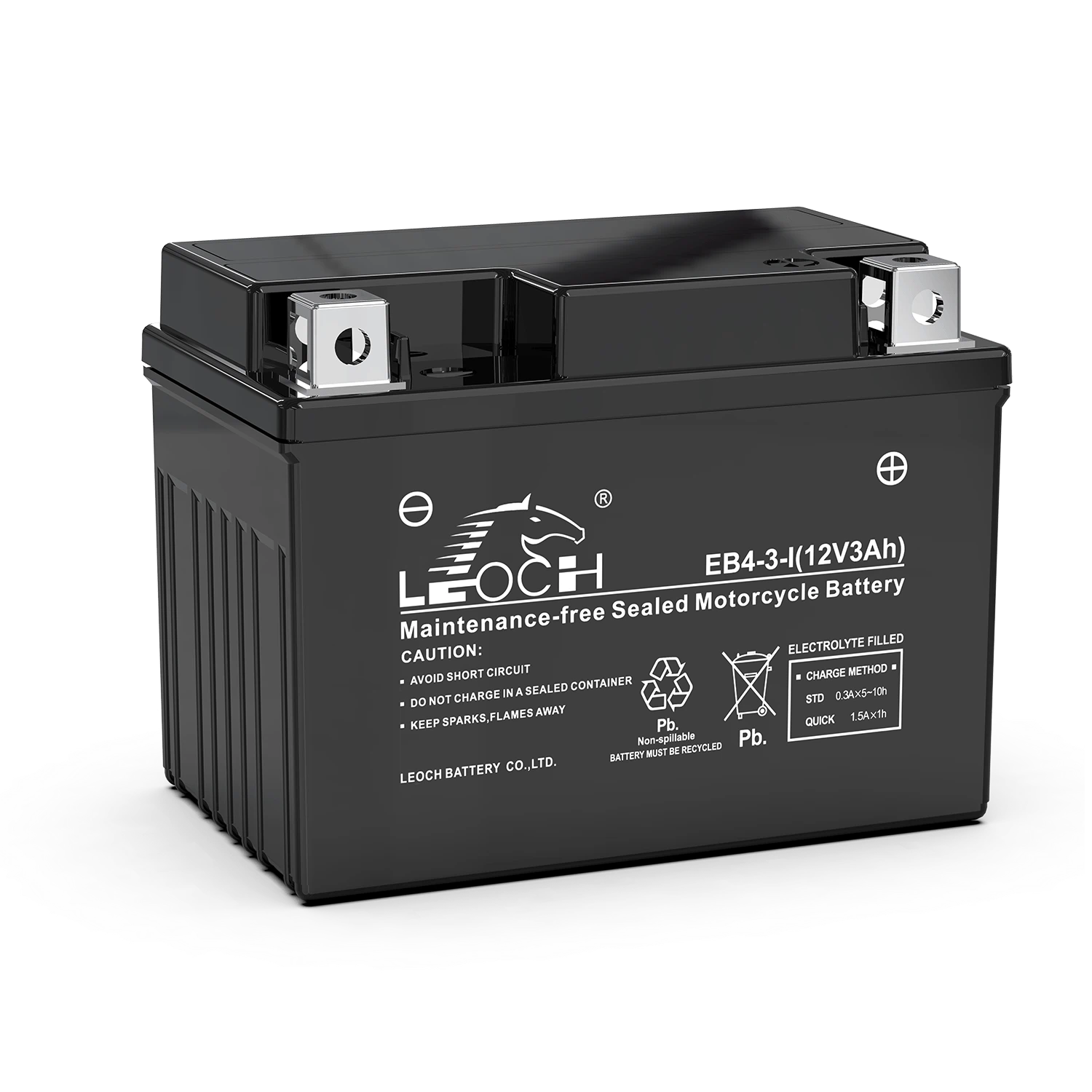

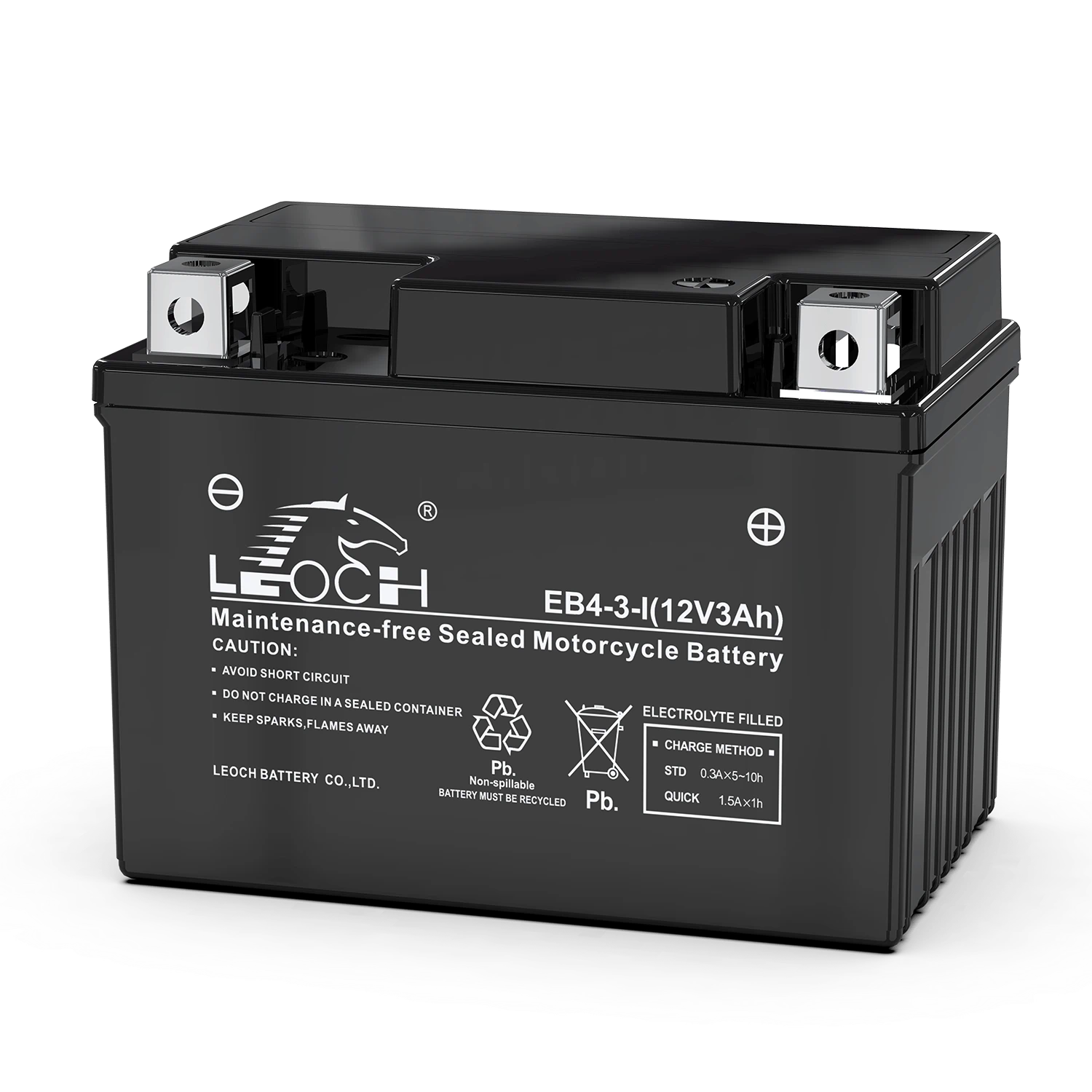

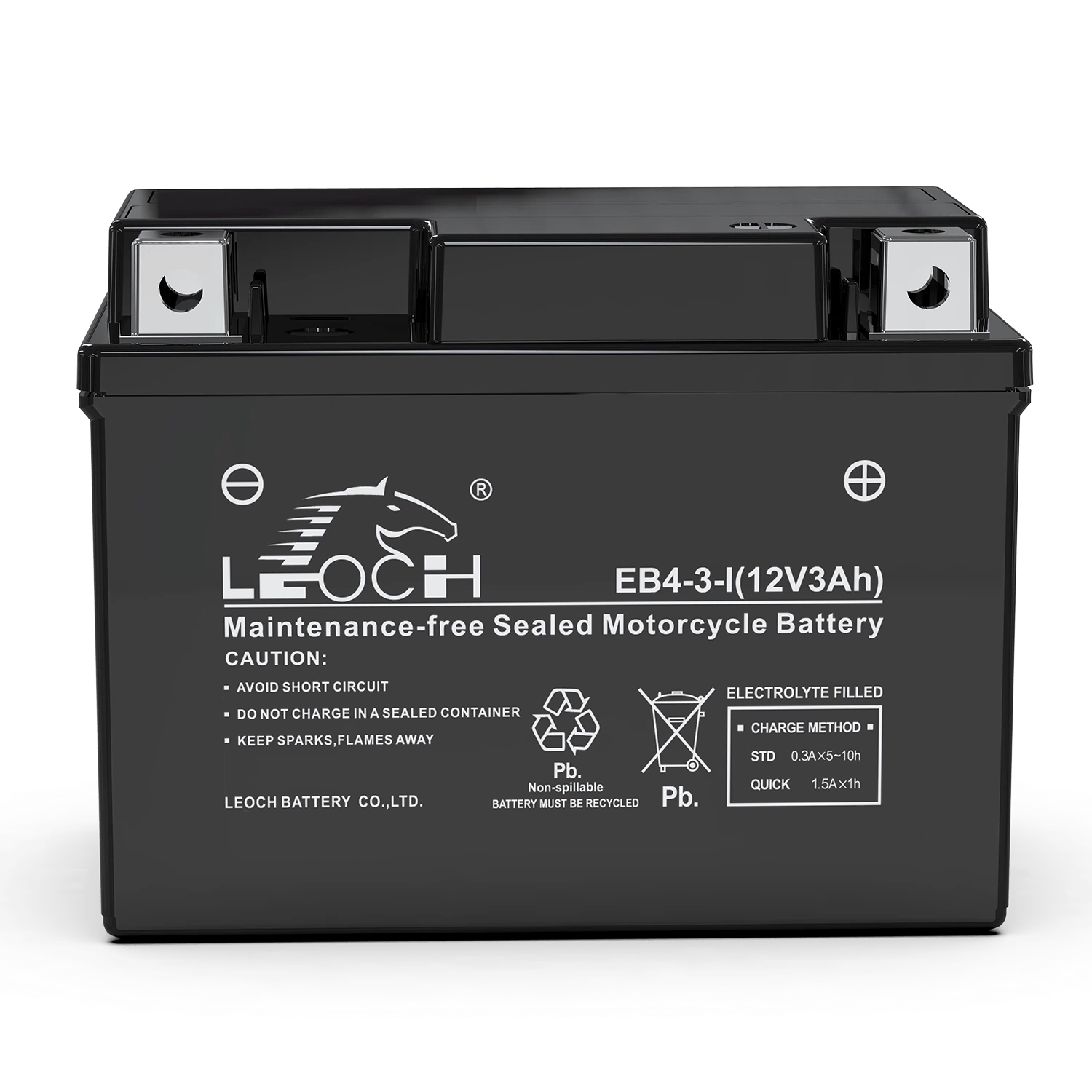

EB4-3-I	12	3	50	113	70	85	4 7/16	2 3/4	3 6/16	1.32	A
EB4-3-I(J)	12	3	40	113	70	85	4 7/16	2 3/4	3 6/16	1.26	A
EBZ5-3	12	3.5	50	113	70	85	4 7/16	2 3/4	3 6/16	1.4	A
EBZ4.5-3	12	4	55	113	70	85	4 7/16	2 3/4	3 6/16	1.52	A
EB5-3	12	4	75	113	70	105	4 7/16	2 3/4	4 2/16	1.8	A
EB5-3(J)	12	4	60	113	70	105	4 7/16	2 3/4	4 2/16	1.7	A
EB5-3-2	12	4	90	113	70	105	4 7/16	2 3/4	4 2/16	1.9	A
EB7-3	12	6	90	113	70	130	4 7/16	2 3/4	5 2/16	2.31	A
EB7-3(J)	12	6	70	113	70	130	4 7/16	2 3/4	5 2/16	2.1	A
EB7A-4-I	12	6	100	150	87	93	5 7/8	3 7/16	3 11/16	2.28	A
EB7A-4-I(J)	12	6	80	150	87	93	5 7/8	3 7/16	3 11/16	2.15	A
EB7A-4-QT	12	6	110	150	87	93	5 7/8	3 7/16	3 11/16	2.52	A
EBZ7-3-1	12	6	95	113	70	105	4 7/16	2 3/4	4 2/16	2.13	A
EBZ7-3-2	12	6	95	113	70	105	4 7/16	2 3/4	4 2/16	2.13	A
EBZ6.5-3	12	6.5	105	113	70	121	4 7/16	2 3/4	4 3/4	2.34	A
EB7B-4-1	12	6.5	90	150	66	93	5 7/8	2 5/8	3 11/16	2.3	A
EB7B-4-P	12	6.5	120	150	66	93	5 7/8	2 5/8	3 11/16	2.35	A
EB7B-4-1(J)	12	6.5	75	150	66	93	5 7/8	2 5/8	3 11/16	2.15	A
EB7E-3(J)	12	7	65	135	75	123	5 5/16	2 15/16	4 13/16	2.55	B
EB8-3-2(J)	12	6.5	65	135	75	133	5 5/16	2 15/16	5 4/16	2.38	A
EB8E-3(J)	12	8	85	135	75	123	5 5/16	2 15/16	4 13/16	2.55	B
EB8E-4(J)	12	8	85	135	75	123	5 5/16	2 15/16	4 13/16	2.55	B
EBZ8-3	12	7	95	113	70	130	4 7/16	2 3/4	5 2/16	2.35	A
EB8-4-1	12	8	115	135	75	133	5 5/16	2 15/16	5 4/16	2.9	A
EB8-3-1	12	8	115	135	75	133	5 5/16	2 15/16	5 4/16	2.9	A
EB8-4-3(J)	12	8	95	135	75	133	5 5/16	2 15/16	5 4/16	2.67	B
EB8-3-3(J)	12	8	95	135	75	133	5 5/16	2 15/16	5 4/16	2.67	B

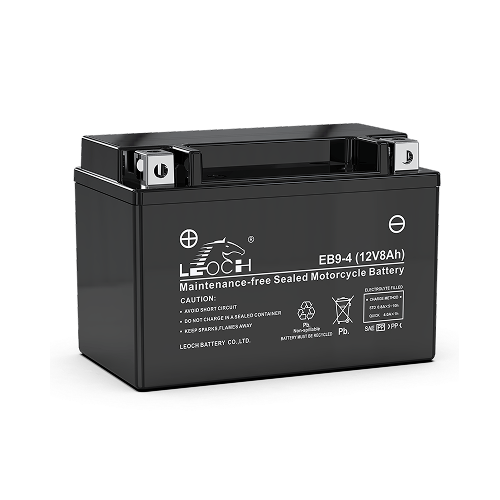

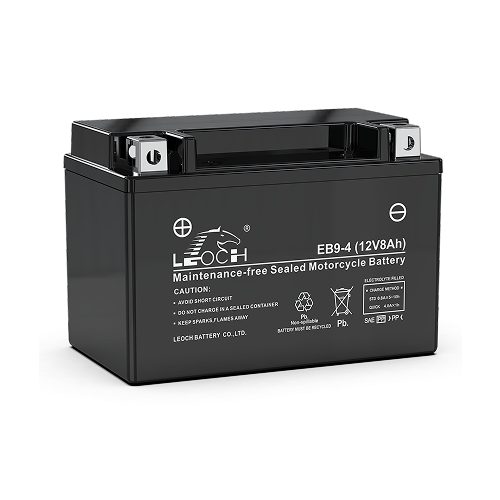

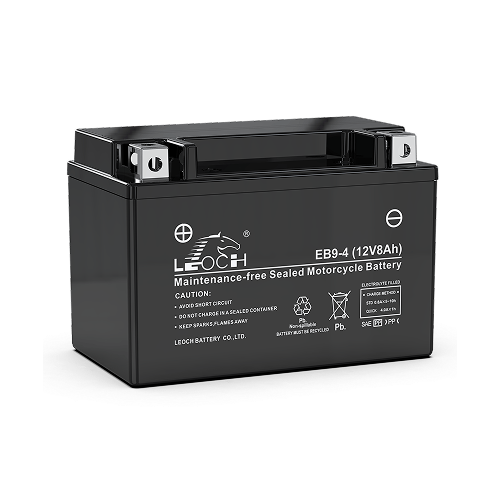

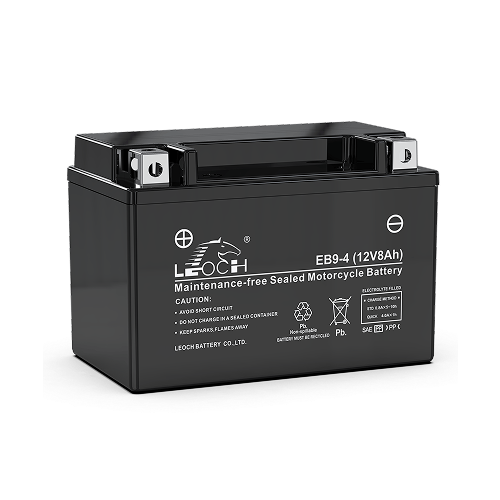

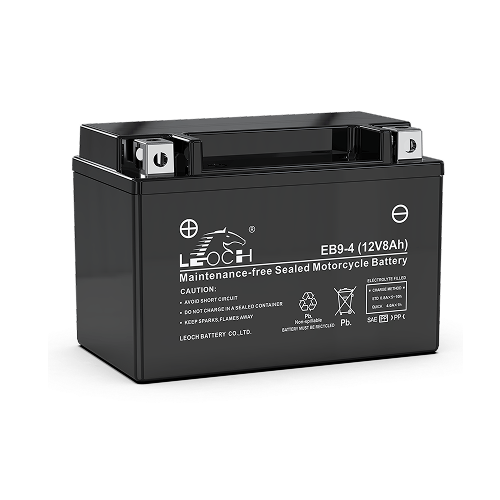

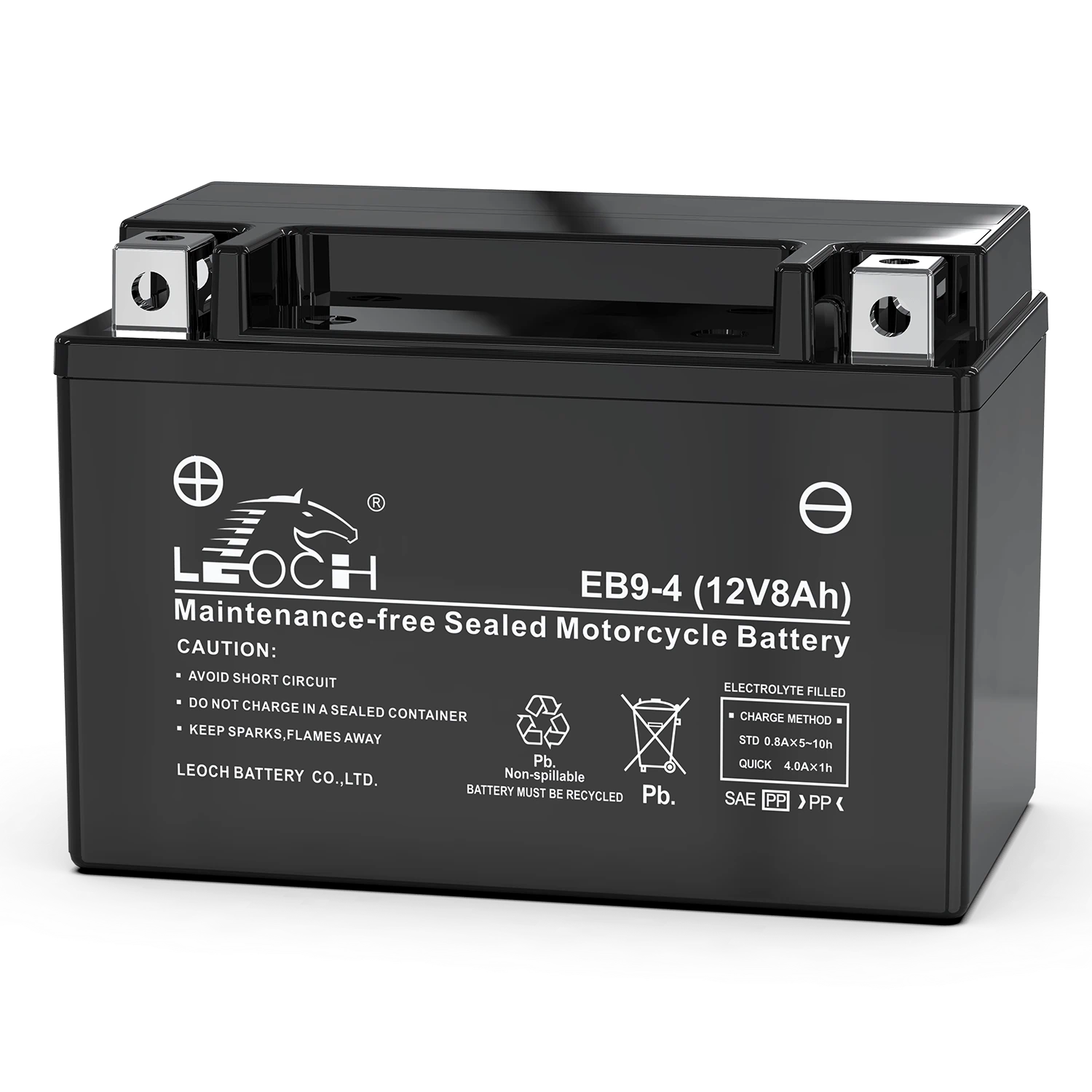

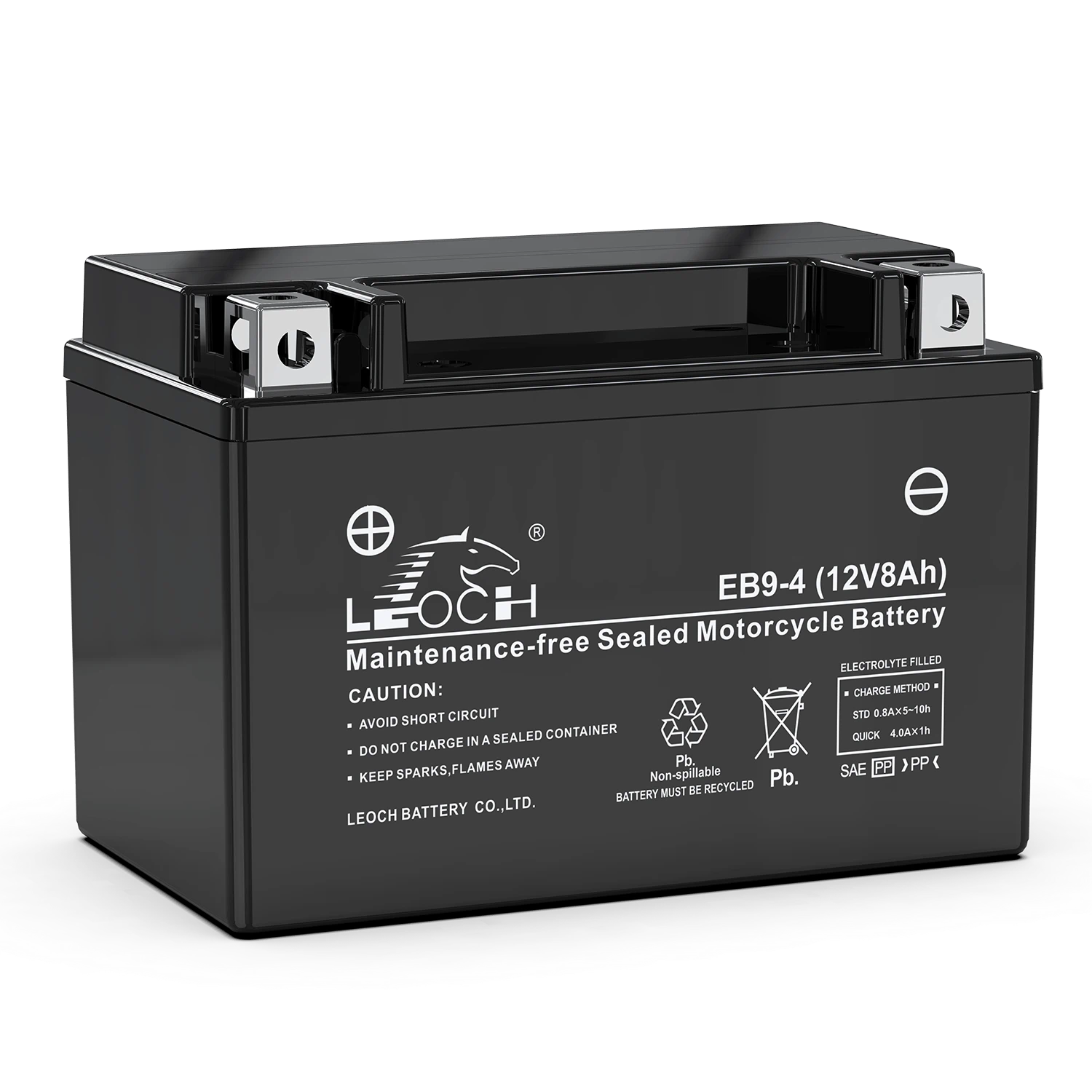

EB9-4-I	12	8	110	150	87	105	5 7/8	3 7/16	4 2/16	2.85	A
EB9B-4-1	12	8	120	150	70	105	5 7/8	2 3/4	4 2/16	2.78	A
EB9B-4-1(J)	12	8	90	150	70	105	5 7/8	2 3/4	4 2/16	2.58	A
EB9D-4	12	8	135	150	70	105	5 7/8	3 7/16	4 2/16	3.18	O
EBZ10-4-1	12	8.6	150	150	88	93	5 7/8	3 7/16	3 11/16	3.15	A
EBZ10-4-2	12	8.6	150	150	88	93	5 7/8	3 7/16	3 11/16	3.15	A
EBZ10-4-1(J)	12	8.6	130	150	88	93	5 7/8	3 7/16	3 11/16	2.95	A
EB9A-4-1	12	9	100	135	75	139	5 5/16	2 15/16	5 8/16	3.08	A
EB9A-3-2	12	9	100	135	75	139	5 5/16	2 15/16	5 8/16	3.05	B
EB9A-4-2(J)	12	8.5	85	135	75	139	5 5/16	2 15/16	5 8/16	2.85	B
EB10-3	12	10	130	133	90	142	5 4/16	3 9/16	5 9/16	3.68	A
EB10-4	12	10	130	133	90	142	5 4/16	3 9/16	5 9/16	3.68	A
EB12-4(J)	12	10	130	150	87	130	5 7/8	3 7/16	5 2/16	3.62	A
EB12-4-P	12	11	180	150	87	130	5 7/8	3 7/16	5 2/16	3.92	A
EB12A-4-1	12	10	145	150	88	105	5 7/8	3 7/16	4 2/16	3.29	A
EB12B-4-1	12	10	165	150	70	130	5 7/8	2 3/4	5 2/16	3.59	A
EB12A-4-P	12	10	175	150	88	105	5 7/8	3 7/16	4 2/16	3.52	A
EB12B-4-1(J)	12	10	130	150	70	130	5 7/8	2 3/4	5 2/16	3.39	A

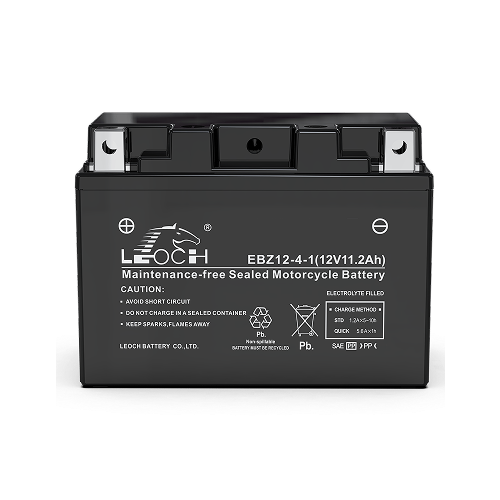

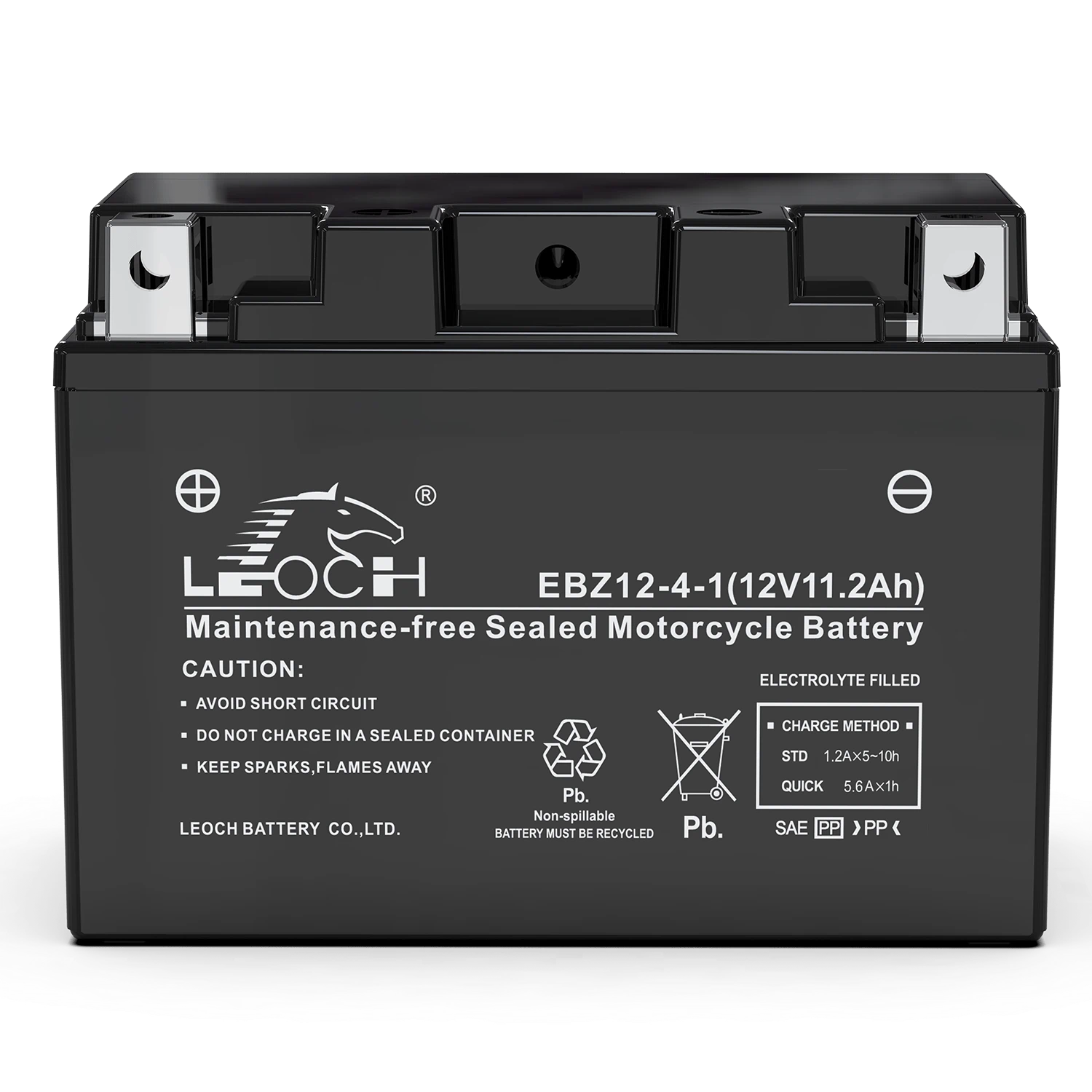

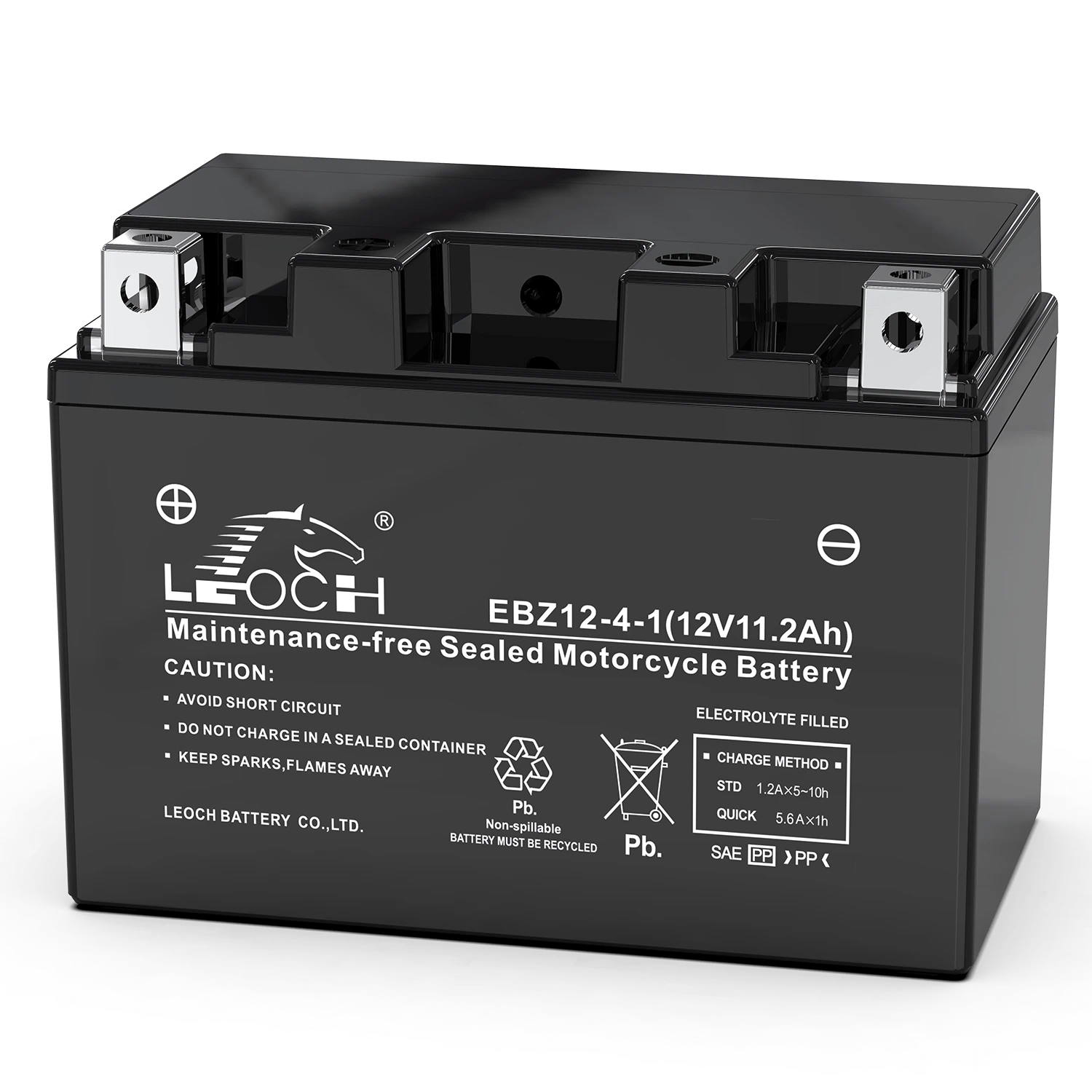

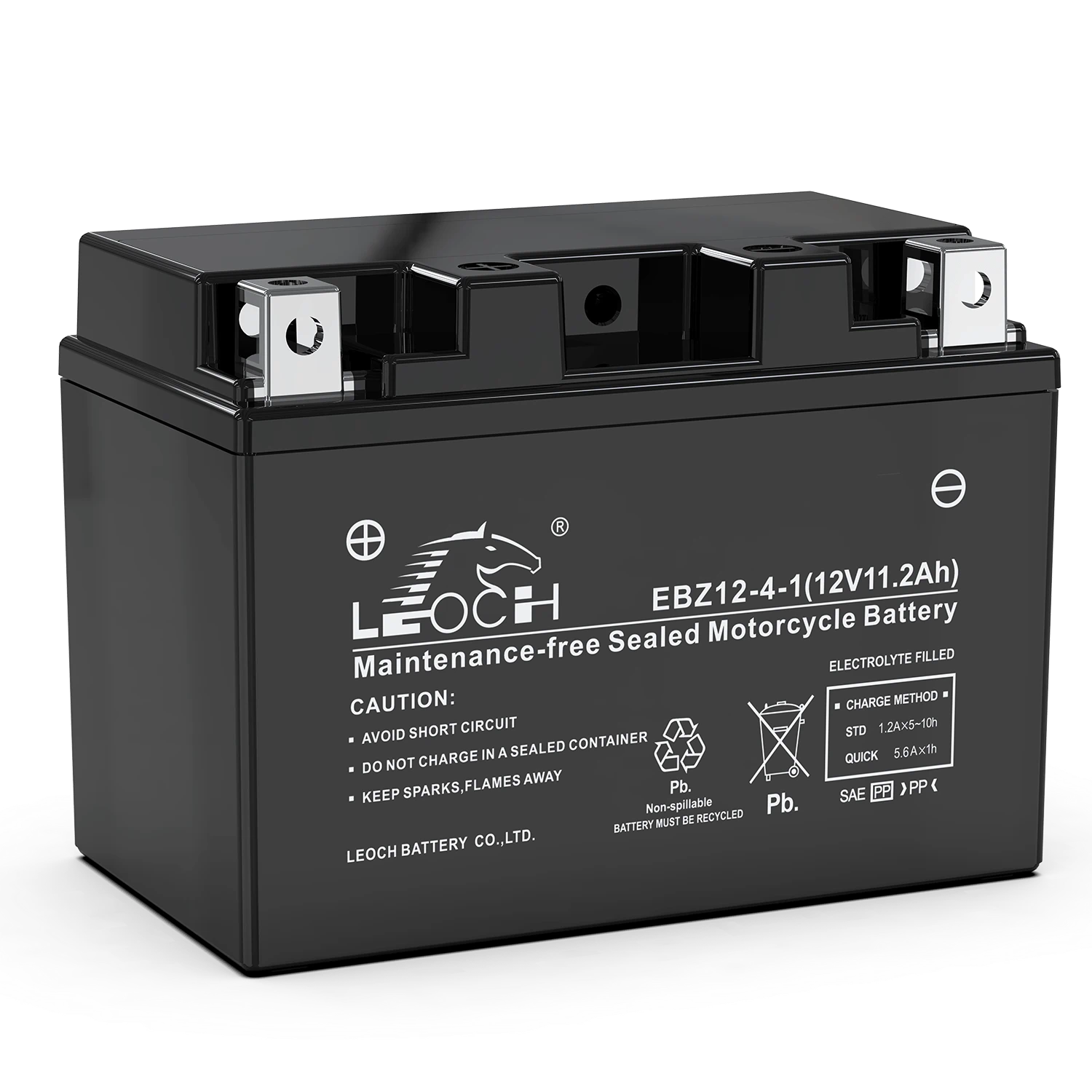

EBZ12-4-1	12	11	210	150	88	110	5 7/8	3 7/16	4 5/16	3.81	A
EBZ14-4-1	12	11.2	220	150	88	110	5 7/8	3 7/16	4 5/16	3.83	A
EBZ14-4-1(J)	12	11.2	170	150	88	110	5 7/8	3 7/16	4 5/16	3.59	A
EBZ14-4-2	12	11.2	220	150	88	110	5 7/8	3 7/16	4 5/16	3.82	A
EB12E-3	12	12	140	134	81	160	5 4/16	3 3/16	6 5/16	3.88	B
EB12E-3(J)	12	12	110	134	81	160	5 4/16	3 3/16	6 5/16	3.6	B
EB12E-4	12	12	140	134	81	160	5 4/16	3 3/16	6 5/16	3.88	B
EB12E-4(J)	12	12	110	134	81	160	5 4/16	3 3/16	6 5/16	3.6	B
EB12E-3-1	12	12	140	134	81	160	5 4/16	3 3/16	6 5/16	3.89	A
EB12E-4-1	12	12	140	134	81	160	5 4/16	3 3/16	6 5/16	3.89	A
EB14C-4-I	12	12	170	150	87	145	5 7/8	3 7/16	5 11/16	4.15	A
EB14C-3-P	12	12	200	150	87	145	5 7/8	3 7/16	5 11/16	4.44	A
EB14C-4-P	12	12	200	150	87	145	5 7/8	3 7/16	5 11/16	4.44	A
EB14A-3	12	12	220	133	90	164	5 4/16	3 9/16	6 7/16	4.4	A
EB14A-3(J)	12	12	170	133	90	164	5 4/16	3 9/16	6 7/16	4.2	A
EB14A-4	12	12	220	133	90	164	5 4/16	3 9/16	6 7/16	4.4	A
EB14B-4-1	12	12	175	150	70	145	5 7/8	2 3/4	5 11/16	4.1	A
EB14B-4-1(J)	12	12	140	150	70	145	5 7/8	2 3/4	5 11/16	3.88	A
EB16-4	12	14	215	150	87	161	5 7/8	3 7/16	6 5/16	5.02	A
EB20-3	12	18	250	175	87	155	6 7/8	3 7/16	6 2/16	5.91	A
EB20-3(J)	12	18	220	175	87	155	6 7/8	3 7/16	6 2/16	5.6	A
EB20-4(J)	12	18	220	175	87	155	6 7/8	3 7/16	6 2/16	5.6	A
EB20CH-4	12	18	240	150	87	161	5 7/8	3 7/16	6 5/16	5.53	A
EB22-3	12	18	250	186	82	171	7 5/16	3 4/16	6 3/4	5.55	G
EB20H-3-P1	12	18	310	175	87	155	6 7/8	3 7/16	6 2/16	6.15	A
EB16B-3-1	12	19	240	175	100	155	6 7/8	3 15/16	6 2/16	6.3	A
EB16B-4-1	12	19	240	175	100	155	6 7/8	3 15/16	6 2/16	6.3	A
EBU1-4-P	12	25	330	195	125	176	7 11/16	4 15/16	6 15/16	8.34	G
EBU1R-4-P	12	25	330	195	125	176	7 11/16	4 15/16	6 15/16	8.34	G
EBU1-4-P1	12	23	300	195	125	176	7 11/16	4 15/16	6 15/16	8	G
EBU1R-4-P1	12	23	300	195	125	176	7 11/16	4 15/16	6 15/16	8	G
EB24-3-1	12	21	330	205	87	162	8 1/16	3 7/16	6 6/16	7	A
EB24-4-1	12	21	330	205	87	162	8 1/16	3 7/16	6 6/16	7	A
EB24A-3(J)	12	24	220	184	124	170	7 4/16	4 7/8	6 11/16	7.64	G
EB24A-4(J)	12	24	220	184	124	170	7 4/16	4 7/8	6 11/16	7.64	G
EB24A-3	12	24	280	184	124	170	7 4/16	4 7/8	6 11/16	8.15	G
EB24A-4	12	24	280	184	124	170	7 4/16	4 7/8	6 11/16	8.15	G
EB30A-3(J)	12	30	325	184	124	170	7 4/16	4 7/8	6 11/16	8.55	G
EB30A-3	12	30	370	184	124	170	7 4/16	4 7/8	6 11/16	9	G
EB30A-4(J)	12	30	325	184	124	170	7 4/16	4 7/8	6 11/16	8.55	G
EB30A-4	12	30	370	184	124	170	7 4/16	4 7/8	6 11/16	9	G
EB30-3-1	12	30	385	166	126	173	6 9/16	4 15/16	6 13/16	9.38	A
EB30-3-1(J)	12	30	330	166	126	173	6 8/16	4 15/16	6 13/16	8.88	A
EB30-3-I	12	24	300	166	126	173	6 9/16	4 15/16	6 13/16	8.6	A
EB12D-4	12	11	180	150	87	130	5 7/8	3 7/16	5 2/16	4.25	O
EB14D-4	12	13	200	150	87	145	5 7/8	3 7/16	5 11/16	4.76	O
EB14E-4	12	13	245	150	87	145	5 7/8	3 7/16	5 11/16	5.3	O
JB14-4	12	13	200	150	87	145	5 7/8	3 7/16	5 11/16	4.62	K
MB14-4	12	13	210	150	87	145	5 7/8	3 7/16	5 11/16	4.8	M
