Automotive Starting High-Temp MF Series

Specifically engineered with heat-resistant alloys and specialized electrolytes to thrive in extreme tropical and desert climates.

Applications:

Vehicles operating in hot climate regions
Cars with engine compartment high heat exposure
Outdoor long-term parked private vehicles
Tropical area daily-use cars
Work vehicles exposed to continuous high temperature

Request a Quote

Key Features

Maintenance-Free Design
Optimized for Hot Climates
Reinforced Grids & Special Paste

Deliver double cycle life vs flooded batteries under high temperatures.
Patented Double-Lid Labyrinth Structure
Vibration Resistance

Bottom-fixed plate pack for superior vibration resistance.

Parameter List

Swipe View

Model	Series	Magic Eye	Rated Voltage(V)	20hr@ 1.75V/cell	RC(min)	CCA@-18°C(A)	Length(mm)	Width(mm)	Height(mm)	Weight(kg)	Cell Layout	Terminal	Hold Down	Handle
36B20LHT	B20	√	12	32	47	260	195	126	222	9.1	0	3	B0	TS1
38B20LHT	B20	√	12	36	54	300	195	126	222	9.6	0	3	B0	TS1
38B20LHT	B20	√	12	36	54	300	195.5	128	222	9.7	0	3	B0	TS9
38B20RHT	B20	√	12	36	54	300	195	126	222	9.6	1	3	B0	TS1
36B24LSHT	B24	√	12	32	47	270	236	128	222	10.4	0	1	B0	TS1
36B24RSHT	B24	√	12	32	47	270	236	128	222	10.4	1	1	B0	TS1
38B24LSHT	B24	×	12	36	54	300	236	128	222	10.9	0	1	B0	TS1
38B24LSHT	B24	√	12	36	54	300	236	128	222	10.9	0	1	B0	TS1
38B24LHT	B24	×	12	36	54	300	236	128	222	10.9	0	3	B0	TS1
38B24LHT	B24	√	12	36	54	300	236	128	222	10.9	0	3	B0	TS1
38B24RSHT	B24	×	12	36	54	300	236	128	222	10.9	1	1	B0	TS1
38B24RSHT	B24	√	12	36	54	300	236	128	222	10.9	1	1	B0	TS1
40B24LSHT	B24	√	12	40	61	350	236	128	222	11.3	0	1	B0	TS1
40B24RSHT	B24	√	12	40	61	350	236	128	222	11.3	1	1	B0	TS1
40B24LHT	B24	√	12	40	61	350	236	128	222	11.2	0	3	B0	TS1
46B24LHT	B24	√	12	45	70	350	237	128	222	11.8	0	3	B0	TS9
46B24RHT	B24	√	12	45	70	350	237	128	222	11.8	1	3	B0	TS9
46B24LSHT	B24	√	12	45	70	350	237	128	222	12	0	1	B0	TS9
46B24RSHT	B24	√	12	45	70	350	237	128	222	12	1	1	B0	TS9
46B24LSHT	B24	√	12	45	70	380	236	128	222	11.8	0	1	B0	TS1
46B24RSHT	B24	√	12	45	70	380	236	128	222	11.8	1	1	B0	TS1
46B24LHT	B24	√	12	45	70	350	236	128	222	11.7	0	3	B0	TS1
46B24RHT	B24	√	12	45	70	350	236	128	222	11.7	1	3	B0	TS1
86-400HT	BCI86	√	12	55	88	400	229	171	205	14	1	1	B01	TS3
65-420HT	BCI86	√	12	60	98	420	298	190	192	17.4	1	1	B01	TS4
65-600HT	BCI86	√	12	80	138	600	298	190	192	19.7	1	1	B01	TS4
48D23LHT	D23	×	12	48	75	380	231.5	174.5	223	14.2	0	1	B1	TS1
48D23LHT	D23	√	12	48	75	380	231.5	174.5	223	14.2	0	1	B1	TS1
50D23LHT	D23	√	12	55	88	400	231.5	174.5	223	14.6	0	1	B1	TS1
75D23LHT	D23	√	12	63	104	500	231.5	172	222.5	16.3	0	1	B0	TS7
48D26LHT	D26	√	12	48	75	360	260	172	221	15.2	0	1	B01	TS1
48D26RHT	D26	√	12	48	75	360	260	172	221	15.2	1	1	B01	TS1
50D26LHT	D26	√	12	55	88	400	260	172	221	15.7	0	1	B01	TS1
50D26RHT	D26	√	12	55	88	400	260	172	221	15.7	1	1	B01	TS1
55D26LHT	D26	√	12	60	98	430	260	172	221	16.4	0	1	B01	TS1
55D26RHT	D26	√	12	60	98	430	260	172	221	16.4	1	1	B01	TS1
65D26LHT	D26	√	12	65	108	480	260	172	221	17.2	0	1	B01	TS1
65D26RHT	D26	√	12	65	108	480	260	172	221	17.2	1	1	B01	TS1
62D31LHT	D31	×	12	67	112	450	303	170	222	18.5	0	1	B1	TS1
62D31LHT	D31	√	12	67	112	450	303	170	222	18.5	0	1	B1	TS1
62D31RHT	D31	×	12	67	112	450	303	170	222	18.5	1	1	B1	TS1
62D31RHT	D31	√	12	67	112	450	303	170	222	18.5	1	1	B1	TS1
70D31LHT	D31	√	12	70	118	470	303	170	222	19.3	0	1	B1	TS1
70D31RHT	D31	√	12	70	118	470	303	170	222	19.3	1	1	B1	TS1
75D31LHT	D31	√	12	75	128	500	303	170	222	19.6	0	1	B1	TS1
75D31RHT	D31	√	12	75	128	500	303	170	222	19.6	1	1	B1	TS1
95D31LHT	D31	×	12	80	138	550	303	170	222	20.3	0	1	B1	TS1
95D31LHT	D31	√	12	80	138	550	303	170	222	20.3	0	1	B1	TS1
95D31RHT	D31	×	12	80	138	550	303	170	222	20.3	1	1	B1	TS1
95D31RHT	D31	√	12	80	138	550	303	170	222	20.3	1	1	B1	TS1
105D31LHT	D31	√	12	90	158	600	303	170	222	21.1	0	1	B1	TS1
105D31RHT	D31	√	12	90	158	600	303	170	222	21.1	1	1	B1	TS1
110D31LHT	D31	√	12	95	169	640	303	170	222	21.8	0	1	B1	TS1
110D31RHT	D31	√	12	95	169	640	303	170	222	21.8	1	1	B1	TS1
80E41RHT	E41	√	12	85	148	570	408	170	233	23.9	1	1	B0	TS8
90E41LHT	E41	√	12	95	169	640	408	170	233	25	0	1	B0	TS8
90E41RHT	E41	√	12	95	169	640	408	170	233	25	1	1	B0	TS8
95E41LHT	E41	√	12	100	179	680	408	170	233	25.7	0	1	B0	TS8
105F51RHT	F51	×	12	110	201	750	504	183.5	223	32.9	3	1	B0	TS8
130F51RHT	F51	√	12	130	245	880	504	183.5	223	34.1	3	1	B0	TS8
120G51RHT	G51	×	12	120	223	700	510	222	217	36.1	3	1	B0	TS8
135G51RHT	G51	×	12	135	256	800	510	222	217	38.4	3	1	B0	TS8
145G51RHT	G51	√	12	145	278	850	510	222	217	39.6	3	1	B0	TS8
150G51RHT	G51	√	12	155	301	900	510	222	217	40.2	3	1	B0	TS8
150G51LHT	G51	√	12	155	301	900	510	222	217	40.2	4	1	B0	TS8
160G51RHT	G51	√	12	160	313	950	510	222	217	41.2	3	1	B0	TS8
170G51RHT	G51	√	12	170	336	1000	510	221	222max	41.8	3	1	B0	TS8
175G51RHT	G51	√	12	175	348	1050	510	222	217	42.9	3	1	B0	TS8
195G51RHT	G51	√	12	180	360	1080	510	221	222Max	44	3	1	B0	TS8
155H52RHT	H52	√	12	165	324	900	521	261	240.5	50	3	1	B0	TS8
155H52LHT	H52	√	12	165	324	900	521	261	240.5	50.5	4	1	B0	TS8
68028HT	H52	√	12	180	360	1000	518	274	236.5	52.1	3	1	B0	TS8
69027HT	H52	√	12	190	383	1050	518	274	236.5	52.8	3	1	B0	TS8
180H52RHT	H52	×	12	190	383	1050	521	261	240.5	54.5	3	1	B0	TS8
210H52LHT	H52	√	12	220	456	1280	521	261	240.5	59.8	4	1	B0	TS8
210H52RHT	H52	√	12	220	456	1280	521	261	240.5	59.8	3	1	B0	TS8
54024HT	L1	√	12	40	61	310	207	175	190	11.3	0	1	B13	TS2
54459HT	L1	√	12	44	68	350	207	175	190	12.1	0	1	B13	TS2
55025HT	L1	√	12	49	77	380	207	175	190	12.5	0	1	B13	TS2
55068HT	L1	√	12	49	77	380	207	175	190	12.5	1	1	B13	TS2

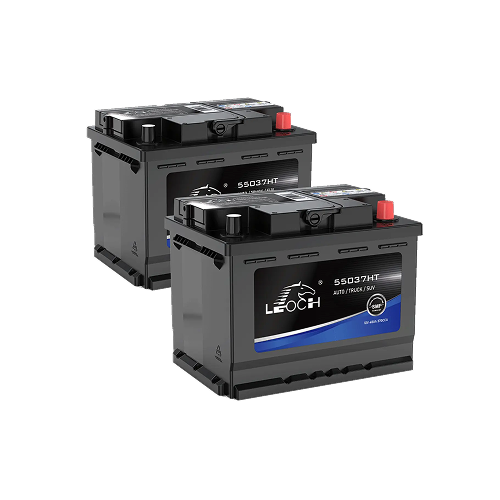

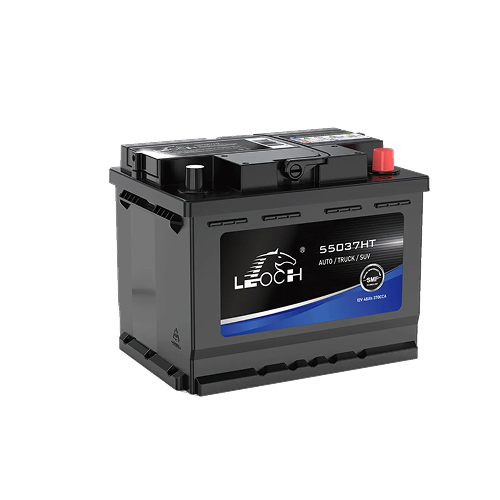

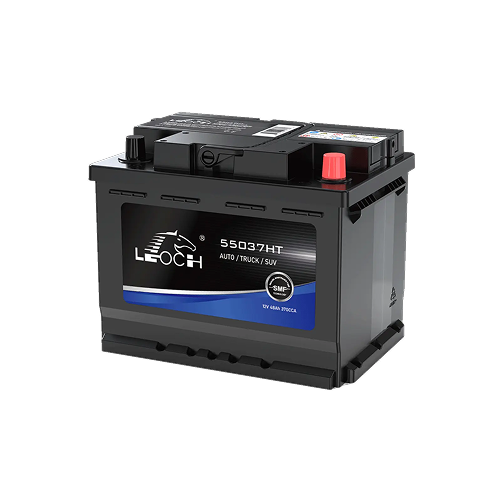

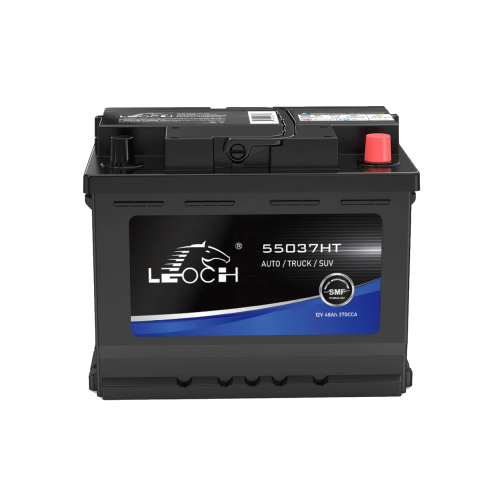

55037HT	L2	×	12	48	75	370	242	175	190	13.9	0	1	B13	TS2
55037HT	L2	√	12	48	75	370	242	175	190	13.9	0	1	B13	TS2
55530HT	L2	√	12	55	88	420	242	175	190	14.4	0	1	B13	TS2
56219HT	L2	√	12	60	98	470	242	175	190	15	0	1	B13	TS2
56221HT	L2	√	12	60	98	470	242	175	190	15	1	1	B13	TS2
56053HT	L3	√	12	60	98	440	278	175	190	16	0	1	B13	TS6
56055HT	L3	√	12	60	98	440	278	175	190	16	1	1	B13	TS6
56545HT	L3	√	12	65	108	480	278	175	190	16.4	0	1	B13	TS6
56548HT	L3	√	12	65	108	480	278	175	190	16.4	1	1	B13	TS6
57220HT	L3	√	12	72	122	520	278	175	190	17.2	0	1	B13	TS6
57221HT	L3	√	12	72	122	520	278	175	190	17.2	1	1	B13	TS6
57543HT	L4	√	12	75	128	540	314	174	190	19.2	0	1	B13	TS6
57511HT	L4	√	12	75	128	540	314	174	190	19.2	1	1	B13	TS6
58043HT	L4	√	12	80	138	580	314	174	190	19.6	0	1	B13	TS6
58520HT	L4	√	12	85	148	620	314	174	190	20.4	0	1	B13	TS6
58519HT	L5	√	12	85	148	560	351	174	188	21.2	0	1	B13	TS6
59524HT	L5	√	12	95	169	640	351	174	188	22.7	0	1	B13	TS6
60038HT	L5	√	12	98	175	680	351	174	188	23	0	1	B13	TS6
54025HT	LB1	√	12	40	61	350	206	174	173	11.2	0	1	B13	TS2
54525HT	LB1	√	12	45	70	400	206	174	173	11.8	0	1	B13	TS2
54069HT	LB2	√	12	40	61	340	242	175	175	12.3	0	1	B13	TS2
54549HT	LB2	√	12	45	70	380	242	175	175	12.8	0	1	B13	TS2
55861HT	LB2	√	12	58	94	540	242	175	175	14.9	0	1	B13	TS2
56420HT	LB3	√	12	65	108	500	276	174	174	16.1	0	1	B13	TS1
56539HT	LB4	√	12	65	108	460	314	174	174	17	0	1	B13	TS6
57539HT	LB4	√	12	75	128	540	314	174	174	18.3	0	1	B13	TS6
